Barrier Group W-Beam Guard Fence

$6900 $7600
Barrier Group  |  SKU: WBR500-2G

$69 Flat rate shipping anywhere in Australia!

“warranty Covered by the full 12-month Barrier Group Warranty

Description

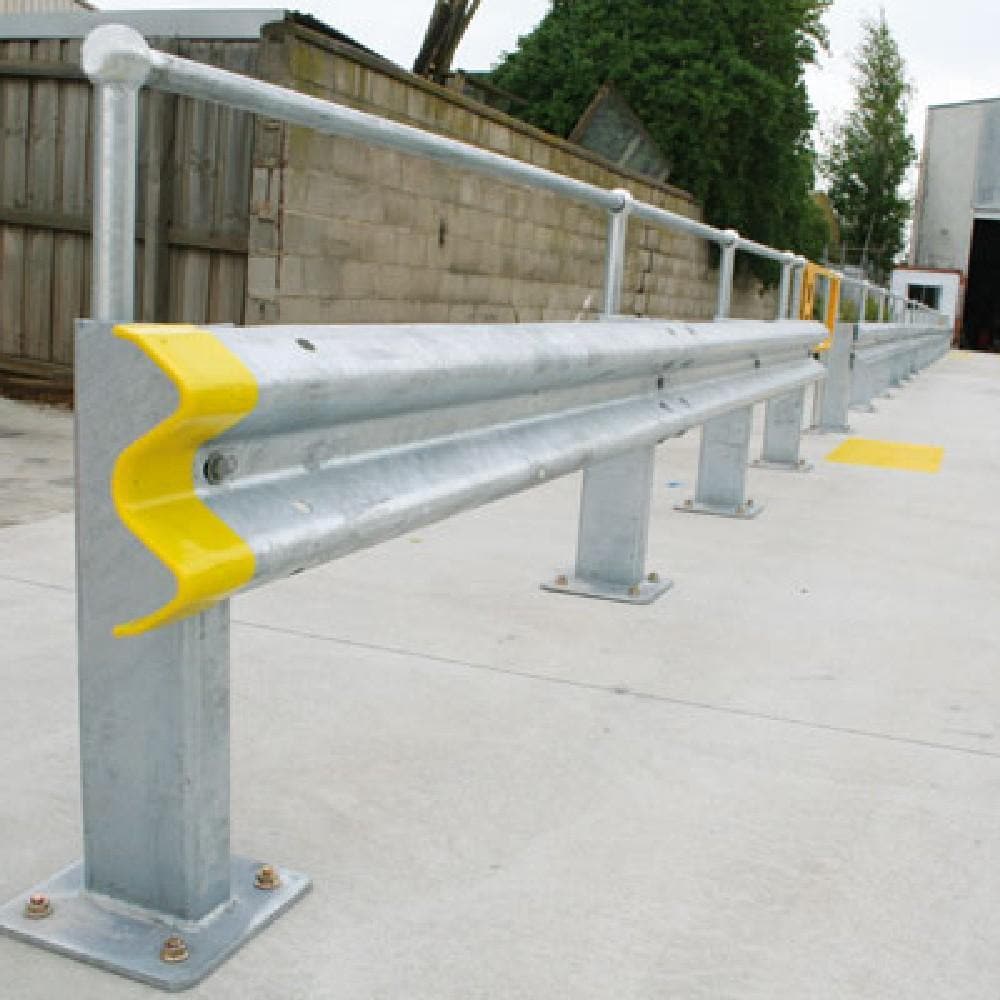

W-Beam Modular Guard Fence For Asset Protection and Pedestrian Safety

The Barrier Group W-Beam Guard Fence is all in one solution to protect assets from pedestrians, slow-moving vehicles passing through Industrial/ Commercial complexes, Car Parks, etc. For non-highway applications, various choices are offered to configure Rail Lengths, Post Options, Accessories associated with W-Bean Guard Fence which complies with VicRoads SD3671-E requirements for ‘Type D’ fence. Barrier Group offers necessary fixings with the posts which feature a modular design for minimal modifications/ repairing. Each of these components has been hot-dip galvanized and hence delivers excellent protection for an extended period.

The Barrier Group W-Beam Guard Fence will be most suitable only for those working areas having impact speeds less than 30km/h. Required installation type is mount or in-ground, as per clients’ requests. Approximate weight of Posts is 18 Kg and Rails per meter weight is 13 Kg. Barrier Group offers hot-dipped galvanized finish for all the components to protect it from rust and chipping, especially in moist coastal regions.

When joining rails together each join requires a W-Beam Splice Fixing Kit (KIT10). Each rail is approximately 150mm longer on each end than the post centres.



Barrier Group W-Beam Guard Fence External Curved Rails detailed specifications

Barrier Group W-Beam Guard Fence Internal Curved Rails detailed specifications



Features & Benefits

  •   Unique design for pedestrian and asset protection
  •   Modular Barrier System suitable for Industrial and Commercial Applications
  •   Easily Configure Rail Lengths, Post Options, and Accessories
  •   Simple repairing and modifications in Guard Fence
  •   Hot Dipped Galvanized Components

Specifications

Description: Heavy duty modular guard fence system
Material: Posts – Mild steel 178 x 76 x 6mm.
Rails – Mild steel 2.75mm thick in eight standard lengths.
Finish: All components hot dipped galvanised.
Weight: Posts – 18kgs (approx.)
Rails – 13kgs per metre (approx.)
Installation:

Surface mount or in-ground.



Straight Rails

PART No. DESCRIPTION (supplied with fixings)

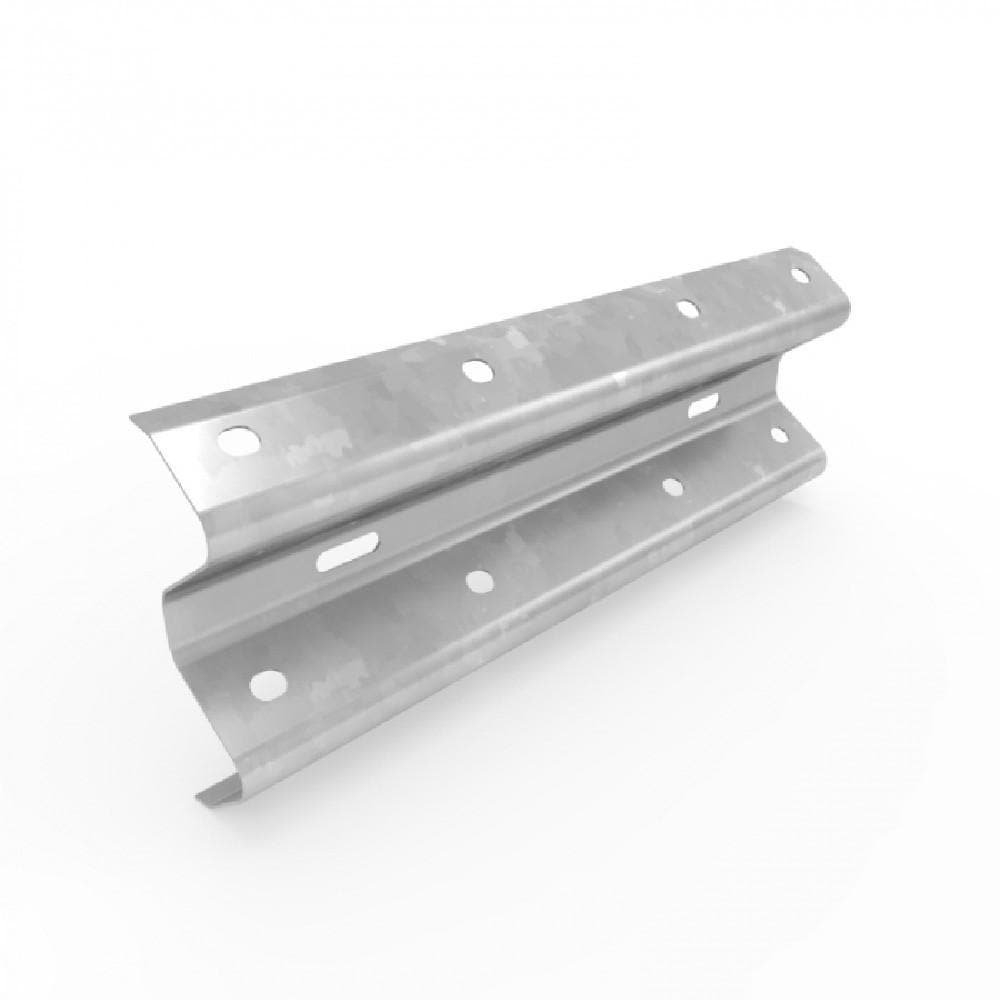

WBR500-2G W-Beam rail for 0.5 metre centres (requires 2 posts)

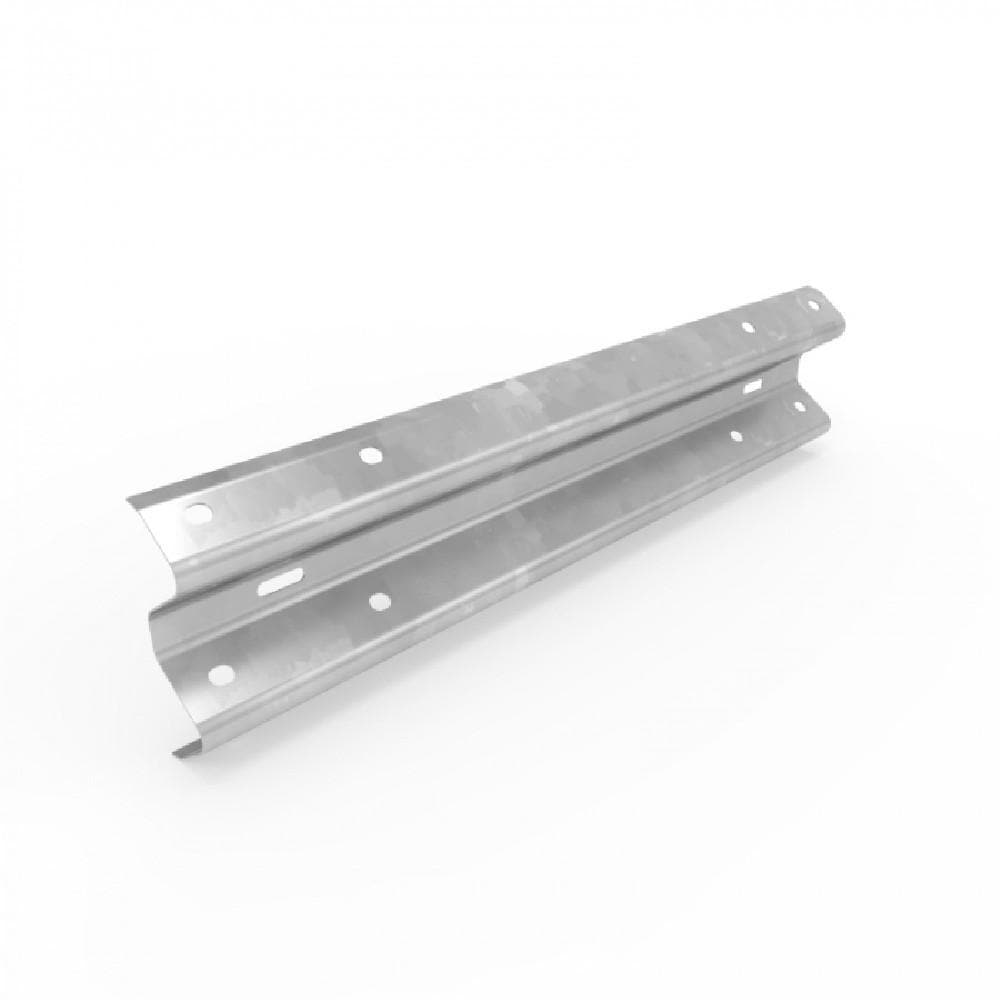

WBR1000-2G W-Beam rail for 1 metre centres (requires 2 posts)

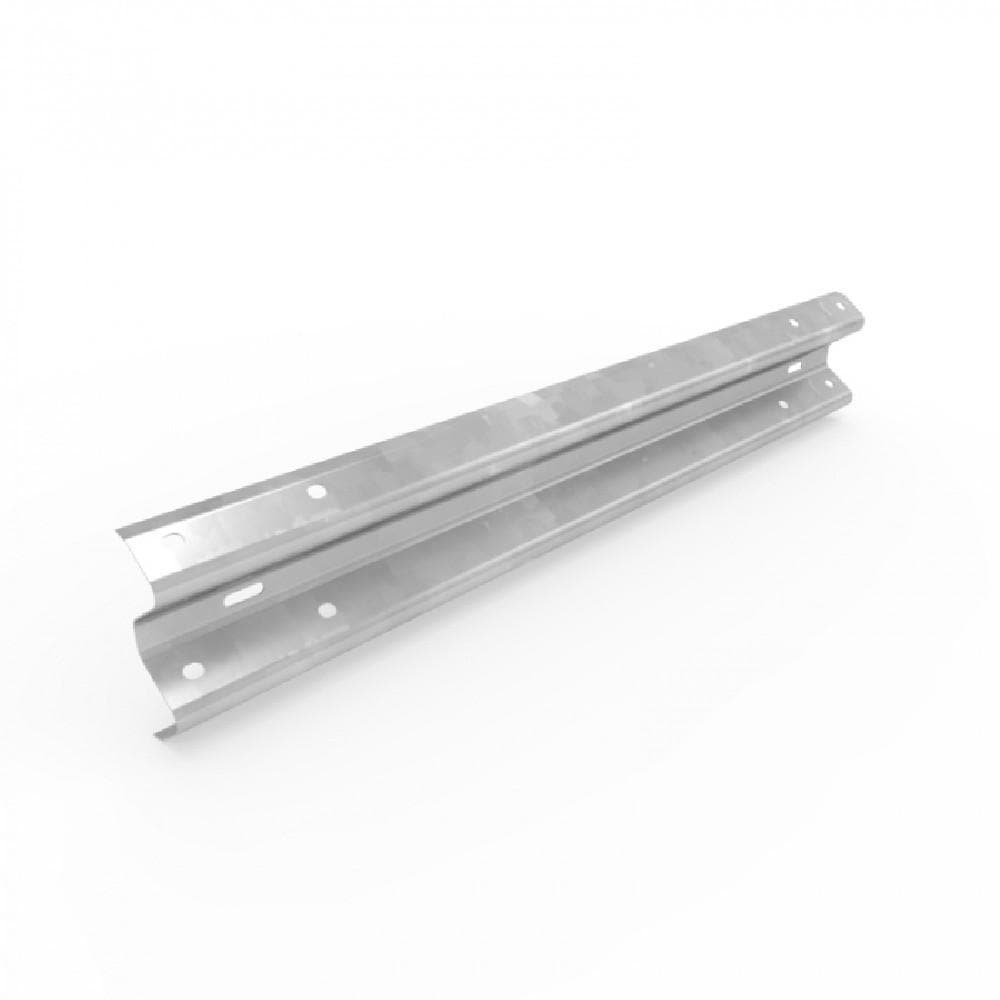

WBR1500-2G W-Beam rail for 1.5 metre centres (requires 2 posts)

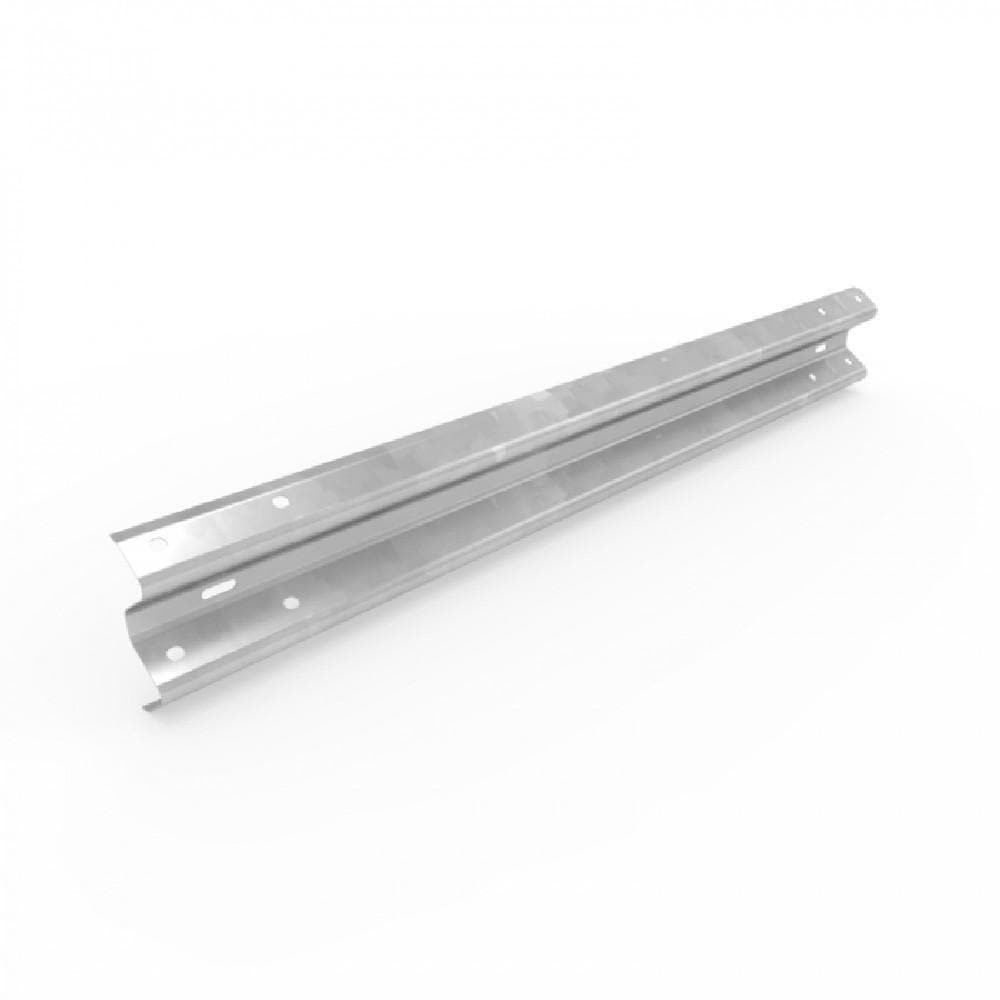

WBR2000-2G W-Beam rail for 2 metre centres (requires 2 posts)

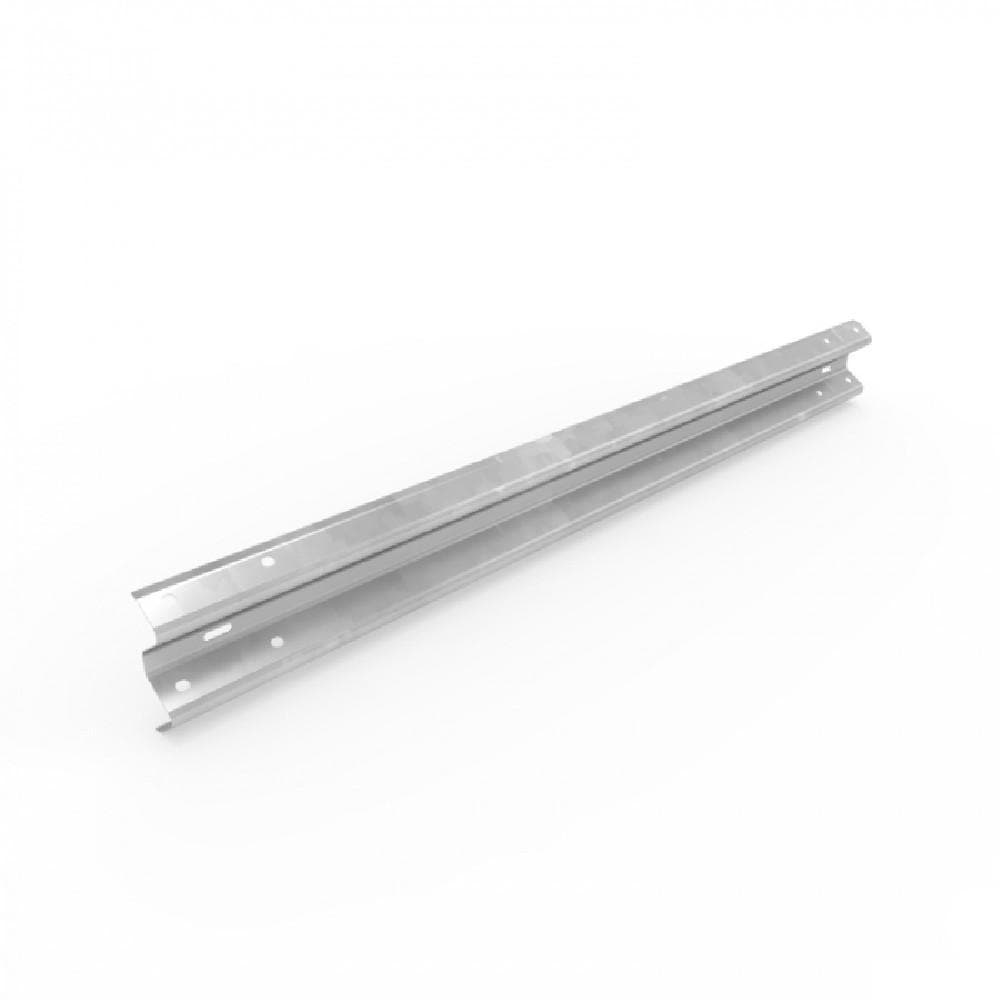

WBR2500-2G W-Beam rail for 2.5 metre centres (requires 2 posts)

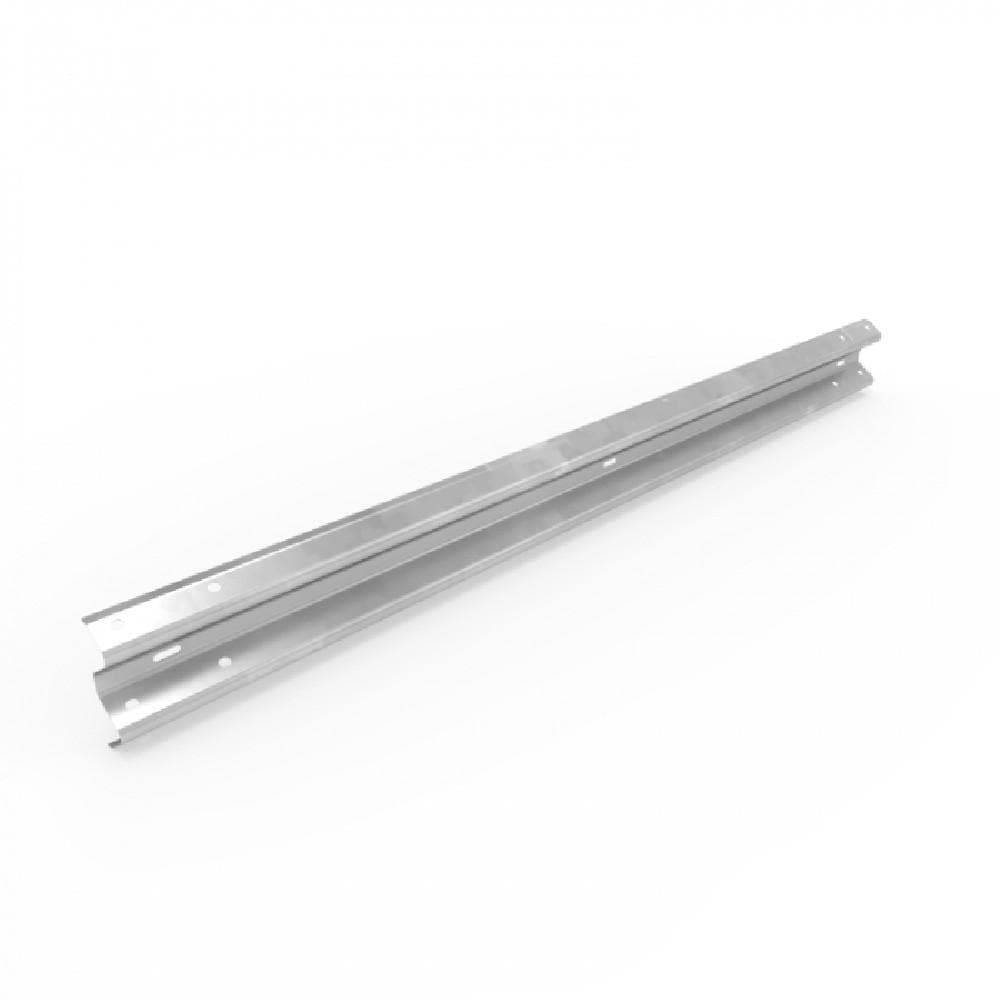

WBR3000-3G W-Beam Rail for 3 metre centres (requires 3 posts)

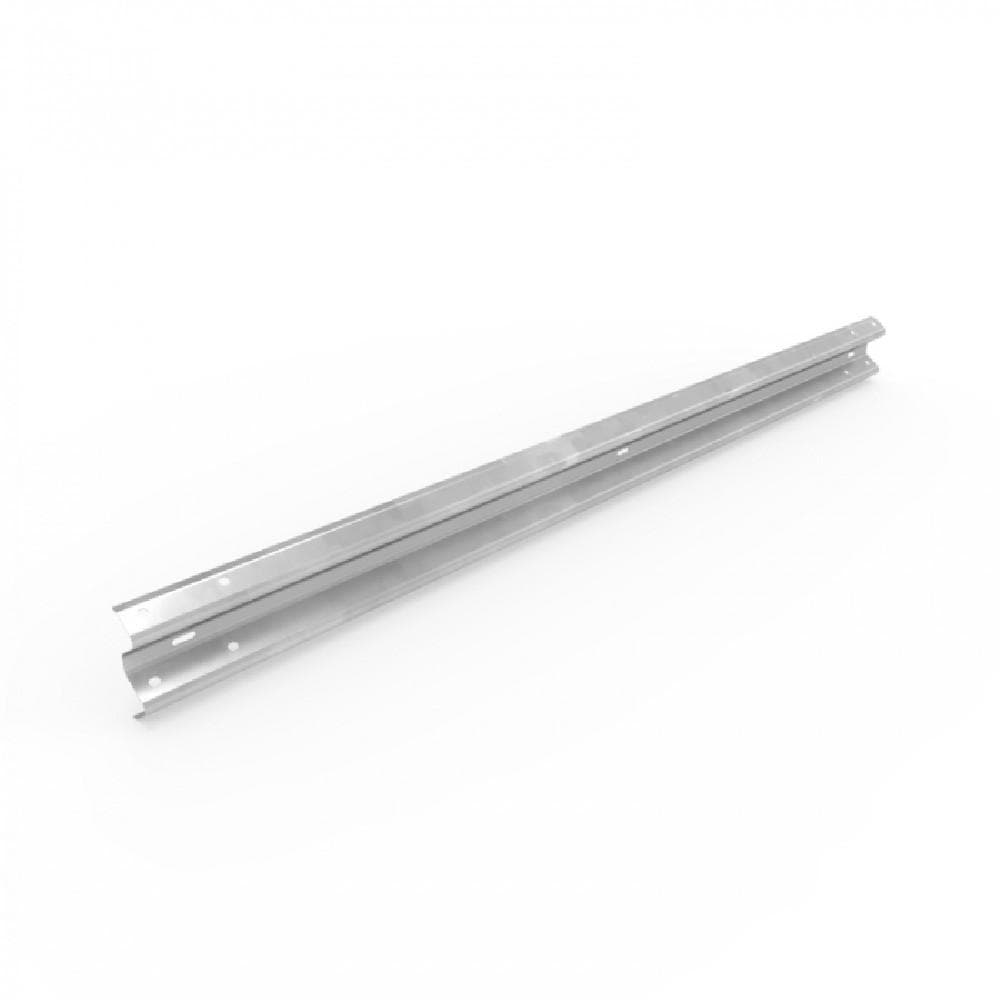

WBR3500-3G W-Beam Rail for 3.5 metre centres (requires 3 posts)

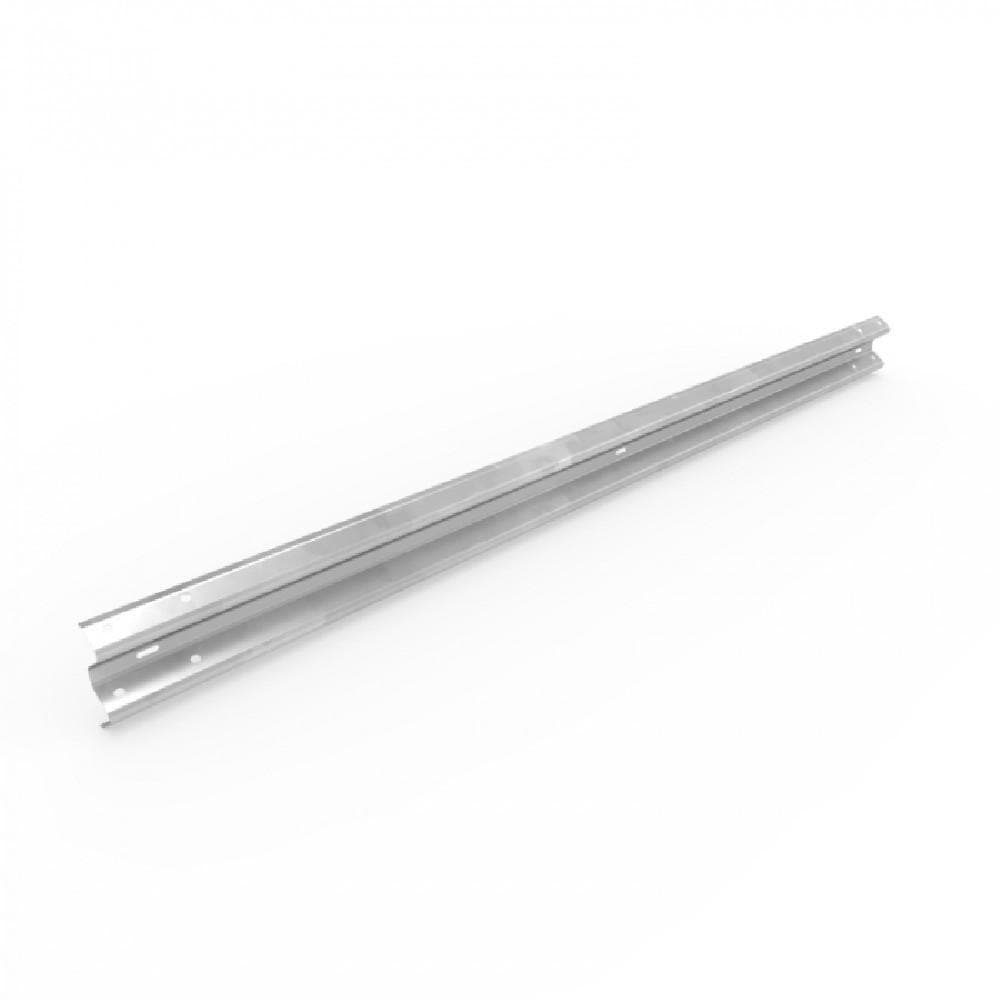

WBR4000-3G W-Beam Rail for 4 metre centres (requires 3 posts)

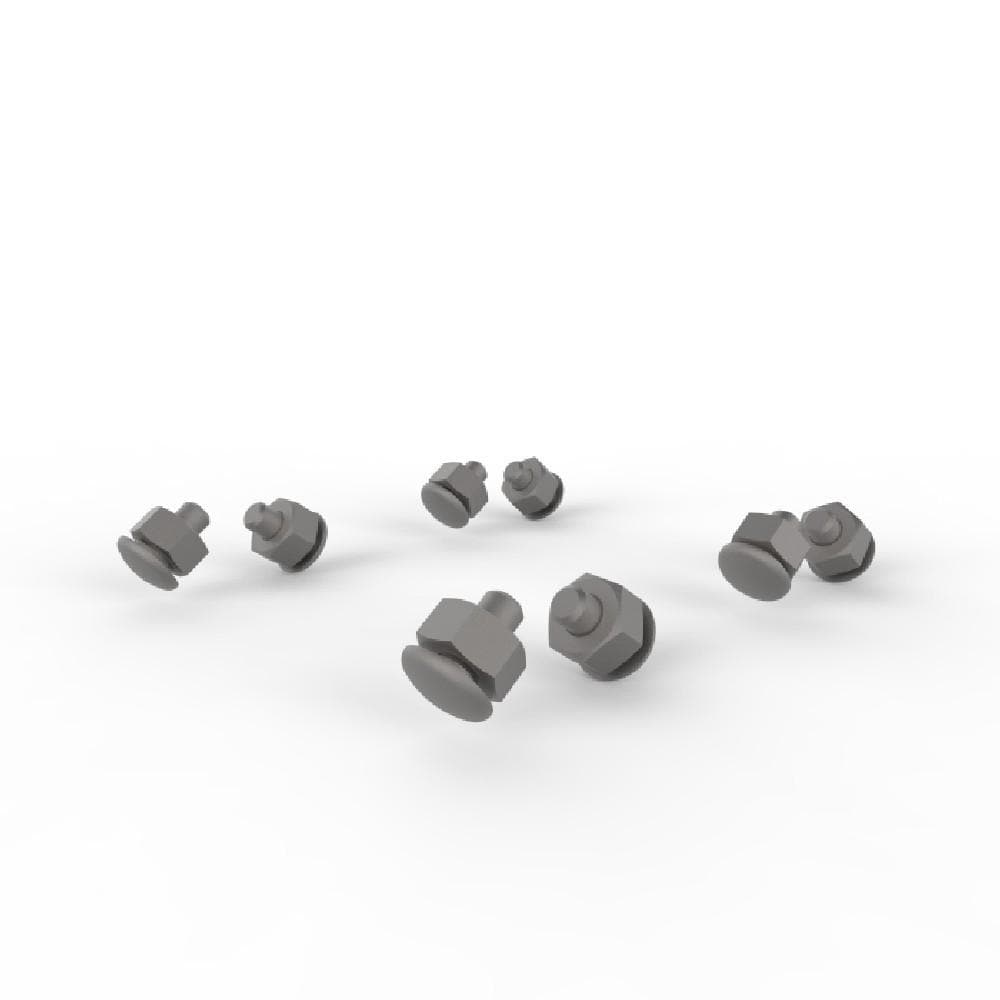

KIT10 W-Beam Splice Fixing Kit (8 off M16 x 32 bolts with nuts)



Curved Rails

Note: Ball-Fence posts should be mounted to pedestrian side of W-Beam posts

PART No. DESCRIPTION

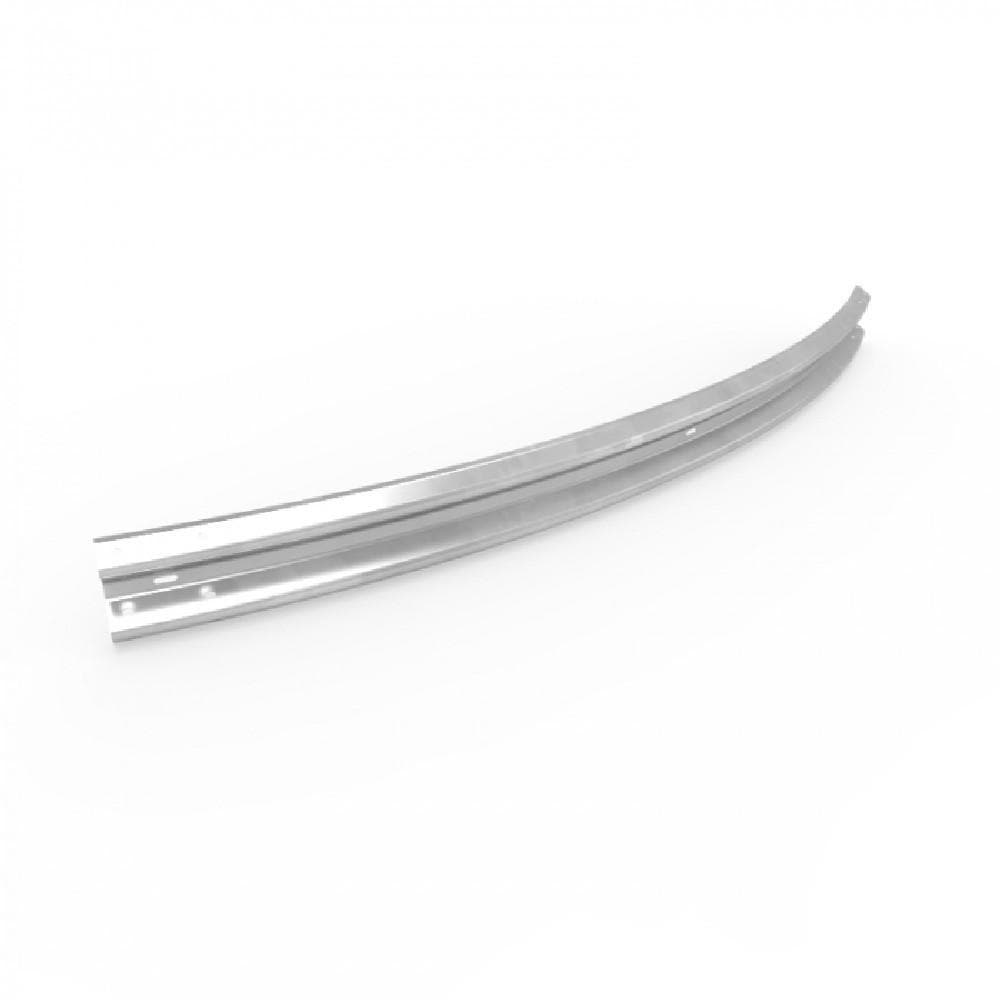

WBR45EX W-Beam 45 degree curved rail – External

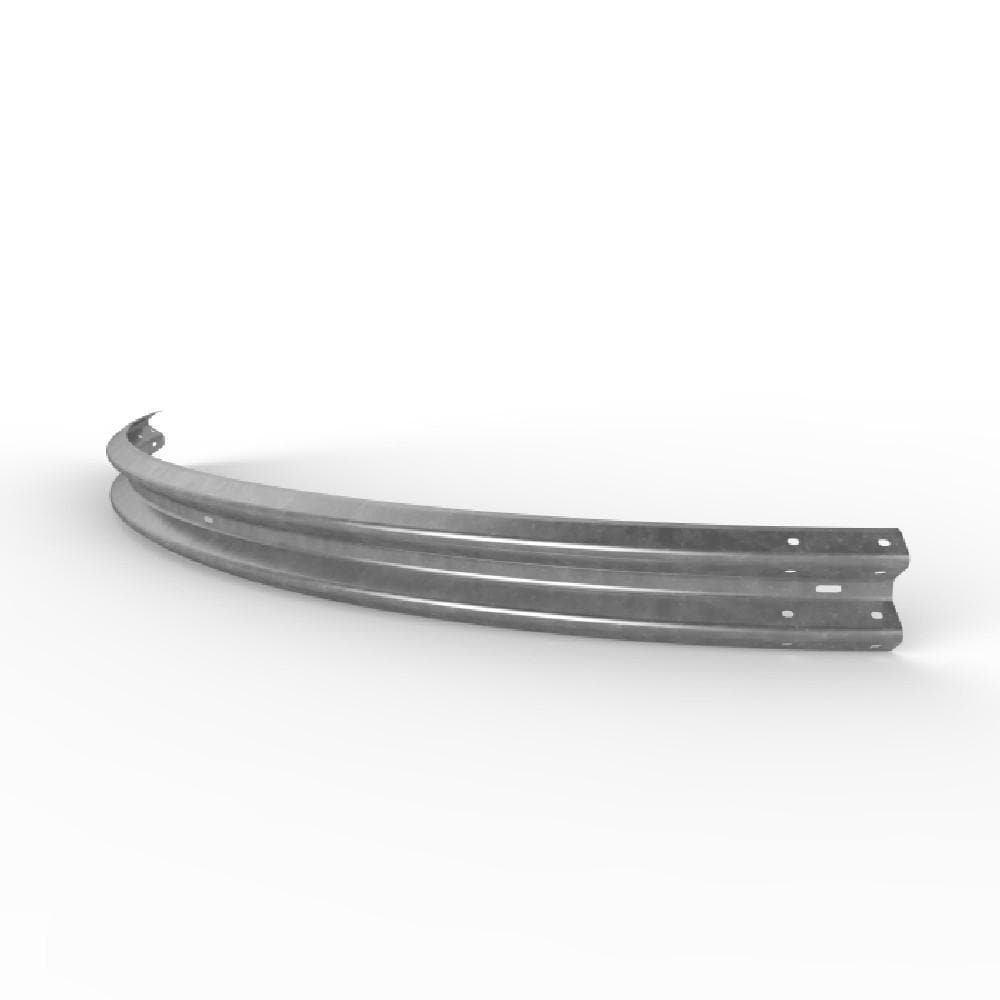

WBR90EX W-Beam 90 degree external curved rail – External

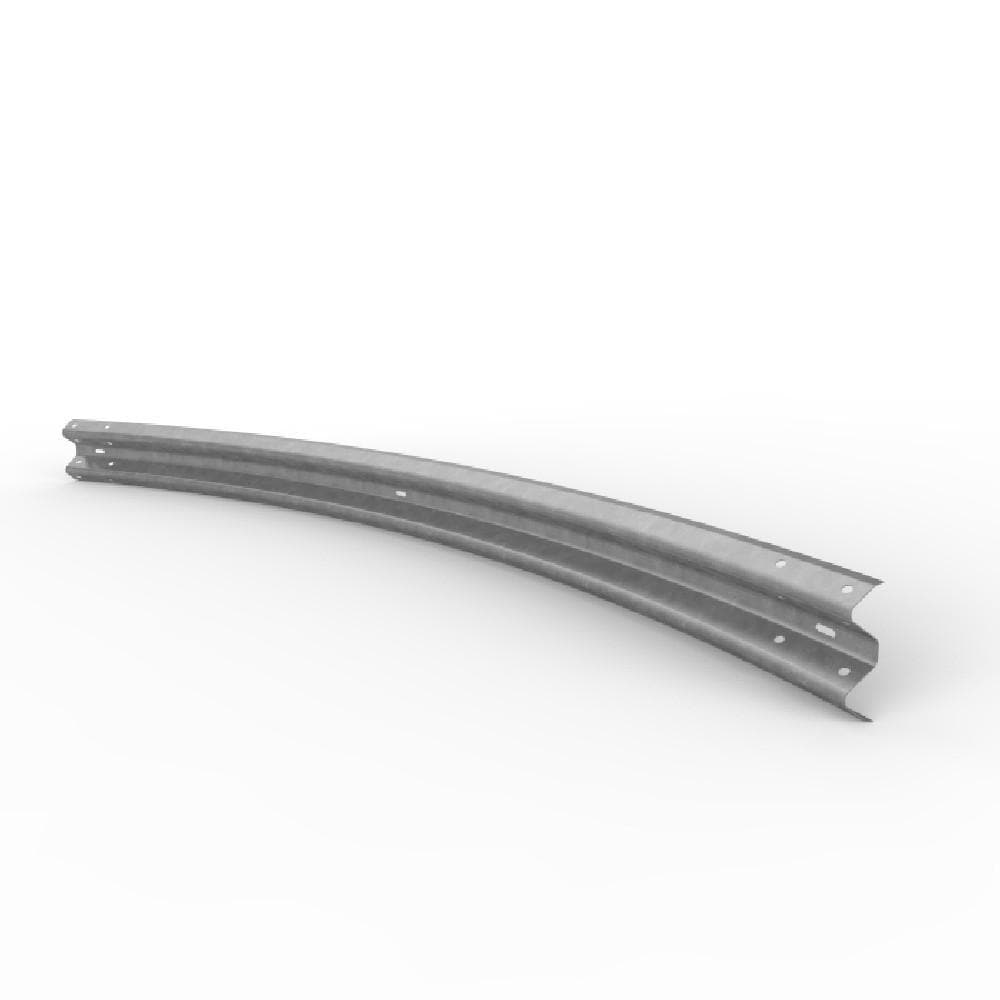

WBR45IN W-Beam 45 degree curved rail – Internal

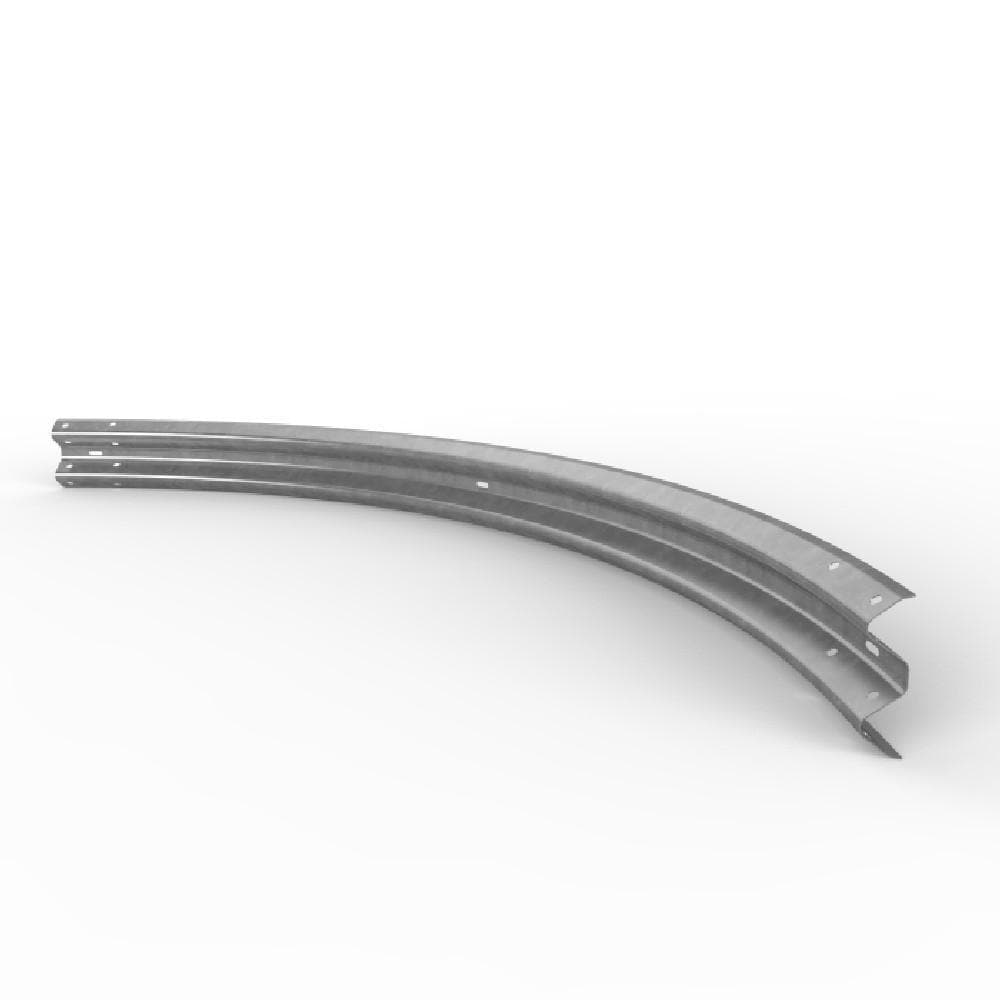

WBR90IN W-Beam 90 degree curved rail – Internal



Rail Posts

PART No. DESCRIPTION (supplied with fixings)
WBP400-SM W-Beam single rail surface mount post 400mm – Galvanised
WBP725-SM W-Beam single rail surface mount post 725mm – Galvanised
WBP1225-BG W-Beam single rail below ground post 1225mm – Galvanised
WBP1140-D-SM W-Beam double rail surface mount post 1140mm – Galvanised
WBP1760-D-BG W-Beam double rail below ground post 1760mm – Galvanised
CAPWBP-P W-Beam Post Cap - Yellow



Hand Rails and Gates

PART No. DESCRIPTION (supplied with fixings)
BFTP-WB W-Beam/Ball-Fence through post – Galvanised
BFEP-WB W-Beam/Ball-Fence end post – Galvanised
BFHR Ball-Fence hand rail 32 N.B. x 6 metres – Galvanised
BFG Ball-Fence self-closing gate (complete with hoop) – Galvanised
BFG-P Ball-Fence self-closing gate (complete with hoop) – Galvanised & Yellow powder coated
BFGPWB-SM Ball-Fence gate post 48 x 1017mm – Galvanised



Rail Ends

PART No. DESCRIPTION (supplied with fixings)

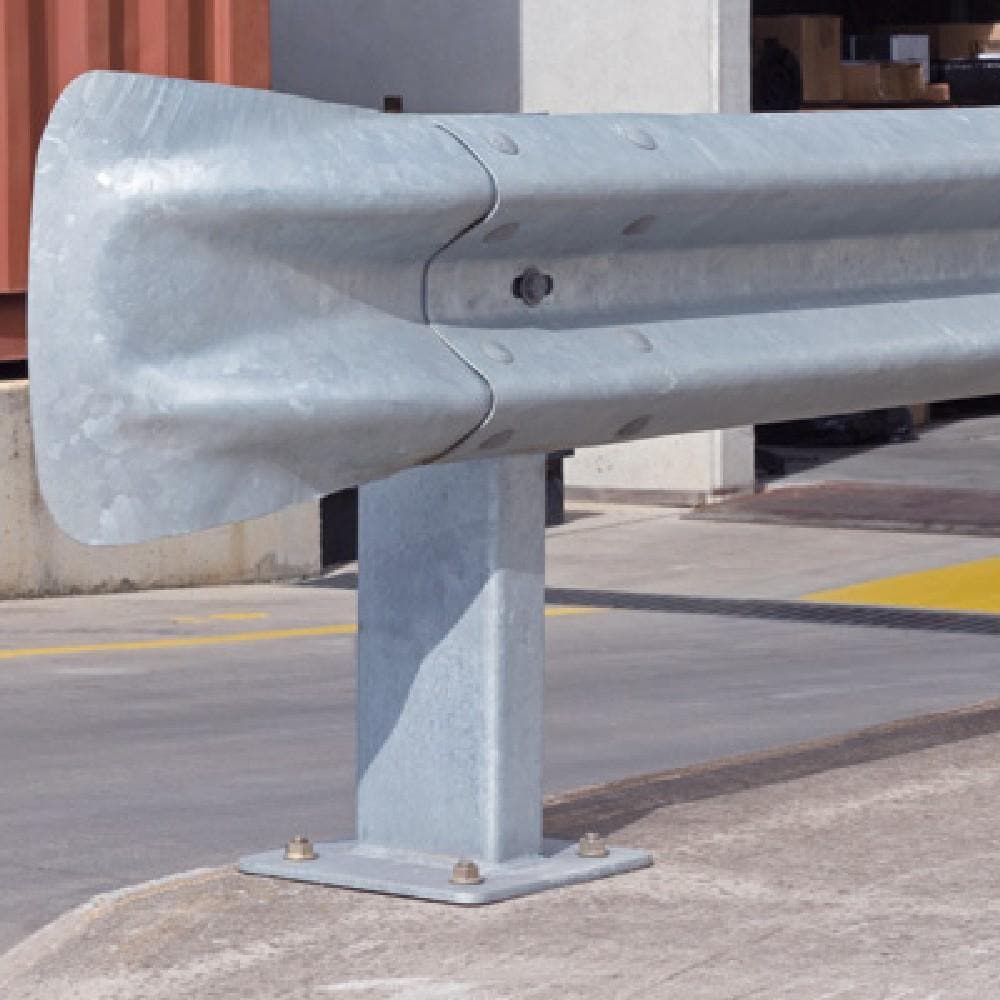

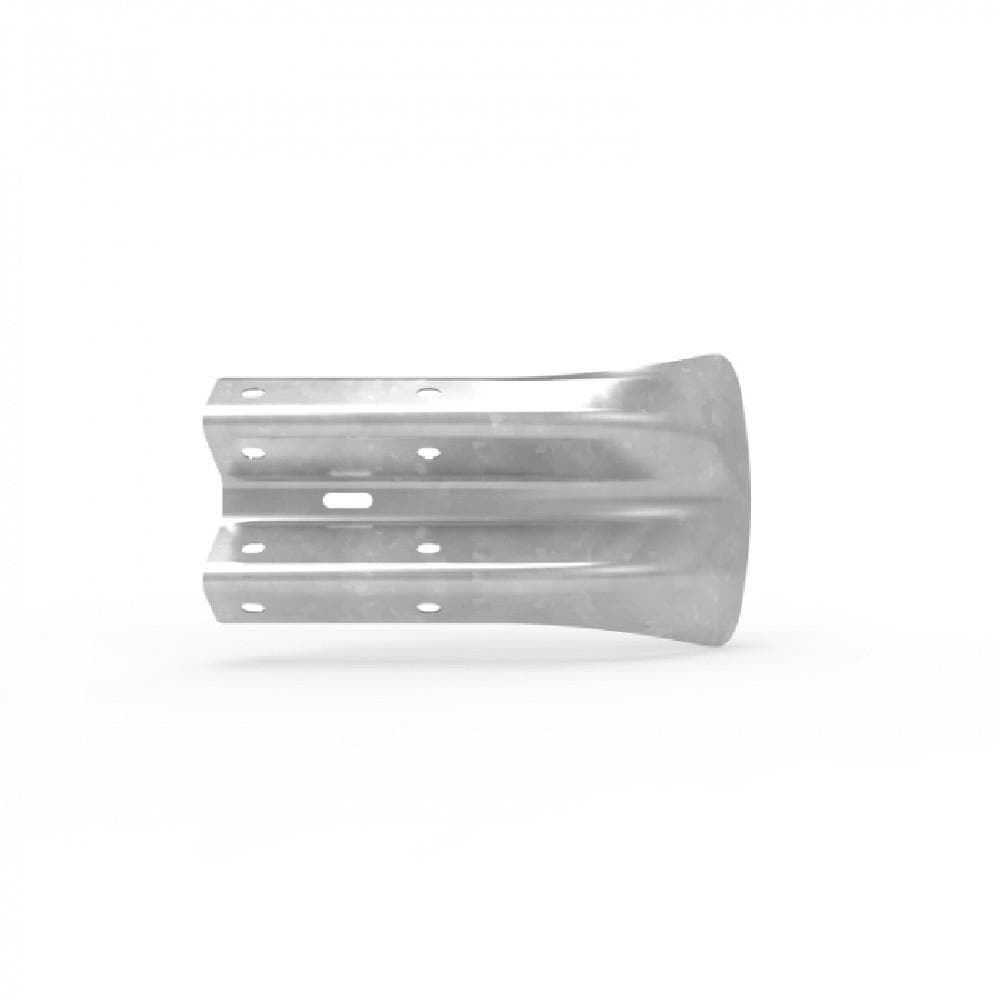

WBFT-G W-Beam fish tail end terminal 710 x 3mm – Galvanised

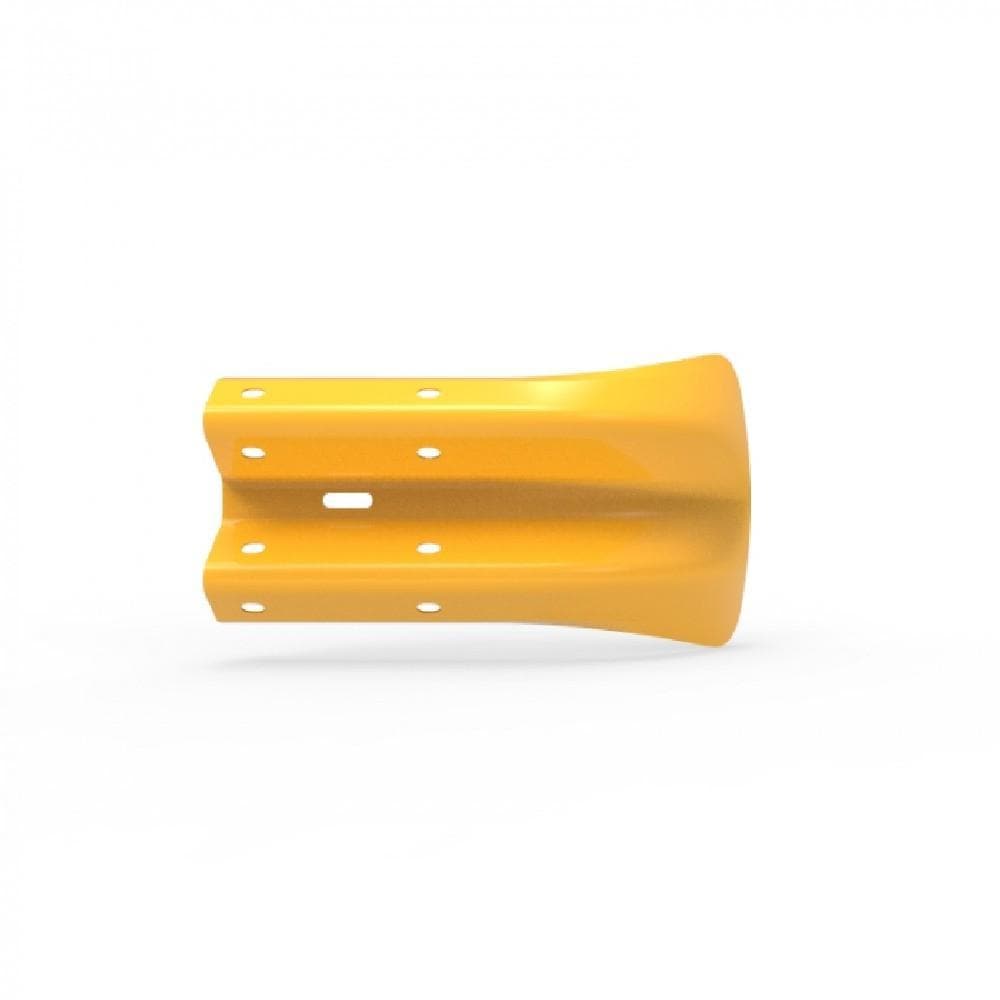

WBFT-Y W-Beam fish tail end terminal – Galvanised & Yellow powder coated

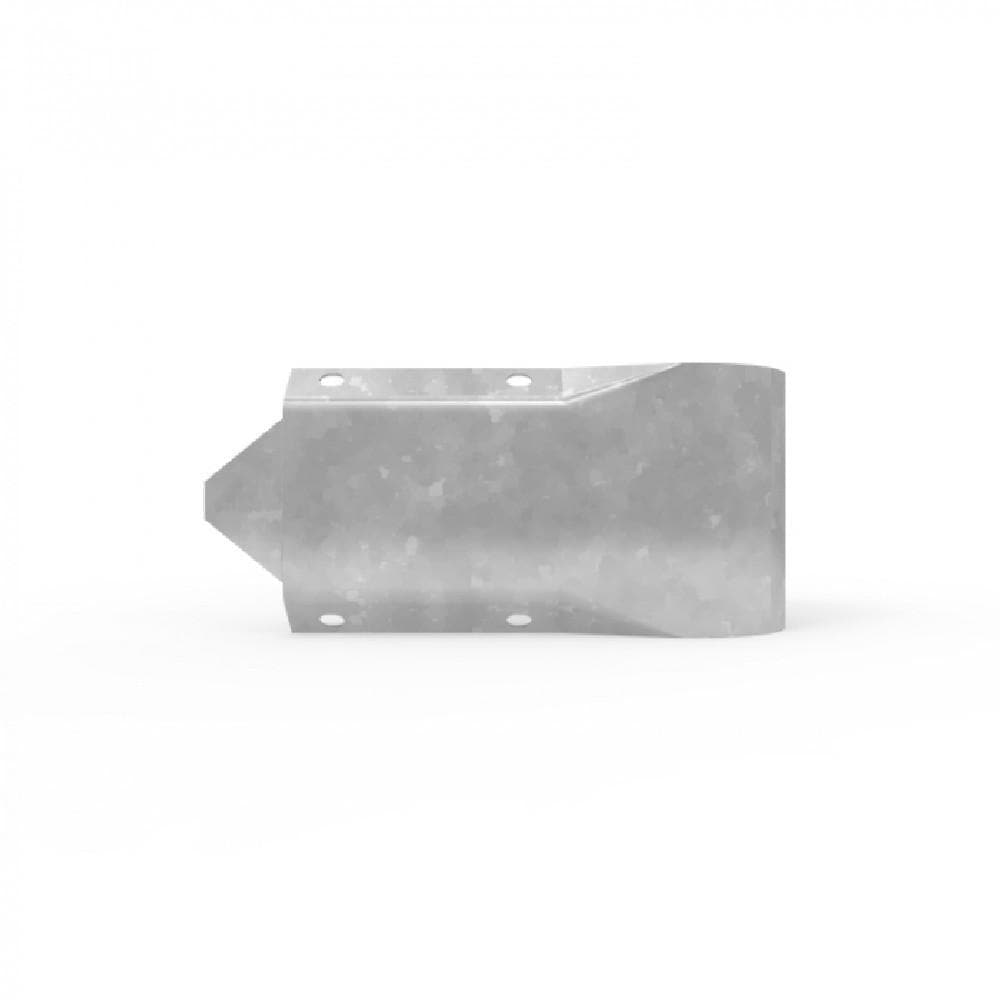

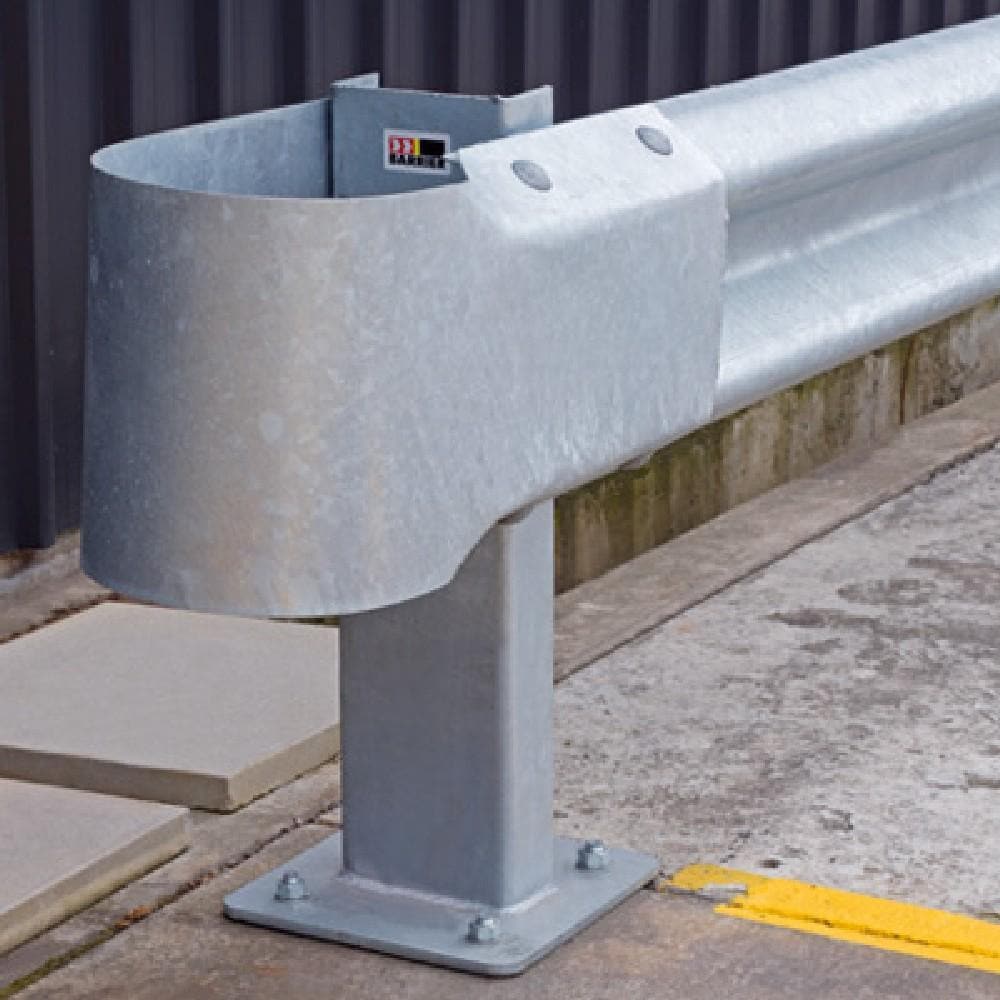

WBSN-G W-Beam stubby nose end terminal 710 x 3mm – Galvanised

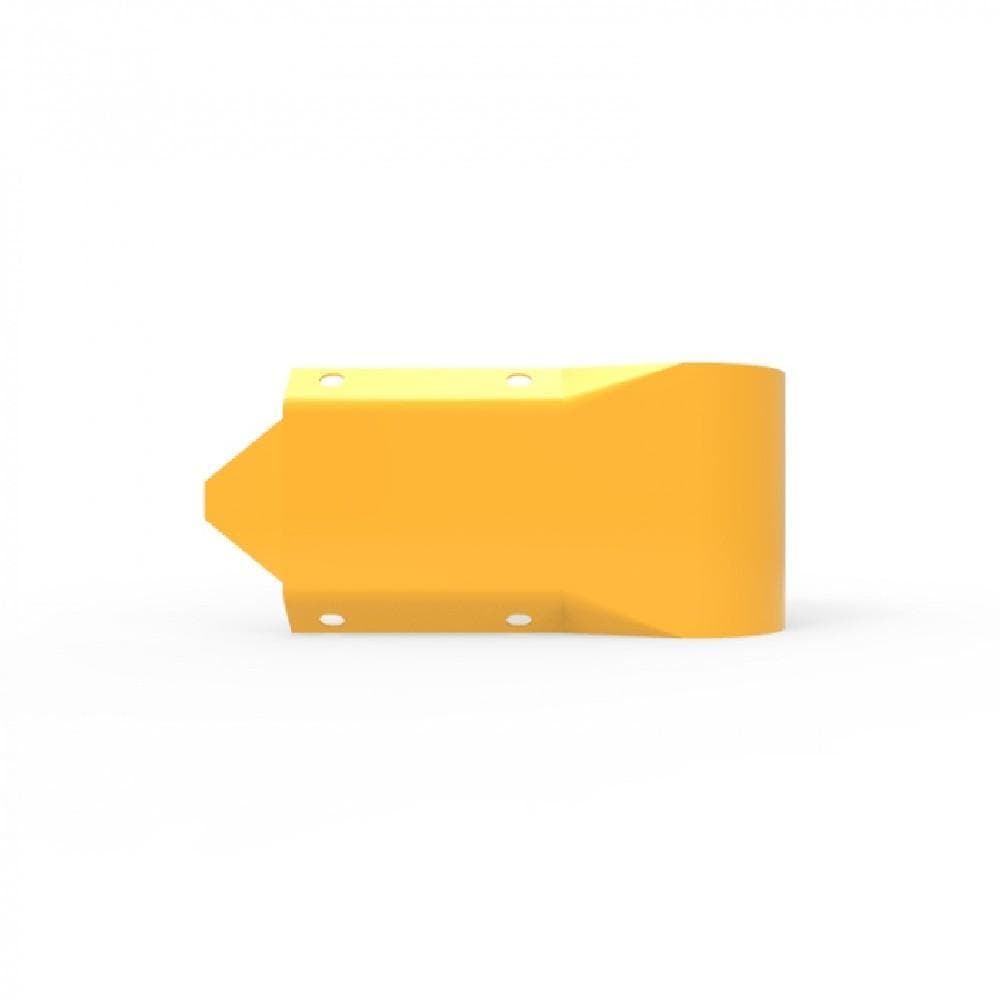

WBSN-Y W-Beam stubby nose end terminal – Galvanised & Yellow powder coated

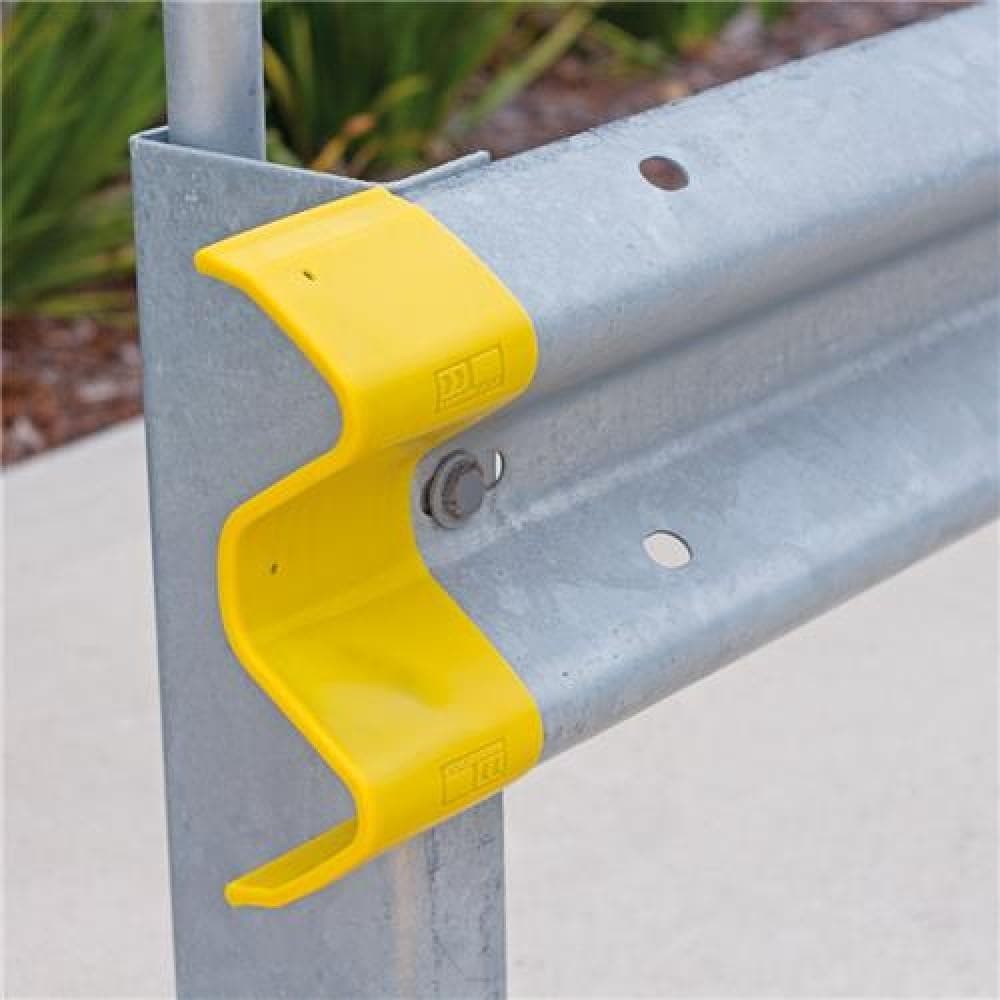

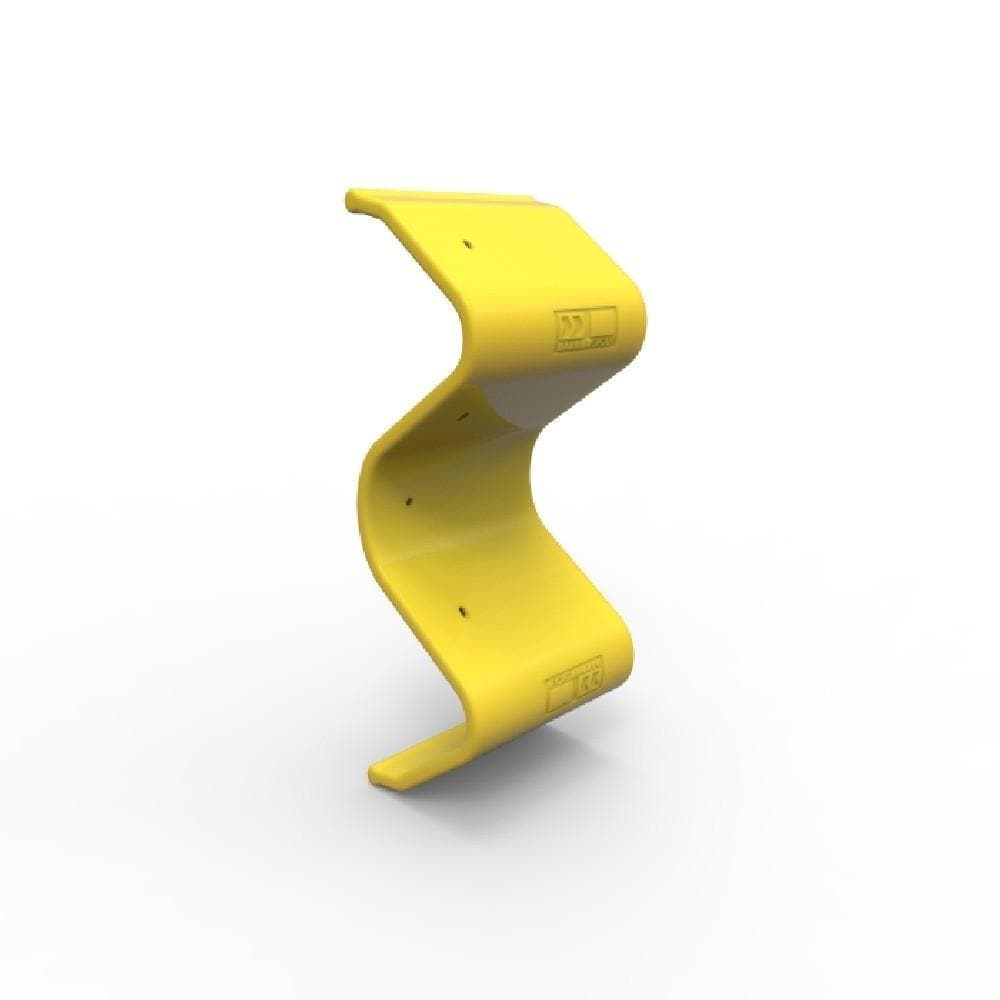

WBRB W-Beam rail end boot – Yellow LLDPE



Connectors

PART No. DESCRIPTION (supplied with fixings)

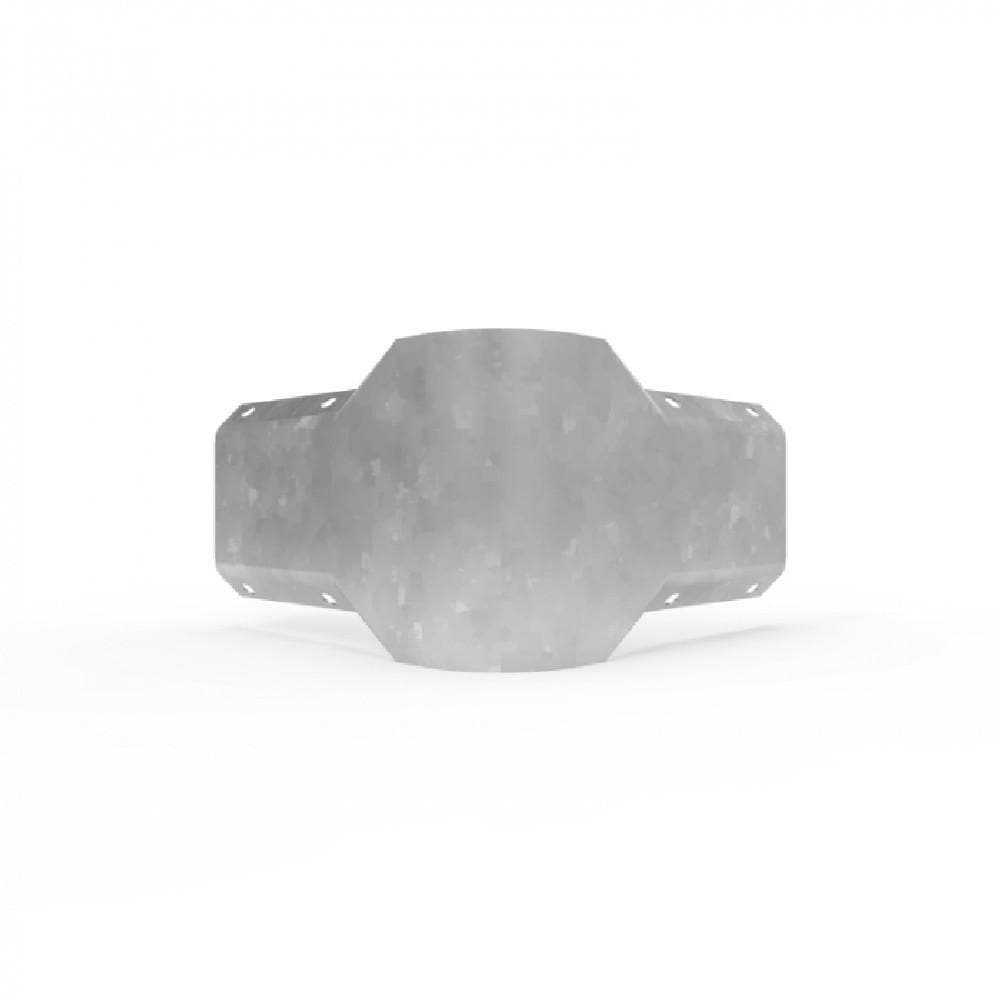

WB90EC-G W-Beam 90 degree external connector – Galvanised

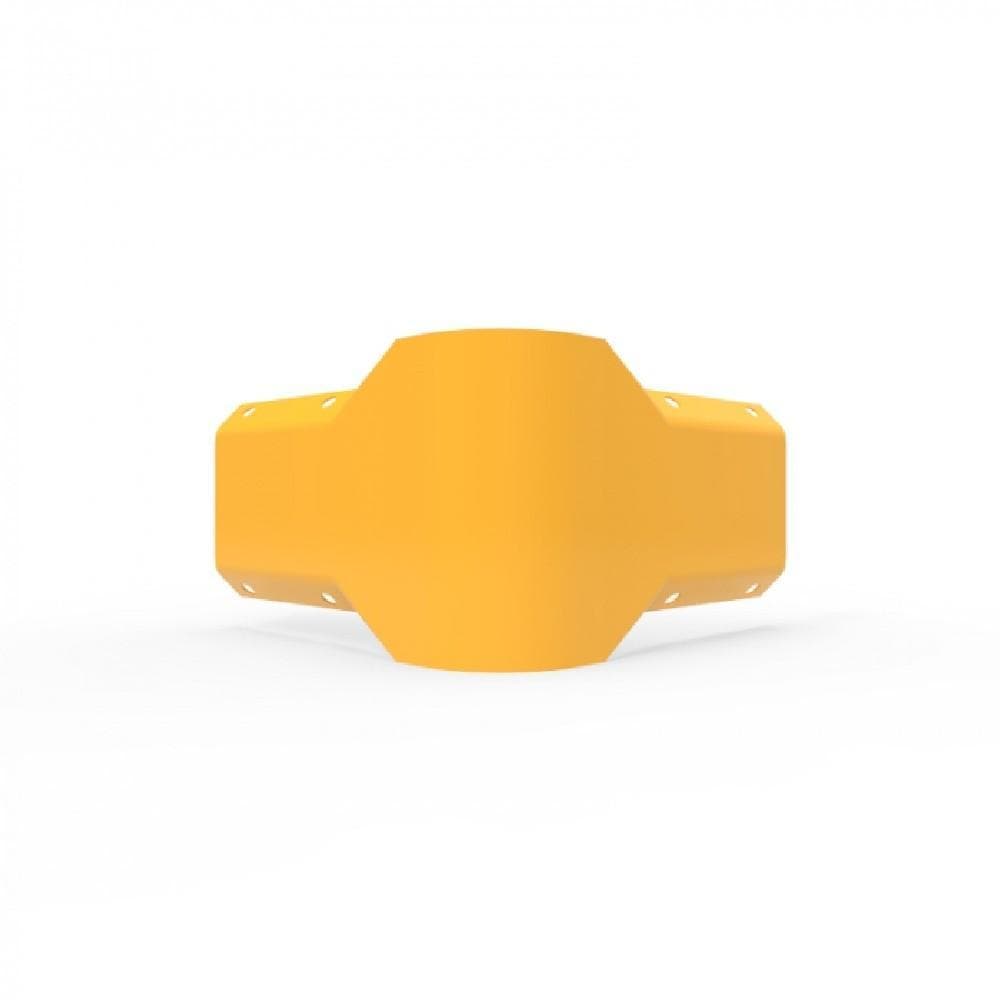

WB90EC-Y W-Beam 90 degree external connector – Galvanised & Yellow
powder coated

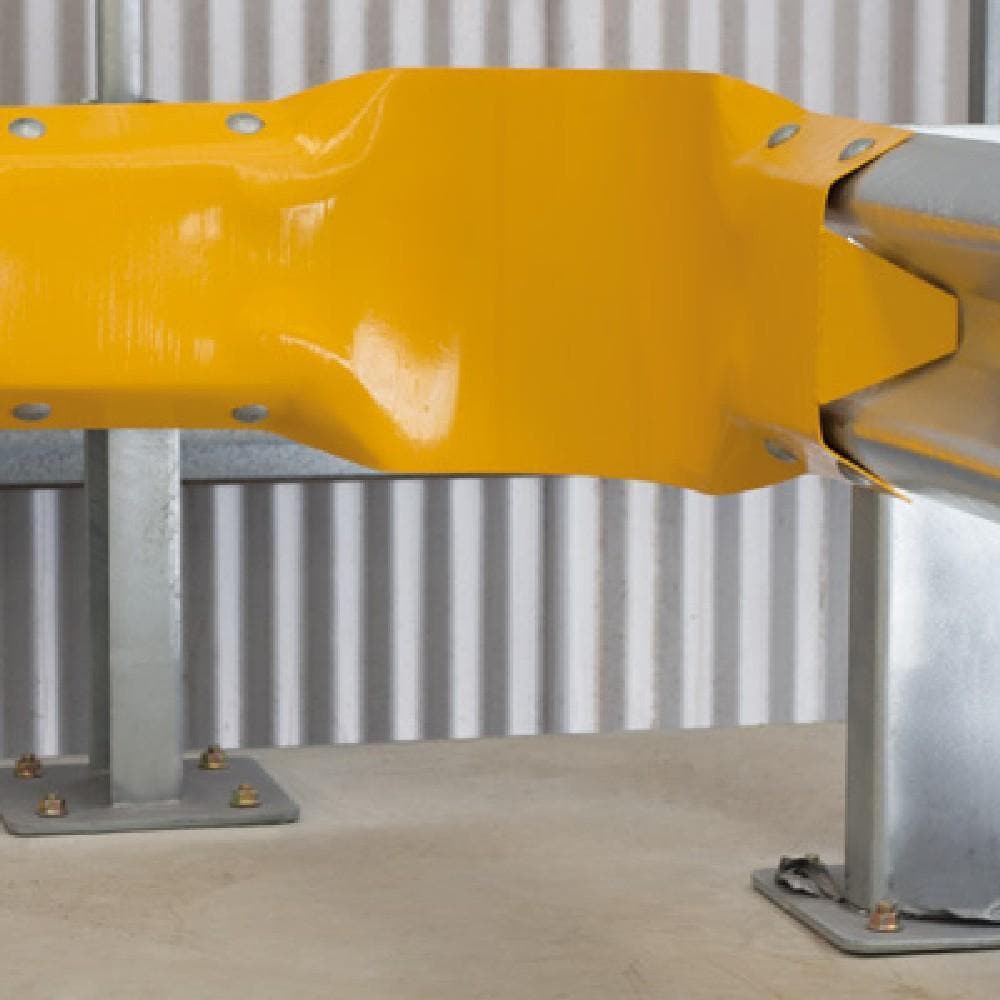

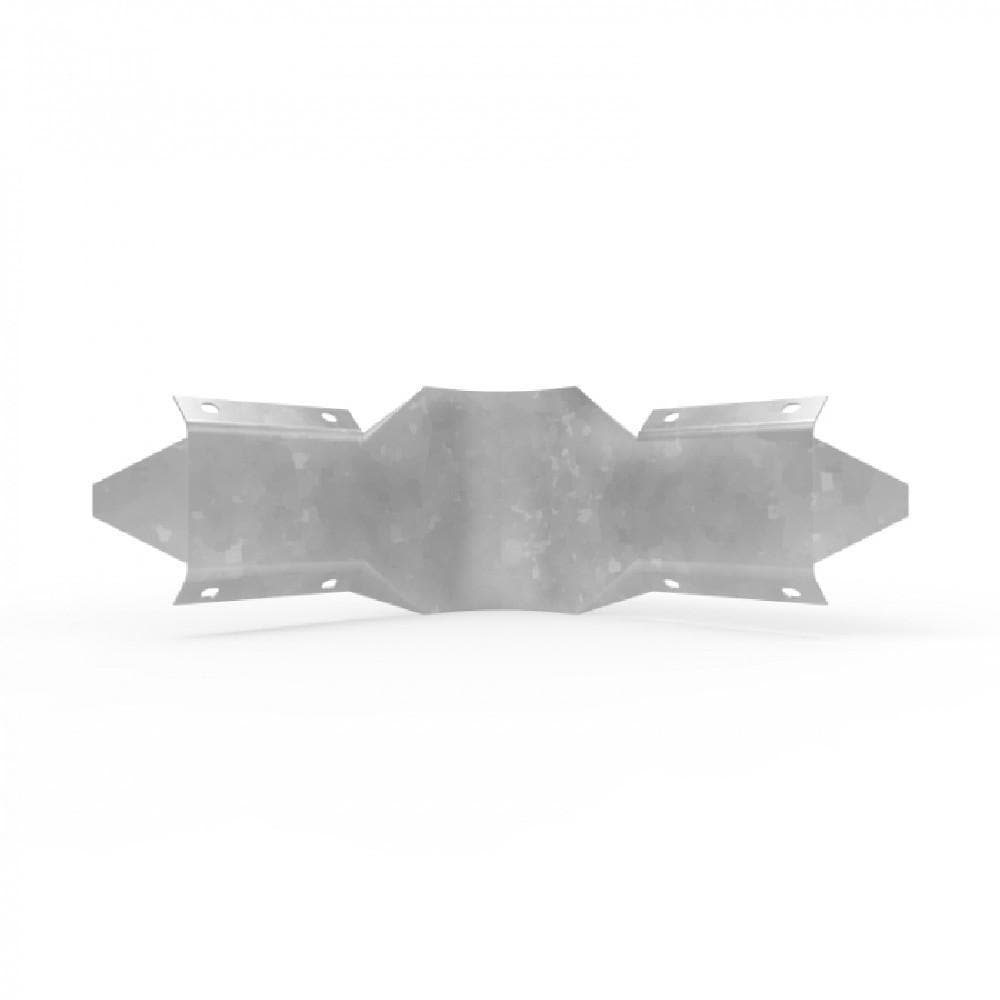

WB90IC-G W-Beam 90 degree internal connector – Galvanised
WB90IC-Y W-Beam 90 degree internal connector – Galvanised & Yellow
powder coated
