Heeve Standard Forklift Container Ramp
Ramp Champ's own brandSKU: H0172$917.27 ex GST
- Length1500mm
- Holds6500kg
- Rated to 6,500kg for forklift work
- 1500mm long for the first two pallet rows
- Flip-up tyne pocket so you can move it with the forklift
Will it reach your deck? Reaches ~310 mm. Check yours›
Reaches a deck up to ~310 mm high at 12°, the steepest we recommend for a forklift or container ramp.
Open the ramp calculatorSold out
Email me when it's back
Ramp Champ's own brandi
54,000+ soldi
12-month warrantyi
100-day free returnsi
Rated 4.7 from 1,186 reviews on Google, ProductReview and Trustpilot
Goes well with
Container ramp specifications and dimensions
| Holds | 6500kg |
|---|---|
| Colour | Blue |
| Brand | Heeve |
| SKU | H0172 |
| Length | 1500mm |
| Width | 2000mm |
| Height | 145mm |
| Weight | 190kg |
| Dimensions | 1500mm x 2000mm x 145mm |
About this container ramp
Load containers safely with your forklift
The Heeve Standard Shipping Container Forklift Ramp suits standard 20-foot and 40-foot containers. It has been designed for light to medium-duty use.
Load containers safely with your forklift

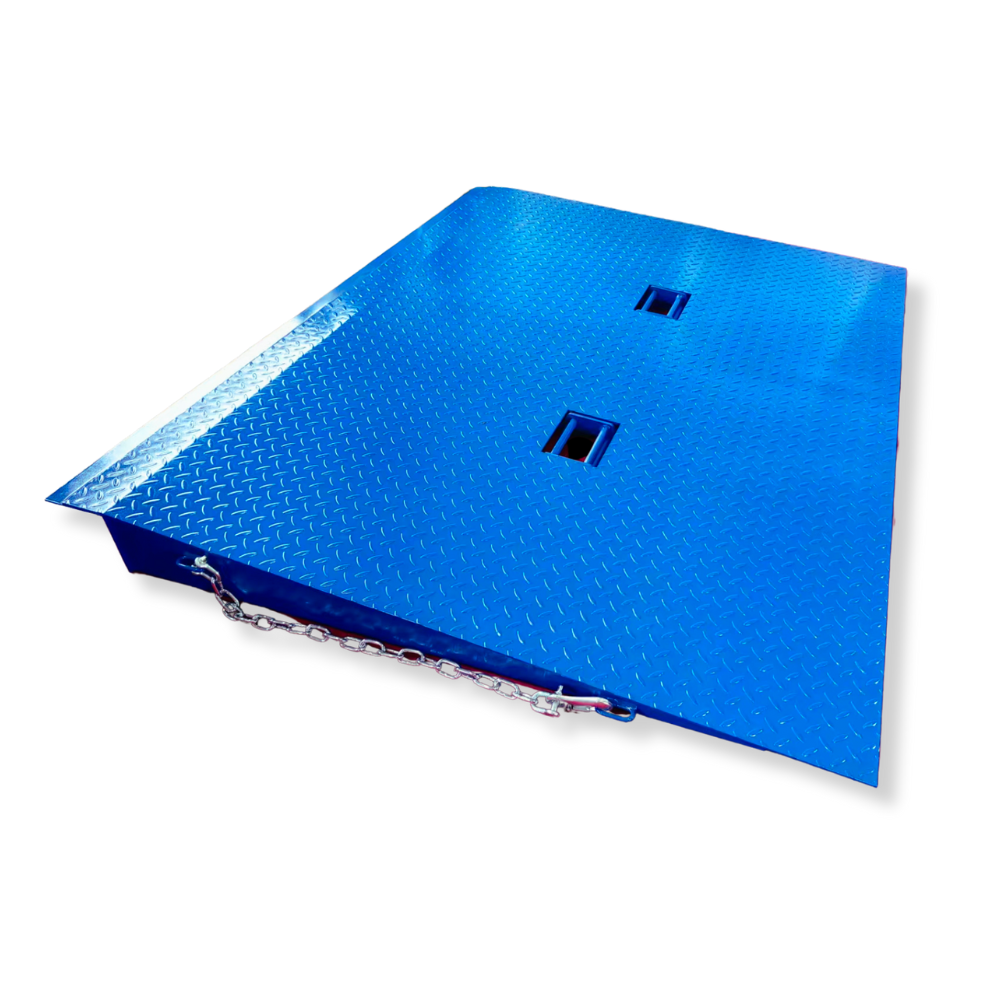

With a 5mm thick steel plate and a solid frame, this strong and sturdy one-piece unit features forklift tyne slots at the face of the ramp for easy relocation whilst its anti-skid surface makes operation safe and secure.

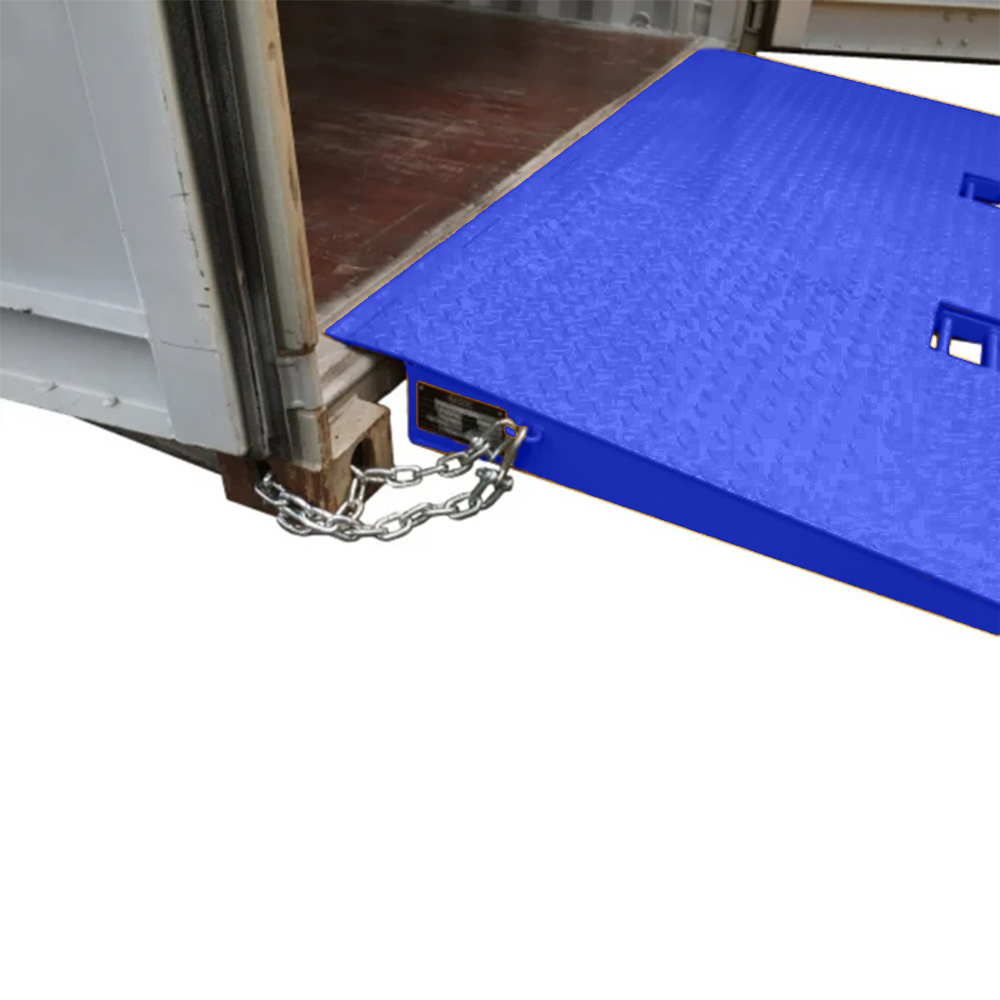

It comes with a connecting chain and D-shackles for secure connection to the container when in use.
Why this container ramp works
- 1500mm long allowing easy placement and removal of the first and second line of pallets in a container
- Simple to lift and relocate
- Flip up tyne pocket at the top
- Self-supporting
- Supplied with safety chains on both sides
- Secure connection to the container whilst in use
- Suitable for 10, 20ft and 40ft containers
- With an anti-skid checker plate surface
How does Heeve standard forklift container ramp work?

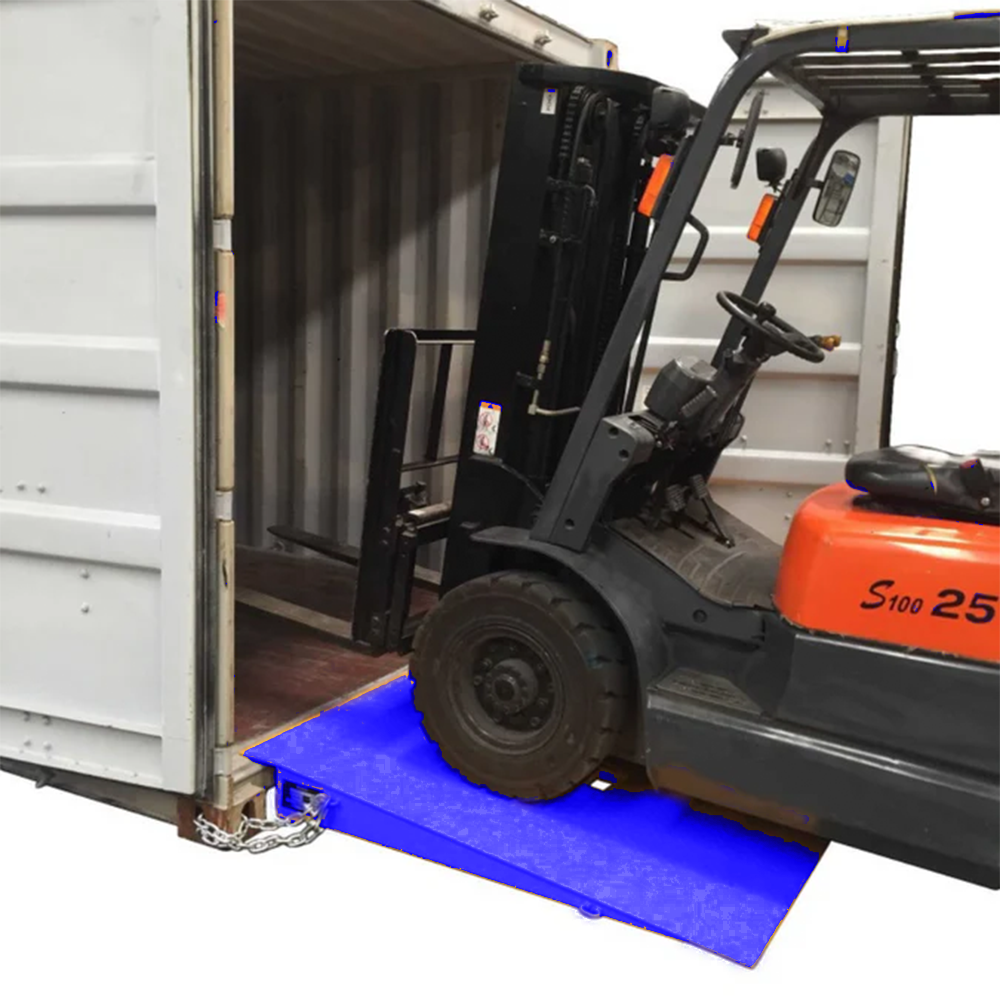

Ground-based shipping containers can be accessed via forklift, pallet truck or foot with the Heeve Standard Forklift Container Ramp by placing the ramp at the doorway of the shipping container.

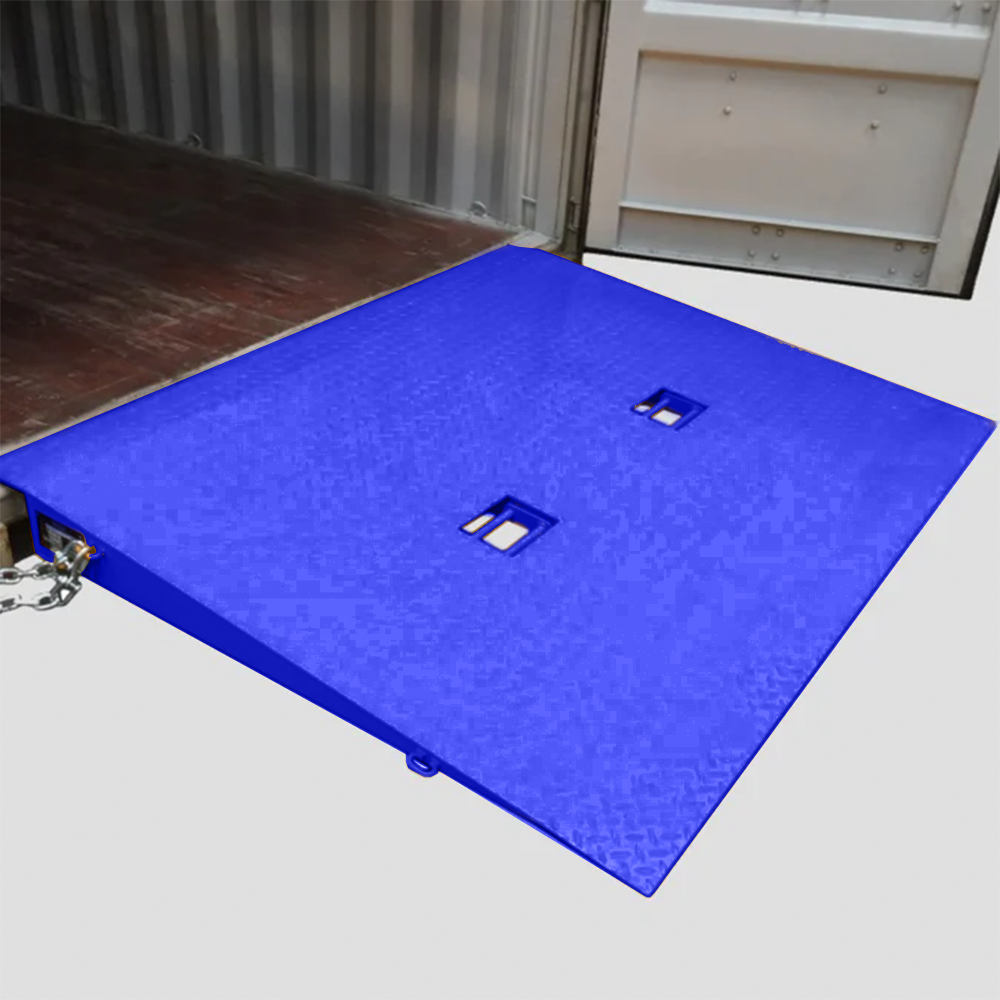

The container ramp lip is designed to be placed inside the shipping container, providing a smooth, non-slip transition between the container floor height and the ground level.
Key benefits
- Rated to 6,500kg for forklift work
- 1500mm long for the first two pallet rows
- Flip-up tyne pocket so you can move it with the forklift
- Strong – 5mm steel plate & reinforced frame
- Safe – Non-slip checker plate surface + secure connection to the container
- Fast – Relocate with ease without leaving the forklift

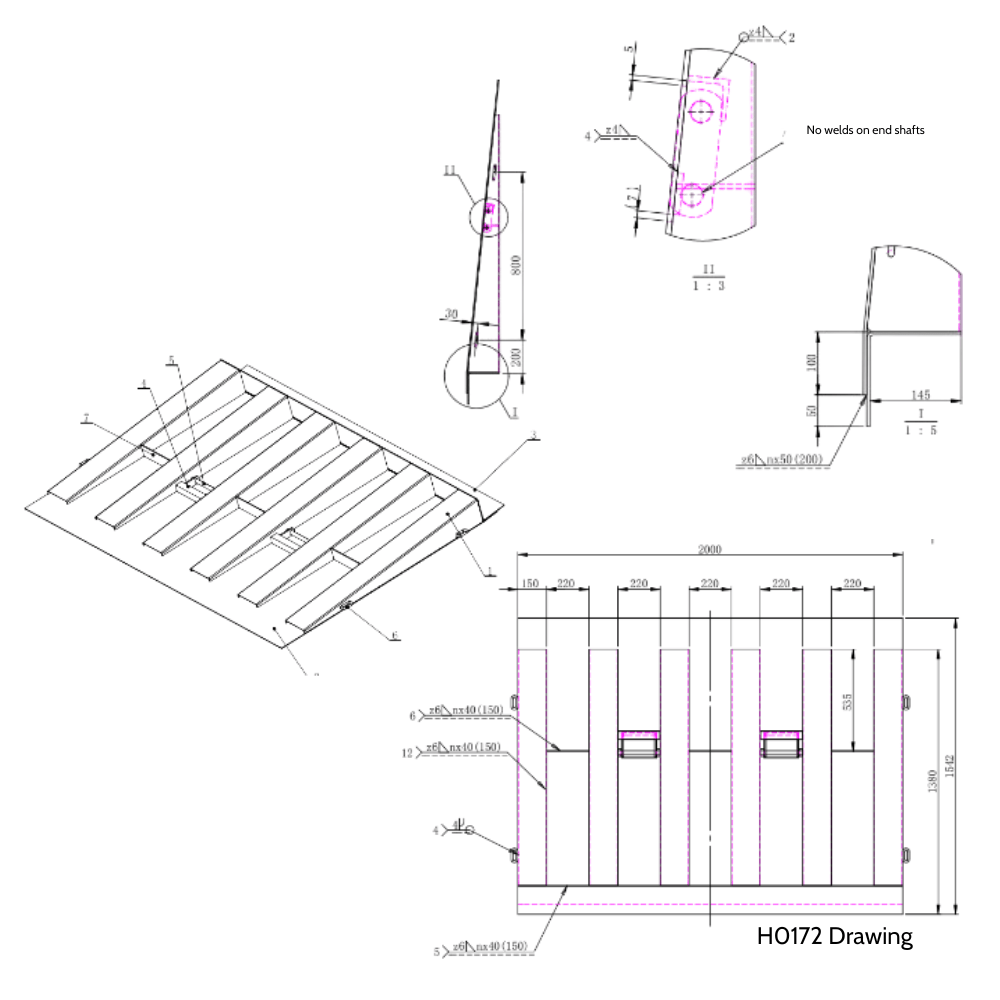

Container ramp dimensions
Delivery
Delivery
This product is a "Bulky Item". Delivery to a business address with unloading facilities or depot is recommended.
Estimate delivery to your door
An estimate for this item to that suburb, from the same rates checkout uses. You choose the delivery method at checkout.
Finance Options
Finance Options
Four interest-free payments, the first at checkout. Choose PayPal at checkout and pick Pay in 4.
How Pay in 4 works on PayPal
Orders over $10,000Equipment financeBusiness equipment finance through Centrepoint Finance. Talk to their team about your purchase.
Apply with Centrepoint
Request a Quote
Request a Quote
Container ramp manuals and drawings
Everything you need to plan, install and use it. Free to download.
Need another document or a different format? Ask us
Reviews
FAQs
What weight can it take?
What weight can it take?
6,500kg. That has to cover the forklift plus its load.
Which containers does it suit?
Which containers does it suit?
10, 20 and 40 foot containers sitting on the ground.
How do I move it?
How do I move it?

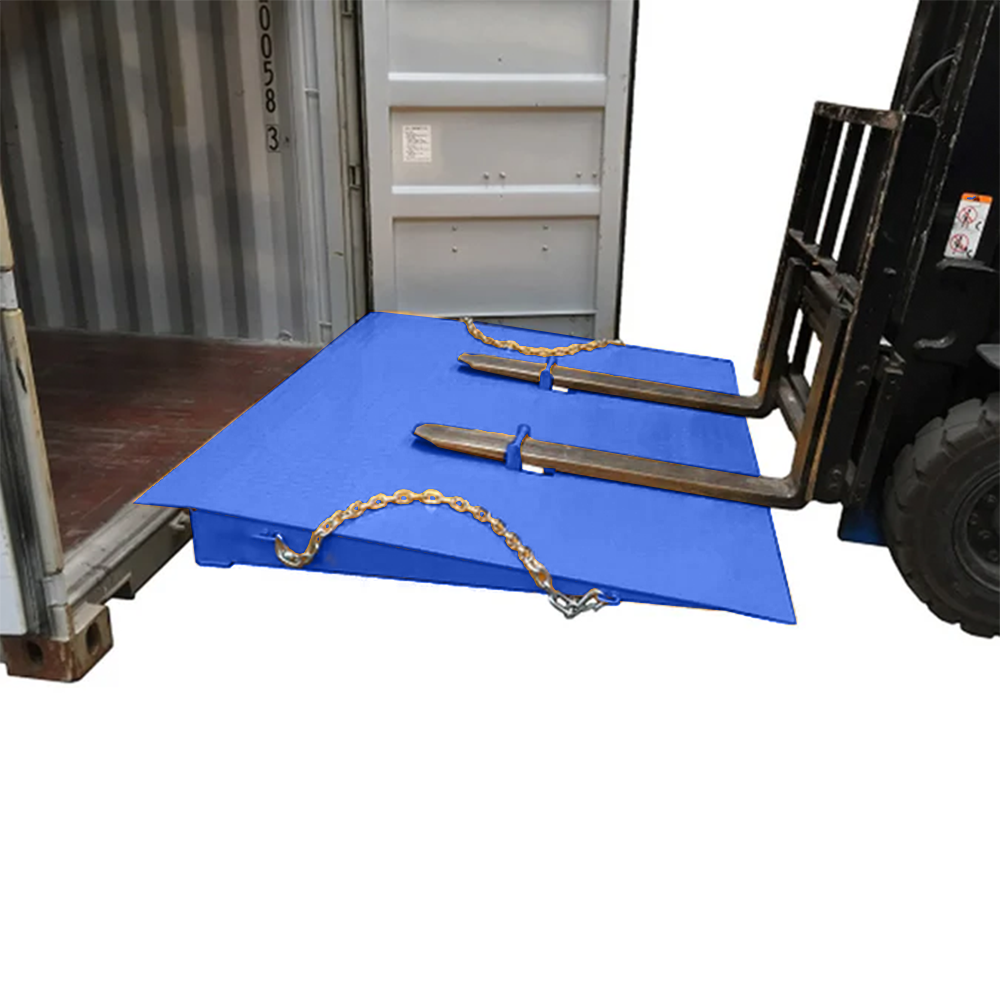

Pick it up with the forklift using the flip-up tyne pocket at the top. It weighs about 180 to 200kg.
Is it engineer certified?
Is it engineer certified?
No. The container ramps are not covered by an engineering certificate. Only our yard ramps are.
