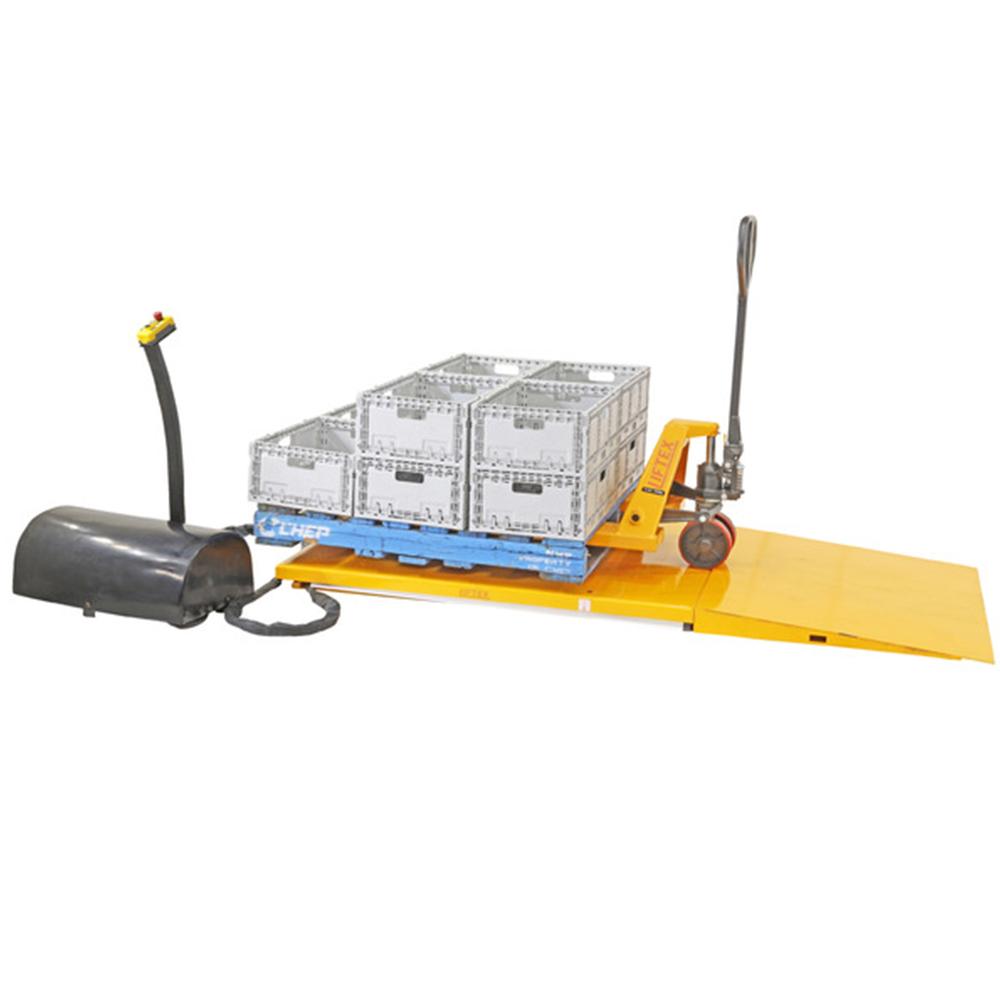

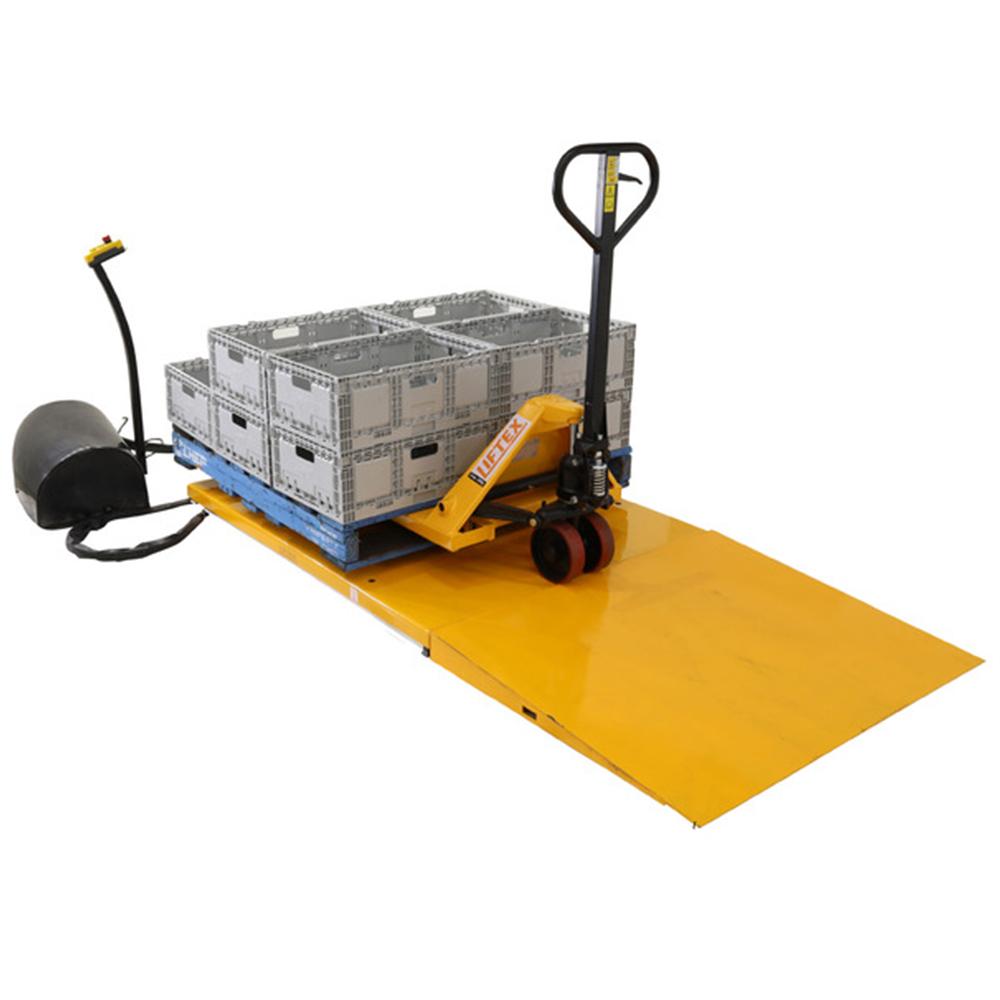

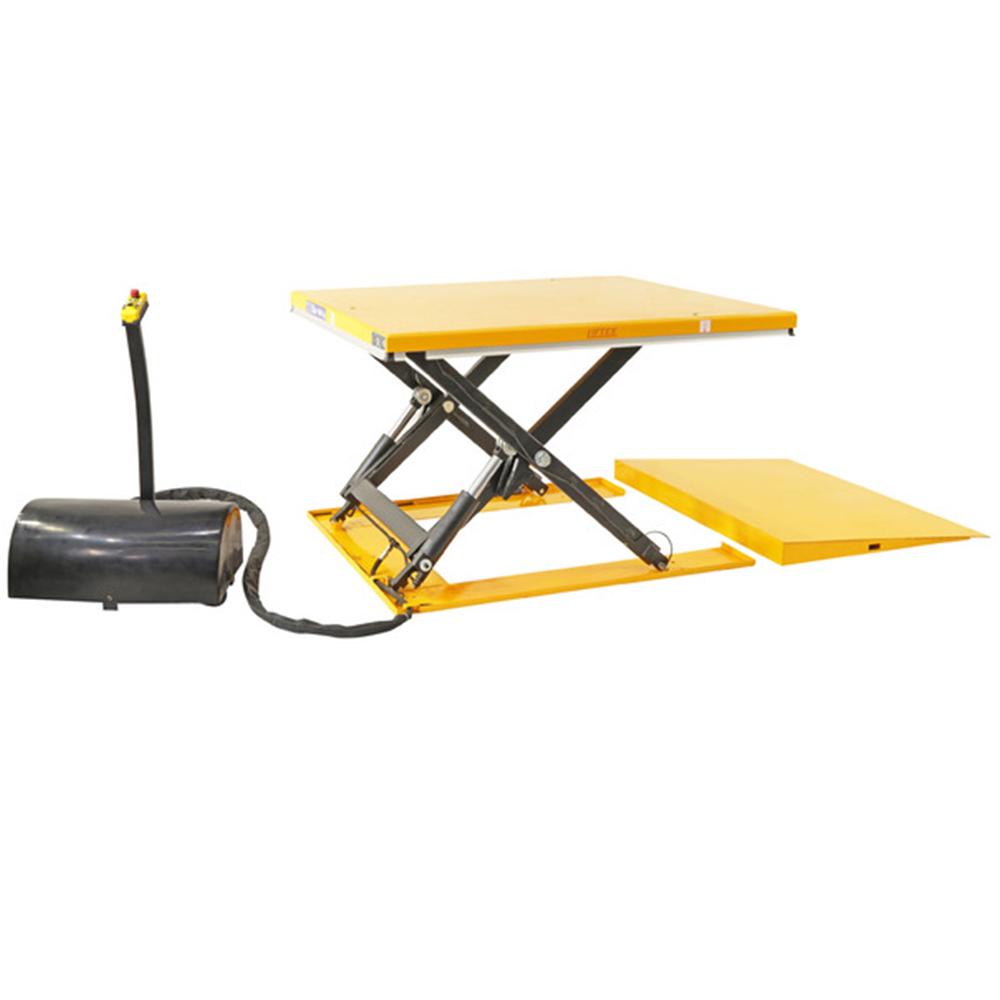

Liftex Low Profile Pallet Lift Table With Removable Ramp and Lifting Eyes
The Liftex low profile pallet lift table w/ ramp elevates pallets to the optimum lift height reducing the risk of repetitive strain injury and also increasing productivity. The trolley can be supplied with an optional rotator ring and has low clearance. Its tables are specially made for handling pallets, with no need for a pit or load ramps.
This lifted trolley comes with an external power pack equipped with a relief valve against overloading and a compensating flow valve for controlling lowering speed. The trolley has removable lifting eyes to facilitate handling and to install the lift table with oilless bushings on pivot points. The entire platform is very compact but with a humongous loading capacity of two tonnes.
Features and Benefits
- 1000/2000 kg loading capacity
- Oil-less bushings on pivot points
- Supplied with entry ramp to allow pallet truck entry
- Pneumatic operation and low clearance
- Removable lifting eyes to facilitate handling and installation of the lift table
- Heavy-duty construction
- High-quality European power packs
- Specially made for handling pallets
Specifications
- Capacity:
- TR2100: 1000kg
- TR2101: 2000kg
- Table Size:
- TR2100: 1140 x 1420mm
- TR2101: 1180 x 1600mm
- Min Height:
- TR2100: 85mm
- TR2101: 105mm
- Max Height:
- TR2100: 880mm
- TR2101: 880mm
- Raise Time: 17-22 seconds
- Power Supply: 240 volt
Liftex Product Warranty
- Ramp Champ only works with well-known, industry-leading manufacturers such as Liftex. All of our products come with at least a 12-month warranty. See full product warranty details here.
- Minor scratches and blemishes may be visible upon receipt of your item. However, if the item is delivered damaged please contact us immediately. See full shipping details here.
- Liftex Warranty Information
Note: Colour, tone, finish and style of actual products may differ from those shown in the product images.
