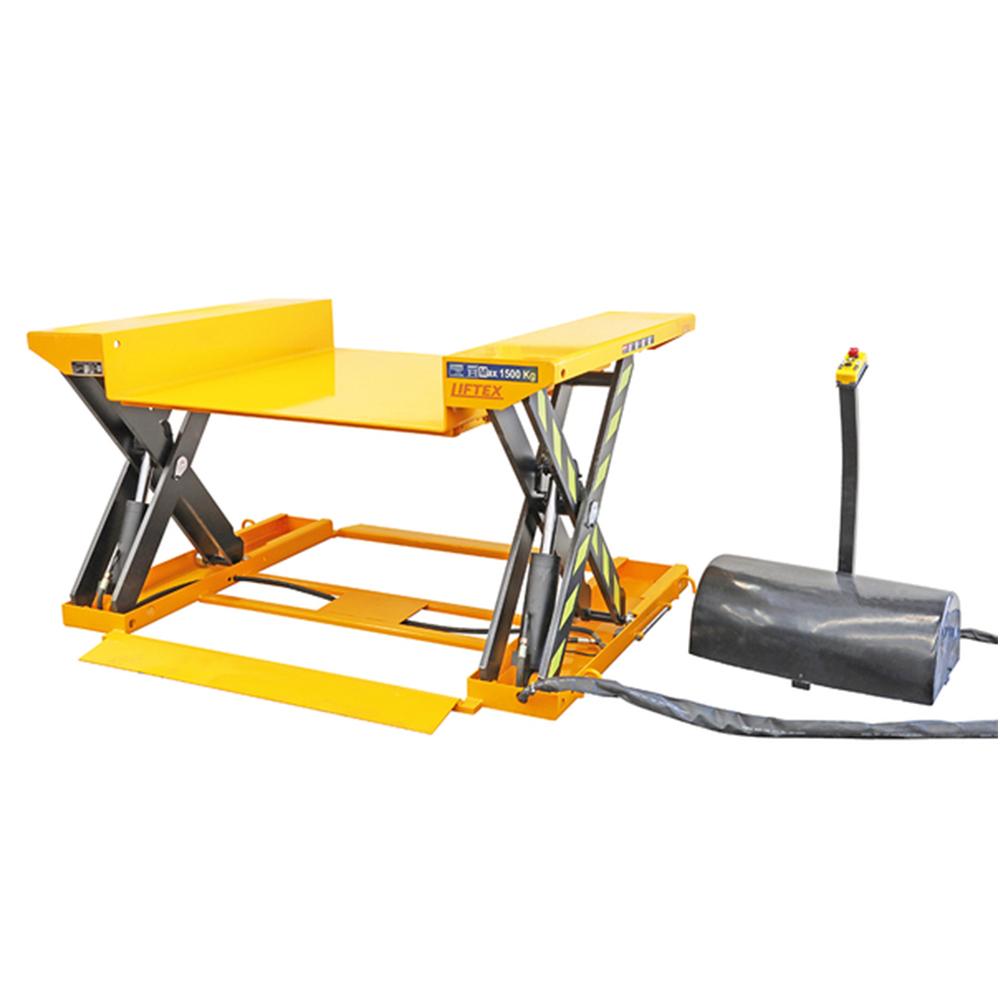

Liftex Super Low Profile Lift Table With Hose Burst Safety And Relief Valve

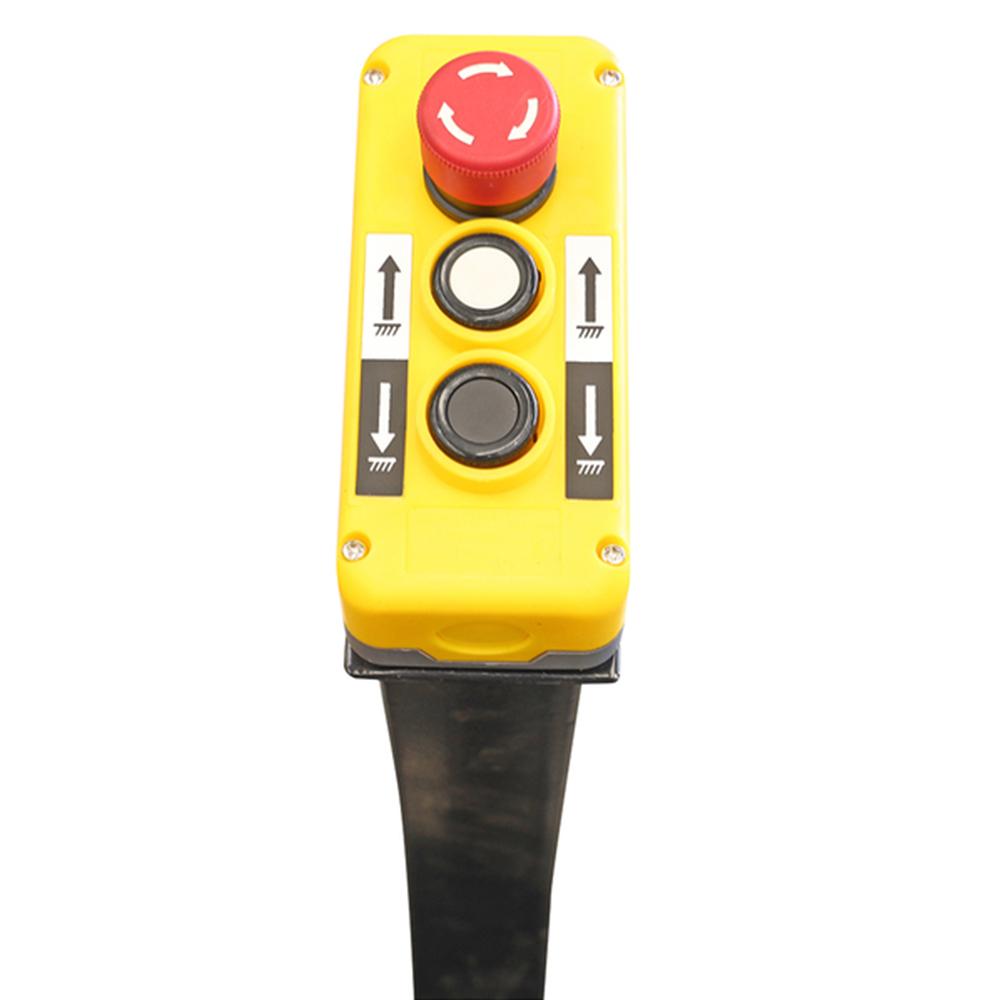

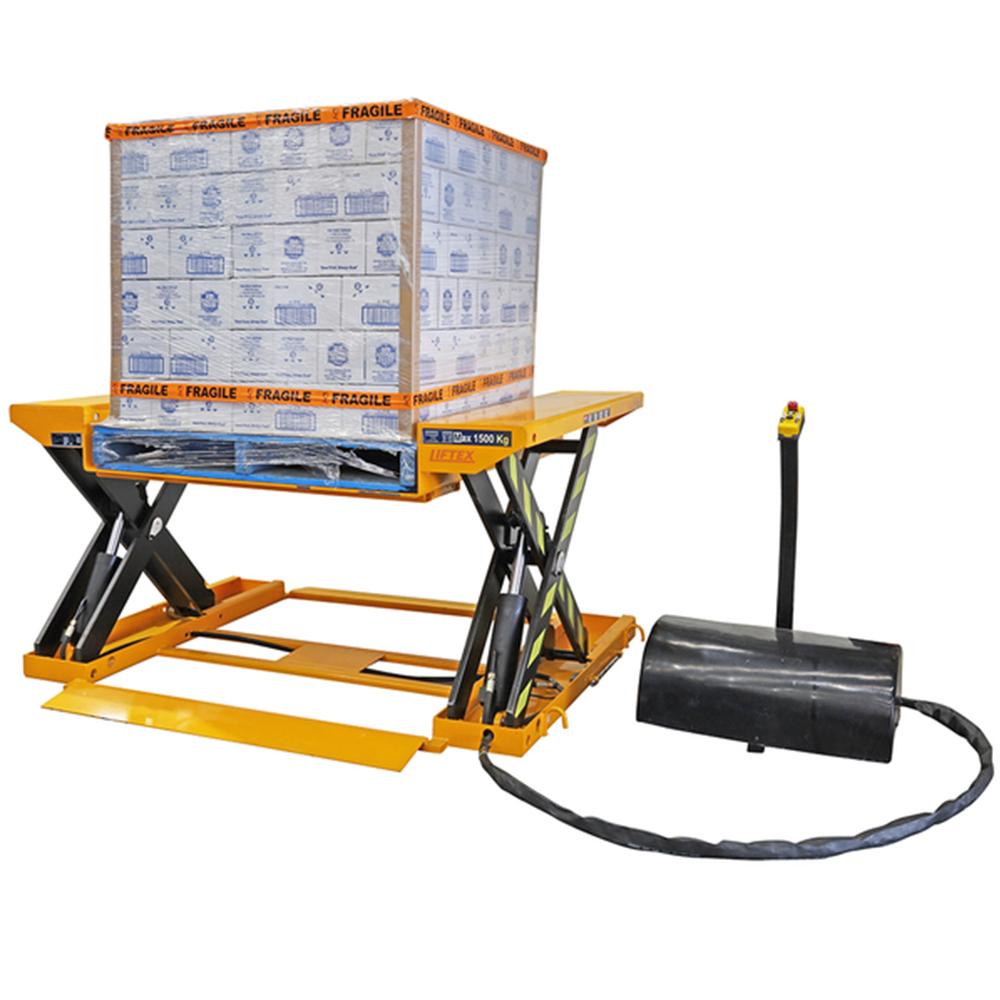

The Liftex super low profile lift table achieves a super low closed height, eliminating the need for a pit installation. The upper platform is fitted with a safety perimeter to prevent descent on contact with obstructions. Making the trolley perfect for cargo loaded on wooden trays. It comes with a 24v control unit with up/down buttons and an emergency stop, and the power supply is ac 415v/50hz/3phase.
The external power pack is equipped with a relief valve against overloading and a compensated flow valve for controlling lowering speed. The 1500 kg loading capacity is enough to handle a wide variety of loads. The trolley features a hose burst safety valve, which stops the table lifting after hose breakage. Being a pneumatic lift, the trolley requires very low maintenance.
Features and Benefits
- Comes with a safety perimeter to prevent descent on contact with obstructions
- Features a hose burst safety valve
- 1500 kg loading capacity
- Equipped with a relief valve against overloading
- Valve for controlling lowering speed
- Up/down and emergency stop button
Specifications
- Lift Capacity: 1500kg
- Platform Size: 1200x1270mm (W x D)
- Min Height: 10mm
- Max Height: 800mm
- Overall Size: 255x1630x2000mm (H x L x W)
- Power Supply: AC 415V/50HZ/3phase (also available in 240v on request)
Note: Colour, tone, finish and style of actual products may differ from those shown in the product images.
