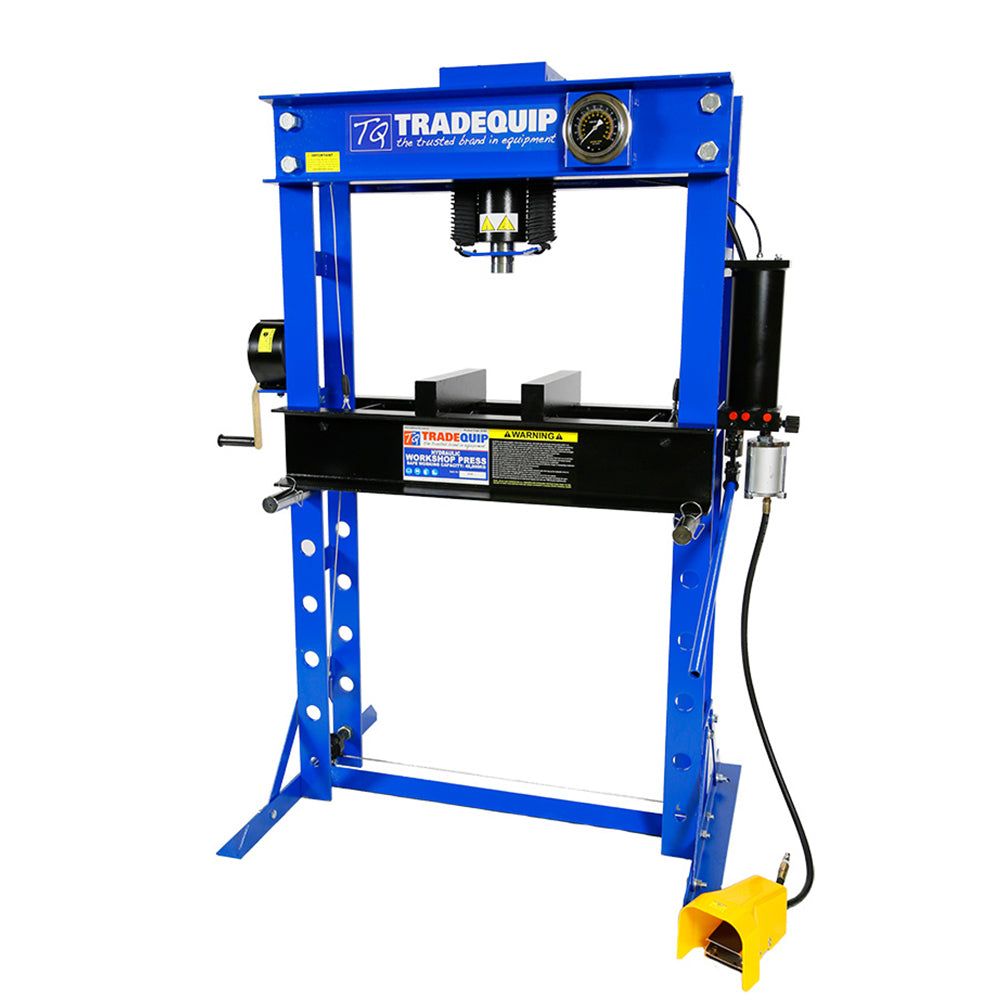

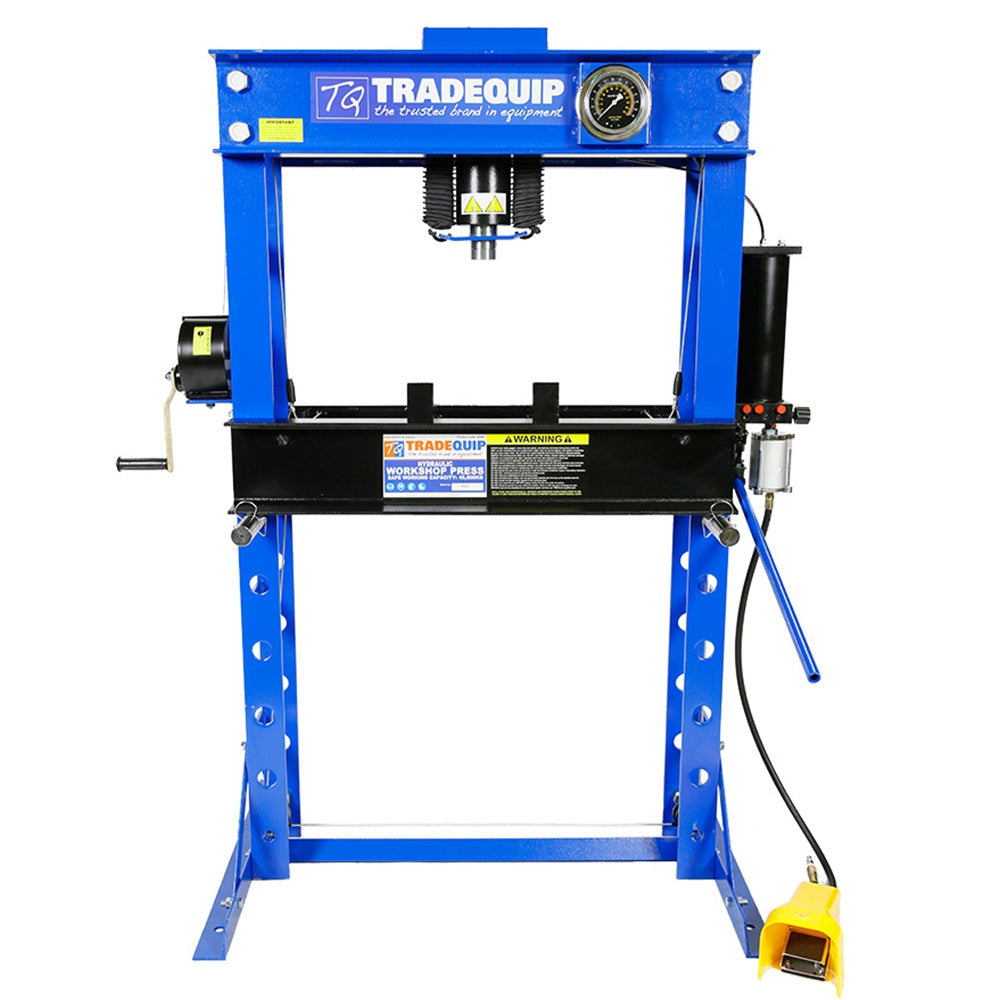

TradeQuip Air Hydraulic Workshop Press, 45-Tonne Capacity

Save $420.00
Original price $4,709.00
Current price $4,289.00

new icon
SKU: 2038T

✓ Fast Shipping + Order Tracking
✓ Questions? Call Us: 1300 913 047

Estimated Arrival: Between and .

Wide, Heavy-Duty, and Versatile Hydraulic Press with Extra-Long Handle

Point your attention toward the meticulous and robust design of the heavy-duty hydraulic press workshop. Manufactured using high-grade materials, this workshop allows you to stamp, straighten, bend, or press any suitable item for modification. This workshop is among the most versatile choices in our range. Featuring polished and chromed cylinders to minimise abrasion and wear, the ram is powered by a manual two-speed pump with an integrated overload protection valve.

All the control points have been located and equipped for the most effortless handling, along with ensuring optimal safety. The high-grade oil-filled gauge on the top-right displays the pressure values in metric notations. The press has been designed to deliver a maximum pressure of 45,000kg and can be used for industrial heavy-duty applications.

Features and Benefits

  • Heavy-duty frame constructed of high-grade steel and built to exacting standards for quality and durability
  • Foot-operated air trigger ram travel control

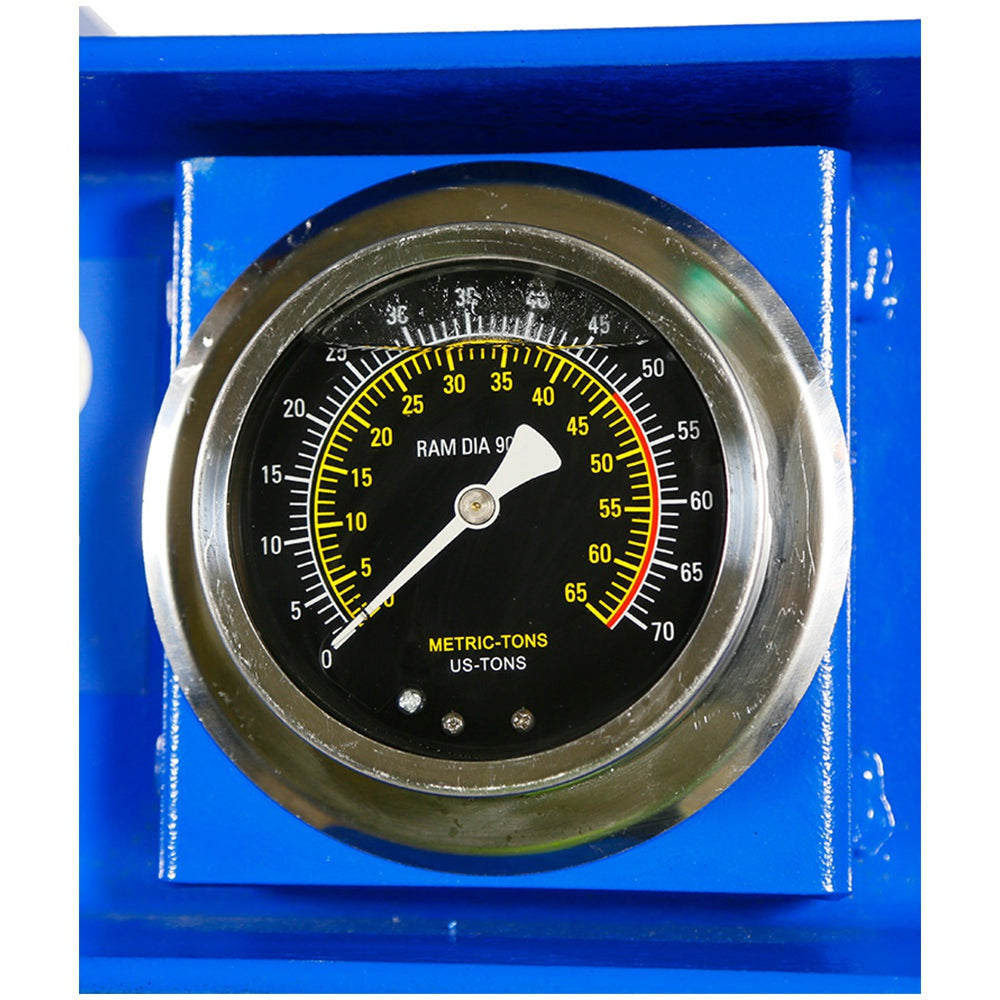

  • 100mm pressure gauge

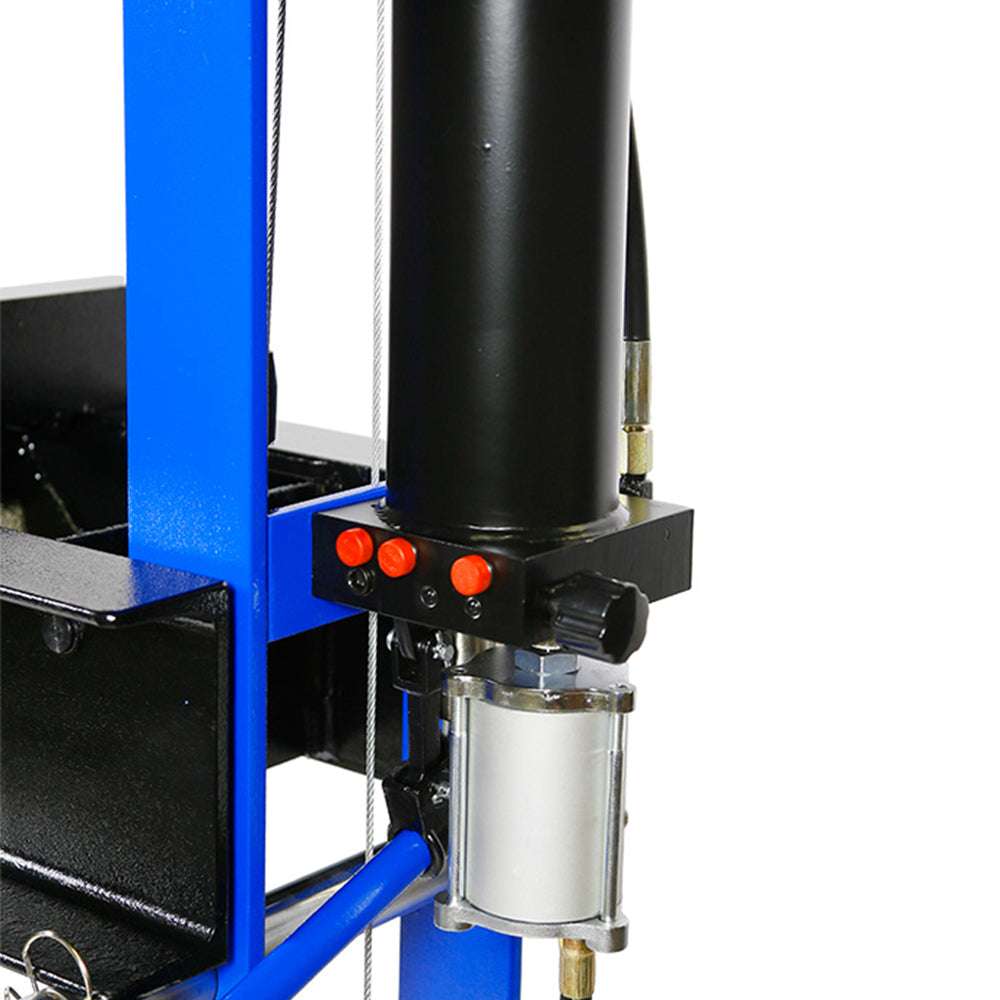

  • Polished pneumatic aluminium air motor with polyurethane double seal setup

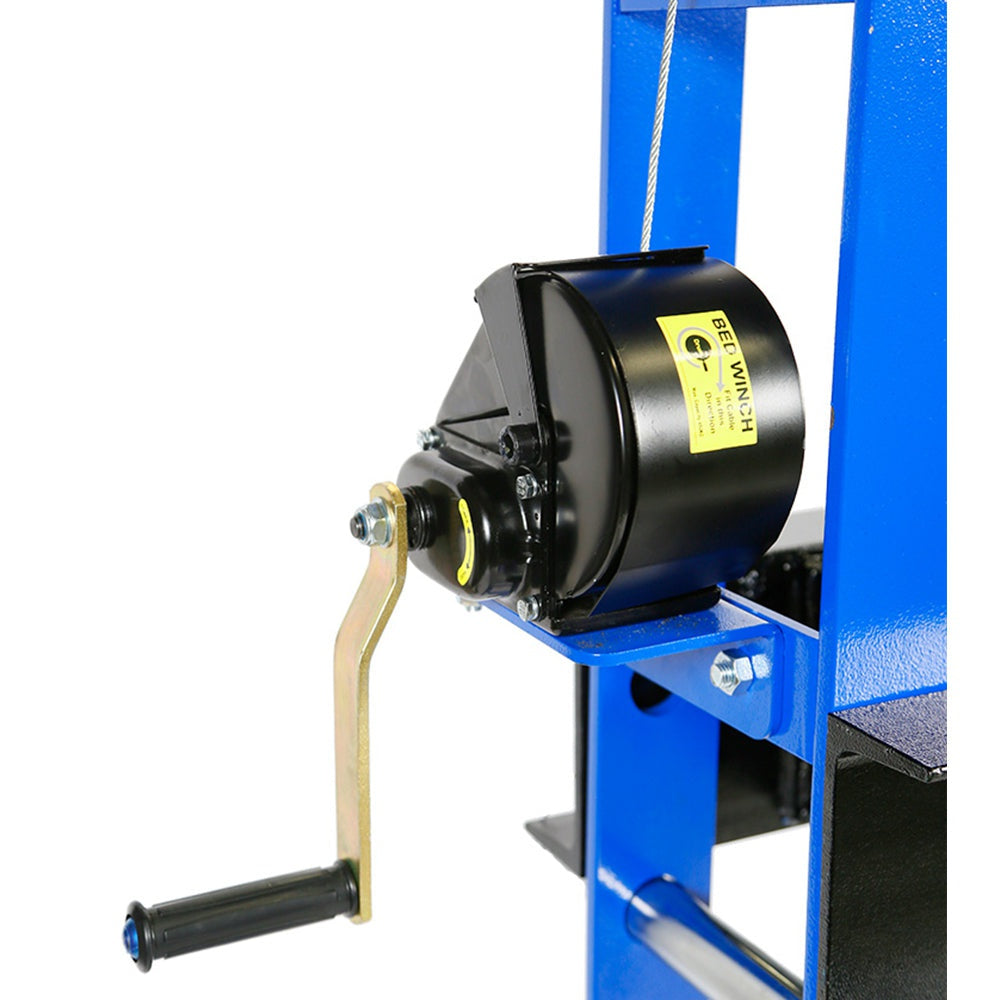

  • Bed winch for easy raise and lower adjustment
  • Lead-free paint finish is applied after a thorough chemical wash to ensure a long-lasting finish and to help prevent rust
  • Paint is oil, grease and dirt-resistant for easy cleanup
  • High-quality large diameter hydraulic steel cylinder unit results in lower oil pressure needed to raise the load, helping to reduce wear and extend the service life
  • Piston-ram is treated and polished and fitted with a backup ring, preventing the load from falling slowly or bypassing oil drift
  • Hydraulics are powered with a high-quality oil, which offers better corrosion resistance and high/low temperature flexibility, allowing the unit to operate at temperatures
  • Includes hand winch for fast and easy press bed height adjustments
  • An integrated overload protection valve keeps from overloading the system
  • Double spring ram return for fast ram retraction

Specifications

  • Safe Working Capacity: 45,000kg
  • Working Range: 159-859mm
  • Overall Height: 1707mm
  • Overall Width: 1106mm
  • Overall Depth: 800mm
  • Bed Outside: 359mm
  • Bed Inside: 195mm
  • Bed Width: 826mm
  • Piston Ram Stroke: 190mm
  • Ram Diameter: 90mm
  • Bed Height Settings: 6
  • Operating Air Pressure: 110-125 psi
  • Nett Weight: 301kg
  • Carton: 1900 x 1040 x 500mm
  • Gross Weight: 340kg

User Manual:


Note: Colour, tone, finish and style of actual products may differ from those shown in the product images.
