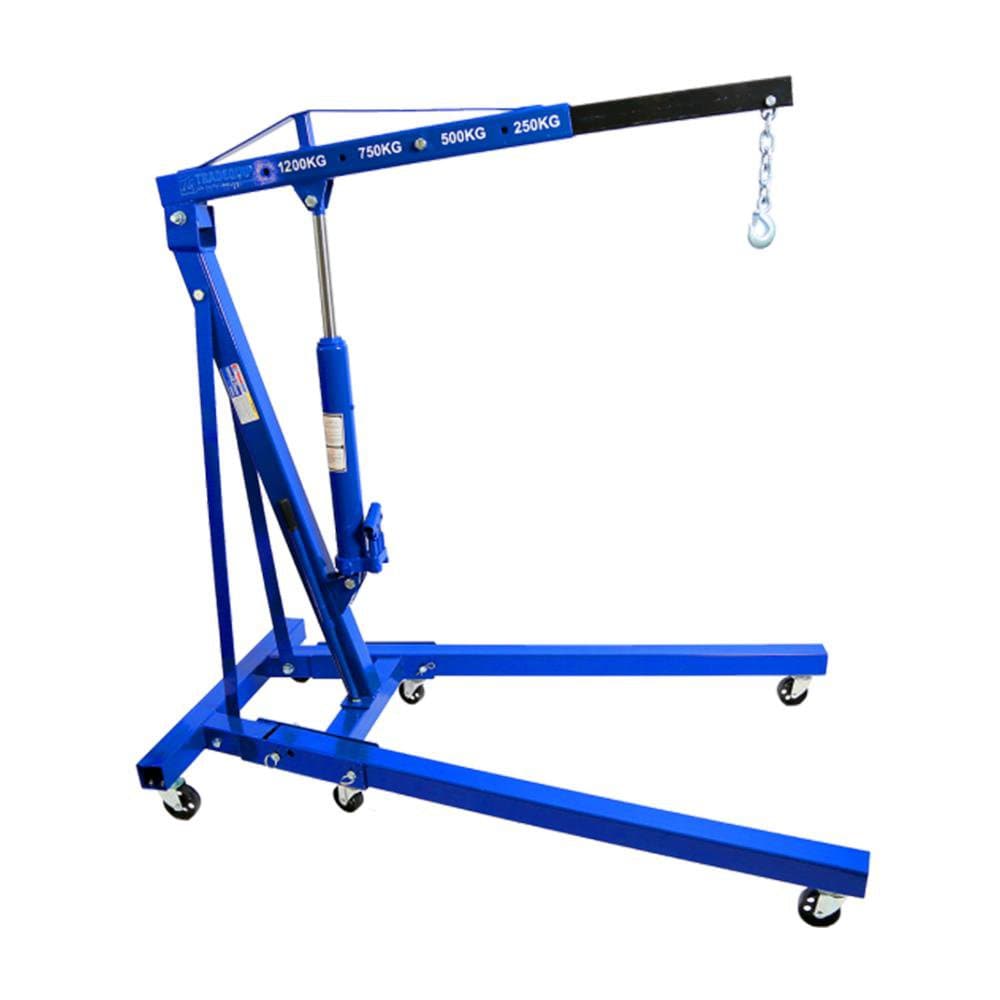

TradeQuip Dual Action Pump Foldable Engine Crane, 1.2 Tonne
$587.27 ex GST
Black Friday price
RAMPUP10Enter it at checkout. Ends 4 Dec. Can't be combined with other offers.
- Holds1,200kg (AS1418.5 approved)
- Weight85kg
- Safe working capacity of 1,200kg, AS1418.5 approved

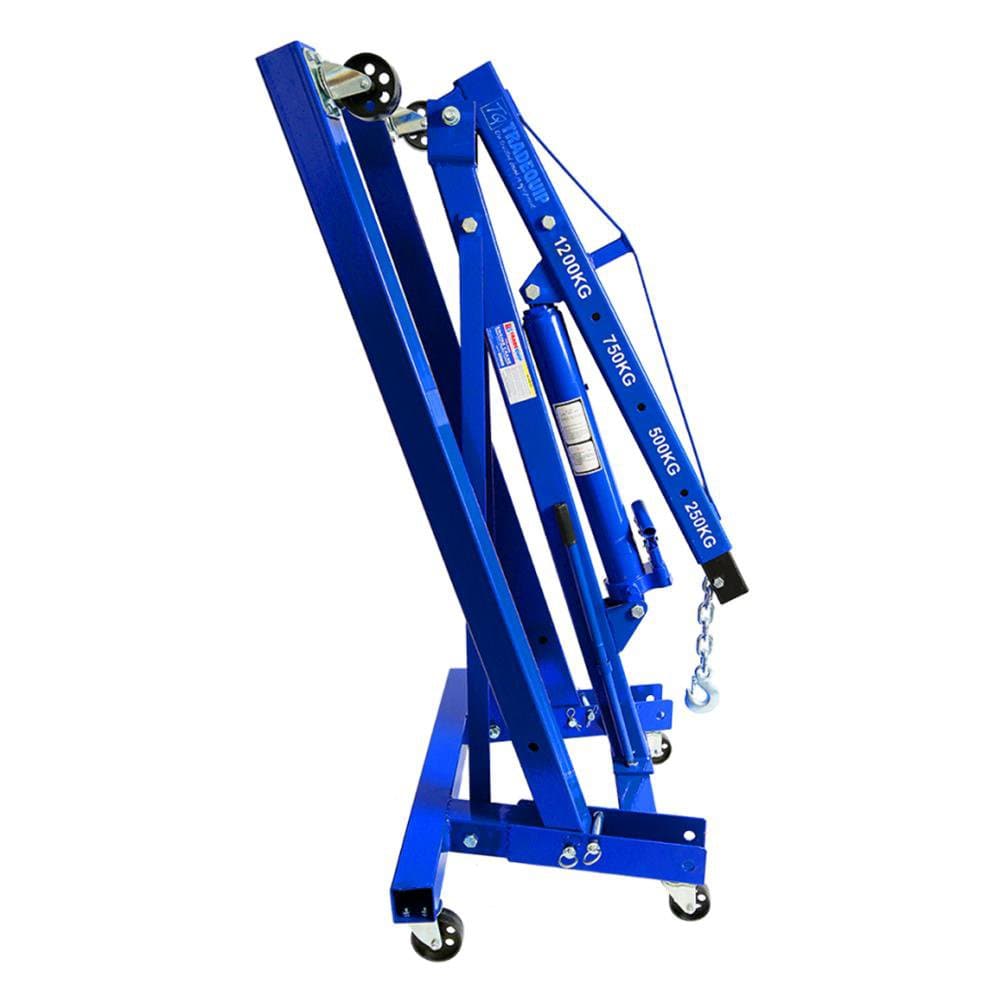

- Outrigger legs fold up for easy transport and storage
- Lifting range of 0-2300mm lifts an engine clear of the bay
Available to order, ships in 1-3 business days. Best chance for Christmas: order by 30 Nov.
Authorised dealeri
1,000+ soldi
12-month warrantyi
100-day free returnsi
Delivery & Pickup
Delivery details
This product is a "Bulky Item". Delivery to a business address with unloading facilities or depot is recommended.
Shipping charges apply per shipment and can vary by warehouse or supplier. Shipping policy
Estimate delivery to your door
An estimate for this item to that suburb, from the same rates checkout uses. You choose the delivery method at checkout.
Pickup details
Reviews
Specifications
Specifications
Product Specs
| Holds | 1,200kg (AS1418.5 approved) |
|---|---|
| Brand | TradeQuip |
| SKU | 1001T*2 |
| Weight | 85kg |
Key Benefits
Key Benefits
- Safe working capacity of 1,200kg, AS1418.5 approved
- Outrigger legs fold up for easy transport and storage
- Lifting range of 0-2300mm lifts an engine clear of the bay
- Ideal for automotive, light engineering and general workshops
- Adjustable boom in four positions for lifting
- Outrigger legs easily fold up for transport or storage

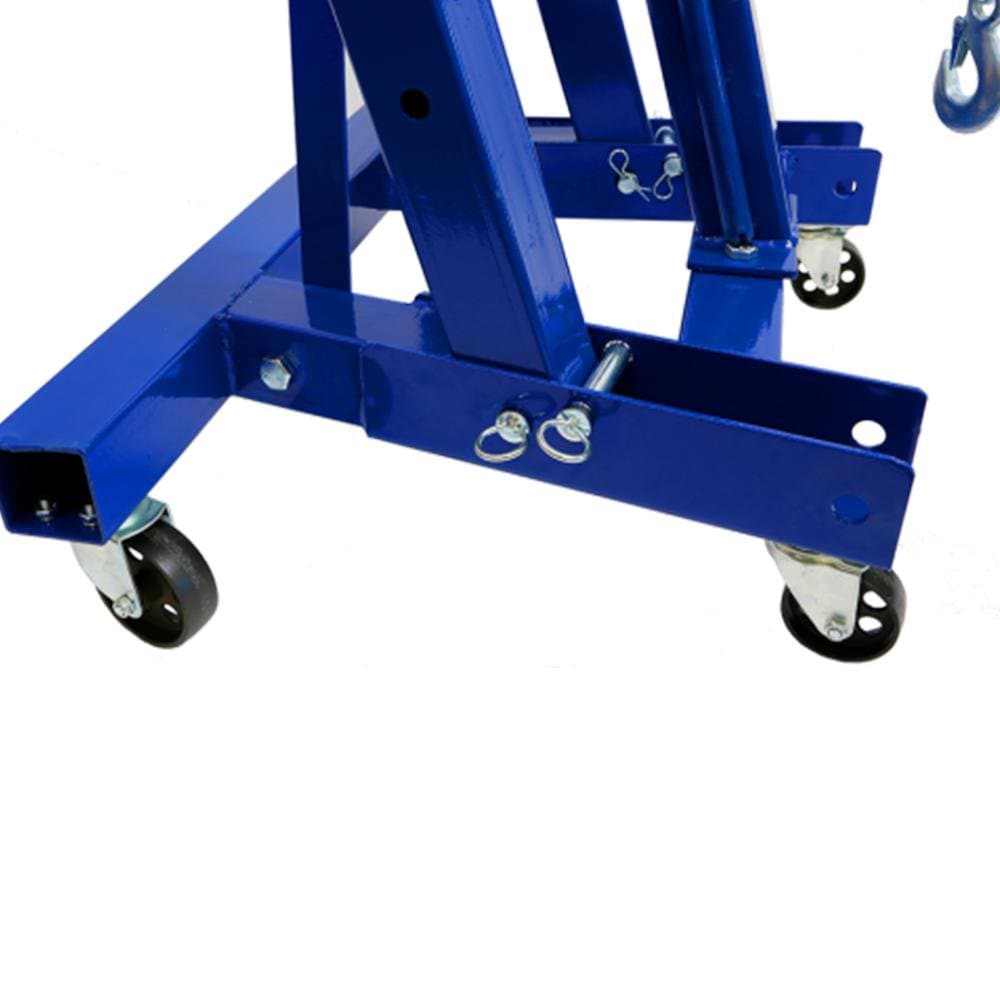

- Six swivel castor wheels allow easy mobility

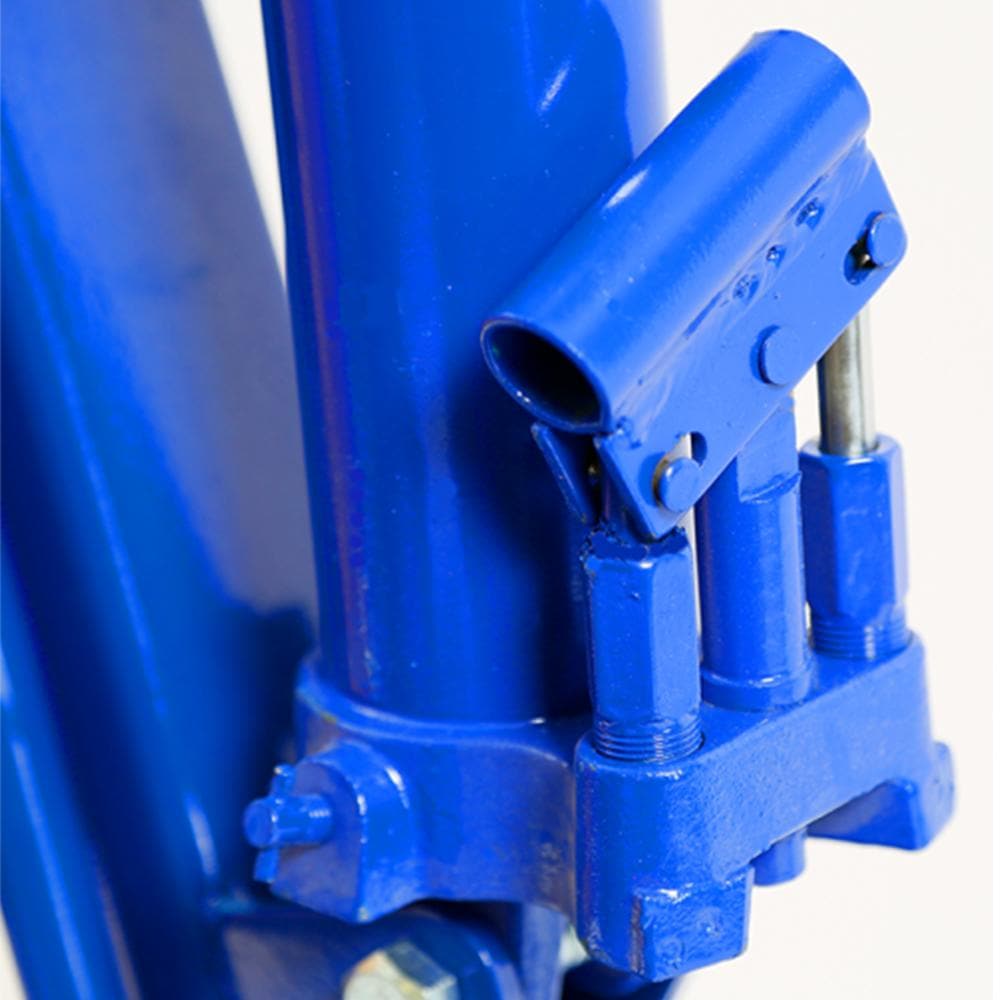

- Double action 8,000kg long stroke hydraulic lifting ram
- Overload Protection
- Paint is oil, grease and dirt-resistant for easy cleanup

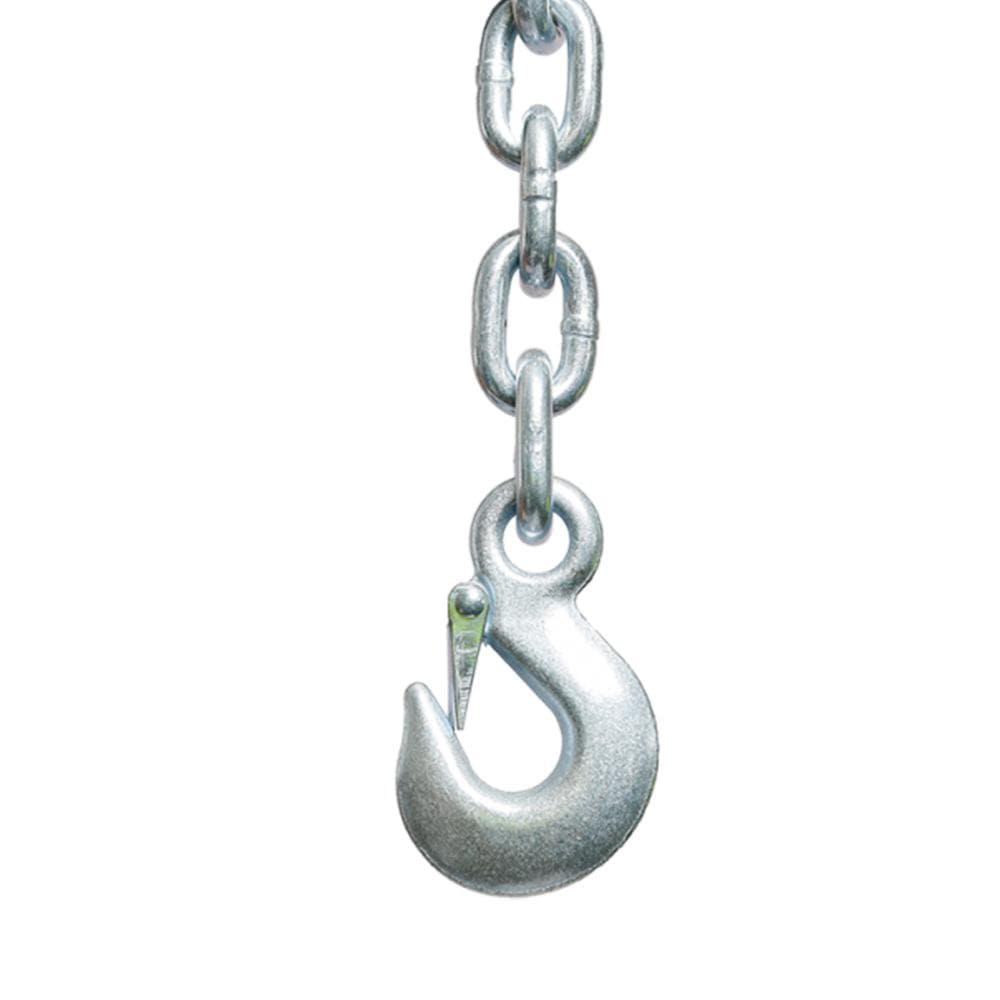

- Short lifting chain & hook with safety latch
- Easily exceeds Australian Standards AS1418.5 requirements
- Constructed of high-grade steel and built to exacting standards for quality and durability
- Lead-free paint finish is applied after a thorough chemical wash to ensure a long-lasting finish and to help prevent rust
About This Product
About This Product
Lift heavy engines, then fold it away
The foldable crane is operated by a quick lift double acting hydraulic pump equipped with an automatic safety valve to control the lowering speed under load. The jib of the crane can be extended to a desired lifting capacity of various loads, depending upon your requirements. The foldable design of the crane allows it to be moved and stored with ease. The lifting range of the crane is 0-2300mm so an engine can be lifted clear out of the engine bay with little effort. The crane is mounted over 6 swivel castor wheels which offers exceptional manoeuvrability. The crane can be used to lift heavy machinery or other items depending upon your needs. It is an ideal tool for workshops and warehouses. Especially when referring to its functionality and price.
Crane sizes and details
- Safe Working Capacity: 1,200kg (AS1418.5 approved)
- Adjustable Boom: 250kg, 500kg, 750kg & 1200kg
- Stabiliser Arms Clearance: 195mm
- Dimensions: (Arms Ext): 2300(H) x 960(W) x 550(D)mm
- Nett Weight: 85kg
- Carton 1 of 2: 1440 x 300 x 160mm (Weight: 59kg)
- Carton 2 of 2: 850 x 580 x 90mm (Weight: 32kg)
