All-Load 1.5 Tonne 2m x 380mm All Types Aluminium Loading Ramps
Authorised dealerSKU: ALR/1.5-2.0$1,369.09 ex GST
- Size2000mm (L) x 380mm (W) x 90mm (D)
- Holds1,500kg
- Weight13.6kg (per ramp)
- Made ofAluminium
- Loading capacity of 1.5 tonnes per pair
- Rungs support pneumatic tyres, rubber tracks and steel tracks
- Two metres long. Best suits low clearance trailers
Will it reach your deck? Reaches 800 mm. Check yours›
Reaches a deck up to 800 mm high, as rated by Alltrades Trailers.
Open the ramp calculatorAvailable to order, ships in 1-3 business days
Authorised dealeri
50,000+ ordersi
12-month warrantyi
Made in Australiai
100-day free returnsi
Rated 4.7 from 1,186 reviews on Google, ProductReview and Trustpilot
All-Load 1.5 Tonne 2m x 380mm All Types Aluminium Loading Ramps
Loading ramp specifications and dimensions
| Holds | 1,500kg |
|---|---|
| Made of | Aluminium |
| Brand | Alltrades Trailers |
| SKU | ALR/1.5-2.0 |
| Length | 2000mm |
| Width | 380mm |
| Height | Up to 800mm |
| Weight | 13.6kg (per ramp) |
| Dimensions | 2000mm (L) x 380mm (W) x 90mm (D) |
| Internal width | 290mm |
| Depth | 90mm |
| Rung | Rung spacing: 78mm Beam to rung offset/depth: 35mm Beam size: 90mm x 45mm Rung size: 37.5mm |
About this loading ramp
Australian-made aluminium rugged ramp to suit tough conditions
Check out this lightweight and super strong all-conditions ramp from All-load. A ramp that has been meticulously engineered to suit even the worst of conditions and uneven backcountry terrain in Australia and beyond. The loading ramp features uniquely designed rungs for a stable grip for your feet, pneumatic tyres, rubber treads or even steel tracks.
The ramps are rated as a pair to withstand a weight of 1.5 tonnes. So everything from lawnmowers to small machinery can be loaded and unloaded with these ramps. Each of these ramps has been made from a somewhat corrosion-resistant metal alloy. While also keeping the overall weight low. Making it easy to store and transport around.
Key benefits
- Loading capacity of 1.5 tonnes per pair
- Rungs support pneumatic tyres, rubber tracks and steel tracks
- Two metres long. Best suits low clearance trailers
- Lightweight and durable aluminium design
- Attaches to the trailer with a connection plate and pin

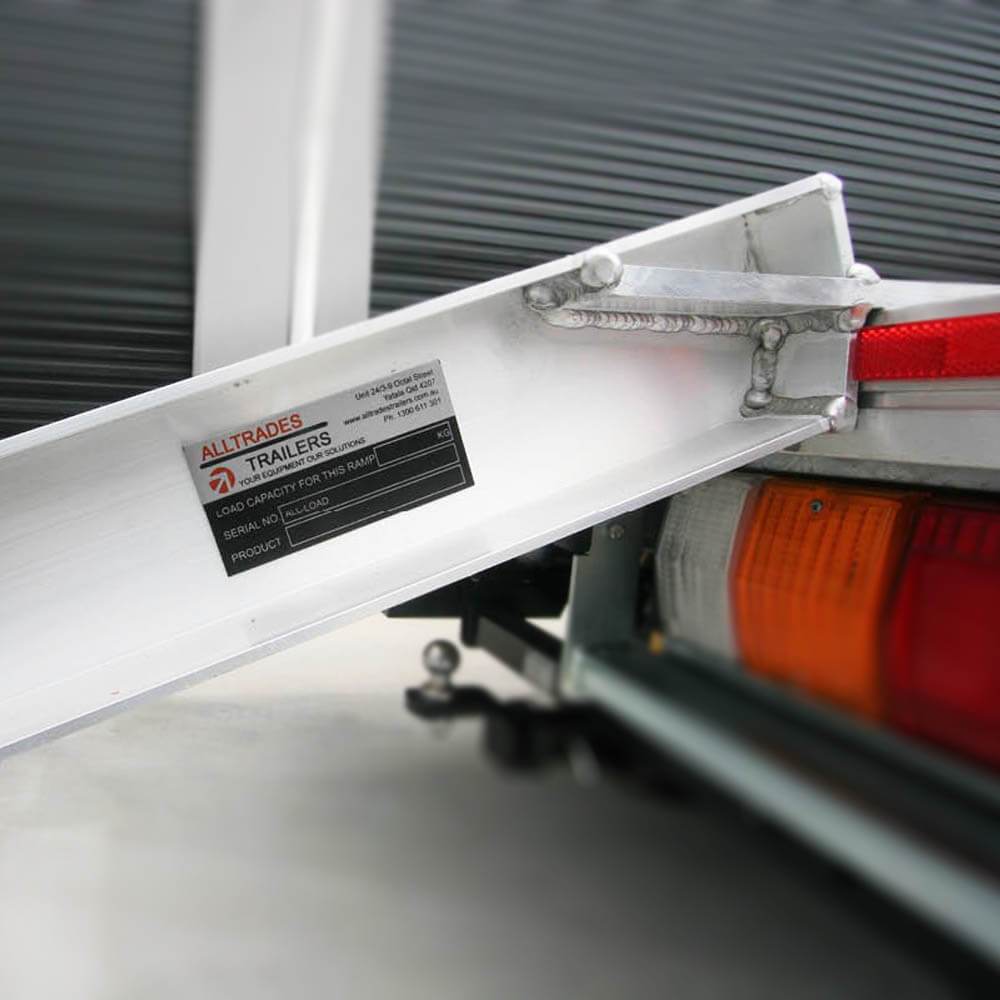

- Labelled with capacity and other details
Delivery
Delivery
This product is a "Bulky Item". Delivery to a business address with unloading facilities or depot is recommended.
Estimate delivery to your door
An estimate for this item to that suburb, from the same rates checkout uses. You choose the delivery method at checkout.
Finance Options
Finance Options
Four interest-free payments, the first at checkout. Choose PayPal at checkout and pick Pay in 4.
How Pay in 4 works on PayPal3 months interest-free. Choose Zip at checkout. Fees, T&Cs and credit approval apply.
How Zip works on zip.co
Orders over $10,000Equipment financeBusiness equipment finance through Centrepoint Finance. Talk to their team about your purchase.
Apply with Centrepoint
Request a Quote
Request a Quote
Loading ramp downloads
Everything you need to plan, install and use it. Free to download.
Need another document or a different format? Ask us
Reviews
FAQs
Will these ramps take my machine?
Will these ramps take my machine?
All-Load rate every model for the pair, not each ramp. Pick a pair rated above your machine's weight, and check its tracks or tyres fit inside the rails.
Is the price for one ramp or a pair?
Is the price for one ramp or a pair?
The price is for a pair, and they're packed and sent as a pair. The weight shown in the Specifications is per ramp.
Can I load a machine on steel tracks?
Can I load a machine on steel tracks?
Yes. All-Load ramps are made so one set does every job: air tyres, rubber tracks and steel tracks.
How do they attach to my truck or trailer?
How do they attach to my truck or trailer?

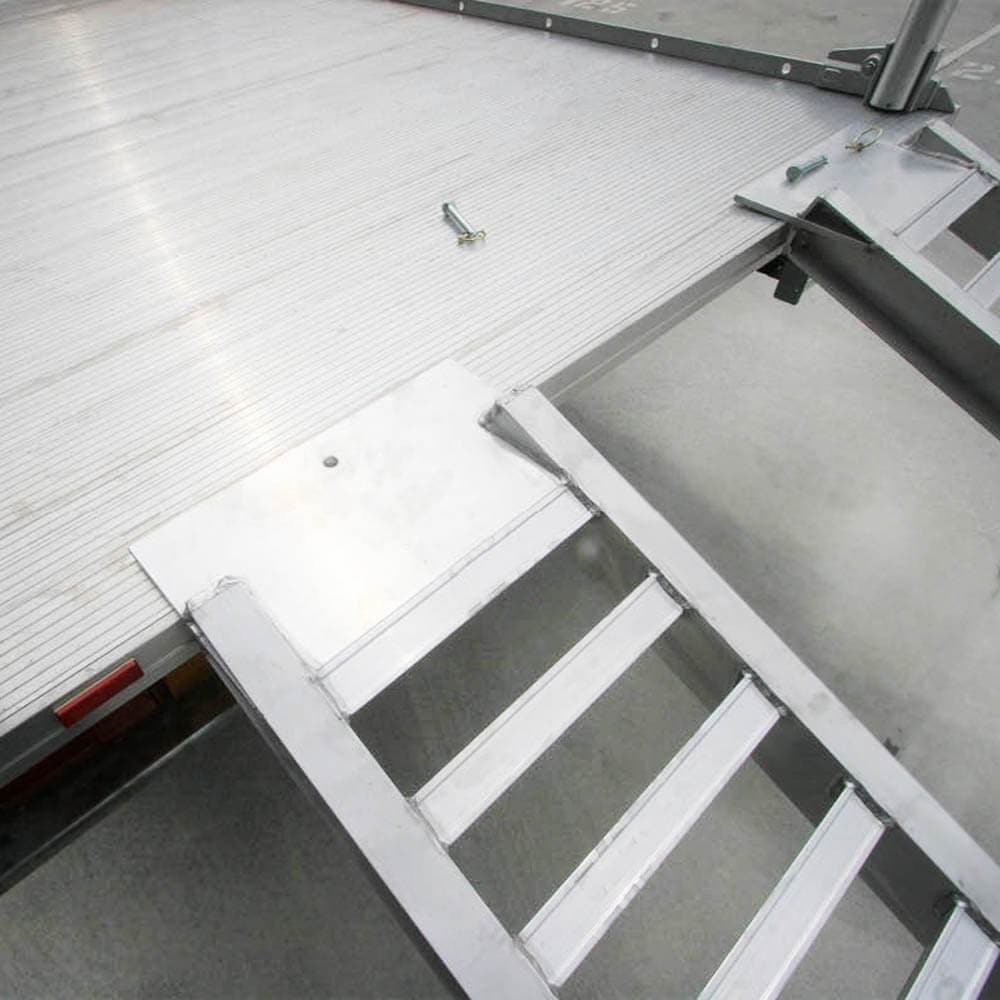

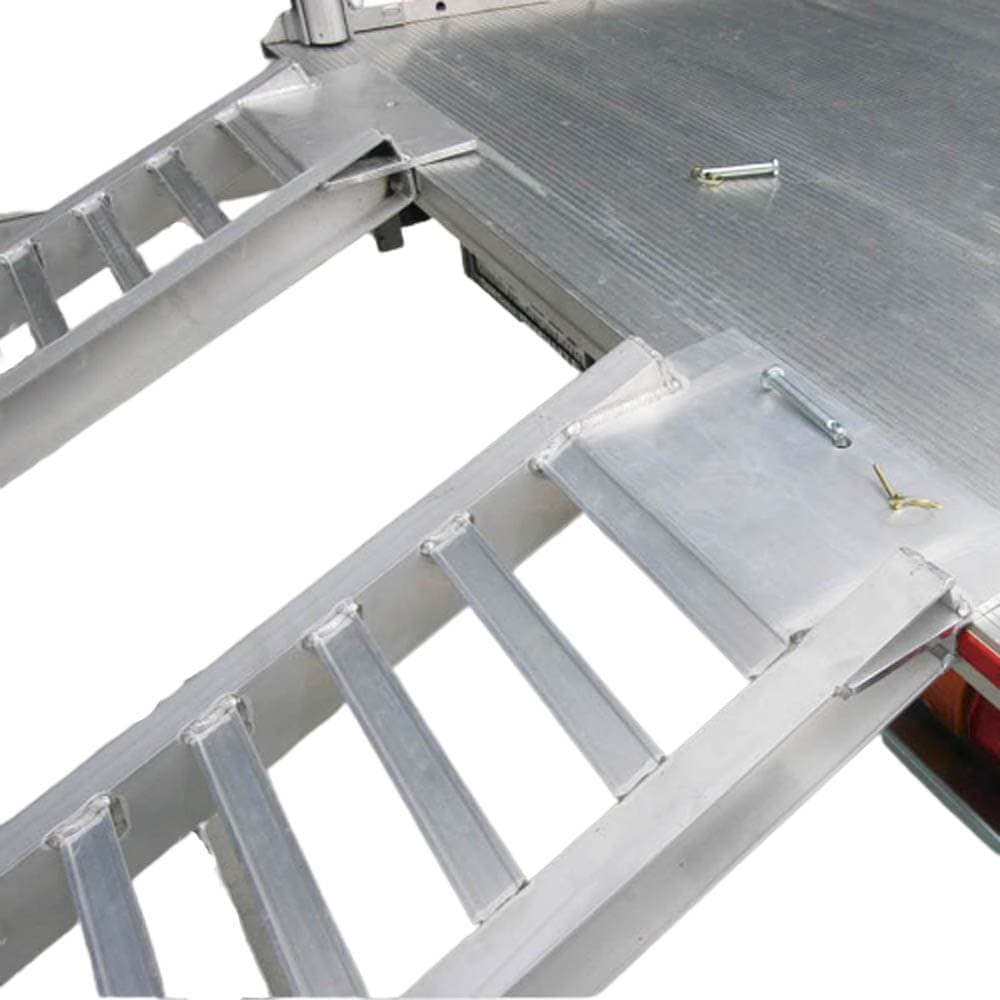

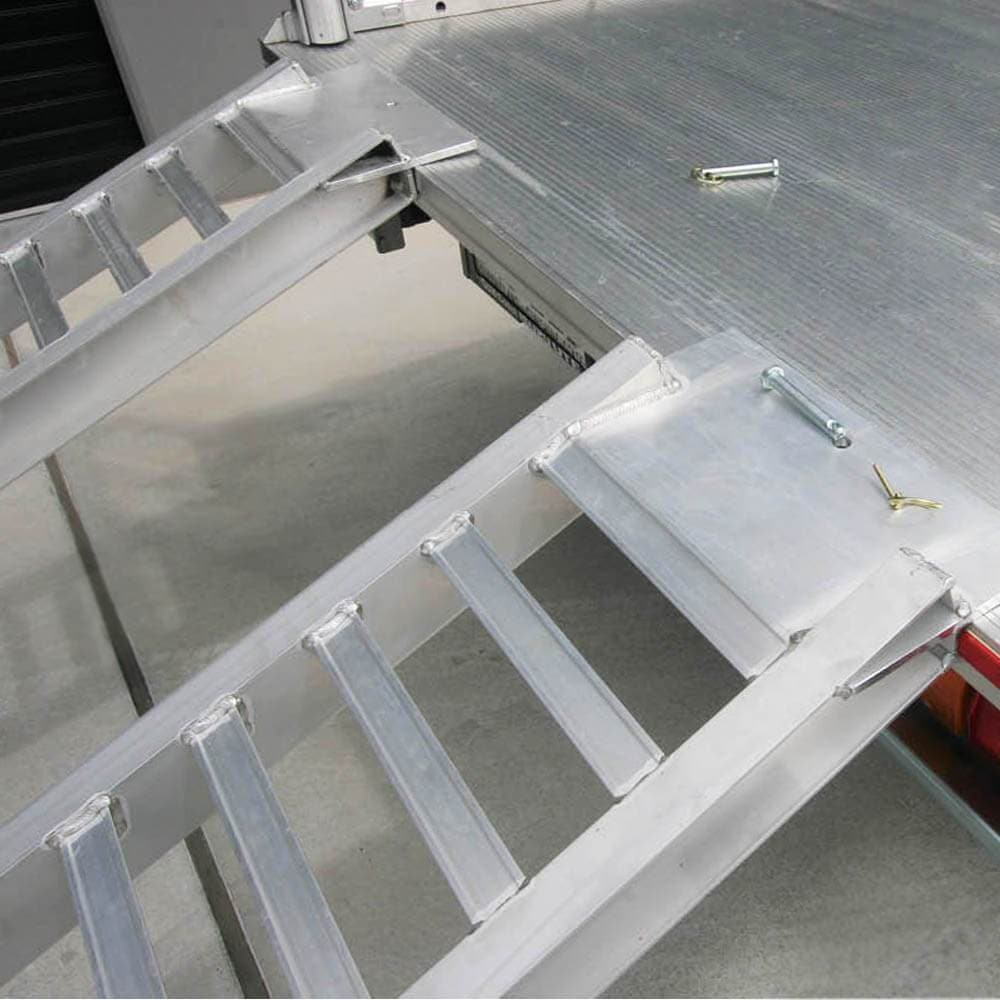

With a connection plate and pin. The plate sits on your deck and the pin locks it in place, so you get a positive connection that won't slip.
How high a deck will they reach?
How high a deck will they reach?
Alltrades rate this model for decks up to 800mm high.
Will my tracks or tyres fit?
Will my tracks or tyres fit?
Measure across your track or tyre. It needs to be narrower than the inside width between the rails, which is 290mm on this ramp.
Can I use them on a truck, tipper or trailer?
Can I use them on a truck, tipper or trailer?
Yes. Alltrades build them for loading onto tipper bodies, trailers and flatbed trucks.
What are they made of?
What are they made of?
Structural aluminium, sourced direct from the mill and extruded through Alltrades' own dies, with their own custom-designed rung section.
Where are All-Load ramps made?
Where are All-Load ramps made?
In Queensland. Alltrades Trailers build them in their own factory.
