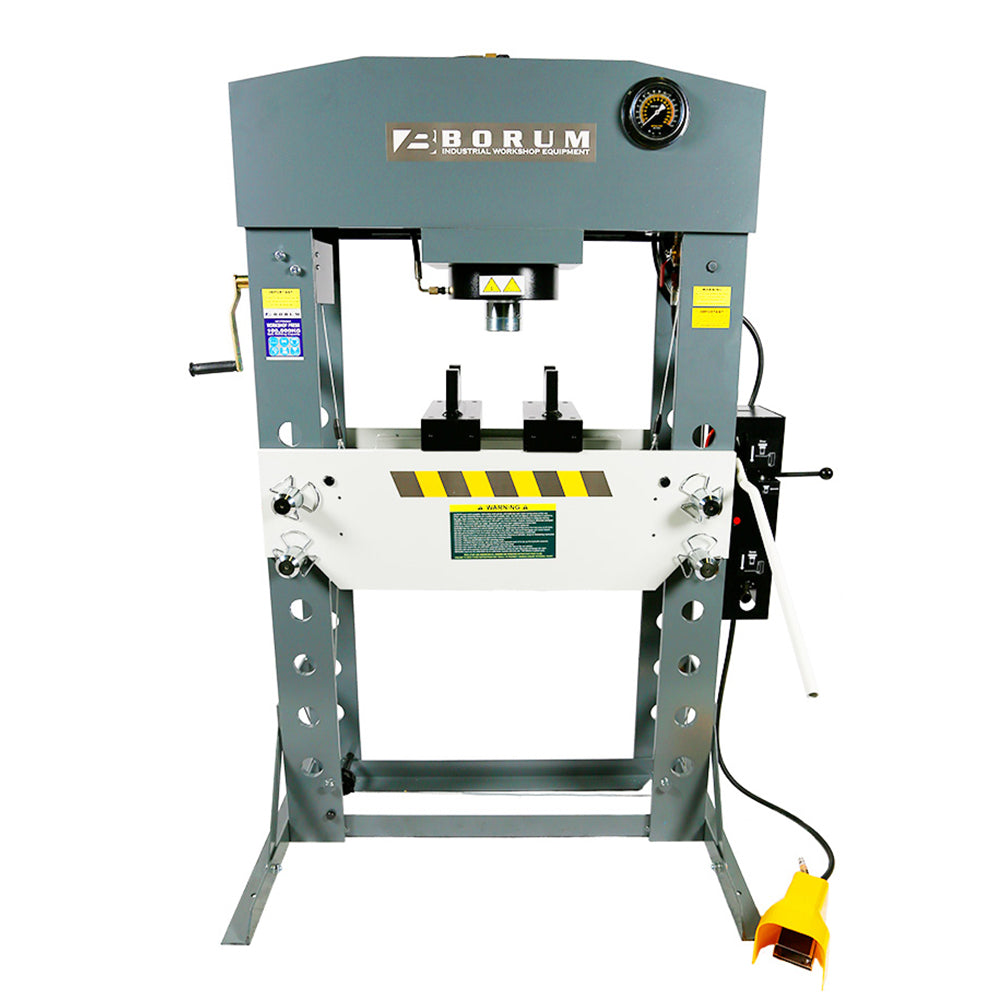

Borum Industrial Air/Hydraulic Workshop Press, 100-Tonne Capacity

by Borum
Save $1,504.00
Original price $16,855.00
Current price $15,351.00
Ramp Champ finance available
SKU: BSP100TA

✓ Fast Shipping + Order Tracking
✓ Questions? Call Us: 1300 913 047

Estimated Arrival: Between and .

Ultra Heavy-Duty Hydraulic Workshop for Industrial and Automotive Uses

Looking for an economical and high-quality hydraulic press for your needs? Check out this ultra heavy-duty press that can deliver a pressure of up to 100 tonnes. Featuring polished and chromed components that minimize the wear and tear on the overall machine, this workshop is a one-stop solution for your stamping, bending, forming, and holding needs for metals. The press has an unsophisticated design for the user that included foot and hand operated controls placed conveniently on the body.

This workshop press has been designed to minimize hazards and with components that ensure the least wear and tear, even with heavy use. The pressure gauge on the top helps you with the readings in the metric system, and the overload safety valve ensures any accidents do not happen.

Features and Benefits

  • Heavy-duty H-frame constructed of high-grade steel and built to exacting standards for quality and durability

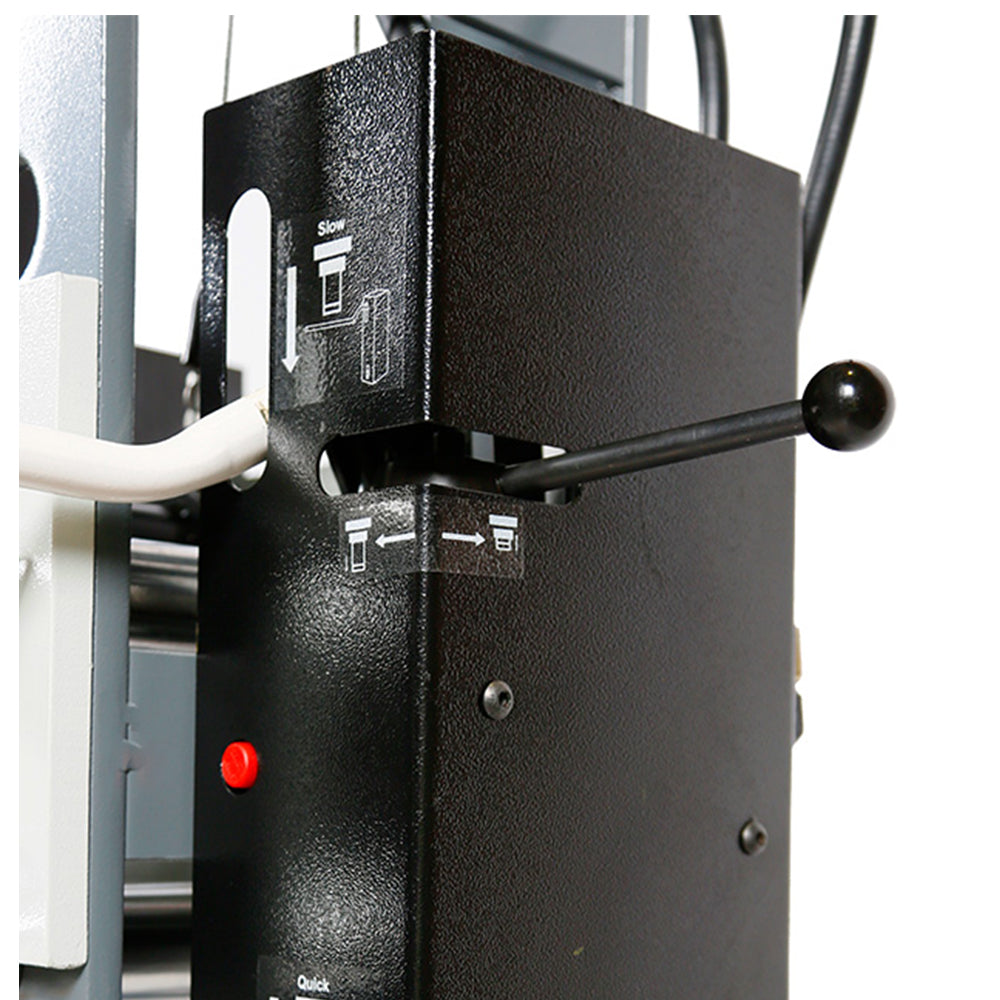

  • Foot operated air trigger ram travel control
  • 100mm pressure gauge

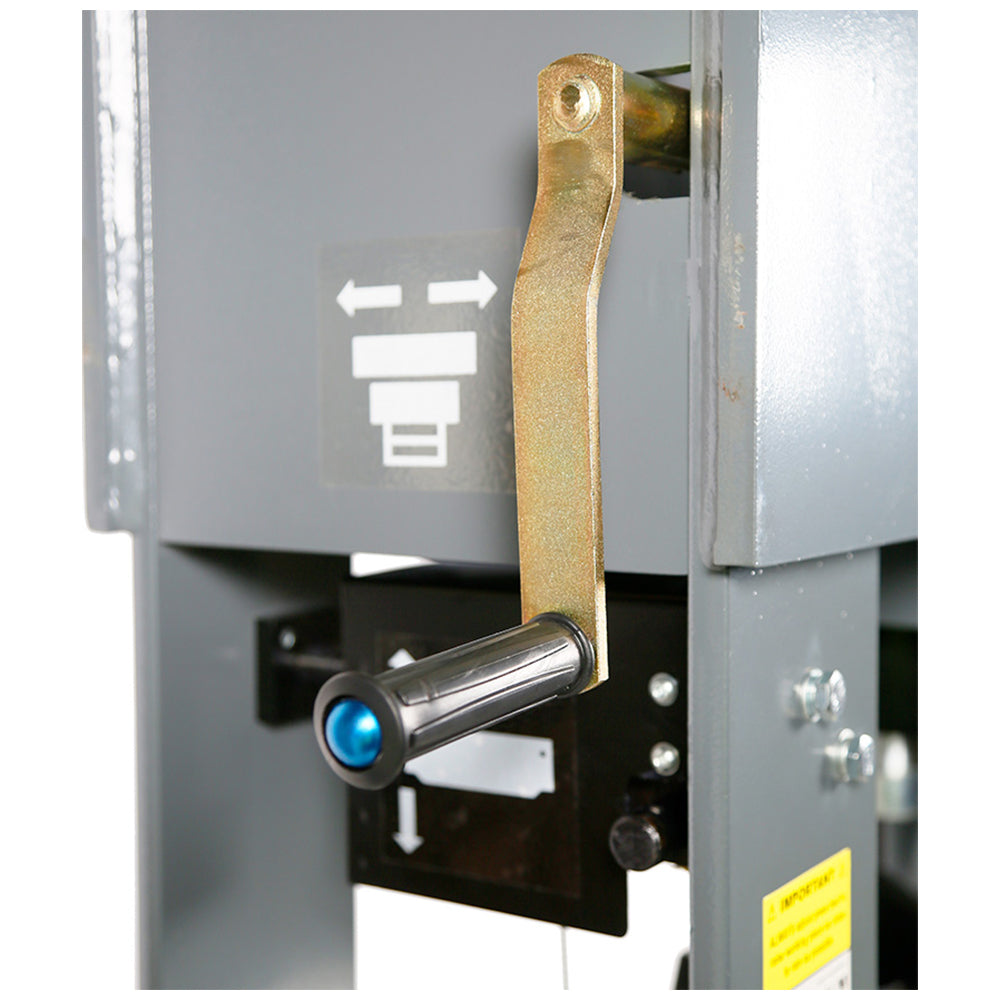

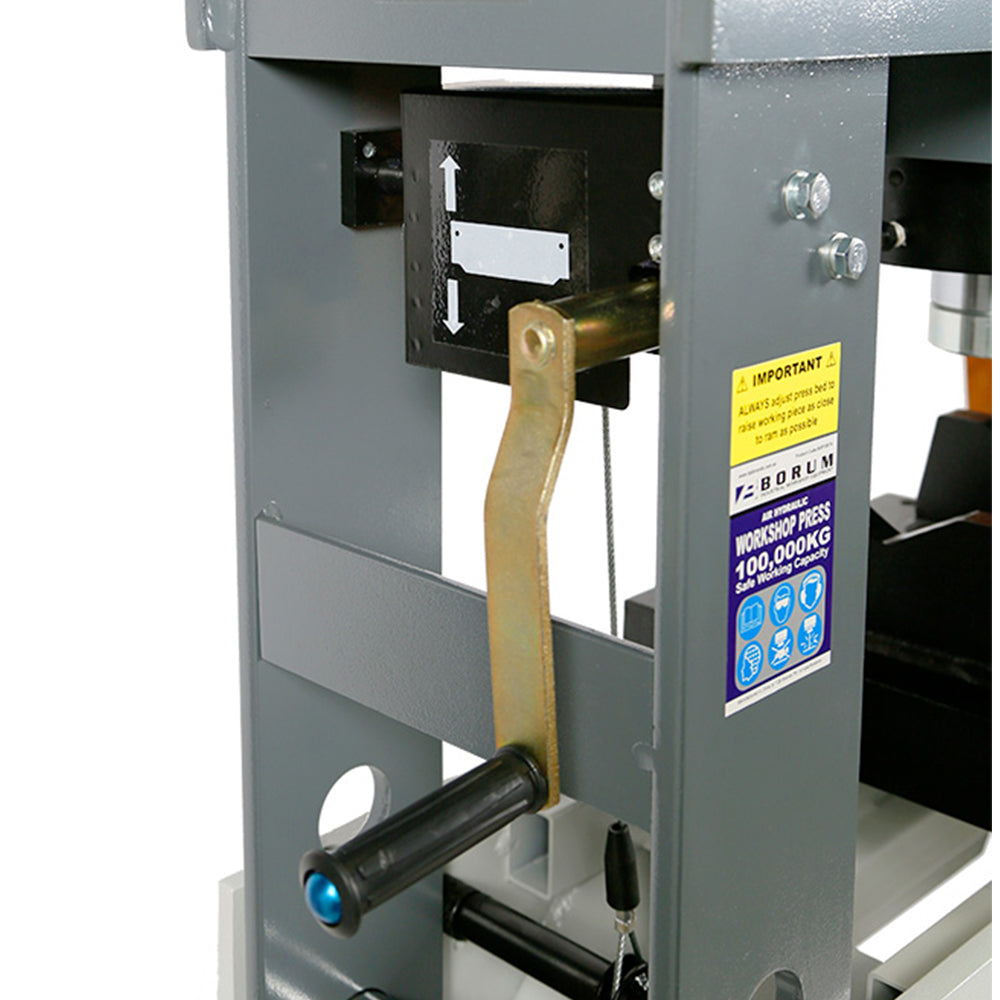

  • Table winch system lowers or raises the bed
  • High quality large diameter hydraulic steel cylinder unit results in lower oil pressure needed to raise the load, helping to reduce wear and extend service life
  • Piston-ram is treated and polished and fitted with backup ring, preventing load from falling slowly or bypassing oil drift
  • Hydraulics are powered with a high quality oil, which offers better corrosion resistance and high/low temperature flexibility, allowing the unit to operate at temperatures
  • Integrated overload protection valve keeps from overloading the system
  • Lead-free paint finish is applied after a thorough chemical wash to ensure a long-lasting finish and to help prevent rust
  • Paint is oil, grease and dirt-resistant for easy clean up
  • Extra tall working range for versatility
  • Pair of bed plates included

Specifications

  • Safe Working Capacity: 100,000kg
  • Working Range: 113-813mm
  • Overall Height: 2048mm
  • Overall Width: 1199mm
  • Overall Depth: 990mm
  • Bed Width: 787mm
  • Piston Ram Stroke: 300mm
  • Bed Height Settings: 6
  • Operating Air Pressure: 110-125psi
  • Air Inlet: 1/4"NPT
  • Carton: 1150x380x2044mm
  • Gross Weight: 762kg

User Manual:

Borum Product Warranty

  • Ramp Champ only works with well-known, industry-leading manufacturers such as Borum. All of our products come with at least a 12-month warranty. See full product warranty details here.
  • Minor scratches and blemishes may be visible upon receipt of your item. However, if the item is delivered damaged please contact us immediately. See full shipping details here.
  • Borum Product Warranty Information

Note: Colour, tone, finish and style of actual products may differ from those shown in the product images.
