Liftex Heavy-Duty Platform Stackers, 400kg Capacity
Authorised dealerSKU: TR2230$1,140 ex GST
- Lifts up to 400kg
- Maximum lift height of 1500mm
- Slim enough to fit through standard doorways
Authorised dealeri
50,000+ ordersi
12-month warrantyi
100-day free returnsi
Rated 4.7 from 1,186 reviews on Google, ProductReview and Trustpilot
Liftex Heavy-Duty Platform Stackers, 400kg Capacity
Platform stacker specifications
| Type | SKU | Price | Stock |
|---|---|---|---|
| Manual | TR2230 | $1,254 | Available to order |
| Electric | TR2231 | $3,828 | Available to order |
| Brand | Liftex |
|---|---|
| Weight | 85kg - 120kg |
About this platform stacker

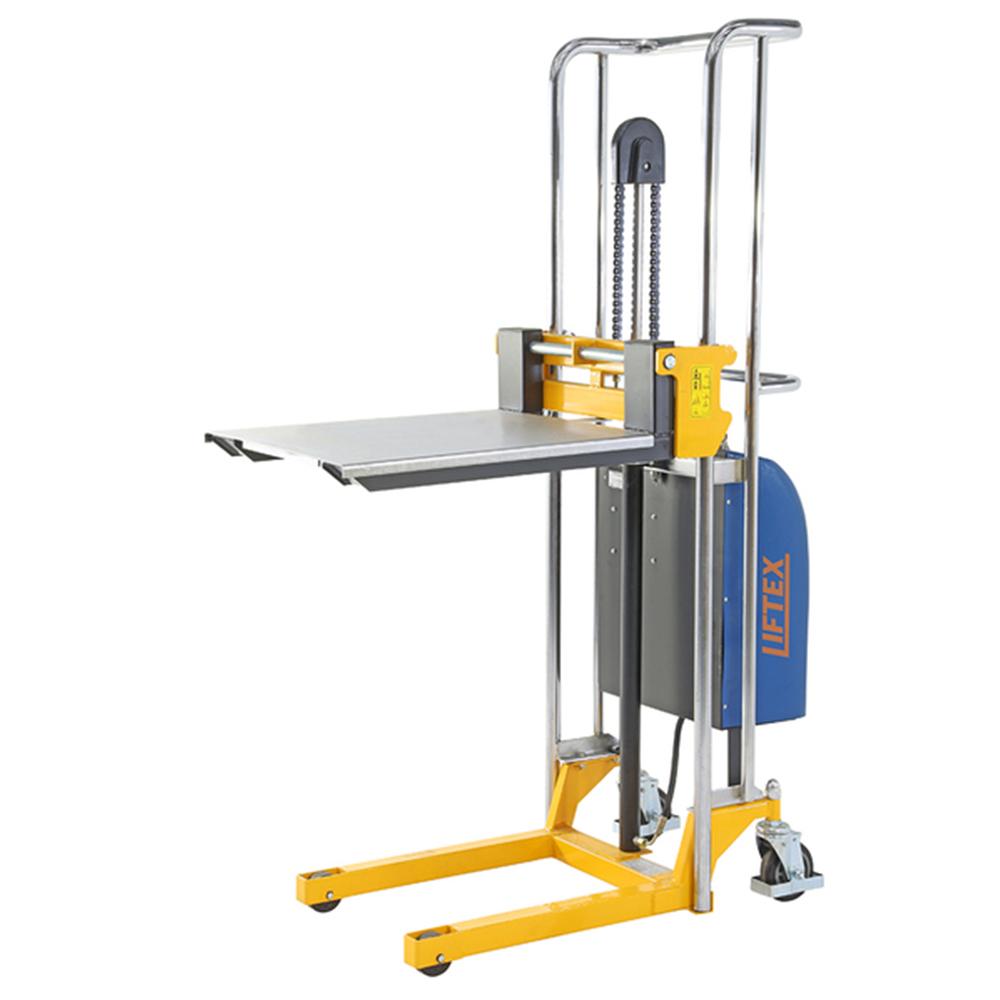

Liftex aluminium lift-assist device with manual/electric control and quick setup

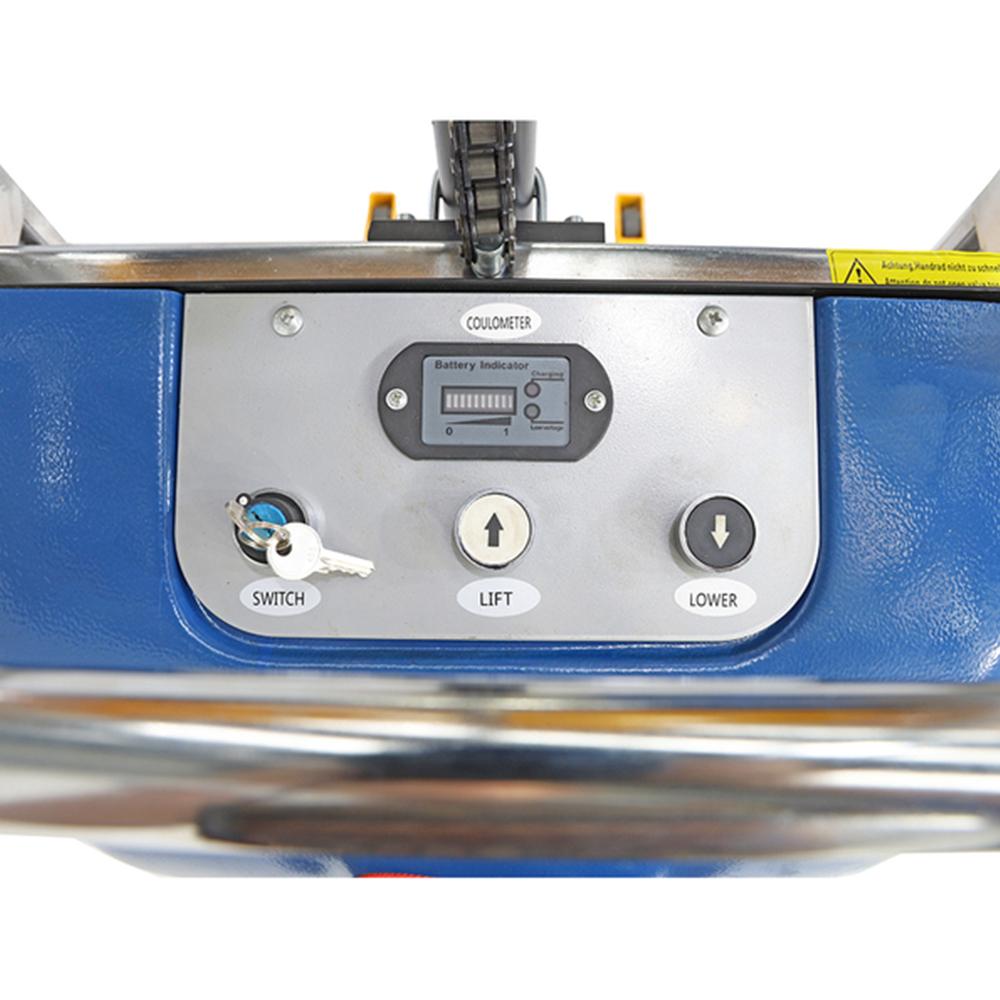

This aluminium lift assist device is great for helping with the lifting, positioning, and installation of goods at a height. It is ideal for lifting items into ceiling spaces or handling machine parts, thanks to the removable platform. Hence allowing you to avoid more complex and expensive equipment like forklifts. The lifter has a simple control panel with up and down push buttons, a key lock and a battery level indicator display to keep the operator aware.
The lifter features a manual hand winch control with automatic braking action that enables the device's smooth functioning. The machine is slim enough to be squeezed through standard doorways. The trolley can be set up quickly without the need for any additional tools.
Platform stacker sizes and details

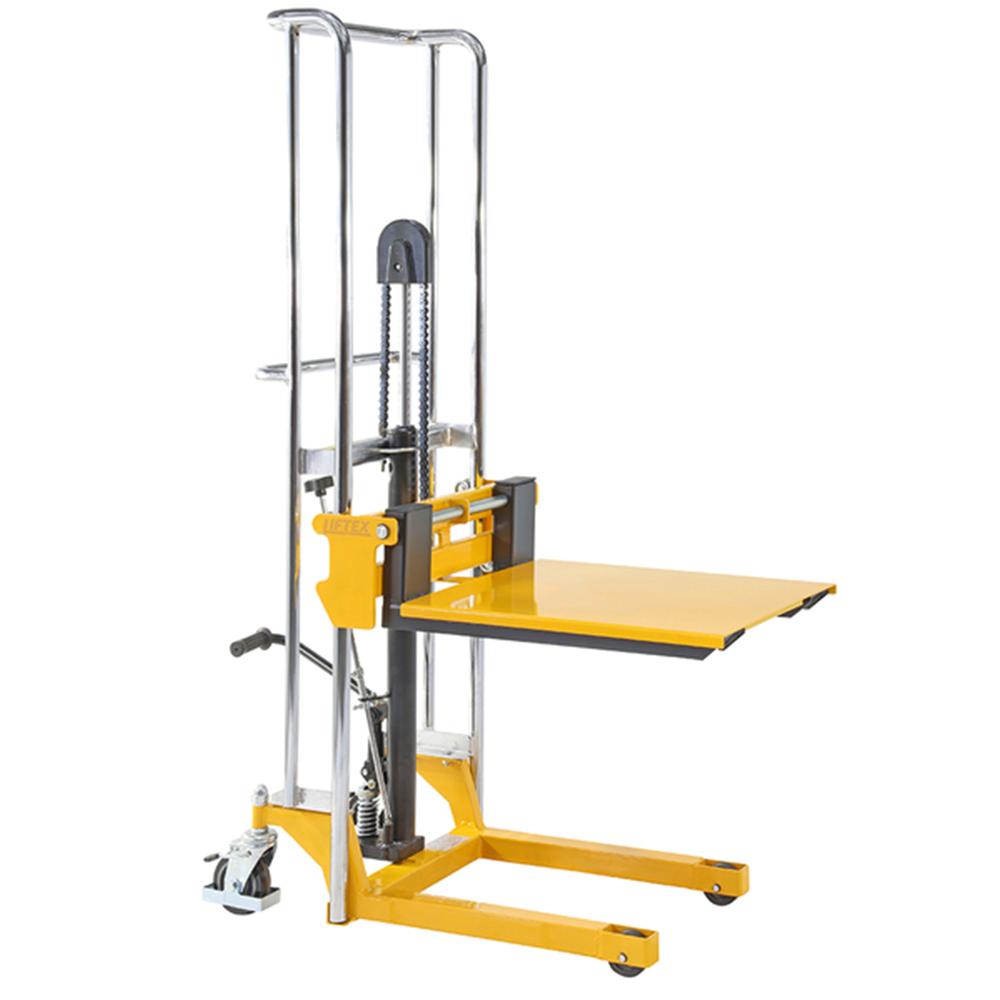

- Manual Stacker Features (TR2230 )
- Capacity: 400kg
- Operation: Foot pump hydraulic lift
- Castor: 125mm lockable
- Maximum Lift Height: 1500mm
- Minimum Height: 75mm
- Platform Size: 580x660mm (W x D)
- Fork Length: 650mm
- Overall Length: 1040mm
- Overall Width: 590mm
- Overall Height: 1710mm
- Net Weight: 85kgs
- Electric Stacker Features (TR2231)
- Capacity: 400kg
- Operation: Electric hydraulic lift
- Castor: 125mm lockable
- Maximum Lift Height: 1500mm
- Minimum Height: 80mm
- Platform Size: 580x660mm (W x D)
- Fork Length: 650mm
- Overall Length: 1040mm
- Overall Width: 590mm
- Overall Height: 1710mm
- Battery: 12v 80Ah
- Net Weight: 120kgs
Key benefits
- Lifts up to 400kg
- Maximum lift height of 1500mm
- Slim enough to fit through standard doorways
- Manual hand winch control with automatic braking action
- Removable platform
- 400 kg loading capacity.
- Fits through standard doorways.
- Quick setup - requires no tools.
- Legs fold up for easy storage.

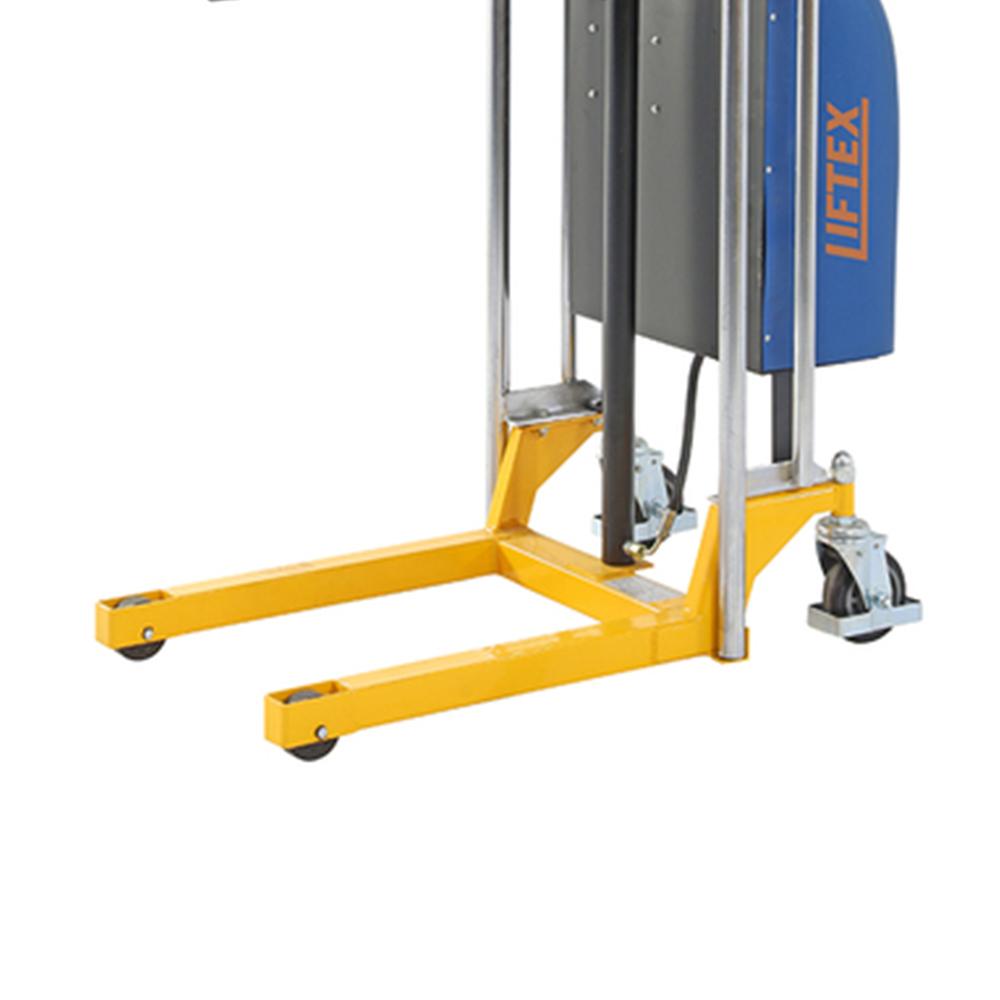

- Two legs with castors for stability and easy movement
- Ideal for lifting items into ceiling spaces or handling machine parts at height.
