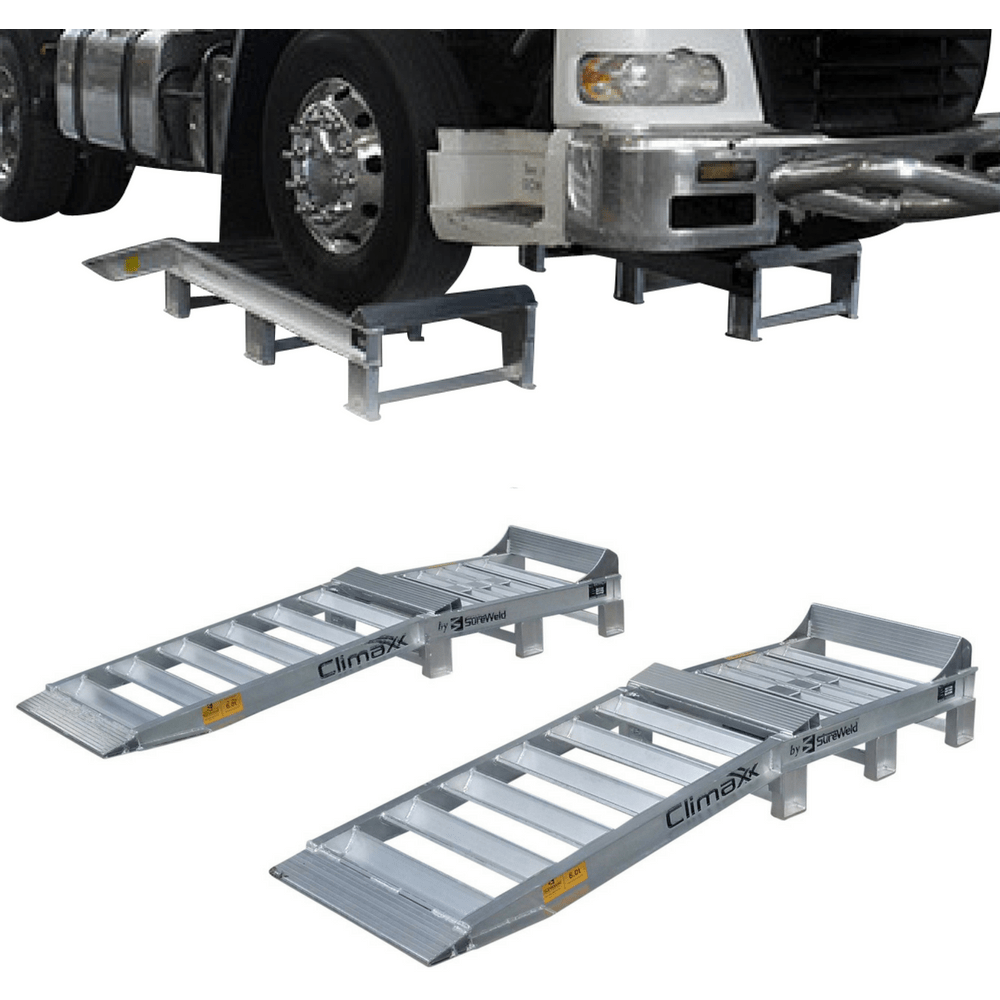

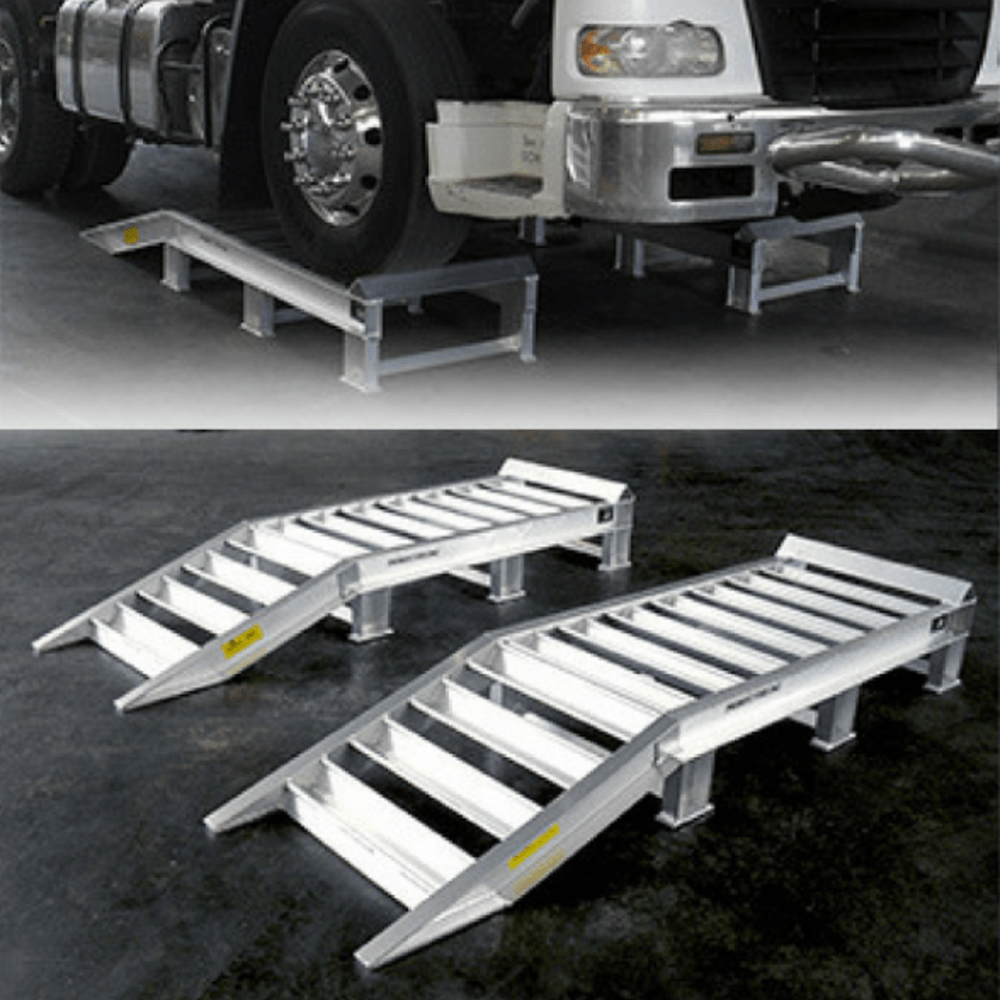

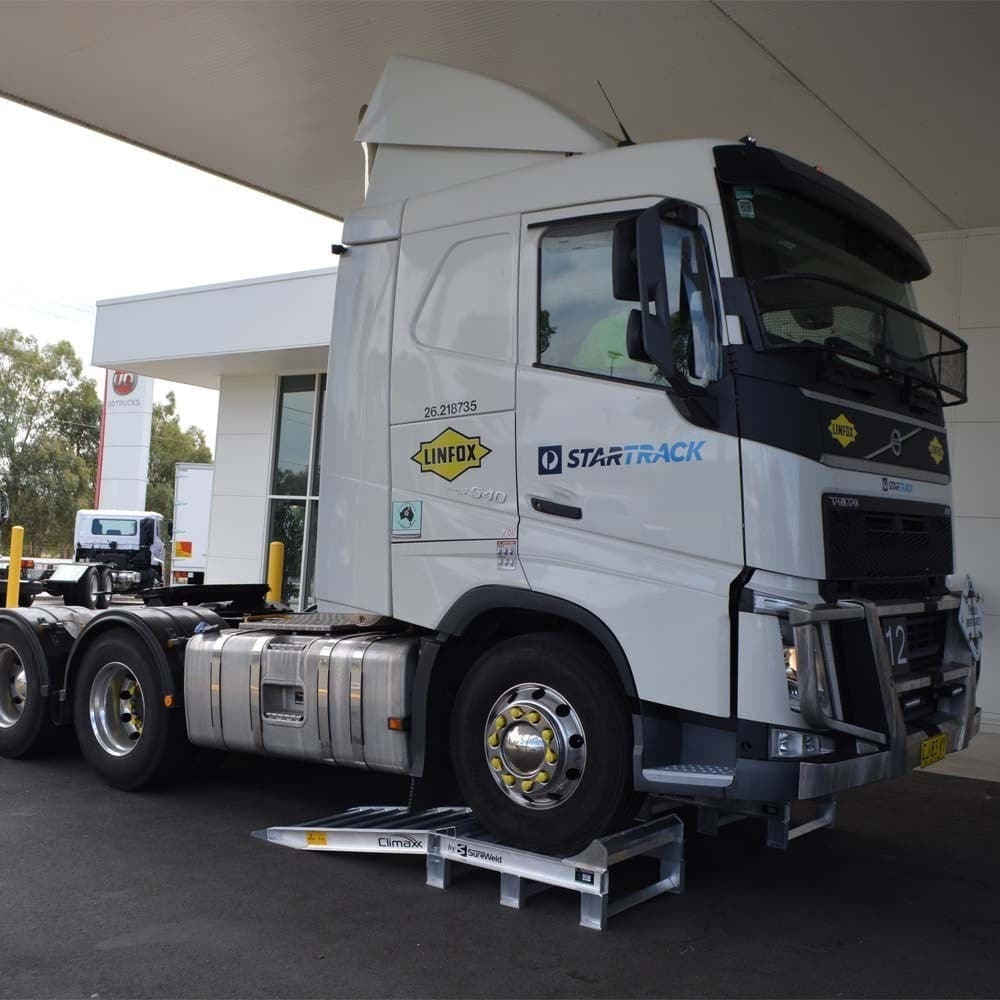

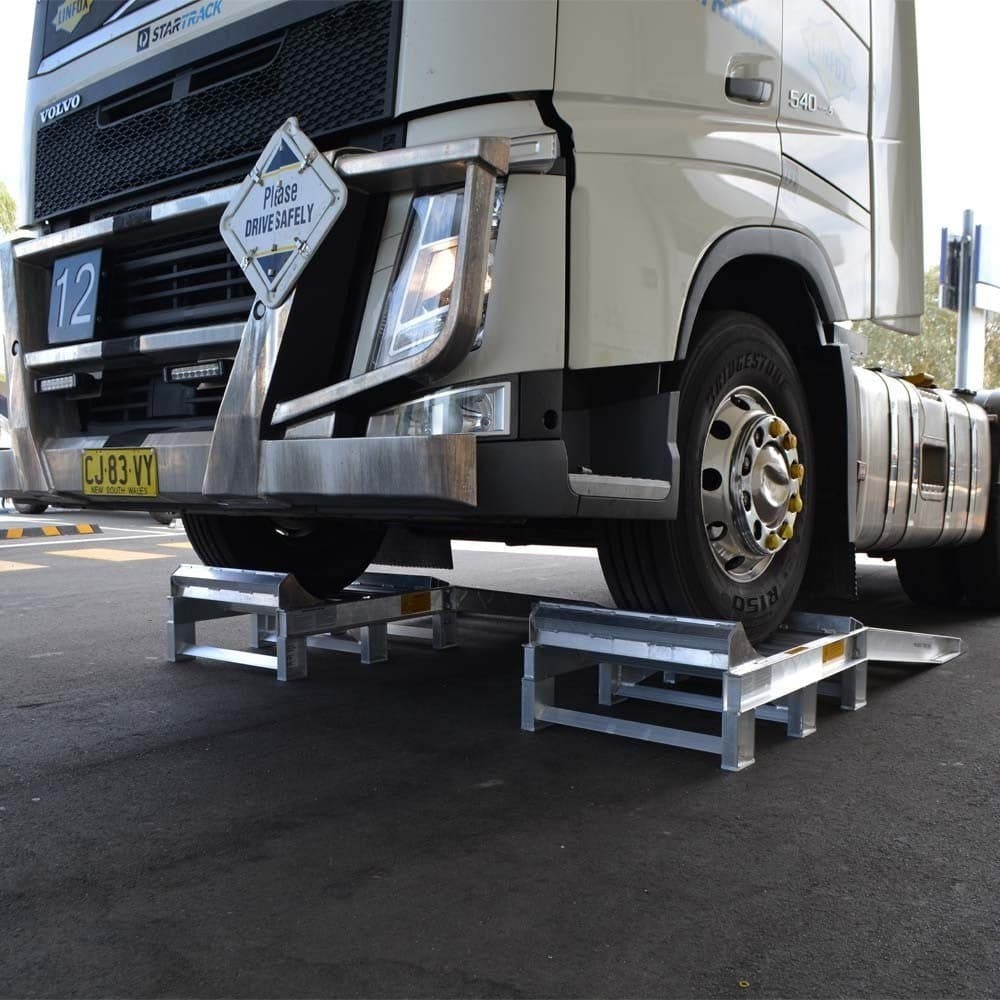

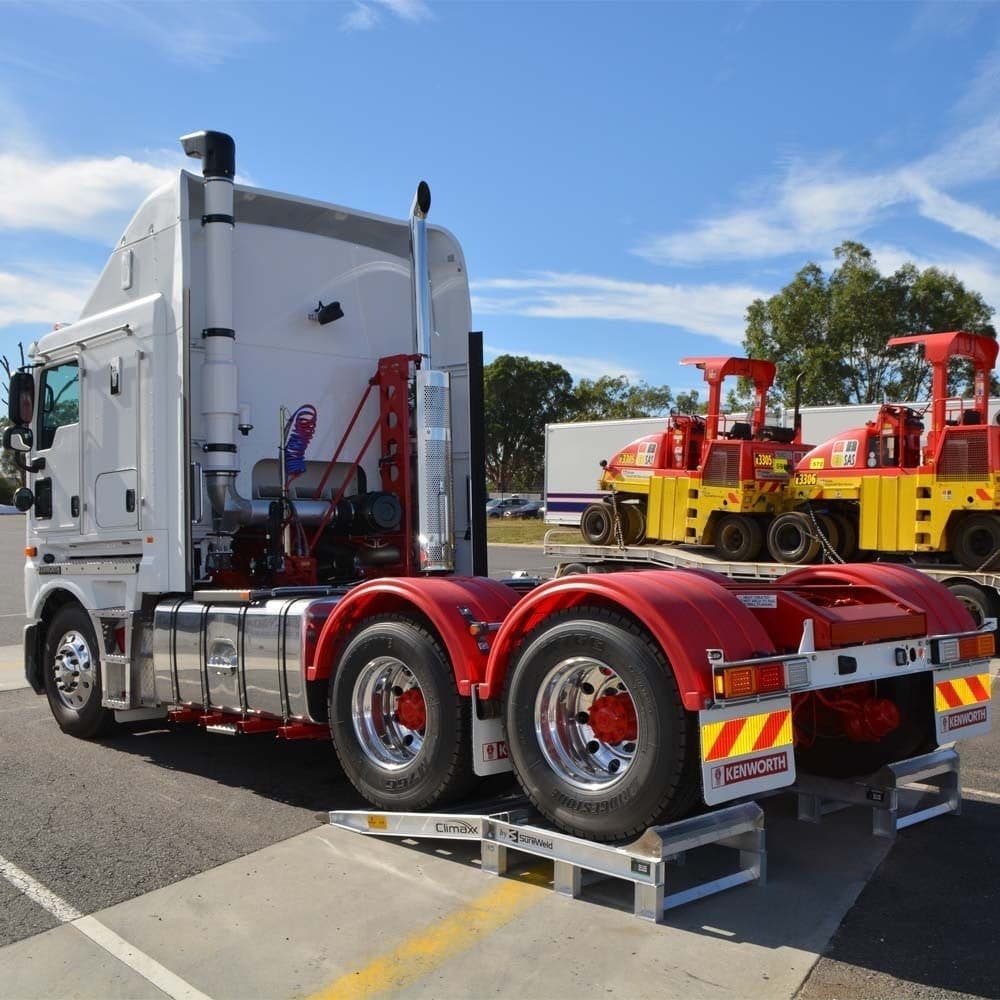

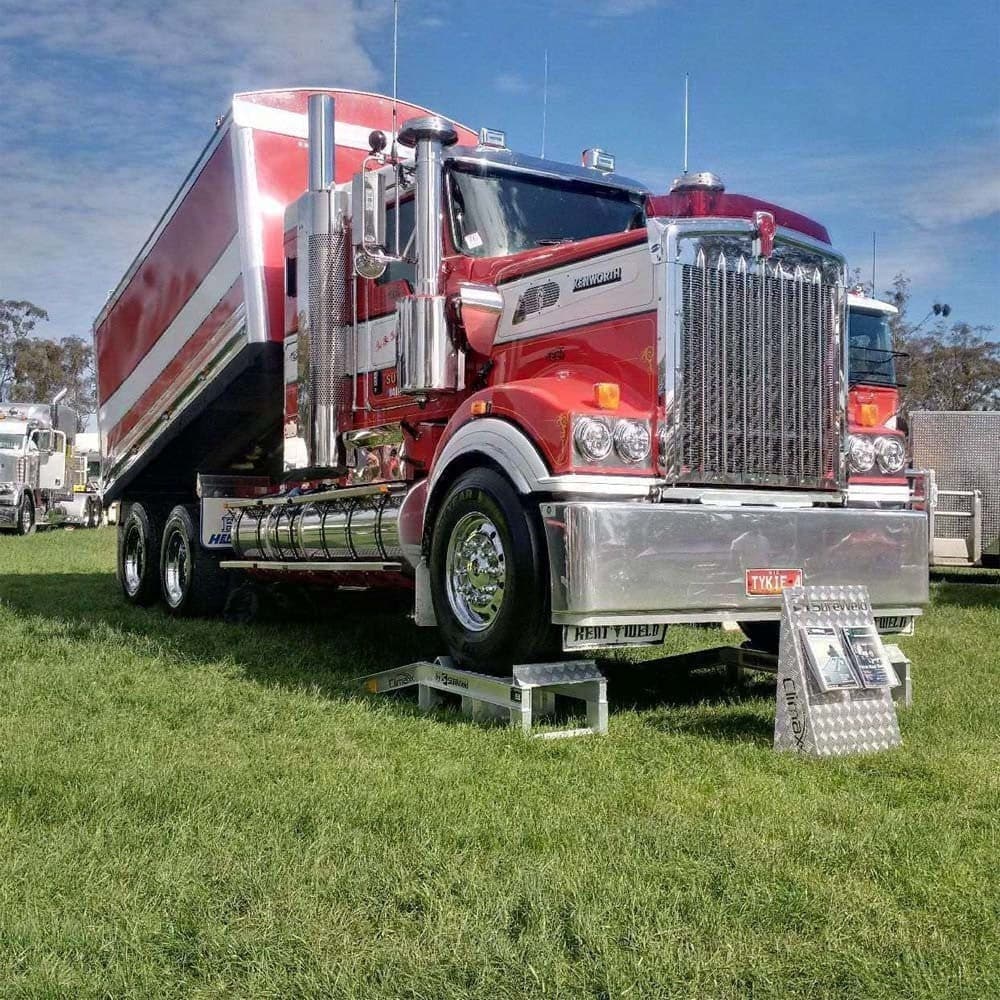

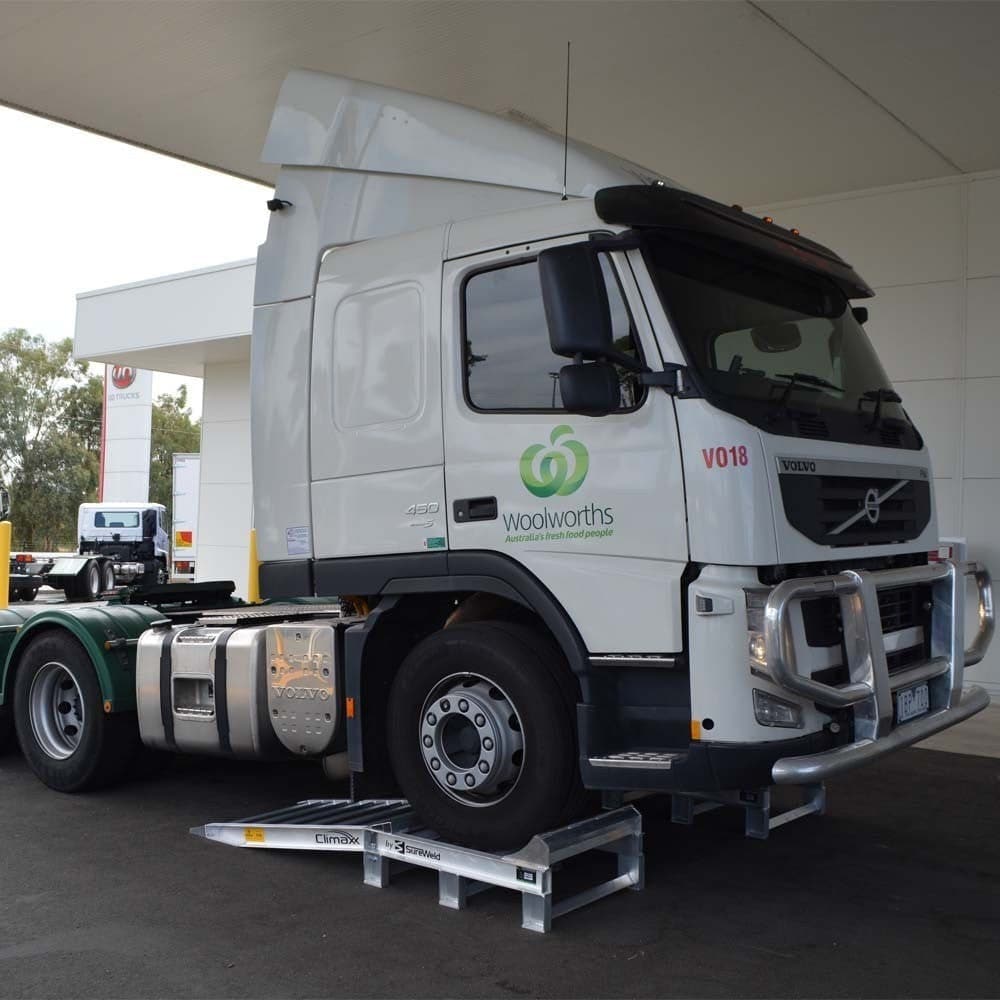

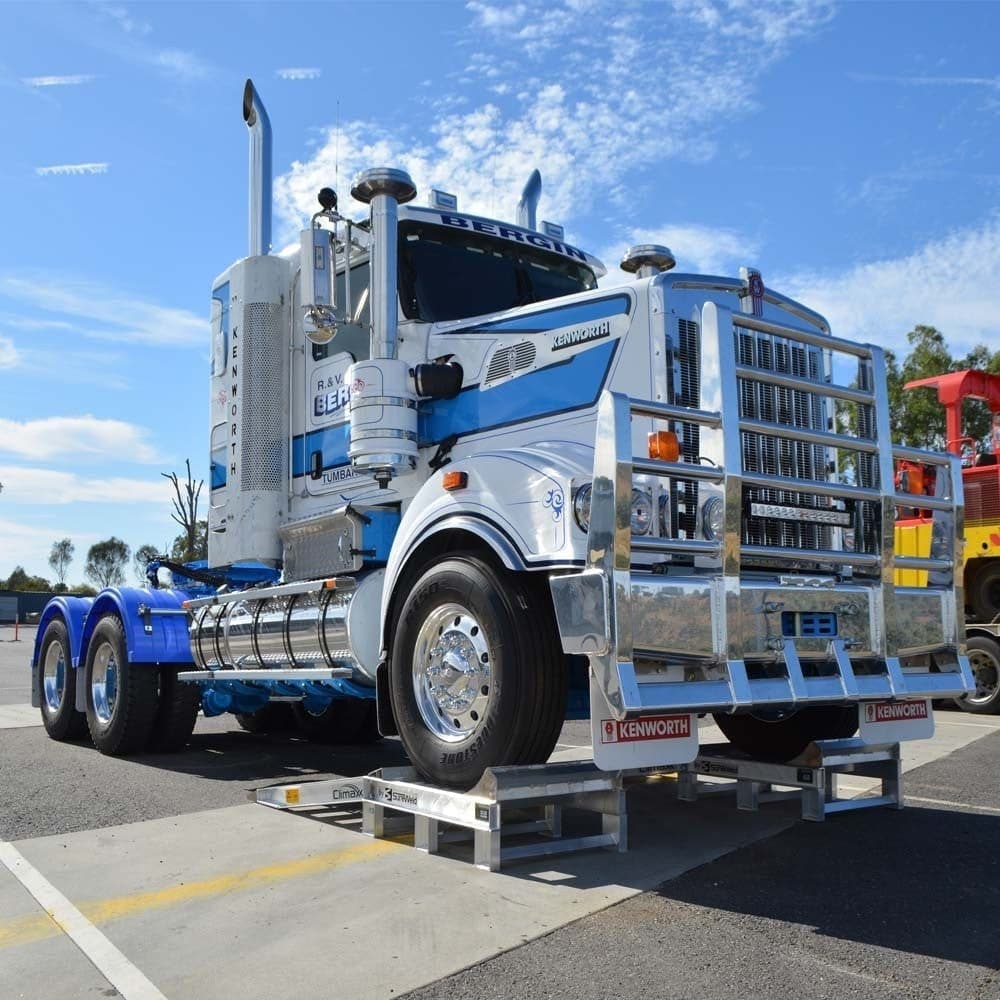

Sureweld Truck Wheel Riser Ramps For Front Wheels

$2,453.00
SKU WR7522-40

✓ Fast Shipping + Order Tracking
✓ Pickup In-Store Available
✓ Questions? Call Us: 1300 913 047



Estimated Arrival: Between and .



Aluminium Truck Wheel Riser Ramps From Sureweld

The ‘Wheel Riser’ series of ramps from the industry leading brand Sureweld are the newest addition to the Climaxx Aluminium Ramp range.

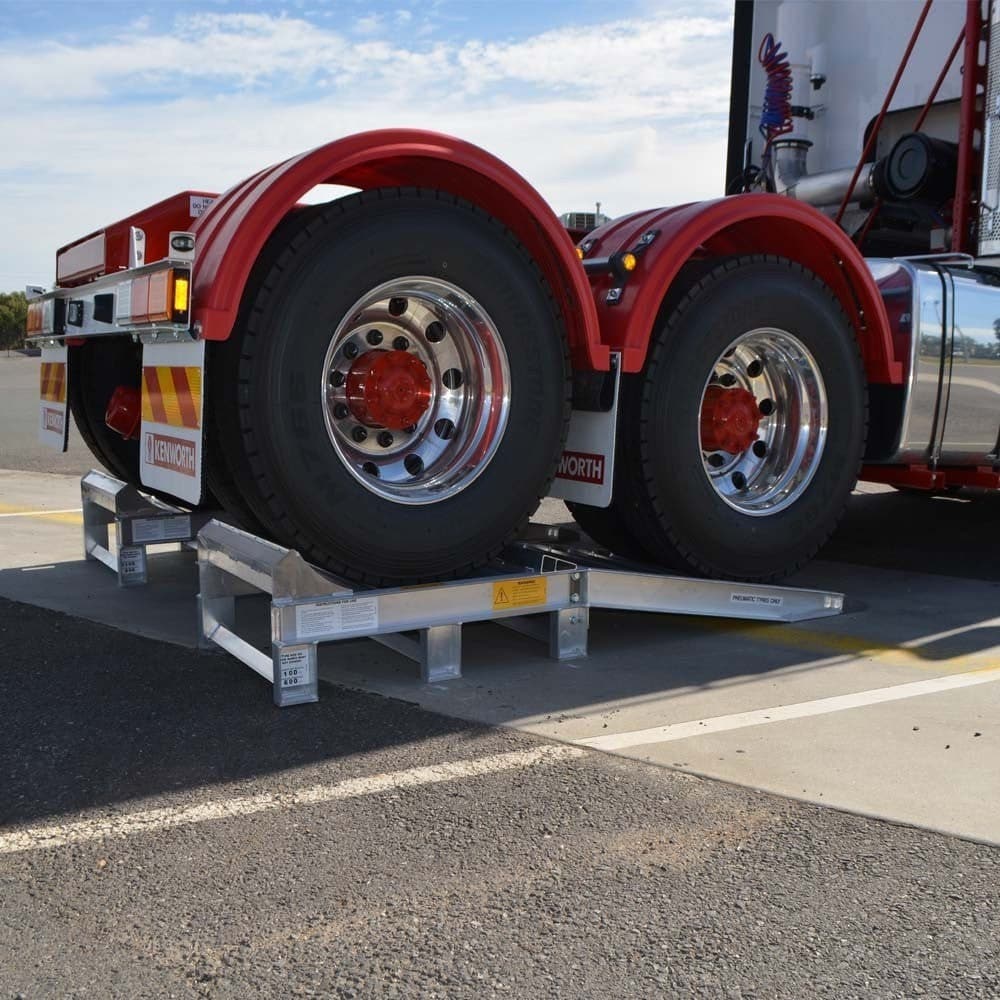

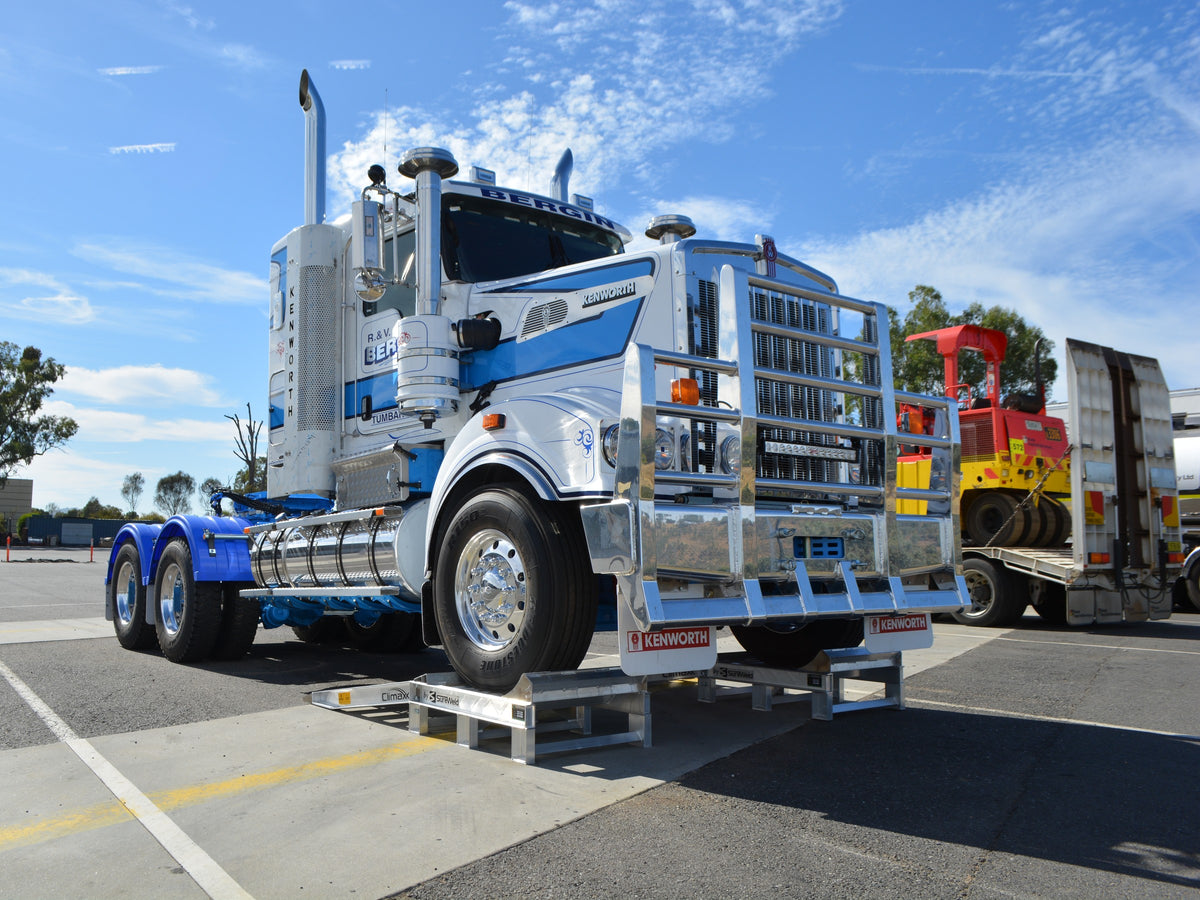

As with all the Sureweld ramps, the Aluminium Truck Wheel Riser Ramps are made from lightweight, high-quality and high-strength Aluminium, ensuring ease of positioning and transport. These ramps are built for raising trucks and other heavy vehicles off the ground for a wide range of applications.

The Wheel Riser series of ramps from Sureweld are specifically designed for applications where access to the underside of heavy vehicles is either difficult. The Climaxx Wheel Riser Ramps may be suited to the following

  • Heavy Vehicle Inspection Areas
  • Loading Docks
  • Truck Service Centres
  • Heavy Vehicle Wash Bays

The ‘Wheel Riser’ ramps are built to comply with the Australian Standard AS. 2640:2016. Released in 2016, this standard outlines stringent requirements in which portable ramps are to be designed and manufactured in accordance with.

Features And Benefits

  • 100% Australian designed and made
  • Ideal for pneumatic (air) tyres
  • Manufactured from structural-grade alloys to ensure the maximum strength available.
  • Compliance Plates recording the model number, load capacity and serial number ensure traceability and safe work practice.
  • 12 month warranty

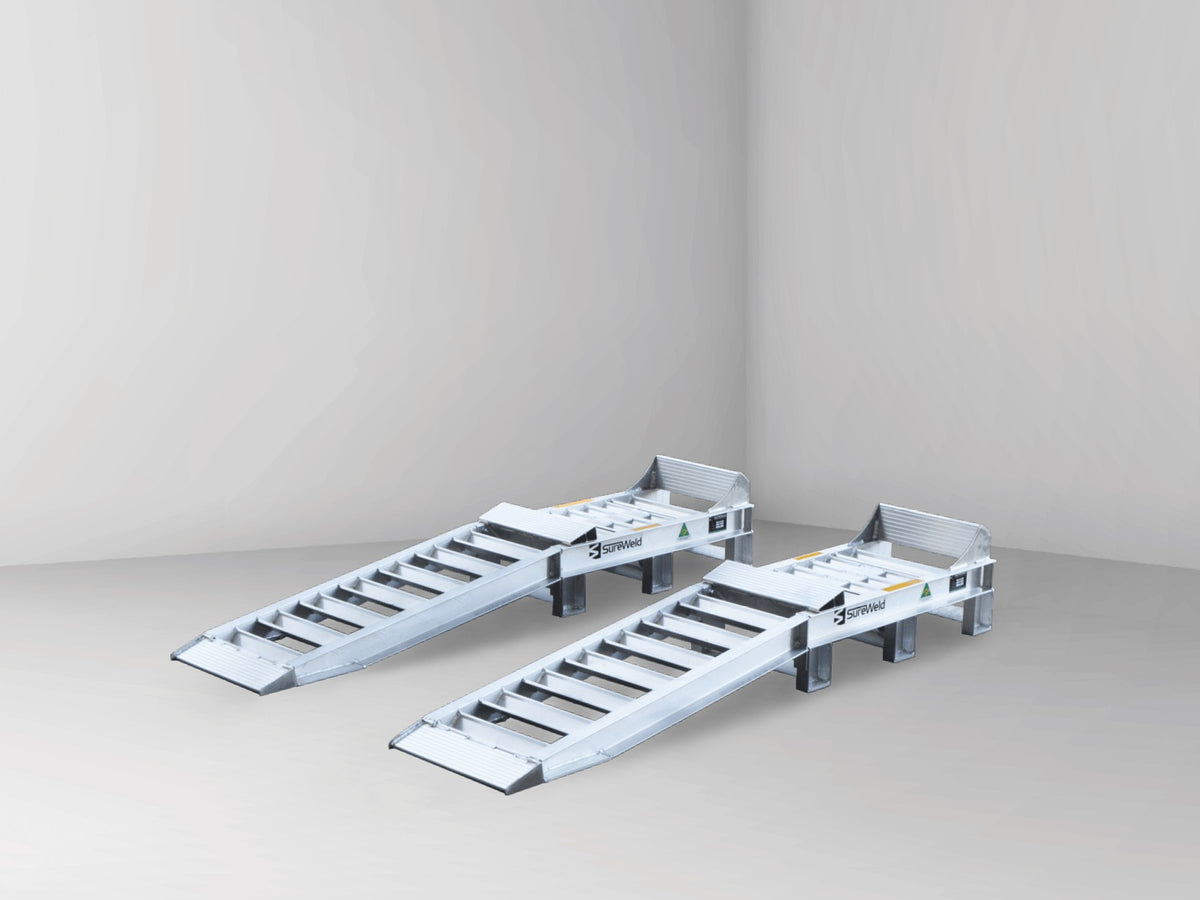

  • Sold in pairs

Specifications

  •  Approach Ramp Length: 1420mm

  • Platform Length: 770mm
  • Tread width: 400mm

  • Platform Height: 250mm
  • External width: 500mm

  • Maximum Load Capacity: 7500kg
  • Weight: 35kg each ramp



Model A B C D Ramp Tread Width Overall Ramp Width
WR7522-40 1420 770 250 302 400 500
WR7522-60 1420 770 250 302 600 700
WR7536-60 1420 2170 250 302 600 700





Sureweld wheel riser dimensions drawingA = Approach Ramp Length
B = Platform Length
C = Platform Height
D = Approach Height



 Sureweld Authorised Dealer1 year warrantyaustralian made ramps

Note: Colour, tone, finish and style of actual products may differ from those shown in the product images.
