TTi Diesel-Captain 800L Standard Poly Diesel Ute Tank Kit
Authorised dealerSKU: DUL0800LFB060V1$3,109.09 ex GST
- Length1700mm
- Capacity800L
- Features a ¾" auto shut-off nozzle for hassle-free and safe fueling
- Comes with a 6m x ¾" hose for extended reach and flexibility
- Designed with a durable poly lid to protect the pump compartment
Available to order, ships in 5-7 business days
Authorised dealeri
50,000+ ordersi
12-month warrantyi
100-day free returnsi
Rated 4.7 from 1,186 reviews on Google, ProductReview and Trustpilot

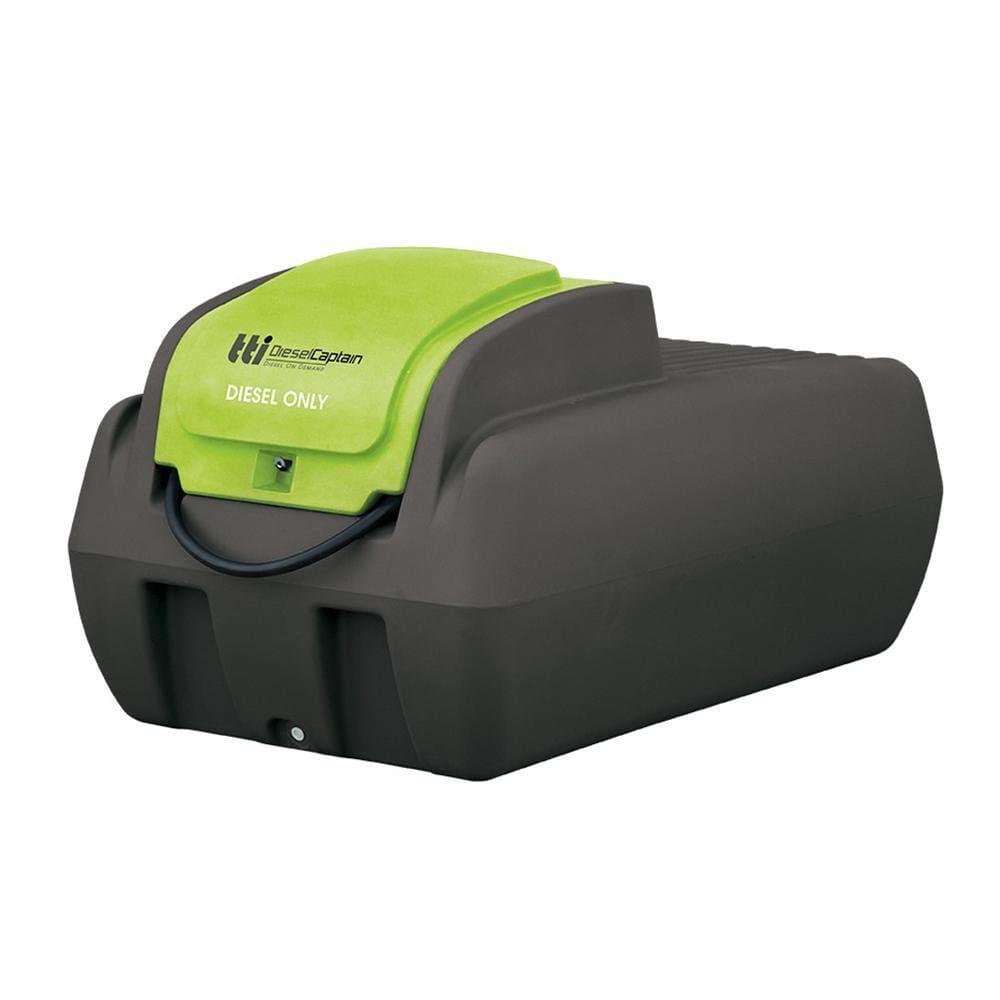

TTi Diesel-Captain 800L Standard Poly Diesel Ute Tank Kit
Tank kit specifications and dimensions
| Pump Flow Speed | Flow Meter | Extras: Frame, Ball Baffle System | SKU | Price | Stock |
|---|---|---|---|---|---|
| 60 LPM 12v Pump | No Meter | No Frame - Ball Baffle System | DUL0800LFB060V1 | $3,420 | Available to order |
| 60 LPM 12v Pump | No Meter | Steel Frame Forkliftable - Ball Baffle System | DUL0800LFB060V1+ASFD00200 | $4,007 | Available to order |
| 60 LPM 12v Pump | Electronic Meter for Diesel | No Frame - Ball Baffle System | DUL0800LFB060V1+ADFPE25D5 | $3,794 | Available to order |
| 60 LPM 12v Pump | Electronic Meter for Diesel | Steel Frame Forkliftable - Ball Baffle System | DUL0800LFB060V1+ADFPE25D5+ASFD00440 | $4,617 | Available to order |
| 80 LPM 12v Pump | No Meter | No Frame - Ball Baffle System | DUL0800LTB080V1 | $3,680 | Available to order |
| 80 LPM 12v Pump | No Meter | Steel Frame Forkliftable - Ball Baffle System | DUL0800LTB080V1+ASFD00200 | $4,267 | Available to order |
| 80 LPM 12v Pump | Electronic Meter for Diesel | No Frame - Ball Baffle System | DUL0800LTB080V1+ADFPE25D5 | $4,054 | Available to order |
| 80 LPM 12v Pump | Electronic Meter for Diesel | Steel Frame Forkliftable - Ball Baffle System | DUL0800LTB080V1+ADFPE25D5+ASFD00440 | $4,877 | Available to order |
| Holds | 800L |
|---|---|
| Brand | TTi |
| Length | 1700mm |
| Width | 1000mm |
| Height | 860mm |
| Weight | 88kg |
About this tank kit
Durable 800L high flow diesel grade polyethylene tank kit with ball baffle safety system
The TTi Diesel-Captain 800L Standard Poly Diesel Ute Tank Kit is manufactured using diesel grade polyethylene and is fitted with a Ball Baffle System for stability and safety . The high-grade tank material combined with 12 Volt 45L/ MinPuisi pump, turns out to be a powerful tank kit, delivering efficient output. All TransDiesel tanks comply with AS1940-2004 and AS2809.2-2008 standards for quality and safety. The ¾” auto shut off nozzle ensure the fuel doesn't leak while filling. A 6m x ¾” hose offers extra reach while filling Construction & Machinerys with the fuel. A 3/4" drain bung helps in draining out any remaining fuel and emptying the tank quickly and precisely.
The moulded aluminium ring combined with the multi-seal system, ensures that the diesel doesn't leak from the connecting port and also protects the fuel from any impurities and rain. The poly lid protects the engine compartment from rain, impacts and dirt. The 4m battery cable included with the pump allows the user to easily connect the kit with batteries. Moreover, the earth strap in the package helps in securing the tank kit with the pickup truck for easy movement on off road or uneven tracks.
Key benefits

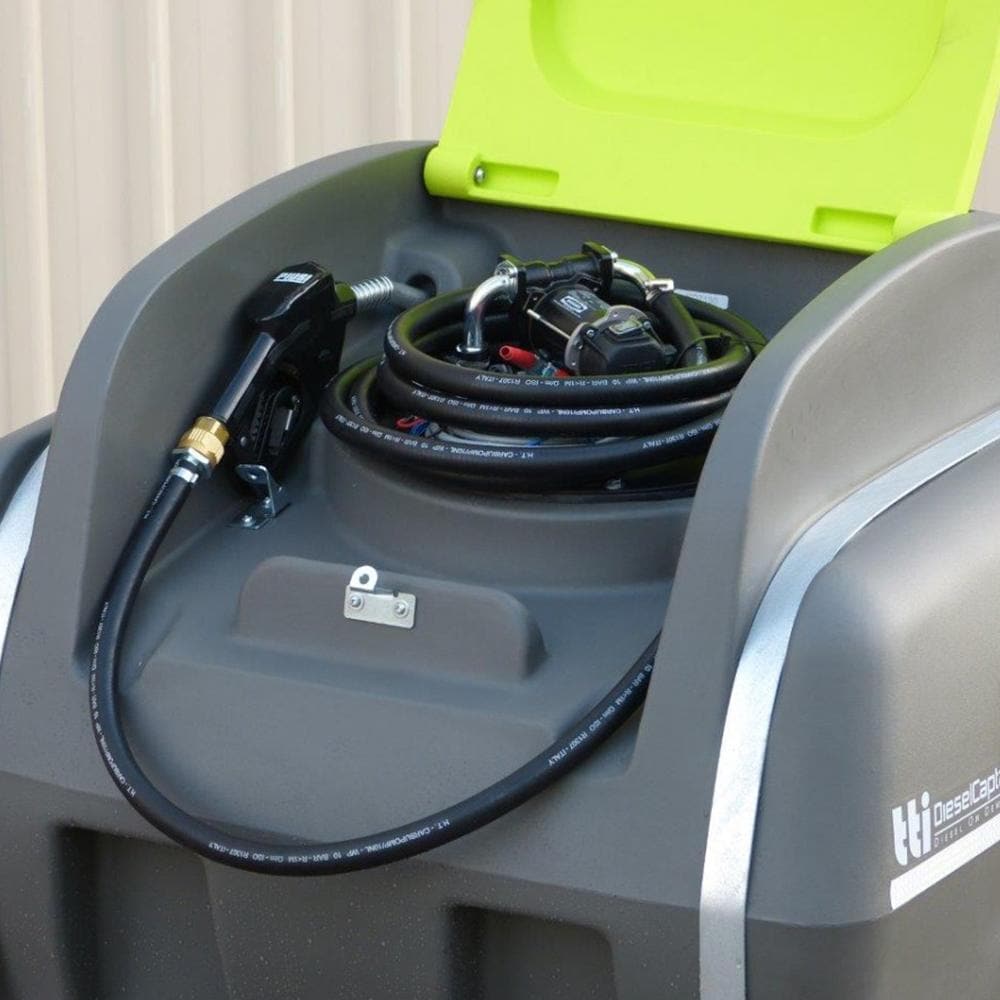

- Features a ¾" auto shut-off nozzle for hassle-free and safe fueling
- Comes with a 6m x ¾" hose for extended reach and flexibility
- All TransDiesel tanks comply with AS1940-2004 and AS2809.2-2008 standards, guaranteeing adherence to relevant safety and quality regulations
- Designed with a durable poly lid to protect the pump compartment
- Includes a ¾" drain bung for convenient drainage
- The tank can be secured using earth straps, enhancing stability and safety during transport
- Constructed from diesel-grade polyethylene that meets International Regulation ECE R34.01 standards, ensuring durability and reliability

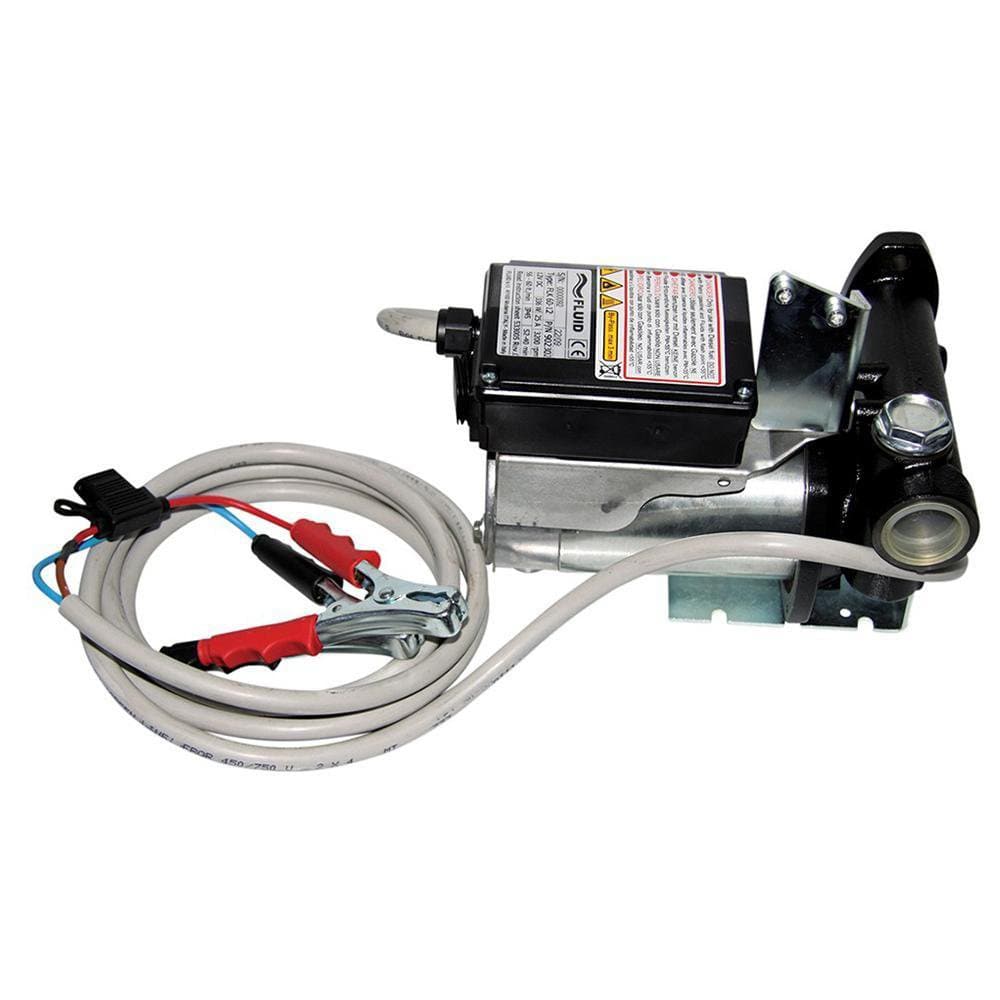

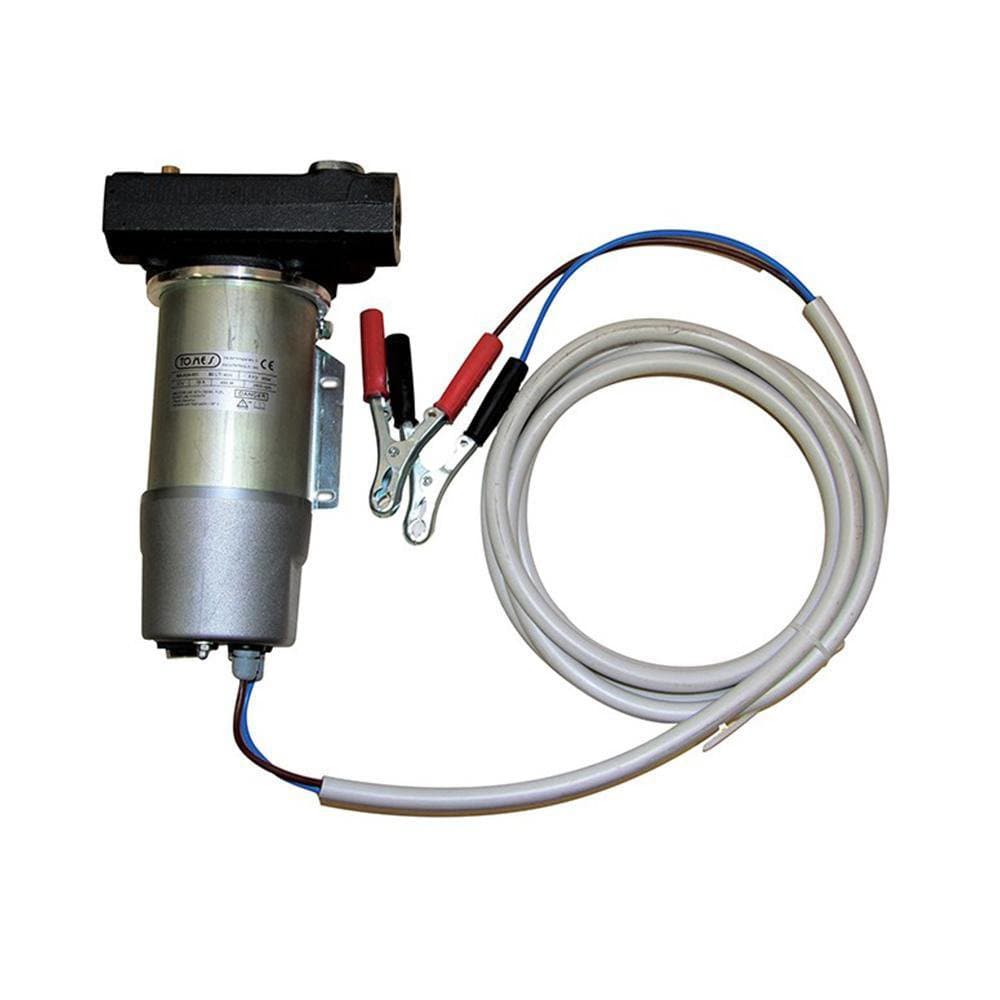

- Equipped with a high-performance pump for efficient fuel transfer
- Includes a locking latch on the lid for safeguard
- Ergonomically designed handles make the tank easy to transport
- Moulded with a unique aluminium ring for exceptional strength, featuring a multi-seal system that keeps rain out and diesel in

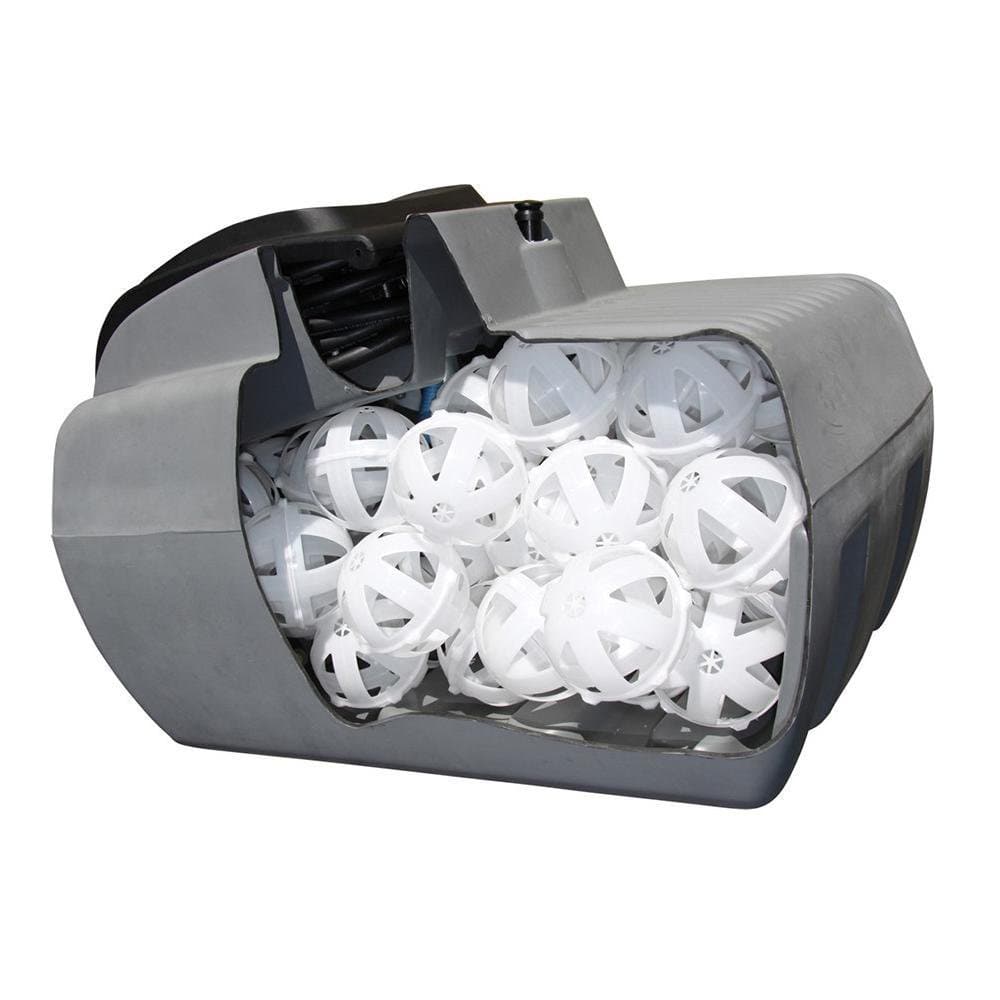

- Available with an integrated ball baffle system to minimize fuel movement and enhance stability during transport

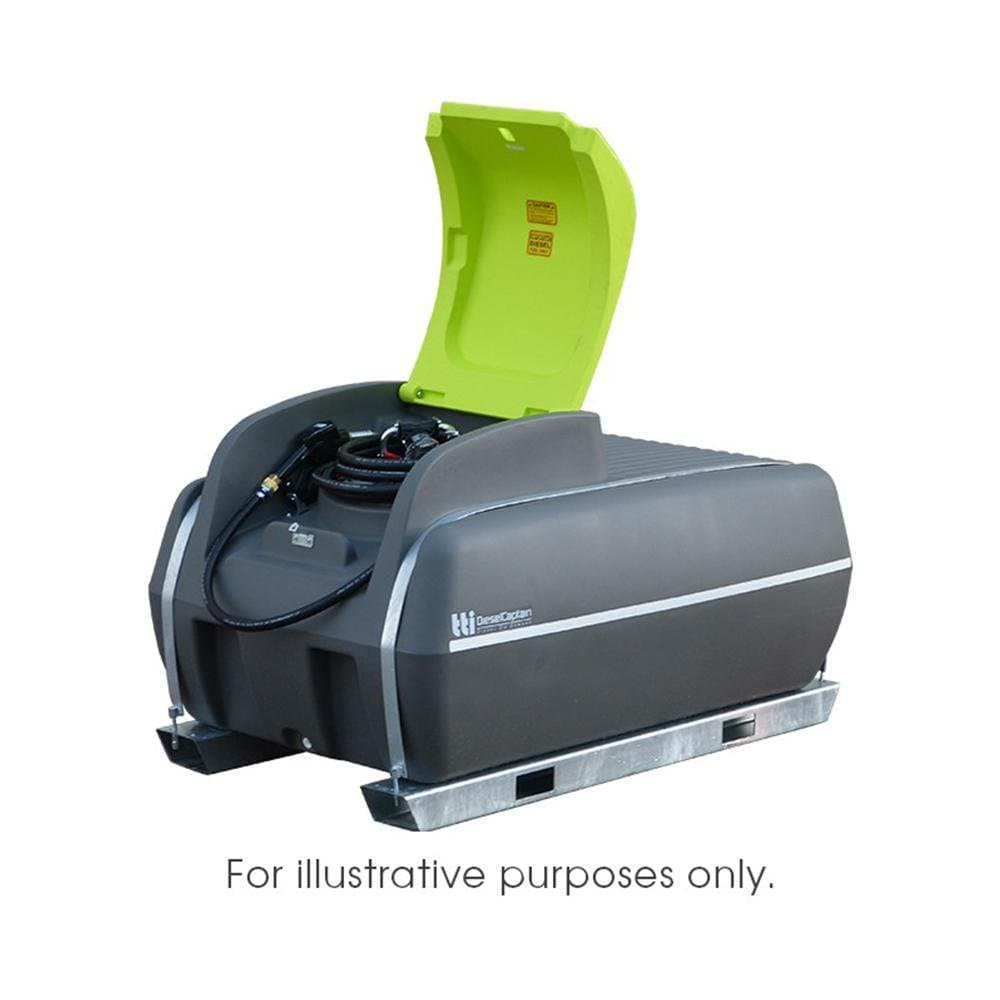

- Available with an optional steel frame forkliftable for added convenience and mobility
