AusRamp 2-Tonne 1.7m x 430mm Aluminium Loading Ramps for Trailers

by AusRamp
2 reviews
Save $113.00
Original price $1,242.00
Current price $1,129.00
SKU: 2tn-Plate

✓ Fast Shipping + Order Tracking
✓ Pickup In-Store Available
✓ Proudly Made in Australia
✓ Questions? Call Us: 1300 913 047

Bulky Delivery Item: This product is bulky and requires a tailgate courier for residential delivery or a forklift to unload for business deliveries. See below for full details.

Note: These products are made to order and may have a 1-4 week lead time.

Estimated Arrival: Between and .

Request a Quote

AusRamp 2-Tonne 1.7m x 430mm Aluminium Machinery Loading Ramps for Trailers, Pair

The AusRamp 2-Tonne 1.7m x 430mm Aluminium Machinery Loading Ramps are suitable for rubber tracks and pneumatic tyre machines that are to be loaded on trailers up to 550mm in height.

At a capacity rating of 2-tonne per pair, the lightweight aluminium ramps are ideal for loading mini-skid steer loaders, dingo's, ditch witches, and small excavators.

AusRamp ramps incorporate a design feature that prevents bottoming out when loading or unloading.

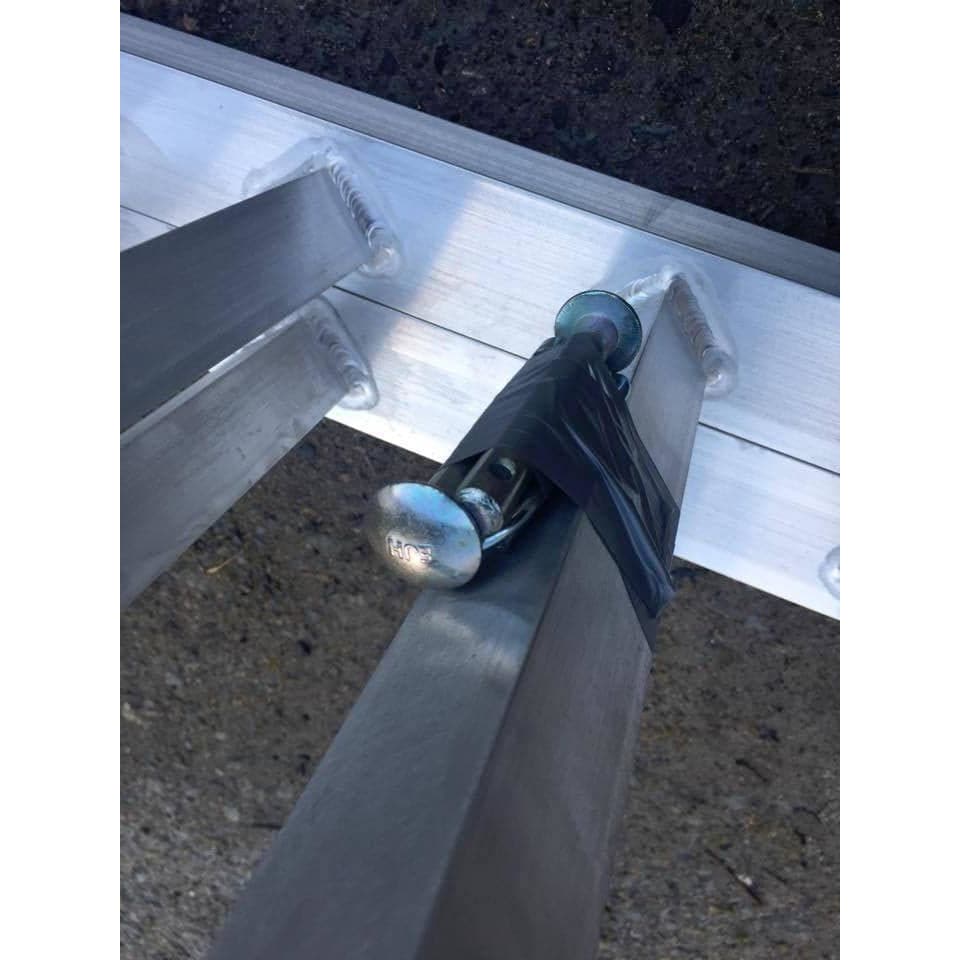

Additionally, all ramps are supplied with forged locking pins to ensure a safe, secure attachment to the loading plate.

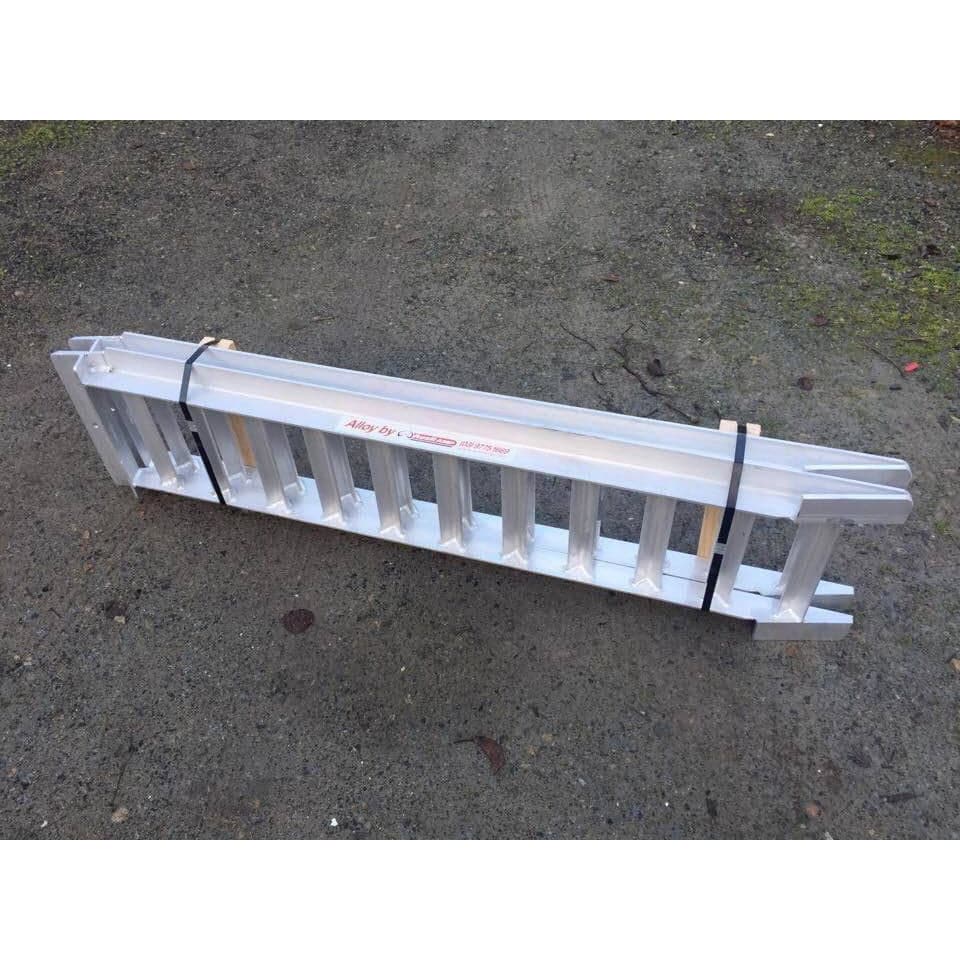

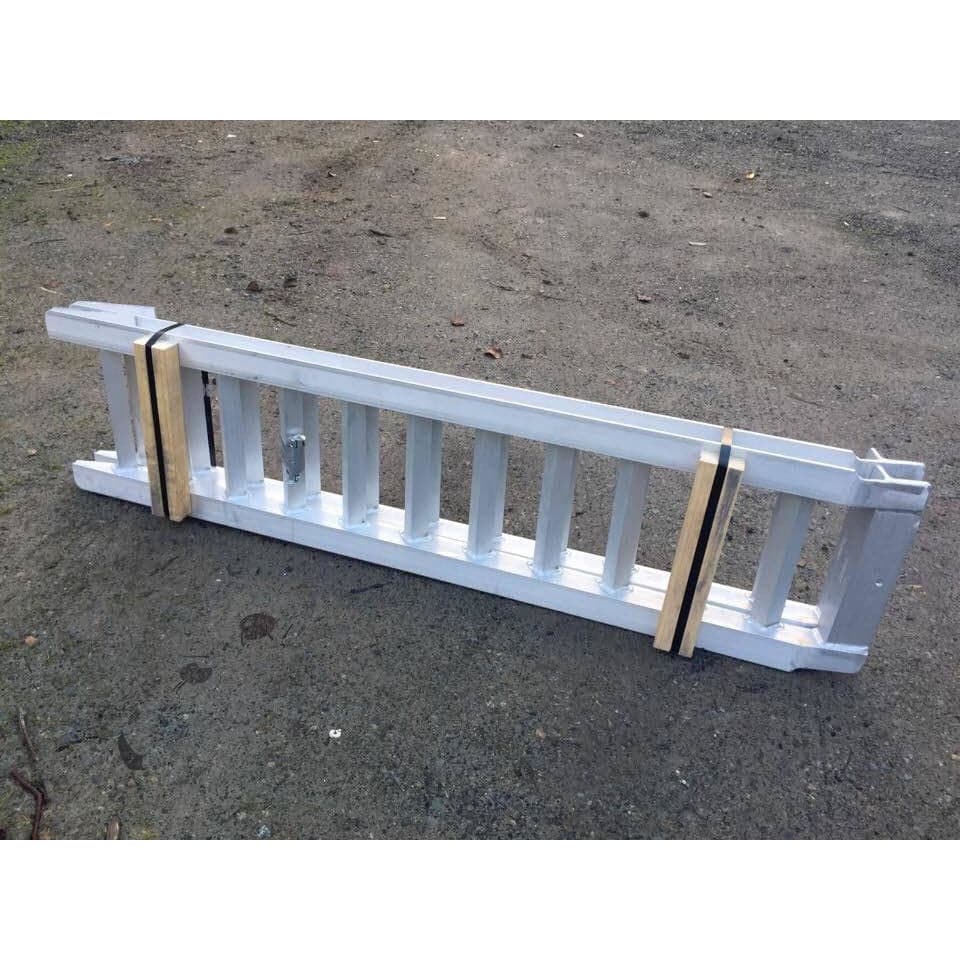

A New Set of 2-Tonne Trailer Ramps Packed and Ready to Send

A New Set of 2-Tonne Trailer Ramps Packed and Ready to Send

Features and Benefits

  • Suited to tracked and wheeled machines
  • 100% Australian designed and manufactured
  • Manufactured from structural-grade alloys to ensure the maximum strength available
  • Connecting plate and pin ensures maximum stability and safety
  • 12-month manufacturer warranty
  • Sold in pairs


  • Rated Load Capacity Per Pair: 2-tonne
  • Ramp Weight Per Ramp: 10kg
  • Ramp Length: 1.7m
  • Internal Track Width: 300mm
  • Ramp Width: 430mm
  • Ramp Depth: 63mm
  • Height Up To: 550mm
  • Cross member dimensions: 40mm x 40mm


AusRamp Loading Ramp Specifications

















Up To

2tn 2000kg 10kg 1.7m 300mm 430mm 63mm 550mm
3-425R 3000kg 30kg 3.5m 325mm 425mm 105mm 1.2m
4-425R 4000kg 36kg 3.5m 350mm 450mm 125mm 1.2m
4.5-500SR 4500kg 40kg 3.5m 425mm 525mm 125mm 1.2m
5.510SR 5000kg 49kg
470mm 550mm 150mm 1.2m
6-610SR 6000kg 55kg
500mm 620mm 160mm
8-660SR 8000kg 68kg
500mm 620mm 160mm


Can't find the ramp you're looking for? Use the chat function in the corner of the window or Contact us for advice if you're unsure what ramps are suitable for you.

    AusRamp authorised dealerAustralian made loading ramps - Sureweld1 year warranty

    2 x Manufacturers Warranty

    We double the iron clad manufacturers warranty giving you up to 3 full years peace of mind knowing your ramps will perform exactly as they should. Registration required.

    10% Off Accessories

    We don't just have ramps. Shop bollards, fuel tanks, attachments and more with a bonus 10% off construction accessories with each ramps purchase using code LOADINGRAMPS10 at checkout.

    Bulky Delivery Item Details

    This product is bulky and requires delivery via a specialist courier to either a home address or business address. For delivery to a business address the receiver is required to have either adequate business facilities to off-load the item via a forklift or loading dock available at the time of delivery during business hours. If delivery is to a residential home address or you do not have the business facilities to off-load please select residential tailgate delivery at checkout to have your item(s) delivered via a courier truck that has tailgate delivery capabilities.

    Note: Colour, tone, finish and style of actual products may differ from those shown in the product images.

    Need Help Choosing Loading Ramps?

    The construction industry is tough and the machinery even tougher; with the right loading ramps you can ensure that your expensive equipment is safe when loading or unloading your truck. For help choosing the best suitable construction machinery loading ramps click the button below.
