Barrier Group Hinged Lid Polyurethane Cable Protector - 3 Channel

$453.00
Ramp Champ free shipping
SKU: CP3PUBODY

✓ Free Shipping on This Product For Orders Over $250
✓ Pickup In-Store Available
✓ Questions? Call Us: 1300 913 047



Need A Quotation? Request a free quote

Estimated Arrival: Between and .

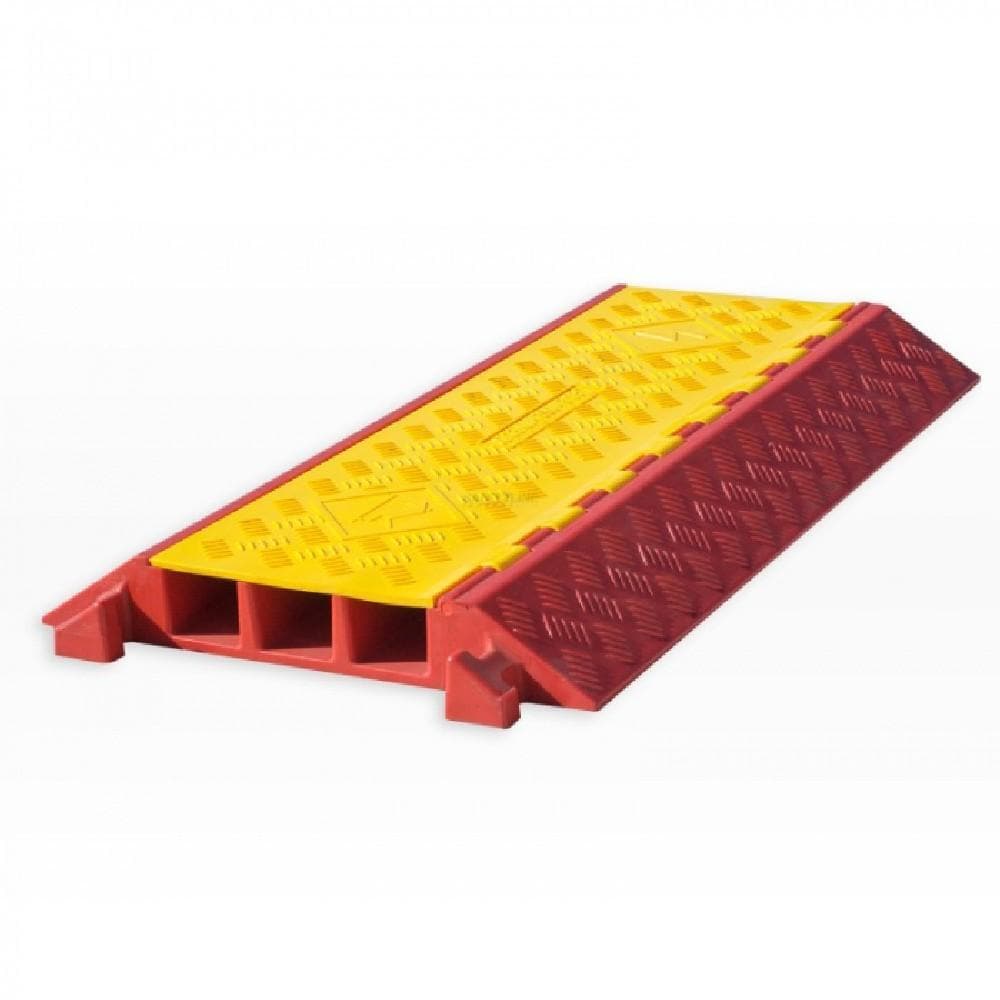

Heavy Duty Hi-vis Polyurethane Three Channel Cable Protectors With Recessed Carrying Handle And Dog Bone Connectors

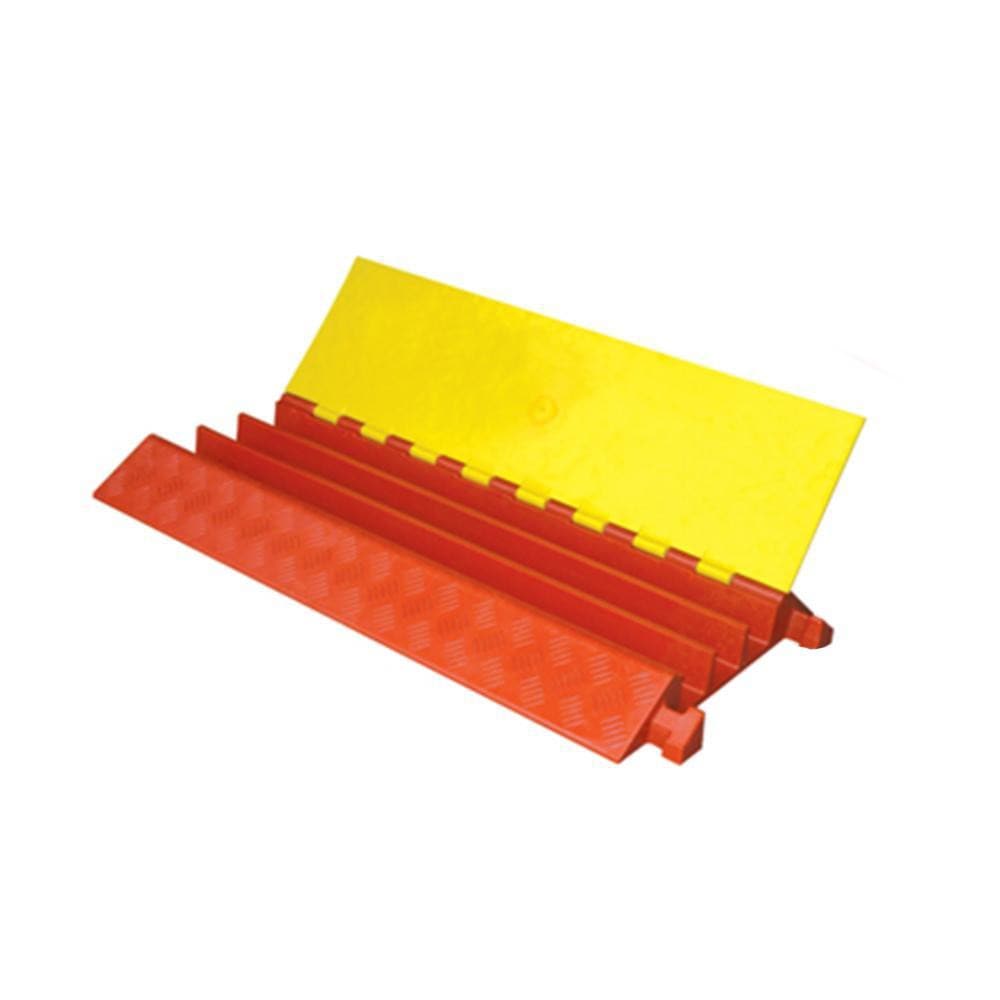

The Barrier Group Hinged Lid Polyurethane Cable Protector - 3 Channel made with highly visible colour options and a hinged lid offers easy access for placing the cables. The range of 3 different channels provides placement of numerous wires with the varying thickness of each cable/ group of cables into separate channels. Such organized way of maintaining vital cable network turns out to be beneficial for longer periods. Through the heavy-duty, dog-bone connector modules the protector will stay secured in its position.

The interlocking module's design with three channels of 65mm width and 55mm depth weighs about 13.5 Kgs. The Hi-Vis orange and yellow safety colours provided have their essential importance for notifying pedestrians regarding the slight imbalance of surface.

Not recommended for forklift and truck traffic.

Features & Benefits

  • Dog-Bone Connectors for Stability of Modules
  • Recessed Easy Carrying Handles
  • Portable Yet Sturdy Construction
  • Hinged Lid Offering Convenient Access
  • Tough Polyurethane Materials for Sturdy Performance

Specifications

Description: Polyurethane cable protectors
Material: Polyurethane body with rubber/plastic lid
Finish: Hi-Vis Orange and Yellow.
Dimensions: 2 channels - L1000mm x W250mm x H45mm.
3 channels - L900mm x W500mm x H70mm.
5 channels - L900mm x W500mm x H55mm.
Channel size: 2 channels - W27mm x D30mm.
3 channels - W65mm x D55mm.
5 channels - W35mm x D35mm.
Weight: 2 channel - 5.5kgs.
3 channel - 13.5kgs.
5 channel - 11.5kgs.
Installation: Interlocking modules, no tools required.

Note: Colour, tone, finish and style of actual products may differ from those shown in the product images.

* Free shipping applies to metro city delivery areas only. Additional charges may apply to deliveries outside major city metro areas.
