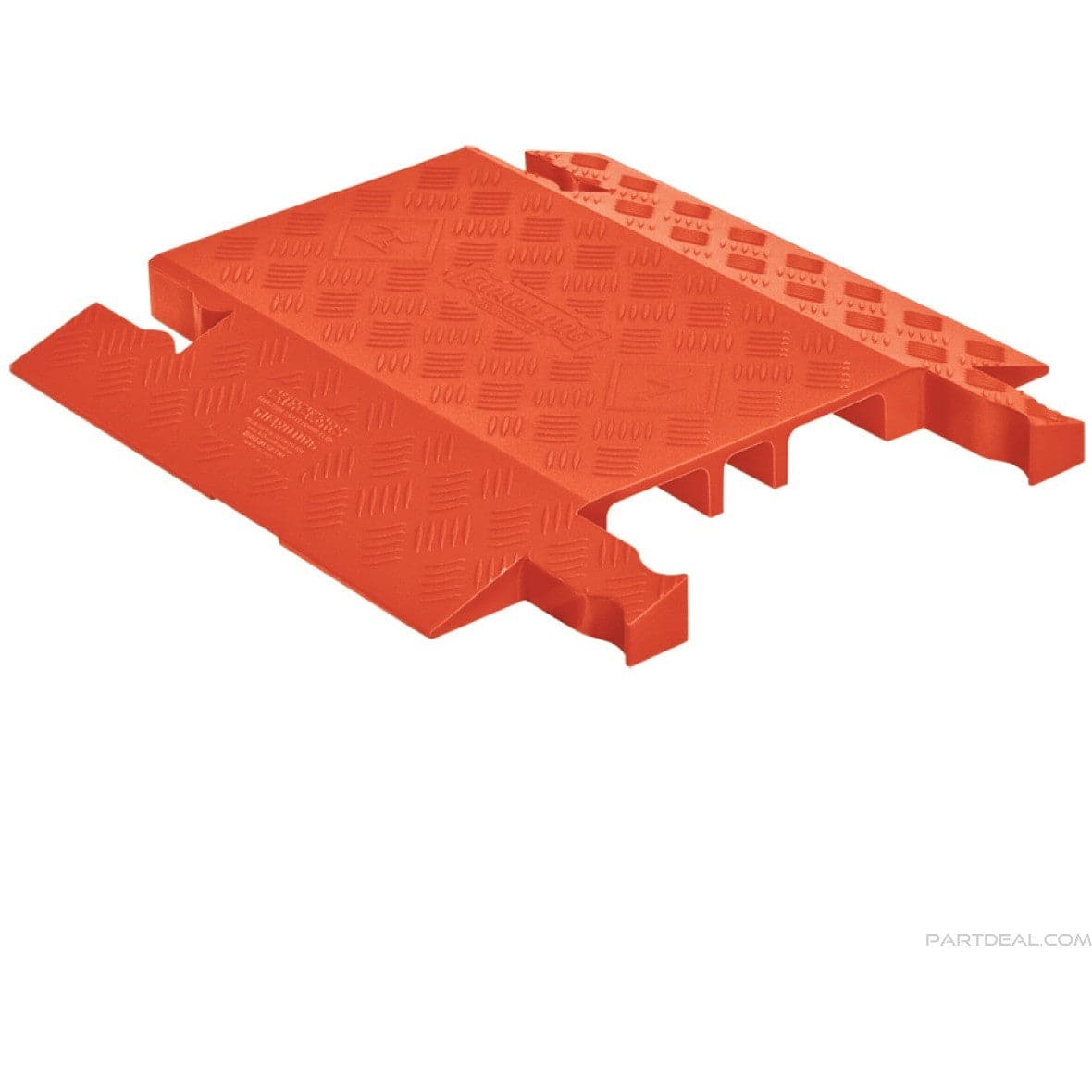

Checkers 3 Channel Drop Over - 9.5-Tonne Capacity Cable Protector

Checkers 3 Channel Drop Over serves as a shield for ground-level pipes, conduits, power cords and hose lines from harsh environment, vehicular and pedestrian traffic. It covers the exposed lines from above but does not prevent abrasion from below. The body of drop over protector boasts load capacity of 9.5-tonne. Features 5 bar tread design for maximum traction and warning symbols moulded into its body. Its 'Dog Bone' connectors allow you to extend the length whenever the need arises. It is a perfect crossing point for traffic in parking lots, commercial spaces or industrial activities. Available in orange and black; buy in alternate colours for aesthetic and high-visibility configuration.

Features and Benefits:

  • Checkers 3 Channel Drop Over
  • Load capacity: 9.5-Tonne Capacity Cable Protector
  • Shields ground level pipes, conduits, power cords from traffic
  • 5 bar tread design offers optimum traction
  • ‘Dog Bone’ connectors for extending length
  • Available in orange & black colours

                    Specifications:

                    • Length (mm): 457.2
                    • Width (mm): 503.6
                    • Height (mm): 40.6
                    • Channel Width (mm): 1x 42.1 2 x 81.6
                    • Channel Height (mm): 39.8
                    • Weight (kg): 4.41
                    • Load Capacity (kg): 4.7-tonne per tyre (9.5-tonne axle load)
                    • Colour: Orange or Black

                                      Download the brochureCheckers Authorised DealerMade in the USA

                                      Checkers Product Warranty

                                      • Ramp Champ only works with well-known, industry-leading manufacturers such as Checkers. All of our products come with at least a 12-month warranty. See full product warranty details here.
                                      • Minor scratches and blemishes may be visible upon receipt of your item. However, if the item is delivered damaged please contact us immediately. See full shipping details here.
                                      • Checkers Product Warranty Information

                                      Note: Colour, tone, finish and style of actual products may differ from those shown in the product images.
