Digga 1.5-Tonne 2.5m x 300mm Ezi-Loada Aluminium Loading Ramps
Authorised dealerSKU: LR152530$1,130 ex GST
- Length2500mm
- Holds1500kg
- Made ofAluminium
- Ideal for rubber tracks and pneumatic (air) tyres
- 3 ways to attach: pin, tongue (both supplied) or chain
- Low, reinforced bottom rung: no step up and no bent rungs
Will it reach your deck? Reaches 987 mm. Check yours›
Reaches a deck up to 987 mm high, as rated by Digga.
Open the ramp calculatorAvailable to order, ships in 1-3 business days
Authorised dealeri
500+ soldi
Pickup availablei
18-month warrantyi
100-day free returnsi
Rated 4.7 from 1,186 reviews on Google, ProductReview and Trustpilot
Digga 1.5-Tonne 2.5m x 300mm Ezi-Loada Aluminium Loading Ramps
Loading ramp specifications and dimensions
| Holds | 1500kg |
|---|---|
| Made of | Aluminium |
| Colour | Silver |
| Brand | Digga |
| SKU | LR152530 |
| Length | 2500mm |
| Width | 300mm |
| Height | Up to 987mm |
| Weight | 14kg (per ramp) |
| Internal width | 255mm |
About this loading ramp
European-made strength and no step up when loading
Specifically crafted for machines with rubber tracks and pneumatic (air) tyres, the Digga 1.5 Tonne 2.5m x 300mm Ezi-Loada Aluminium Machinery Loading Ramps offer a robust yet lightweight solution. These ramps provide exceptional safety, quality, and performance, making them a cost-effective choice.
Designed and engineered in Europe, the Digga Ezi-Loada ramps incorporate the latest advancements in design, setting a new standard in the Australian market.

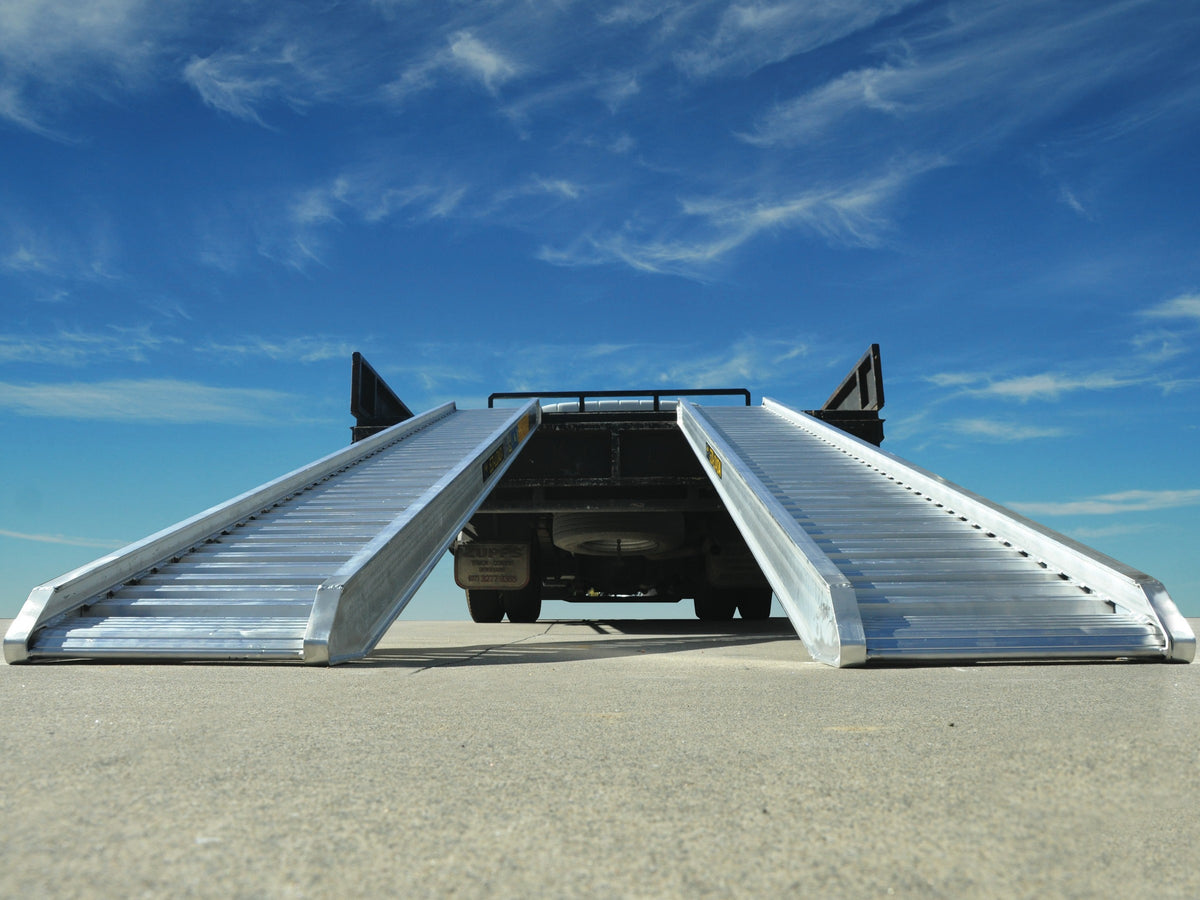

Featuring a connection plate, tongue, and zinc-coated steel pins, these aluminium ramps are ideal for loading onto tipper body trucks, flatbed trucks, or trailers.

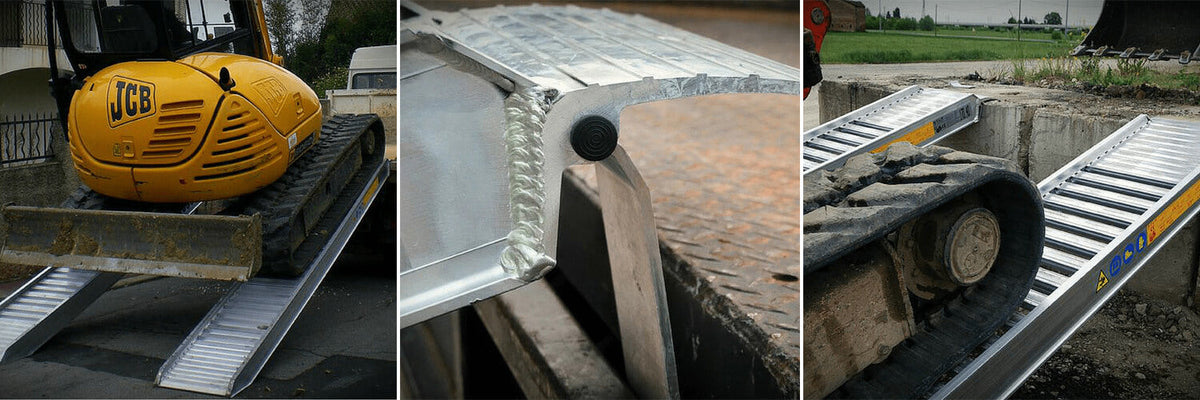

Skid steers, excavators, Ditch Witches, and other small machinery with 1.5-tonne ratings can now be loaded onto trailers and truck beds with these aluminium machinery loading ramps. The ramps have raised sides to allow safe, worry-free loading.
Where steel tracks are to be used on ramps, please refer to the Universal Series which has a different tread surface to the Standard Series Ramps.
Can't find the ramp you're looking for? Use the chat function in the corner of the window or Contact us for advice if you're unsure what ramps are suitable for you.
Key benefits

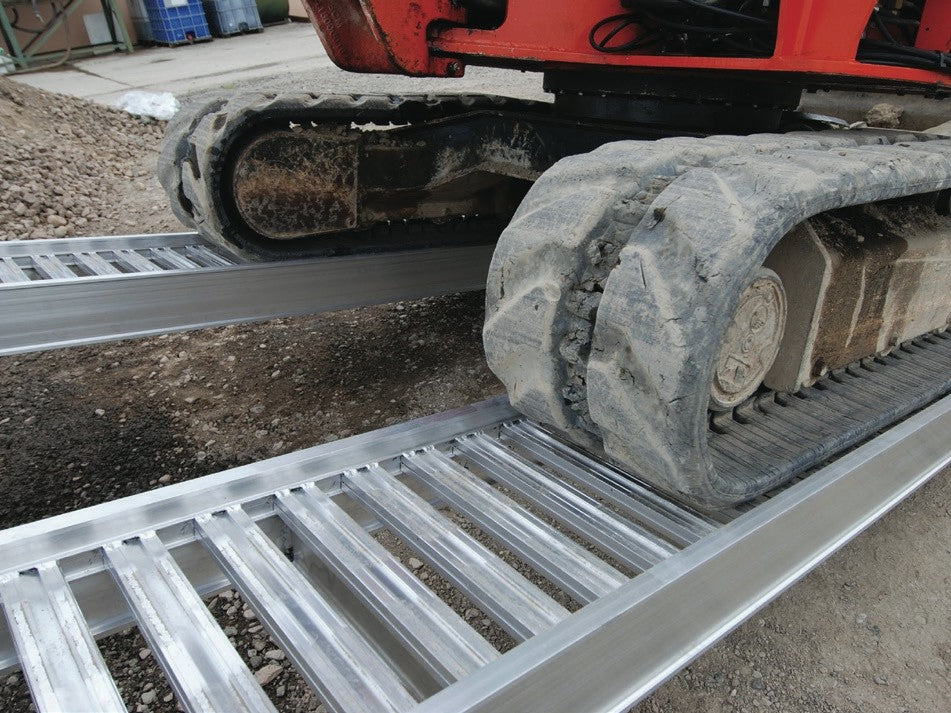

- Ideal for rubber tracks and pneumatic (air) tyres
- 3 ways to attach: pin, tongue (both supplied) or chain
- Low, reinforced bottom rung: no step up and no bent rungs

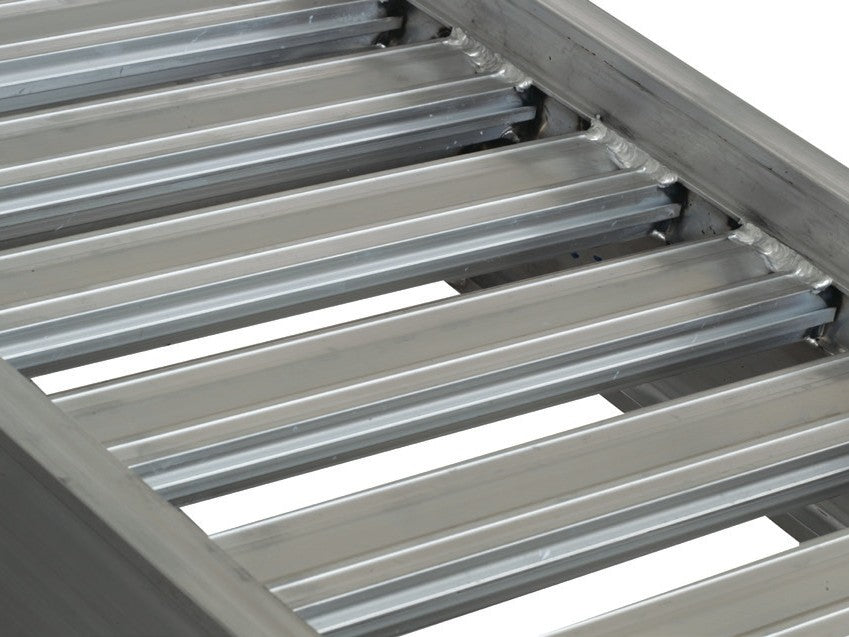

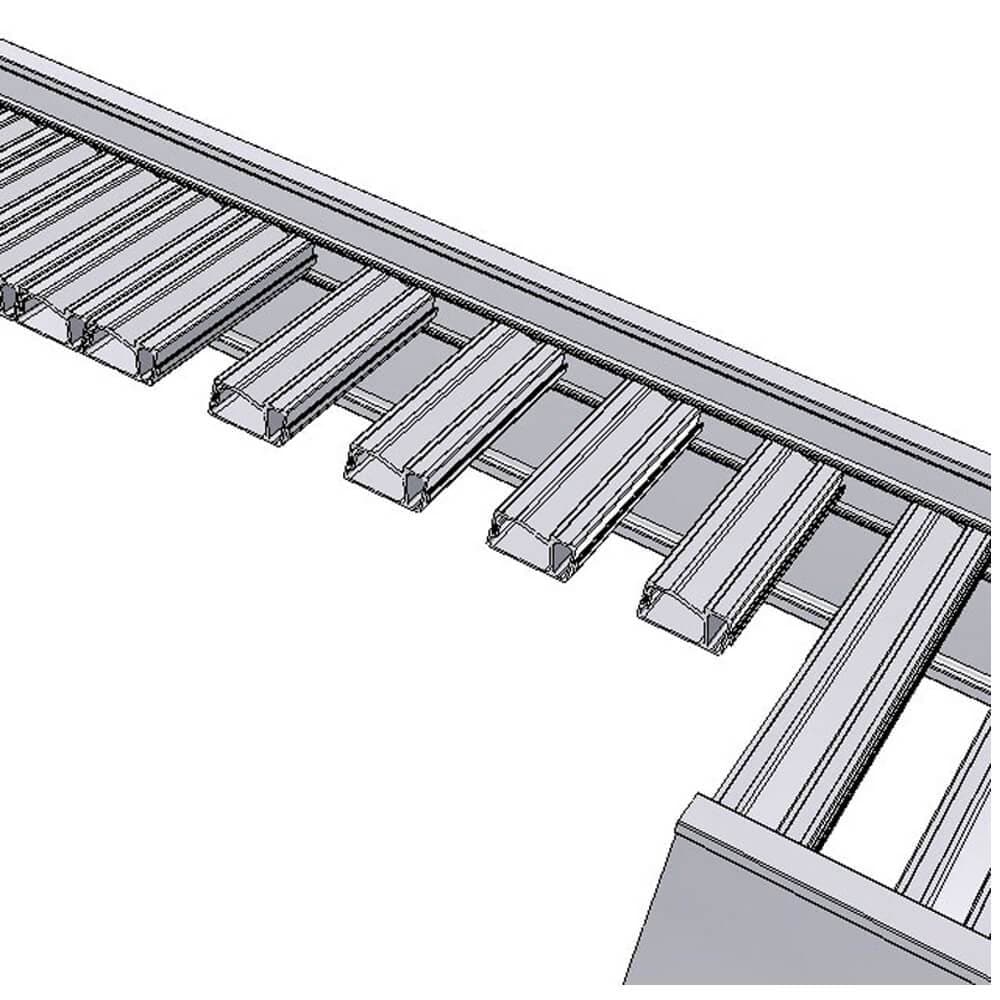

- Patented, fully extruded, double T-beam design, interlocks the rungs into the body of the rail. No physical load is taken by the weld alone. The welds (top & bottom), hold the rung in its fitted position, adding superior strength & durability
- Enhanced beam strength
- Huge 18-Month Warranty
- Certified to the highest international standards including CE, TUV and GS certification guaranteeing the quality and safety of the ramps
- Reinforced, easy load, lead on/off designs are safer and more durable than conventional ramp designs
- Sold in pairs
How it's built
Choosing your Digga ramp
Three ways to attach
Delivery
Delivery
This product is a "Bulky Item". Delivery to a business address with unloading facilities or depot is recommended.
Estimate delivery to your door
An estimate for this item to that suburb, from the same rates checkout uses. You choose the delivery method at checkout.
Finance Options
Finance Options
Four interest-free payments, the first at checkout. Choose PayPal at checkout and pick Pay in 4.
How Pay in 4 works on PayPal
Orders over $10,000Equipment financeBusiness equipment finance through Centrepoint Finance. Talk to their team about your purchase.
Apply with Centrepoint
Request a Quote
Request a Quote
Loading ramp downloads
Everything you need to plan, install and use it. Free to download.
Need another document or a different format? Ask us
Reviews
FAQs
Will these ramps take my machine?
Will these ramps take my machine?

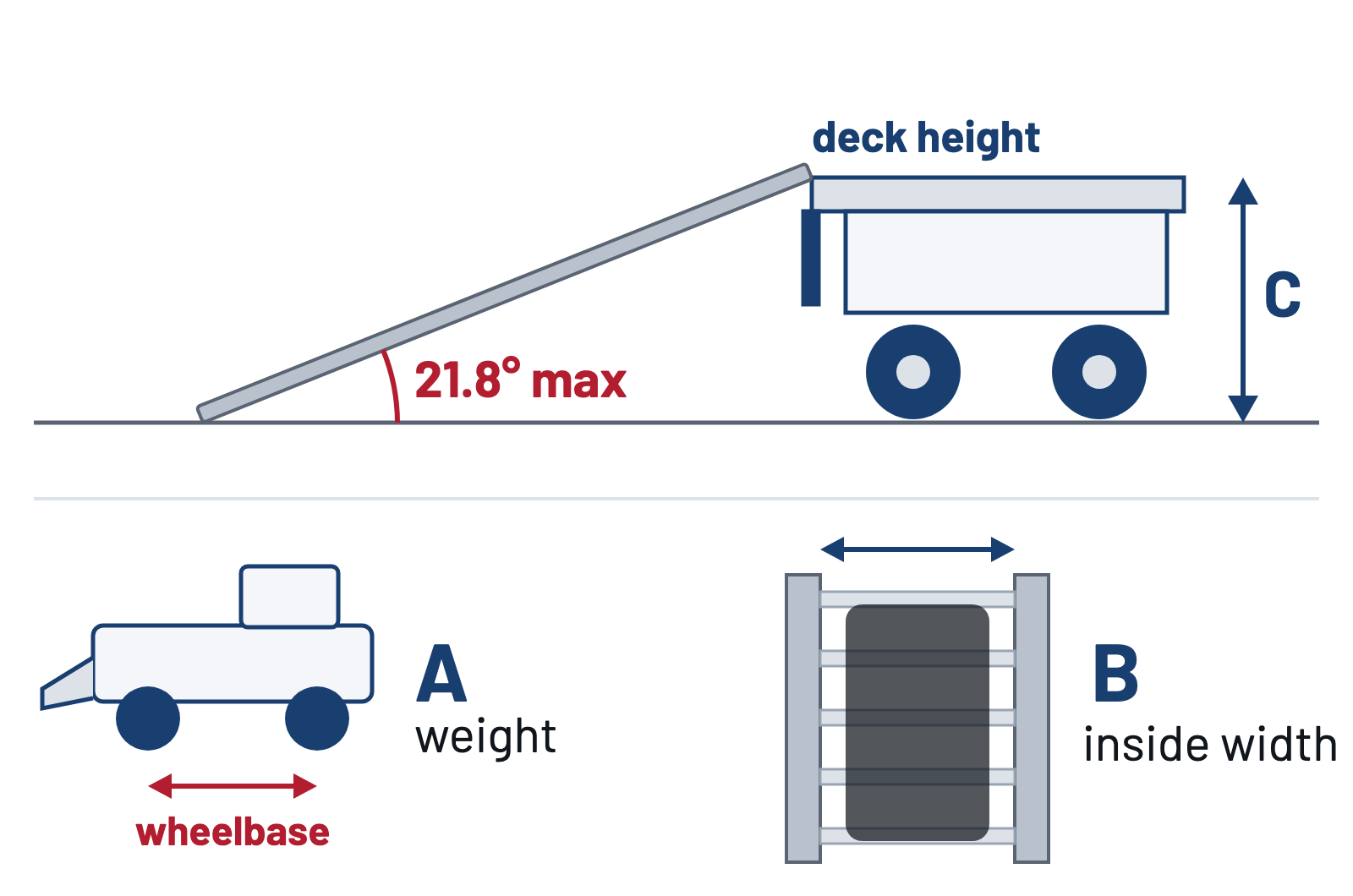

Digga rate each model at a wheelbase, for example 1.5t at 1m. Pick a ramp rated above your machine's weight, including the bucket if it stays on while loading, and check your machine's wheelbase (front to rear axle) against the one in the rating.
Is the price for one ramp or a pair?
Is the price for one ramp or a pair?
The price is for a pair. The weight shown in the Specifications is per ramp.
How do they attach to my truck or trailer?
How do they attach to my truck or trailer?

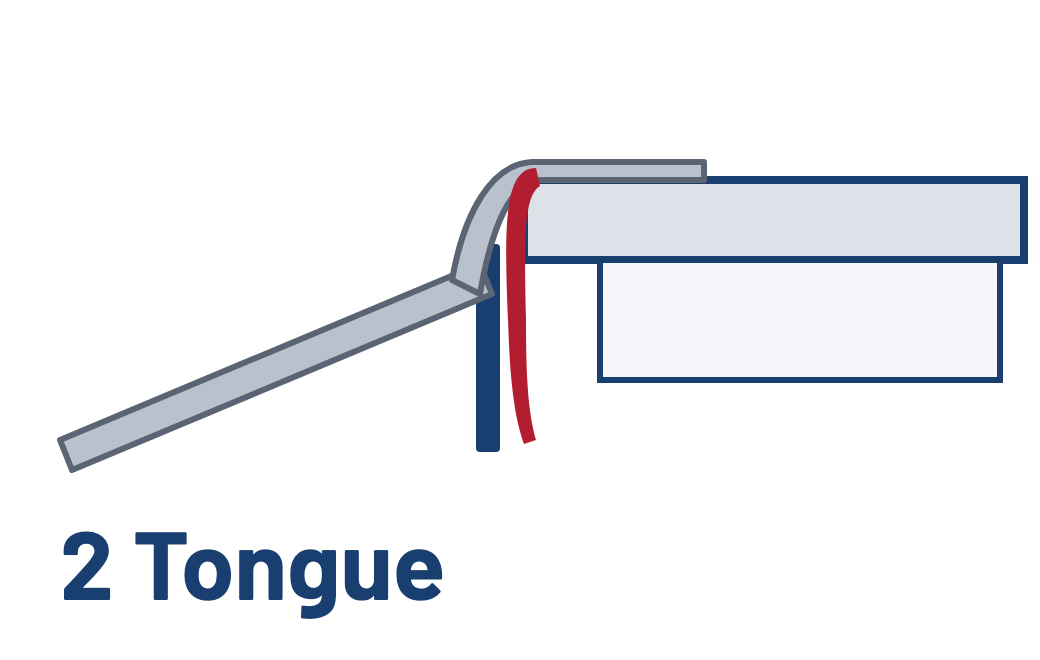

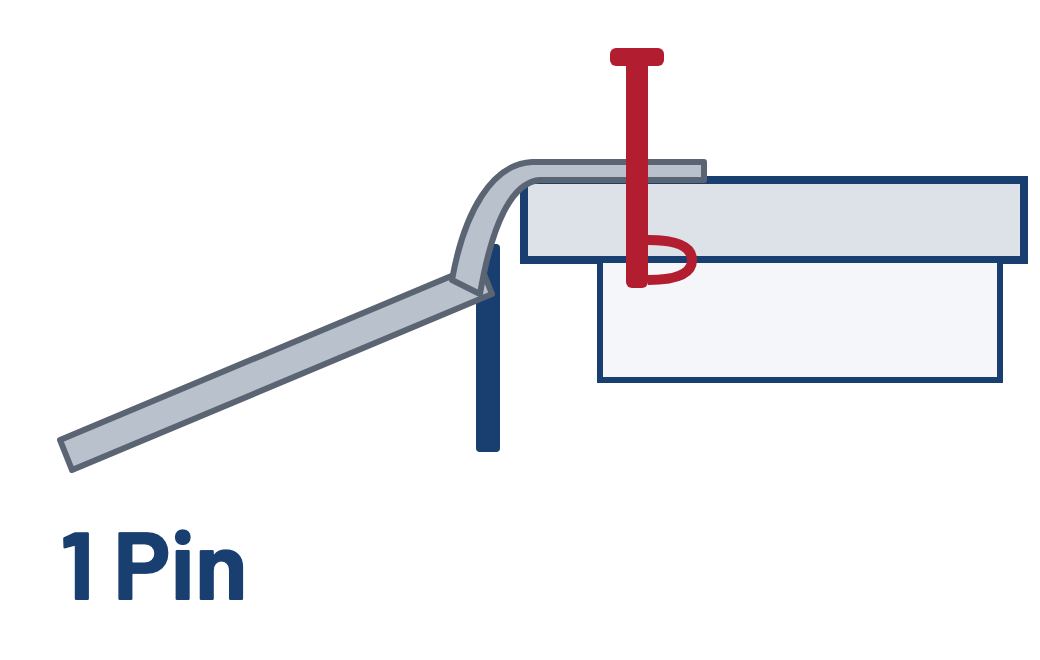

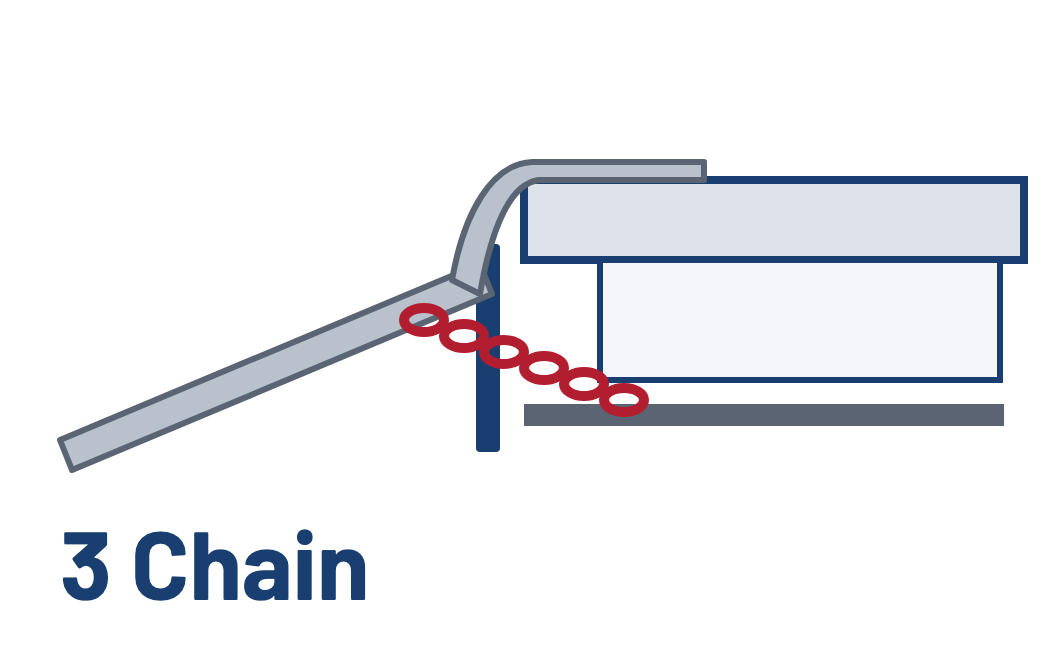

Three ways. The pin (supplied) goes through the ramp and the holes in your tray and is locked with an R clip. The tongue (supplied) sits between the truck bed and the tailgate and is shaped so the ramp can't pop out. A chain (not supplied) can be added as a backup, but never use it without the pin or tongue.
How high a deck will they reach?
How high a deck will they reach?
Up to the max deck height Digga quote for this model, shown above. Digga recommend a loading angle no steeper than 21.8° (40%).
Can I load a machine on steel tracks?
Can I load a machine on steel tracks?
No. This is a Digga Standard ramp, made for rubber tracks and rubber tyres. For steel tracks, choose a Digga Universal ramp (6.2, 7 or 9 tonne).
Will my tracks or tyres fit?
Will my tracks or tyres fit?
Measure across your track or tyre. It needs to be narrower than the inside width between the rails, which is 255mm on this ramp.
