Heeve 4-Tonne 3.5m x 510mm Aluminium Loading Ramps
Ramp Champ's own brandSKU: H0703$1,867.27 ex GST
- Length3500mm
- Holds4000kg
- Made ofAluminium
- 4 tonne rated, 3.5m x 510mm
- Flat-bar rungs suit rubber tyres and rubber tracks
- 75kg the pair, aluminium
Will it reach your deck? Reaches ~1350 mm. Check yours›
Reaches a deck up to ~1350 mm high at 23°, the steepest we recommend for machinery.
Open the ramp calculatorRamp Champ's own brandi
54,000+ soldi
12-month warrantyi
Rated 4.7 from 1,186 reviews on Google, ProductReview and Trustpilot
Heeve 4-Tonne 3.5m x 510mm Aluminium Loading Ramps
Loading ramp specifications and dimensions
| Holds | 4000kg |
|---|---|
| Made of | Aluminium |
| Brand | Heeve |
| SKU | H0703 |
| Length | 3500mm |
| Width | 510mm |
| Height | 142mm |
| Weight | 75kg (per pair) 37.5kg (per ramp) |
| Dimensions | L x W x H: 3500mm x 510mm x 142mm |
| Side lip height | Lip length for pin connection: 170mm |
| Internal width | 416mm |
| Rung | 90mm-150mm |
About this loading ramp
Commercial-grade 4T aluminium machinery loading ramps for rubber tyres and tracks and stable equipment loading
These machinery loading ramps are built for operators who need higher load capacity with added width and stability during loading. With a 4 tonne rating and 3.5 metre length, they are suited to loading heavier equipment onto trailers and trucks with improved control.
The wider 510mm profile provides increased surface contact for tyres and tracks, helping keep machinery stable throughout the loading process. This makes them well-suited to excavators, skid steers and other small to medium machinery within the rated capacity.
Constructed from aluminium, these ramps offer the strength required for demanding use while remaining practical to handle. At 37.5kg per ramp, they provide a solid feel under load while still allowing operators to position them on-site.
The flat bar rung design supports both rubber tyres and rubber tracks, allowing for use across different equipment types. Combined with a reinforced beam structure and a connection plate and pin system, these ramps are designed for consistent performance in commercial environments.

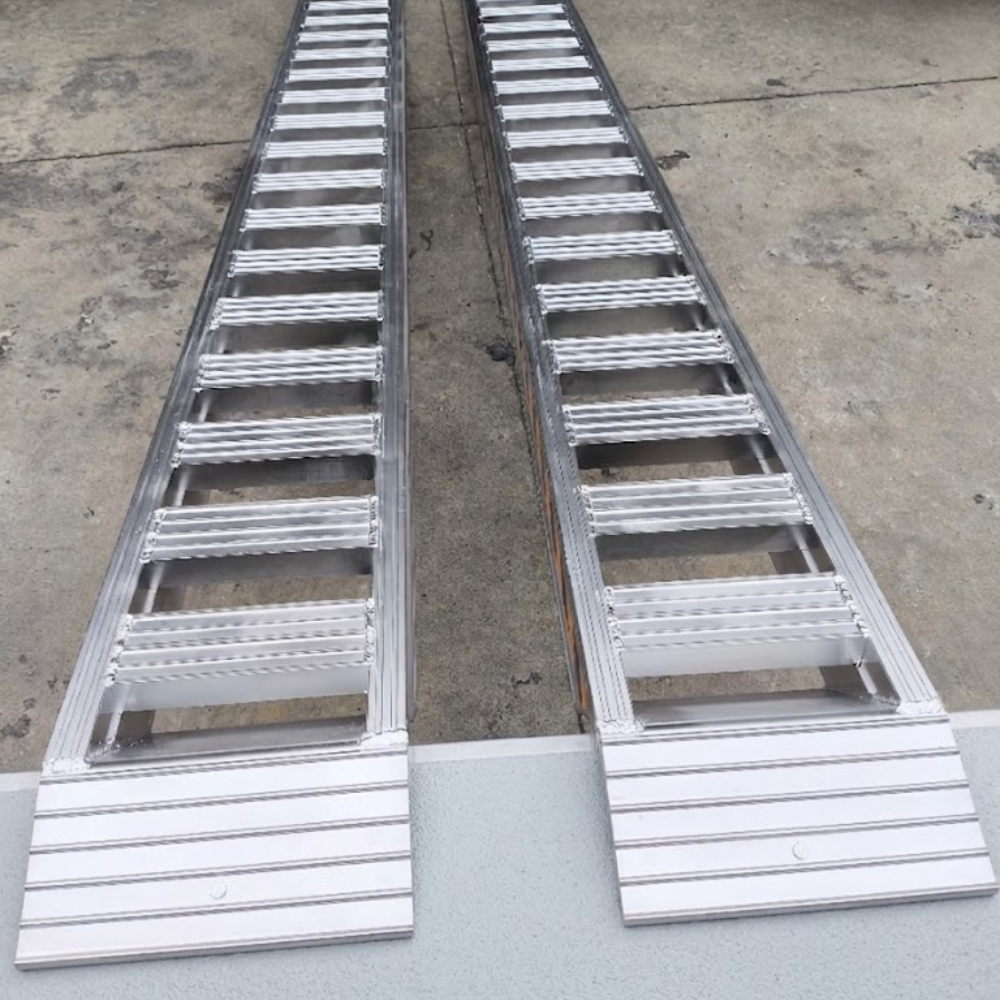

Flat bar rung design for rubber tyres and rubber tracks
The flat bar rung profile provides consistent traction for both rubber tyres and rubber tracks. This allows the ramps to be used across a range of machinery without limiting their application.
Manageable aluminium construction
With a 4 tonne capacity, these ramps are designed to handle heavier equipment while still remaining practical to use. At 37.5kg per ramp, they offer a stable feel during setup and loading while still being manageable to position.
Reinforced for regular loading
The structure includes strengthened side rails and internal support to handle repeated loading cycles. This helps maintain stability under load and supports reliable performance over time.
3.5m ramp length for improved loading access
The 3500mm length helps create a more gradual incline when loading onto trailers and trucks. This improves control during loading, particularly when handling heavier machinery.
Key benefits
- 4 tonne rated, 3.5m x 510mm
- Flat-bar rungs suit rubber tyres and rubber tracks
- 75kg the pair, aluminium
- 4 tonne capacity for heavier machinery
- Aluminium build for strength and durability
- Flat bar rungs suit rubber tyres and tracks
- Reinforced beam design for repeated use
- 3.5 metre length for reduced loading angles
- 510mm width for maximum stability and coverage
- 37.5kg per ramp for solid handling
- Connection plate and pin for quick setup

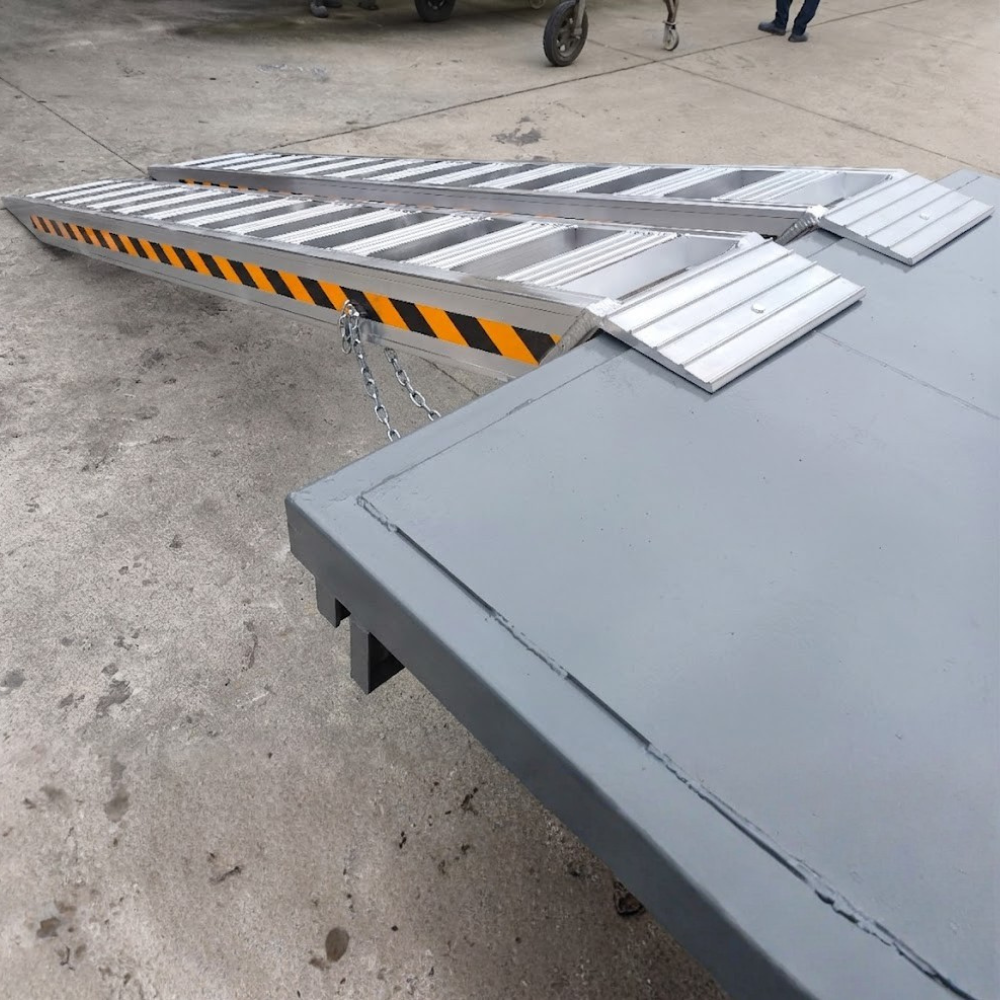

Safety pins lock it to the deck

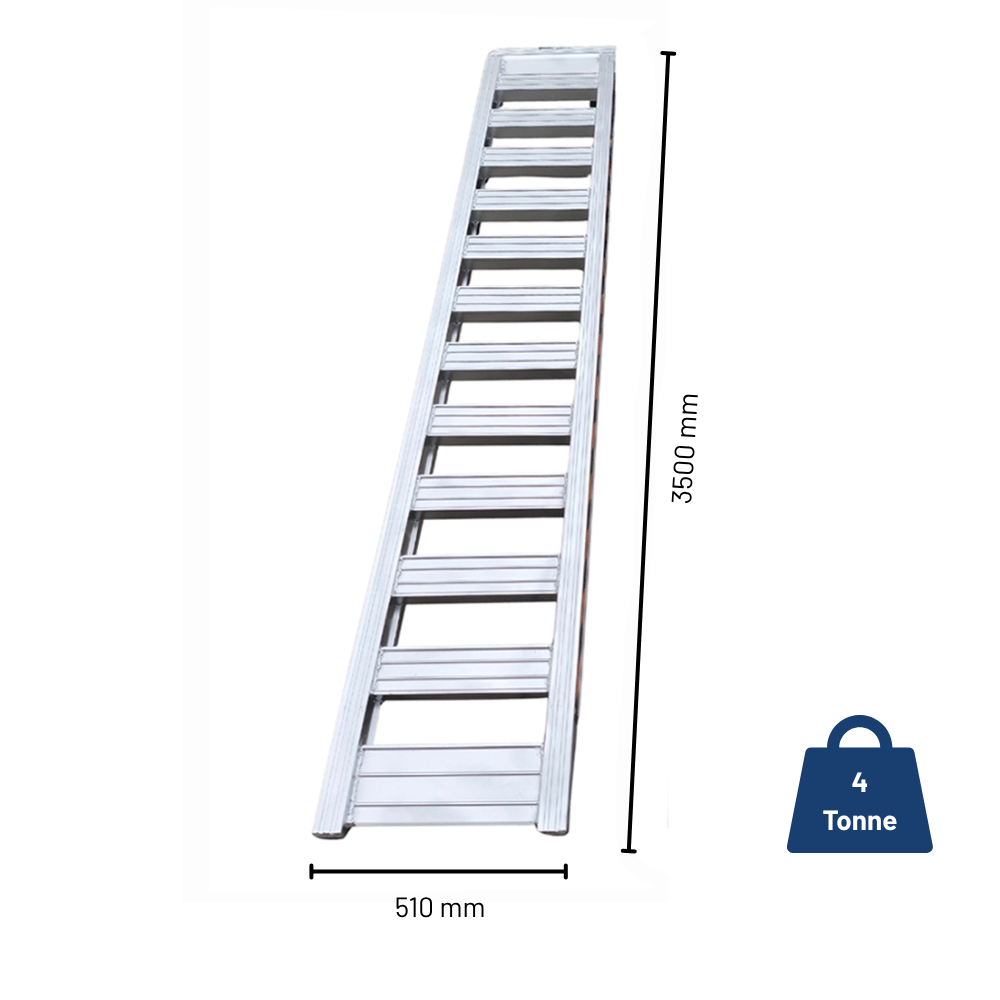

Loading ramp dimensions
Delivery
Delivery
i
Special orders come in for you on our next shipment, so the arrival date changes. Ask us and we will tell you the current date before you order.
This product is a "Bulky Item". Delivery to a business address with unloading facilities or depot is recommended.
Estimate delivery to your door
An estimate for this item to that suburb, from the same rates checkout uses. You choose the delivery method at checkout.
Finance Options
Finance Options
Four interest-free payments, the first at checkout. Choose PayPal at checkout and pick Pay in 4.
How Pay in 4 works on PayPal
Orders over $10,000Equipment financeBusiness equipment finance through Centrepoint Finance. Talk to their team about your purchase.
Apply with Centrepoint
Request a Quote
Request a Quote
Loading ramp manuals and drawings
Everything you need to plan, install and use it. Free to download.
Need another document or a different format? Ask us
Reviews
FAQs
What machines are these ramps for?
What machines are these ramps for?
Excavators, skid steers and bobcats, ride-on mowers and other small to medium machines within the rating.
Do they suit rubber tracks?
Do they suit rubber tracks?
Yes. The flat-bar rungs suit rubber tyres and rubber tracks. They are not made for steel tracks.
How do they attach to the trailer?
How do they attach to the trailer?
A connection lip at the top seats on the trailer or truck deck.
How heavy are they?
How heavy are they?
75kg for the pair.
What machinery are these 4T loading ramps suitable for?
What machinery are these 4T loading ramps suitable for?
These ramps are suited to excavators, skid steers, and other machinery within the 4 tonne capacity. They are commonly used in construction, civil works, and landscaping applications.
What are the benefits of a 510mm wide ramp?
What are the benefits of a 510mm wide ramp?
A wider ramp provides more tyre and track contact, improving stability and confidence when loading larger or heavier equipment.
Are these ramps suitable for rubber tracks and tyres?
Are these ramps suitable for rubber tracks and tyres?
Yes. The flat bar rung design supports both rubber tyres and rubber tracks, making them suitable for a wide range of machinery.
