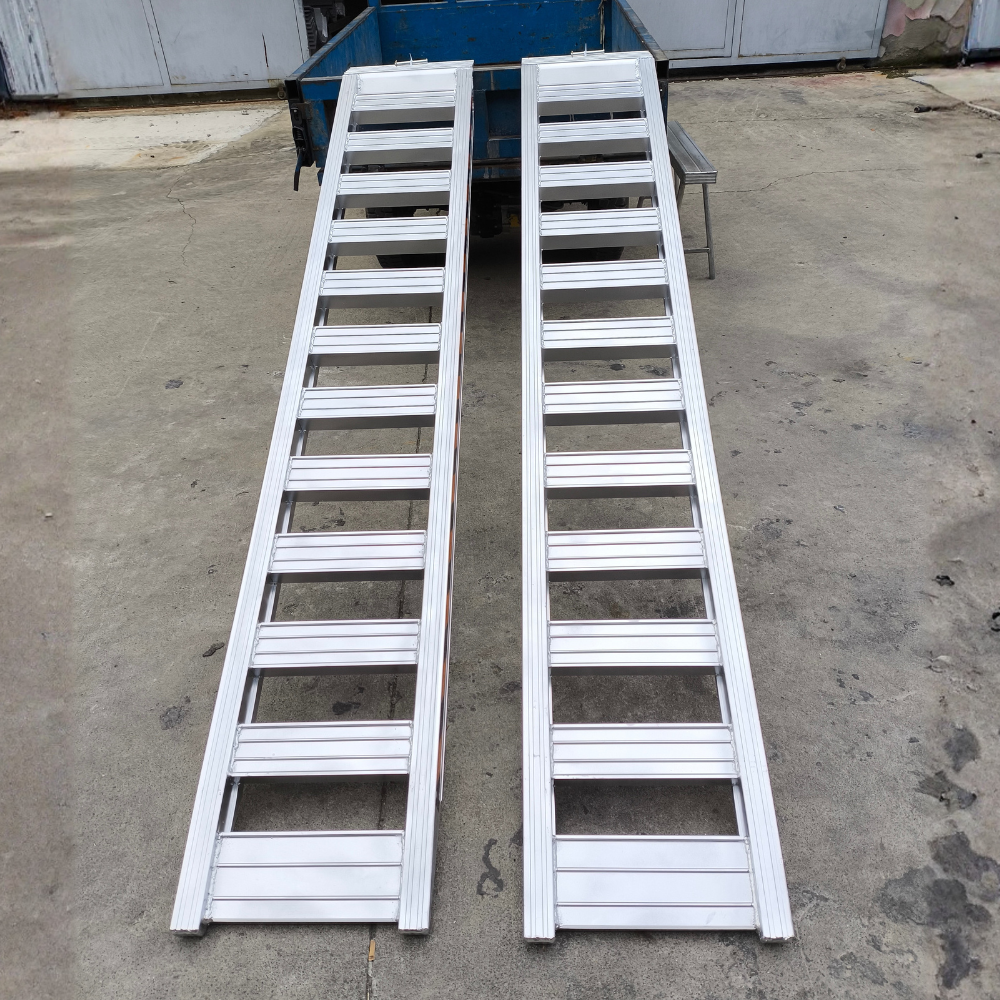

Heeve 6.2-Tonne 3.5m x 610mm Aluminium Loading Ramps
$2,682.73 ex GST
- Length3500mm
- Holds6,200kg
- Made ofAluminium
- Width610mm
- 6.2 tonne rated, 3.5m x 610mm
- Flat-bar rungs suit rubber tyres and rubber tracks
- Connection lip seats on the trailer or truck
Will it reach your deck? Reaches ~1350 mm. Check yours›
Reaches a deck up to ~1350 mm high at 23°, the steepest we recommend for machinery.
Open the ramp calculatorRamp Champ's own brandi
54,000+ soldi
12-month warrantyi
Goes well with
Delivery & Pickup
Delivery details
i
Special orders come in for you on our next shipment, so the arrival date changes. Ask us and we will tell you the current date before you order.
Shipping charges apply per shipment and can vary by warehouse or supplier. Shipping policy
Estimate delivery to your door
An estimate for this item to that suburb, from the same rates checkout uses. You choose the delivery method at checkout.
Pickup details
Reviews
Specifications
Specifications
Product Specs
| Sold as | Single ramp |
|---|---|
| Holds | 6,200kg |
| Made of | Aluminium |
| Brand | Heeve |
| SKU | H0707 |

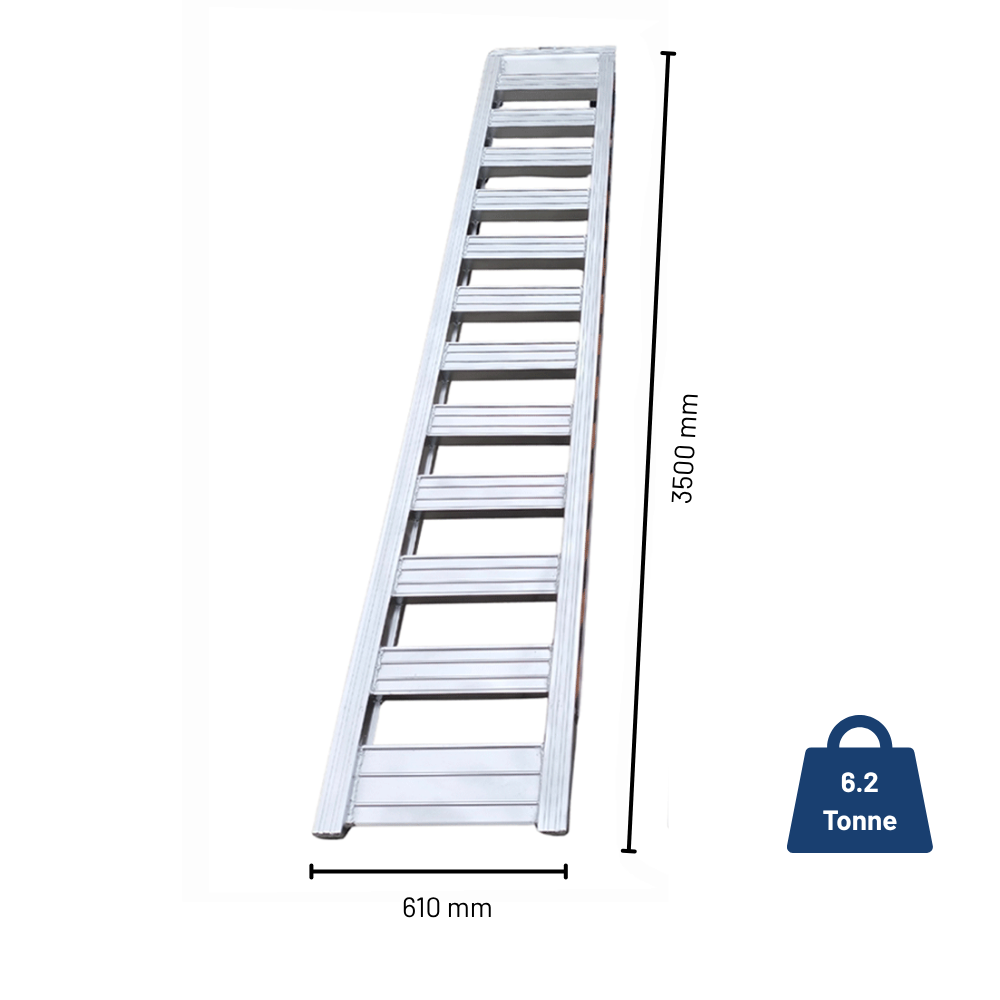

| Length | 3500mm |
| Width | 610mm |
| Height | 152mm |
| Weight | 116kg (per pair) 58kg (per ramp) |
| Dimensions | L x W x H: 3500mm x 610mm x 152mm |
| Internal width | 516mm |
| Rung | 95mm-115mm |
Key Benefits
Key Benefits
- 6.2 tonne rated, 3.5m x 610mm
- Flat-bar rungs suit rubber tyres and rubber tracks
- Connection lip seats on the trailer or truck
- 6.2 tonne capacity for maximum load requirements
- Aluminium build for strength and durability
- Flat bar rungs suit rubber tyres and tracks
- Reinforced beam design for repeated use
- 3.5 metre length for reduced loading angles
- 610mm width for maximum stability and coverage
- 58kg per ramp for solid positioning
- Connection plate and pin for quick setup
About This Product
About This Product
Commercial-grade 6.2T aluminium machinery loading ramps for rubber tyres and tracks with maximum width and stability
These machinery loading ramps are built for operators working at the top end of capacity who need maximum stability when loading equipment. With a 6.2 tonne rating and 3.5 metre length, they provide a controlled and dependable setup for heavier machinery.
The 610mm width offers a broad loading surface, helping distribute weight more evenly across the ramp. This improves balance during loading and makes them well suited to excavators, skid steers and other machinery operating within the rated capacity.
Made from aluminium, these ramps deliver the strength required for demanding use without the added weight of steel. At 58kg per ramp, they provide a solid, planted feel under load while remaining practical to position when needed.
The flat bar rung design supports both rubber tyres and rubber tracks, allowing flexibility across different machine types. Combined with a reinforced beam structure and a connection plate and pin system, these ramps are built for consistent performance in commercial and industrial environments.

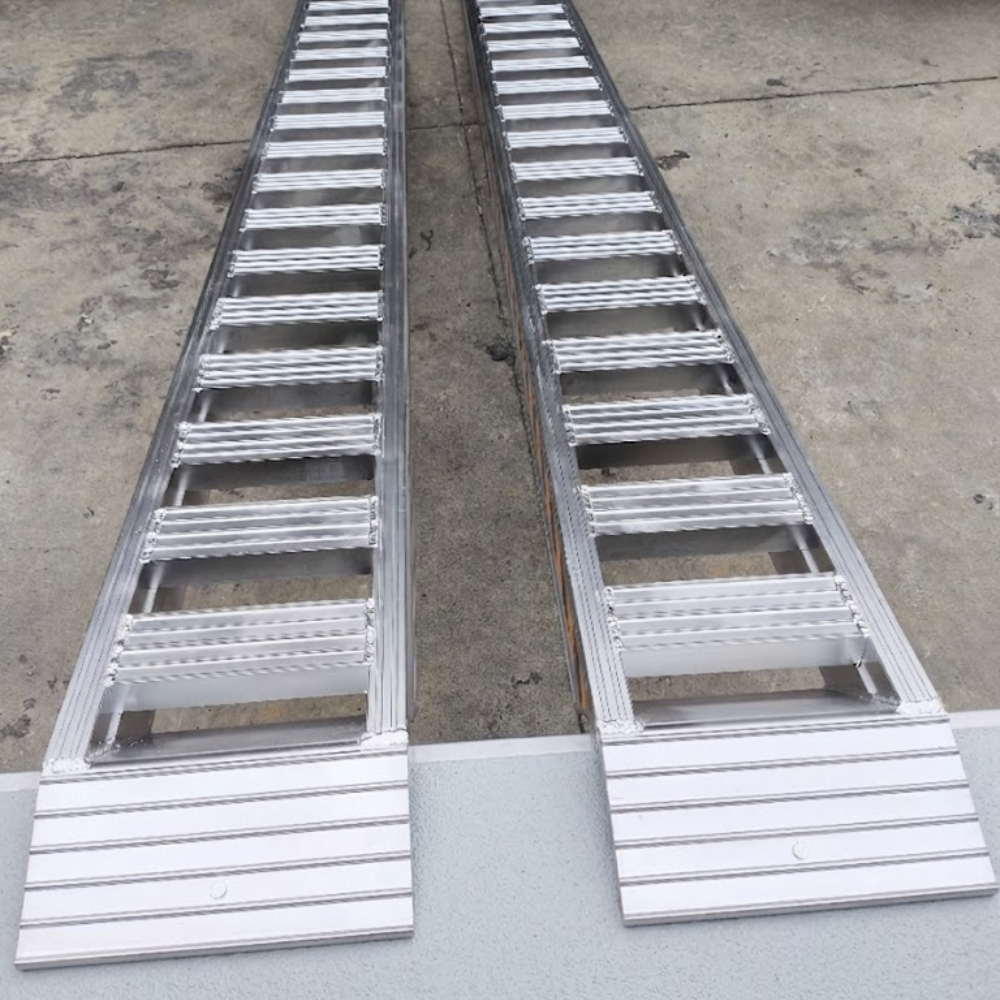

Flat bar rung design for rubber tyres and rubber tracks
The flat bar rung configuration provides a steady grip for both rubber tyres and rubber-tracked machinery. This makes the ramps suitable for a wider range of equipment without limiting their use to one type.
Manageable aluminium construction
Even at a 6.2 tonne capacity, the aluminium design keeps the ramps practical for handling on-site. At 58kg per ramp, they offer a stable and secure feel during setup and loading while still allowing repositioning when required.
Reinforced for regular loading
The structure includes strengthened side rails and internal supports to manage repeated loading cycles. This helps maintain stability under heavier loads and supports reliable performance over time.
3.5m ramp length for improved loading access
The 3500mm length helps reduce the loading angle when accessing trailers and trucks. This allows for smoother machine movement and improved control, especially when handling heavier equipment.
FAQs
What machines are these ramps for?
What machines are these ramps for?
Excavators, skid steers and bobcats, ride-on mowers and other small to medium machines within the rating.
Do they suit rubber tracks?
Do they suit rubber tracks?
Yes. The flat-bar rungs suit rubber tyres and rubber tracks. They are not made for steel tracks.
How do they attach to the trailer?
How do they attach to the trailer?

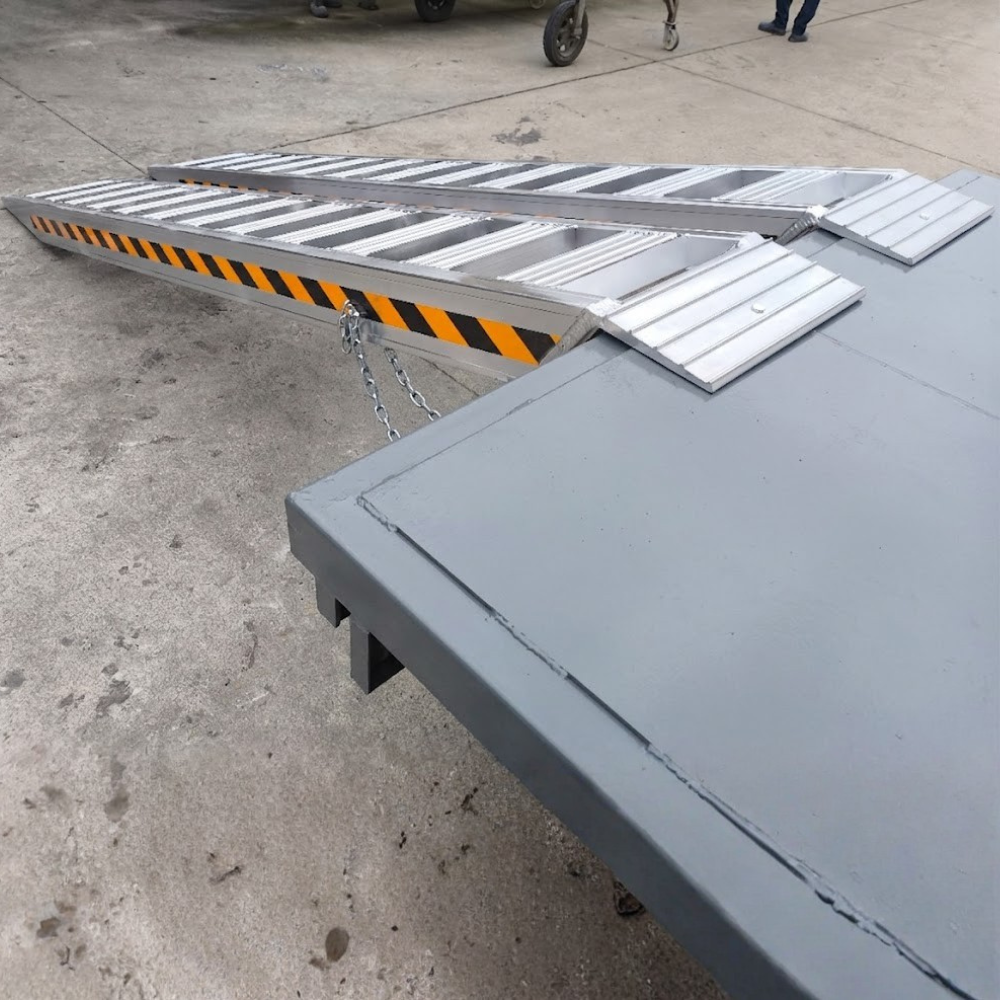

A connection lip at the top seats on the trailer or truck deck.
What machinery are these 6.2T loading ramps suitable for?
What machinery are these 6.2T loading ramps suitable for?
These ramps are suited to excavators, skid steers, and other machinery within the 6.2 tonne capacity. They are commonly used in construction, civil, and heavy-duty applications.
Why choose a 610mm wide ramp?
Why choose a 610mm wide ramp?
A wider ramp helps spread the load and improves stability when loading larger or heavier equipment, giving operators more control.
Are these ramps suitable for rubber tracks and tyres?
Are these ramps suitable for rubber tracks and tyres?
Yes. The flat bar rung design supports both rubber tyres and rubber tracks, making them suitable for a wide range of machinery.
