Heeve 7-Tonne 3.5m x 610mm Aluminium Loading Ramps
Ramp Champ's own brandSKU: H0708$2,909.09 ex GST
- Length3500mm
- Holds7000kg
- Made ofAluminium
- 7 tonne rated, 3.5m x 610mm
- Flat-bar rungs suit rubber tyres and rubber tracks

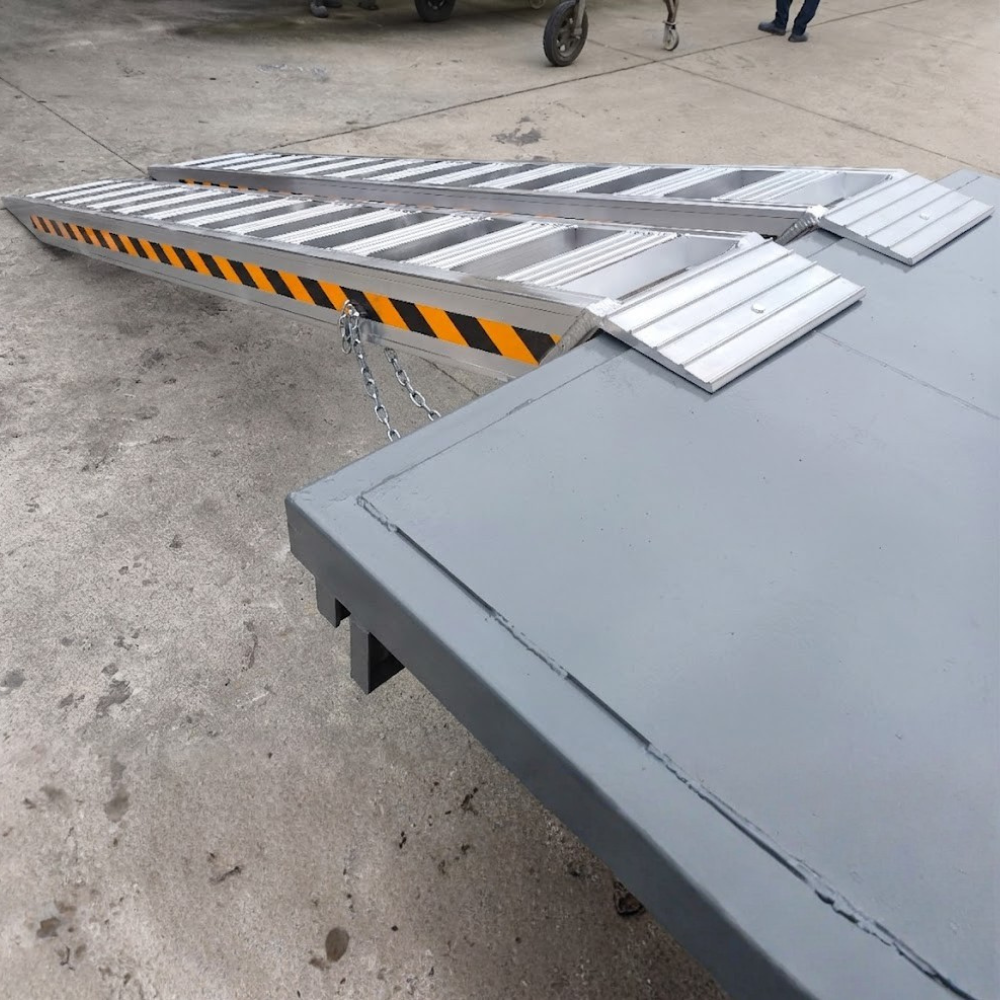

- Connection lip seats on the trailer or truck
Will it reach your deck? Reaches ~1350 mm. Check yours›
Reaches a deck up to ~1350 mm high at 23°, the steepest we recommend for machinery.
Open the ramp calculatorRamp Champ's own brandi
54,000+ soldi
12-month warrantyi
Rated 4.7 from 1,186 reviews on Google, ProductReview and Trustpilot
Goes well with
Heeve 7-Tonne 3.5m x 610mm Aluminium Loading Ramps
Loading ramp specifications and dimensions
| Holds | 7000kg |
|---|---|
| Made of | Aluminium |
| Brand | Heeve |
| SKU | H0708 |
| Length | 3500mm |
| Width | 610mm |
| Height | 142mm |
| Weight | 127kg (per pair) 63.5kg (per ramp) |
| Dimensions | L x W x H: 3500mm x 610mm x 142mm |
| Side lip height | Lip length for pin connection: 170mm |
| Internal width | 516mm |
| Rung | 95mm-115mm |
About this loading ramp
Commercial-grade 7T aluminium machinery loading ramps for rubber tyres and tracks with maximum load stability
These machinery loading ramps are built for operators who need the highest load capacity in the range, with a stable and controlled loading setup. With a 7-tonne rating and 3.5 metre length, they are suited to handling heavier machinery across demanding job sites.
The 610mm width provides a broad and stable loading surface, helping support both tyres and tracks during loading. This added width improves balance and reduces movement, making them a reliable option for excavators, skid steers and other machinery operating within the rated capacity.
Constructed from aluminium, these ramps offer the strength required for high-load applications without the full weight of steel alternatives. At 63.5kg per ramp, they deliver a solid, grounded feel under load while still being practical to position when required.
The flat bar rung design supports both rubber tyres and rubber tracks, allowing flexibility across different equipment types. Combined with a reinforced beam structure and a connection plate and pin system, these ramps are designed for consistent performance in heavy-duty environments.
Flat bar rung design for rubber tyres and rubber tracks
The flat bar rung setup provides steady traction for machines running on rubber tyres and rubber tracks. This allows the ramps to handle a broader range of equipment without being limited to one type of undercarriage.
Manageable aluminium construction
Even at a 7 tonne capacity, the aluminium construction keeps the ramps practical for on-site handling. At 63.5kg per ramp, they offer a stable and secure feel during use while still allowing repositioning when needed.
Reinforced for regular loading
The ramp structure is strengthened through the side rails and internal supports to manage repeated heavy loading. This helps maintain stability under higher loads and supports consistent performance over time.
3.5m ramp length for improved loading access
The 3500mm length helps reduce the incline when loading onto trailers and trucks. This allows for smoother equipment movement and better control, especially when working with heavier machinery.
Key benefits
- 7 tonne rated, 3.5m x 610mm
- Flat-bar rungs suit rubber tyres and rubber tracks
- Connection lip seats on the trailer or truck
- 7 tonne capacity for maximum load applications
- Aluminium build for strength and durability
- Flat bar rungs suit rubber tyres and tracks
- Reinforced beam design for repeated use
- 3.5 metre length for reduced loading angles
- 610mm width for maximum stability and coverage
- 63.5kg per ramp for solid positioning
- Connection plate and pin for quick setup

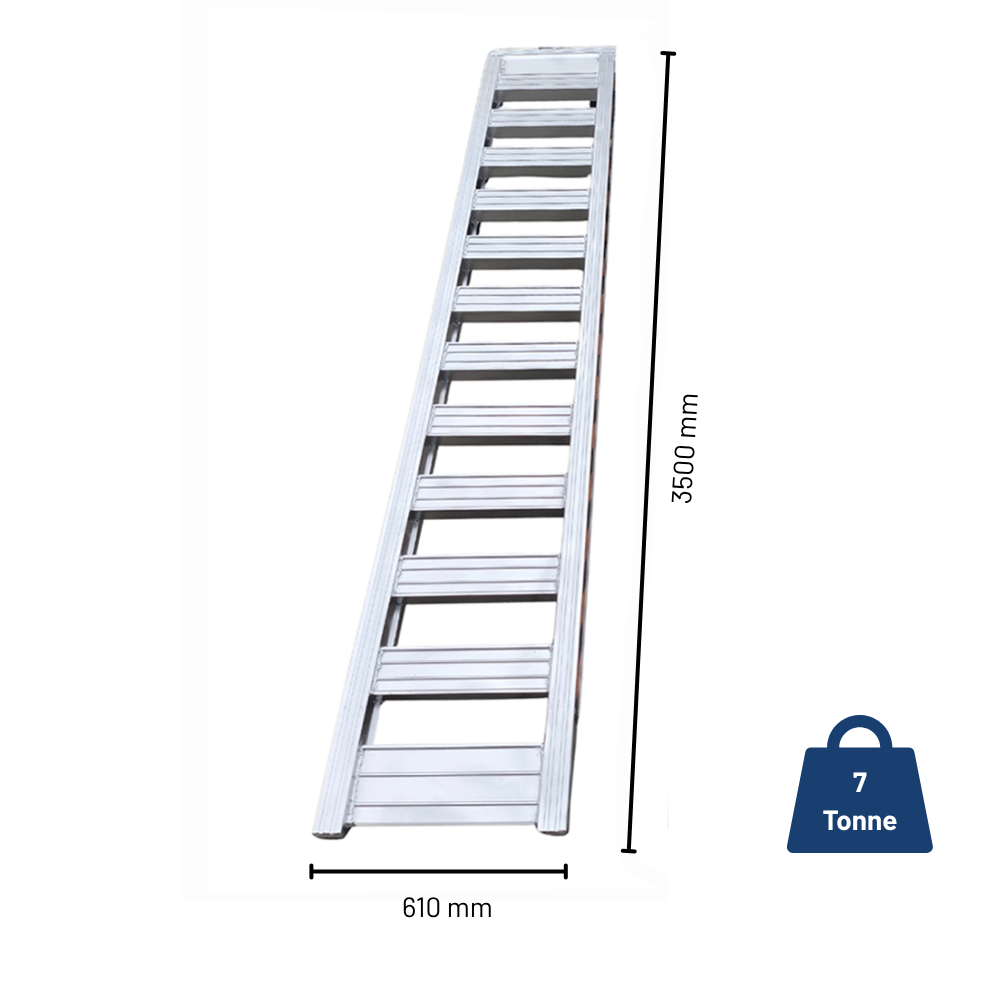

Loading ramp dimensions
Delivery
Delivery
i
Special orders come in for you on our next shipment, so the arrival date changes. Ask us and we will tell you the current date before you order.
Estimate delivery to your door
An estimate for this item to that suburb, from the same rates checkout uses. You choose the delivery method at checkout.
Finance Options
Finance Options
Four interest-free payments, the first at checkout. Choose PayPal at checkout and pick Pay in 4.
How Pay in 4 works on PayPal
Orders over $10,000Equipment financeBusiness equipment finance through Centrepoint Finance. Talk to their team about your purchase.
Apply with Centrepoint
Request a Quote
Request a Quote
Loading ramp manuals and drawings
Everything you need to plan, install and use it. Free to download.
Need another document or a different format? Ask us
Reviews
FAQs
What machines are these ramps for?
What machines are these ramps for?
Excavators, skid steers and bobcats, ride-on mowers and other small to medium machines within the rating.
Do they suit rubber tracks?
Do they suit rubber tracks?
Yes. The flat-bar rungs suit rubber tyres and rubber tracks. They are not made for steel tracks.
How do they attach to the trailer?
How do they attach to the trailer?
A connection lip at the top seats on the trailer or truck deck.
What machinery are these 7T loading ramps suitable for?
What machinery are these 7T loading ramps suitable for?
These ramps are suited to excavators, skid steers, and other machinery within the 7 tonne capacity. They are commonly used in construction, civil, and heavy-duty applications.
Why choose a 610mm wide ramp?
Why choose a 610mm wide ramp?
A wider ramp helps spread the load and improves stability during loading, especially when working with larger or heavier equipment.
Are these ramps suitable for rubber tracks and tyres?
Are these ramps suitable for rubber tracks and tyres?
Yes. The flat bar rung design supports both rubber tyres and rubber tracks, making them suitable for a wide range of machinery.
