Heeve Pro-Series 8-Tonne Forklift Container Ramp

Professional Shipping Container Forklift Ramp Self Supporting 8-Tonne Capacity Heavy-Duty Steel

Quick Facts

• Capacity: 8,000kg
• Unit Weight: 230kg
• Width: 2200mm
• Length: 1230mm
• Height: 160mm
• Finish: Painted Blue

The Heeve Pro-Series 8-Tonne Shipping Container Forklift Ramp is suitable for standard 20-foot and 40-foot containers. It has been designed for medium to heavy-duty use and features side facing lifting points for quick relocation.

This is a self-supporting container ramp unlike others similar on the market which means your ramp and forklift weight is evenly distributed - not resting on the connection plate.

With 5.5mm thick steel plate and a solid frame, this strong and sturdy two-piece unit features forklift tyne slots at the face of the ramp for easy relocation whilst its anti-skid surface makes operation safe and secure.

This container ramp comes with a connecting chain and D-shackles for secure connection to the container when in use.



Heeve Pro-Series 8-Tonne Forklift Container Ramp Features

• Medium to heavy-duty use
• Self-supporting
• Simple to lift and relocate
• Secure connection to the container whilst in use
• Suitable for 40ft and 20ft containers
• Anti-skid surface
• Blue colour finish for optimum visibility

How Does The Pro-Series 8-Tonne Forklift Container Ramp Work?

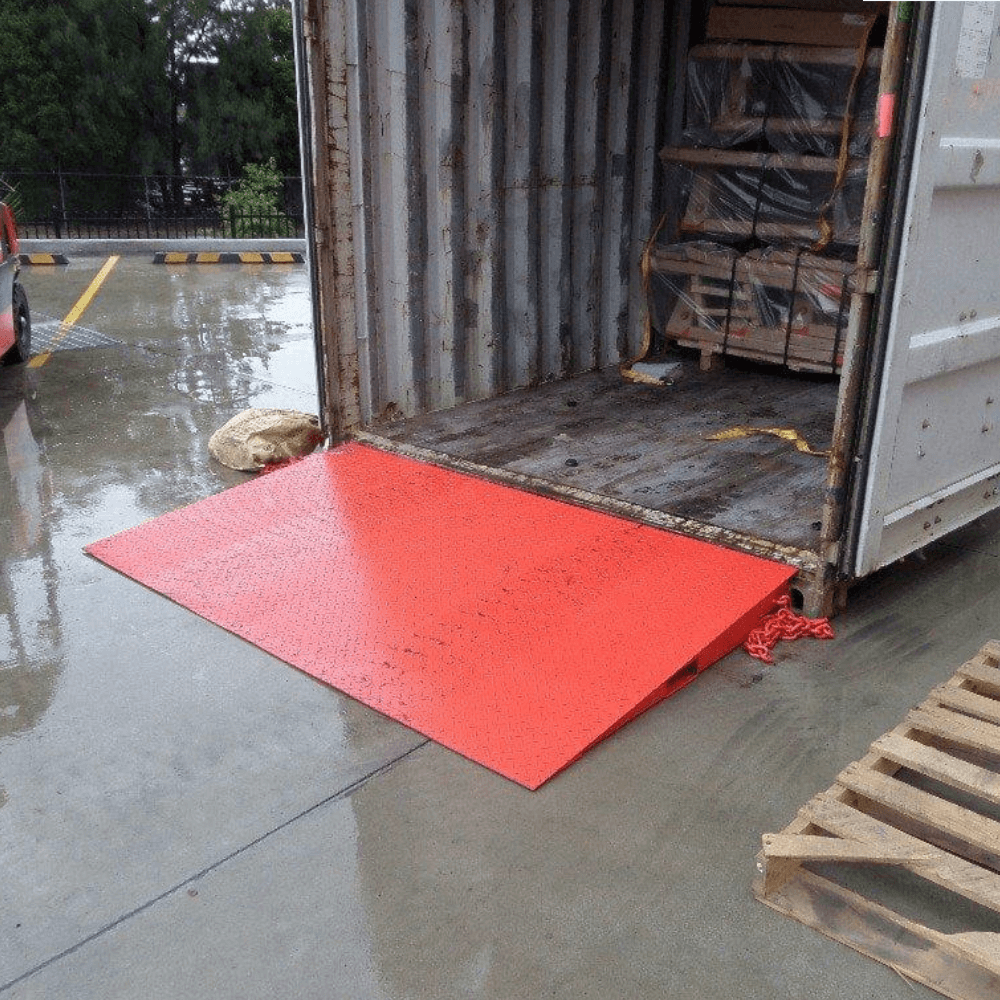

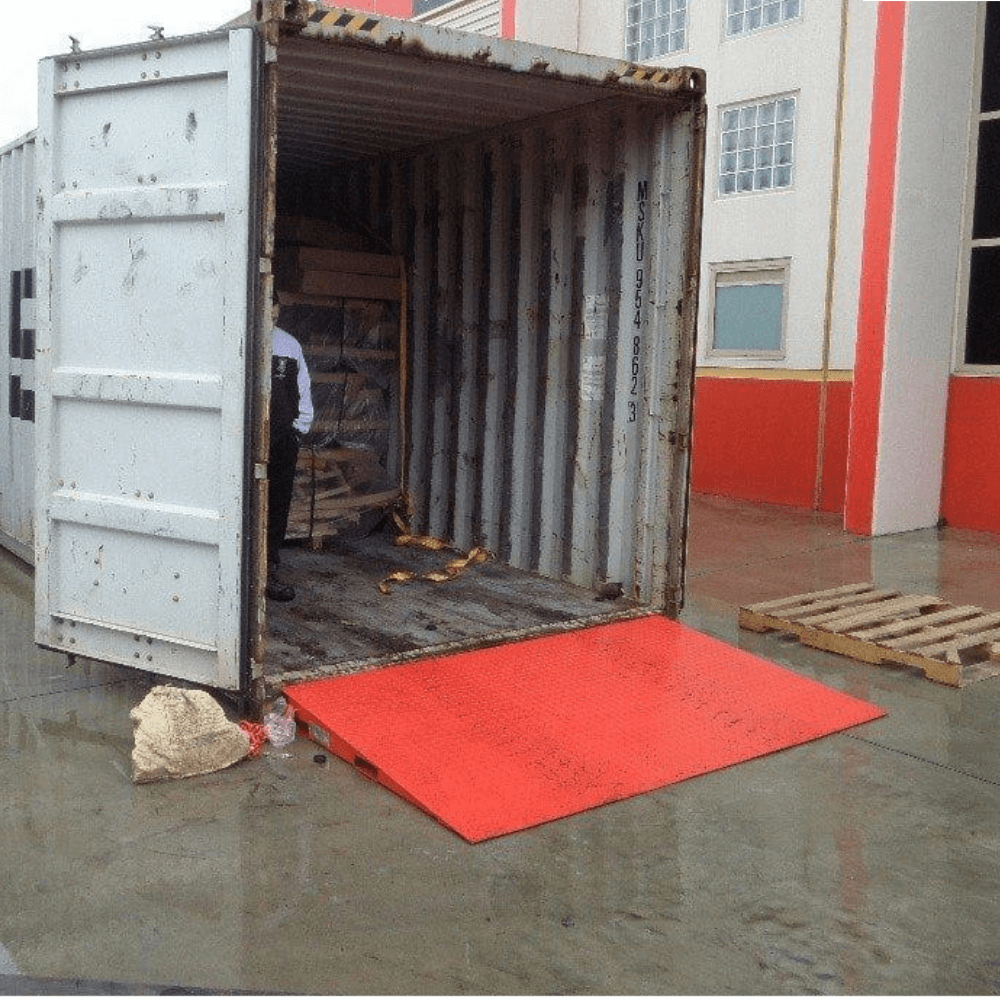

Ground-based shipping containers can be accessed via forklift, pallet truck or foot with the Pro-Series 8-Tonne Forklift Container Ramp by placing the ramp at the doorway of the shipping container.

The container ramp lip sits inside the shipping container and allows a smooth non-slip transition from the container floor height to the ground height.

Pro-Series 8-Tonne Forklift Container Ramp Features and Benefits

• Strong – 5.5mm steel plate & reinforced frame.
• Safe – Non-slip checker plate surface + secure connection to the container.
• Fast – Relocate with ease with side-facing tyne recesses.

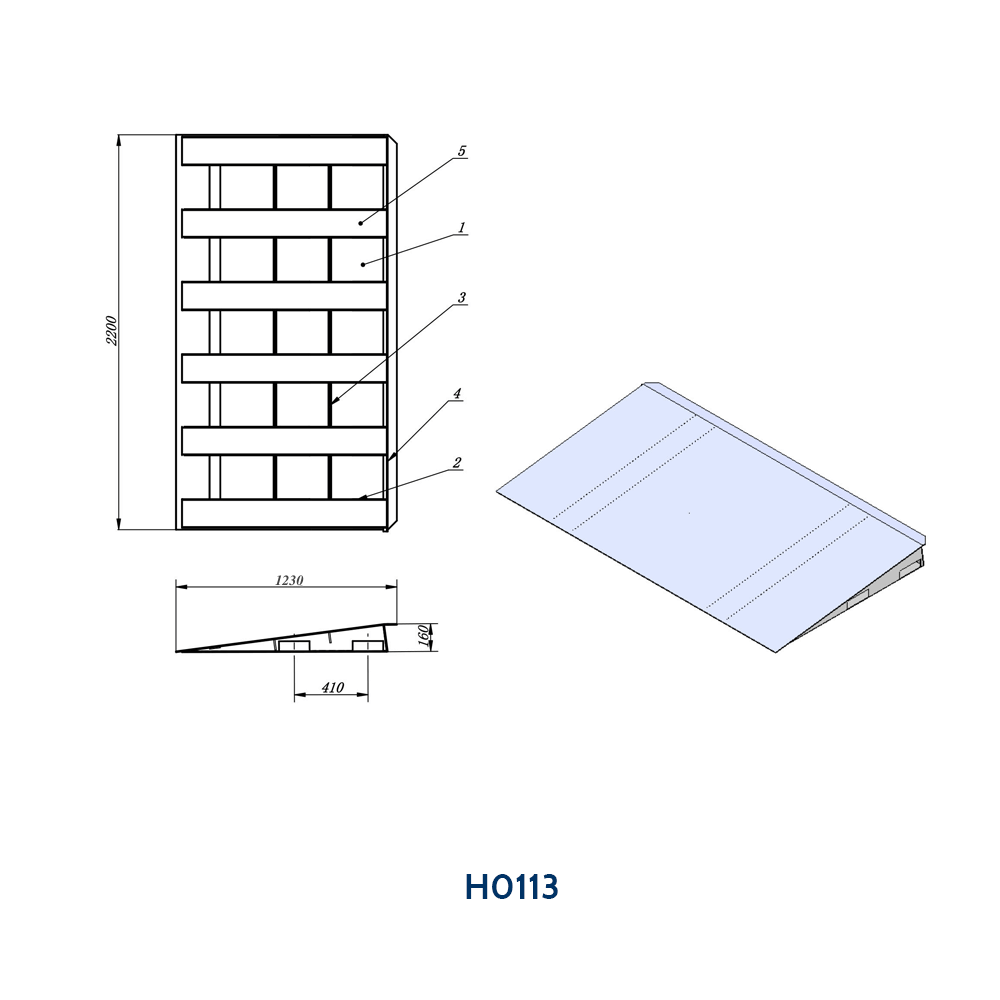

Heeve Pro-Series 8-Tonne Forklift Container Ramp Specifications

• Capacity: 8,000kg
• Unit Weight: 230kg
• Width: 2200mm
• Length: 1230mm
• Height: 160mm
• Centre to centre pockets: 410mm

• Fork tyne pocket size: 170mmx55mm
• Finish: Painted Blue

Note: Colour, tone, finish and style of actual products may differ from those shown in the product images.
