Kilargo 100mm Heavy-Duty Aluminium Threshold Plate 14mm High
Authorised dealerSKU: IS4070-1000CA$189.09 ex GST
- Size100mm (W) x 14mm (H)
- Made ofAluminium
- Complies with AS1428/1 and conforms to NCC D2.15 and D3.3
- Australian made heavy-duty aluminium, 100mm wide and 14mm high
- Gradient of 1:8, and can be placed back-to-back as a two-way ramp
Not sure which size? Type your step height›
Available to order, ships in 5-7 business days
Authorised dealeri
50+ soldi
12-month warrantyi
Made in Australiai
100-day free returnsi
Rated 4.7 from 1,186 reviews on Google, ProductReview and Trustpilot
Kilargo 100mm Heavy-Duty Aluminium Threshold Plate 14mm High
Threshold plate specifications
| Length | SKU | Price | Stock |
|---|---|---|---|
| 1000mm | IS4070-1000CA | $208 | Available to order |
| 1250mm | IS4070-1250CA | $229 | Available to order |
| 1500mm | IS4070-1500CA | $250 | Sold out |
| 1750mm | IS4070-1750CA | $271 | Available to order |
| 2000mm | IS4070-2000CA | $292 | Available to order |
| 2250mm | IS4070-2250CA | $310 | Available to order |
| 2500mm | IS4070-2500CA | $331 | Available to order |
| 2750mm | IS4070-2750CA | $355 | Available to order |
| 3000mm | IS4070-3000CA | $508 | Available to order |
| 3500mm | IS4070-3500CA | $634 | Available to order |
| 4000mm | IS4070-4000CA | $687 | Available to order |
| 4500mm | IS4070-4500CA | $739 | Available to order |
| 5000mm | IS4070-5000CA | $792 | Available to order |
| Made of | Aluminium |
|---|---|
| Brand | Kilargo |
| Dimensions | 100mm (W) x 14mm (H) |
About this threshold plate
Australian-made heavy-duty aluminium threshold plate for wheelchair access
The Kilargo 100mm Heavy-Duty Aluminium Threshold Plate 14mm High is the perfect solution to marginal gaps and level changes, as it can be installed quickly and easily with minimal effort.

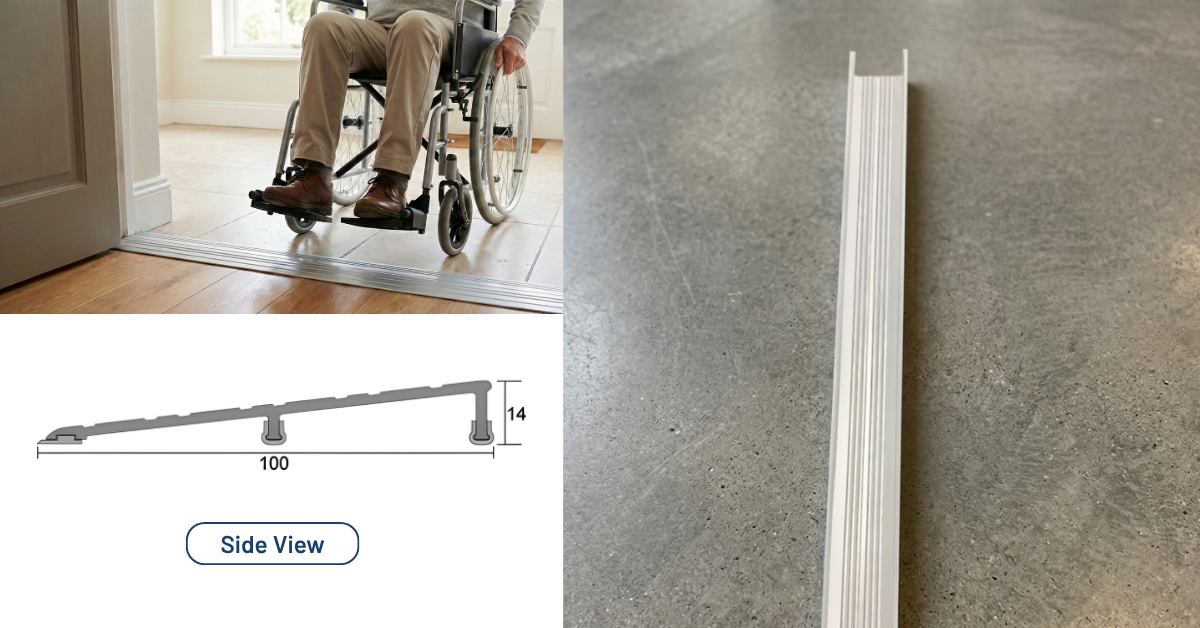

These heavy-duty aluminium threshold ramps are utilised to compensate for uneven floors, where wheelchairs and trolleys are used. Their rate of incline ensures compliance with the "access for people with disability" requirement, particularly for wheelchair traffic. They are durable, anodised finish, with PVC bedding pads to help eliminate vibration, noise and moisture ingress.
Threshold plate sizes and details
- Dimensions: 100mm (W) x 14mm (H)
- Gradient: 1:8
- Standard Lengths:
- 1000mm
- 2250mm
- Also available in 250mm increments from 1000mm to 3000mm, then 500mm increments to 5000mm
- Standard Colour
- Silver anodised with Grey PVC bedding pads
Key benefits
- Complies with AS1428/1 and conforms to NCC D2.15 and D3.3
- Australian made heavy-duty aluminium, 100mm wide and 14mm high
- Gradient of 1:8, and can be placed back-to-back as a two-way ramp
- Australian Made
- Made from heavy-duty aluminium
- Stainless steel fixing screws and plugs supplied
- Fire tested to AS1530 Part 4 in accordance with AS1905 Part 1
- Certifications GVYI.R26629, GVWZ.R26629, GVWZ7.R26629
- Complies with AS1428/1 (Design for access and mobility)
- Conforms to NCC D2.15 & D3.3 (Access for people with disabilities)
- These extrusions can be positioned back-to-back to provide a two-way threshold ramp

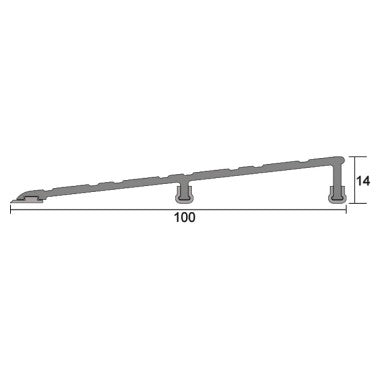

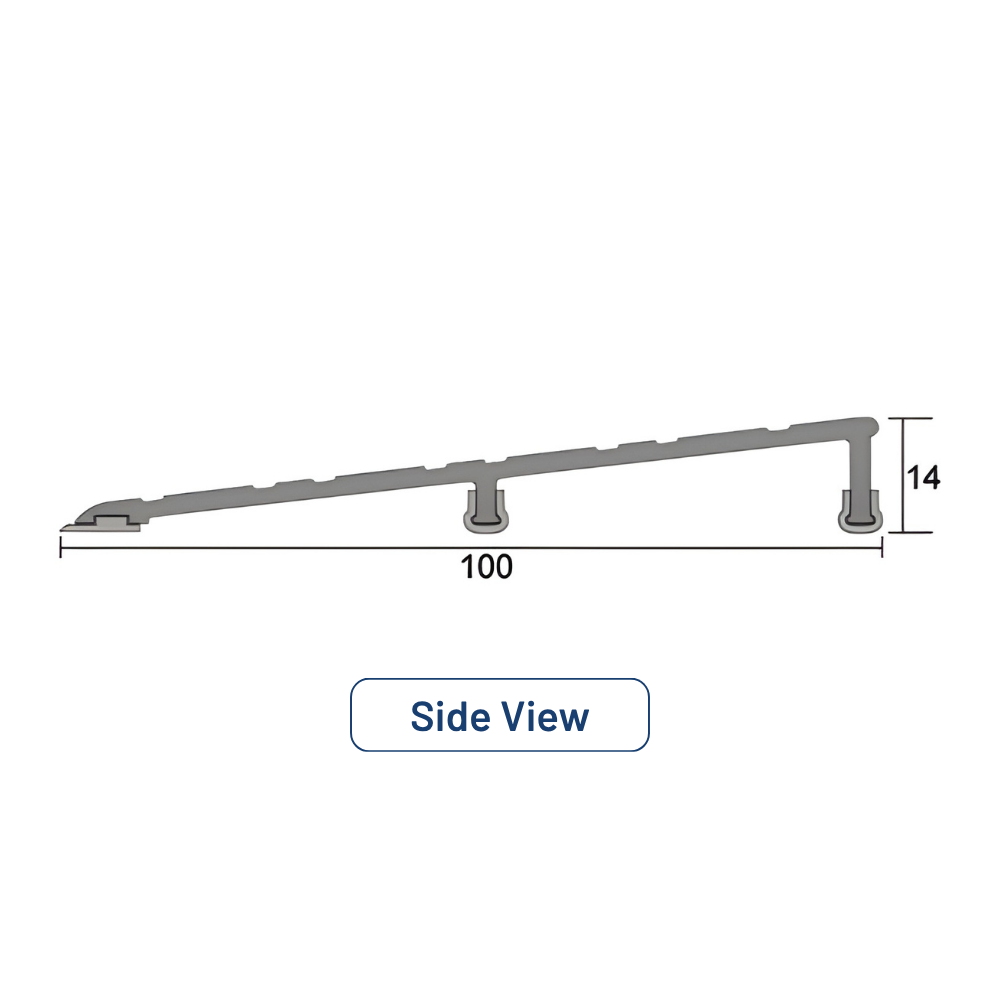

Threshold plate dimensions
