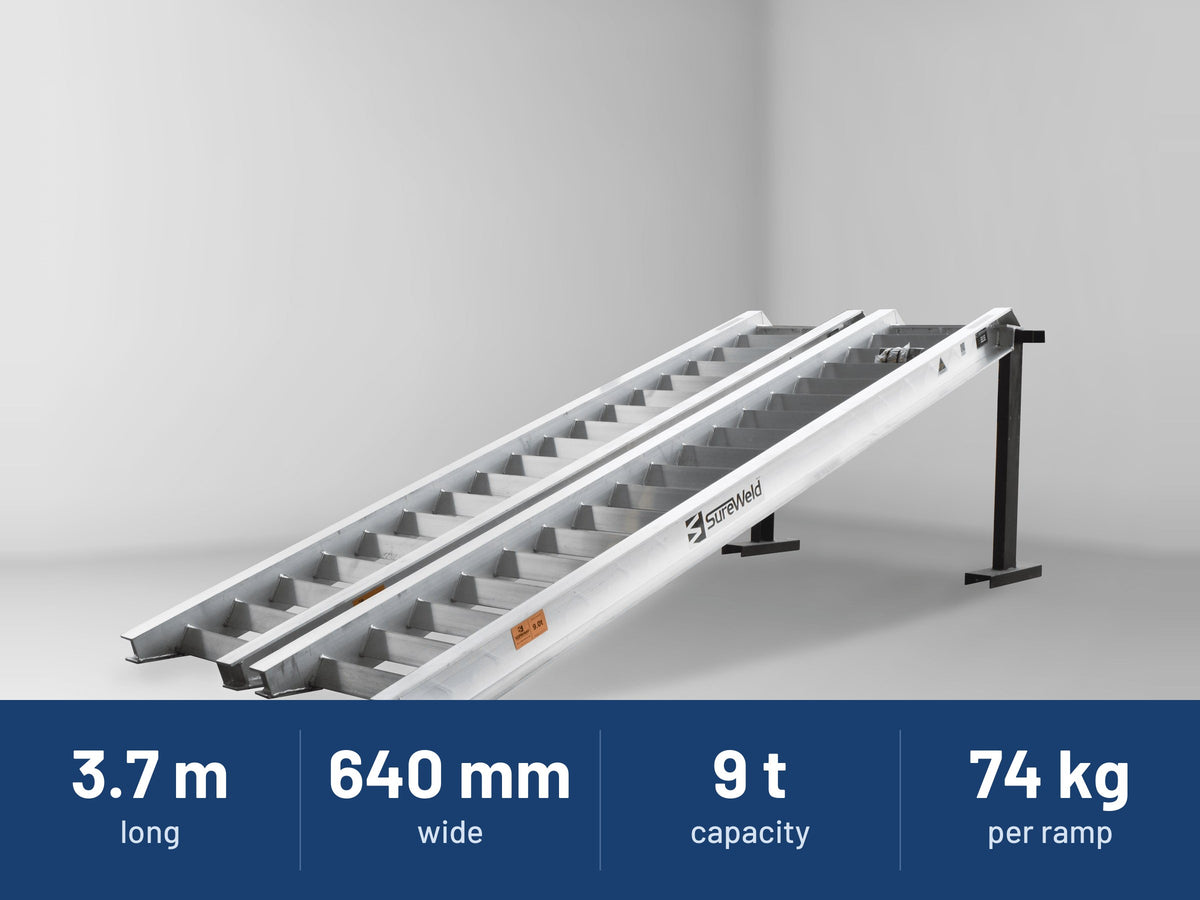

Sureweld 9-Tonne 3.7m x 640mm Track Series Aluminium Loading Ramps

Sureweld 9 Tonne 3.7m x 640mm Track Series Aluminium Machinery Loading Ramps, Pair

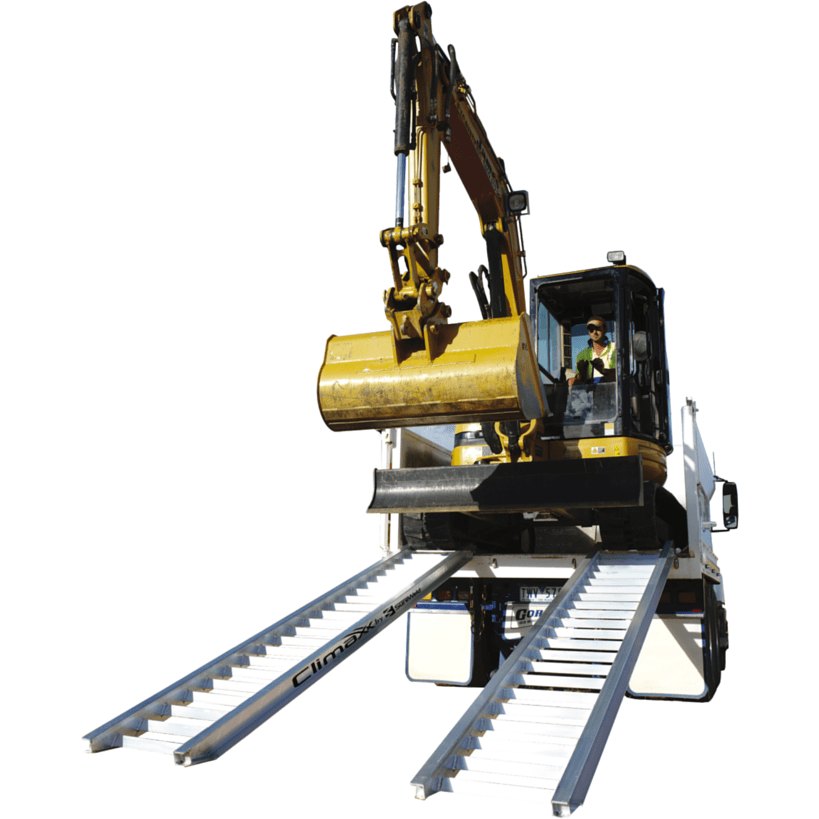

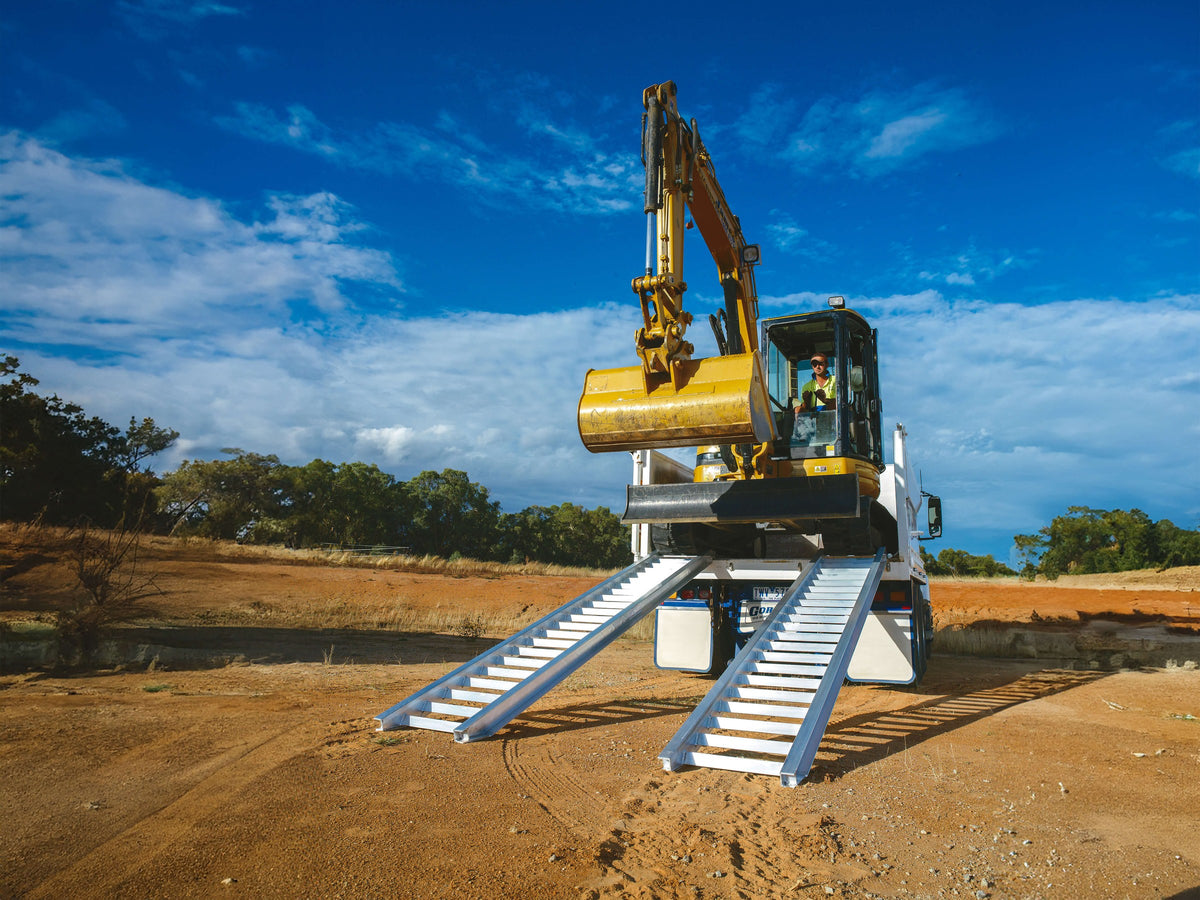

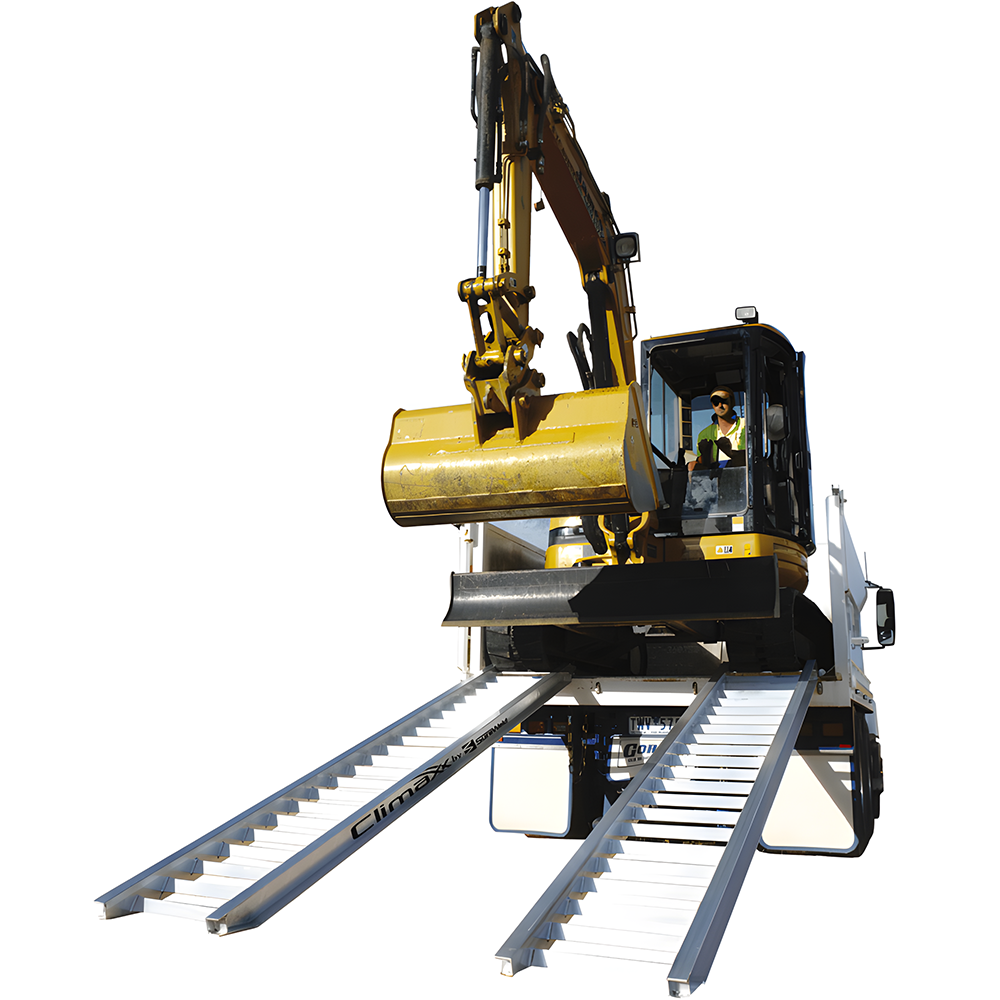

The Sureweld 9 Tonne 3.7m x 640mm Track Series Aluminium Machinery Loading Ramps are designed for use with Steel Tracks (including Steel Tracks with Rubber Pads), and Rubber Tracks. The tread surfaces in this range are highly robust and are configured to resist damage from tracks. Featuring the greatest versatility of the Sureweld range, these models can be used with tyres as well as with tracks. Select from this range where machinery with tracks as well as machinery with pneumatic (air) tyres are to be loaded.

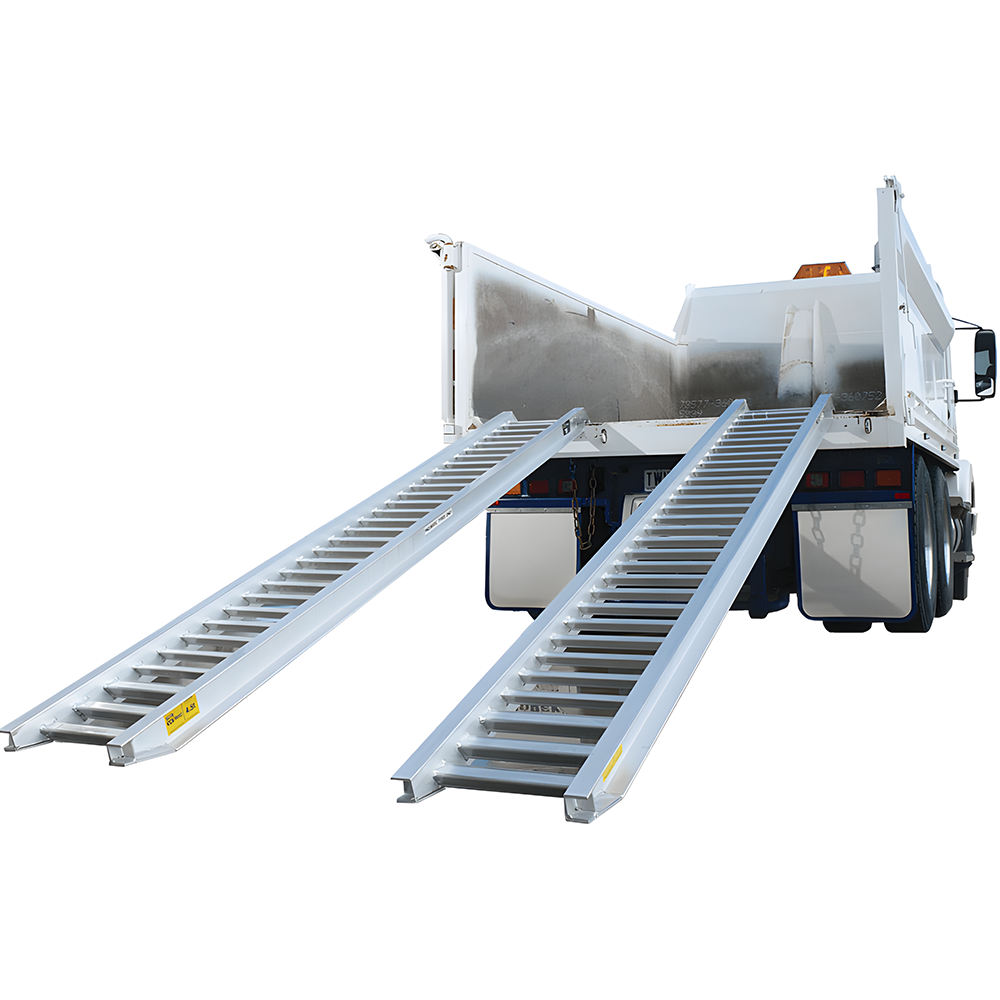

Complete with connection plate and zinc coated, steel pins these aluminium loading ramps are perfect for loading onto tipper body trucks, flatbed trucks or trailers.

Features and Benefits

• Ideal for machinery with tracks and rubber tyres
• Australian designed and manufactured
• Manufactured from structural-grade alloys to ensure the maximum strength available

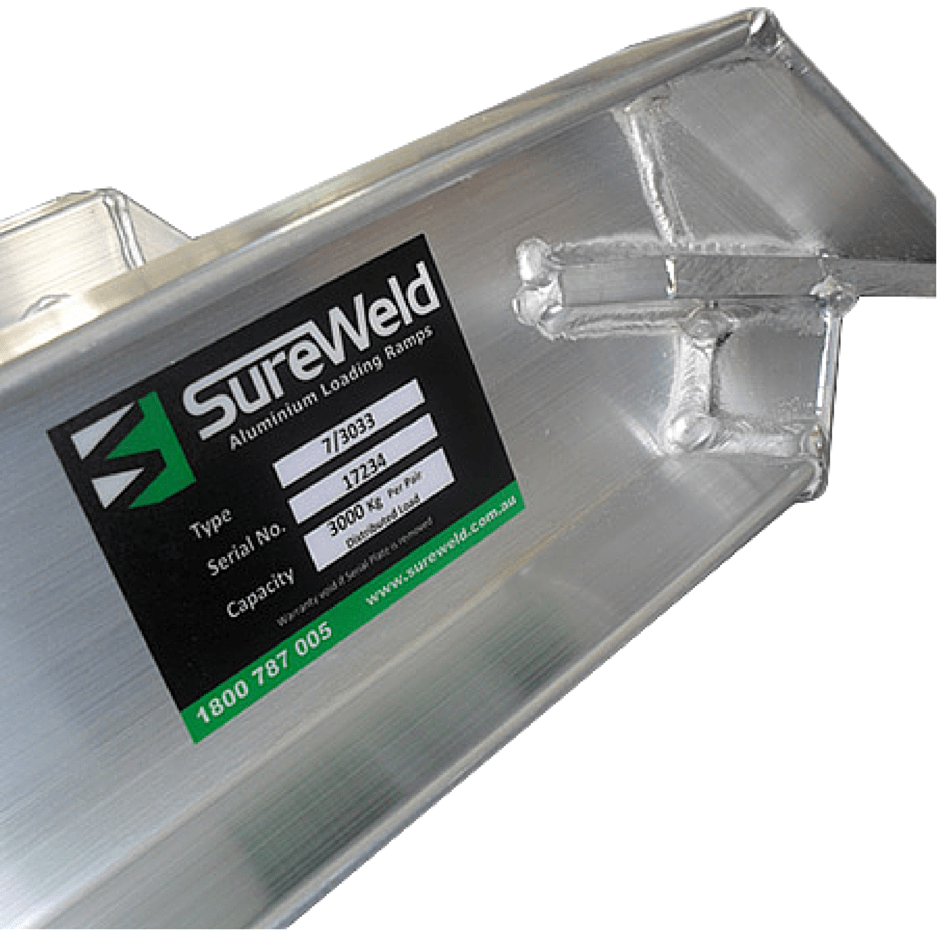

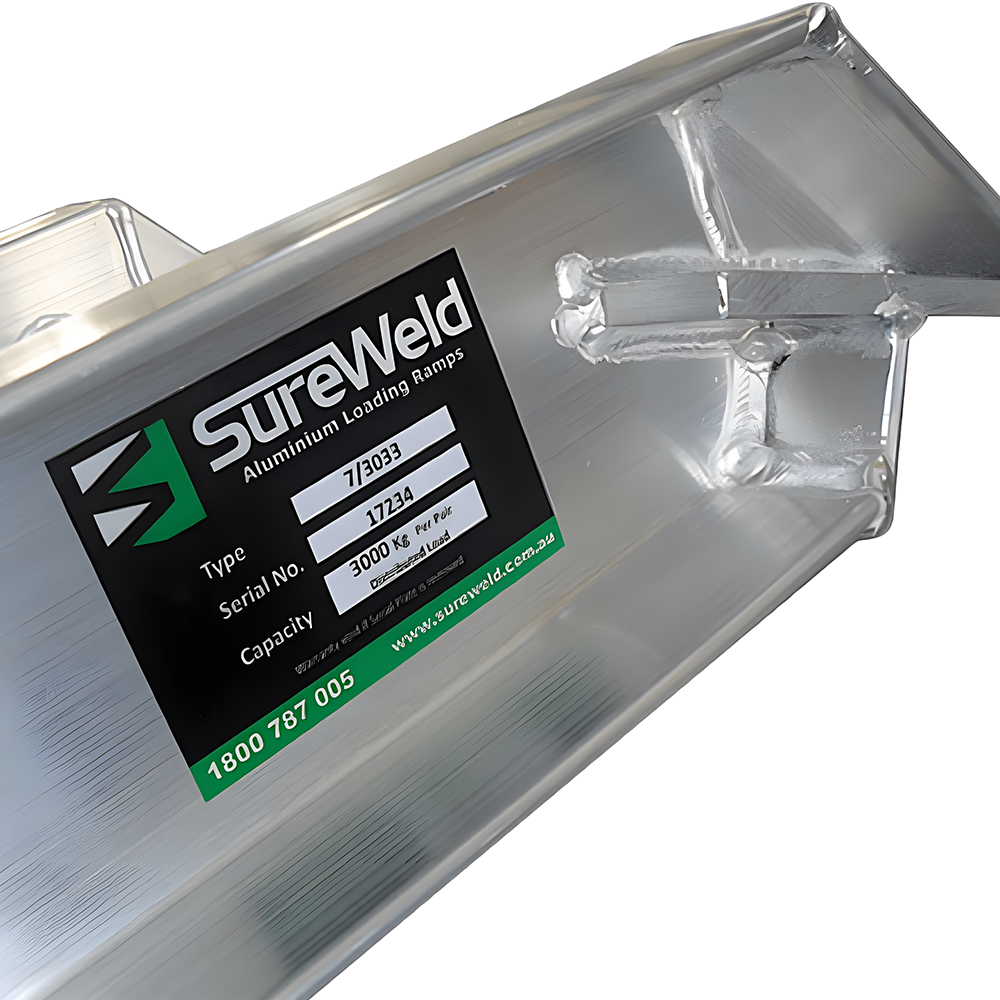

• Compliance Plates recording the model number, load capacity and serial number ensure traceability and safe work practice
• Connecting plate and pin ensures maximum stability and safety
• All ramps are built to take a reasonable variation around typical truck body heights
• 12-month warranty
• Made from high-grade structural alloy
• NATA certified and tested
• Ramps sold in pairs

Specifications

• Rated Load Capacity Per Pair: 9 tonne
• Ramp Weight Per Ramp: 71kg
• Ramp Length: 3.7m
• Internal Track Width: 500mm
• Ramp Width: 640mm
• Height Up To: 1.5m
• Ramp Depth: 200mm

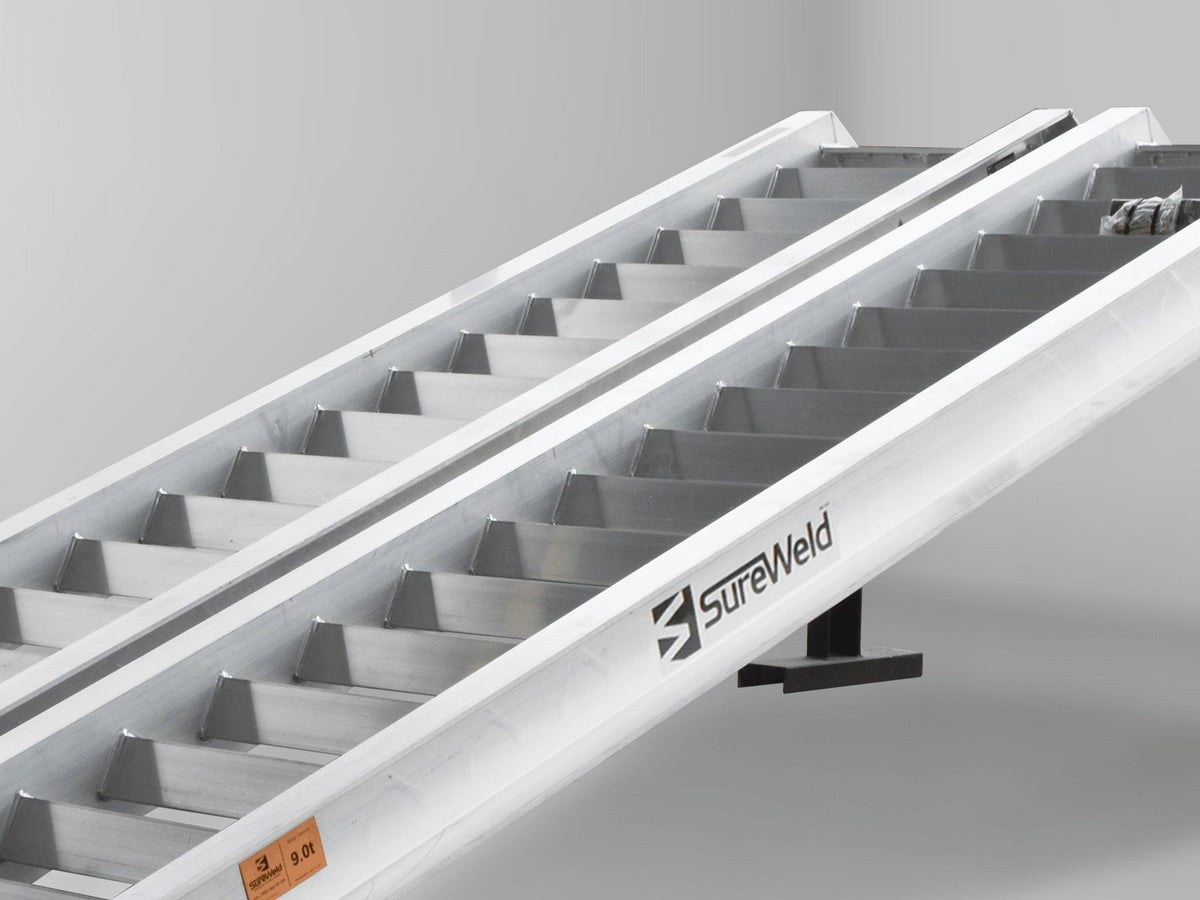

• Rung Recess: 60mm

For loading machinery where tracks are not used on ramps, the Sureweld Rubber Series Ramps provide a more lightweight and economical option over these Track Series Ramp.

Track Series Ramp Specifications

Product Code	Rated Capacity	Ramp Mass	Ramp Length	Track Width (internal)	Ramp Width	Ramp Depth	Rung Recess
7/3033T	3000kg	32kg	3.3m	350mm	450mm	110mm	40mm
7/3635T	3600kg	39kg	3.5m	400mm	500mm	120mm	40mm
7/4040T	4000kg	47kg	4.0m	400mm	510mm	125mm	45mm
7/4536T	4500kg	41kg	3.6m	400mm	510mm	125mm	45mm
7/4536TW	4500kg	43kg	3.6m	450mm	560mm	125mm	45mm
7/4833T	4800kg	37kg	3.3m	400mm	510mm	125mm	45mm
7/4833TW	4800kg	39kg	3.3m	450mm	560mm	125mm	45mm
7/6036T	6000kg	53kg	3.6m	500mm	600mm	160mm	52mm
7/7536T	7500kg	58kg	3.6m	500mm	600mm	184mm	60mm
7/9037(T)	9000kg	71kg	3.7m	500mm	640mm	200mm	60mm
7/11537(T)	11500kg	85kg	3.7m	500mm	660mm	180mm	55mm



Can't find the ramp you're looking for? Use the chat function in the corner of the window or Contact us for advice if you're unsure what ramps are suitable for you.
