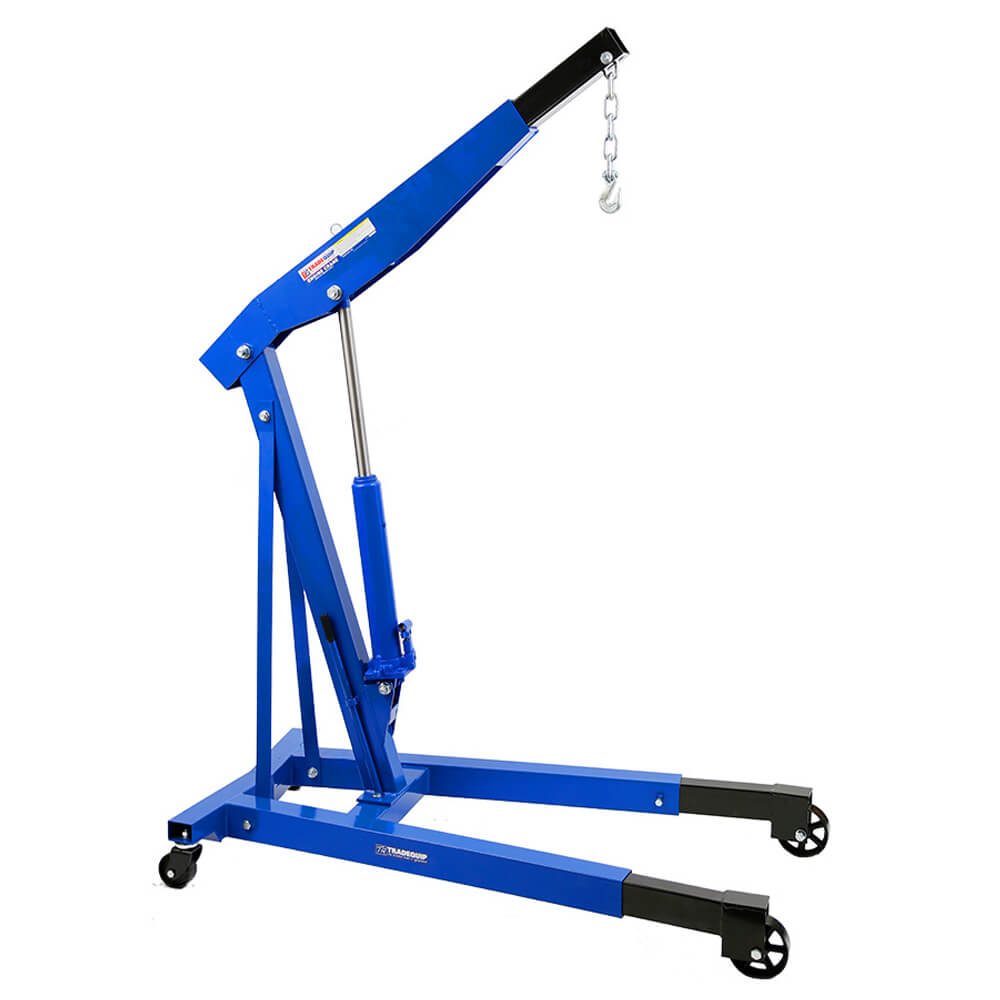

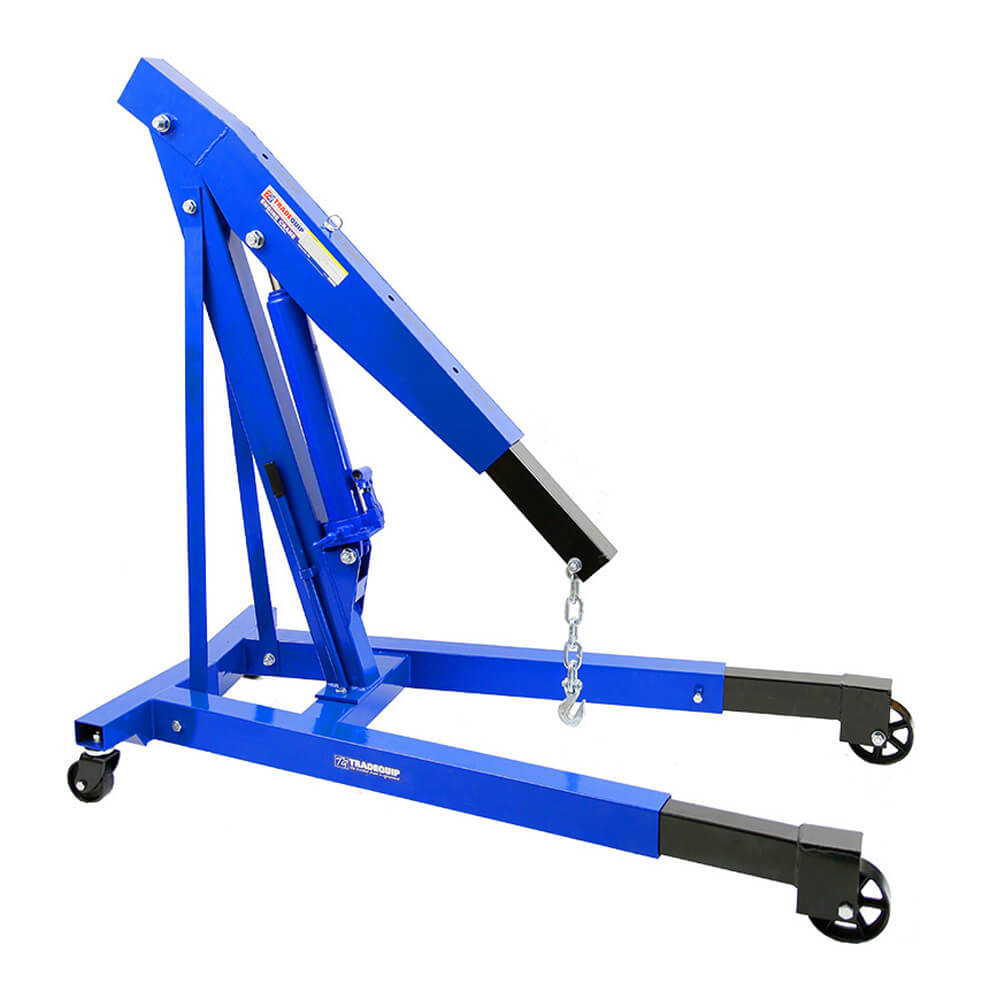

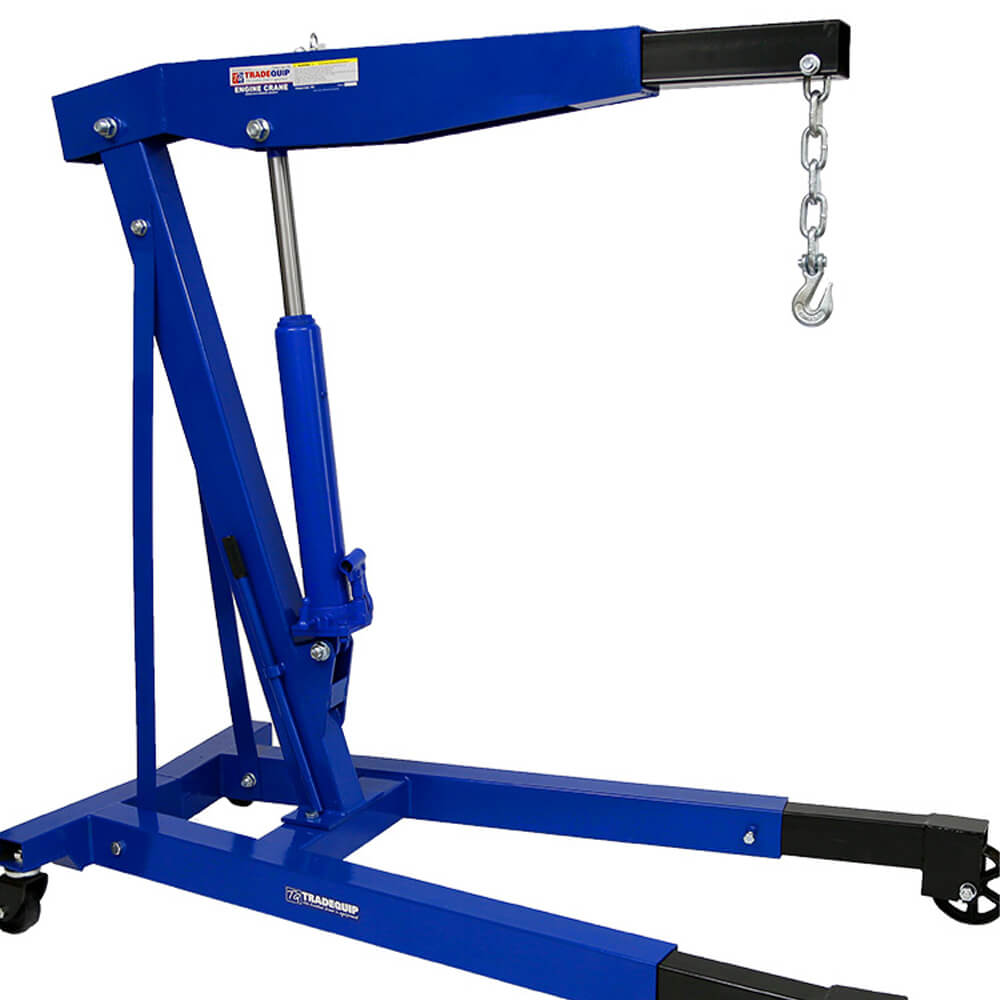

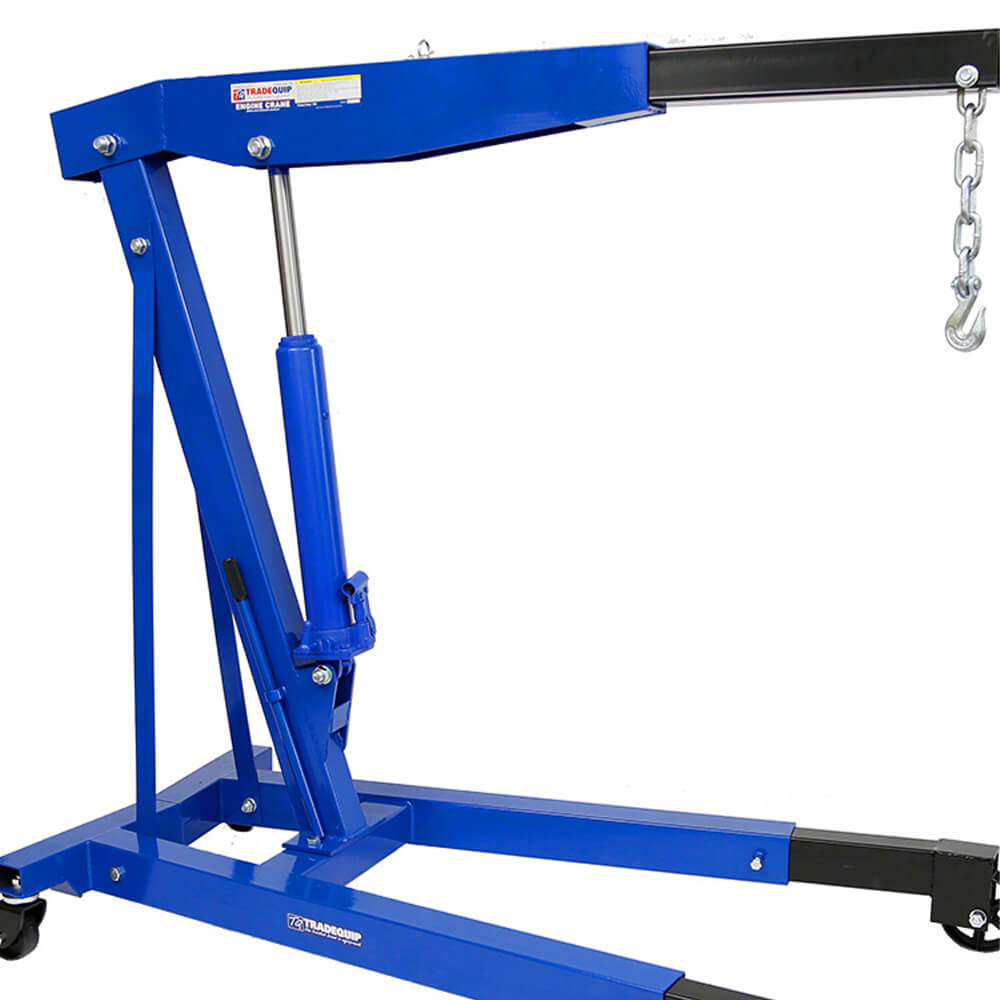

TradeQuip Industrial Engine Crane Hydraulic, 3 Tonne

$980.00
SKU 1193

✓ Fast Shipping + Order Tracking
✓ Pickup In-Store Available
✓ Questions? Call Us: 1300 913 047



Estimated Arrival: Between and .



Industrial Grade Steel Hydraulic Engine Crane With 3-Tonne Loading Capacity

This engine crane has a long stroke lifting ram, a single action pump with a maximum load capacity of 3,000kg. Very simple to use manual hydraulic operation.

The jib extends to the desired lifting capacity of 700kg, 800kg, 900kg or 1000kg secured by a single locking pin. Mounted on 4 castor wheels for excellent manoeuvrability around the workshop. The lifting range is 0-2500mm so an engine can be lifted clear out of the engine bay with little effort. With great stability of its wide legs, this crane can also be used to lift machines or other heavy items, making for an excellent piece of equipment for the workshop or warehouse.

trade quip 3 tonne engine crane 1-tonne height capacity

Features

  • Industrial grade engine crane

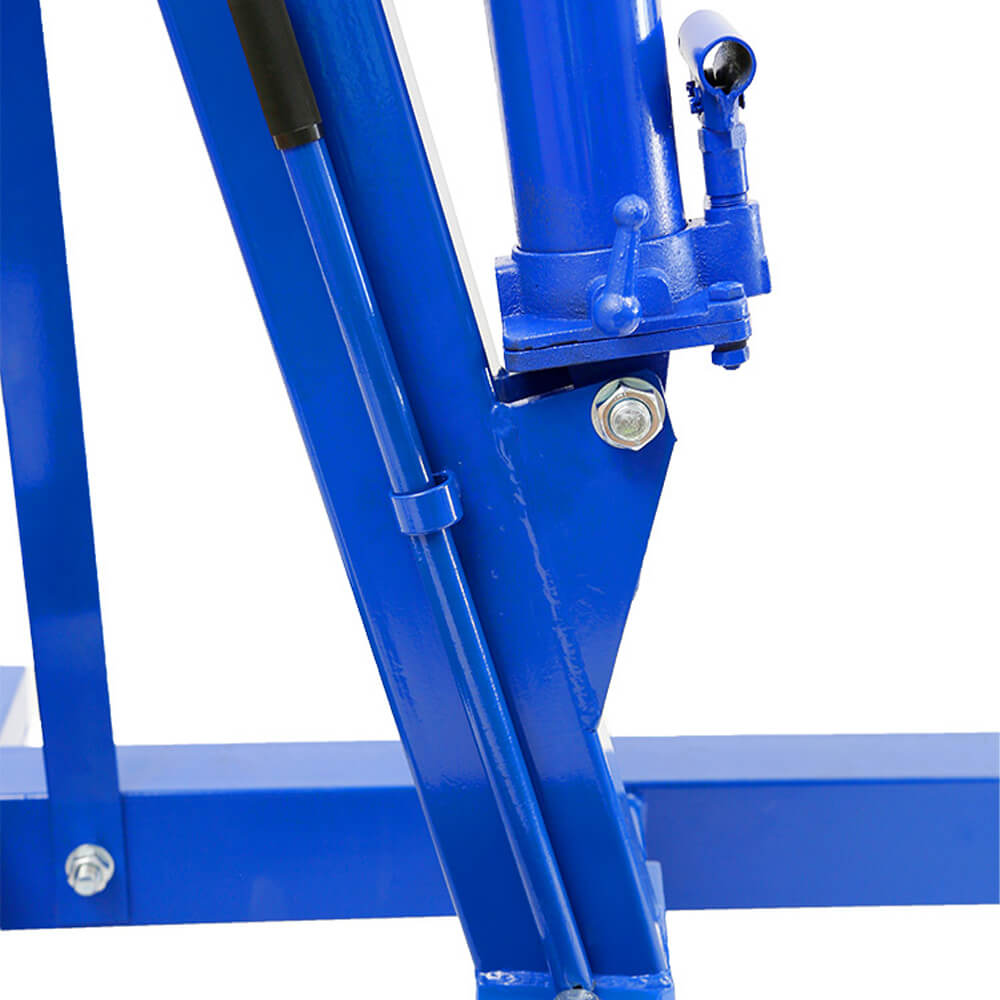

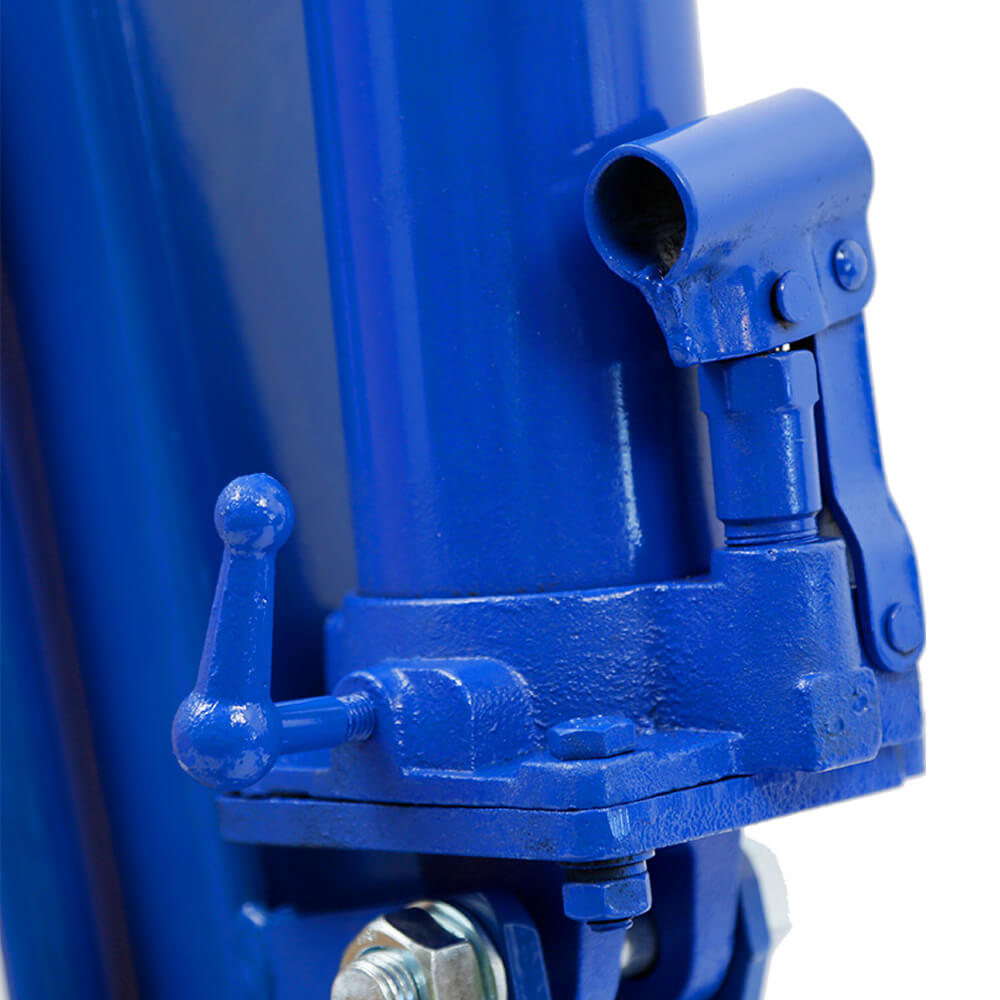

  • Heavy duty hydraulic pump
  • Adjustable boom in four positions for lifting
  • Robust steel fabricated legs with structural supports

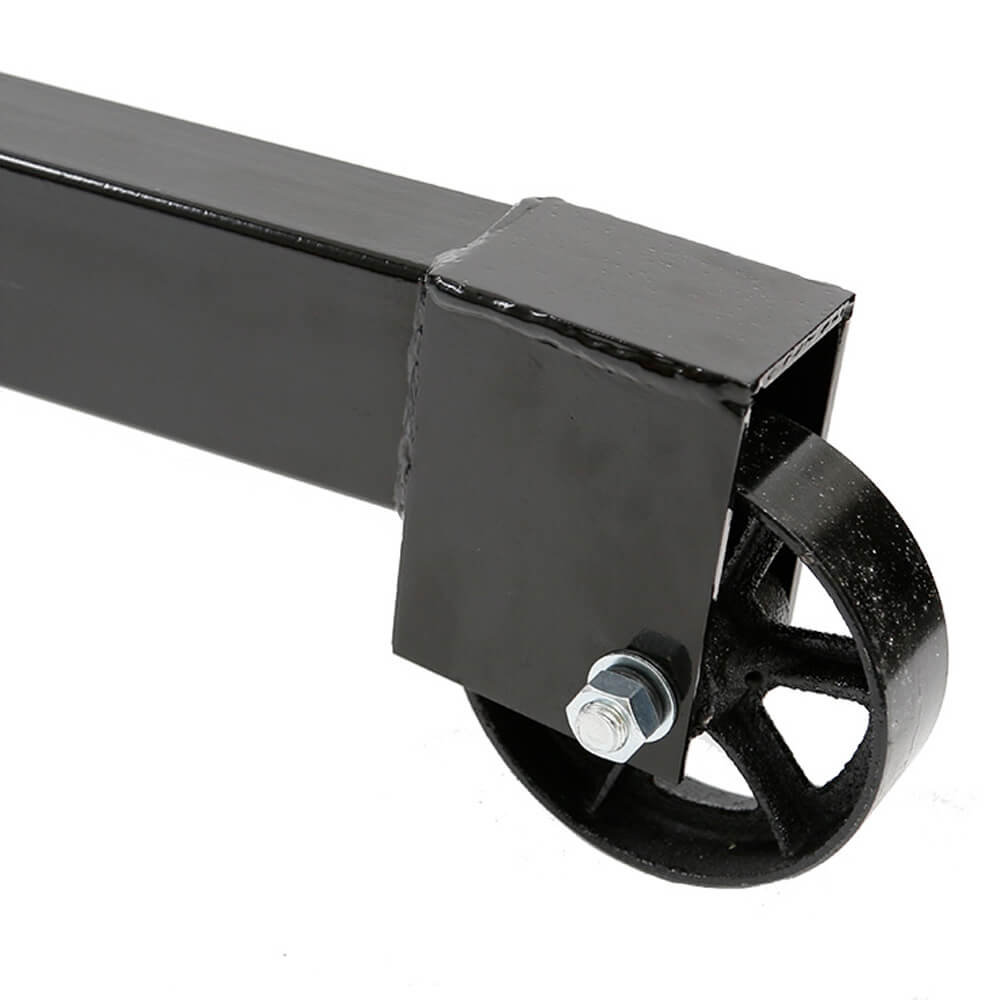

  • Large castor wheels for easy mobility

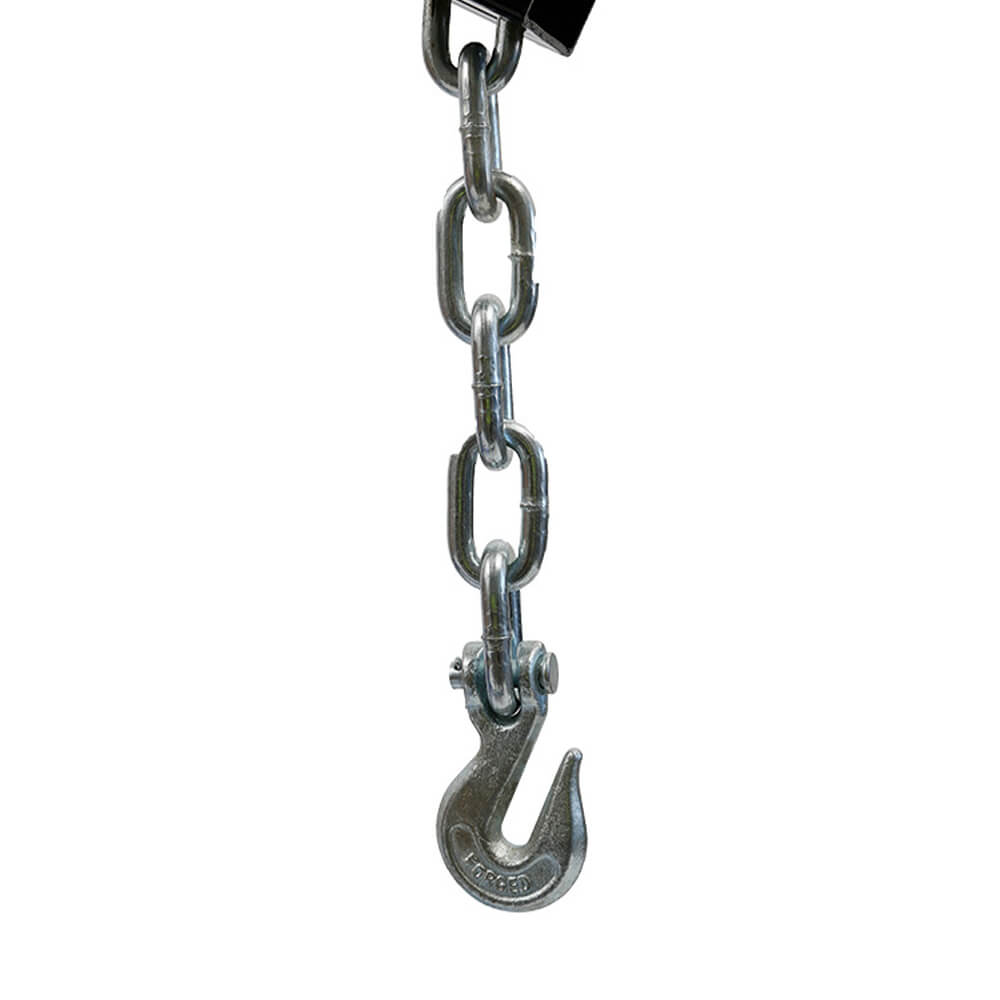

  • Tilting lifting hook with latch for safety
  • T-bar handle with grips on rear of hoist allows greater manoeuvrability control

      Specifications

      • Safe Working Capacity: 3,000kg
      • Folded Height: 1625mm
      • Maximum Lifting Height @ 3000kg: 2200mm
      • Maximum Lifting Height @ 1000kg: 2500mm
      • Jib Length Fully Retracted @ 3000kg: 1370mm
      • Jib Length Fully Extended @ 1000kg: 1980mm
      • Overall Length Fully Extended: 2385mm
      • Overall Length Fully Retracted: 1470mm
      • Overall Width Fully Extended: 875mm
      • Overall Width Fully Retracted: 785mm
      • Leg Height 195mm

      Tradequip engine crane specifications

      Warranty Details

      For full manufacturer warranty details, click here.

      TradeQuip Authorised Dealerone year warranty



      Note: Colour, tone, finish and style of actual products may differ from those shown in the product images.
