TradeQuip Industrial Engine Crane Hydraulic, 3 Tonne
Authorised dealerSKU: 1193$1,363.64 ex GST
- Holds3,000kg
- Safe working capacity of 3,000kg
- Lifting range of 0-2500mm to lift engines clear of the bay
- Four-position jib for 700kg, 800kg, 900kg or 1000kg lifts
Available to order, ships in 1-3 business days
Authorised dealeri
1,000+ soldi
Pickup availablei
12-month warrantyi
100-day free returnsi
Rated 4.7 from 1,186 reviews on Google, ProductReview and Trustpilot
TradeQuip Industrial Engine Crane Hydraulic, 3 Tonne
Crane specifications
| Holds | 3,000kg |
|---|---|
| Brand | TradeQuip |
| SKU | 1193 |
| Weight | 121.5kg |
About this crane
Lift heavy engines with hydraulic ease
This engine crane has a long stroke lifting ram, a single action pump with a maximum load capacity of 3,000kg. Very simple to use manual hydraulic operation.
The jib extends to the desired lifting capacity of 700kg, 800kg, 900kg or 1000kg secured by a single locking pin. Mounted on 4 castor wheels for excellent manoeuvrability around the workshop. The lifting range is 0-2500mm so an engine can be lifted clear out of the engine bay with little effort. With great stability of its wide legs, this crane can also be used to lift machines or other heavy items, making for an excellent piece of equipment for the workshop or warehouse.

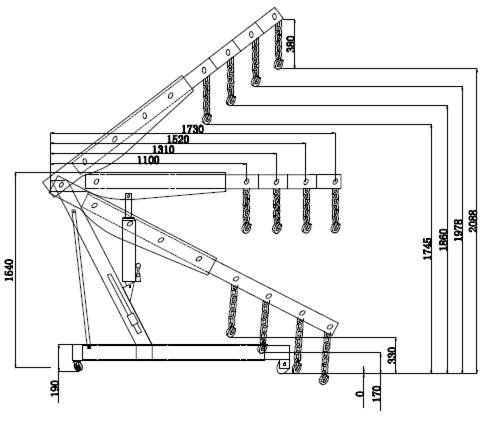

Crane sizes and details
- Safe Working Capacity: 3,000kg
- Folded Height: 1540mm
- Maximum Lifting Height @ 3000kg: 1745mm
- Maximum Lifting Height @ 1000kg: 2088mm
- Jib Length Fully Retracted @ 3000kg: 1100mm
- Jib Length Fully Extended @ 1000kg: 1730mm
- Overall Length Fully Extended: 2385mm
- Overall Length Fully Retracted: 1480mm
- Overall Width Fully Extended: 875mm
- Overall Width Fully Retracted: 785mm
- Leg Height 190mm
- Nett Weight: 121.5kg
- Carton 1 of 3 : 1330 x 860 x 100mm (Weight: 29kg)
- Carton 2 of 3 : 1470 x 300 x 200mm (Weight: 82kg)
- Carton 3 of 3 : 700 x 180 x 150mm (Weight: 15kg)
Key benefits
- Safe working capacity of 3,000kg
- Lifting range of 0-2500mm to lift engines clear of the bay
- Four-position jib for 700kg, 800kg, 900kg or 1000kg lifts
- Industrial grade engine crane
- Heavy duty hydraulic pump
- Adjustable boom in four positions for lifting
- Robust steel fabricated legs with structural supports
- Large castor wheels for easy mobility
- Tilting lifting hook with latch for safety
- T-bar handle with grips on rear of hoist allows greater manoeuvrability control
