TradeQuip Utility Crane - Swivel Base, 900kg Capacity

$49300 $54100
TradeQuip  |  SKU: 2079*2

Description

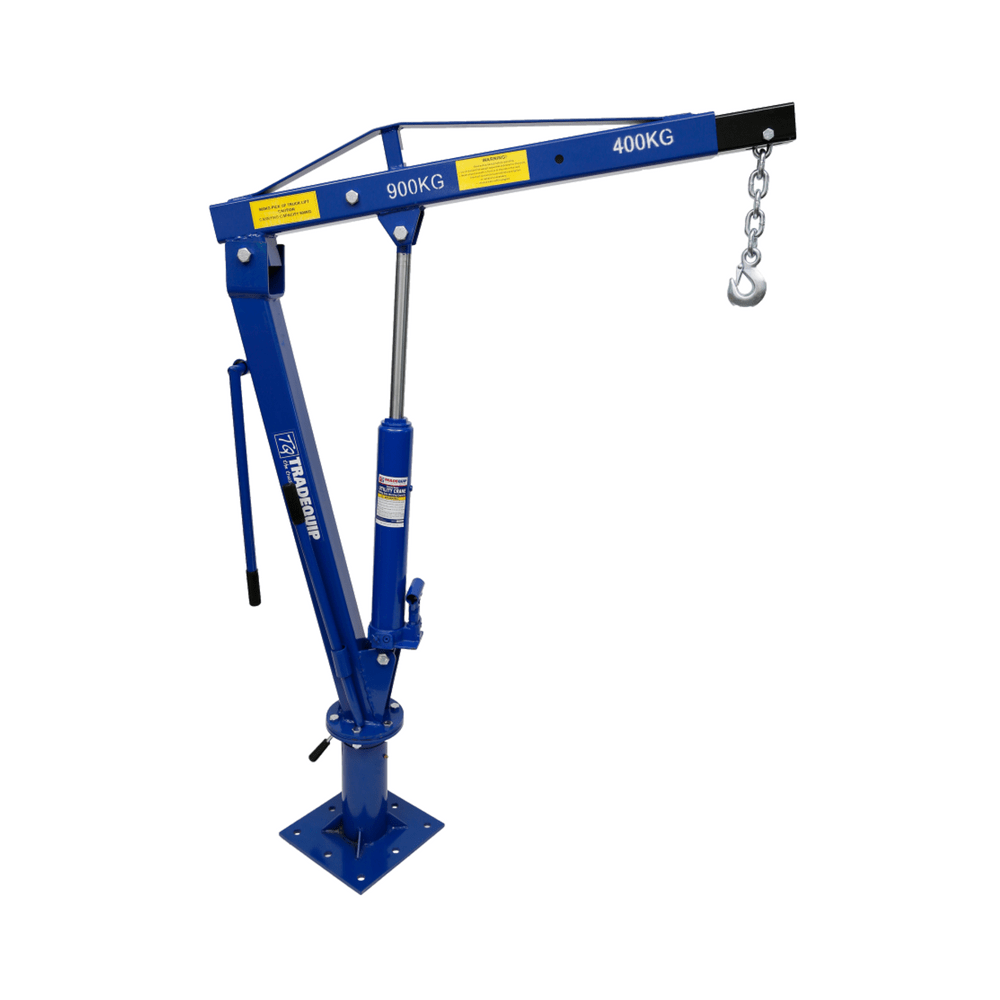

Swivel Base Utility Crane With 900kg Capacity From TradeQuip - Blue Colour

Save your back with the Tradequip "Made for the Trade" steel ute crane which effortlessly lifts items from the ground to ute/truck tray height, then rotates them into the cargo area.

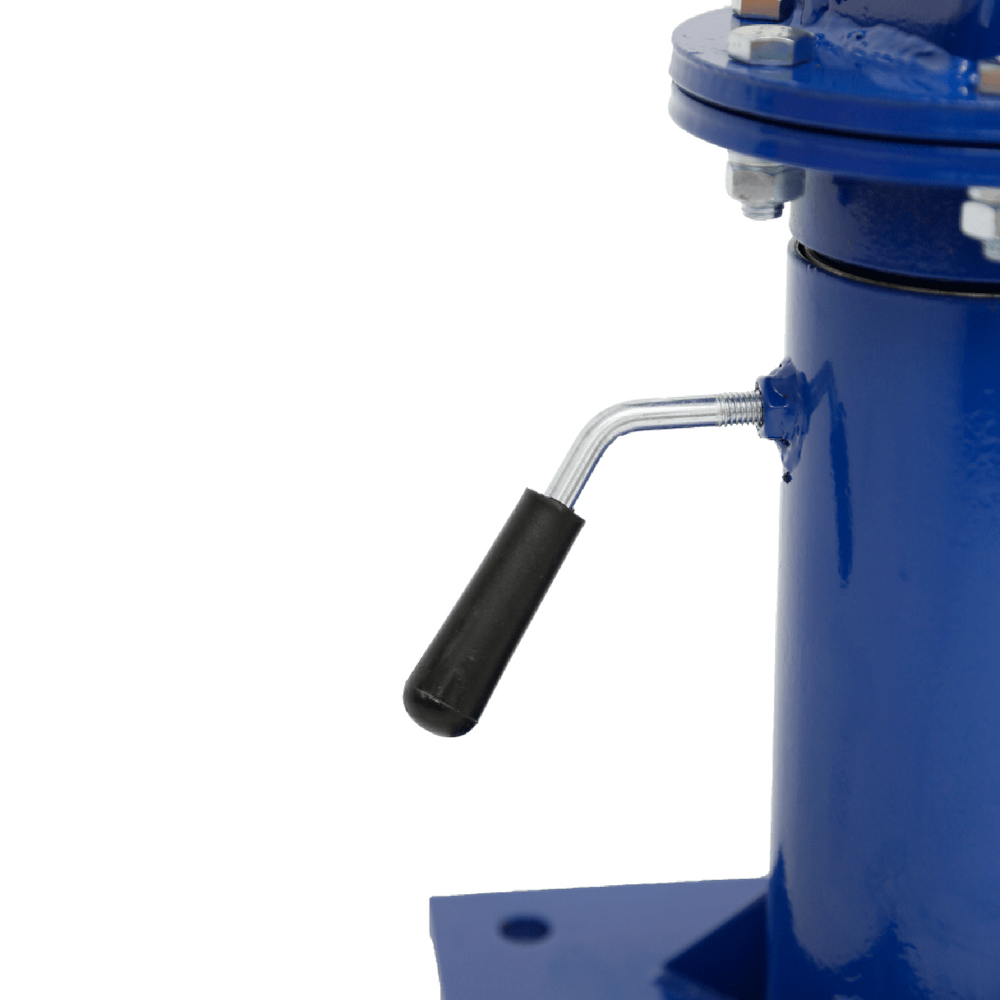

The telescopic boom design with manual hydraulic hand pump pivots the boom up and down and swivels 360° for maximum accessibility.

Get extra lift where you need it most with this Tradequip Utility Crane that easily lifts loads to 900kg. The steel boom extends up to 1290mm and the base swivels to help you get the best angle when hoisting items onto your ute or truck bed. The pickup crane folds away when not in use.


Features and Benefits

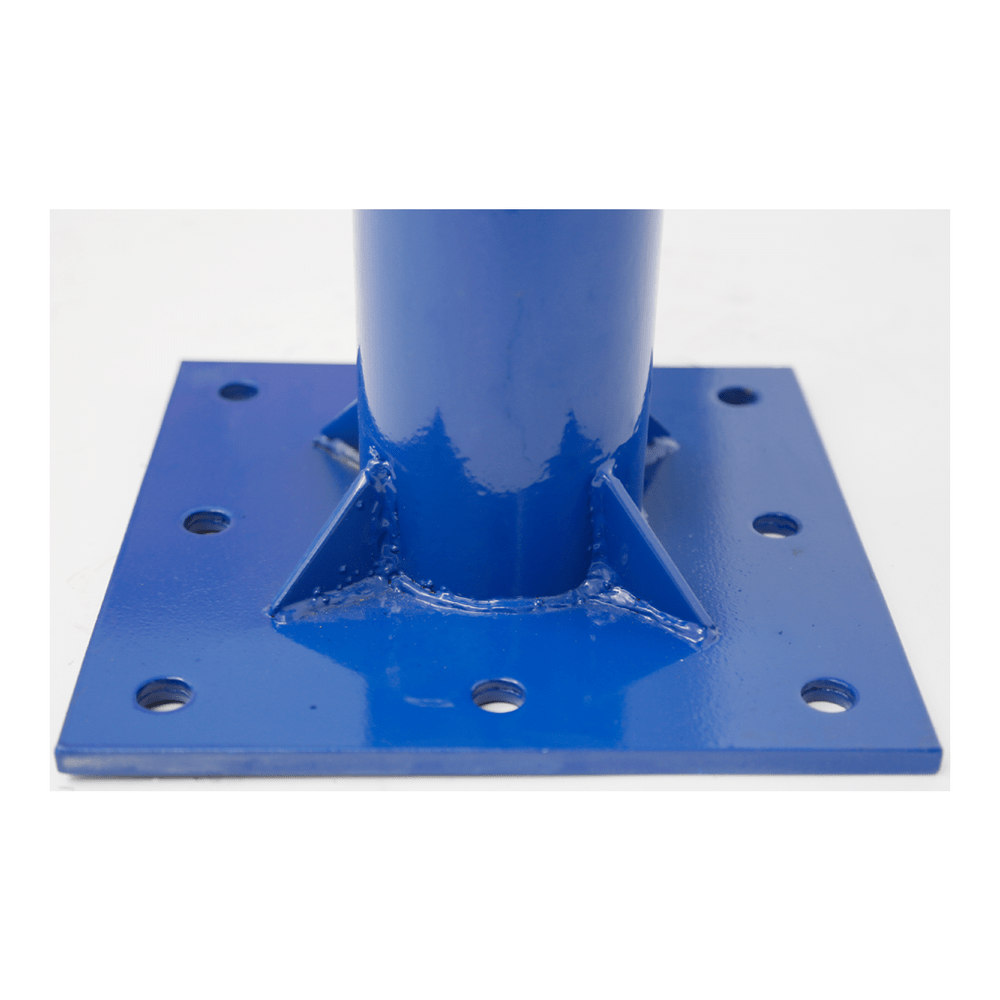

  • Pre-drilled 275 x 275mm base plate makes mounting quick and easy
  • Handles up to 250kg in extended mode and 900kg in retracted mode

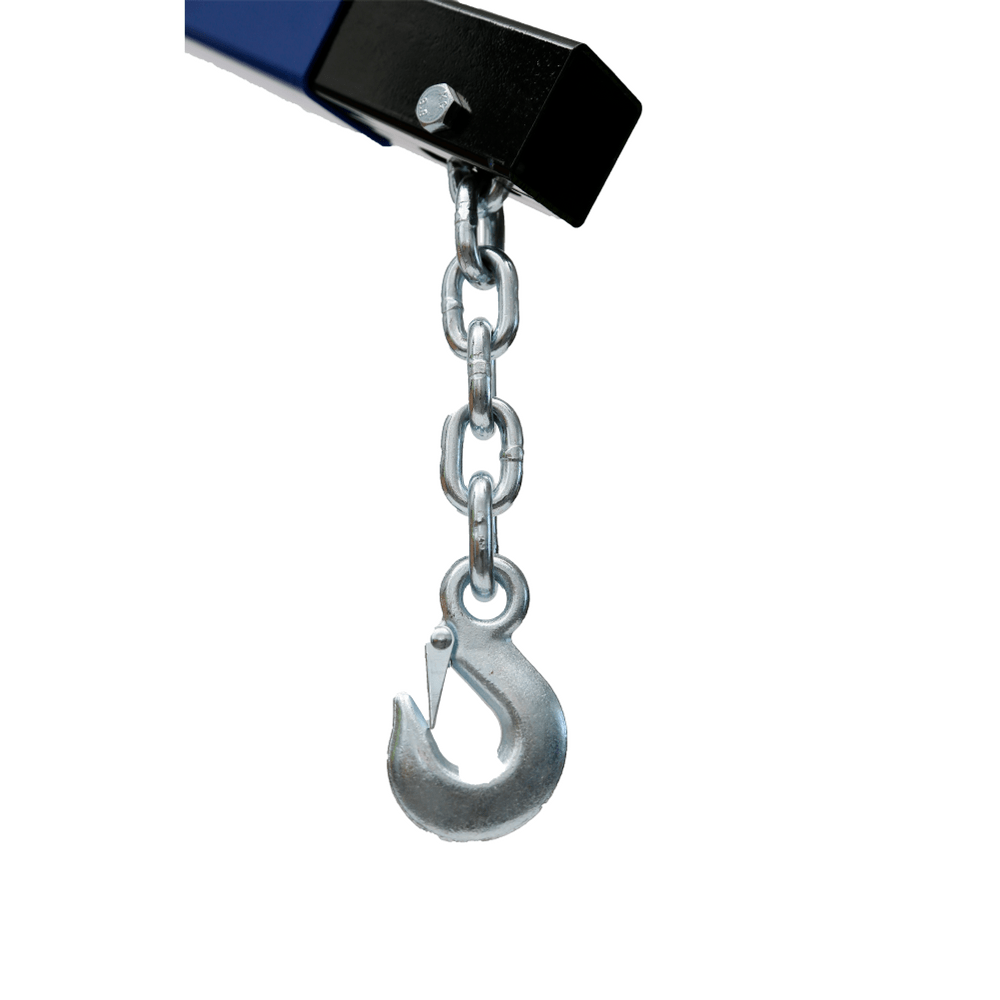

  • Includes chain hook with chain slot lock and one cable hook both with safety latch
  • Base rotates 360 degrees
  • Designed for vertical lifting only
  • Not to be used for lifting personnel or overhead lifting
  • All steel construction
  • Boom stores over wheel well when not in use
  • Not to be used in damp or wet locations or exposed to rain.

Specifications

  • Hydraulic Jack Capacity: 3,000kg
  • Hydraulic Lifting Capacity: 250 - 900Kg
  • Maximum Reach of Boom: 1290mm (250kg)   870mm (900kg)
  • Maximum extended (hook) height of crane: 2300mm (250kg) 2000mm (900kg)
  • Height of crane excluding the boom: 1425mm (from ute tray to boom pivot)
  • Weight: 50kg

Warranty Details

For full manufacturer warranty details, click here.

TradeQuip Authorised Dealer1 year warranty
