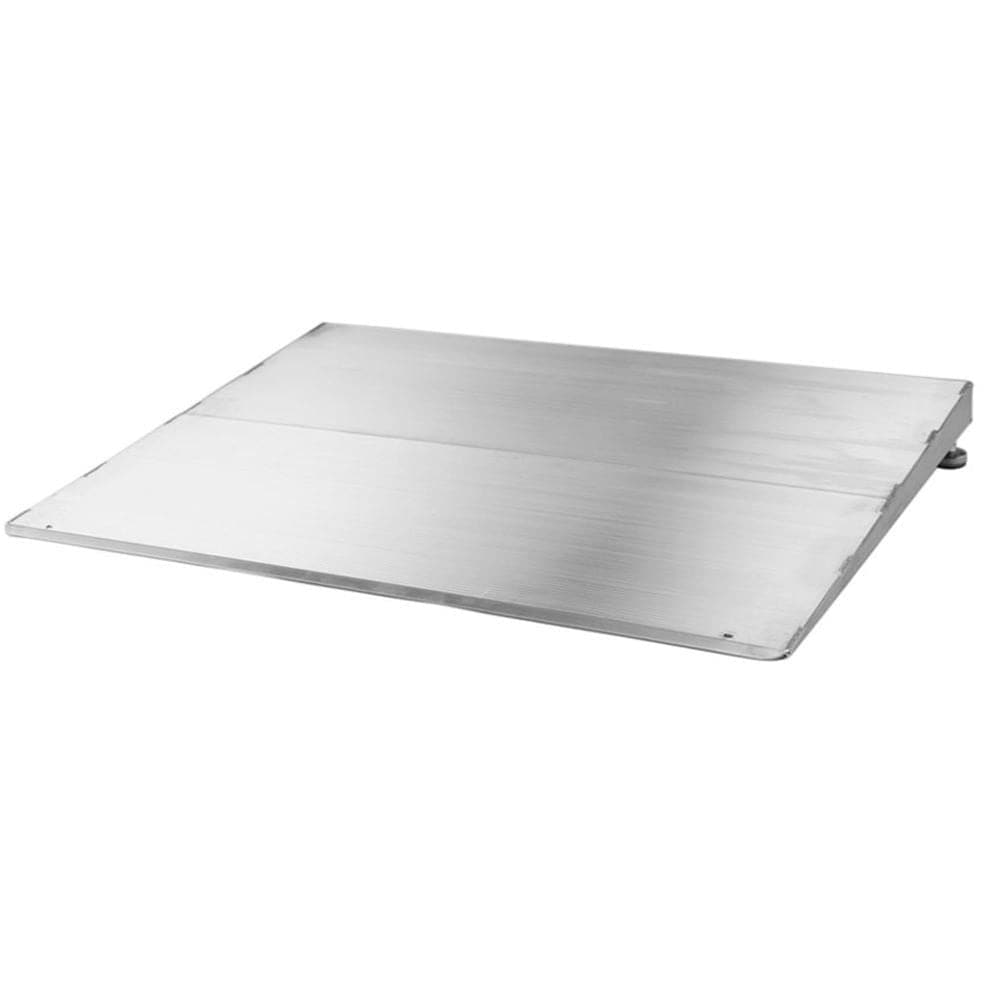

PVI ELEV8 Aluminium Adjustable Solid Self-Supporting Threshold Ramp
Authorised dealerSKU: ATH1232$215.45 ex GST
- Holds270kg
- Made ofAluminium
- ColourSilver
- Width813mm - 914mm
- Made with durable, welded aluminium for strength
- Two threaded foot pads adjust the height to match your threshold
- A grooved surface provides maximum traction
Available to order, ships in 1-3 business days
Authorised dealeri
1,000+ soldi
2-year warrantyi
100-day free returnsi
Delivery & Pickup
Delivery details
This product is a "Bulky Item". Delivery to a business address with unloading facilities or depot is recommended.
Shipping charges apply per shipment and can vary by warehouse or supplier. Shipping policy
Estimate delivery to your door
An estimate for this item to that suburb, from the same rates checkout uses. You choose the delivery method at checkout.
Pickup details
PVI ELEV8 Aluminium Adjustable Solid Self-Supporting Threshold Ramp
Reviews
Specifications
Specifications
Sizes and Prices
| Size | SKU | Price | Stock |
|---|---|---|---|
| 304mm x 815mm | ATH1232 | $237 | Available to order |
| 304mm x 915mm | ATH1236 | $302 | Available to order |
| 610mm x 815mm | ATH2432 | $359 | Available to order |
| 610mm x 915mm | ATH2436 | $425 | Available to order |
| 915mm x 815mm | ATH3632 | $539 | Available to order |
| 915mm x 915mm | ATH3636 | $600 | Available to order |
| 1220mm x 815mm | ATH4832 | $665 | Available to order |
| 1220mm x 915mm | ATH4836 | $725 | Available to order |
Product Specs
| Sold as | Single ramp |
|---|---|
| Holds | 270kg |
| Made of | Aluminium |
| Colour | Silver |
| Brand | PVI |
| Length | ATH1232:304mm ATH1236: 304mm ATH2432: 610mm ATH2436: 610mm ATH3632: 915mm ATH3636: 915mm ATH4832: 1220mm ATH4836: 1220mm |
| Width | 813mm - 914mm |
| Height | ATH1232: 50.8mm ATH1236: 50.8mm ATH2432: 88.9mm ATH2436: 88.9mm ATH3632: 126.9mm ATH3636: 126.9mm ATH4832: 152.4mm ATH4836: 152.4mm |
| Weight | ATH1232: 2.8kg ATH1236: 3.64kg ATH2432: 5.5kg ATH2436: 6.4kg ATH3632: 8.63kg ATH3636: 9.5kg ATH4832: 11.81kg ATH4836: 12.73kg |
| Threshold height | ATH1232: 25.4 - 50.8mm ATH1236: 25.4 - 50.8mm ATH2432: 50.8 - 88.9mm ATH2436: 50.8 - 88.9mm ATH3632: 89 - 126.9mm ATH3636: 89 - 126.9mm ATH4832: 101.6 - 152.4mm ATH4836: 101.6 - 152.4mm |
Key Benefits
Key Benefits
- Made with durable, welded aluminium for strength
- Two threaded foot pads adjust the height to match your threshold
- A grooved surface provides maximum traction
- Accommodates threshold rises from 25mm to 152mm high
- Supports up to 270kg
- Complete with pre-drilled holes to ensure a positive connection
- Aircraft-grade aluminium with durable welded construction
- Designed for doorways, sliding glass doors and raised landings
- Suitable for doors that swing either inward or outward
- Aligns directly against the door threshold
- Suitable for indoor and outdoor use
- Uses include scooters, power chairs, wheelchairs, walkers, canes
- 24-month warranty
- PVI Ramps are registered in Australia with the TGA Therapeutic Goods Administration

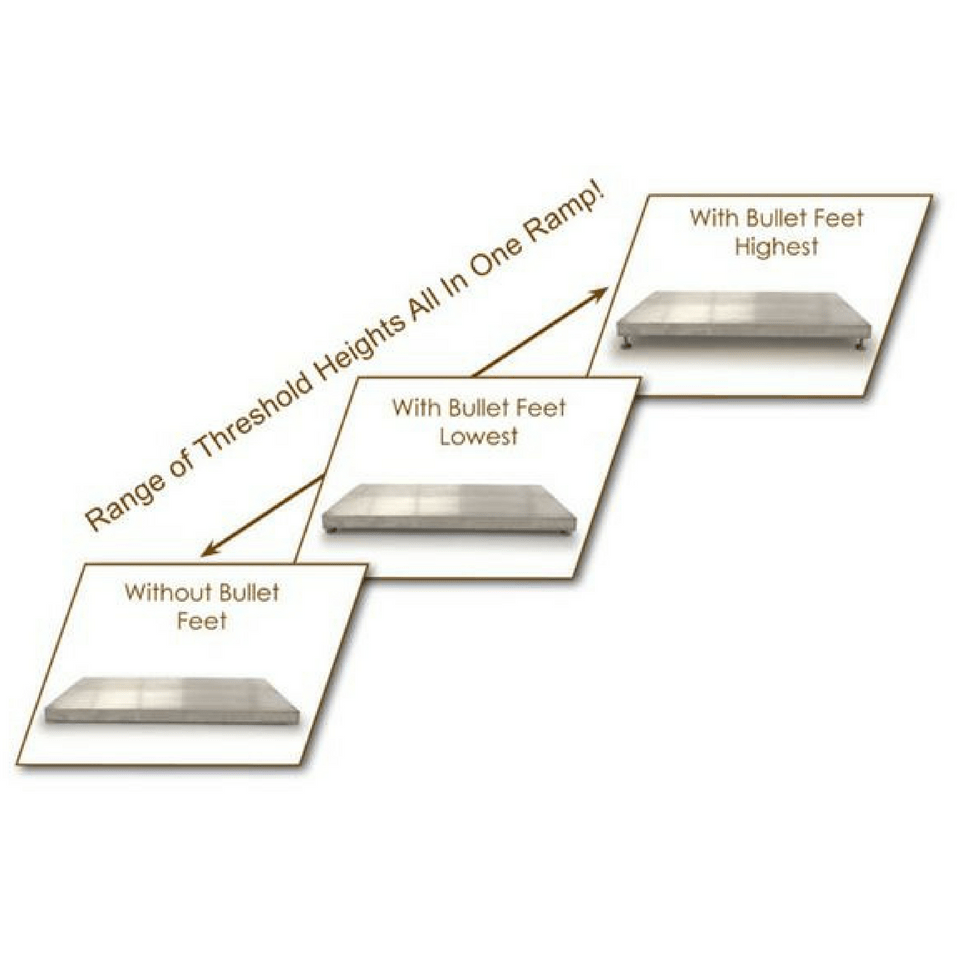

Height settings
About This Product
About This Product
Easy access over thresholds up to 152mm

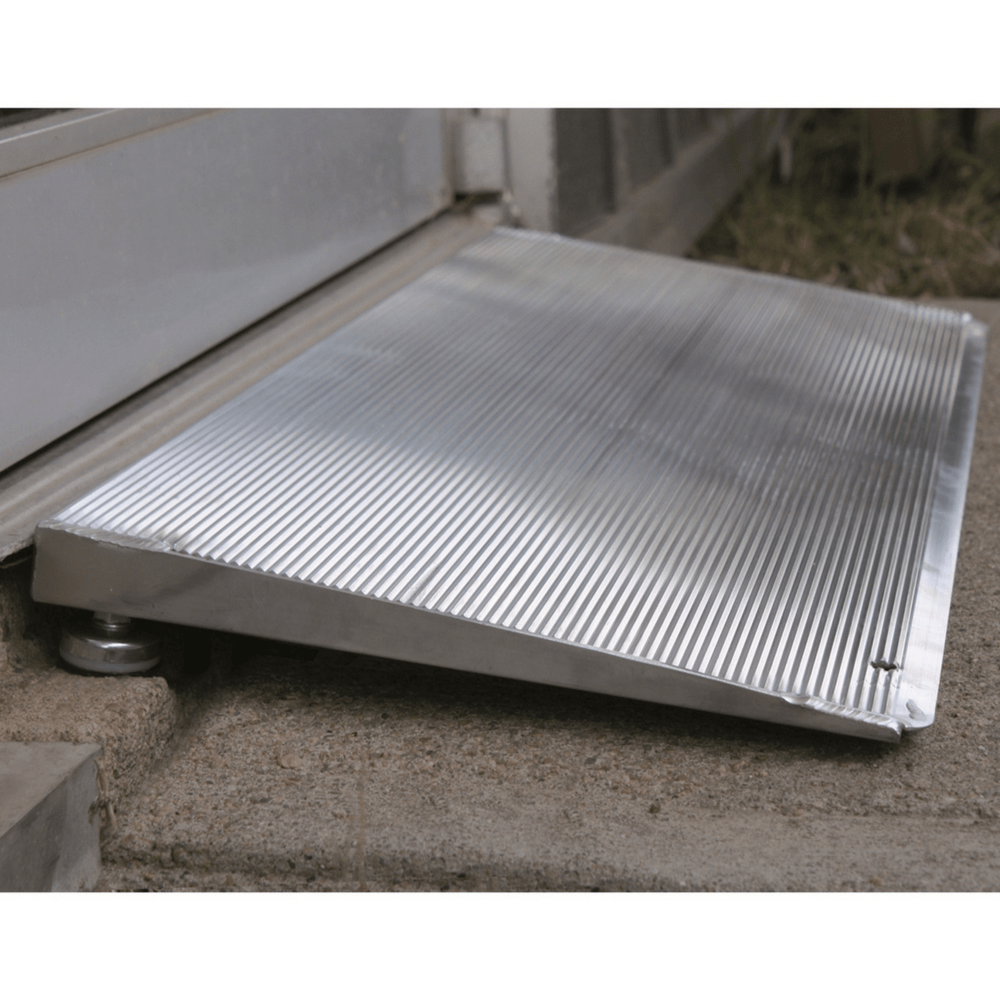

Wheelchairs, power chairs, and scooters gain smooth, easy doorway access with this height-adjustable, indoor/outdoor aluminium self-supporting threshold ramp by PVI (Prairie View Industries).
Suitable for most weather conditions, the highly portable ramp has a grooved surface for enhanced traction and two adjustable casters underneath to fit any threshold from 25mm to 152mm.
Many sizes are available to fit most doorways, and the wheelchair ramp can support up to 270kg. These ramps align directly against the door allowing for the door to swing in and or out. They are also suitable to butt up against sliding door tracks.
Warranty details
For additional warranty information on our PVI ramps and accessories, click here.
FAQs
How does the height adjust?
How does the height adjust?

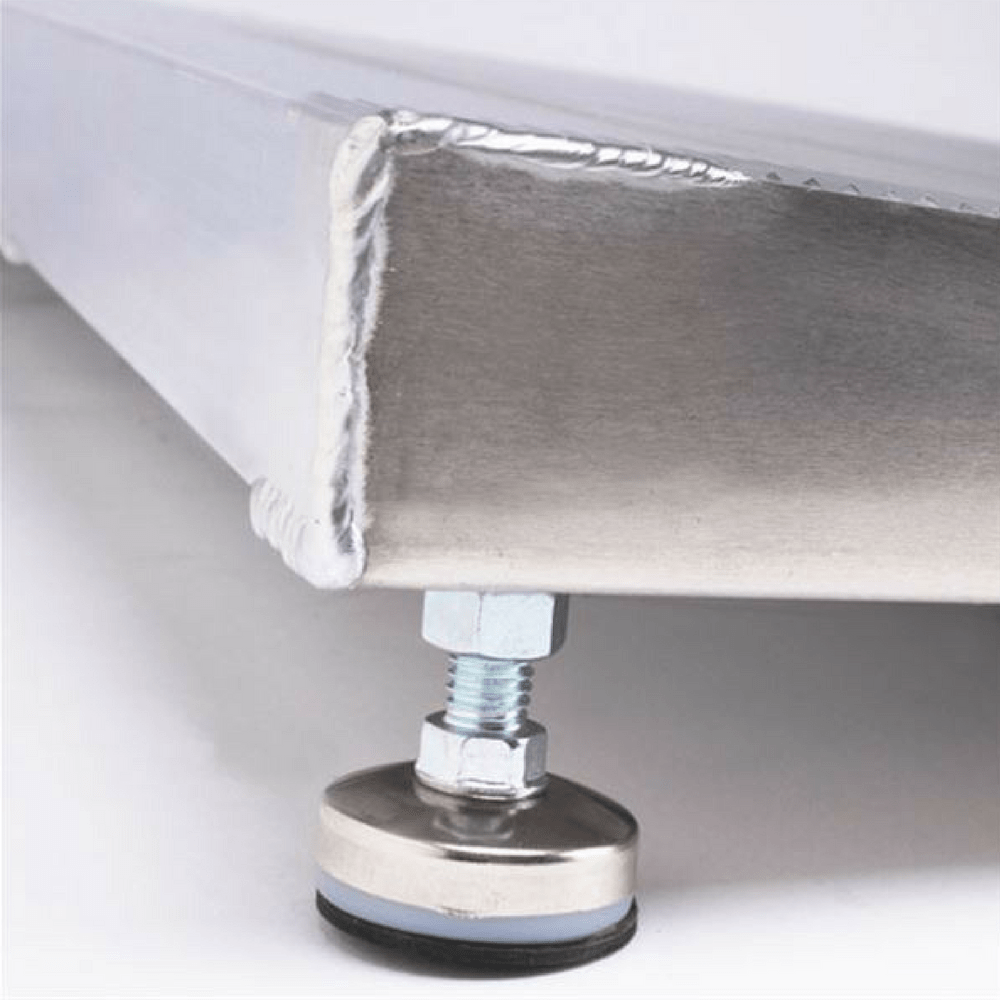

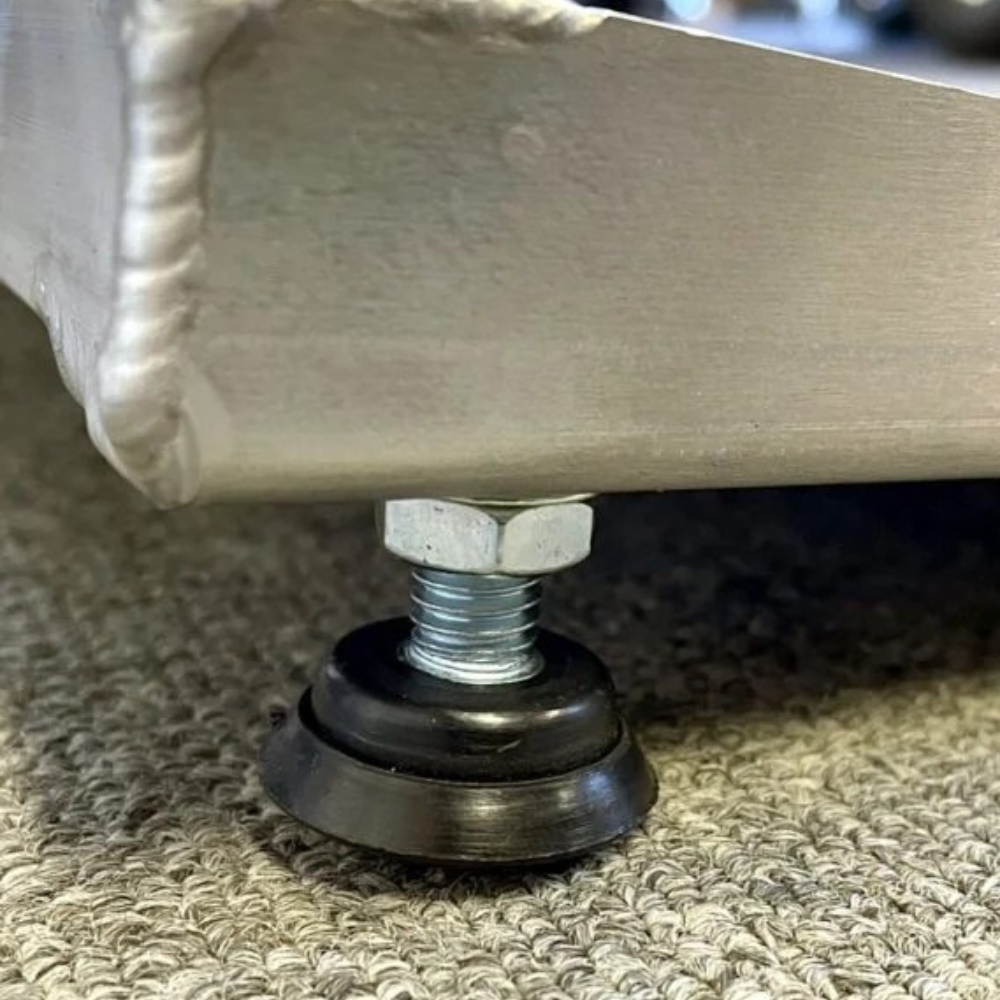

Adjustable feet underneath wind up and down on a screw thread, so you can set the exact height within each ramp's range and sit it flat against the door.
Does it work if my door opens outwards?
Does it work if my door opens outwards?
Yes. It's designed for doorways that swing in or out, and RP note it also sits against sliding door tracks.
What's the surface like?
What's the surface like?
Slip resistant grooved aluminium, welded, with holes on the lower edge and screws supplied to fix it to the floor.
