All-Load 2.5 Tonne 2.9m x 400mm All Types Aluminium Loading Ramps

Save $142.00
Original price $1,594.00
Current price $1,452.00

new icon
SKU: ALR/2.5-2.9

✓ Fast Shipping + Order Tracking
✓ Proudly Made in Australia
✓ Questions? Call Us: 1300 913 047

Bulky Delivery Item: This product is bulky and requires a tailgate courier for residential delivery or a forklift to unload for business deliveries. See below for full details.
Estimated Arrival: Between and .

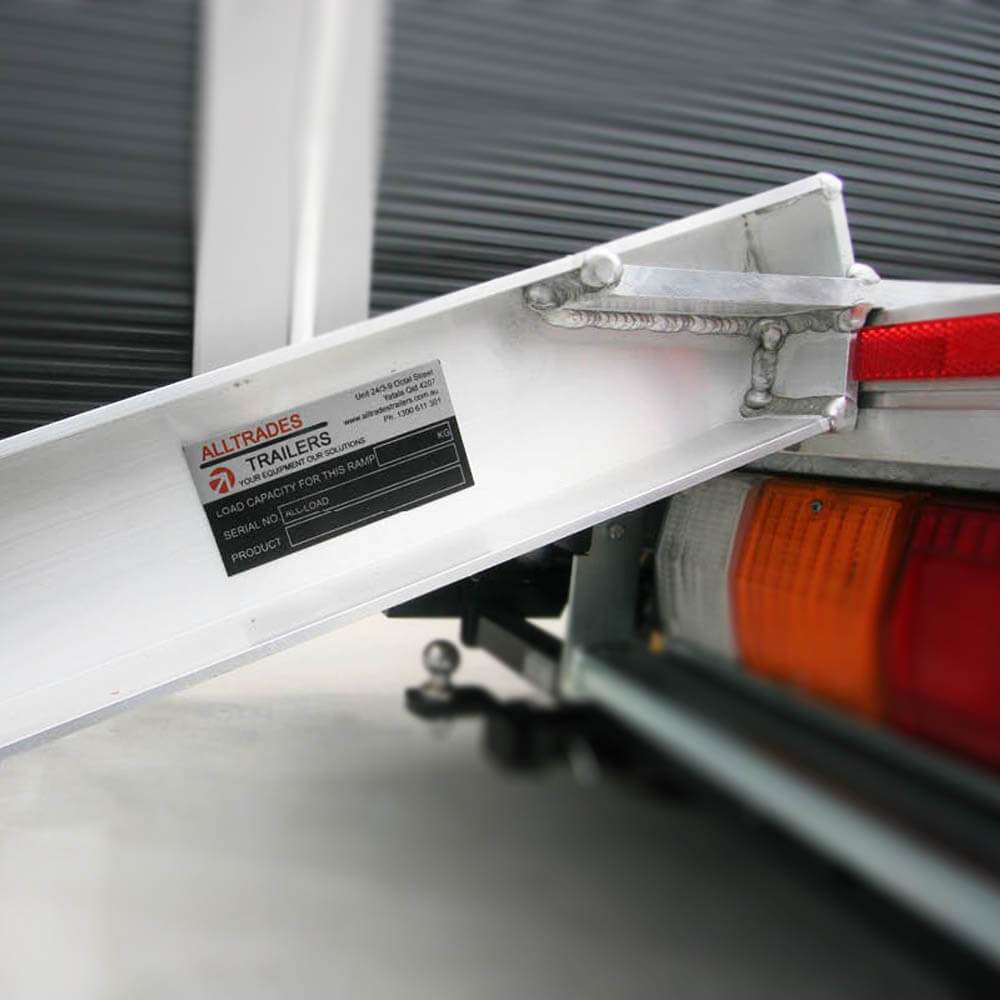

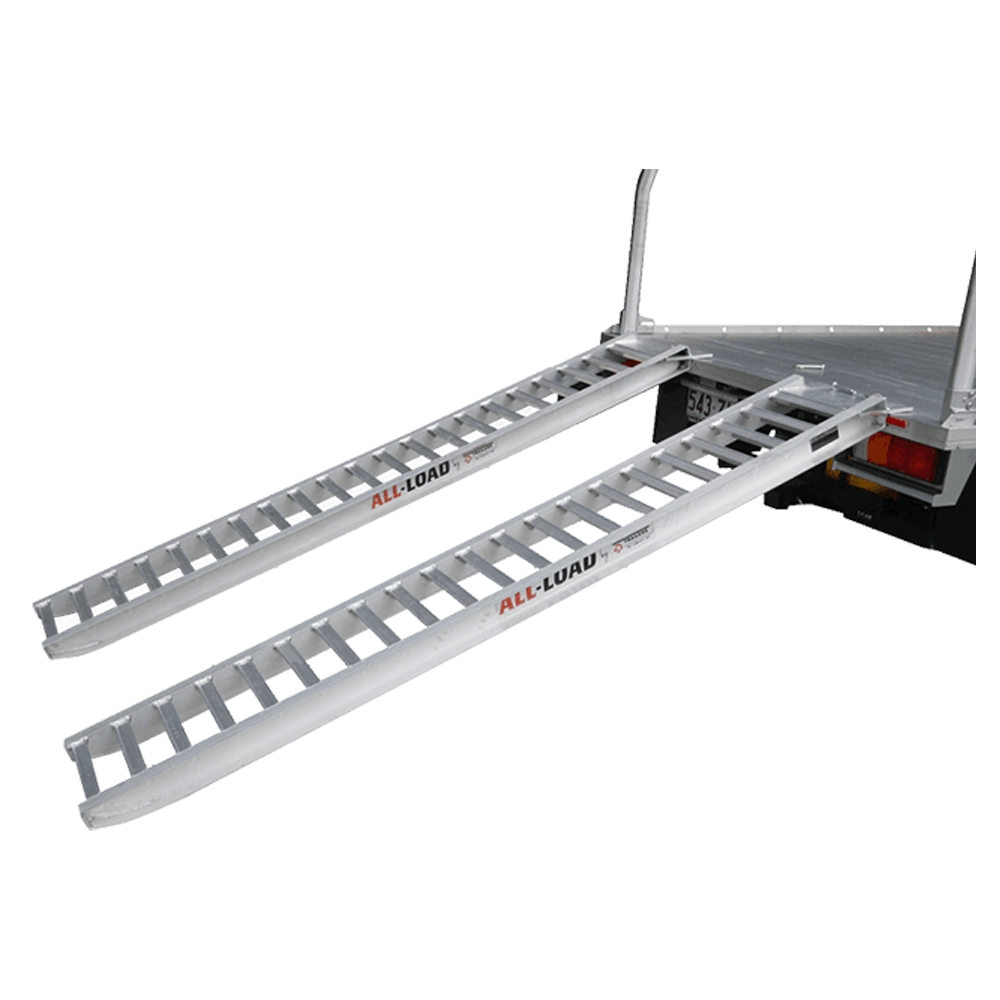

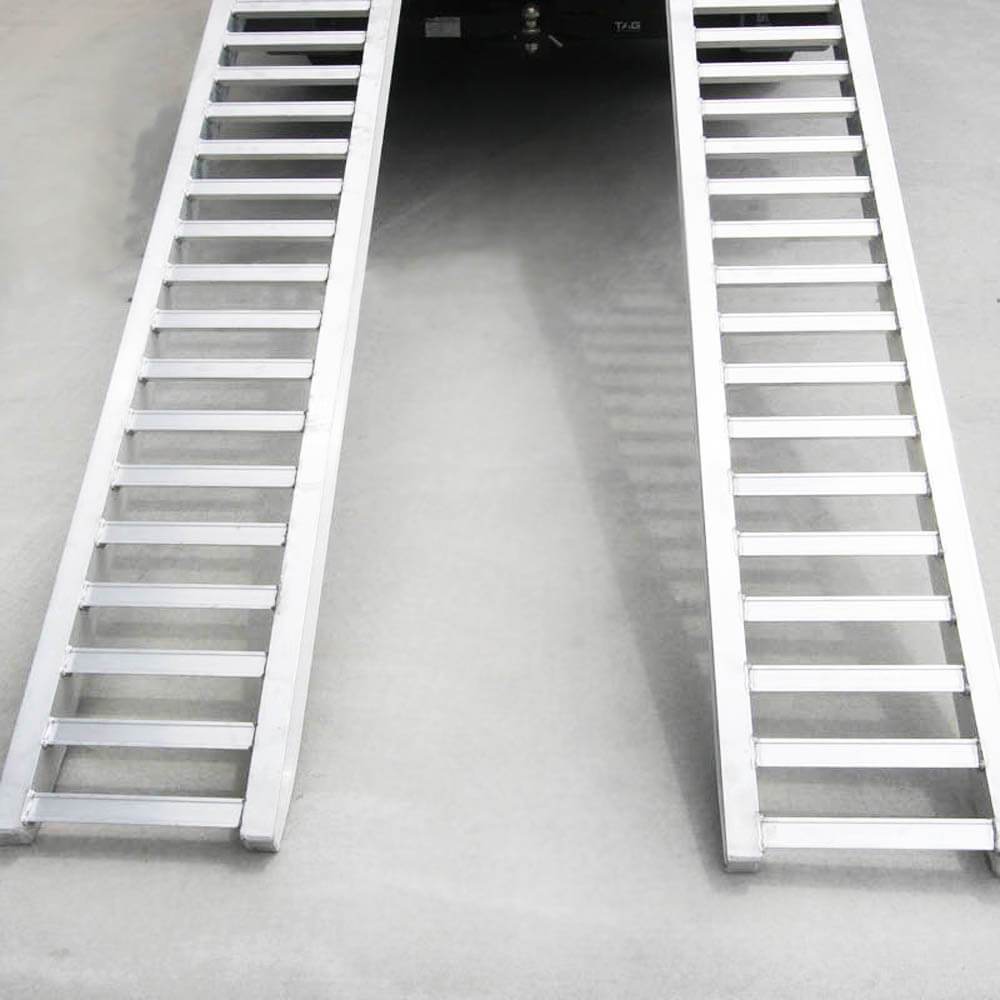

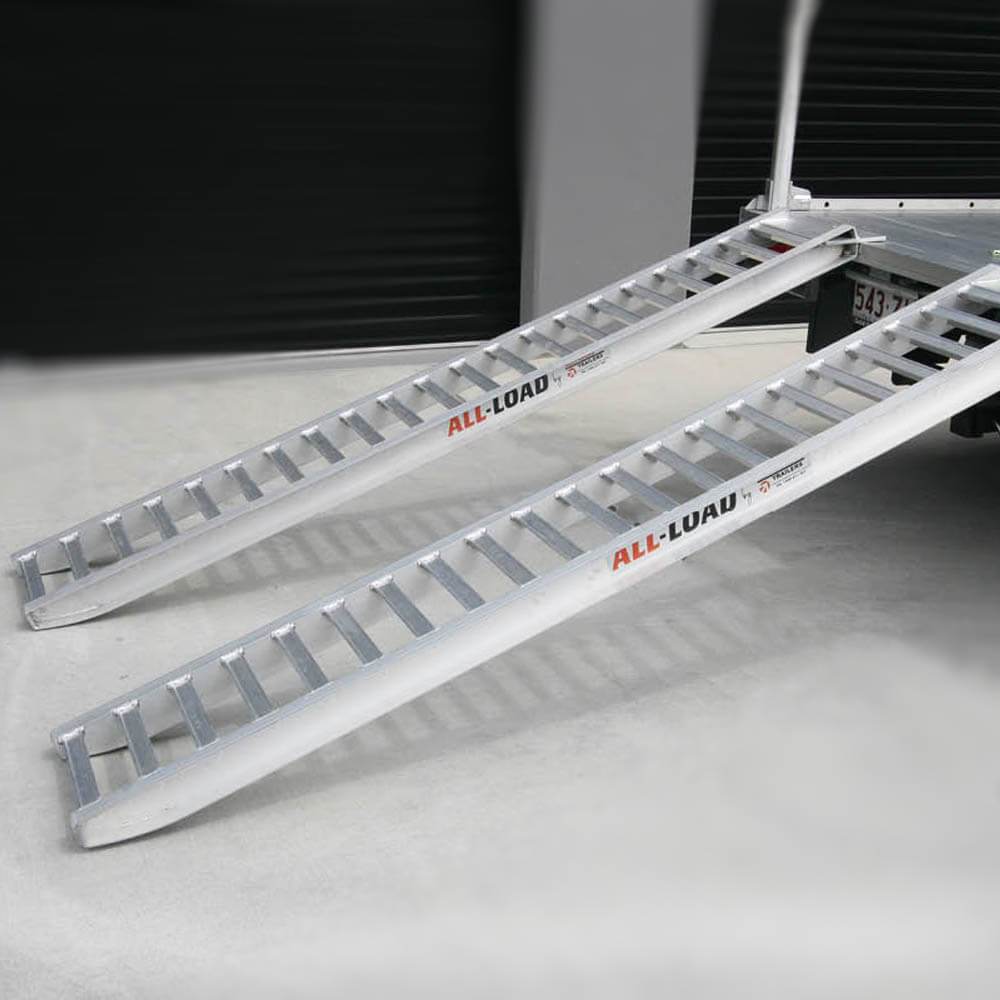

Heavy-Duty, Multi-Use Aluminium Loading Ramps For Vehicles and Machinery

Ramps are an inevitable necessity when loading or unloading vehicles or goods on a trailer. But they don't always have to be clumsy and heavy. Like these ramps from All-Trades with an impressive lifting capacity of 2.5 tonnes. These deliver even better results when used in a pair or in multiple units at once. These ramps feature a custom rung design that can handle tyres or steel tracks with ease.

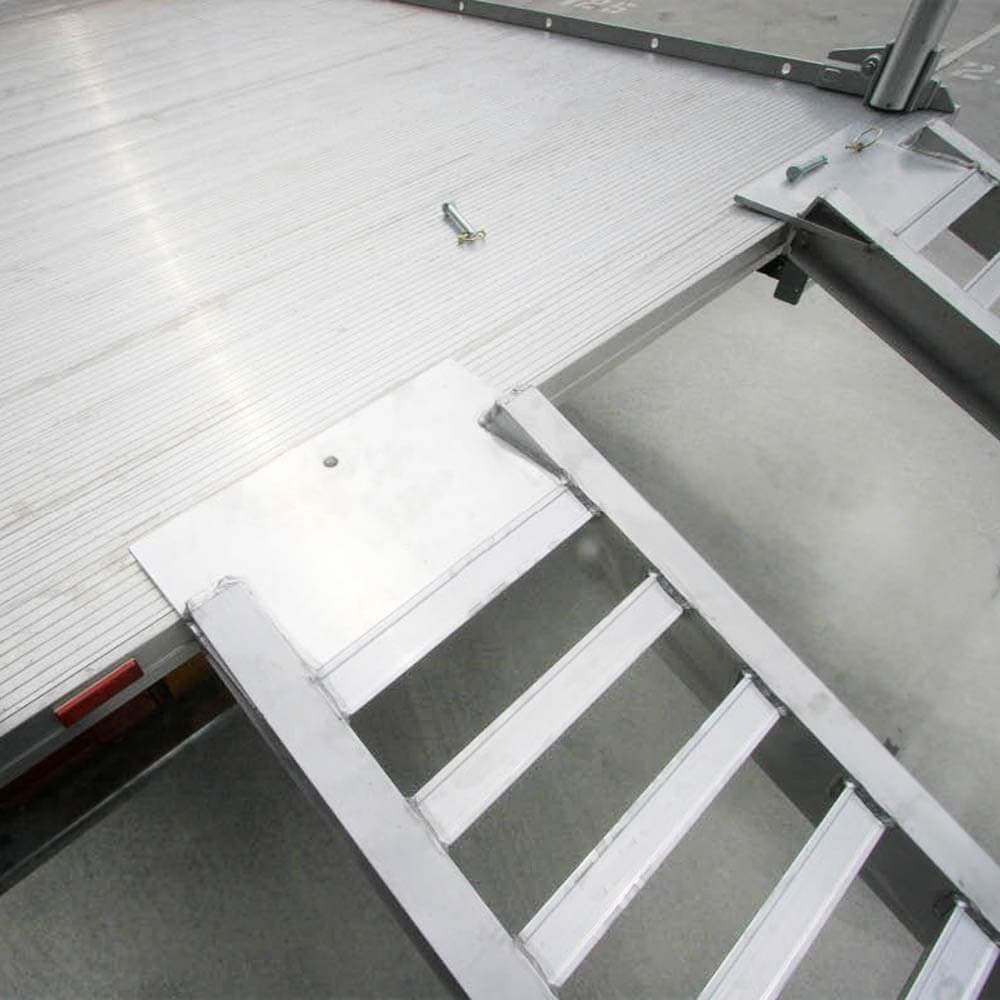

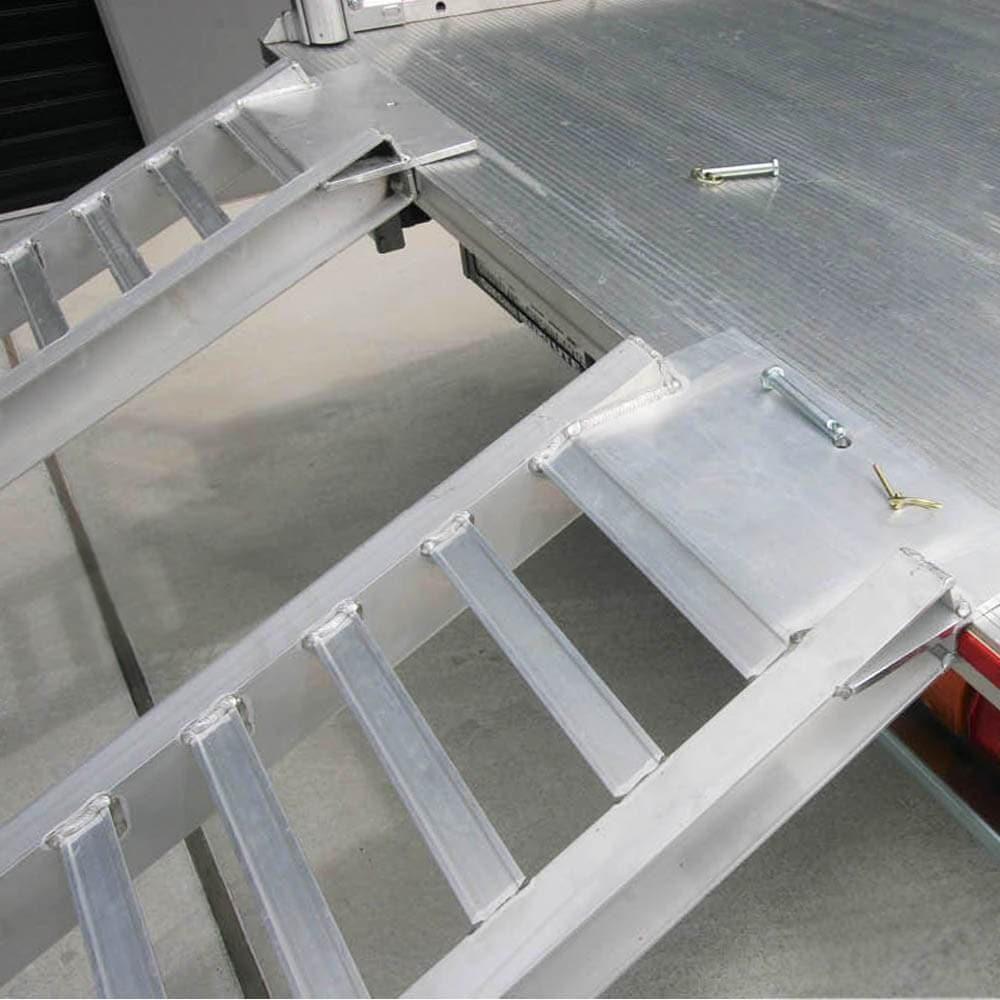

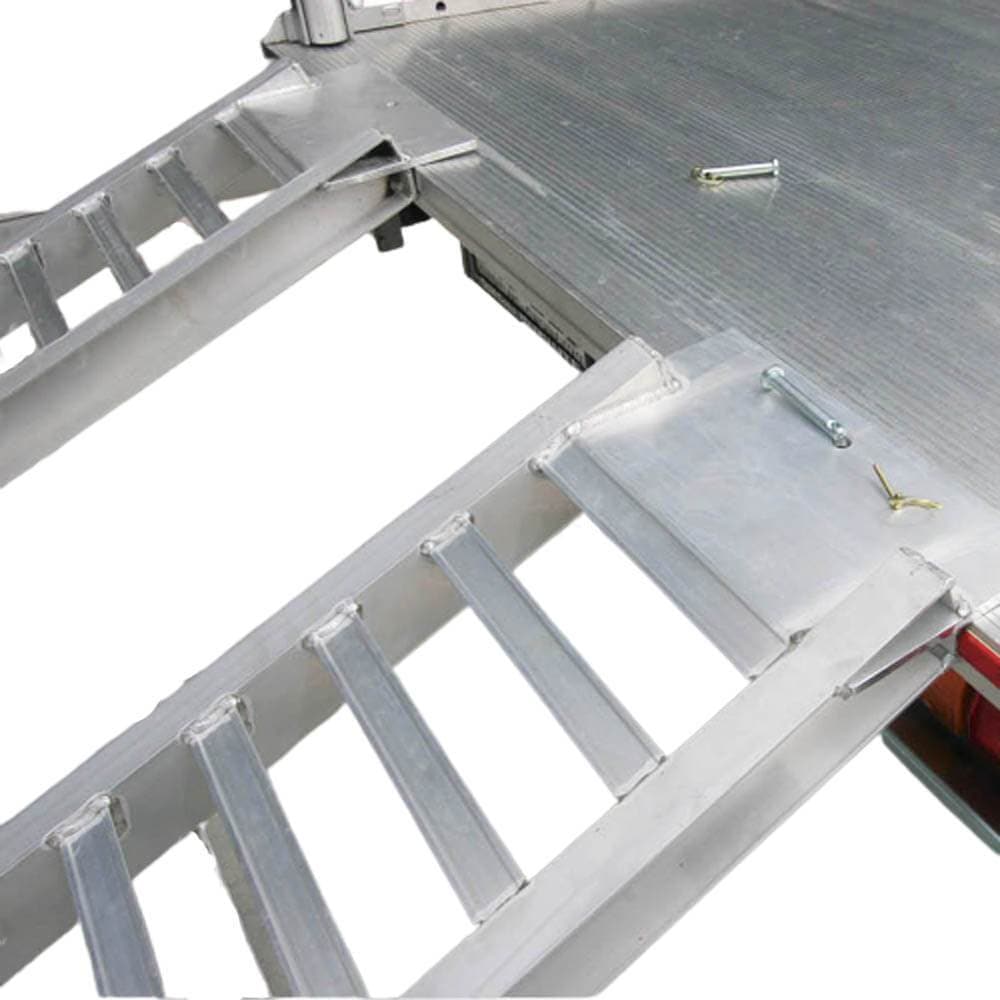

The weight handling capacity of these ramps makes them suitable for utes, cars, mini mobile machinery that moves or tyres or tracks. Plus, any other suitable use or object you can improvise. These ramps are made from sturdy aluminium alloys for maximum durability and least weight. Attach these firmly to your trailer with a bolt and cotter to prevent unwanted movement.


Features and Benefits

  • 2.5 tonnes of weight handling capacity
  • Custom made rung design
  • Made in Australia for Australian conditions
  • Easy to move, store and attach/detach
  • Lightweight but durable aluminium alloy
  • Great for loading/unloading construction machinery



  • Rated Load Capacity Per Pair: 2500kg
  • Ramp Weight Per Ramp: 26.4kg
  • Ramp Length: 2900mm
  • Internal Track Width: 290mm
  • Ramp Width: 400mm
  • Ramp Depth: 100mm
  • Height Up To: 1150
  • Rung spacing: 78mm
  • Beam to rung offset/depth: 35mm
  • Beam size: 100mm x 50mm
  • Rung Size: 37.5mm
  • Shipping Dimension: 3000mm (L) x 400mm (W) x 250mm(H)


Bulky Delivery Item Details

This product is bulky and requires delivery via a specialist courier to either a home address or business address. For delivery to a business address the receiver is required to have either adequate business facilities to off-load the item via a forklift or loading dock available at the time of delivery during business hours. If delivery is to a residential home address or you do not have the business facilities to off-load please select residential tailgate delivery at checkout to have your item(s) delivered via a courier truck that has tailgate delivery capabilities.

Note: Colour, tone, finish and style of actual products may differ from those shown in the product images.

Need Help Choosing Loading Ramps?

The construction industry is tough and the machinery even tougher; with the right loading ramps you can ensure that your expensive equipment is safe when loading or unloading your truck. For help choosing the best suitable construction machinery loading ramps click the button below.
