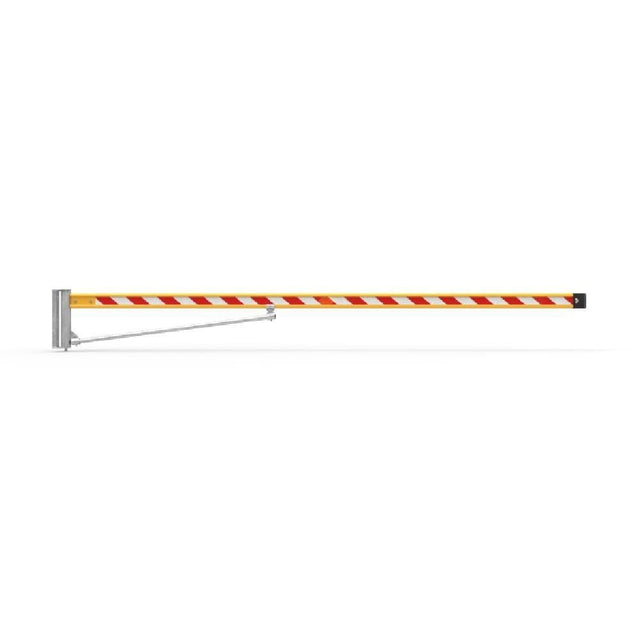

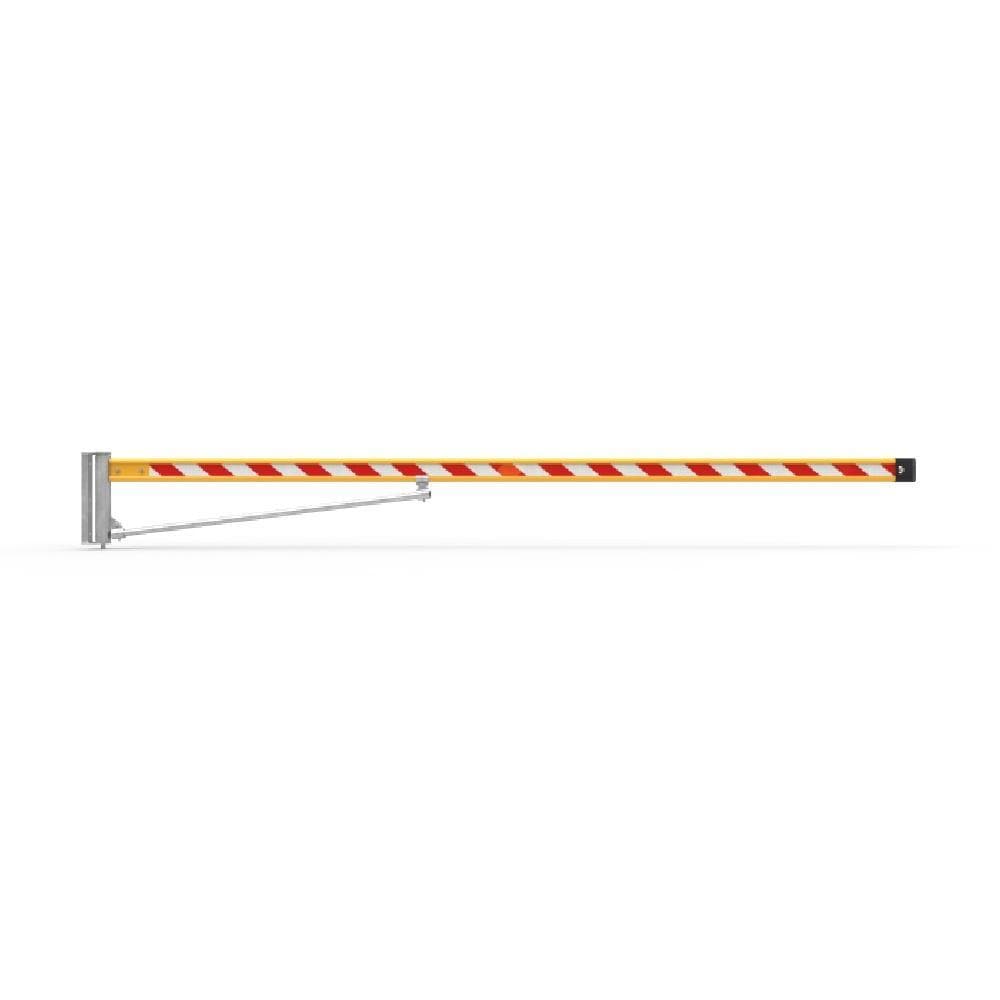

Barrier Group Manual Vehicle Swing Gate System
Authorised dealerSKU: MSG5000$1,048.18 ex GST
- Length5000mm
- Made ofSteel
- Manually operated swing gates.
- It can be mounted to optional bollards or any solid surface.
- Standard 5-metre rail can be cut down to any length
Available to order, ships in 1-3 business days
Authorised dealeri
17,000+ soldi
Pickup availablei
12-month warrantyi
100-day free returnsi
Rated 4.7 from 1,186 reviews on Google, ProductReview and Trustpilot
Barrier Group Manual Vehicle Swing Gate System
Swing gate specifications and dimensions
| Module | SKU | Price | Stock |
|---|---|---|---|
| Manual Swing Gate 5m - Powder Coated Aluminium | MSG5000 | $1,153 | Available to order |

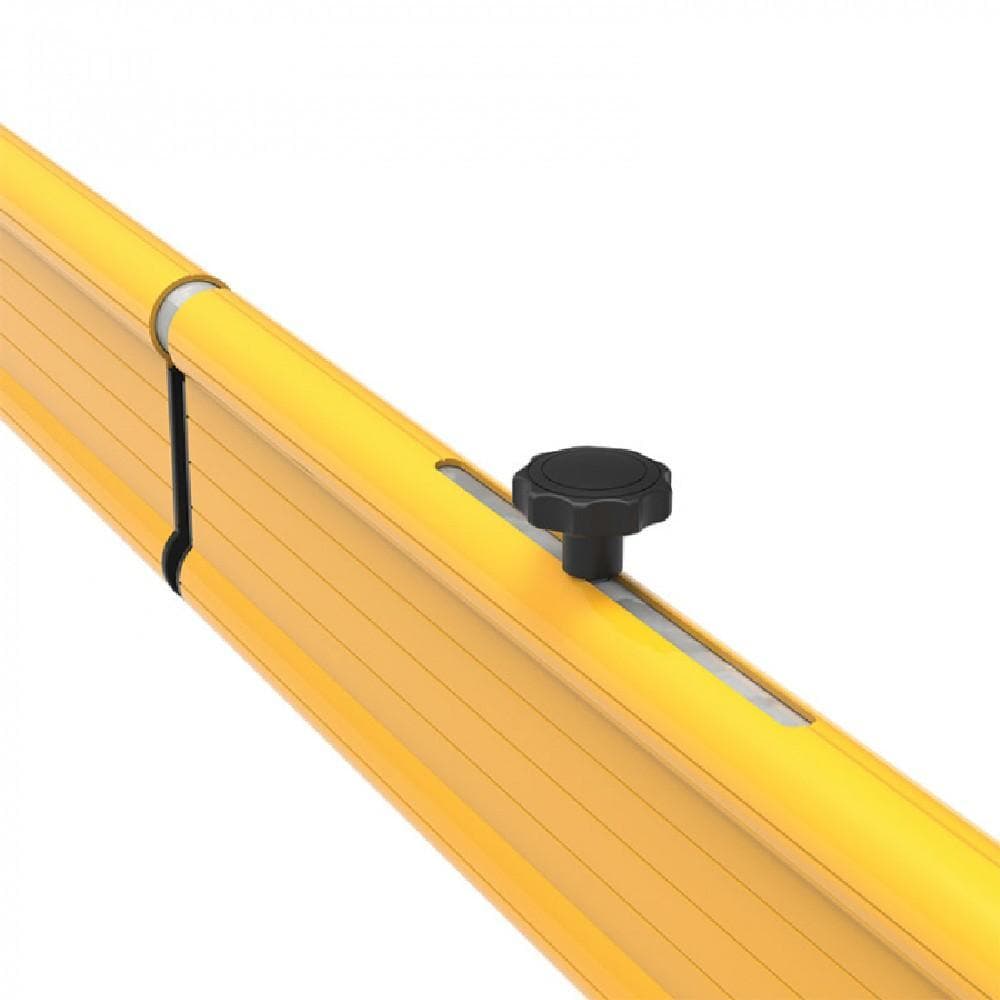

| Slot-lok Latch to suit PR Rail Gates | SLL-PR | $217 | Available to order |
| Made of | Steel post with an aluminium rail |
|---|---|
| Colour | Powder coated with reflective |
| Brand | Barrier Group |
| Length | MSG5000: 5000mm SLL-PR: 360mm |
| Width | MSG5000: 150mm SLL-PR: 370mm |
| Height | MSG5000: 50mm SLL-PR: 100mm |
| Weight | MSG5000: 20kg SLL-PR: 2kg |
| Dimensions | L x W x H MSG5000: 5000mm x 150mm x 50mm SLL-PR: 360mm x 370mm x 100mm |
About this swing gate
Keep vehicle access under your control
Manual Vehicle Swing Gate System is perfect for areas where there is not enough space for rolling or sliding a gate. They can be used to replace the old steel gates and are very light and easy to operate manually.
Possess high resistance to rust and looks very good at the entrance. It is suitable for both commercial as well as industrial uses. It can be easily mounted to a bollard or any kind of solid surface to prevent pedestrians from entering the unsafe or restricted area.
It requires manual operation by a person for opening and closing the gate It features a 3-5meter aluminium beam with a yellow powder coating and a red or white reflective panel.
Moreover, you will also be provided with steel bollards along with receiver posts and wall receivers if you want.
Why this swing gate works
Swing gate sizes and details
- Description: Manual swing gate.
- Operation: Push open/push close.
- Construction: Steel post with aluminium rail.
- Gate Swing: 180 degrees.
- Gate Stop: Receiver bracket.
- Receiver Post: Optional.
- Maximum Opening: 5000mm wide.
- Minimum Opening: 3000mm wide.
- Mounting Type: Post or wall.
- Rail Type: Aluminium 145 x 40mm.
- Rail Height: 1000mm above the floor.
- Finish: Powder coated with reflective.
Key benefits
- Manually operated swing gates.
- It can be mounted to optional bollards or any solid surface.
- Standard 5-metre rail can be cut down to any length
- A custom 3-metre gate can be made (with a minimal fee) if you prefer not to personally cut down the item
