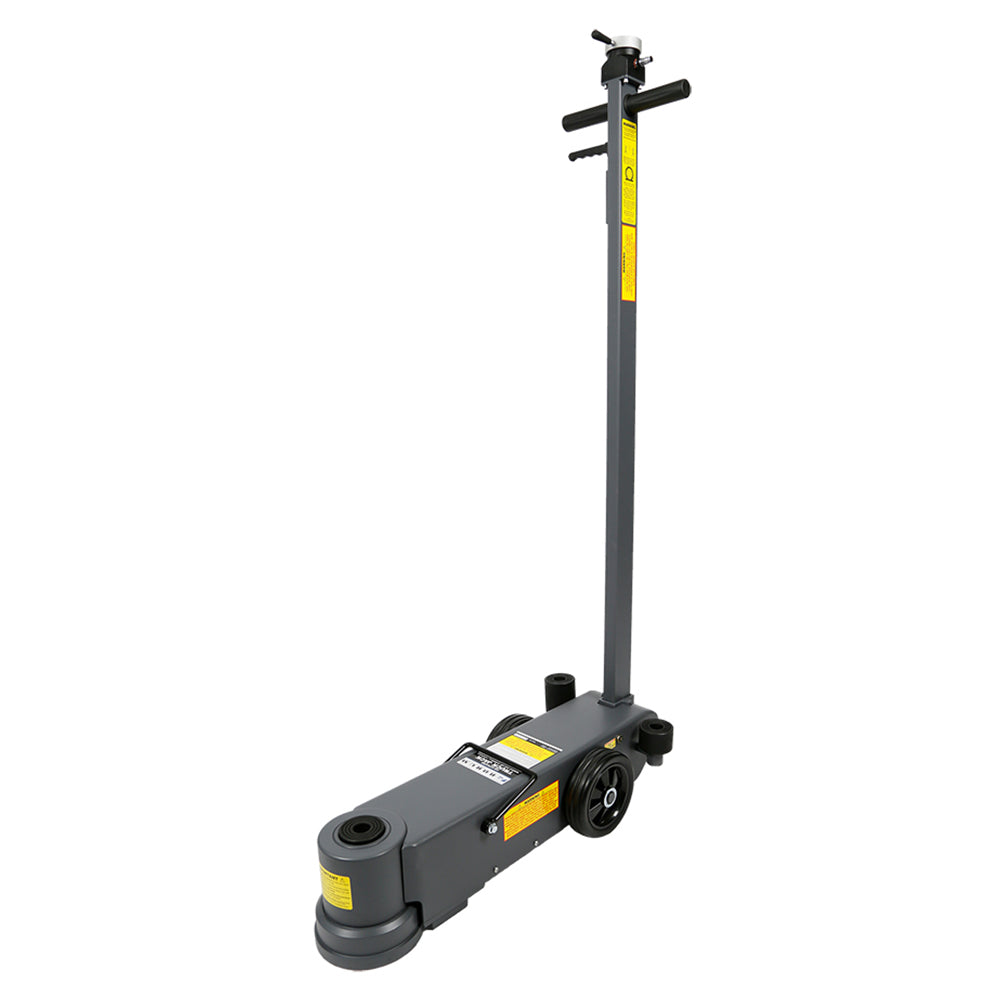

Borum Air Actuated 2-Stage Truck Jack, 25-Tonne Capacity

by Borum
Save $366.00
Original price $4,094.00
Current price $3,728.00

new icon
SKU: BTJ1025TA*2

✓ Fast Shipping + Order Tracking
✓ Questions? Call Us: 1300 913 047

Estimated Arrival: Between and .

Double Stage Air Powered Truck Jack Suitable for Most Conditions

This two-stage truck jack from Borum has been manufactured using the best grade materials and robotic machining for tight tolerances. This is a two-stage jack with a 25 tonne capacity for the first stage and a 10 tonne capacity for the second stage. The hydraulic pumps uses American made XTP double sealing ring tech and the best quality oils suitable for -25 to 60 degrees Celsius.

This jack is suitable for heavy-duty commercial use and features a long T-handle with lever controls mounted ergonomically on the side. The built-in safety value prevents overloading, and the self-return lowering and returning switch further enhances safety. The jack comes with extra lifting saddle for higher vehicles, and also has a low-profile to easily slide under vehicle chassis. This jack is perfect for most workshops and industries including agriculture, mining and construction.

Features and Benefits

  • Seals made in America
  • Double Sealing Function using XTP Industry Sealing
  • Telescopic air actuation lift (air-hydraulic pump)

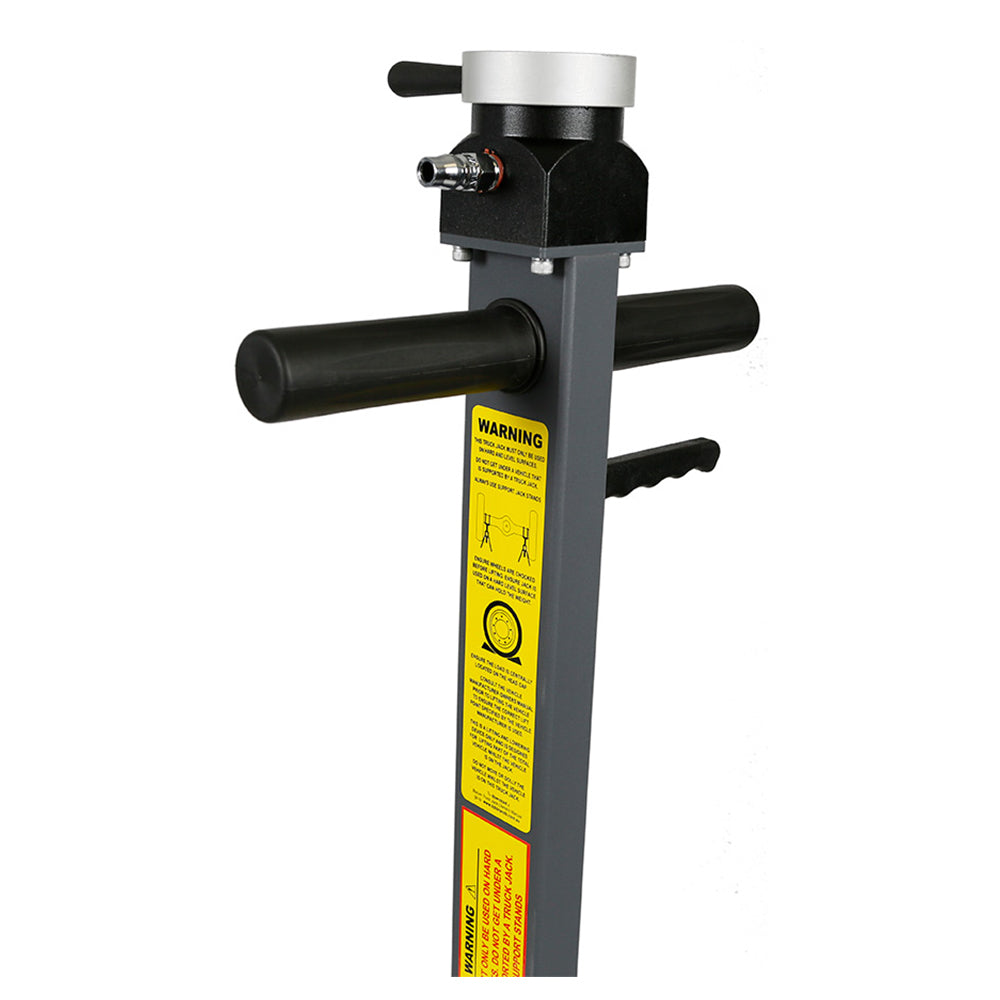

  • Long T-handle lets you easily position your jack under vehicle
  • Self-Returning Lowering and Lifting Switch
  • Internal and External Cylinders hard chromed
  • High maneuverability & deep reach under vehicles
  • 2 extension adaptors / saddle plates
  • Large rubber wheels
  • All adaptors can be properly stored for transport on each side of the jack

Specifications

  • First Stage: 25,000lg Safe Working Capacity
  • Second Stage: 10,000kg Safe Working Capacity
  • First Stage Hydraulic Lift: 97mm
  • Second Stage Hydraulic Lift: 95mm
  • Minimum Height: 185mm
  • Maximum Height: 497mm
  • Adaptors: 45mm and 75mm
  • Handle Length: 1380mm
  • Operating Air Pressure: 145-175psi
  • Chassis: 770x282x185mm
  • Carton 1 of 1: 840x290x260mm (Weight: 52kg)
  • Carton 2 of 2 : 1390x280x110mm (Weight: 9kg)
  • Net Weight: 53kg

 BTJ1025TA Dimensions

User Manual:

Note: Colour, tone, finish and style of actual products may differ from those shown in the product images.
