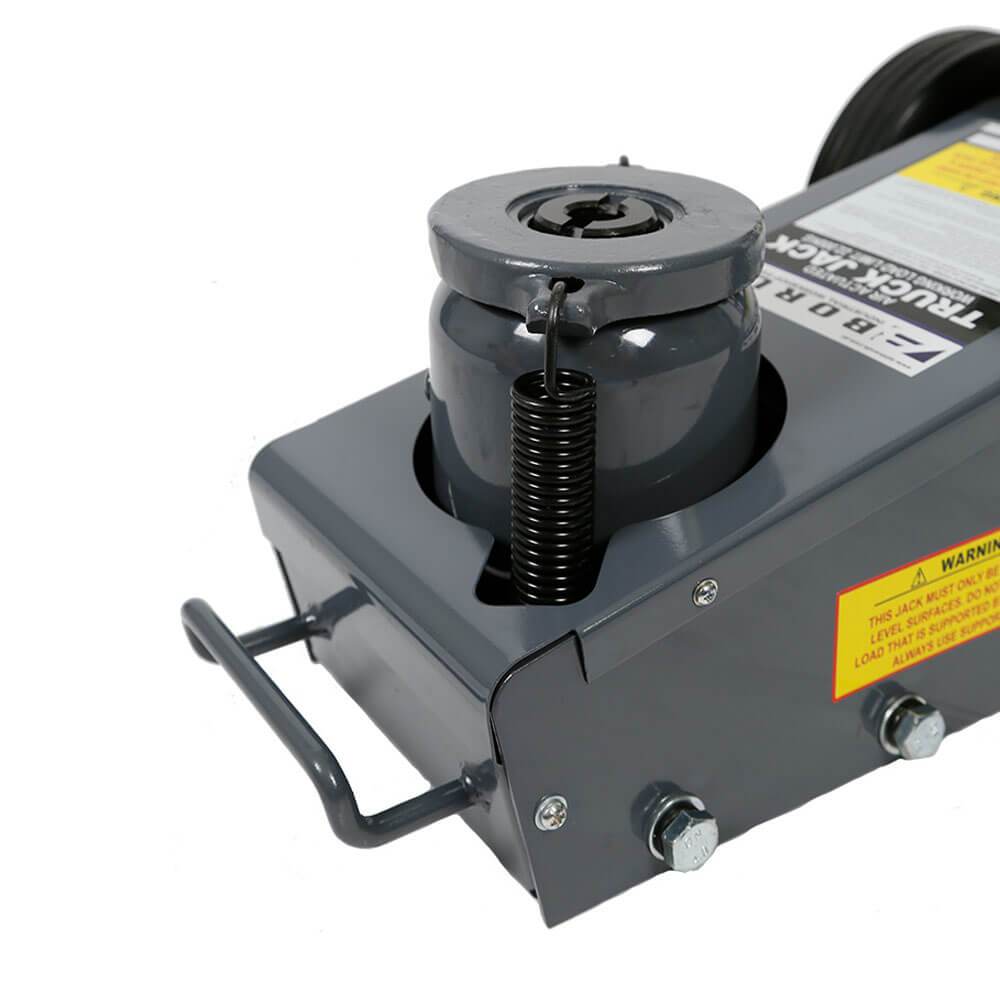

Borum Heavy-Duty Air Actuated Hydraulic Garage Jack, 22 Tonne

Save $114.00
Original price $1,275.00
Current price $1,161.00
SKU: B2003T

✓ Fast Shipping + Order Tracking
✓ Questions? Call Us: 1300 913 047

Estimated Arrival: Between and .

Borum Heavy Duty Pneumatic Air Actuated Hydraulic Quick Lift Truck Jack for Vehicles With  22-Tonne Lifting Capacity

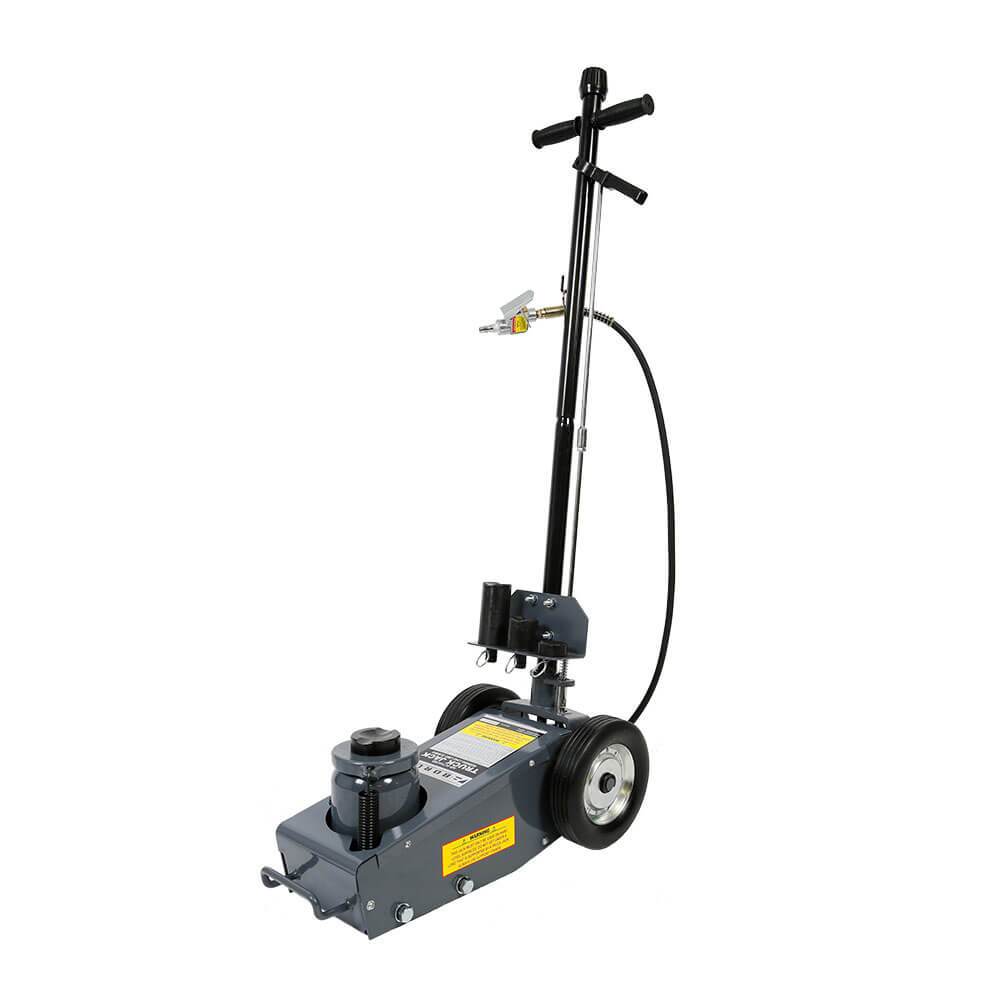

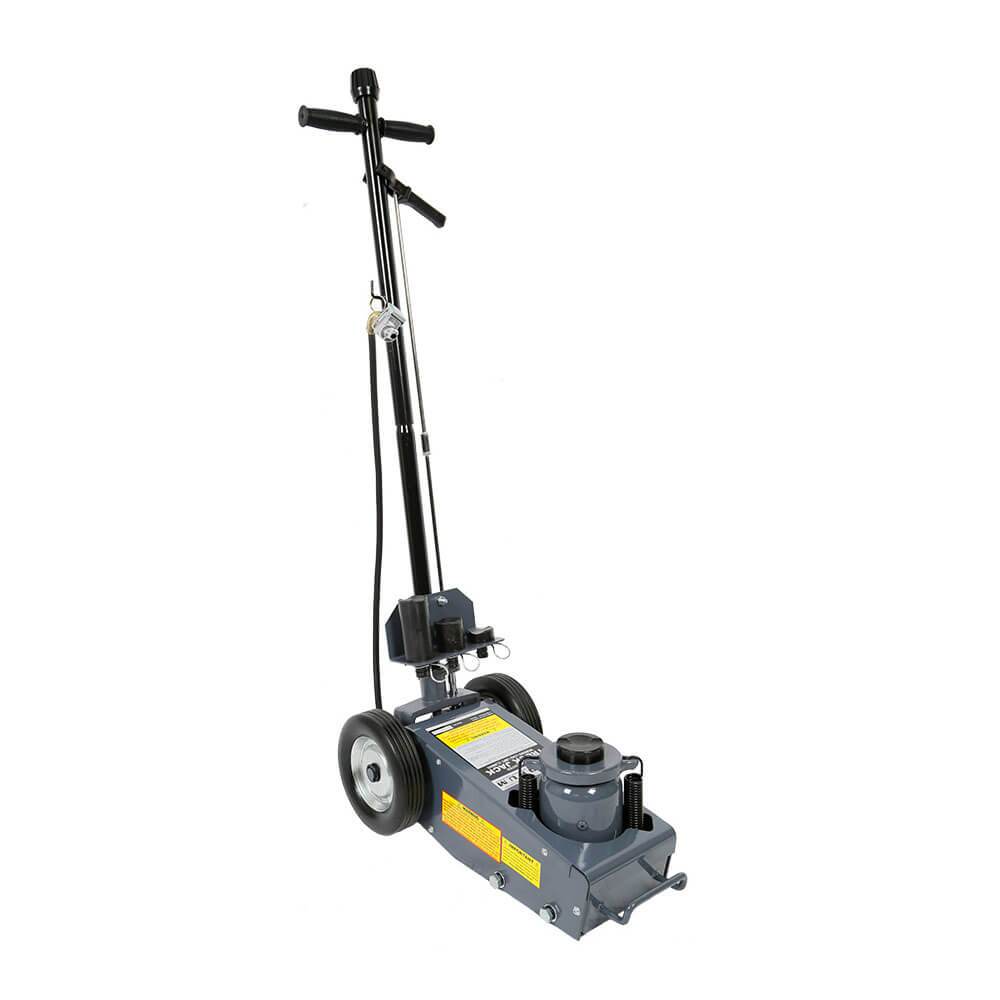

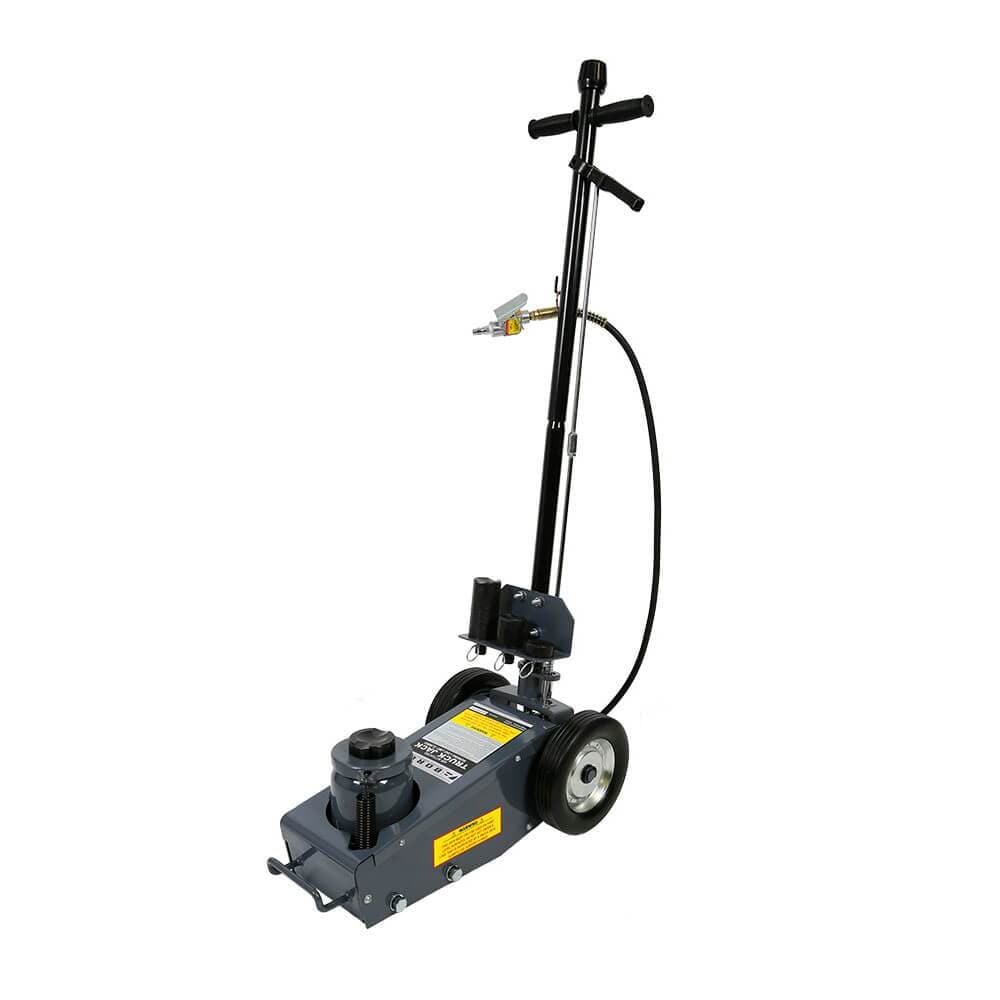

The Borum Industrial Quality Air Actuated Truck Jack has a powerful super duty air motor to easily and reliably lift heavy vehicle. This super touch truck jack delivers enough air/hydraulic power to lift up to 22,000kg and is ideal for servicing trucks and farm equipment.

Built with the best components from the highest grades of rugged steel, to the wear-resistant advanced technology sealing rings and a heavy-duty hydraulic pump that's filled with industrial-grade high/low temperature-resistant hydraulic oil.

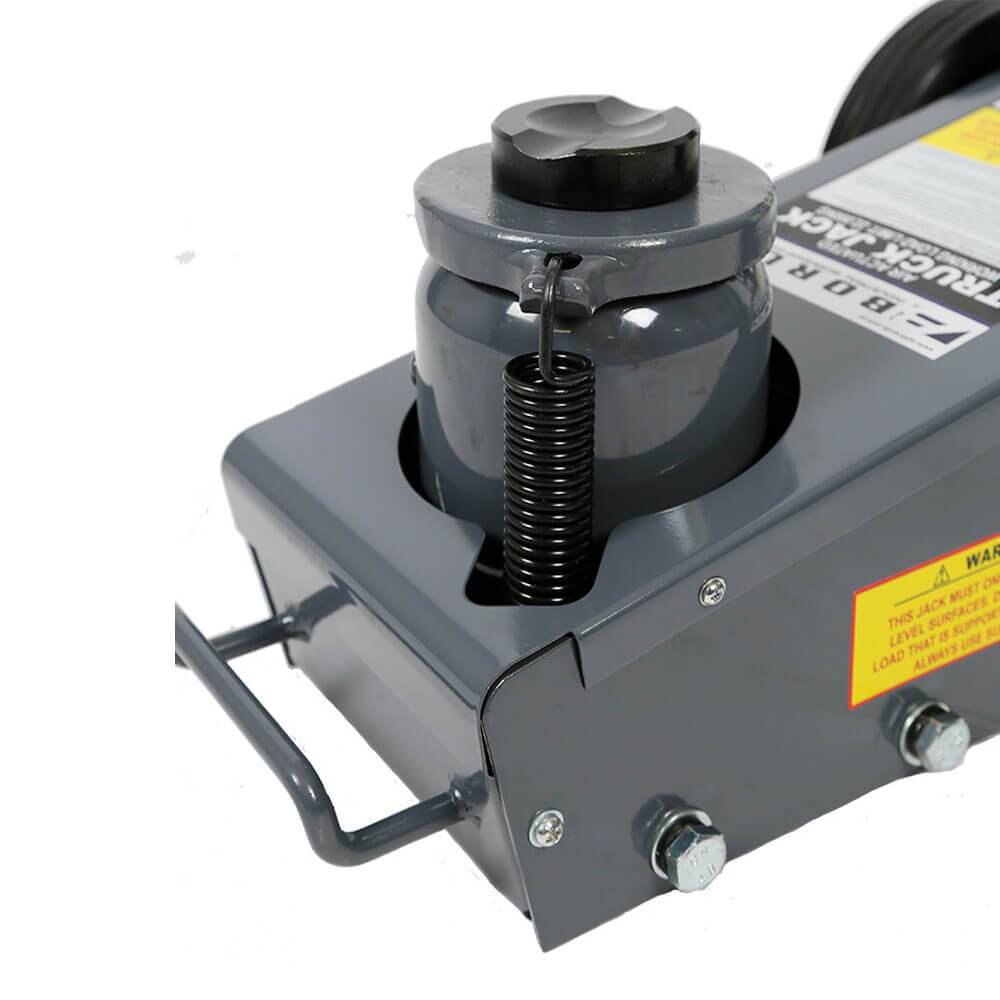

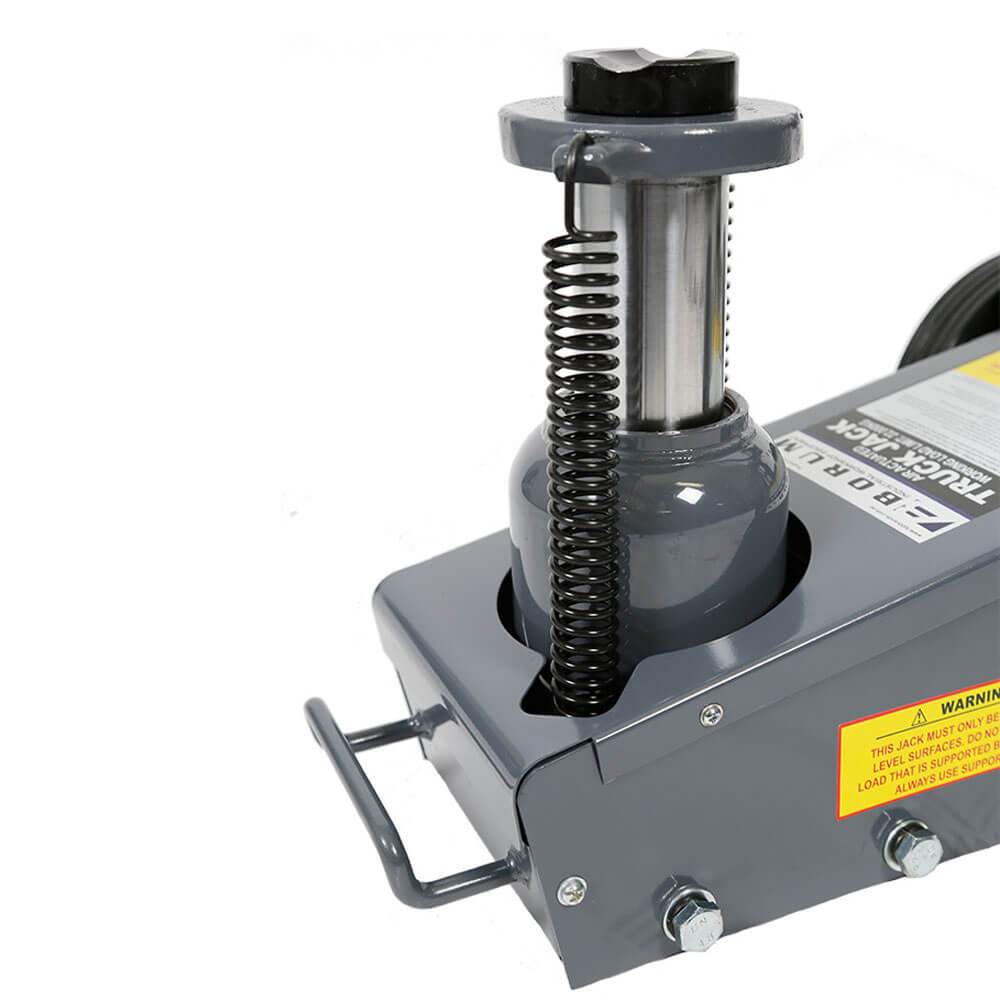

The alloy hardened piston-ram is treated and polished to resist thinning over time and uses an advanced Y-type polyurethane sealing ring system that keeps the jack solidly raised in the desired position, preventing the load from falling slowly. This jack is fitted with a built-in bypass hydraulic safety overload system for extra onsite safety. Even if the jack is loaded with too much weight, the safety overload kicks in and gently lowers the unit before the operator is put in a dangerous situation.

This 22,000kg Truck Jack is designed for industrial-strength durability. The rugged super-grade steel frame is teamed with an industrial quality lead-free paint finish that covers the entire surface to ensure long-lasting wear and help prevent rust. The paint is also oil, grease and dirt-resistant for easy cleanup.

Other features include a 200mm diameter wheels for easy maneuverability, four saddle adaptors and a cast iron base with formed steel housing for added durability.


Features & Benefits

  • Solid heavy-duty construction for superior performance
  • Industry benchmark for harsh workplace conditions
  • Hardened alloy plated ram ensures heavy-duty performance
  • Advanced hydraulic seal technology
  • Fast motion super duty air pump
  • Advanced technology sealing rings
  • High-low temperature-resistant hydraulic oil
  • Treated and polished piston and ram
  • Built-in bypass hydraulic safety overload system
  • 3-position pumping handle
  • Operate manually offsite without air
  • High-quality lead-free paint ensures long-lasting wear and prevents rust
  • Oil, grease and dirt-resistant finish for easy cleanup



Safe Working Capacity: 22,000kg
Lift Range: 210-525mm
Hydraulic Lift: 120mm

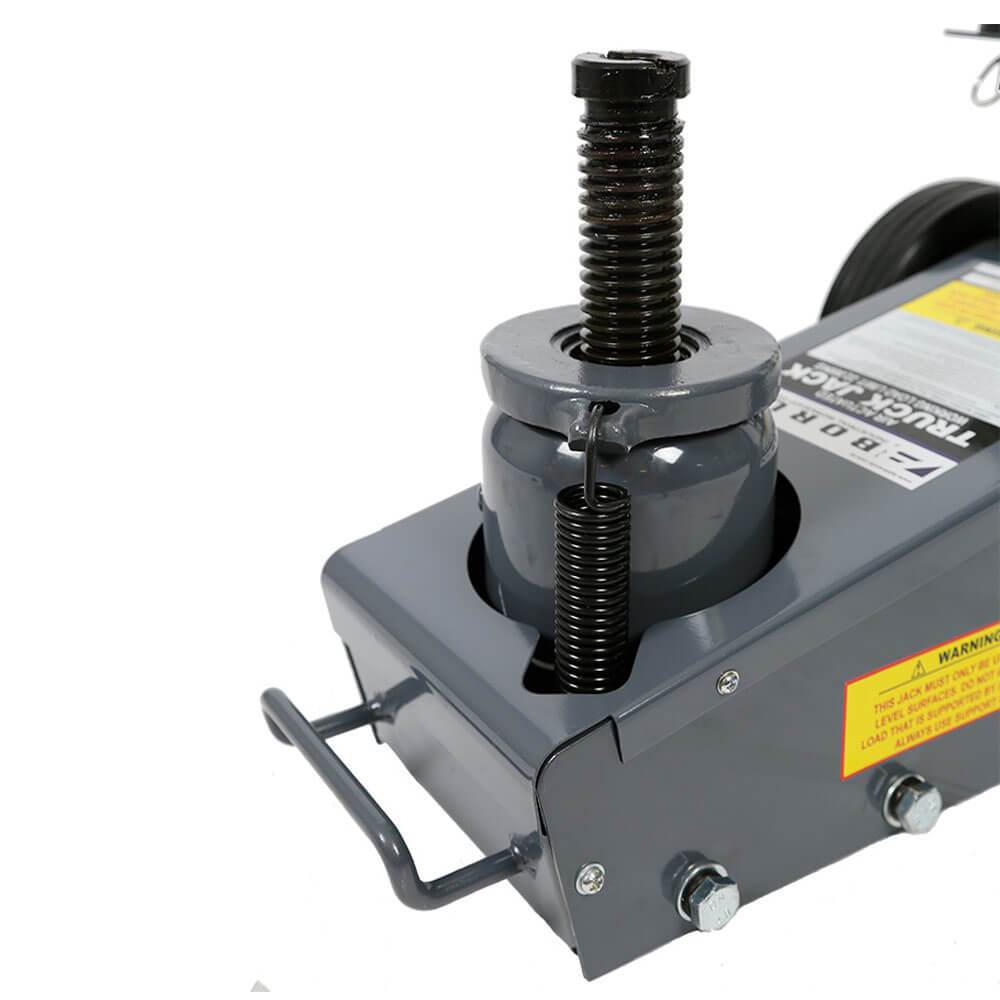

Adjustable Height: 105mm
Handle Length: 1075mm
Air Supply: 100-120psi
Wheel Diameter: 175mm

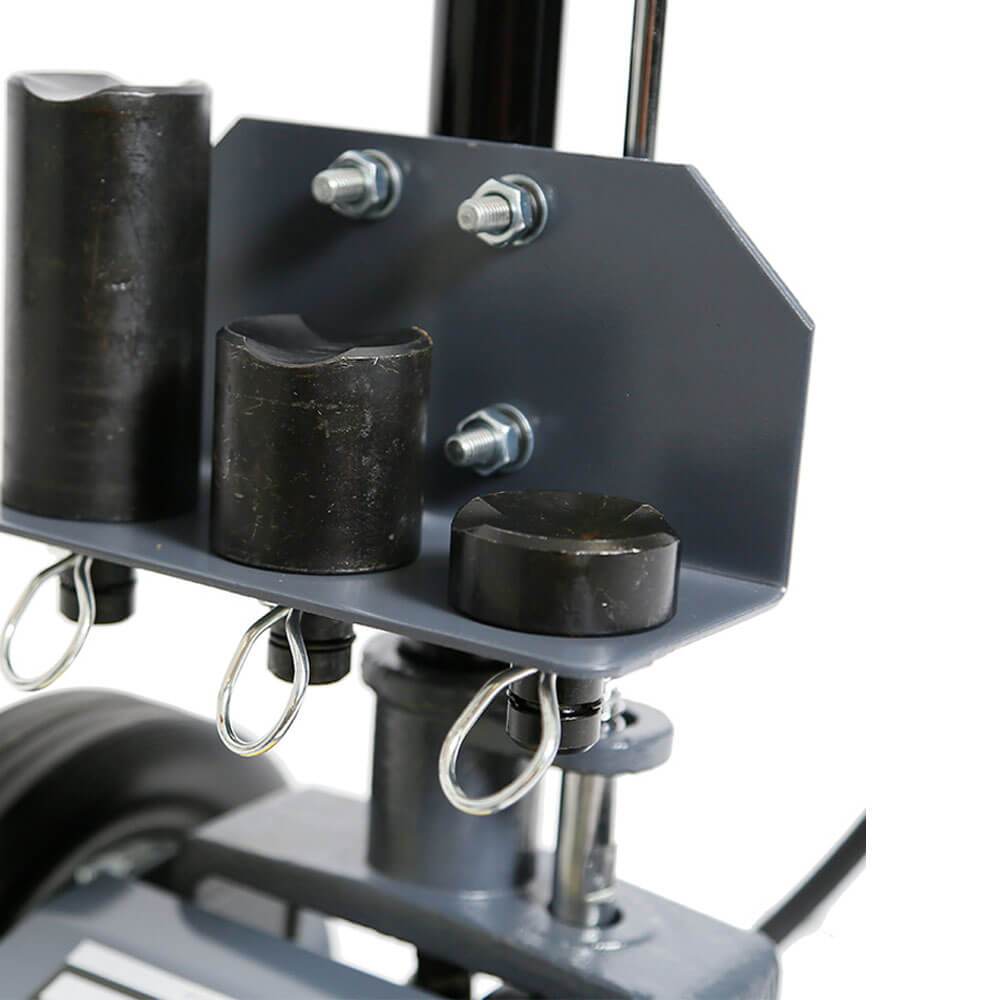

Interchangeable Saddle Adaptors: 20 50 100mm
Overall Dimensions: Chasi570(L) x 215(H) x 320(W)mm
Nett Weight: 48kg
Carton: 660(L) x 360(W) x 280(H)mm
Gross Weight: 50kg

Note: Colour, tone, finish and style of actual products may differ from those shown in the product images.
