Checkers 4-Channel Cable Protector End Caps for CP4X125

$312.00
SKU: CPEC4X125

✓ Fast Shipping + Order Tracking
✓ Pickup In-Store Available
✓ Questions? Call Us: 1300 913 047



Estimated Arrival: Between and .



Need A Quotation? Request a free quote

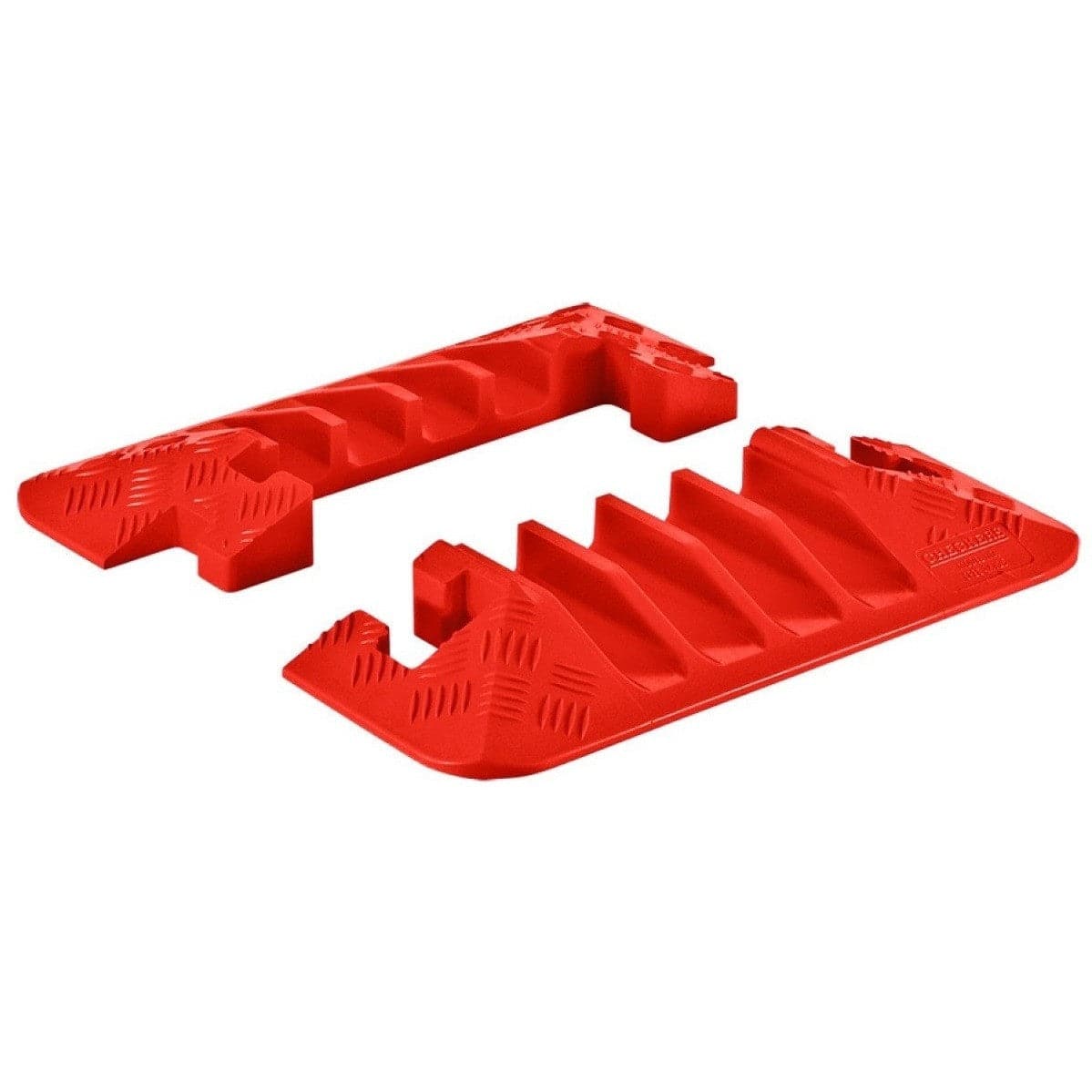

Checkers 4-Channel Cable Protector End Caps (Male _ Female) for CP4X125

Employ Checkers 4-Channel Cable Protector End Caps (Male & Female) in conjunction with CP4X125. These end caps guarantee a smooth transition to the ground when attached to the end of cable protectors. They protect electrical cables, cords and hose lines from damage by vehicle and pedestrian traffic while providing a safe crossing. The 5 roomy channels securely house cables to ensure safety. Caps' 5 bar tread design offers maximum traction to feet and wheels. The modular interlocking design makes these caps perfect for use in industrial, commercial, and utility applications.

Made from high-grade, tough, impact absorbing, and non-conductive Polyurethane allowing the pair to withstand loads up to 4.7-tonne per tyre (9.5-tonne axle load) without deforming, losing shape and electrical hazard. They are easy to deploy and detach by a single person. Available in high-visible orange colour and sold in a pair.

Features and Benefits:

  • Checkers 4-Channel Cable Protector End Caps (Male & Female) for CP4X125
  • Load Capacity (kg): 9.05 tonne per tyre (18.1-tonne axle load capacity)
  • Protect valuable cables from damage by feet and wheels
  • Tread design offers maximum traction
  • Modular interlocking design
  • Made from high-grade Polyurethane
  • High visible orange colour
  • Easy to deploy and detach by a single person
  • Sold in pair

                                          Specifications:

                                          • Length (mm): 133.4
                                          • Width (mm): 508
                                          • Height (mm): 57.2
                                          • Channel Width (mm): 47
                                          • Channel Height (mm): 31.8
                                          • Weight (kg): 3.2
                                          • Load Capacity (kg): 9.05 tonne per tyre (18.1-tonne axle load capacity)
                                          • Colour: Orange

                                                                                Download the brochureCheckers Authorised DealerMade in the USA

                                                                                Note: Colour, tone, finish and style of actual products may differ from those shown in the product images.
