Checkers Modular Hose Bridge System for up to 179mm Lines

Save $130.00
Original price $1,467.00
Current price $1,337.00
SKU: UHB-2025

✓ Fast Shipping + Order Tracking
✓ Pickup In-Store Available
✓ Questions? Call Us: 1300 913 047

Note: This product may be a special order item. Call our team to confirm lead times before ordering.

Estimated Arrival: Between and .


Request a quote

Checkers Industrial Grade Modular Hose & Cable Bridge System for up to 179mm Lines

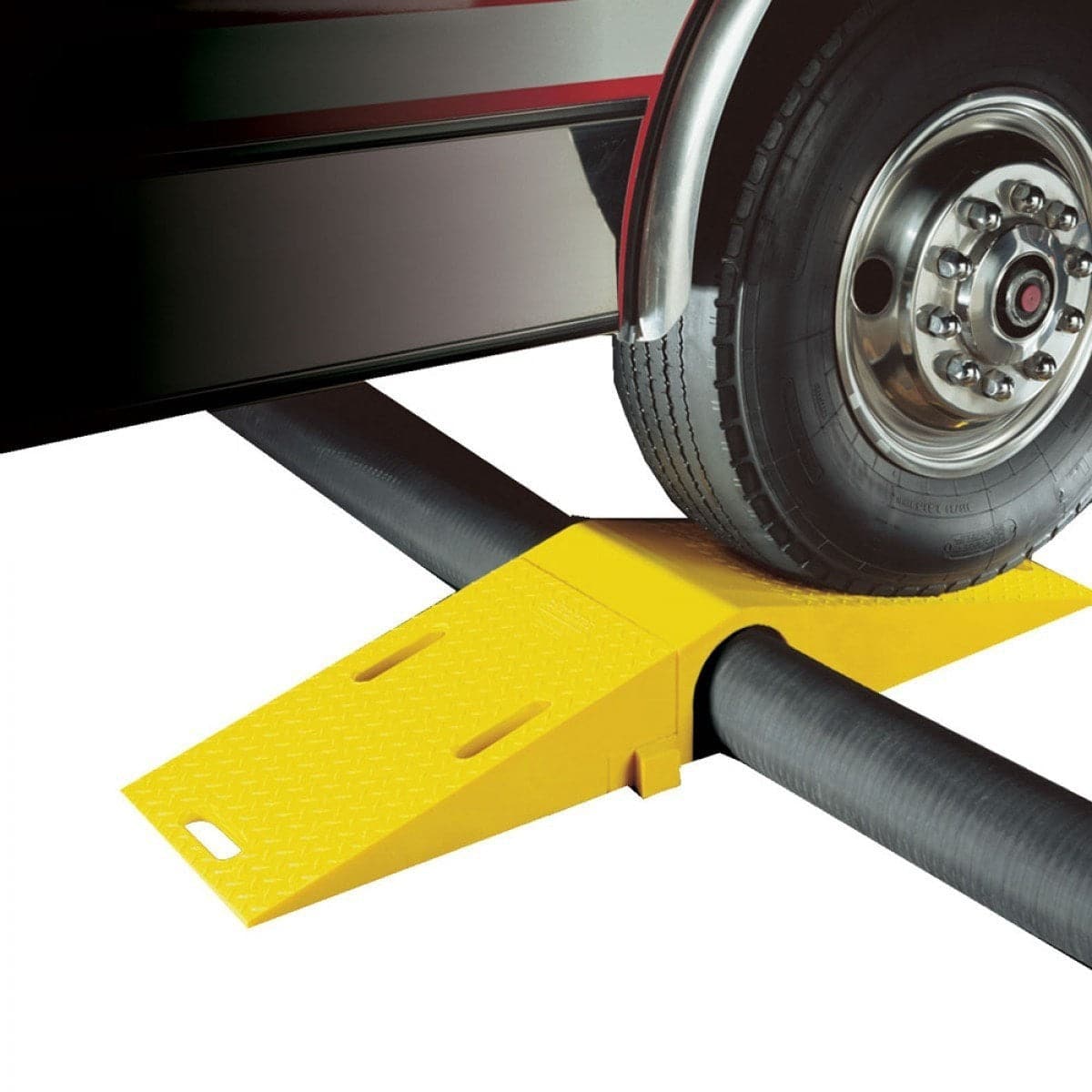

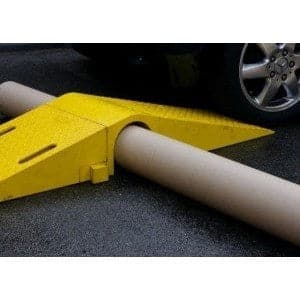

Checkers Modular Hose Bridge System securely house hose lines and protects lines for up to 179mm (diameter) and provides a safe crossing point for vehicular traffic to pass over. It has a Diamond-patterned tread surface to allow optimum traction to wheels. Made with industrial grade polyurethane which resists abrasion, harsh environmental changes, impact and makes the crossover pad to withstand high loads without deformation. It features built-in carrying handles on both ends. Modular interlocking design provides quick connection or breakdown to modify length making it ideal for use in entertainment, institutional, commercial events, and industrial applications. This functional crossover solution will truly cut your maintenance costs to a significant level.

Features and Benefits:

                    • Checkers Utility Crossover Pad for up to 179mm Lines
                    • Load Capacity: 10.75 tonne per tyre ( 21.5-tonne axle load capacity)
                    • Made from industrial grade Polyurethane
                    • Resists damage from harsh environment, abrasion
                    • Diamond tread provides maximum traction
                    • Built-in carrying handles
                    • Modular interlocking design for easy connection or breakdown of length
                    • Cuts maintenance costs
                    • Variants: Available in diameter of 76mm, 88mm, 114mm and 179mm

                                                              Specifications:

                                                                            76mm Pipe

                                                                            • Length (mm): 887
                                                                            • Width (mm): 406
                                                                            • Height (mm): 99
                                                                            • Tunnel Diameter (mm): 76
                                                                            • Weight (kg): 14.5
                                                                            • Colour: Yellow

                                                                            88mm Pipe

                                                                            • Length (mm): 976
                                                                            • Width (mm): 406
                                                                            • Height (mm): 118
                                                                            • Tunnel Diameter (mm): 88
                                                                            • Weight (kg): 18.1
                                                                            • Colour: Yellow

                                                                            114mm Pipe

                                                                            • Length (mm): 1118
                                                                            • Width (mm): 406
                                                                            • Height (mm): 141
                                                                            • Tunnel Diameter (mm): 114
                                                                            • Weight (kg): 22.7
                                                                            • Colour: Yellow

                                                                            179mm Pipe

                                                                            • Length (mm): 1530
                                                                            • Width (mm): 406
                                                                            • Height (mm): 208
                                                                            • Tunnel Diameter (mm): 179
                                                                            • Weight (kg): 41.7
                                                                            • Colour: Yellow



                                                                                                                      Download the brochureCheckers Authorised DealerMade in the USA

                                                                                                                      Checkers Product Warranty

                                                                                                                      • Ramp Champ only works with well-known, industry-leading manufacturers such as Checkers. All of our products come with at least a 12-month warranty. See full product warranty details here.
                                                                                                                      • Minor scratches and blemishes may be visible upon receipt of your item. However, if the item is delivered damaged please contact us immediately. See full shipping details here.
                                                                                                                      • Checkers Product Warranty Information

                                                                                                                      Note: Colour, tone, finish and style of actual products may differ from those shown in the product images.
