Digga 4-Tonne 3.5m x 510mm Ezi-Loada Aluminium Loading Ramps

by Digga
5 reviews
$1,856.00
Ramp Champ free shipping Pre order
SKU: LR403545

✓ Free Metro Shipping
✓ Pickup In-Store Available
✓ Questions? Call Us: 1300 913 047

Tail Lift May Be Required For Delivery: This product may be bulky and require a tail lift delivery. See below for full details.

Need A Quotation? Request a free quote

🎄 Will this arrive before Christmas? Lead times vary depending on your delivery location. Click here for more info.

Note: This product is currently out of stock. Pre order now to secure your order when new stock arrives!


Stock due to arrive early December 2020

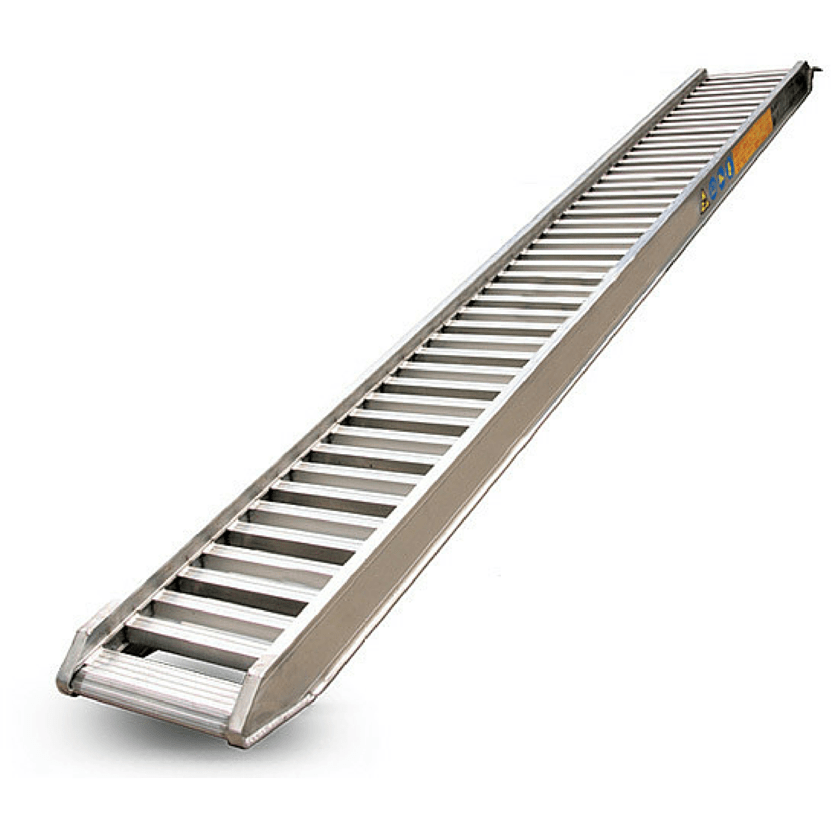

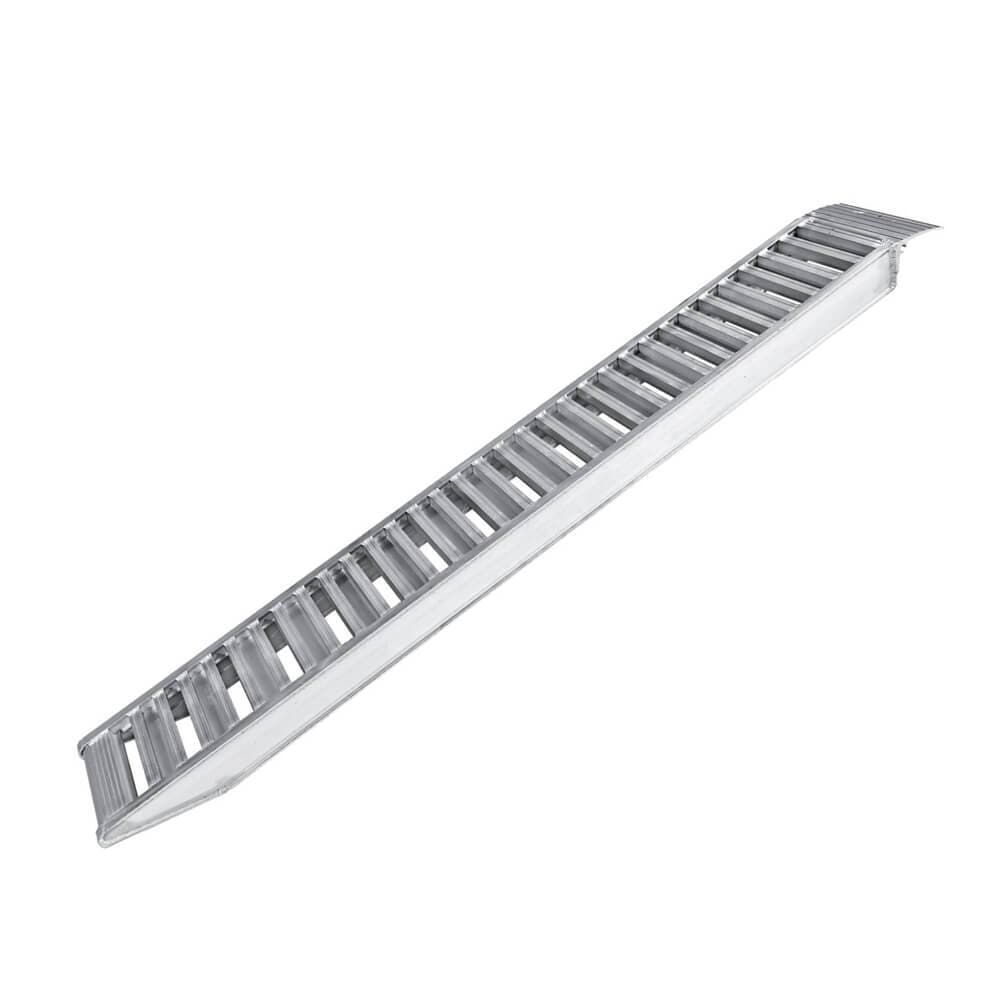

4-Tonne Loading Capacity 3.5m Long x 510mm Wide Digga Ezi-Loada Aluminium Loading Ramps For Excavators, Skid Steers And Loaders

Designed specifically for machines with rubber tracks and pneumatic (air) tyres, the Digga 4 Tonne 3.5m x 510mm Ezi-Loada Aluminium Machinery Loading Ramps are heavy duty yet light in weight and come with enhanced safety that delivers on quality, performance and are cost effective.

European designed and engineered, the Digga Ezi-Loada ramps feature the most advanced design available on the Australian market today.

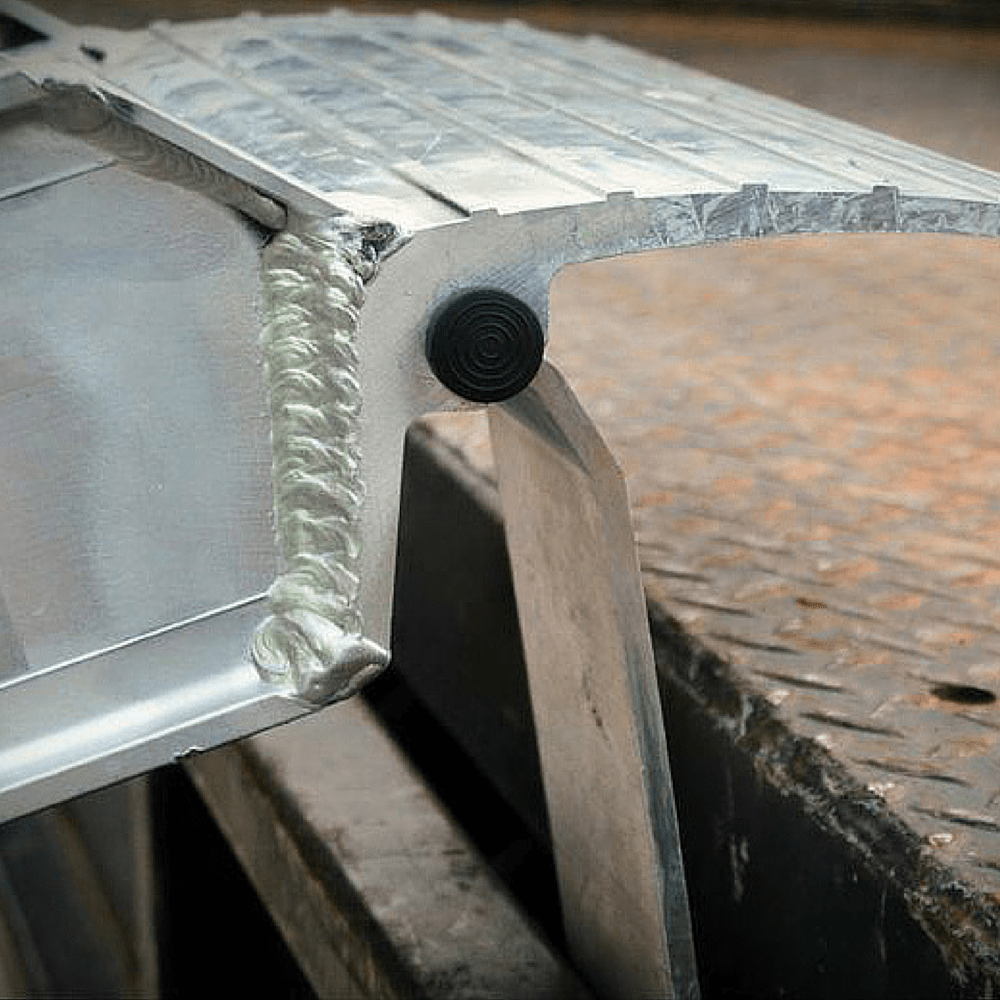

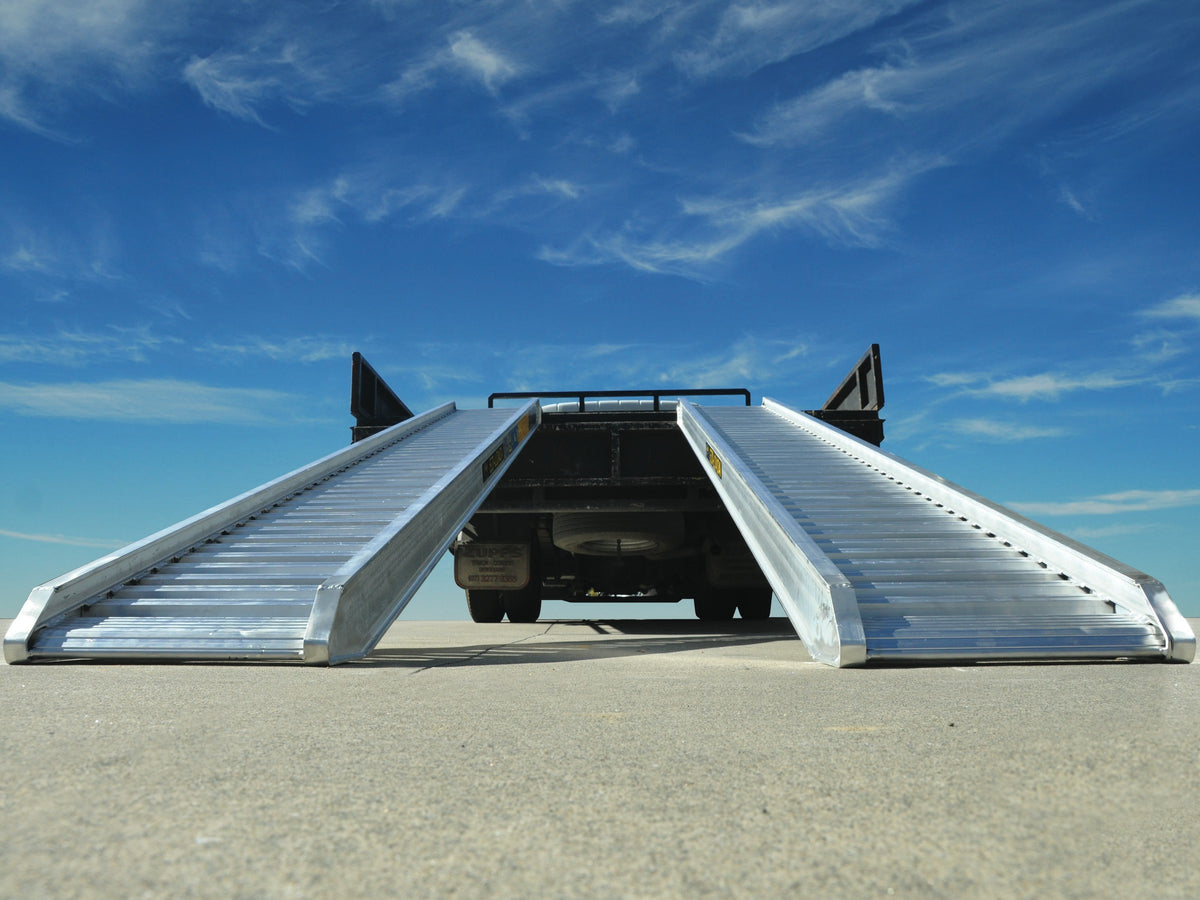

Complete with connection plate and tongue as well as zinc-coated, steel pins these aluminium loading ramps are perfect for loading onto tipper body trucks, flatbed trucks or trailers.

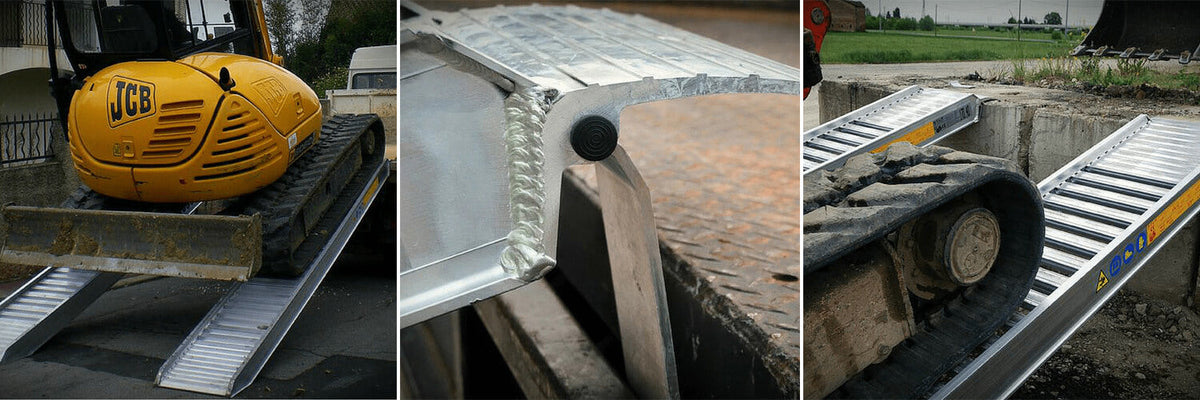

Digga 4 Tonne 3.5m x 510mm Ezi-Loada Aluminium Loading Ramps

Features and Benefits

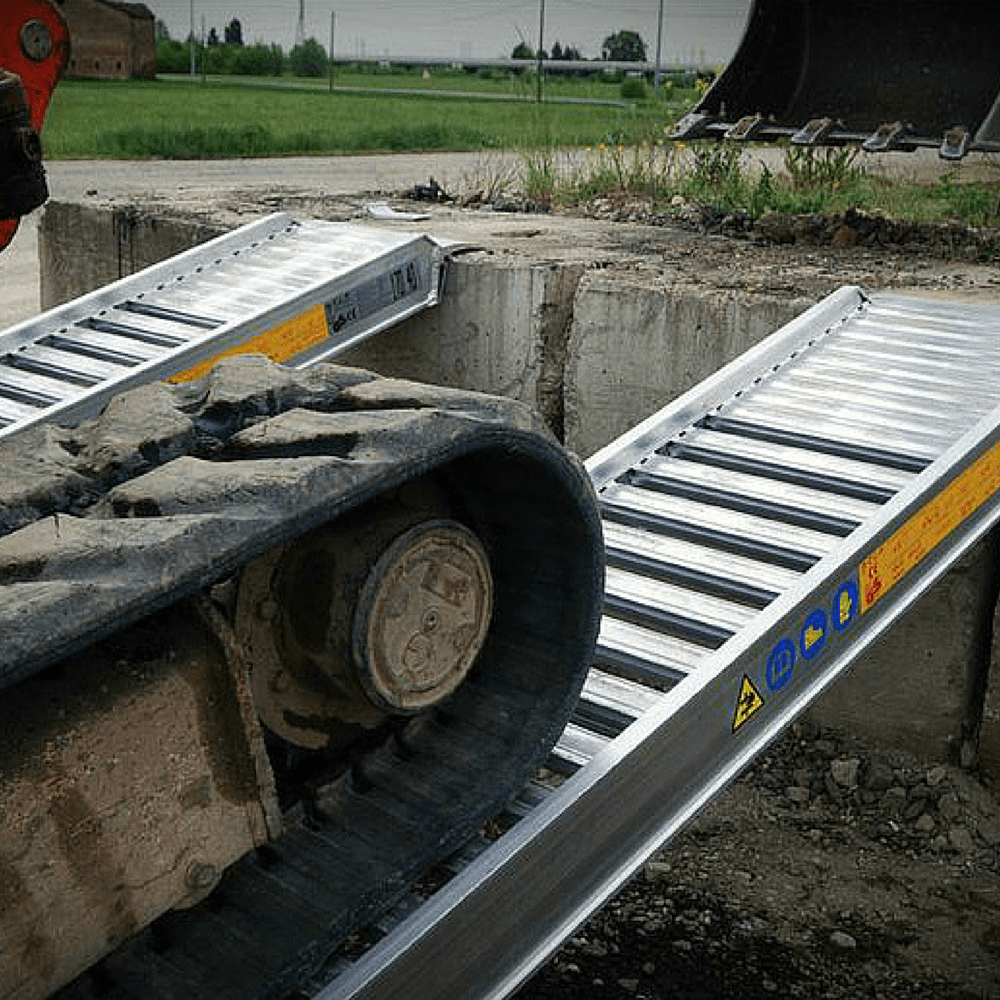

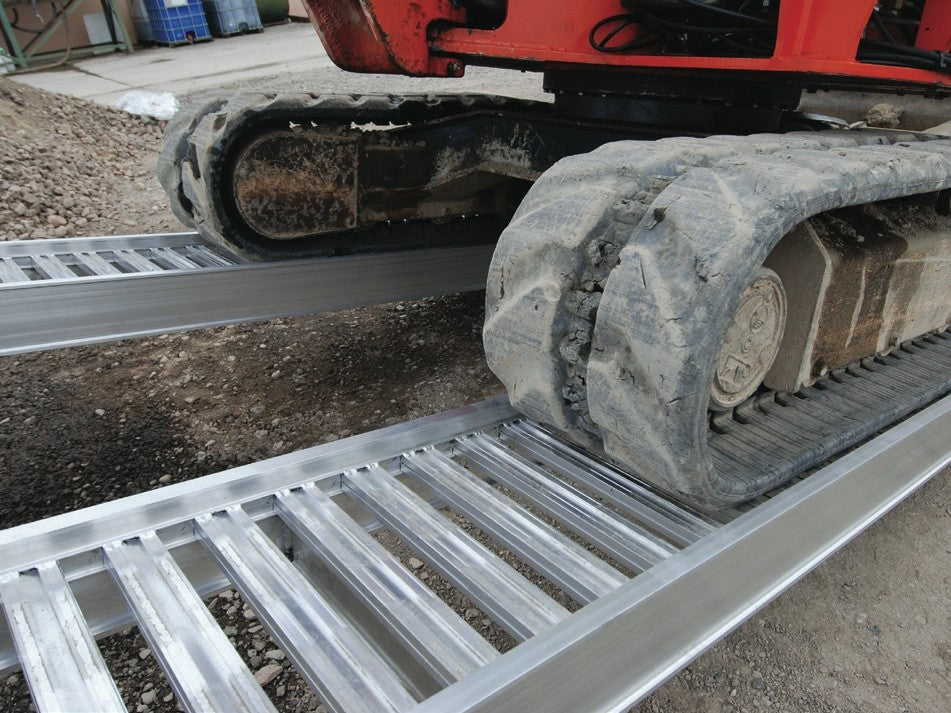

  • Ideal for rubber tracks and pneumatic (air) tyres

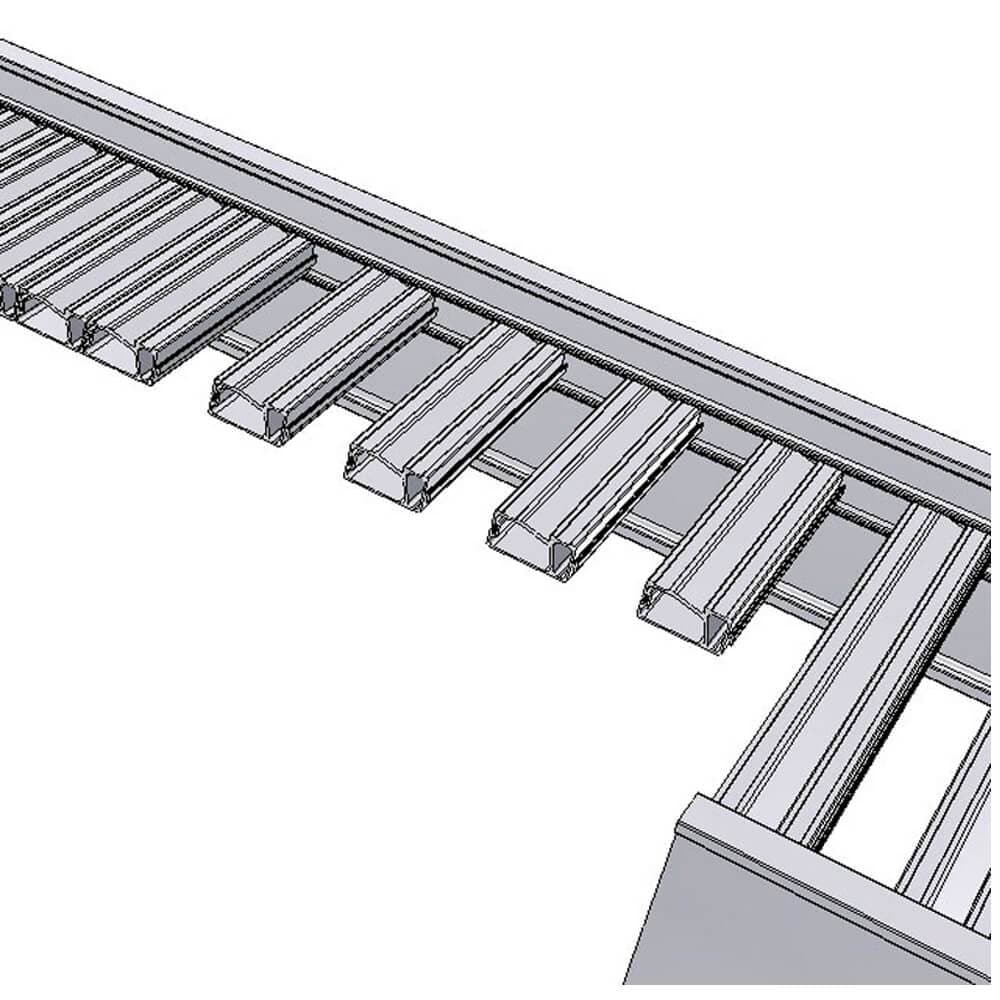

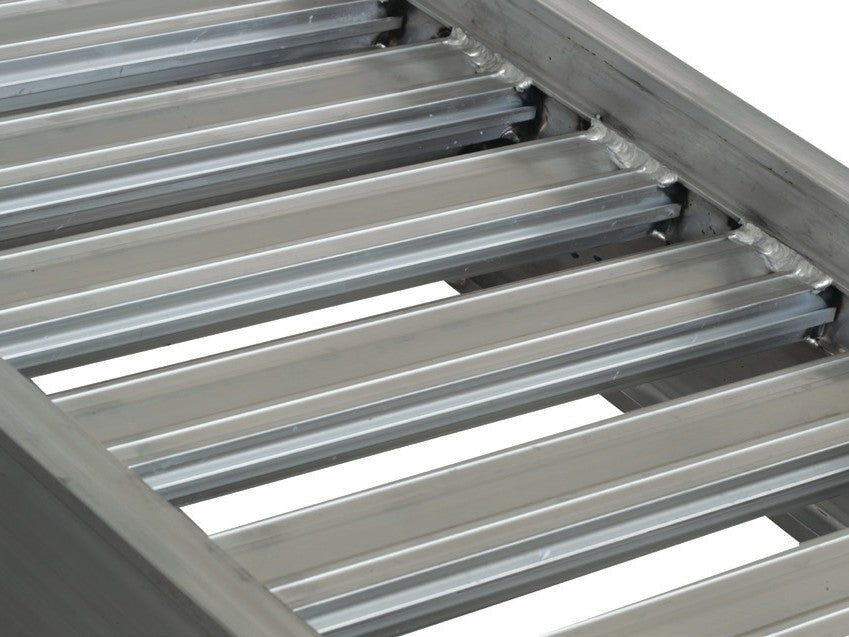

  • Patented, fully extruded, double T-beam design, interlocks the rungs into the body of the rail. No physical load is taken by the weld alone. The welds (top & bottom), hold the rung in its fitted position, adding superior strength & durability.
  • 3 different connection methods;

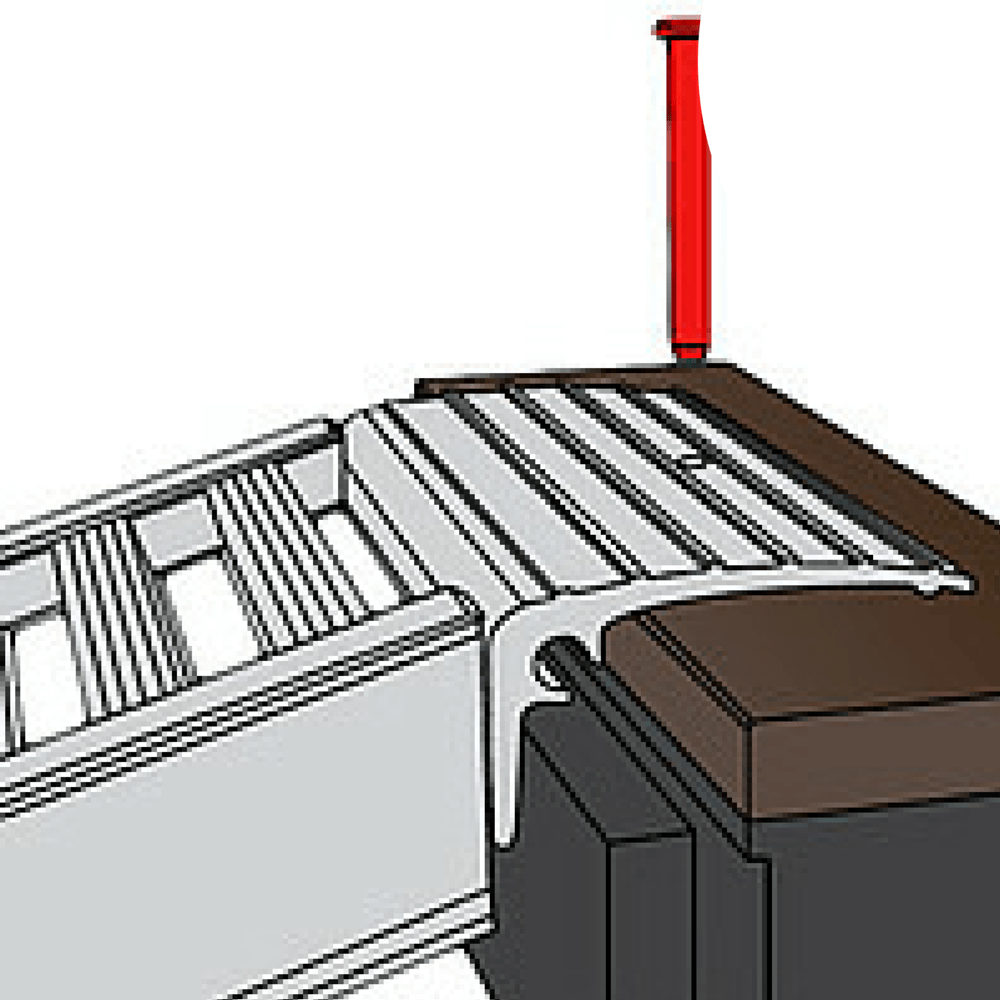

    • Pin (supplied)
    • Tongue (supplied)

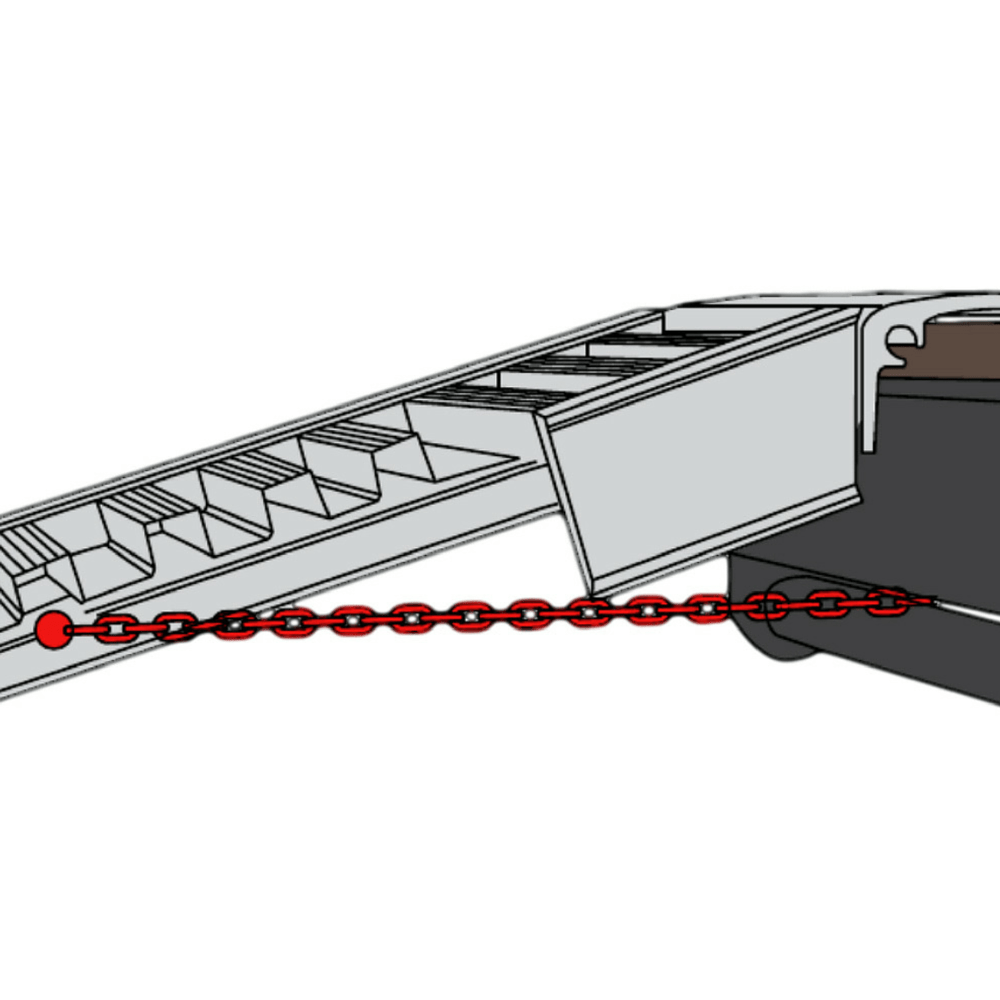

    • Chain (chain not supplied)
  • Enhanced beam strength
  • Huge 18 Month Warranty
  • Certified to the highest international standards including CE, TUV and GS certification guaranteeing the quality and safety of the ramps
  • Reinforced, easy load, lead on/off design are safer and more durable than conventional ramp designs

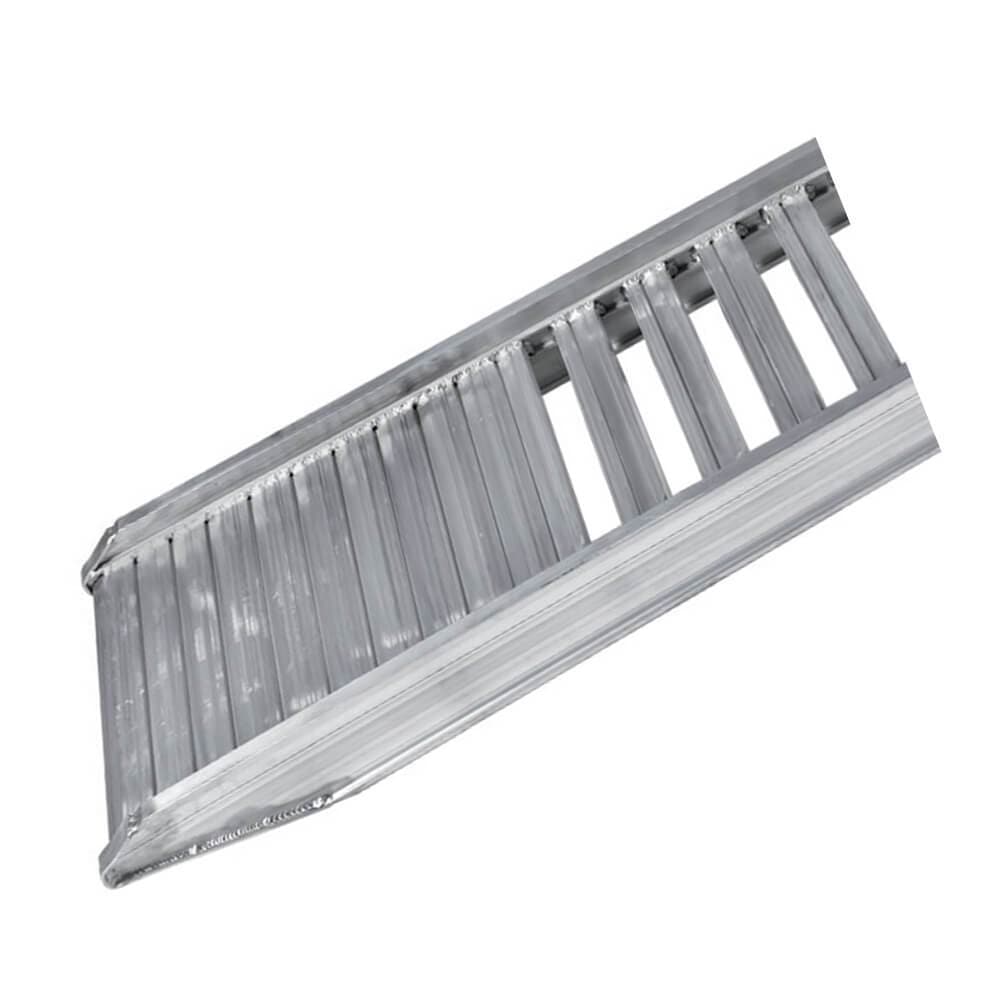

  • The reinforced bottom rung sits low to the ground ensuring machines don’t have to ‘step up’ onto the ramp. As a result, the bottom few rungs won’t bend, as so often is the case with current ramp designs. The ride is also much smoother
  • Sold in pairs

    Specifications

    • Rated Load Capacity Per Pair: 4 tonne
    • Ramp Weight Per Ramp: 45kg
    • Ramp Length: 3.5m
    • Internal Track Width: 450mm
    • Ramp Width: 510mm
    • Height Up To: 1.4m
    • Beam: 140mm
    • Series: Standard

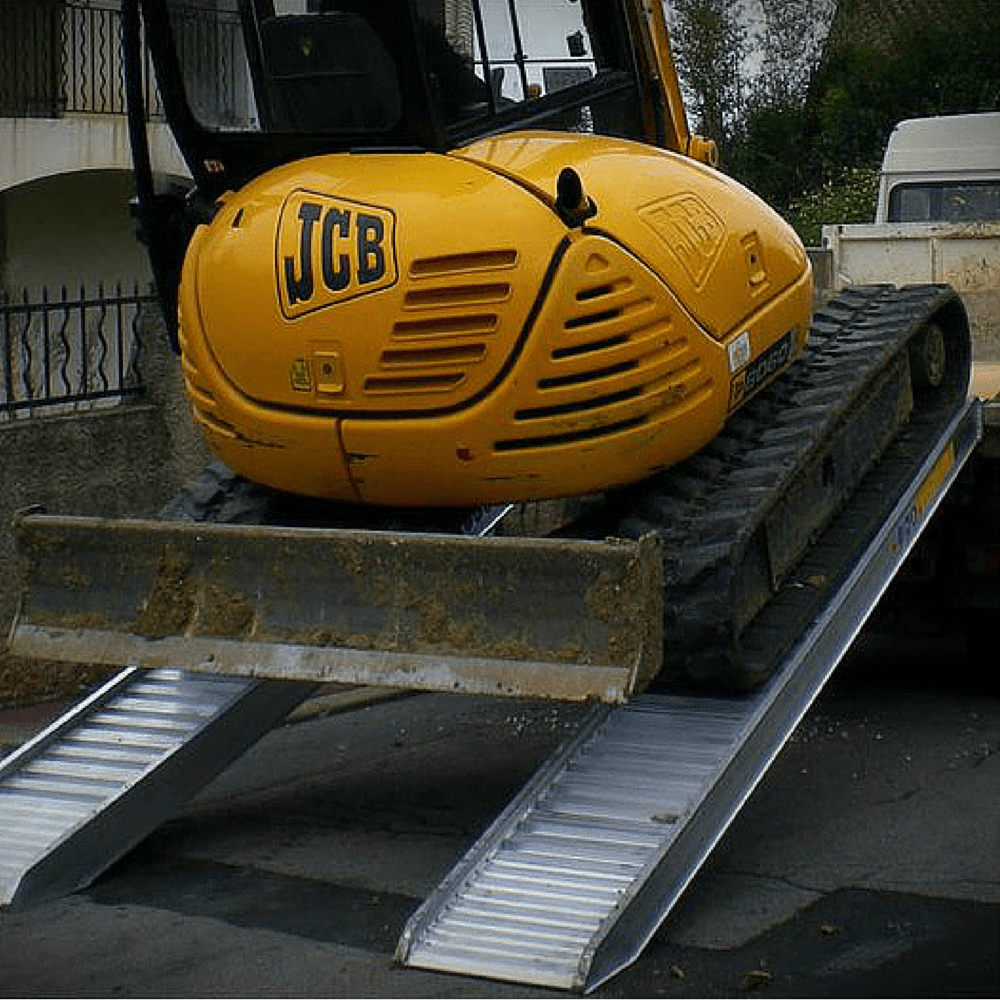

    Skid steers(Bobcats), excavators, Dingo's, Ditch Witches, and other small machinery with 4-tonne ratings can now be loaded onto trailers and truck beds with these aluminium machinery loading ramps. The ramps have raised sides to allow safe, worry-free loading.

    Where steel tracks are to be used on ramps, please refer to the Universal Series which have a different tread surface to the Standard Series Ramps. See the table below, for Digga's full range of Standard Series Ramps.

    Ramp Specifications

    Product

    Code

    Rated

    Capacity

    Ramp

    Mass

    Ramp

    Length

    Track

    Width

    (internal)

    Ramp

    Width

    Beam

    Series

    LR152530 1000kg 14kg 2.5m 255mm 300mm 64mm Standard
    LR233030 2000kg 23kg 3.0m 300mm 360mm 100mm Standard
    LR303030 3000kg 26kg 3.0m 300mm 360mm 115mm Standard
    LR303535 3000kg 26kg 3.5m 350mm 410mm 115mm Standard
    LR353535 3500kg 36kg 3.5m 350mm 410mm 125mm Standard
    LR403545 4000kg 45kg 3.5m 450mm 510mm 140mm Standard
    LR473545 4700kg 48kg 3.5m 450mm 510mm 155mm Standard
    LR473550 4700kg 51kg 3.5m 500mm 560mm 155mm Standard
    LR593545 5900kg 51kg 3.5m 450mm 510mm 165mm Standard
    LRU593550 6200kg 65kg 3.5m 500mm 560mm 165mm Universal
    LRU663550 7000kg 68kg 3.5m 500mm 560mm 170mm Universal
    LRU823550 9000kg 77kg 3.5m 500mm 560mm 180mm Universal



    Click here to find out how to CHOOSE THE CORRECT DIGGA RAMP

    Can't find the ramp you're looking for? Use the chat function in the corner of the window or Contact us for advice if you're unsure what ramps are suitable for you.

    Digga Authorised Dealer

    Free Metro Delivery

    Get your ramps delivered to your business address with a suitable forklift to unload 100% free to metro areas. Residential delivery address and outside merto area delivery address fees apply.

    2 x Manufacturers Warranty

    We double the iron clad manufacturers warranty giving you up to 3 full years peace of mind knowing your ramps will perform exactly as they should. Registration required.

    10% Off Accessories

    We don't just have ramps. Shop bollards, fuel tanks, attachments and more with a bonus 10% off construction accessories with each ramps purchase using code LOADINGRAMPS10 at checkout.


    Optional Tail Lift Delivery For Bulky Items

    Standard delivery price provided at checkout requires the receiver to have adequate facilities to off-load the item via either a forklift or loading dock available at the time of delivery (business hours). If you do not have the facilities to off-load please select "Yes Tail Lift" under Optional Tail Lift Delivery above to have your item delivered via a courier truck that has tail lift delivery capabilities.

    Note: Colour, tone, finish and style of actual products may differ from those shown in the product images.

    * Free shipping applies to metro city delivery areas only. Additional charges may apply to deliveries outside major city metro areas.

    Ramp Champ price match guarantee
