Digga 6.2-Tonne 3.5m x 560mm Ezi-Loada Aluminium Loading Ramps
Authorised dealerSKU: LRU593550$3,600 ex GST
- Length3500mm
- Holds6200kg
- Made ofAluminium
- Suits steel tracks, rubber tracks and tyres
- 3 ways to attach: pin, tongue (both supplied) or chain
- Patented studded rungs, machined solid, for grip
Will it reach your deck? Reaches 1258 mm. Check yours›
Reaches a deck up to 1258 mm high, as rated by Digga.
Open the ramp calculatorAvailable to order, ships in 1-3 business days
Authorised dealeri
500+ soldi
Pickup availablei
18-month warrantyi
100-day free returnsi
Rated 4.7 from 1,186 reviews on Google, ProductReview and Trustpilot
Goes well with
Digga 6.2-Tonne 3.5m x 560mm Ezi-Loada Aluminium Loading Ramps
Loading ramp specifications and dimensions
| Holds | 6200kg |
|---|---|
| Made of | Aluminium |
| Colour | Silver |
| Brand | Digga |
| SKU | LRU593550 |
| Length | 3500mm |
| Width | 560mm |
| Height | Up to 1258mm |
| Weight | 60kg (per ramp) |
| Internal width | 500mm |
About this loading ramp
Made in Europe for strong, grippy loading
Crafted to accommodate all machine types, including those with steel tracks, rubber tracks, and pneumatic (air) tyres, the Digga 6.2 Tonne 3.5m x 560mm Ezi-Loada Aluminium Machinery Loading Ramps blend durability with lightweight construction.
They guarantee enhanced safety, superior quality, exceptional performance, and cost-effectiveness.
Designed and engineered in Europe, the Digga Ezi-Loada ramps showcase the most innovative design currently available in the Australian market.
Equipped with a connection plate, tongue, and zinc-coated steel pins, these aluminium loading ramps are ideally suited for loading onto tipper body trucks, flatbed trucks, or trailers.
Skid steers (Bobcats), excavators, Dingo's Ditch Witches, backhoes and other machinery with 6.2-tonne ratings can now be loaded onto trailers and truck beds with these aluminium machinery loading ramps.
Can't find the ramp you're looking for? Use the chat function in the corner of the window or Contact us for advice if you're unsure what ramps are suitable for you.
Key benefits
- Suits steel tracks, rubber tracks and tyres
- 3 ways to attach: pin, tongue (both supplied) or chain

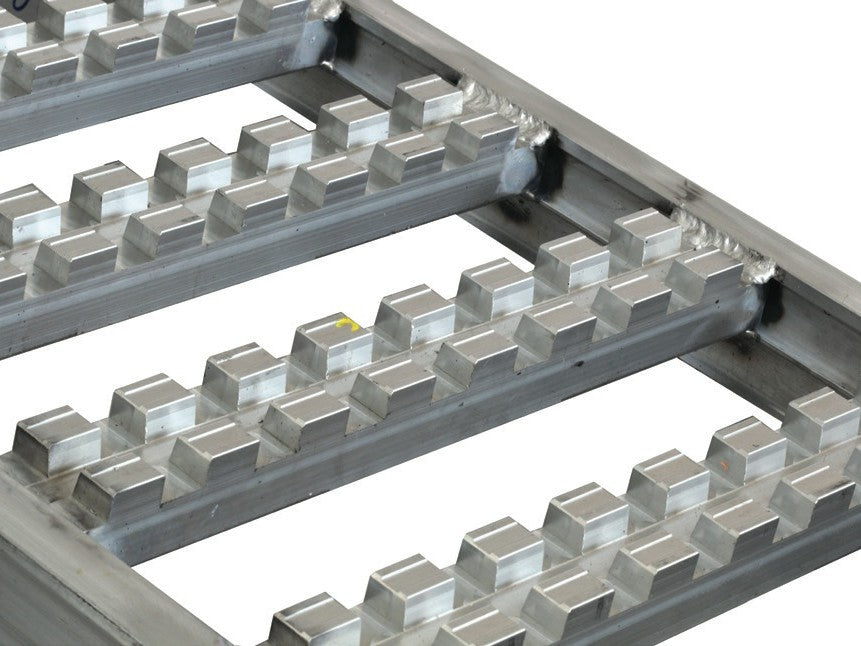

- Patented studded rungs, machined solid, for grip

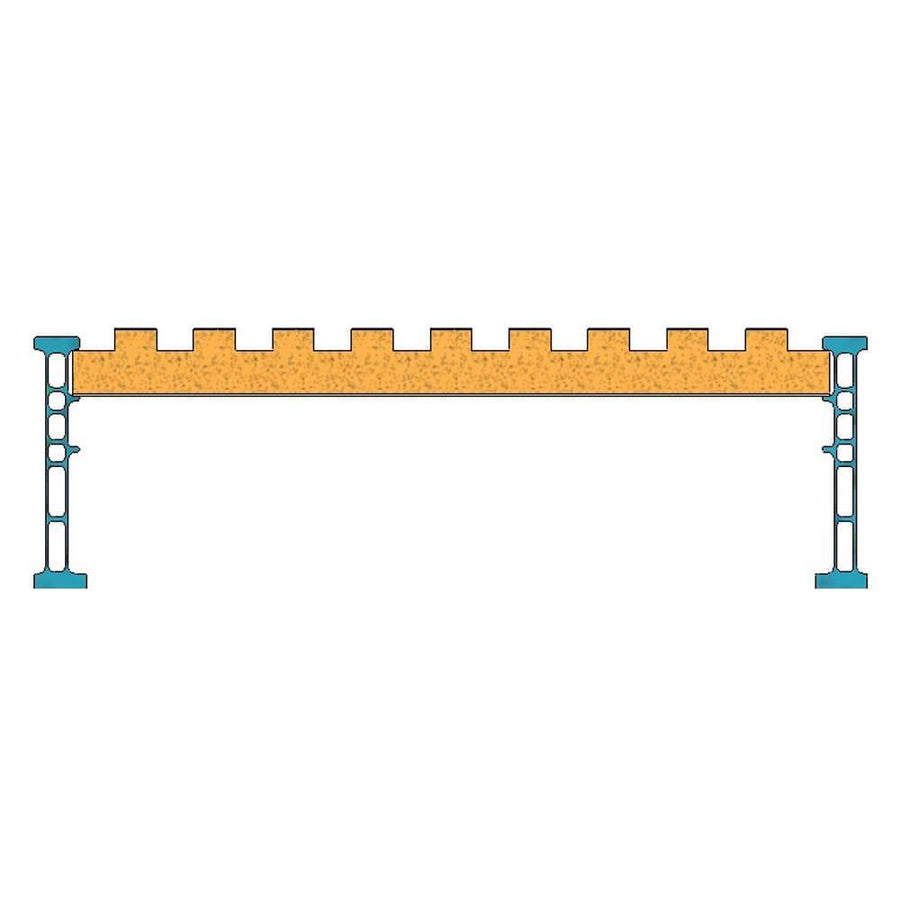

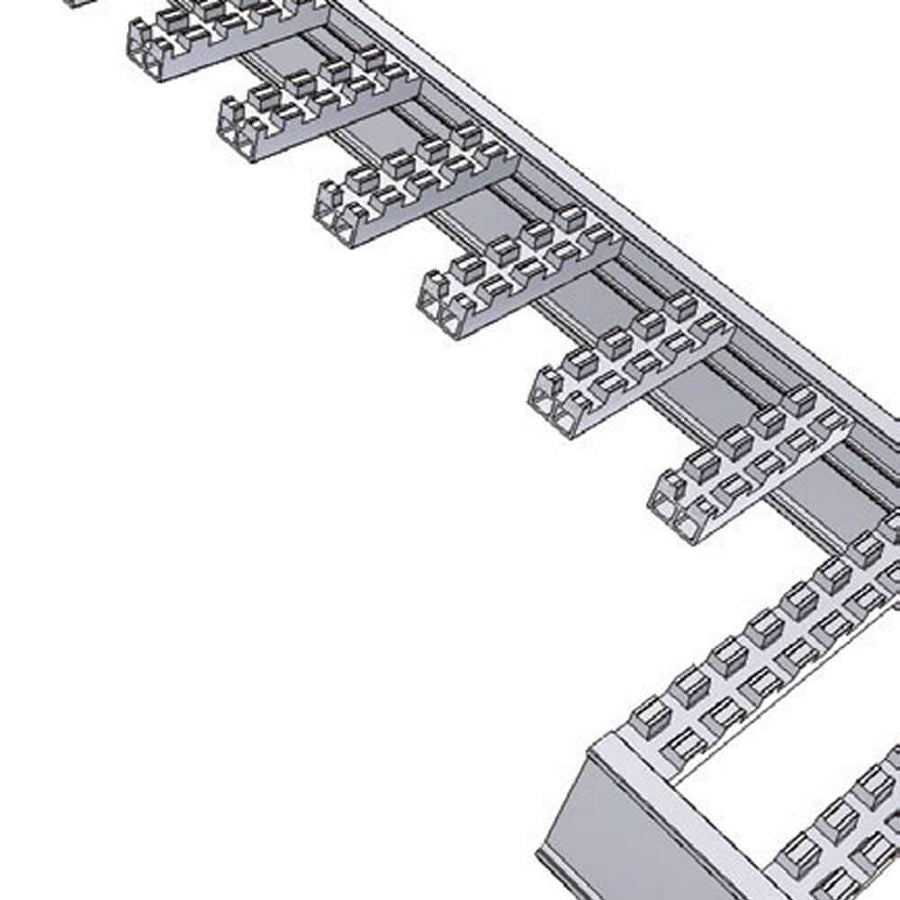

- Patented, fully extruded, double T-beam design, interlocks the rungs into the body of the rail. No physical load is taken by the weld alone. The welds (top & bottom), hold the rung in its fitted position, adding superior strength & durability
- Enhanced beam strength
- Huge 18-Month Warranty
- Certified to the highest international standards including CE, TUV and GS certification guaranteeing the quality and safety of the ramps
- Reinforced, easy load, lead on/off designs are safer and more durable than conventional ramp designs
- Rungs are level with the top of the main supporting rail, minimising wear and providing greater durability
- Sold in pairs
How it's built
Choosing your Digga ramp
Three ways to attach
Delivery
Delivery
This product is a "Bulky Item". Delivery to a business address with unloading facilities or depot is recommended.
Estimate delivery to your door
An estimate for this item to that suburb, from the same rates checkout uses. You choose the delivery method at checkout.
Finance Options
Finance Options
Four interest-free payments, the first at checkout. Choose PayPal at checkout and pick Pay in 4.
How Pay in 4 works on PayPal
Orders over $10,000Equipment financeBusiness equipment finance through Centrepoint Finance. Talk to their team about your purchase.
Apply with Centrepoint
Request a Quote
Request a Quote
Loading ramp downloads
Everything you need to plan, install and use it. Free to download.
Need another document or a different format? Ask us
Reviews
FAQs
Will these ramps take my machine?
Will these ramps take my machine?
Digga rate each model at a wheelbase, for example 1.5t at 1m. Pick a ramp rated above your machine's weight, including the bucket if it stays on while loading, and check your machine's wheelbase (front to rear axle) against the one in the rating.
Is the price for one ramp or a pair?
Is the price for one ramp or a pair?
The price is for a pair. The weight shown in the Specifications is per ramp.
How do they attach to my truck or trailer?
How do they attach to my truck or trailer?
Three ways. The pin (supplied) goes through the ramp and the holes in your tray and is locked with an R clip. The tongue (supplied) sits between the truck bed and the tailgate and is shaped so the ramp can't pop out. A chain (not supplied) can be added as a backup, but never use it without the pin or tongue.
How high a deck will they reach?
How high a deck will they reach?
Up to the max deck height Digga quote for this model, shown above. Digga recommend a loading angle no steeper than 21.8° (40%).
Can I load a machine on steel tracks?
Can I load a machine on steel tracks?

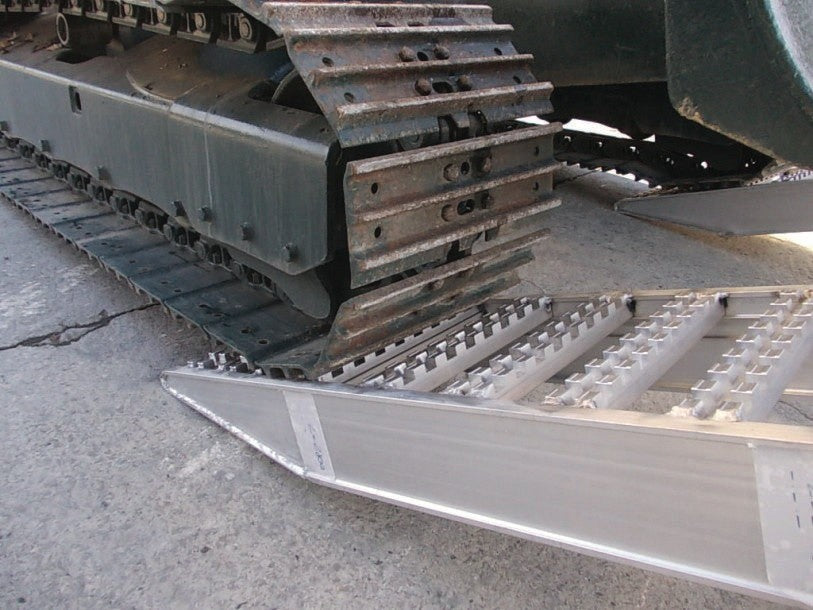

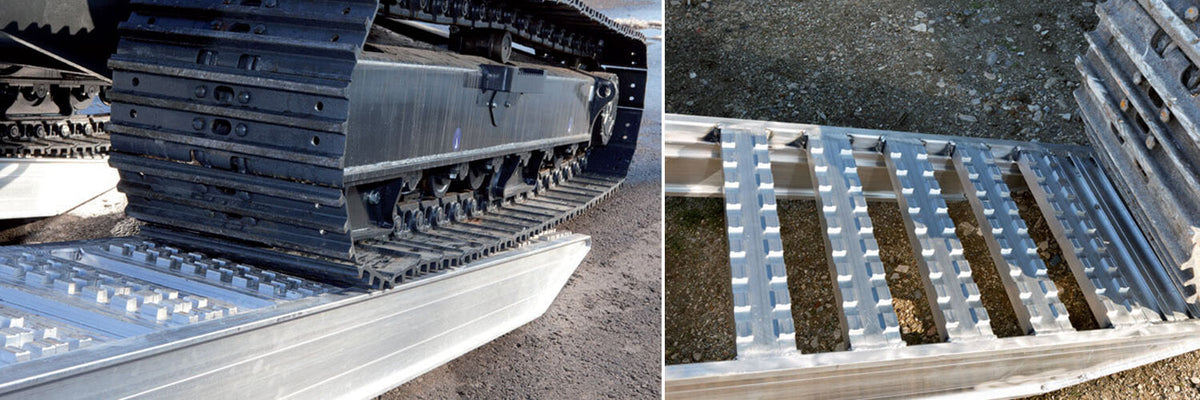

Yes. This is a Digga Universal ramp, made for steel tracks, rubber tracks and tyres. Its studded rungs sit level with the rails for grip and wear.
Will my tracks or tyres fit?
Will my tracks or tyres fit?
Measure across your track or tyre. It needs to be narrower than the inside width between the rails, which is 500mm on this ramp.
Warranty, returns, ordering and delivery
Warranty, returns, ordering and delivery
What is the warranty on Digga items?
What is the warranty on Digga items?
Ramp Champ only works with well-known, industry-leading manufacturers such as Digga. Every product comes with its manufacturer's warranty. The warranty badge next to Add to cart shows how long it is for this product. For further information see the Digga Warranty page.
Minor scratches and blemishes may be visible upon receipt of your item. However, if the item is delivered damaged please contact us immediately.
What is your returns policy?
What is your returns policy?
We know how crucial it is to find the perfect products for your access needs. To ensure you shop confidently, we proudly offer 100-day Free Returns on eligible products.
If you need to return your product, we'll organise and cover the return shipping costs across Australia without any restocking fees or hidden costs.
You'll have the option for a store credit, a full refund, or an exchange when the returned products meet the return criteria:
- The products cannot be used, damaged or modified and must be returned in the original packaging materials.
- Some products, such as almost new, made-to-order, installed, and custom-made products, aren't eligible for return.
- The 100-Day period begins from the day that your order is delivered or picked up.
- Only valid for the original purchaser.
- Only valid for online sales via rampchamp.com.au.
- Refunds, store credits or item swaps apply only to the cost of the products. Installation fees and original shipping costs will not be refunded.
Find our more by visiting our Refund Policy page.
How can I place an order?
How can I place an order?
How to order online: Find a product you'd like to buy on our website and click on the add to cart button. Then, simply follow the instructions on the checkout page. If there were any options or upgrades that you may have missed, one of our customer service staff members will contact you either by email or phone before we process your order.
How to order by phone: Call us on 1300 913 047. Our expert staff will help you select your product based on your individual requirements. We only stock the best brands and have the most competitive prices to ensure that you'll be completely satisfied with every RampChamp.com.au purchase you make. If you feel comfortable, go ahead and place your order online.
How to order by email: Send us an email at hello@rampchamp.com.au and one of our staff members will get back to you as soon as possible with an invoice for your order. Please include the product, any options or upgrades that you might require and your full address for delivery.
Do you have a physical store?
Do you have a physical store?
We do not have a storefront. All items are available for purchase online and are shipped directly from our warehouse or from our partner warehouses directly to our customers Australia wide. If you are within close proximity of any of our partner warehouses, we can arrange for you to pick up the goods by appointment.
Are you an authorised dealer?
Are you an authorised dealer?
Yes, we are. Ramp Champ is 100% authorised to sell the products we advertise on our website. This means that you get the full manufacturer warranty when you buy from RampChamp.com.au.
Do you offer custom ramps?
Do you offer custom ramps?
Yes, we do. Depending on what type of ramp you’re looking for and what state you’re located in, we can offer custom ramps that are built to your specifications. All we need is a few photos, measurements and a sketch of what you want to be made. We offer free quotations so you know exactly what your custom ramp will cost before you decide to buy. Click here to get a custom ramp quotation today.
When will my order ship out?
When will my order ship out?
Each product shows its dispatch time just under the price, for example "In stock, ships next business day" or "Made to order, ships within 3-10 business days". As soon as your order ships, we email you the tracking details so you can see when it will arrive.
How long does the delivery take?
How long does the delivery take?
We send all items via registered courier with tracking details so you can see just where your order is at any point in time. This ensures your item is safe and secure from us to you.
Products are sent during normal business hours, Monday to Friday and from dispatch date, we expect most orders to be delivered between 1 and 10 business days, depending on your location and the location of the warehouse. Some brands are shipped directly from our suppliers' warehouses throughout Australia.
See our full shipping policy here.
Can I pick up my order?
Can I pick up my order?
Pickup available. Select at checkout
Some items can be picked up directly from us or from the manufacturer's warehouse. If available when purchasing, on the cart page select "Store Pickup" as an option.
Or, contact our team to see if there's a warehouse near you.
All pickups are by appointment only.
