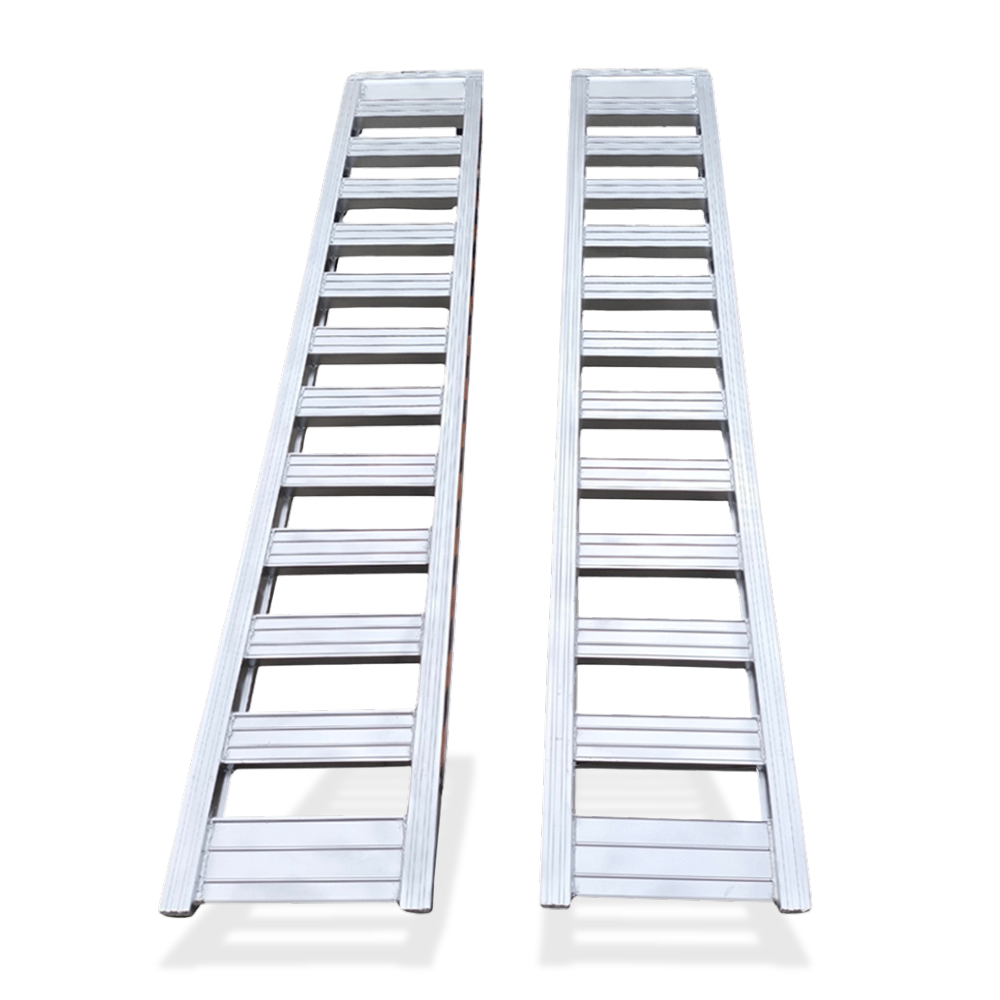

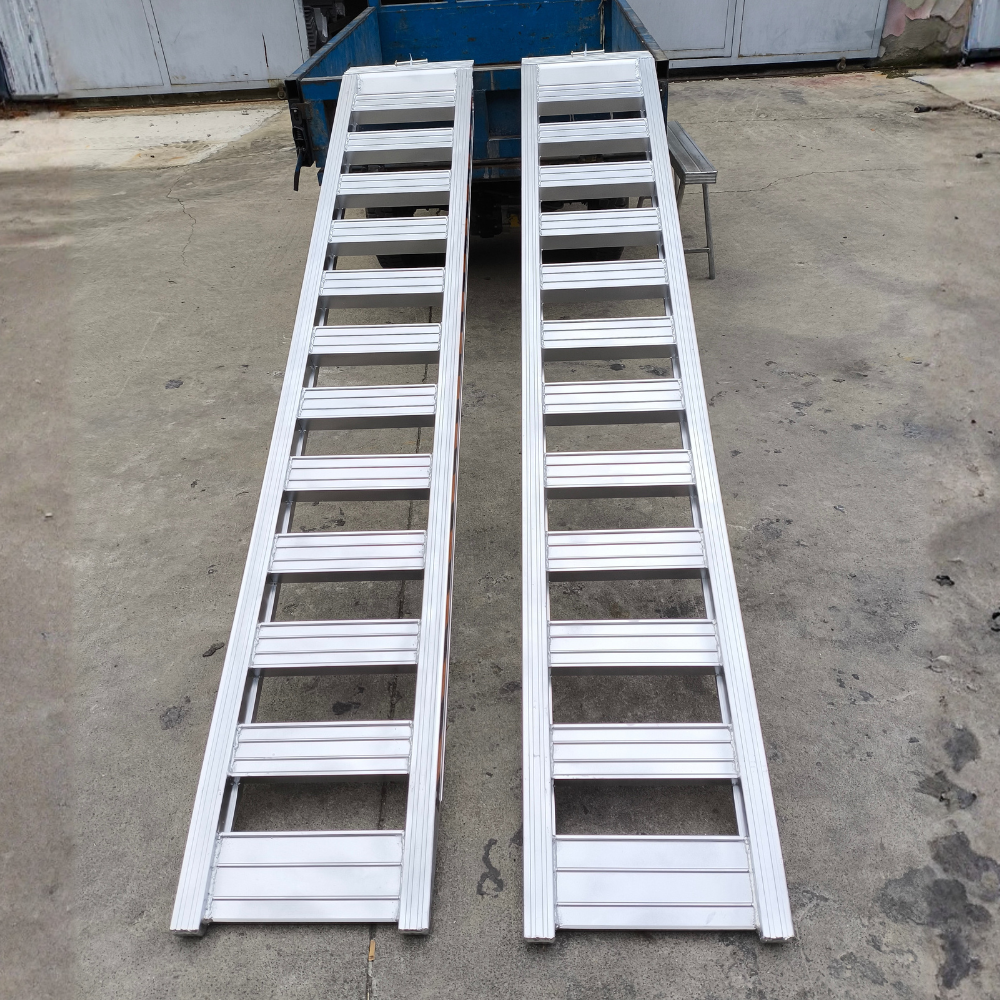

Heeve 3-Tonne 3.5m x 400mm Aluminium Loading Ramps
Ramp Champ's own brandSKU: H0701$1,547.27 ex GST
- Length3500mm
- Holds3000kg
- Made ofAluminium
- 3 tonne rated, 3.5m x 400mm
- Flat-bar rungs suit rubber tyres and rubber tracks
- 63kg the pair, aluminium
Will it reach your deck? Reaches ~1350 mm. Check yours›
Reaches a deck up to ~1350 mm high at 23°, the steepest we recommend for machinery.
Open the ramp calculatorRamp Champ's own brandi
54,000+ soldi
12-month warrantyi
Rated 4.7 from 1,186 reviews on Google, ProductReview and Trustpilot
Heeve 3-Tonne 3.5m x 400mm Aluminium Loading Ramps
Loading ramp specifications and dimensions
| Holds | 3000kg |
|---|---|
| Made of | Aluminium |
| Brand | Heeve |
| SKU | H0701 |
| Length | 3500mm |
| Width | 400mm |
| Height | 122mm |
| Weight | 63kg (per pair) 31.5kg (per ramp) |
| Dimensions | L x W x H: 3500mm x 400mm x 122mm |
| Side lip height | Lip length for pin connection: 170mm |
| Internal width | 306mm |
| Rung | 90mm-105mm |
About this loading ramp
Commercial-grade 3T aluminium machinery loading ramps for rubber tyres and tracks with extended 3.5M length
These machinery loading ramps are designed for businesses that need a higher capacity solution with improved loading control. With a 3 tonne rating and extended 3.5 metre length, they provide a smoother approach when loading equipment onto trailers and trucks.
The longer length helps reduce the loading angle, making them well-suited for machinery with lower ground clearance. This allows operators to maintain better control when loading excavators, skid steers, ride-on mowers and other small to medium machinery within the capacity range.
Constructed from aluminium, these ramps offer the strength required for regular use while remaining manageable to handle. At 31.5kg per ramp, they provide a solid balance between durability and on-site practicality.
The flat bar rung design supports both rubber tyres and rubber tracks, making them a versatile option across different equipment types. Combined with a reinforced beam structure and a connection plate and pin system, they are built for consistent, repeated use in commercial environments.

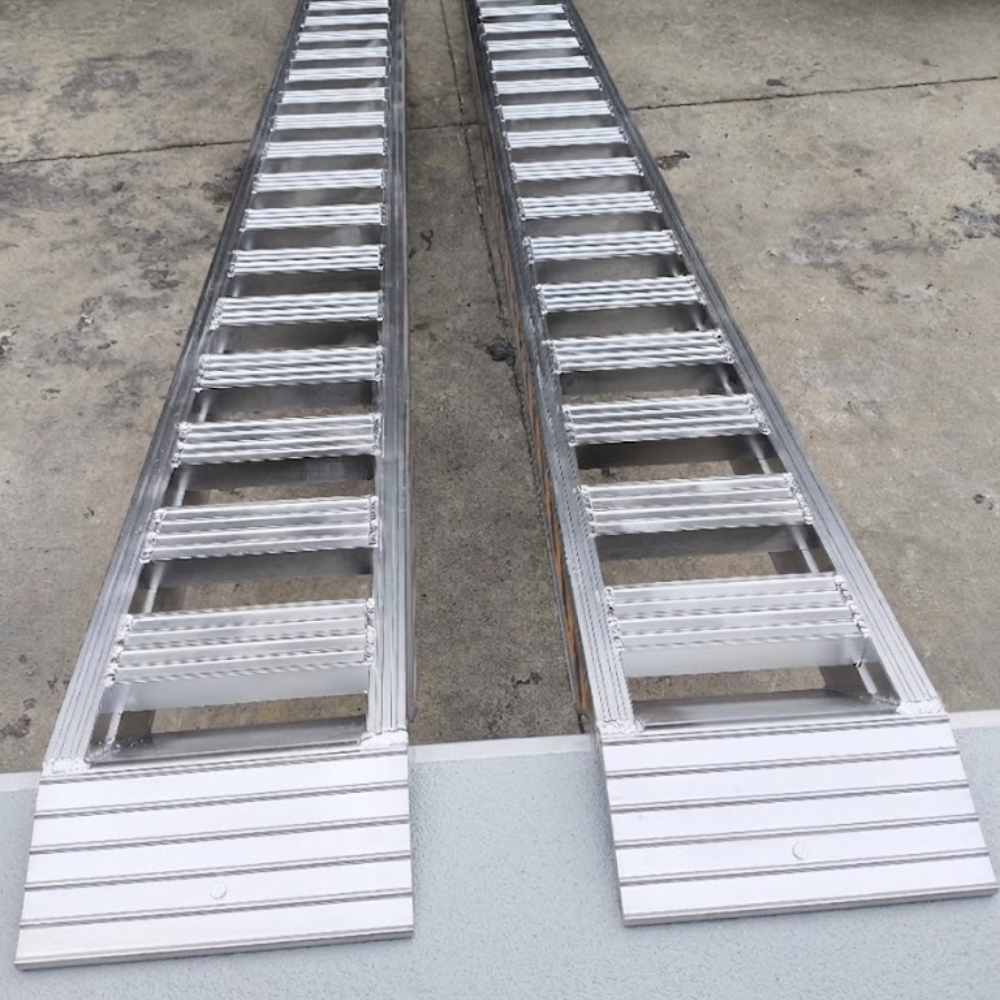

Flat bar rung design for rubber tyres and rubber tracks
These ramps use a flat bar rung design that supports both rubber tyres and rubber tracks. This provides consistent traction across different machinery types without limiting use to a single application.
Manageable aluminium construction
With a 3 tonne capacity, these ramps are built to handle heavier equipment while still remaining practical to move and position. The aluminium construction keeps each ramp to 31.5kg, allowing for controlled handling on-site.
Reinforced for regular loading
The strengthened side rails and internal support structure are designed for repeated loading cycles. This helps maintain stability under load and supports reliable performance across ongoing use.
3.5m ramp length for improved loading access
The 3500mm length provides a more gradual approach to trailers and trucks. This helps reduce the loading angle, making it easier to load machinery with lower clearance and improving overall control during operation.
Key benefits
- 3 tonne rated, 3.5m x 400mm
- Flat-bar rungs suit rubber tyres and rubber tracks
- 63kg the pair, aluminium
- 3 tonne capacity for heavier machinery
- Aluminium build for strength and manageable handling
- Flat bar rungs suit rubber tyres and tracks
- Reinforced beam design for repeated use
- 3.5 metre length for lower loading angles
- 400mm width suits various equipment
- 31.5kg per ramp for practical handling
- Connection plate and pin for quick setup

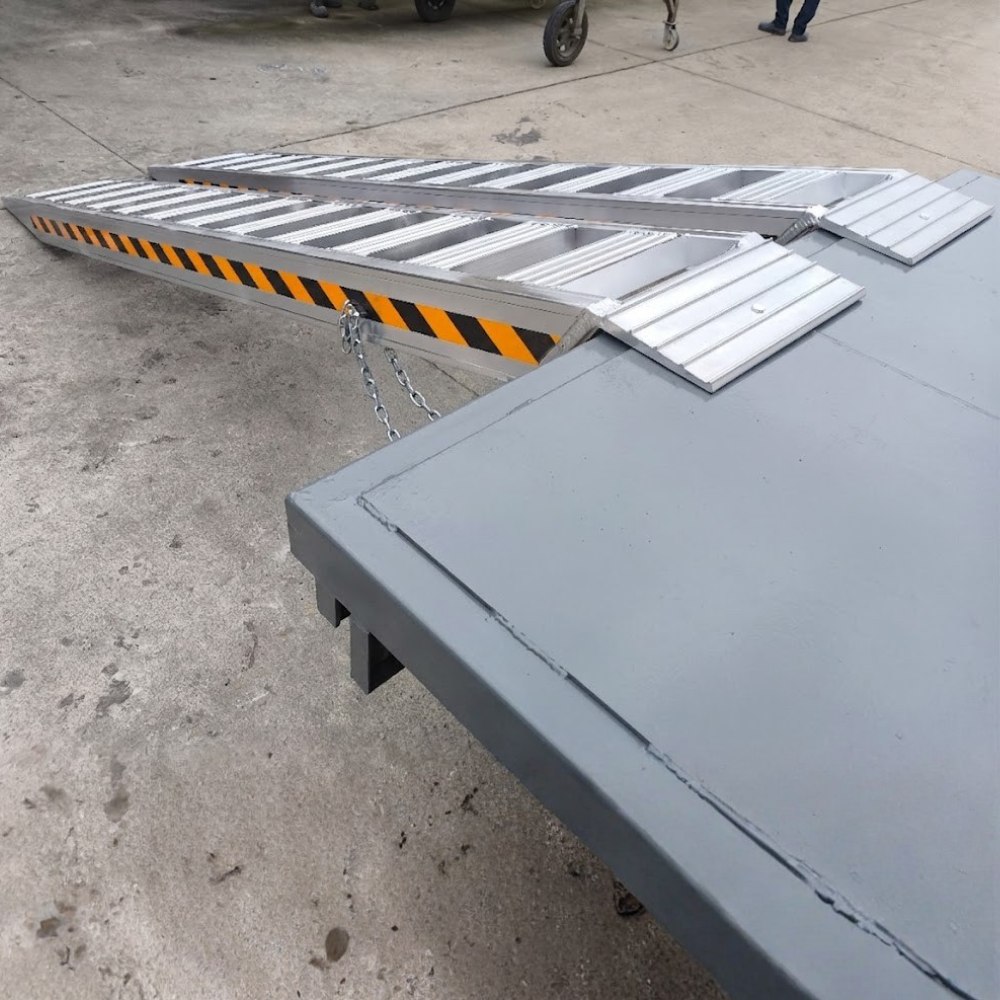

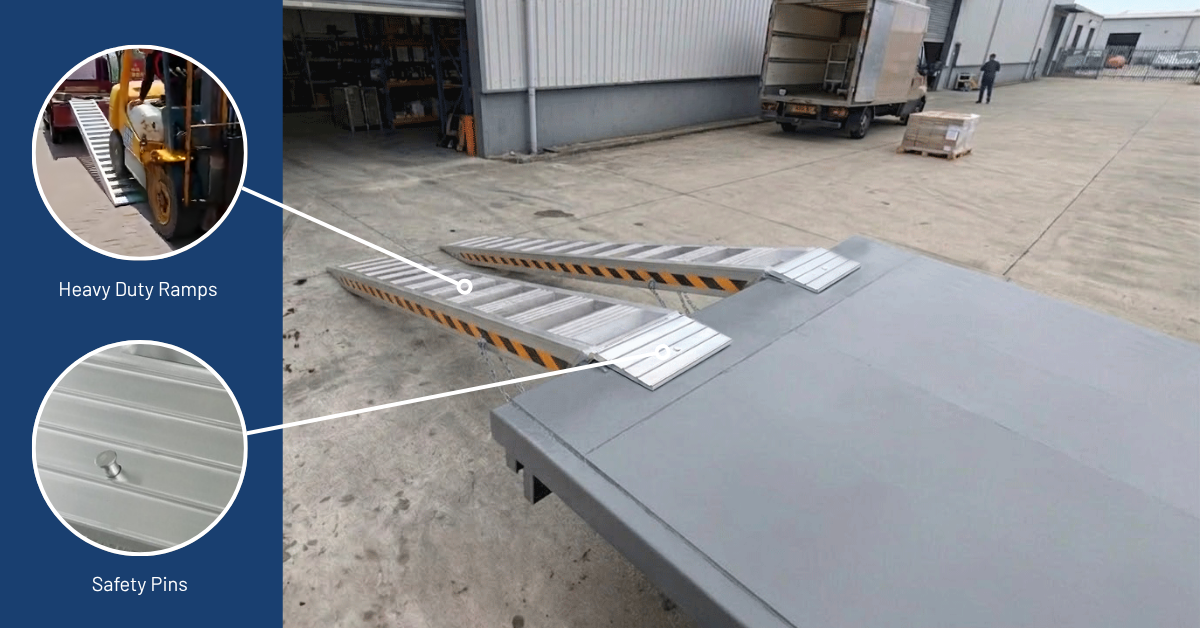

Safety pins lock it to the deck

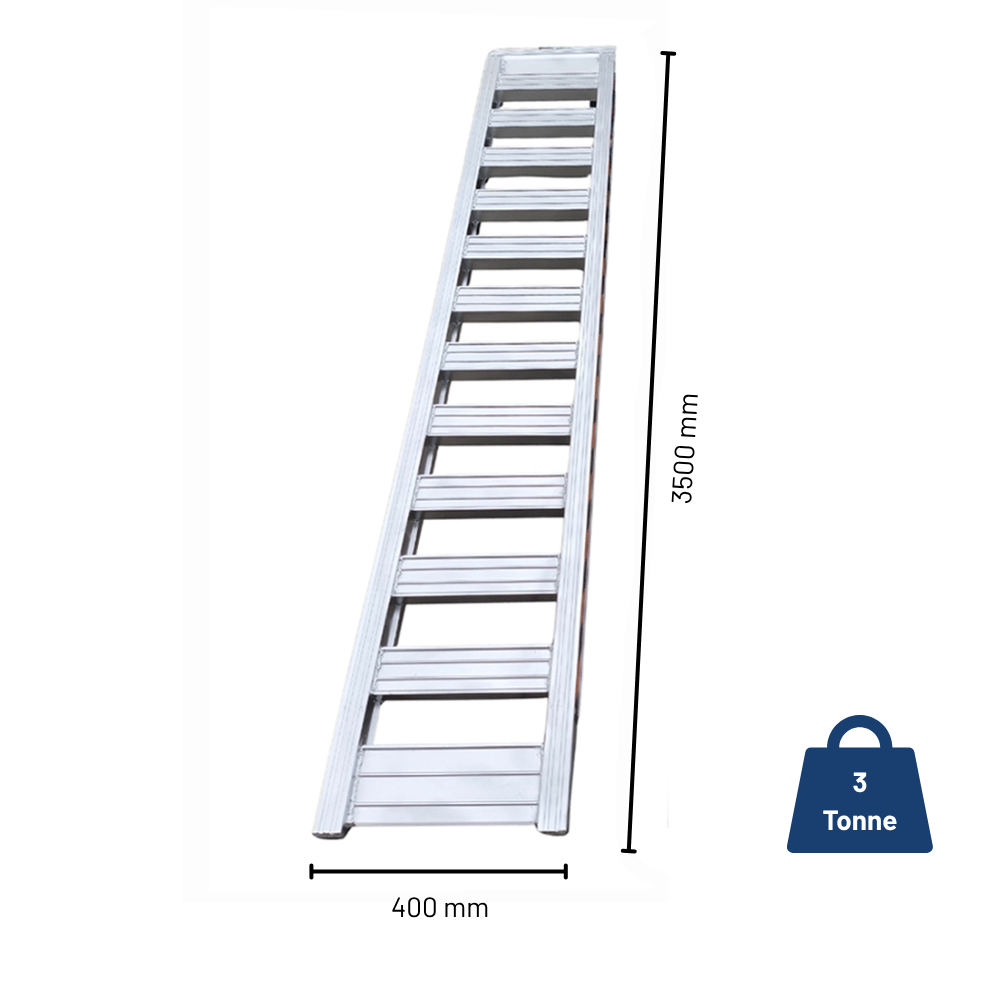

Loading ramp dimensions
Delivery
Delivery
i
Special orders come in for you on our next shipment, so the arrival date changes. Ask us and we will tell you the current date before you order.
This product is a "Bulky Item". Delivery to a business address with unloading facilities or depot is recommended.
Estimate delivery to your door
An estimate for this item to that suburb, from the same rates checkout uses. You choose the delivery method at checkout.
Finance Options
Finance Options
Four interest-free payments, the first at checkout. Choose PayPal at checkout and pick Pay in 4.
How Pay in 4 works on PayPal
Orders over $10,000Equipment financeBusiness equipment finance through Centrepoint Finance. Talk to their team about your purchase.
Apply with Centrepoint
Request a Quote
Request a Quote
Loading ramp manuals and drawings
Everything you need to plan, install and use it. Free to download.
Need another document or a different format? Ask us
Reviews
FAQs
What machines are these ramps for?
What machines are these ramps for?
Excavators, skid steers and bobcats, ride-on mowers and other small to medium machines within the rating.
Do they suit rubber tracks?
Do they suit rubber tracks?
Yes. The flat-bar rungs suit rubber tyres and rubber tracks. They are not made for steel tracks.
How do they attach to the trailer?
How do they attach to the trailer?
A connection lip at the top seats on the trailer or truck deck.
How heavy are they?
How heavy are they?
63kg for the pair.
What machinery can these 3T loading ramps be used for?
What machinery can these 3T loading ramps be used for?
These ramps are suitable for excavators, skid steers, and other equipment within the 3 tonne capacity. They are commonly used across construction, landscaping, and trade applications.
Why choose a 3.5 metre ramp length?
Why choose a 3.5 metre ramp length?
A 3.5 metre ramp creates a lower loading angle compared to shorter ramps. This is useful for machinery with low clearance or when loading onto higher trailers.
Are these ramps suitable for rubber tracks and tyres?
Are these ramps suitable for rubber tracks and tyres?
Yes. The flat bar rung design is compatible with both rubber tyres and rubber tracks, making them a versatile option for mixed machinery use.
