TradeQuip Air Heavy Duty Actuated Truck Jack 22-Tonne Capacity

Save $92.00
Original price $1,024.00
Current price $932.00

new icon
SKU: 2004T

✓ Fast Shipping + Order Tracking
✓ Questions? Call Us: 1300 913 047

Estimated Arrival: Between and .

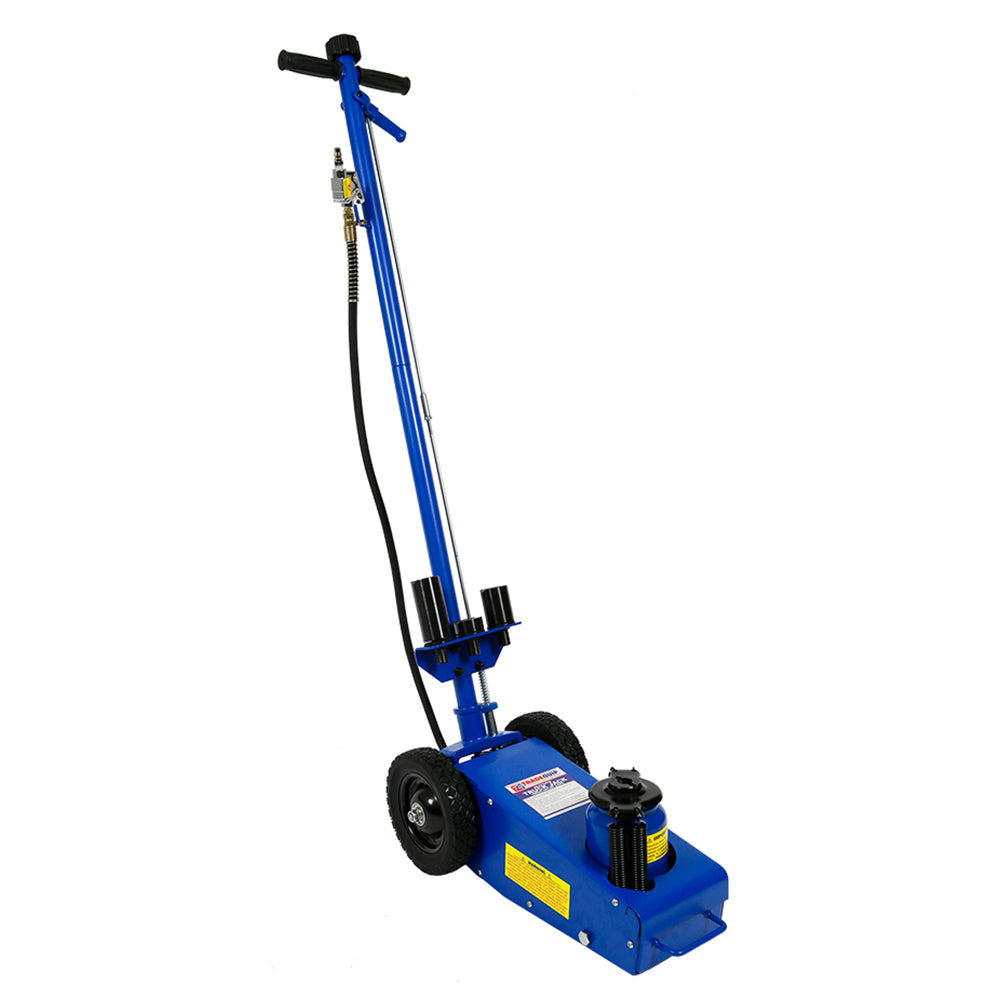

Air Powered Truck Jack with Height Adaptors and a Compact Design

Forget those hectic movements with traditional lifting jacks and let the power of compressed air do this job for you. This truck jack can utilize the power of compressed air to lift single or tandem axle trucks up to 22 tonnes in weight. The jack features a rugged and simple stainless steel construction with a strong hydraulic pump. The jack is compact enough to slide between tandem axles and has a three-position pumping handle for easy use.

The jack also includes three different adaptors to suit different axle sizes. The built-in hydraulic safety overload system ensures that any accidents do not happen. However, if you have to go under the vehicle, make sure to use jack stands as well for optimal safety.  However, you must also make sure to use high-quality hydraulic fluid for the best performance.

Features and Benefits

  • Professional quality rugged steel construction
  • Wear-resistant quality sealing O-rings
  • Strong hydraulic pump
  • Temperature-resistant hydraulic oil
  • Treated and polished piston and ram
  • Built-in bypass hydraulic safety overload system
  • The compact design easily fits between dual tandem axles
  • Quick Lift lifting ram comes in contact with the load faster
  • Convenient & efficient height adaptors
  • 3-position pumping handle
  • High-quality lead-free paint ensures long-lasting wear and prevents rust
  • Oil, grease and dirt-resistant finish for easy cleanup


  • Safe Working Capacity: 22,000kg
  • Lift Range: 225-552mm
  • Hydraulic Lift: 124mm
  • Adjustable Height: 103mm
  • Air Supply: 110-125psi
  • Adaptor Sizes: 21mm, 60mm 100mm
  • Handle Length: 1160mm
  • Chassis: 560L x 230H x 320W mm
  • Wheel Diameter: 200mm
  • Nett Weight: 45kg
  • Carton: 675(L) x 345(W) x 250(H)mm
  • Gross Weight: 47kg

User Manual:

Product Information Tips:

TradeQuip Product Warranty

  • Ramp Champ only works with well-known, industry-leading manufacturers such as TradeQuip. All of our products come with at least a 12-month warranty. See full product warranty details here.
  • Minor scratches and blemishes may be visible upon receipt of your item. However, if the item is delivered damaged please contact us immediately. See full shipping details here.
  • Tradequip Product Warranty Information

Note: Colour, tone, finish and style of actual products may differ from those shown in the product images.
