TradeQuip Pro 2-Stage Hydraulic Telescopic Transmission Lifter, 500Kg

by TQPro
$1,271.00
SKU: PROTL500

✓ Fast Shipping + Order Tracking
✓ Questions? Call Us: 1300 913 047



🎄 Will this arrive before Christmas? Lead times vary depending on your delivery location. Click here for more info.

Estimated Arrival: Between and .

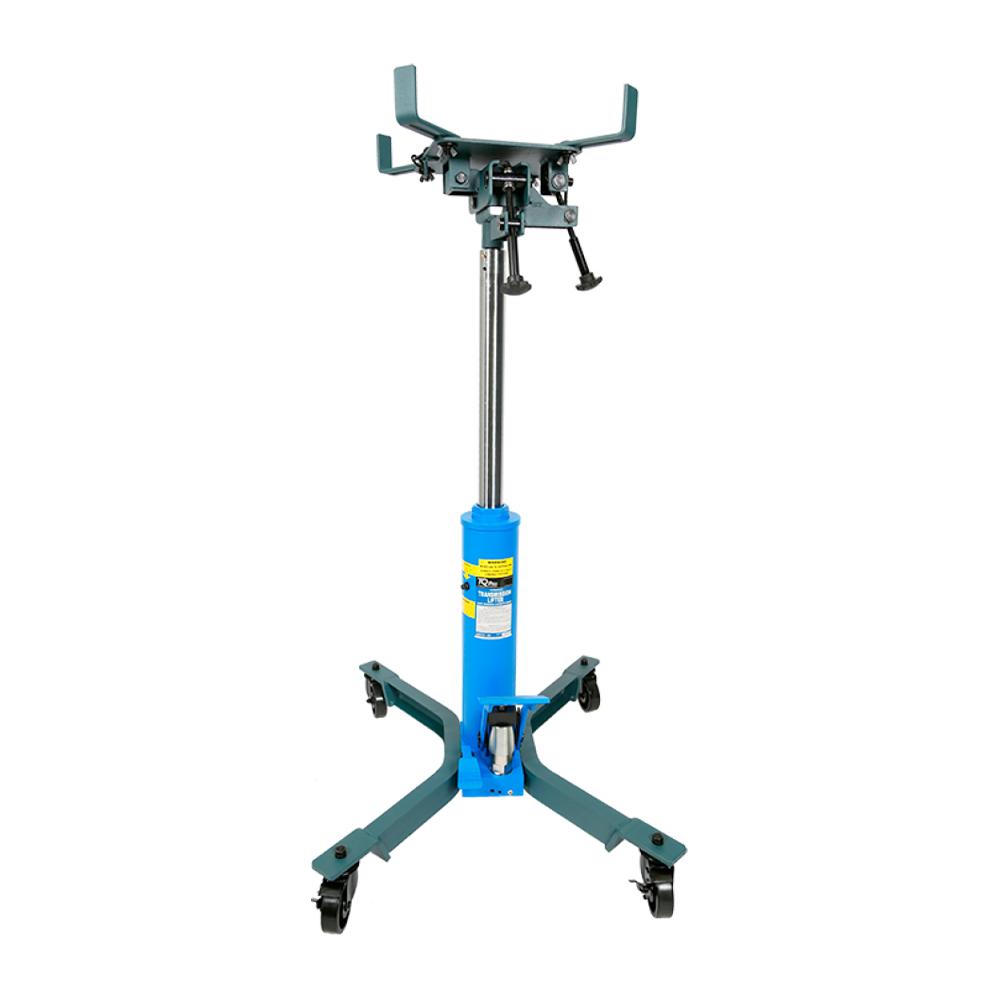

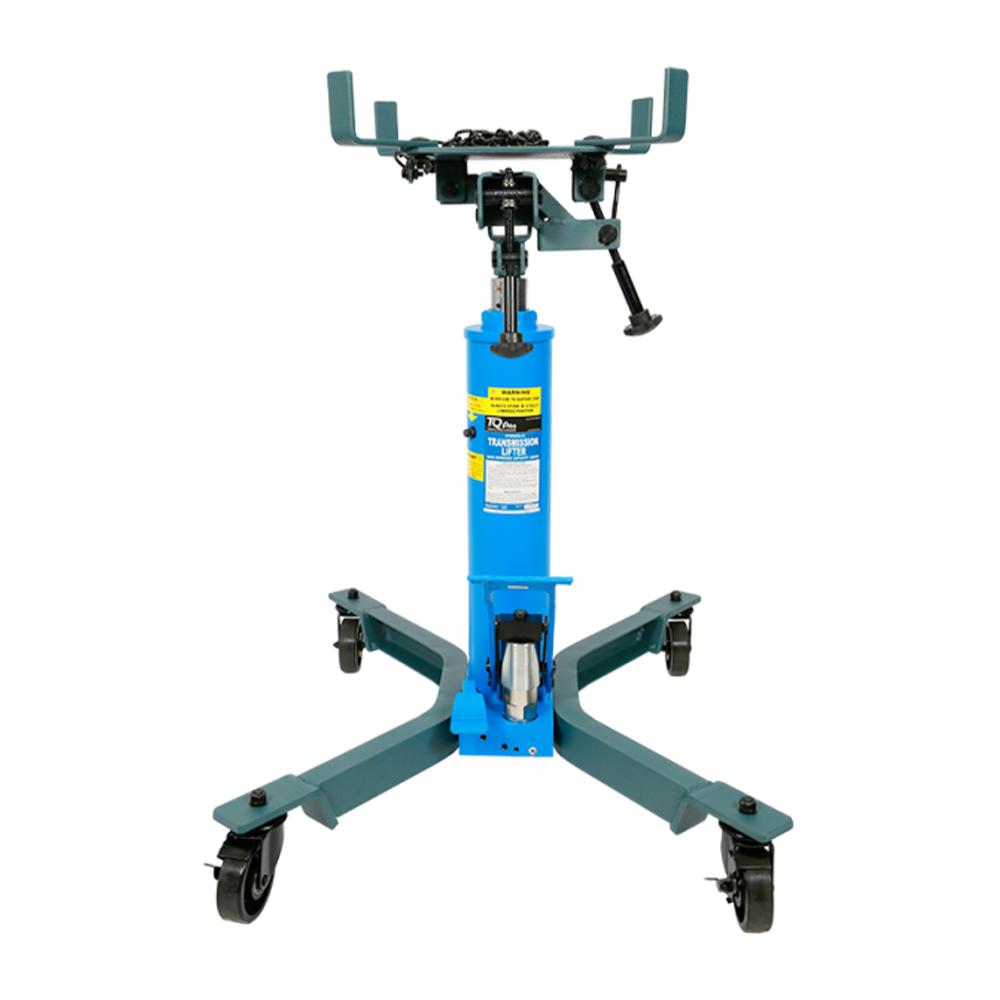

Hydraulic Telescopic Transmission Lifter To Lift Loads Safely And Smoothly

Need a versatile lifter which can lift many different types of loads and can also improve your productivity? That's exactly what TradeQuip's Pro 2-Stage Hydraulic Telescopic Transmission Lifter aims to do. It offers a lifting capacity of 500 kgs. This latest technology lifter can be used effectively for lifting the transmissions of cars and lightweight trucks.

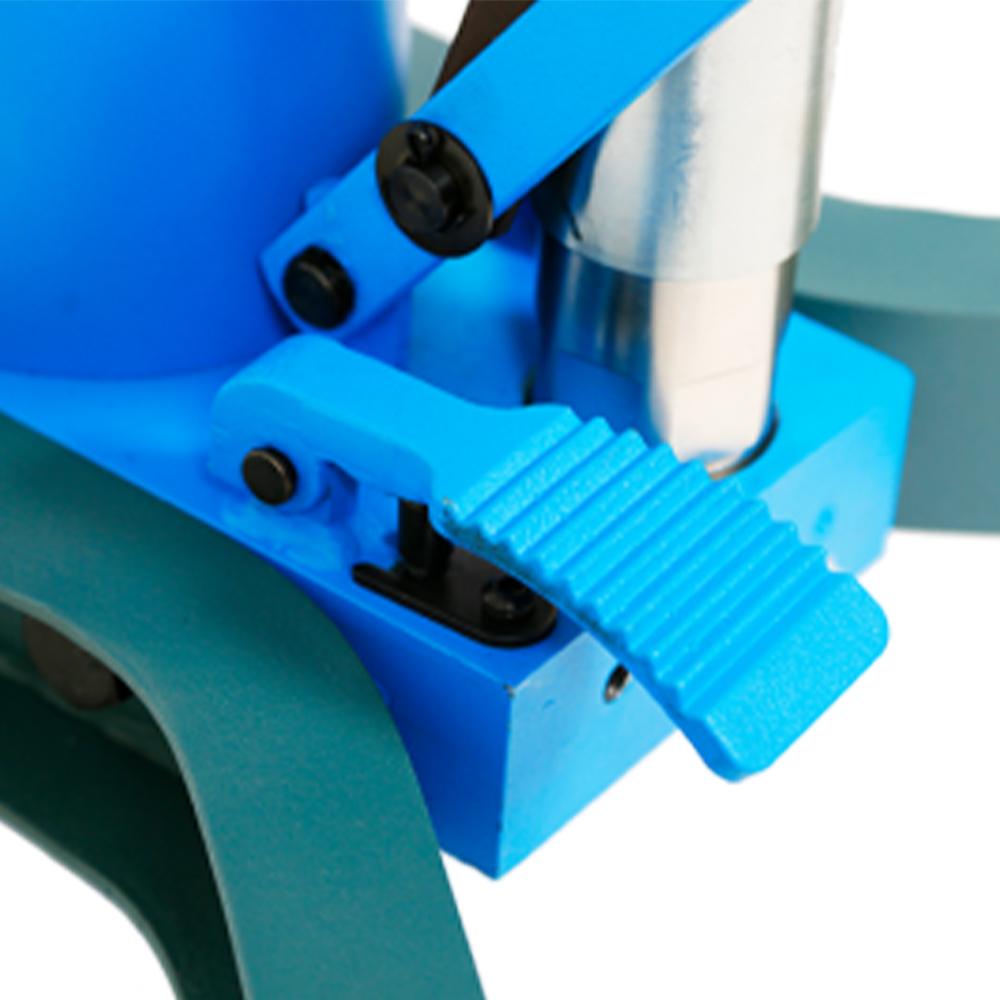

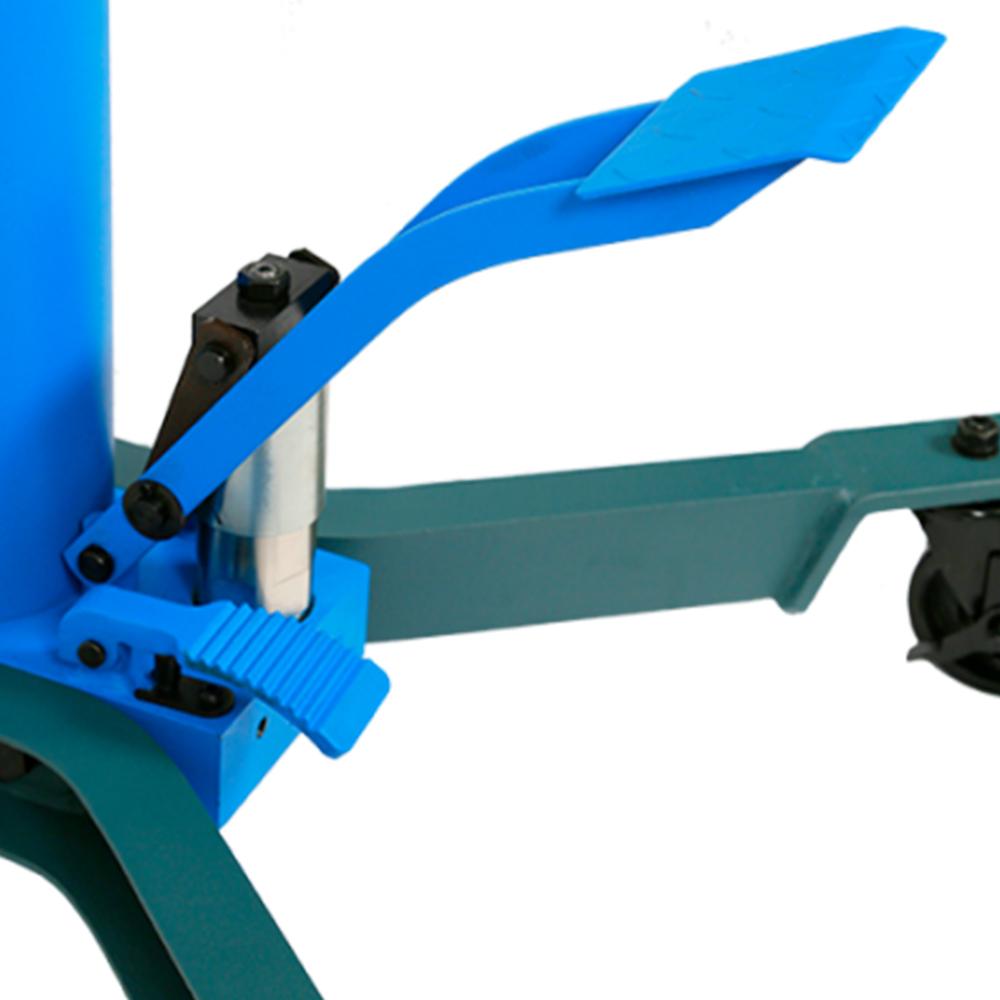

This machine comes with nylon casters that have a four-way tilt which allows for safe maneuvering. Its 4 nylon hardened swivel castors and stable wide base add to its safety. The height of the machine can be easily adjusted as well. Its oversized cradle makes contact with the load faster and easier. The lifter is also equipped with a hydraulic system that allows for a smooth lift. This machine has provisions for hands-free operation too since the rapid lift is entirely foot operated.


Features and Benefits

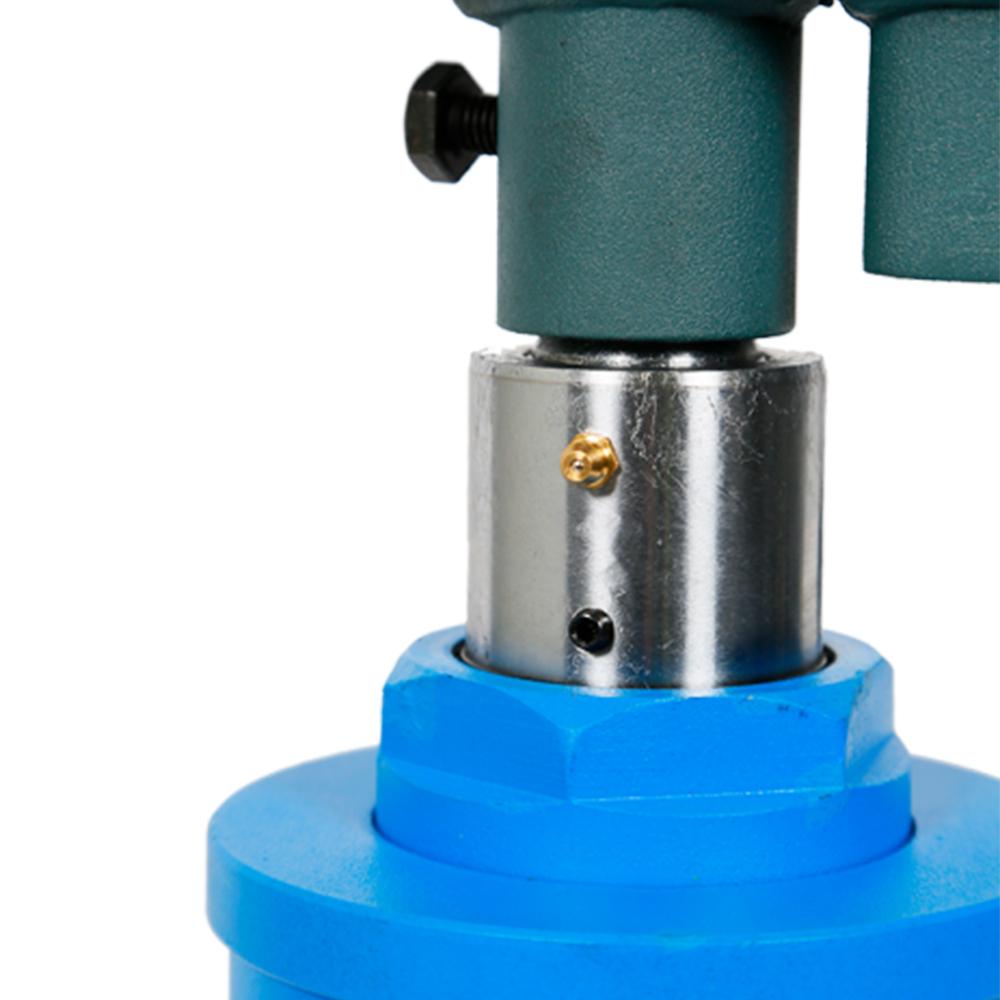

  • Its hydraulic cylinder is made out of high-grade steel for glitch-free operation
  • Its hydraulic cylinder has an efficient lubricating mechanism
  • Comes with anti-dust rings
  • Allows for a rapid lift and slow descent
  • It is coated with lead-free paint that offers it protection from corrosion
  • It comes with a safety valve to prevent overloads
  • The frame and chassis is made out of premium quality steel that offers quality and durability
  • 4-way tilting cradle for perfect mounting angle

Specifications

Safe Working Capacity: 500kg
Maximum Height: 1940mm
Minimum Height: 940mm
2 Stage Lift Ram travel: 1st=490mm 2nd=510mm
Cradle Size: 280x280mm (480x480mm Max.)
Forward Tilt: 55°
Rearward Tilt: 91°
Left Tilt: 55°
Right Tilt: 16°
Base Dimensions: 610 x 740mm

Note: Colour, tone, finish and style of actual products may differ from those shown in the product images.
