TradeQuip Pro 2-Stage Hydraulic Transmission Lifter, 1-Tonne

by TQPro
Save $197.00
Original price $2,215.00
Current price $2,018.00

✓ Fast Shipping + Order Tracking
✓ Questions? Call Us: 1300 913 047

Estimated Arrival: Between and .

Hydraulic Transmission Lifter For Stable And Easy Movement Of Parts

Need to lift that truck but can't really get something sturdy to lift it? TradeQuip's Pro 2-Stage Hydraulic Transmission Lifter is here to help you with that. It is easy to use and can lift weights up to 1000 kgs. This machine can easily lift trucks, small cars and more.

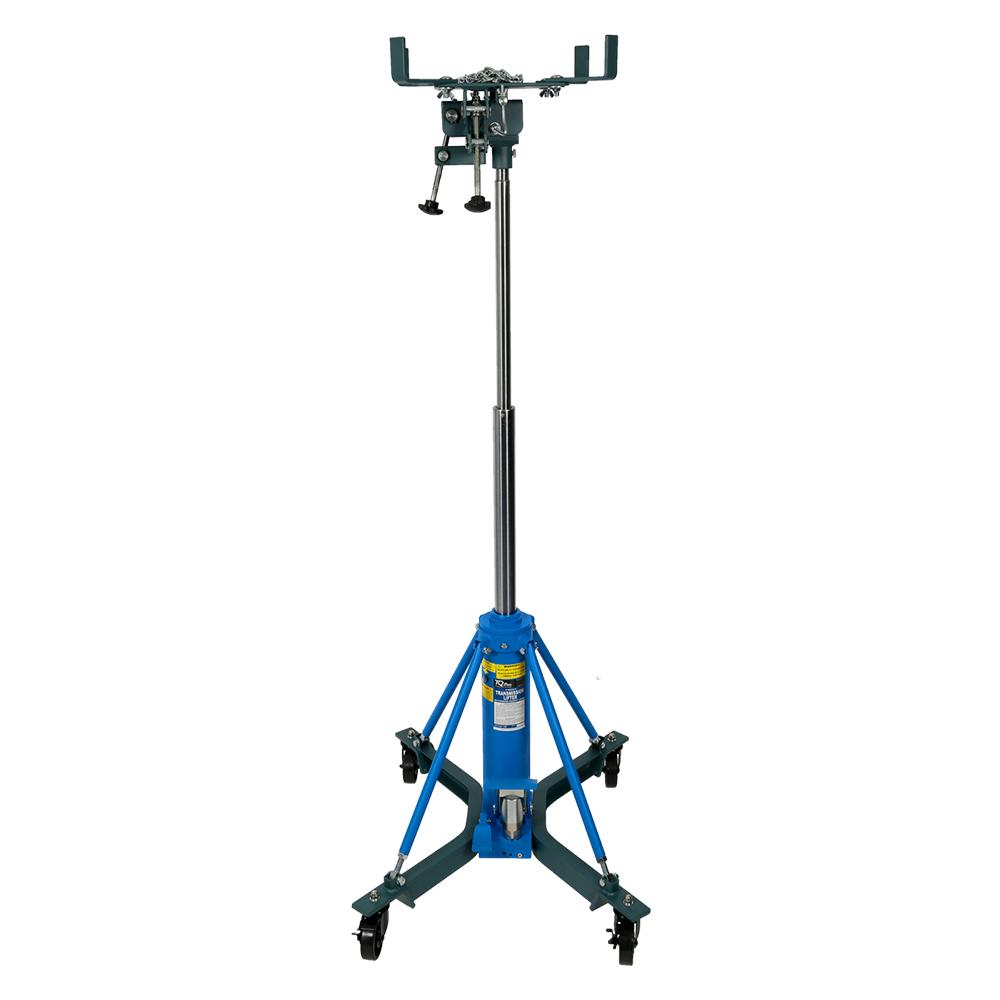

Its hydraulic transmission lifter offers the kind of versatility, stability and durability which is ideal for workshop needs. It comes with a 4-way tilt which offers a greater scope for maneuverability. The lifter also features a 2 stage telescopic design that is useful for lifting loads with reduced clearance heights. The machine also comes with nylon strengthened swivel castors which give it stability. It also has a hydraulic system which is designed to prevent overloading.

Features and Benefits

  • It makes lifting easy and improves productivity
  • The machine is made out of high-grade steel for durability

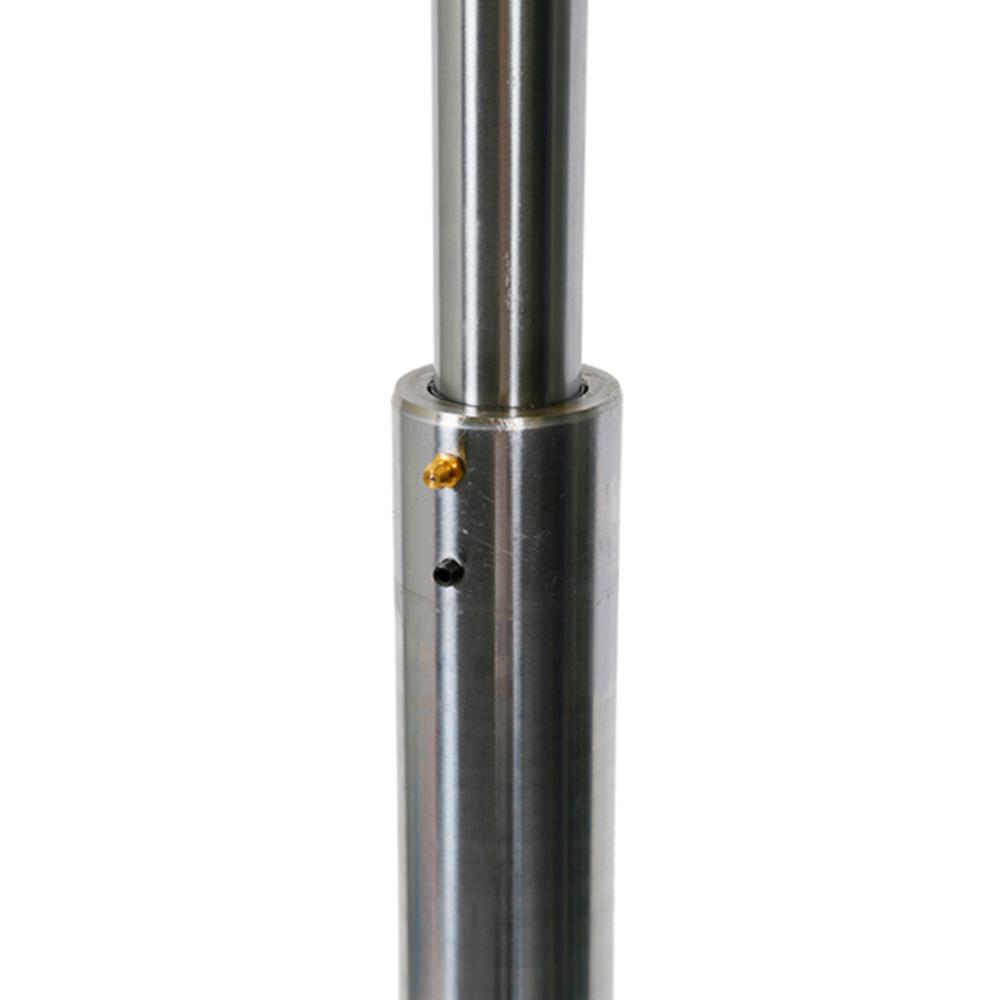

  • Its hydraulic steel cylinder ensures precision tolerance
  • Its hydraulic cylinder has its own lubricating mechanism
  • The piston-ram is treated and polished to minimize wear and tear
  • It comes with anti-dust twin O rings

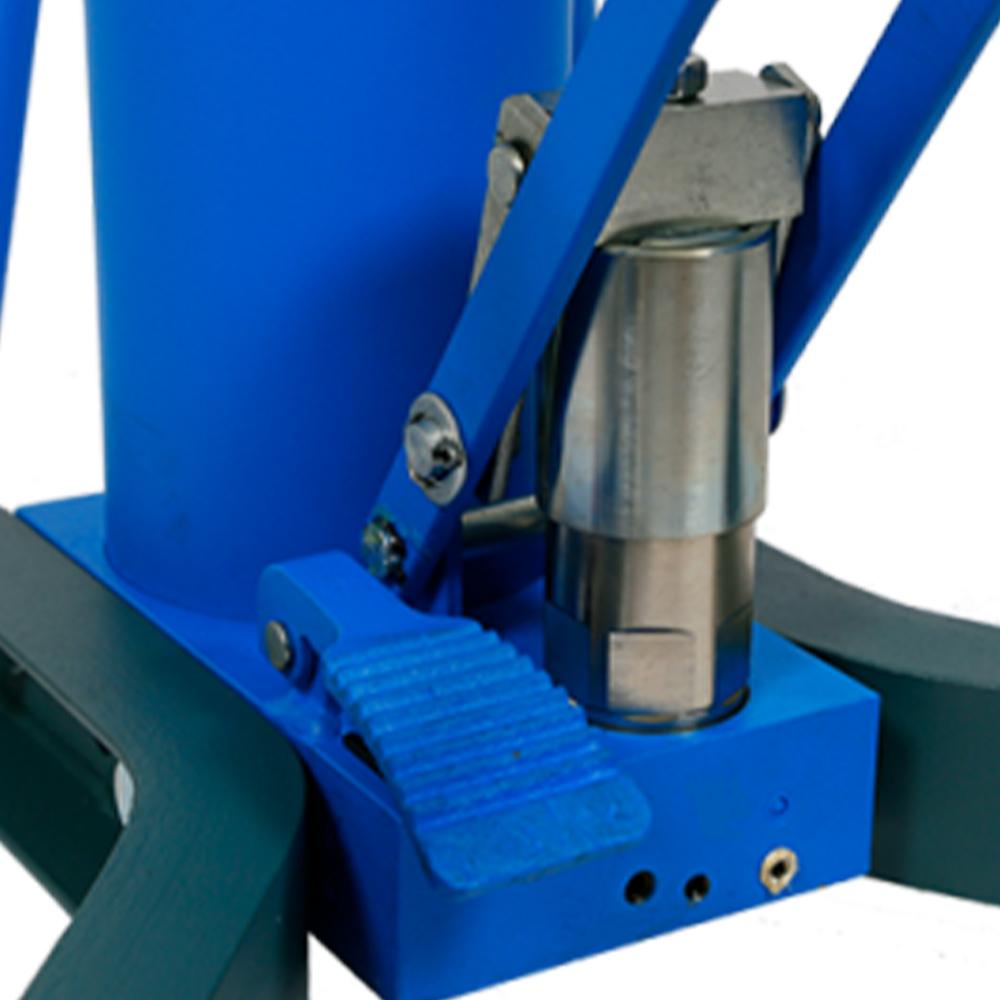

  • It has a safety valve which prevents overloading


Safe Working Capacity: 500kg
Maximum Height: 1940mm
Minimum Height: 940mm
2 Stage Lift Ram travel: 1st=490mm 2nd=510mm
Cradle Size: 280x280mm (480x480mm Max.)
Forward Tilt: 55°
Rearward Tilt: 91°
Left Tilt: 55°
Right Tilt: 16°
Base Dimensions: 610 x 740mm

Note: Colour, tone, finish and style of actual products may differ from those shown in the product images.
