WM System Aluminium 3-Piece AL-Light Van Ramp with Swivel, 400kg Capacity
Authorised dealerSKU: 91030(3)AL-S$5,800 ex GST
- Length3000mm
- Holds400kg
- Made ofAluminium
- Opens to 3m but folds about as small as a 2-piece
- 400kg rated, anti-slip anodised aluminium deck
- Swivels out like a door for rear access
Will it reach your deck? Reaches ~780 mm. Check yours›
Reaches a deck up to ~780 mm high at 15°, the steepest we recommend for walking a trolley up.
Open the ramp calculatorAvailable to order, ships in 5-7 business days
Authorised dealeri
300+ soldi
2-year warrantyi
100-day free returnsi
Rated 4.7 from 1,186 reviews on Google, ProductReview and Trustpilot
WM System Aluminium 3-Piece AL-Light Van Ramp with Swivel, 400kg Ca...
Ramp specifications and dimensions
| Holds | 400kg |
|---|---|
| Made of | Aluminium |
| Brand | WM System |
| SKU | 91030(3)AL-S |
| Length | 3000mm |
| Width | 1000mm |
About this ramp
Lightweight three-piece aluminium fold-out van access ramp with swivel design
Carrying a separate ramp for your van or goods truck can be a hectic task depending upon the application and design of the ramp. A good solution is to use this swivel-based three-piece ramp which installs directly to the floor of the van. The ramp is very easy to install inside the vehicle and can also be removed with similar ease when needed. The ramp has a gas strut system that balances its weight, hence easing the deployment and closing operation.
The AL-Light Fold-out ramp comes standard with an easy swivel mechanism that enables the operator to open and provide easy access to the rear of the van.
This ramp can also be used as a gangway system to connect two platforms of similar or a bit different heights. This helps with moving goods from one vehicle to another or performing similar movements with kerbs or other raised platforms. The end of the ramp has small wheels which help with deployment and stability. The ramp can also be fitted with a movable or curved rear contact flap for gangway-type uses. There is a wide assortment of optional accessories to be used with this ramp system.
The length is the most significant advantage of the AL 3-Piece! The third section folds inside the ramp's middle section, giving you essentially the same folded size that will fit in smaller vans but extends to the required 3m length.
Key benefits
- Opens to 3m but folds about as small as a 2-piece
- 400kg rated, anti-slip anodised aluminium deck
- Swivels out like a door for rear access
- Designed to handle loads up to 400kg
- Anti-slip anodized aluminium platform
- Easy to install with a simple mounting kit
- Movable contact flap to connect to the floor of the van
- Two wheels to facilitate deployment
- Equipped with a rapid fastening system that enables easy transfer of the van ramp from one vehicle to another
- Flexible plates on the front and return of the ramp to facilitate loading even with small wheels and low machines
- Quick-release and coupling
- Also suitable for gangway-type configuration
- 2-Year warranty
- Made in Italy
- NOTE: A timber floor within the van is required (approx. $600.00 for supply and installation depending on the make and model of your van.)
- **Please note – If your vehicle is a Toyota Hi-Ace yr 2019-on – it must have an extra plate for installation

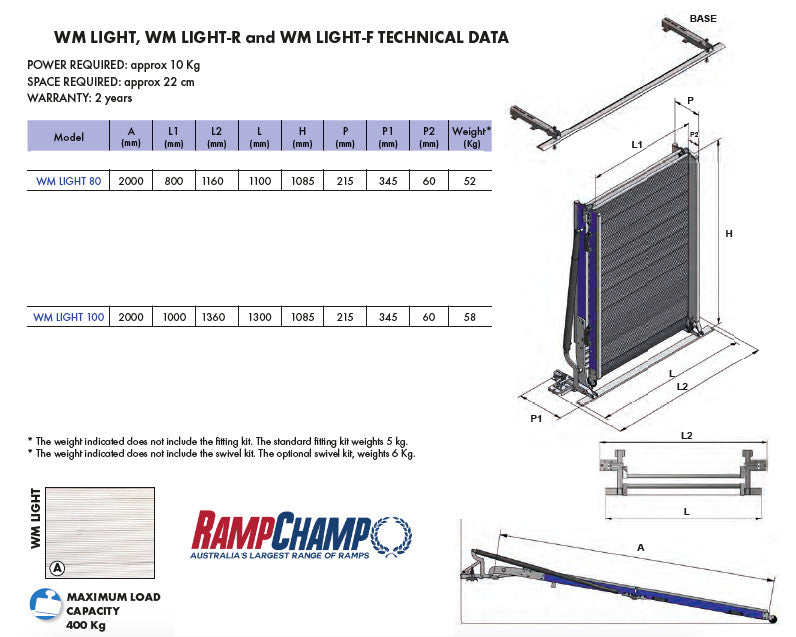

Technical data
Which length for your van?
Delivery
Delivery
This product is a "Bulky Item". Delivery to a business address with unloading facilities or depot is recommended.
Estimate delivery to your door
An estimate for this item to that suburb, from the same rates checkout uses. You choose the delivery method at checkout.
Finance Options
Finance Options
Four interest-free payments, the first at checkout. Choose PayPal at checkout and pick Pay in 4.
How Pay in 4 works on PayPal
Orders over $10,000Equipment financeBusiness equipment finance through Centrepoint Finance. Talk to their team about your purchase.
Apply with Centrepoint
Request a Quote
Request a Quote
Ramp manuals
Everything you need to plan, install and use it. Free to download.
Need another document or a different format? Ask us
Reviews
FAQs
Why choose the 3-piece over a 2-piece?
Why choose the 3-piece over a 2-piece?
The third section folds inside, so it stays about the same folded size for smaller vans but opens out to 3m for a gentler slope.
Does it fit a 2019-on Toyota HiAce?
Does it fit a 2019-on Toyota HiAce?
Yes, but it needs an extra mounting plate.
Do I need a timber floor?
Do I need a timber floor?
Yes, it mounts to a timber floor in the van. We can fit one for you.
Can it swing out of the way?
Can it swing out of the way?
Yes. The swivel opens it like a second door, so you can reach the load area without the ramp.
