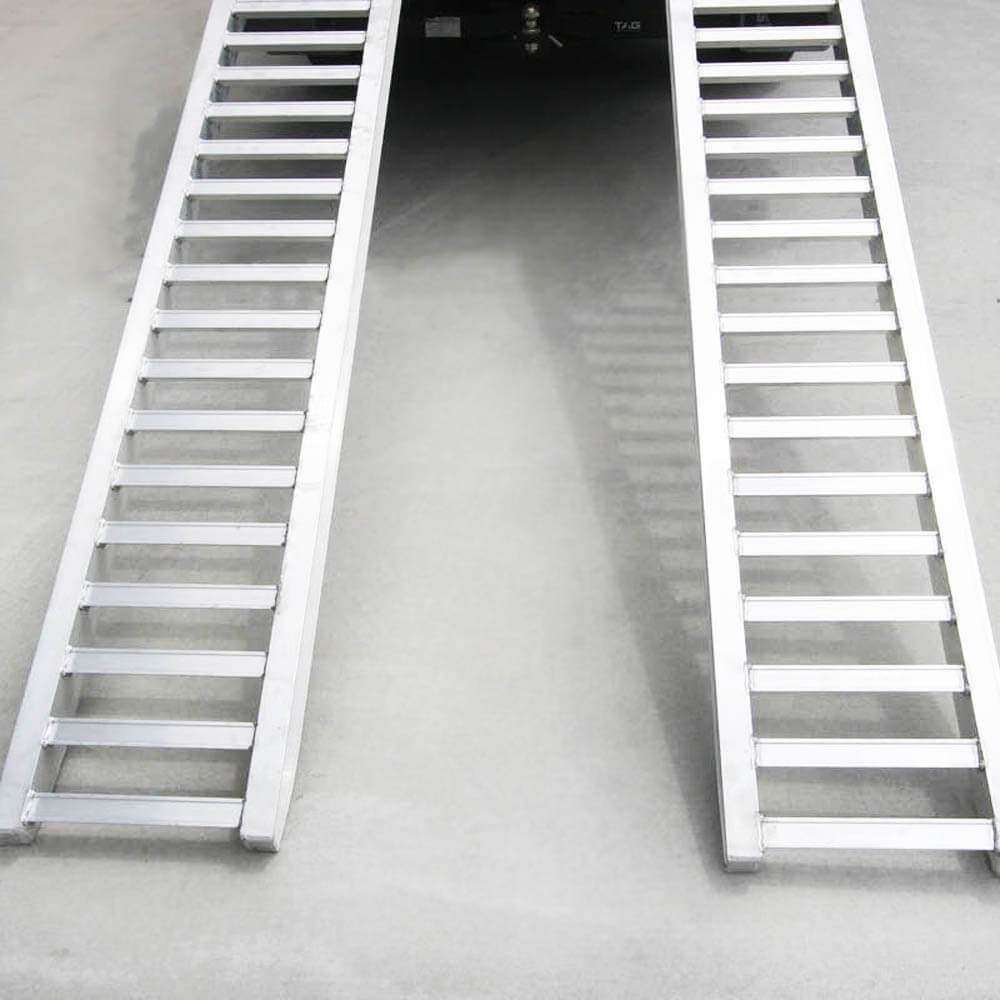

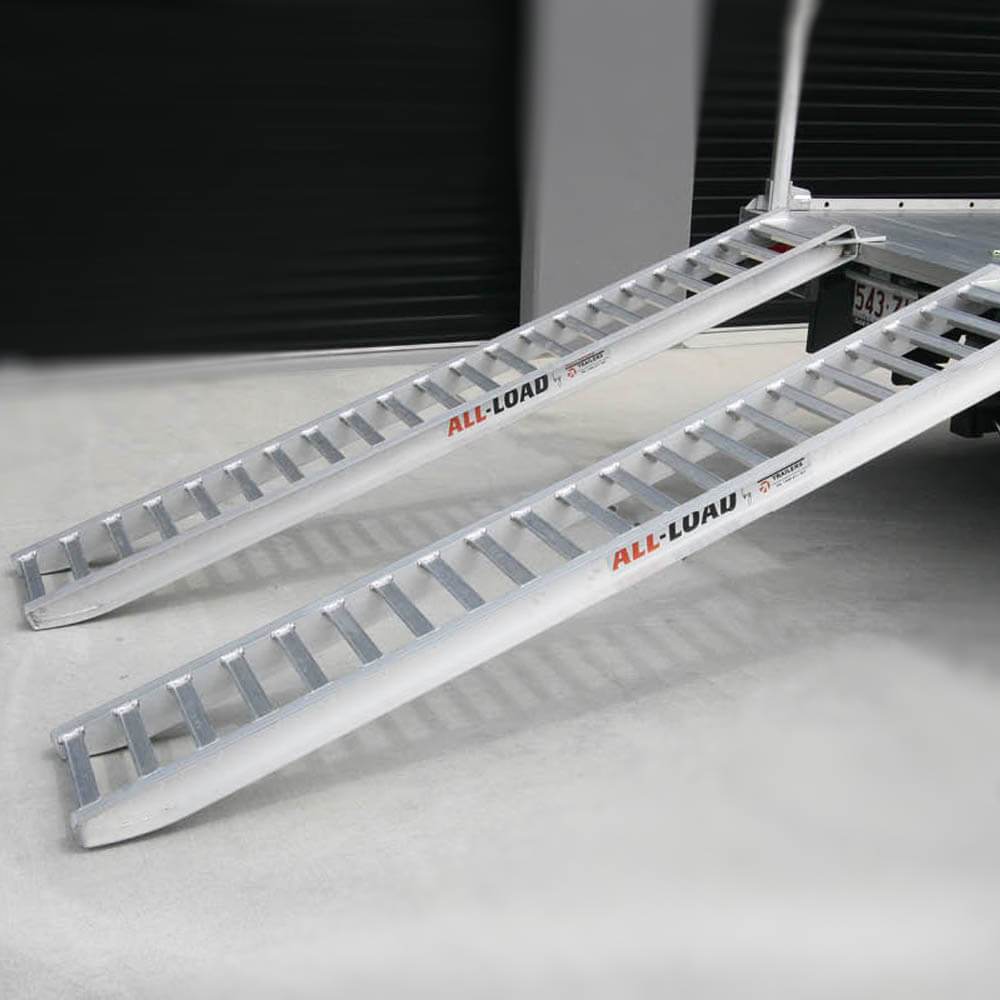

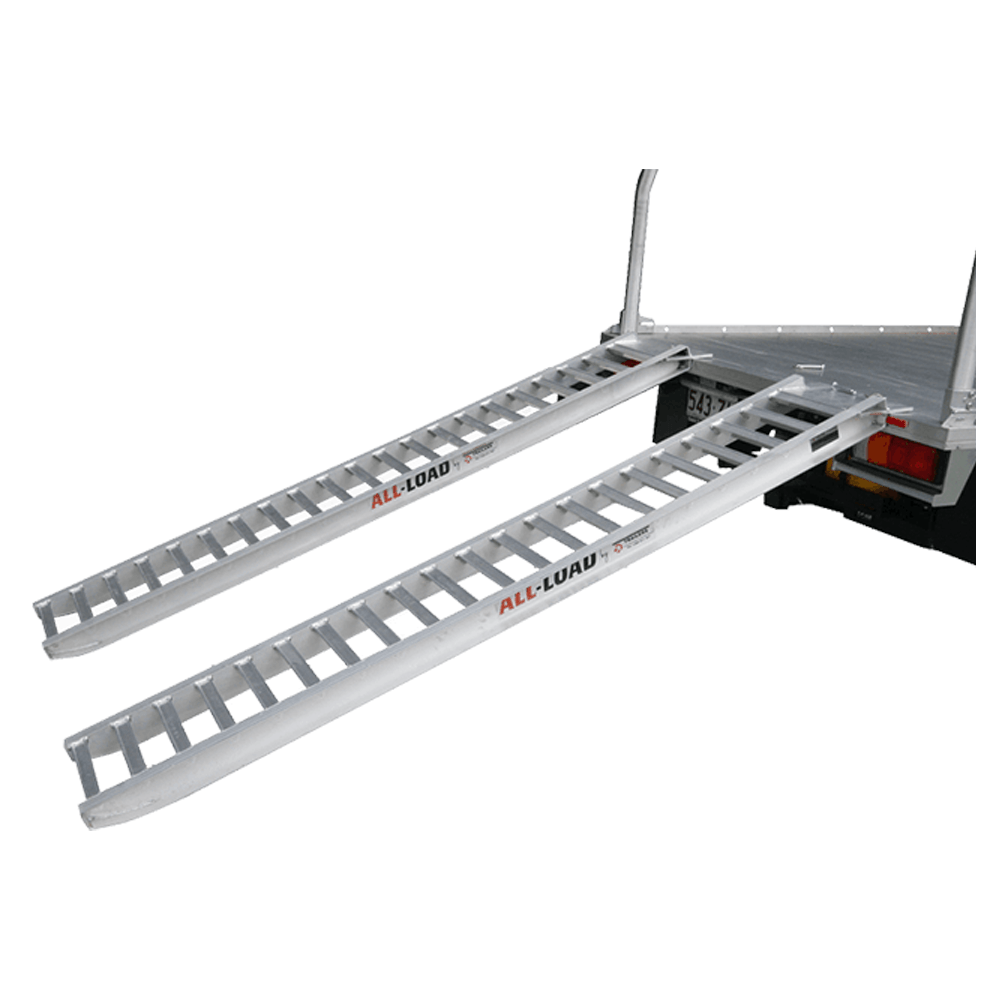

All-Load 4 Tonne 3.5m x 527mm All Types Aluminium Loading Ramps

Save $314.00
Original price $3,523.00
Current price $3,209.00
SKU: ALR/4.0-3.5

✓ Fast Shipping + Order Tracking
✓ Proudly Made in Australia
✓ Questions? Call Us: 1300 913 047

Bulky Delivery Item: This product is bulky and requires a tailgate courier for residential delivery or a forklift to unload for business deliveries. See below for full details.
Estimated Arrival: Between and .

4-Tonne Multi-Use Loading Ramp To Meet Australian Conditions

Unloading or loading heavy machinery on a trailer doesn't have to be a tough or unreliable job any more with these all-load ramps. With an impressive load-bearing capacity of four tonnes, which each of these ramps is capable of. These ramps can withstand even more when used in pairs or multiple quantities. Milled from a high-grade aluminium alloy and manufactured in Australia. These ramps showcase the highest quality.

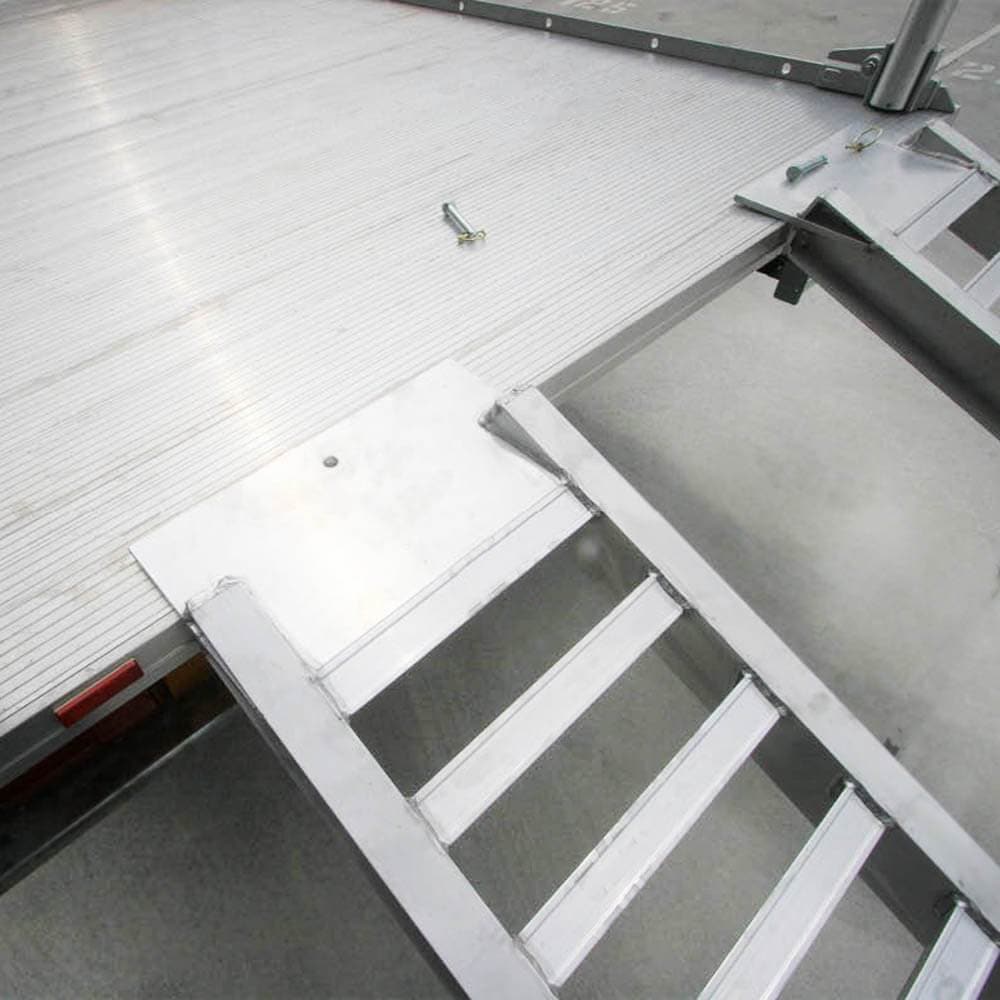

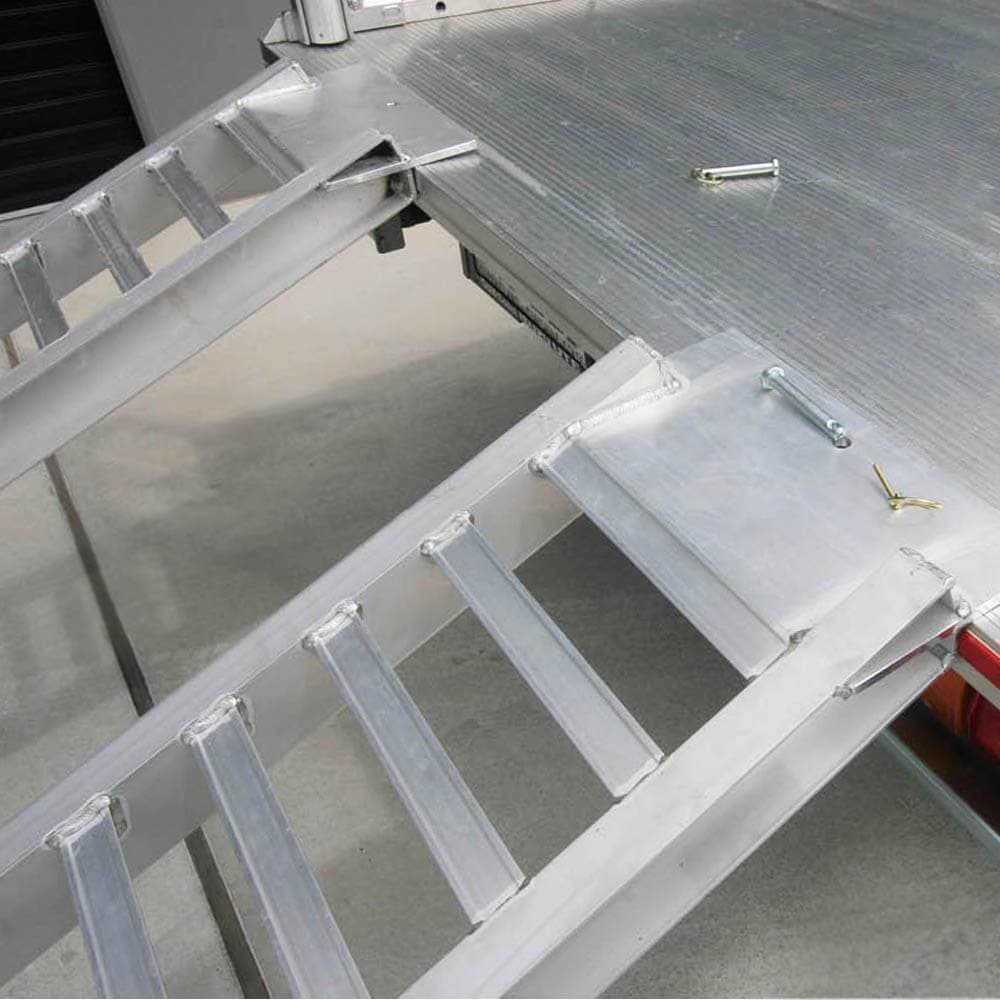

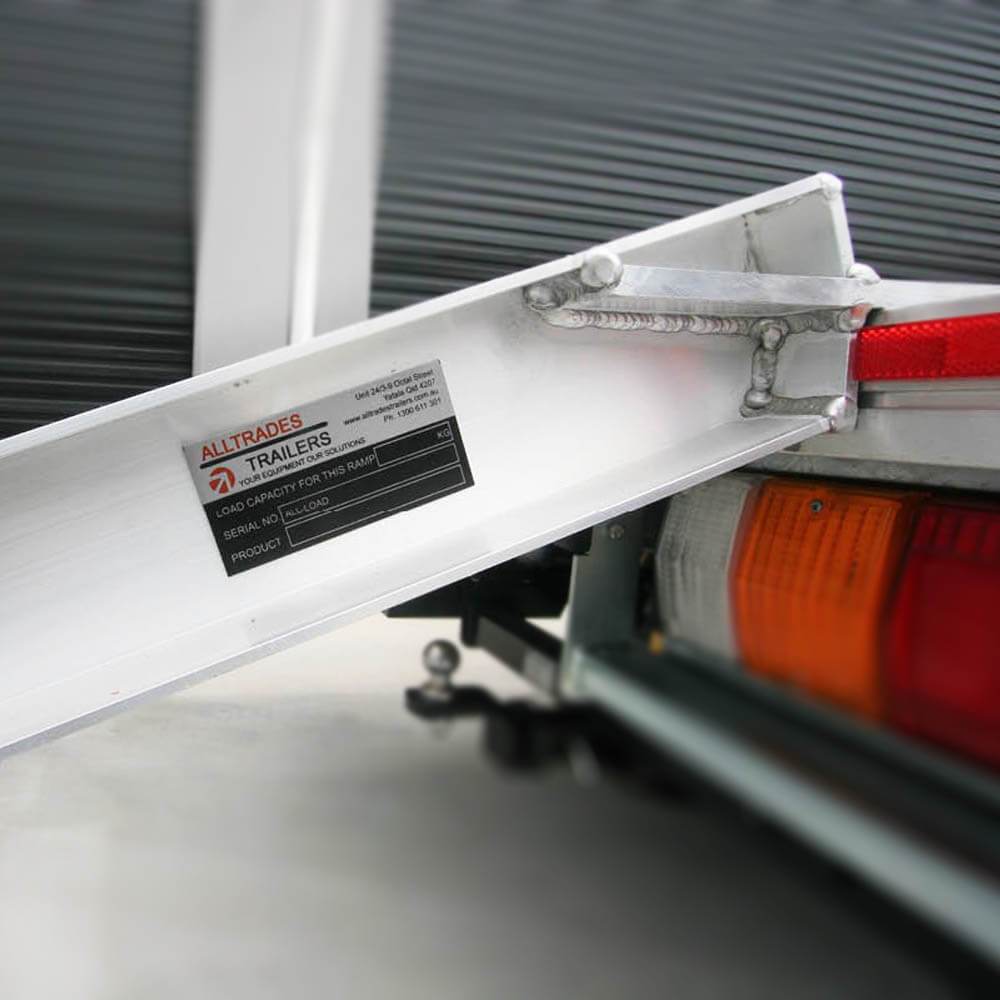

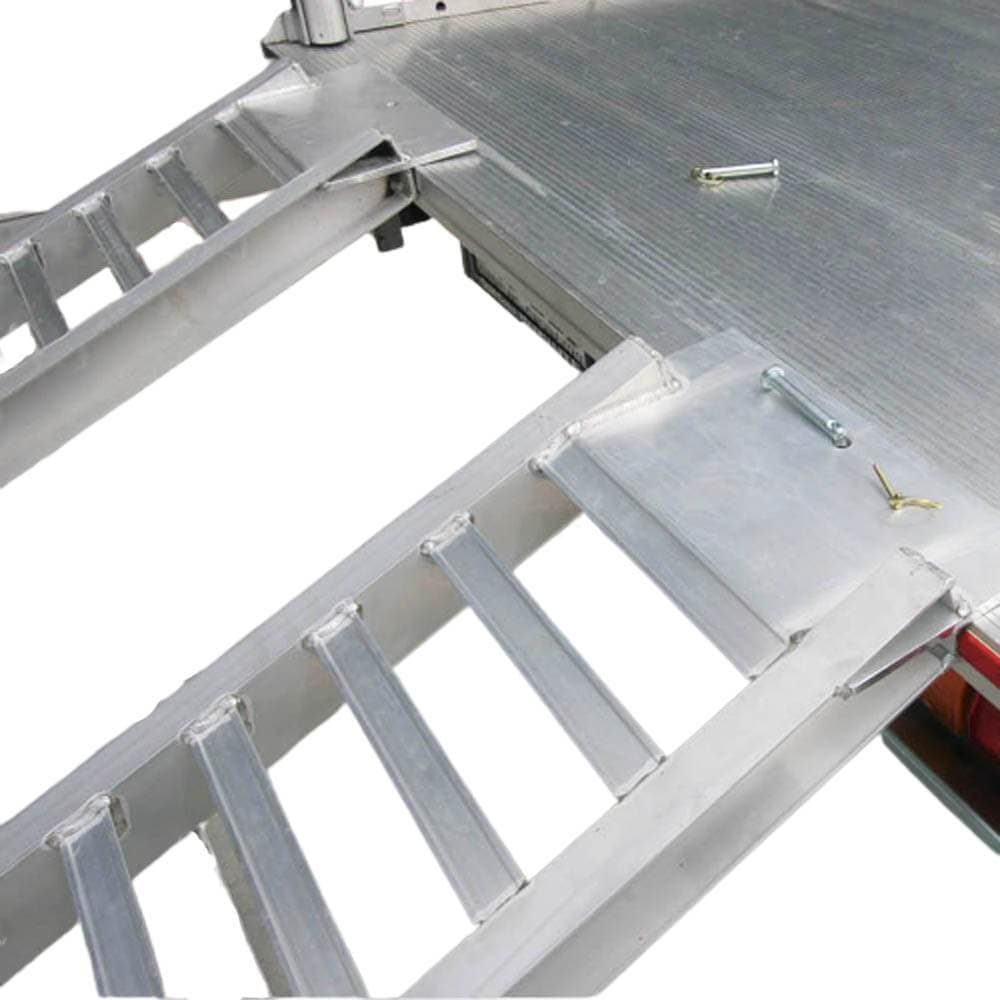

These ramps can be easily attached to a trailer or metal platform via a bolt and cotter. The rungs are custom designed and will suit tyres or tracks. So all you have to consider is the weight of the machinery you're going to roll in or out. These ramps can be stored easily in a trailer and moved around for instant access.

Features and Benefits

  • Four-tonne weight capacity
  • 3.5 metre long for smooth approach angle
  • Custom designed rungs work with tyres or tracks
  • Versatile and durable design
  • Easy to move and store
  • Attaches via a bolt and cotter
  • Ample space between rungs to allow walking


  • Rated Load Capacity Per Pair: 4000kg
  • Ramp Weight Per Ramp: 48.5kg
  • Ramp Length: 3500mm
  • Internal Track Width: 400mm
  • Ramp Width: 527mm
  • Ramp Depth: 127mm
  • Height Up To: 1200mm
  • Rung spacing: 78mm
  • Beam to rung offset/depth: 35mm
  • Beam size: 127mm x 63.5mm
  • Rung size: 37.5mm
  • Shipping Dimensions: 3600mm (L) x 530mm (W) x 300mm(H)

Bulky Delivery Item Details

This product is bulky and requires delivery via a specialist courier to either a home address or business address. For delivery to a business address the receiver is required to have either adequate business facilities to off-load the item via a forklift or loading dock available at the time of delivery during business hours. If delivery is to a residential home address or you do not have the business facilities to off-load please select residential tailgate delivery at checkout to have your item(s) delivered via a courier truck that has tailgate delivery capabilities.

Alltrades Trailers Product Warranty

  • Ramp Champ only works with well-known, industry-leading manufacturers such as Alltrades Trailers. All of our products come with at least a 12-month warranty. See full product warranty details here.
  • Minor scratches and blemishes may be visible upon receipt of your item. However, if the item is delivered damaged please contact us immediately. See full shipping details here.
  • Alltrades Product Warranty Information
Ramp Calculator

Note: Colour, tone, finish and style of actual products may differ from those shown in the product images.

Need Help Choosing Loading Ramps?

The construction industry is tough and the machinery even tougher; with the right loading ramps you can ensure that your expensive equipment is safe when loading or unloading your truck. For help choosing the best suitable construction machinery loading ramps click the button below.
