AusRamp 4 Tonne 3.5m x 450mm Aluminium Loading Ramps

by AusRamp
1 review
Sold out
Ramp Champ free shipping
SKU: 4-425R

✓ Free Metro Shipping
✓ Proudly Made in Australia 🇦🇺
✓ Questions? Call Us: 1300 913 047

Tail Lift May Be Required For Delivery: This product may be bulky and require a tail lift delivery. See below for full details.

Need A Quotation? Request a free quote

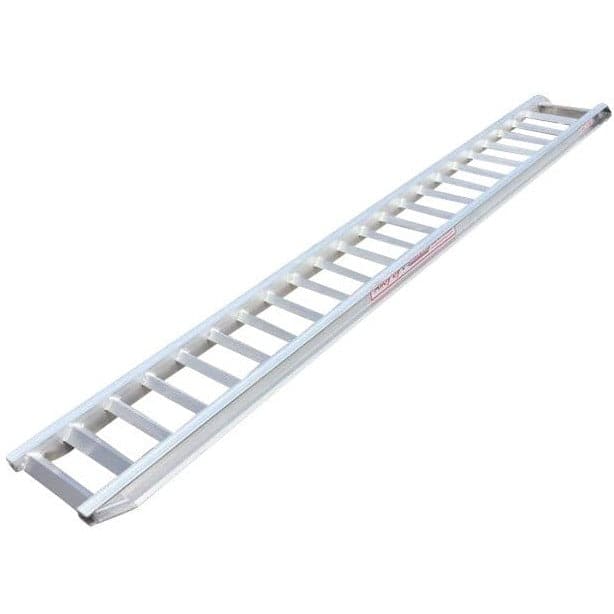

AusRamp 4 Tonne 3.5m x 450mm Aluminium Machinery Loading Ramps, Pair

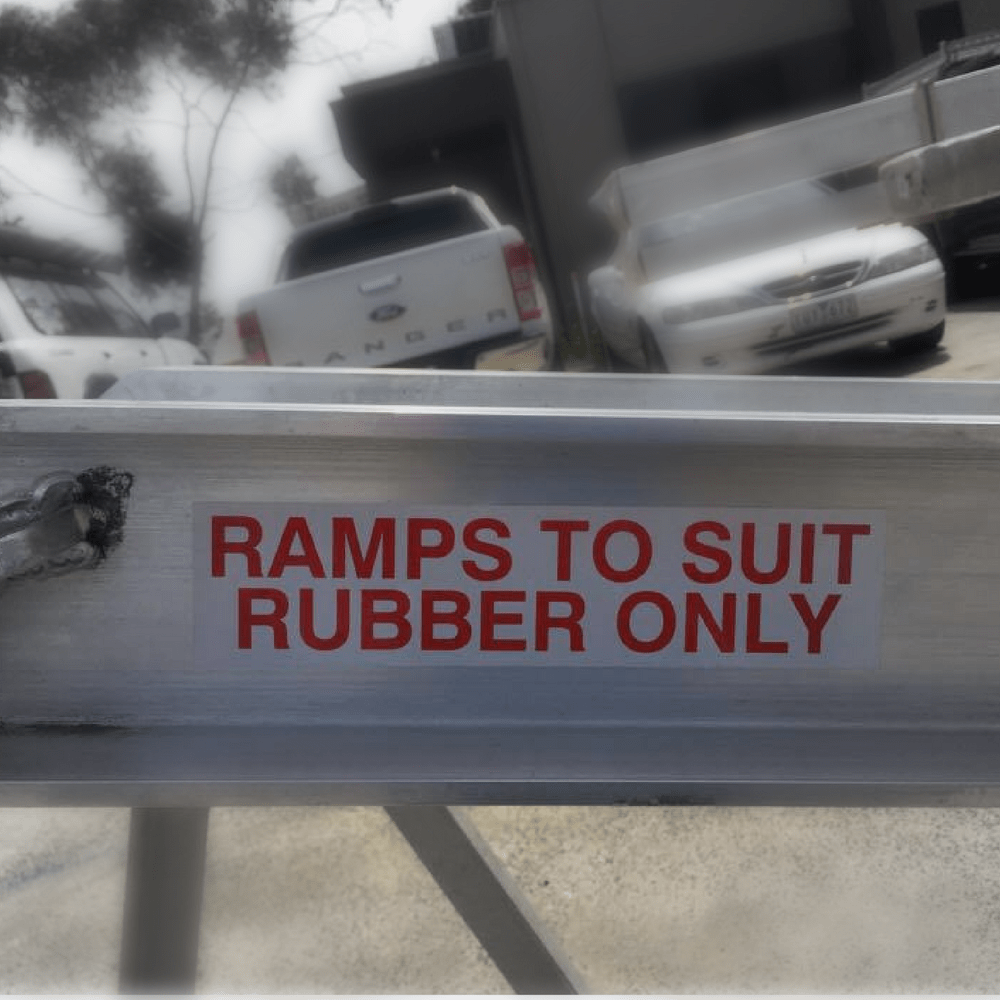

The AusRamp 4 Tonne 3.5m x 450mm Aluminium Machinery Loading Ramps are suitable for rubber tracks and pneumatic tyres.

At a capacity rating of 4 tonne per pair, the lightweight aluminium ramps are ideal for loading skid steer loaders, mini backhoes and small excavators.

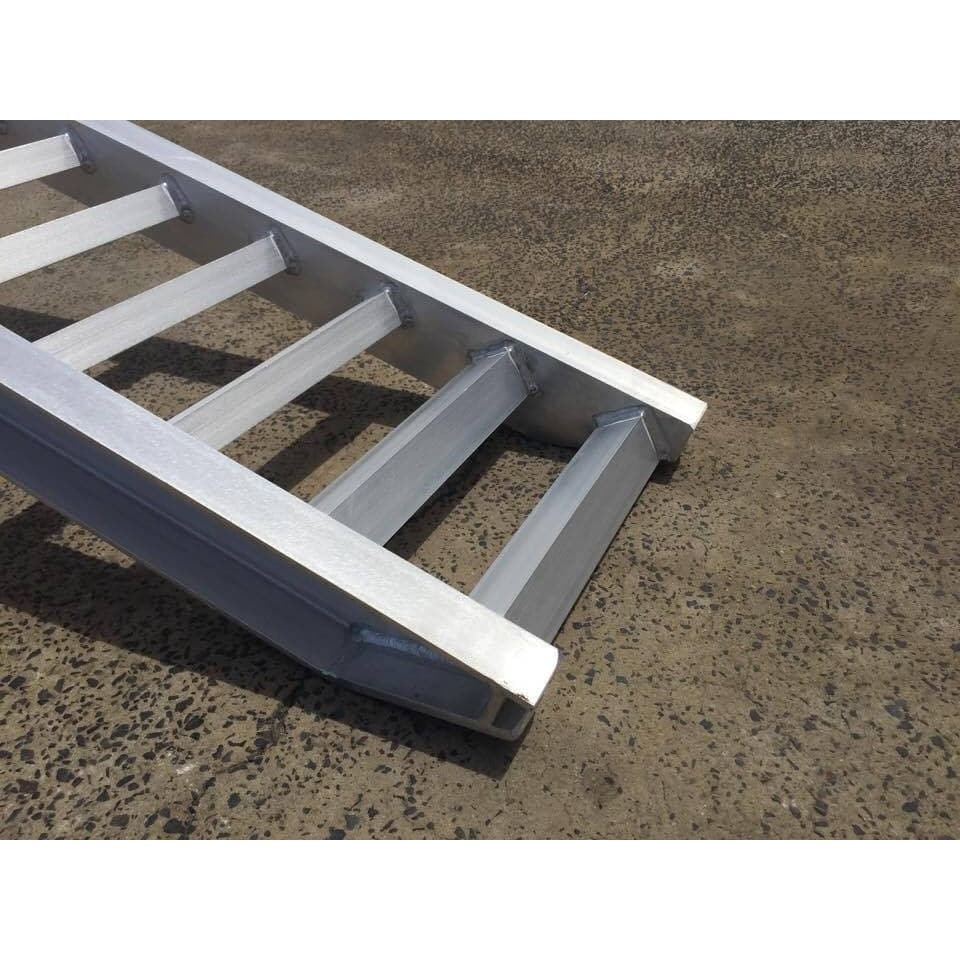

AusRamp ramps incorporate a design feature that prevents bottoming out when loading or unloading.

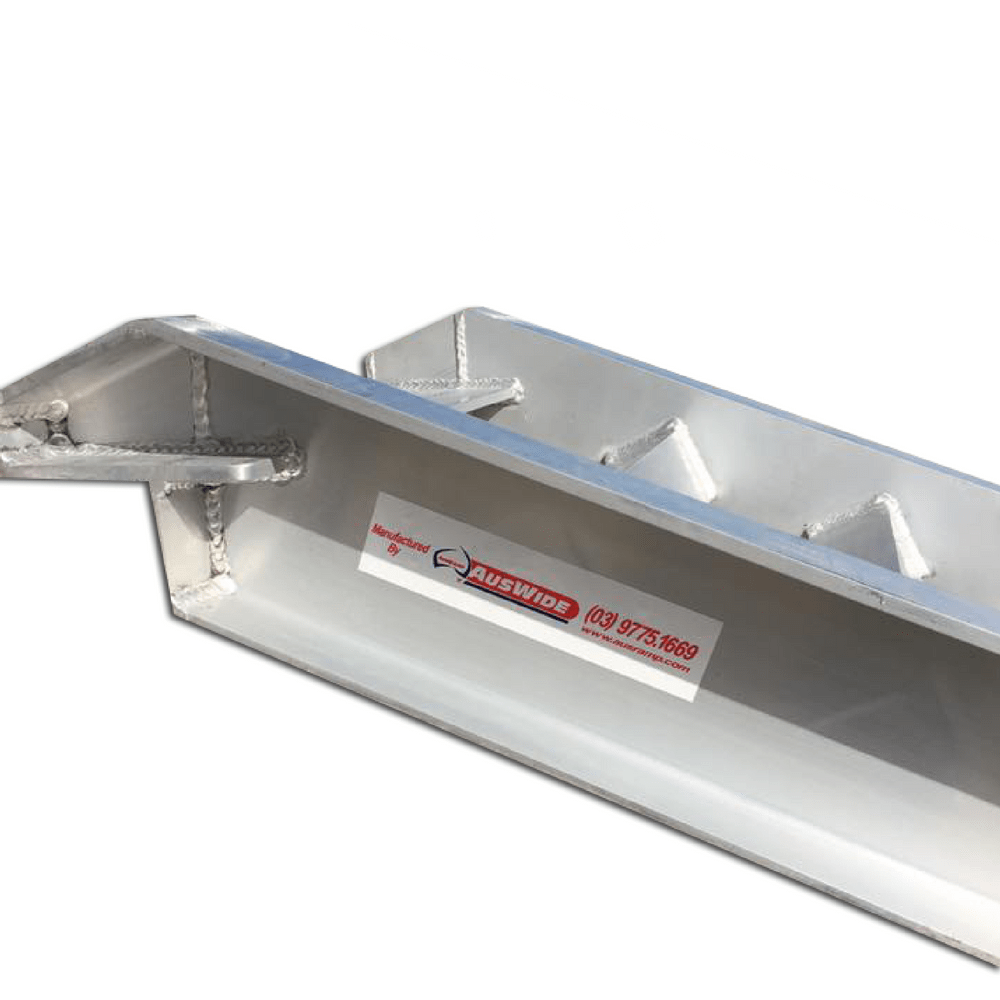

Additionally, all ramps are supplied with forged locking pins to ensure a safe, secure attachment to the loading plate.

Features and Benefits

  • Suited to tracked and wheeled machines
  • Australian designed and manufactured

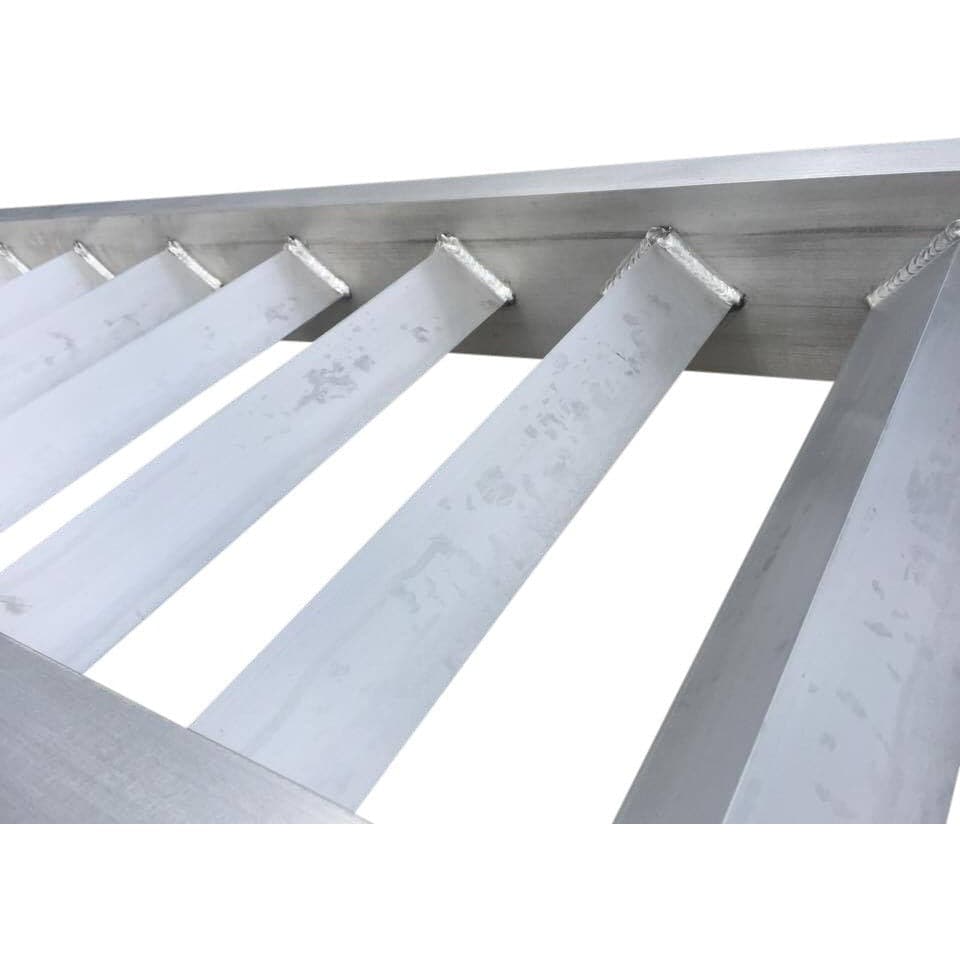

  • Manufactured from structural-grade alloys to ensure the maximum strength available

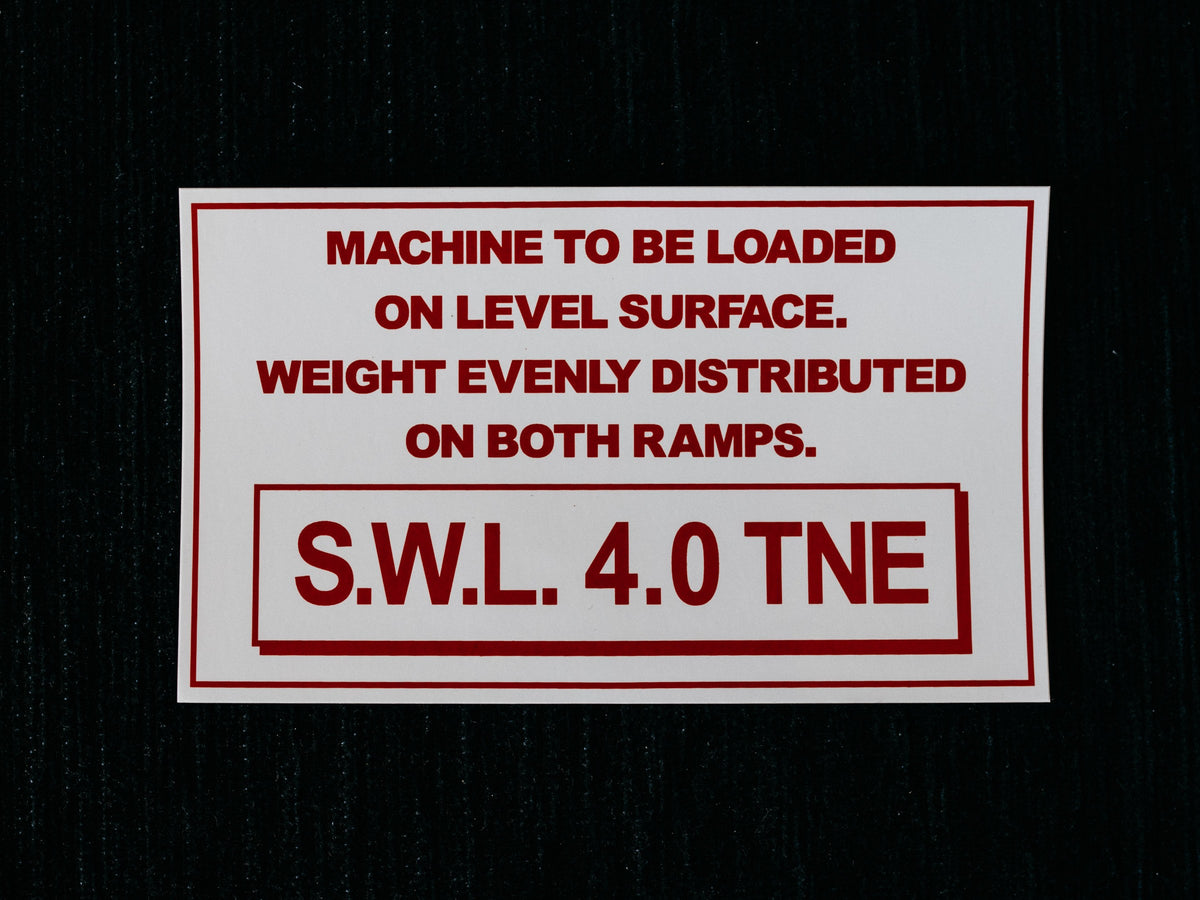

  • Compliance Plates recording the model number, load capacity and serial number ensure traceability and safe work practice.
  • Connecting plate and pin ensures maximum stability and safety
  • 12-month warranty
  • Sold in pairs


  • Rated Load Capacity Per Pair: 4 tonne
  • Ramp Weight: 36kg
  • Ramp Length: 3.5m
  • Internal Track Width: 350mm
  • Ramp Width: 450mm
  • Ramp Depth: 125mm
  • Height Up To: 1.2m


AusRamp Ramp Specifications

















Up To

1.5tn 1500kg 12.5kg
300mm 375mm 75mm 1.2m
3-425R 3000kg 30kg 3.5m 325mm 425mm 105mm 1.2m
4-425R 4000kg 36kg 3.5m 350mm 450mm 125mm 1.2m
4.5-500SR 4500kg 40kg 3.5m 425mm 525mm 125mm 1.2m
5.510SR 5000kg 49kg
470mm 550mm 150mm 1.2m
6-610SR 6000kg 55kg
500mm 620mm 160mm
8-660SR 8000kg 68kg
500mm 620mm 160mm


Can't find the ramp you're looking for? Use the chat function in the corner of the window or Contact us for advice if you're unsure what ramps are suitable for you.

    AusRamp authorised dealerAustralian made loading ramps - Sureweldone year warranty on ausramp 4 tonne ramps

    Free Metro Delivery

    Get your ramps delivered to your business address with a suitable forklift to unload 100% free to metro areas. Residential delivery address and outside merto area delivery address fees apply.

    2 x Manufacturers Warranty

    We double the iron clad manufacturers warranty giving you up to 3 full years peace of mind knowing your ramps will perform exactly as they should. Registration required.

    10% Off Accessories

    We don't just have ramps. Shop bollards, fuel tanks, attachments and more with a bonus 10% off construction accessories with each ramps purchase using code LOADINGRAMPS10 at checkout.

    Optional Tail Lift Delivery For Bulky Items

    Standard delivery price provided at checkout requires the receiver to have adequate facilities to off-load the item via either a forklift or loading dock available at the time of delivery (business hours). If you do not have the facilities to off-load please select "Yes Tail Lift" under Optional Tail Lift Delivery above to have your item delivered via a courier truck that has tail lift delivery capabilities.

    Note: Colour, tone, finish and style of actual products may differ from those shown in the product images.

    * Free shipping applies to metro city delivery areas only. Additional charges may apply to deliveries outside major city metro areas.

    Ramp Champ price match guarantee
