AusRamp 5-Tonne 3.5m x 550mm Aluminium Loading Ramps

by AusRamp
3 reviews
Save $233.00
Original price $2,556.00
Current price $2,323.00
SKU: 5-510SR

✓ Fast Shipping + Order Tracking
✓ Pickup In-Store Available
✓ Proudly Made in Australia
✓ Questions? Call Us: 1300 913 047

Bulky Delivery Item: This product is bulky and requires a tailgate courier for residential delivery or a forklift to unload for business deliveries. See below for full details.

Estimated Arrival: Between and .

Request a Quote

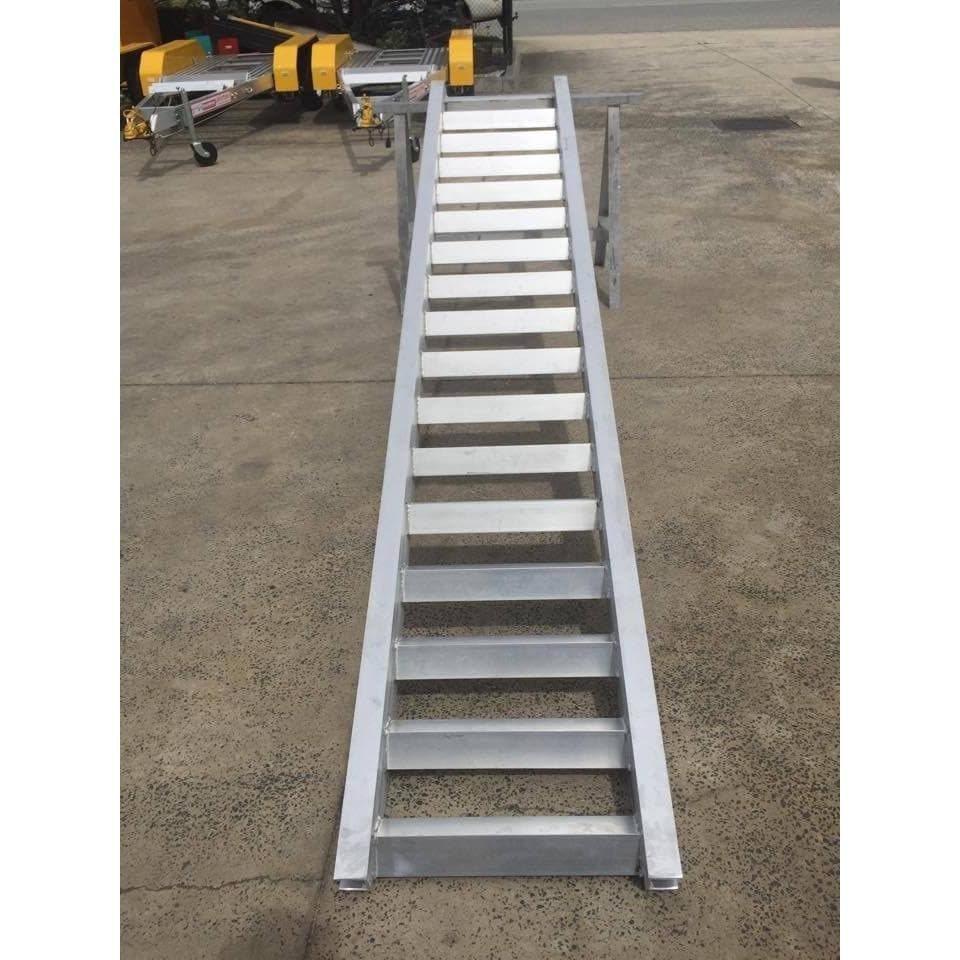

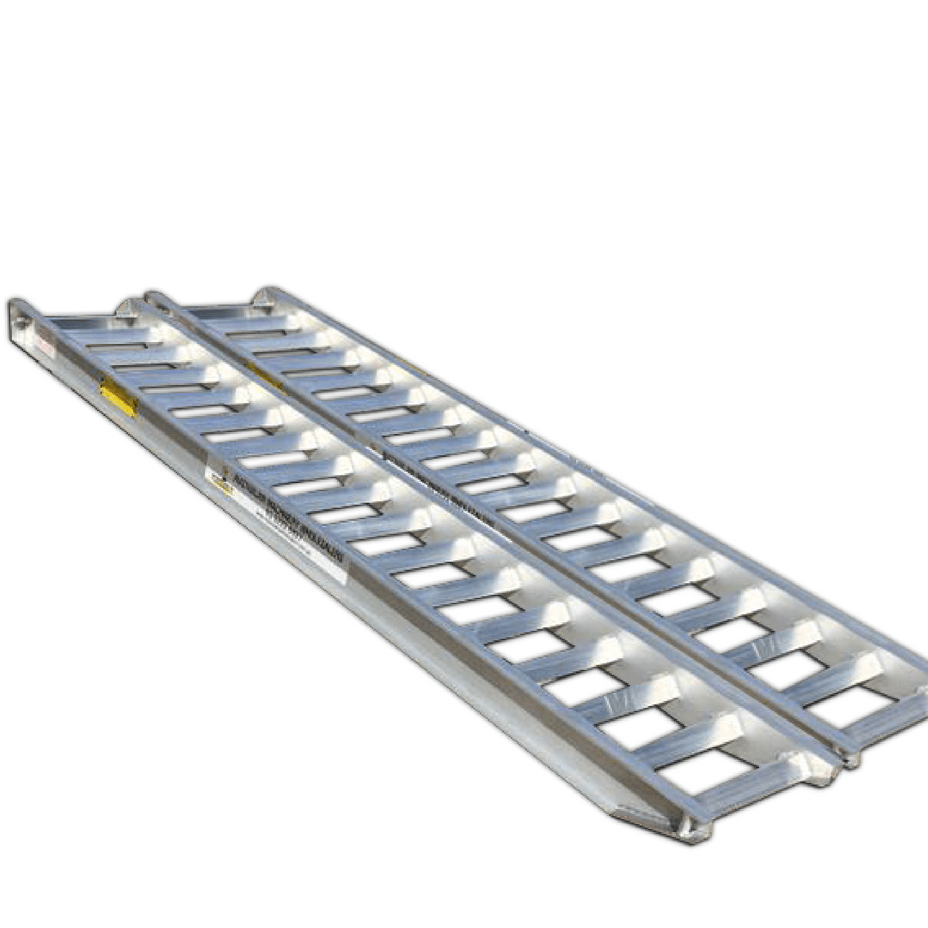

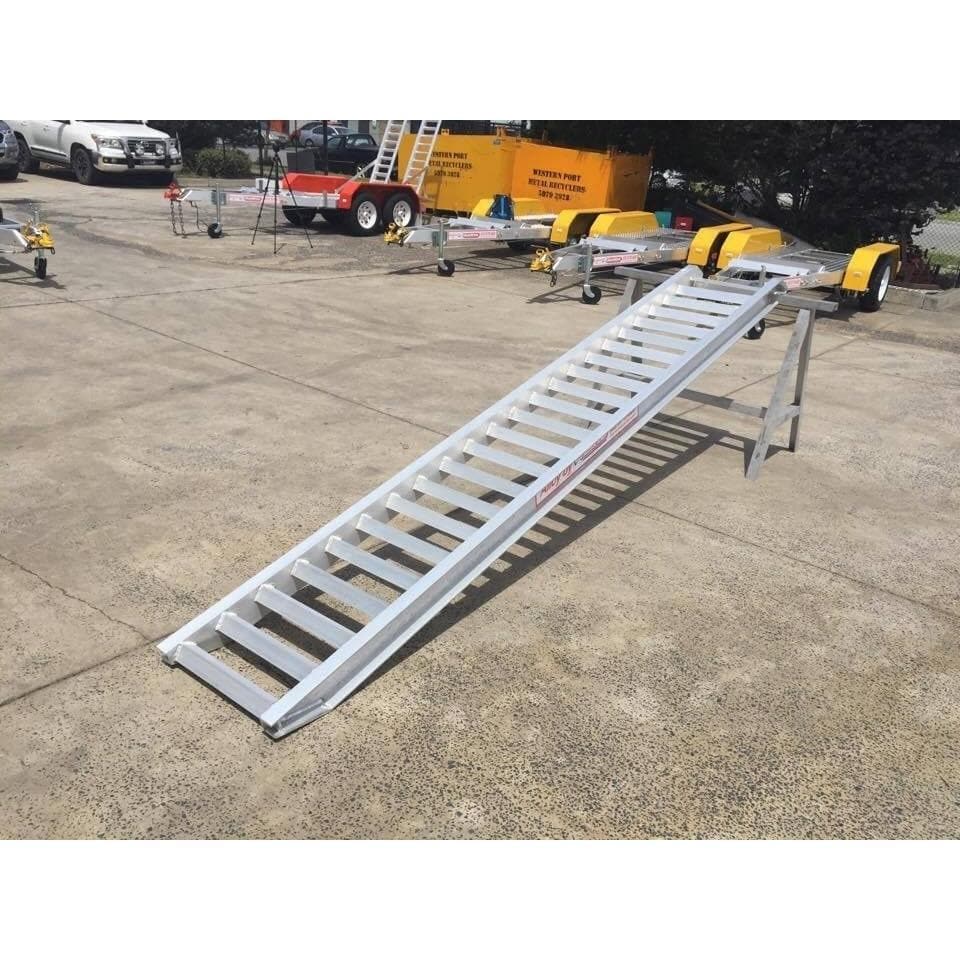

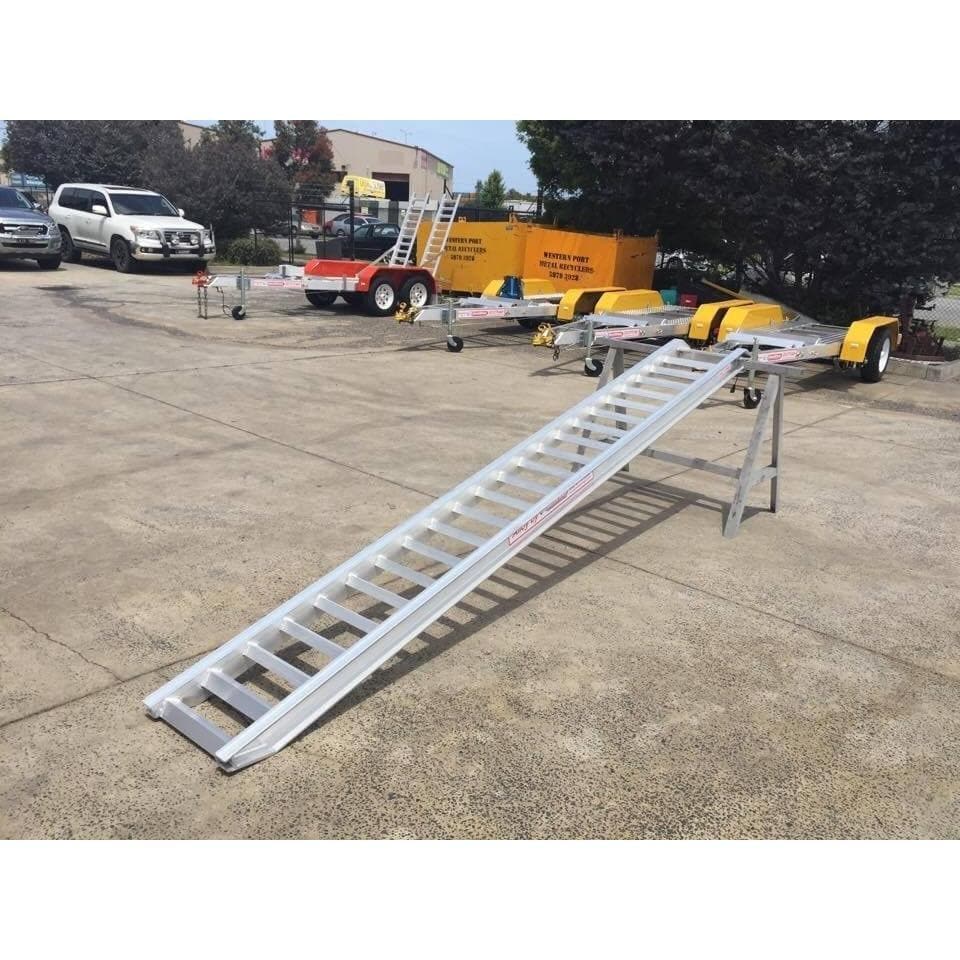

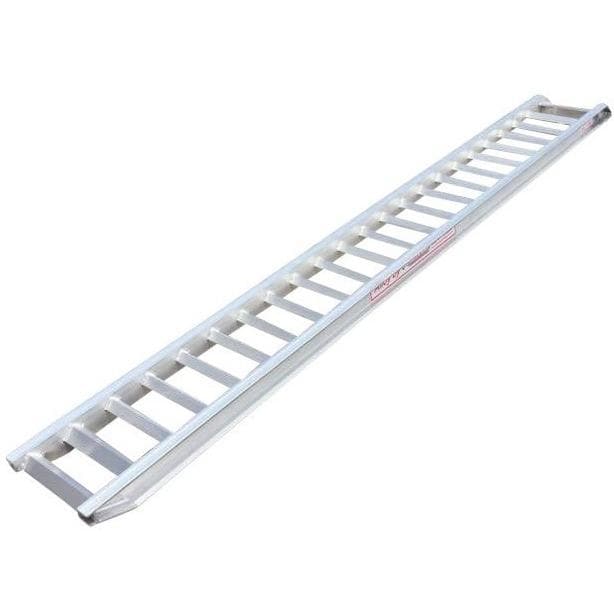

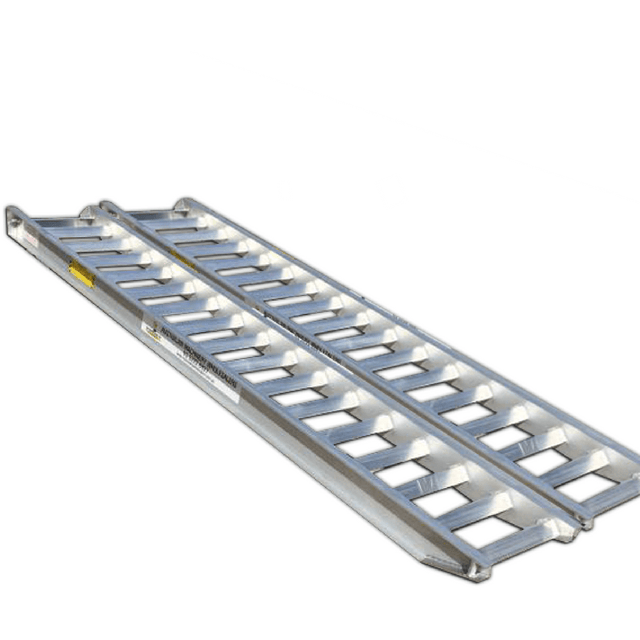

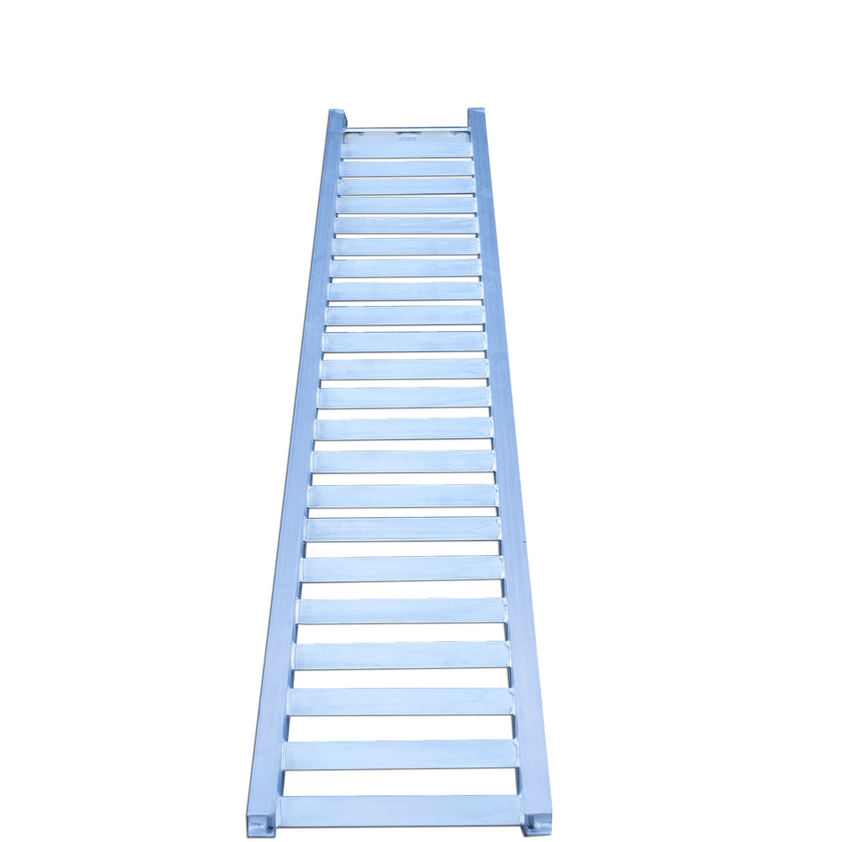

AusRamp 5 Tonne 3.5m x 550mm Aluminium Machinery Loading Ramps, Pair

The AusRamp 5 Tonne 3.5m x 550mm Aluminium Machinery Loading Ramps are over-engineered to ensure they can safely accept steel or rubber tracks and pneumatic tyres.

This means you no longer need to have individual ramps to cope with various means of traction. One set of AusRamp loading ramps does it all.

At a capacity rating of 5 tonne per pair, the lightweight aluminium ramps are ideal for loading agricultural industry machines, tractors, skid steers and mini excavators.

AusRamp ramps incorporate a design feature that prevents bottoming out when loading or unloading.

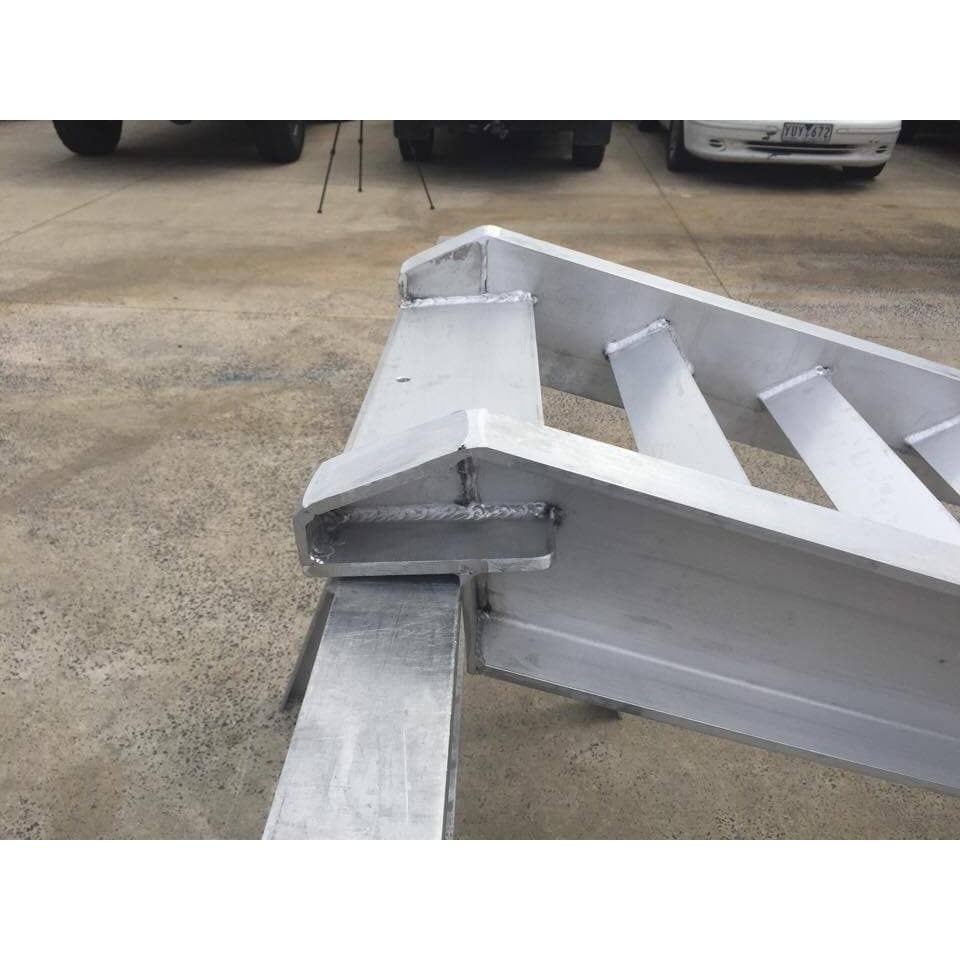

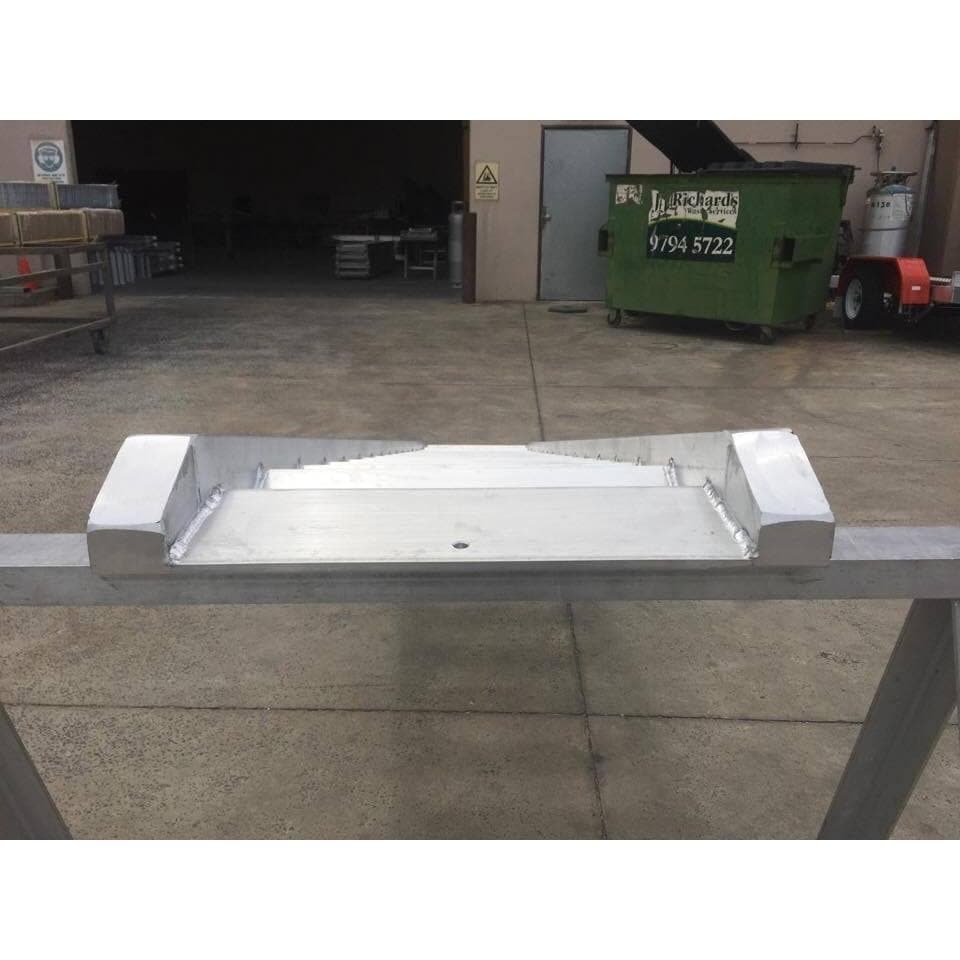

Additionally, all ramps are supplied with forged locking pins to ensure a safe, secure attachment to the loading plate.

Features and Benefits

  • Suited to tracked and wheeled machines
  • Australian designed and manufactured

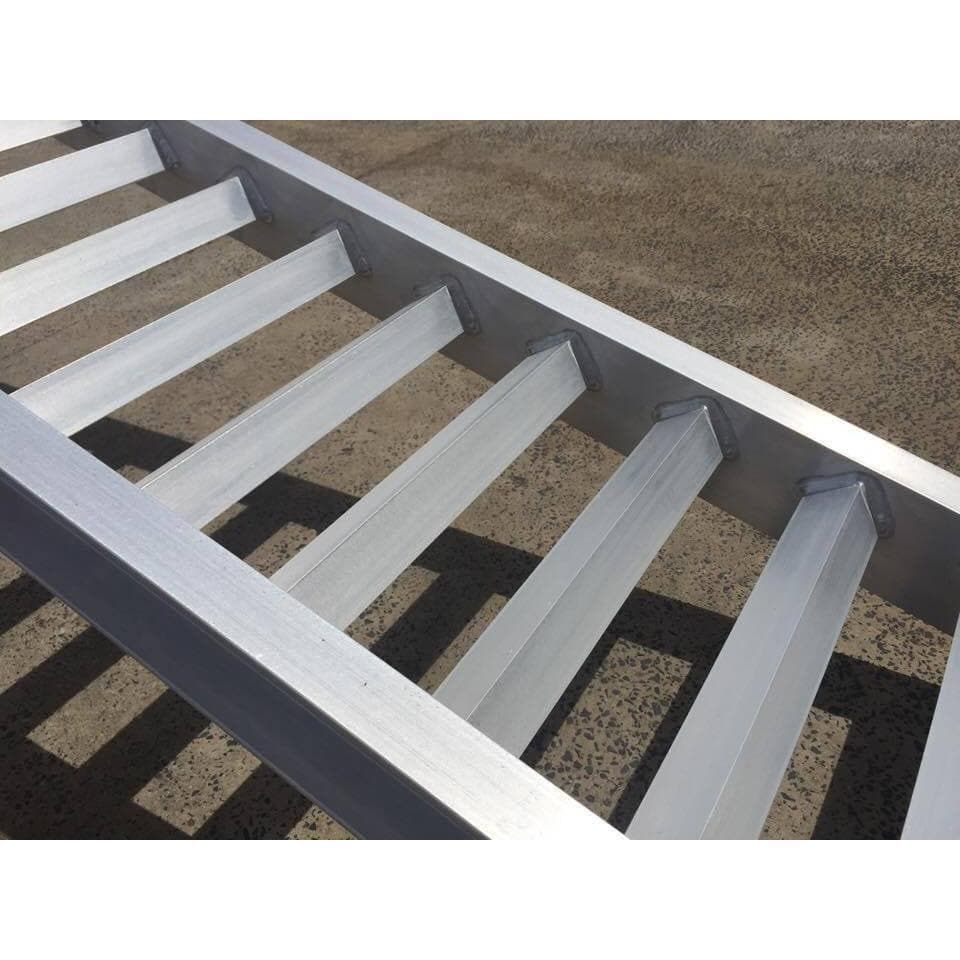

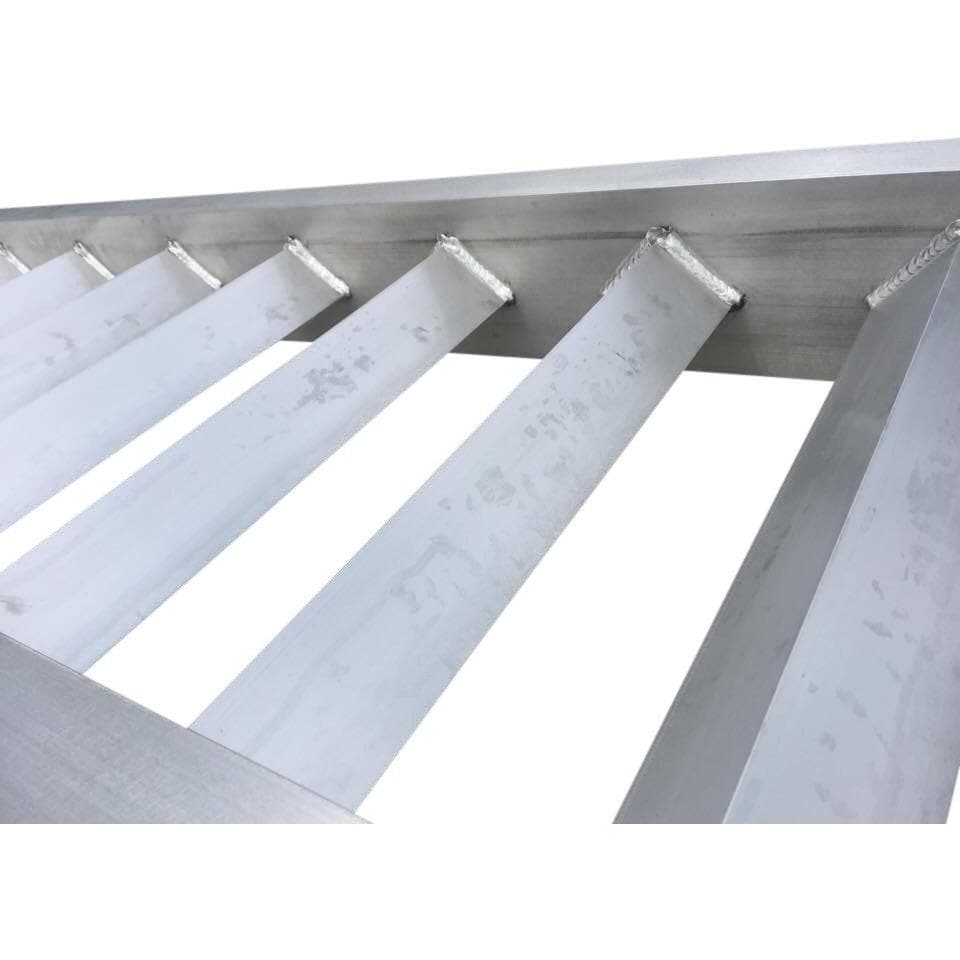

  • Manufactured from structural-grade alloys to ensure the maximum strength available

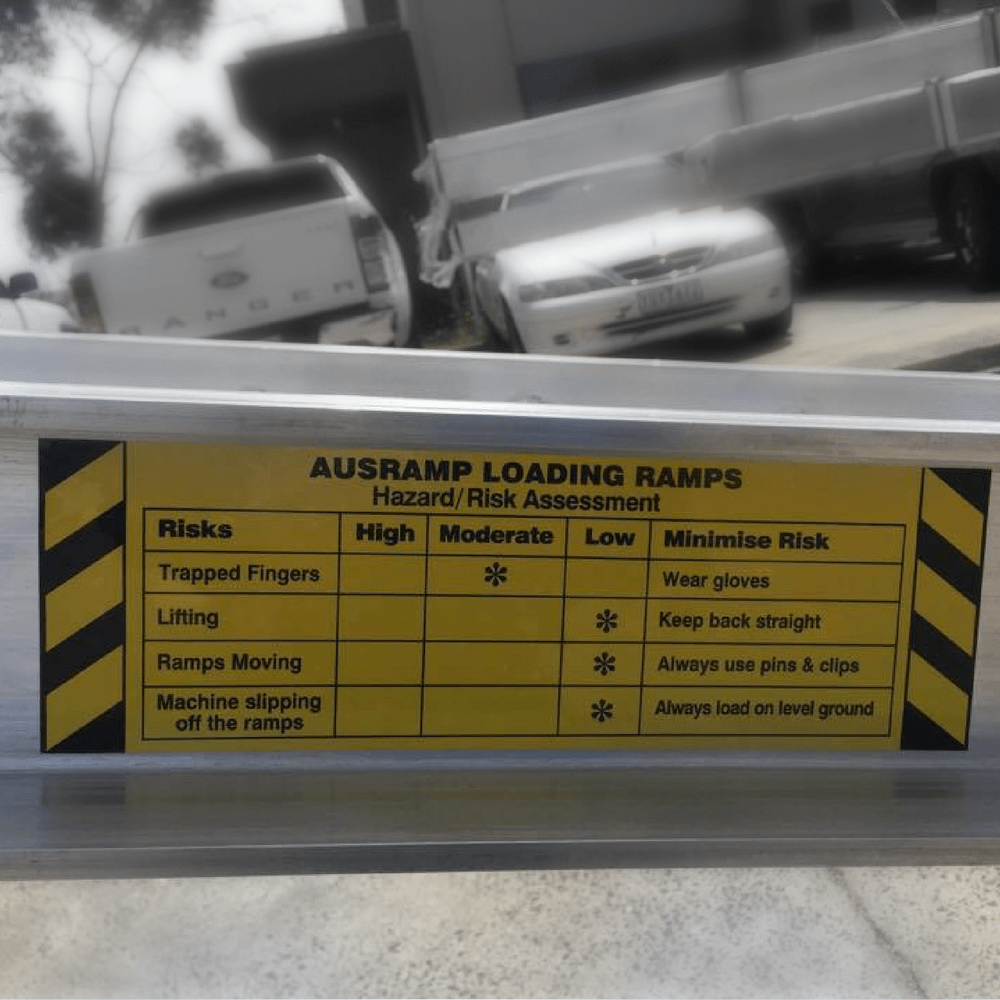

  • Compliance Plates recording the model number, load capacity and serial number ensure traceability and safe work practice.

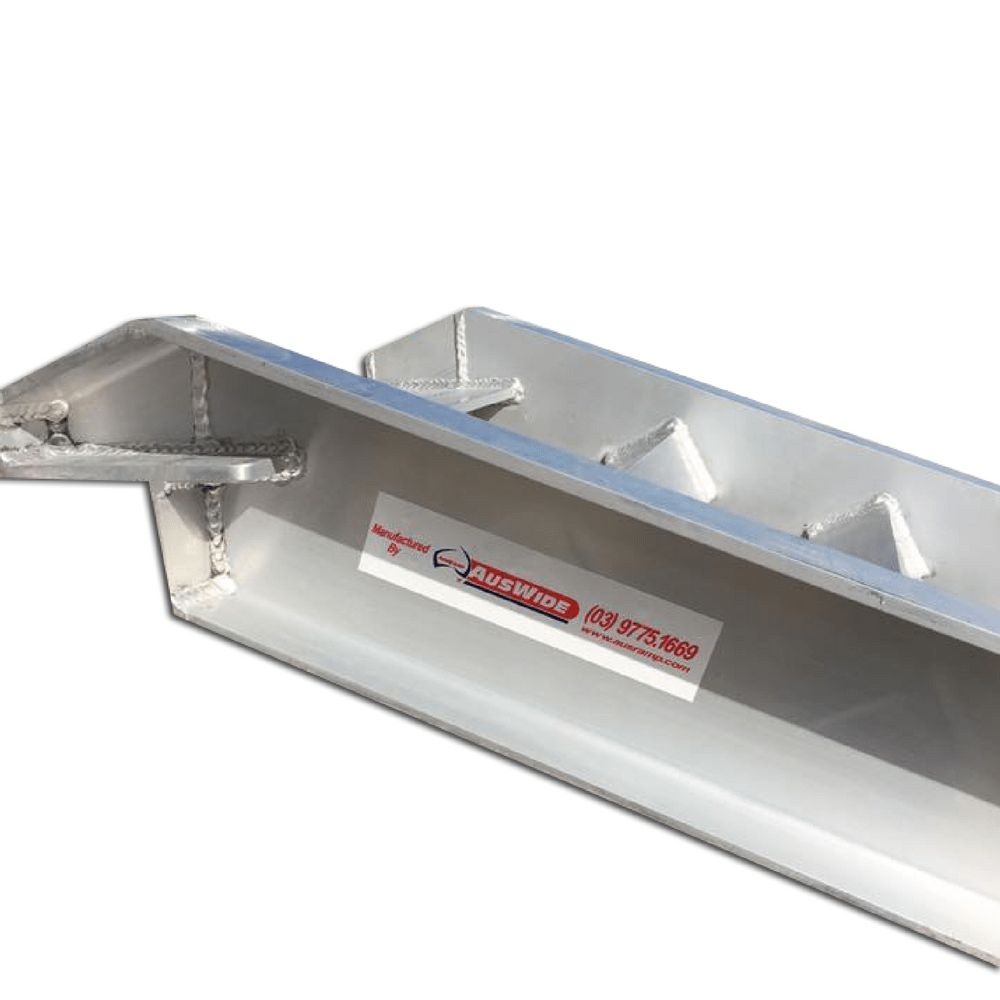

  • Connecting plate and pin ensures maximum stability and safety
  • 12-month warranty
  • Sold in pairs


  • Rated Load Capacity Per Pair: 5 tonne
  • Ramp Weight Per Ramp: 49kg
  • Ramp Length: 3.5m
  • Internal Track Width: 470mm
  • Ramp Width: 550mm
  • Ramp Depth: 150mm
  • Height Up To: 1.2m

AusRamp Ramp Specifications

















Up To

3-425R 3000kg 30kg 3.5m 325mm 425mm 105mm 1.2m
4-425R 4000kg 36kg 3.5m 350mm 450mm 125mm 1.2m
4.5-500SR 4500kg 40kg 3.5m 425mm 525mm 125mm 1.2m
5.510SR 5000kg 49kg
470mm 550mm 150mm 1.2m
6-610SR 6000kg 55kg
500mm 620mm 160mm
8-660SR 8000kg 68kg
500mm 620mm 160mm


Can't find the ramp you're looking for? Use the chat function in the corner of the window or Contact us for advice if you're unsure what ramps are suitable for you.

    AusRamp authorised dealerAustralian made loading ramps - Sureweldausramp 5 tonne ramp one year warranty

    2 x Manufacturers Warranty

    We double the iron clad manufacturers warranty giving you up to 3 full years peace of mind knowing your ramps will perform exactly as they should. Registration required.

    10% Off Accessories

    We don't just have ramps. Shop bollards, fuel tanks, attachments and more with a bonus 10% off construction accessories with each ramps purchase using code LOADINGRAMPS10 at checkout.

    Bulky Delivery Item Details

    This product is bulky and requires delivery via a specialist courier to either a home address or business address. For delivery to a business address the receiver is required to have either adequate business facilities to off-load the item via a forklift or loading dock available at the time of delivery during business hours. If delivery is to a residential home address or you do not have the business facilities to off-load please select residential tailgate delivery at checkout to have your item(s) delivered via a courier truck that has tailgate delivery capabilities.

    Note: Colour, tone, finish and style of actual products may differ from those shown in the product images.
