AusRamp 8 Tonne 3.5m x 620mm Aluminium Loading Ramps

by AusRamp
$2,805.00
SKU 8.660SR

✓ Fast Shipping + Order Tracking
✓ Pickup In-Store Available
✓ Questions? Call Us: 1300 913 047



Estimated Arrival: Between and .

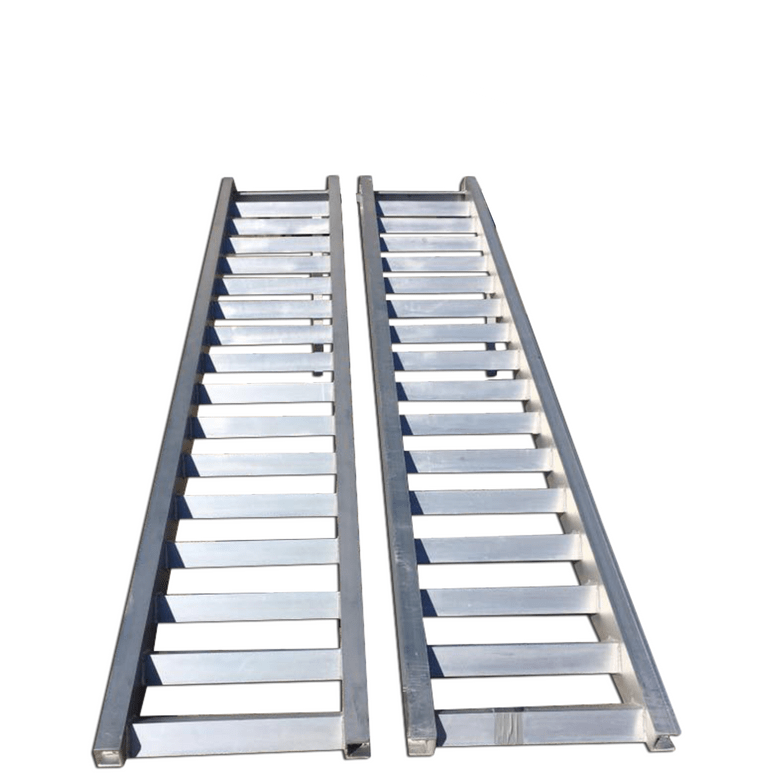

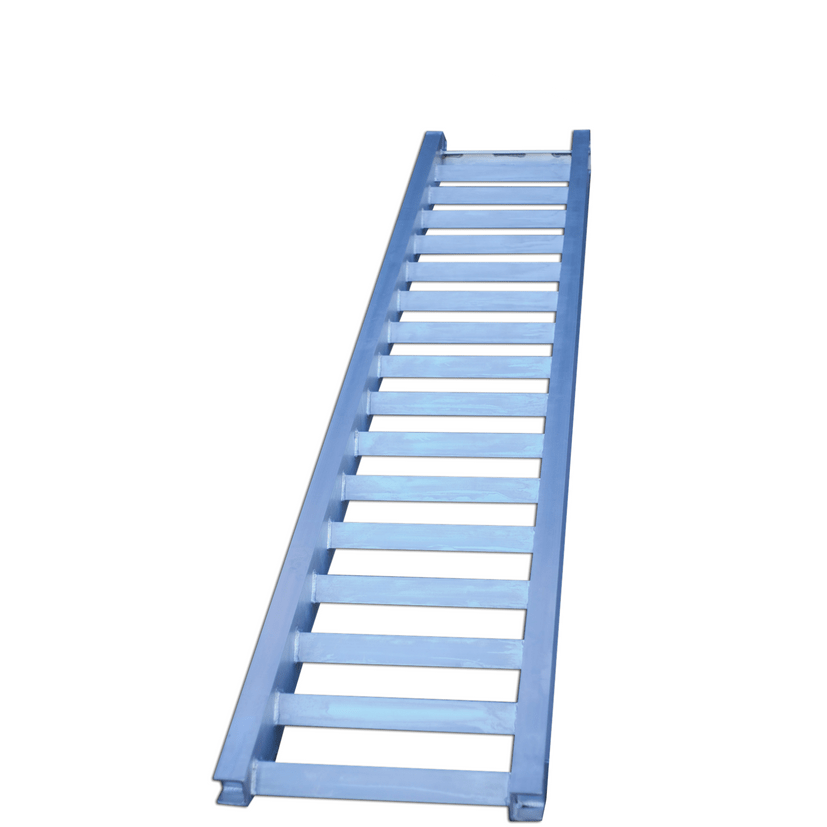

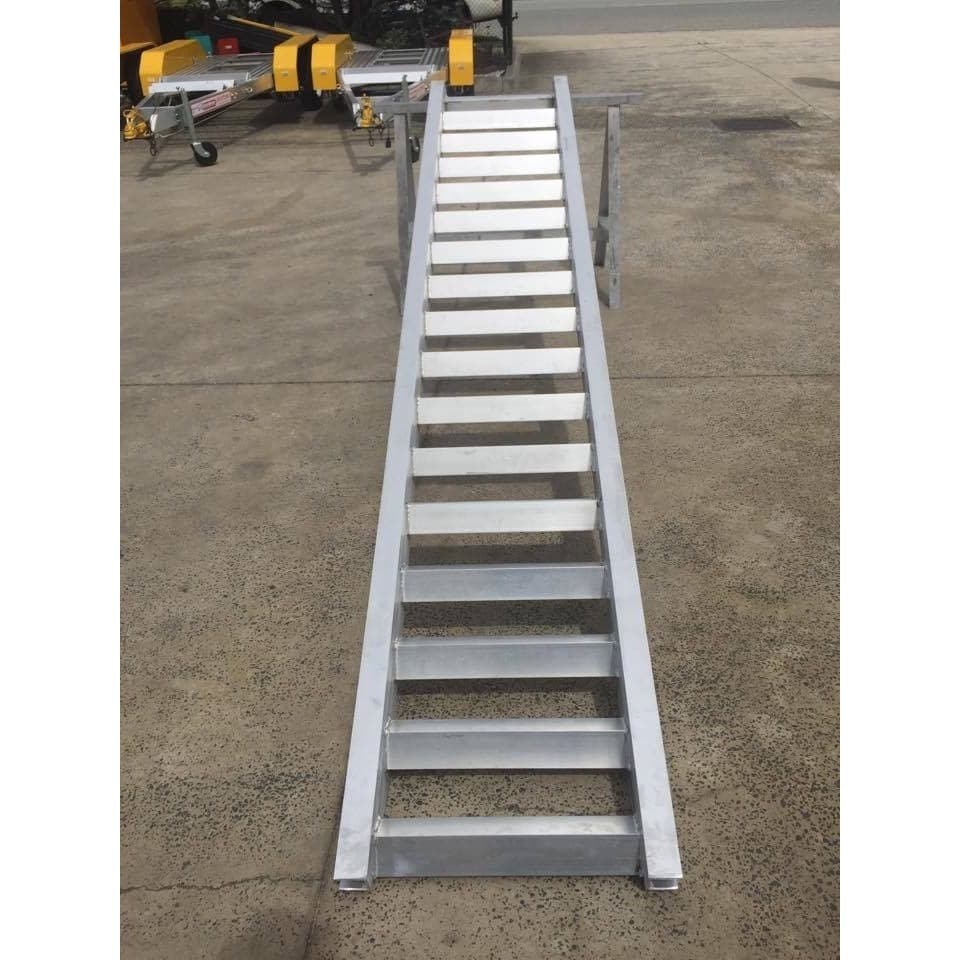

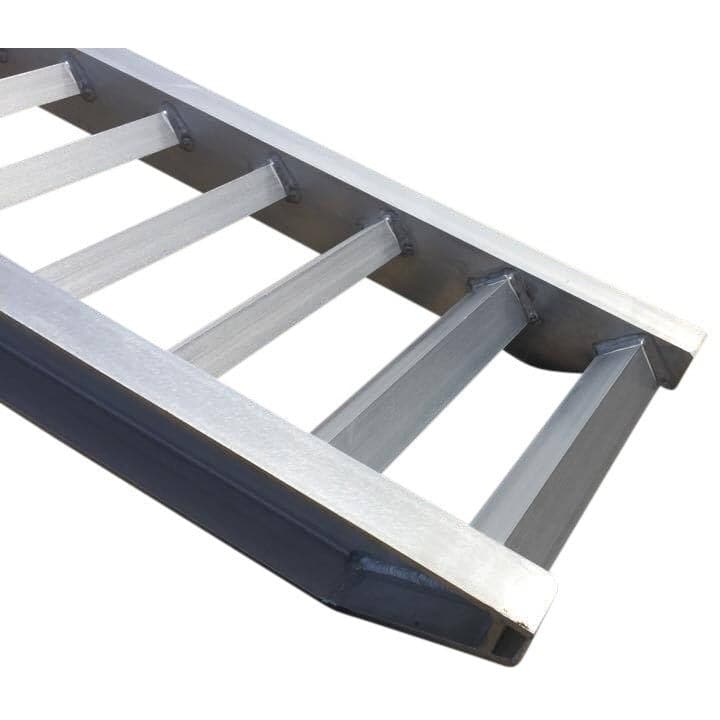

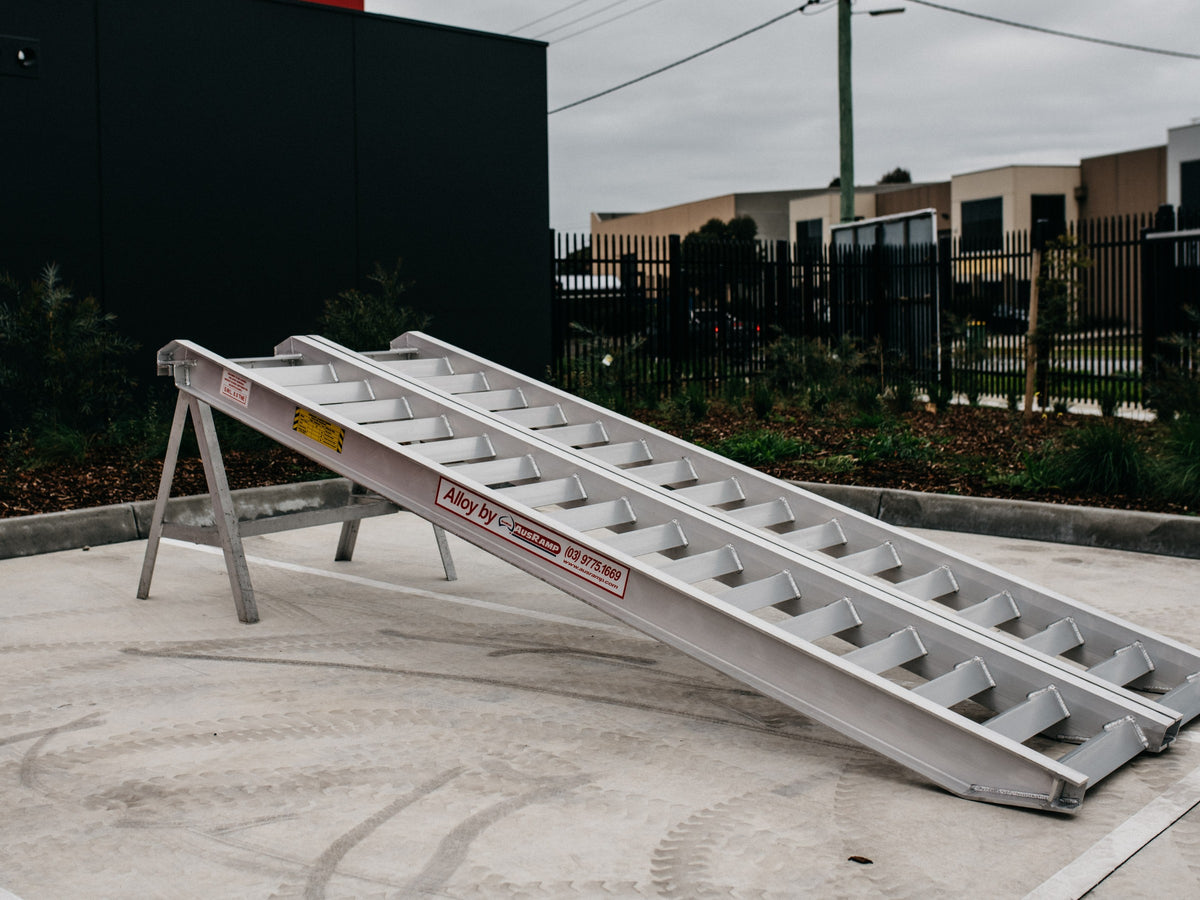

AusRamp 8 Tonne 3.5m x 620mm Aluminium Machinery Loading Ramps, Pair

The AusRamp 8 Tonne 3.5m x 620mm Aluminium Machinery Loading Ramps are over-engineered to ensure they can safely accept steel or rubber tracks and pneumatic tyres.

This means you no longer need to have individual ramps to cope with various means of traction. One set of AusRamp loading ramps does it all.

At a capacity rating of 8 tonne per pair, the lightweight aluminium ramps are ideal for loading agricultural industry machines, tractors, posi loaders, backhoes, excavators and other tracked machinery.

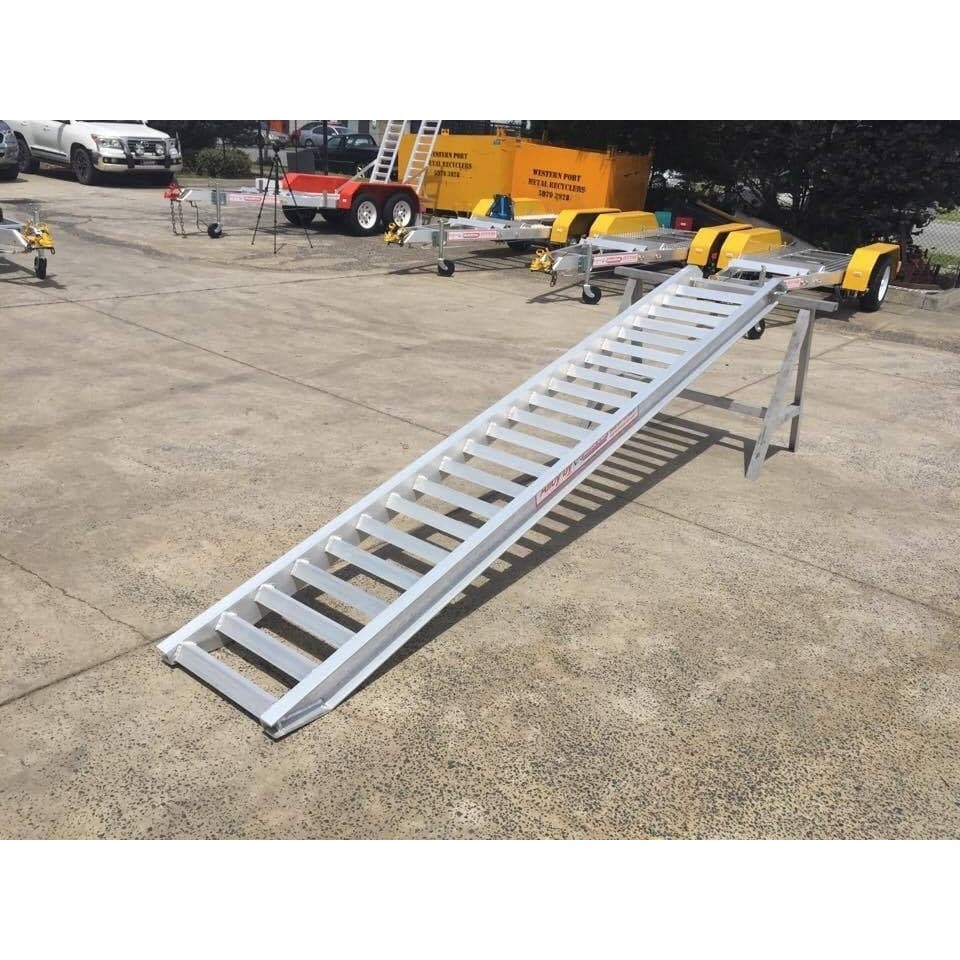

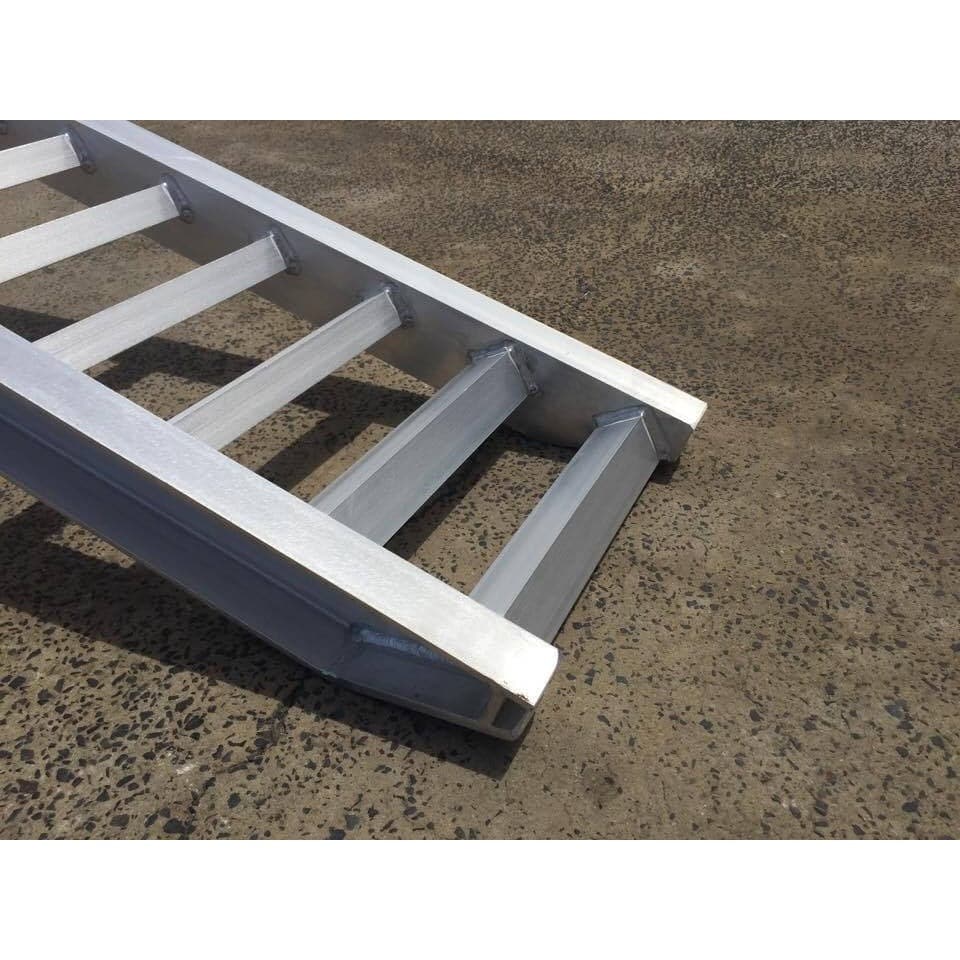

AusRamp ramps incorporate a design feature that prevents bottoming out when loading or unloading.

Additionally, all ramps are supplied with forged locking pins to ensure a safe , secure attachment to the loading plate.

Features and Benefits

  • Suited to tracked and wheeled machines
  • Australian designed and manufactured

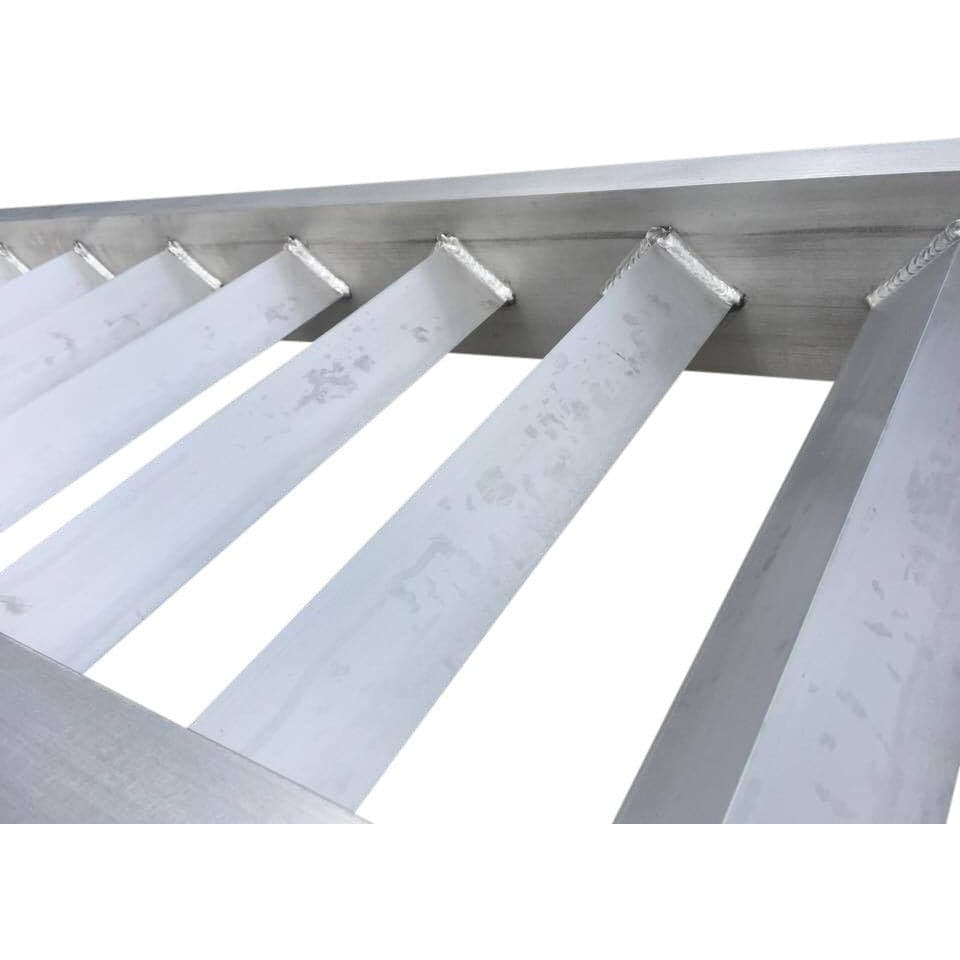

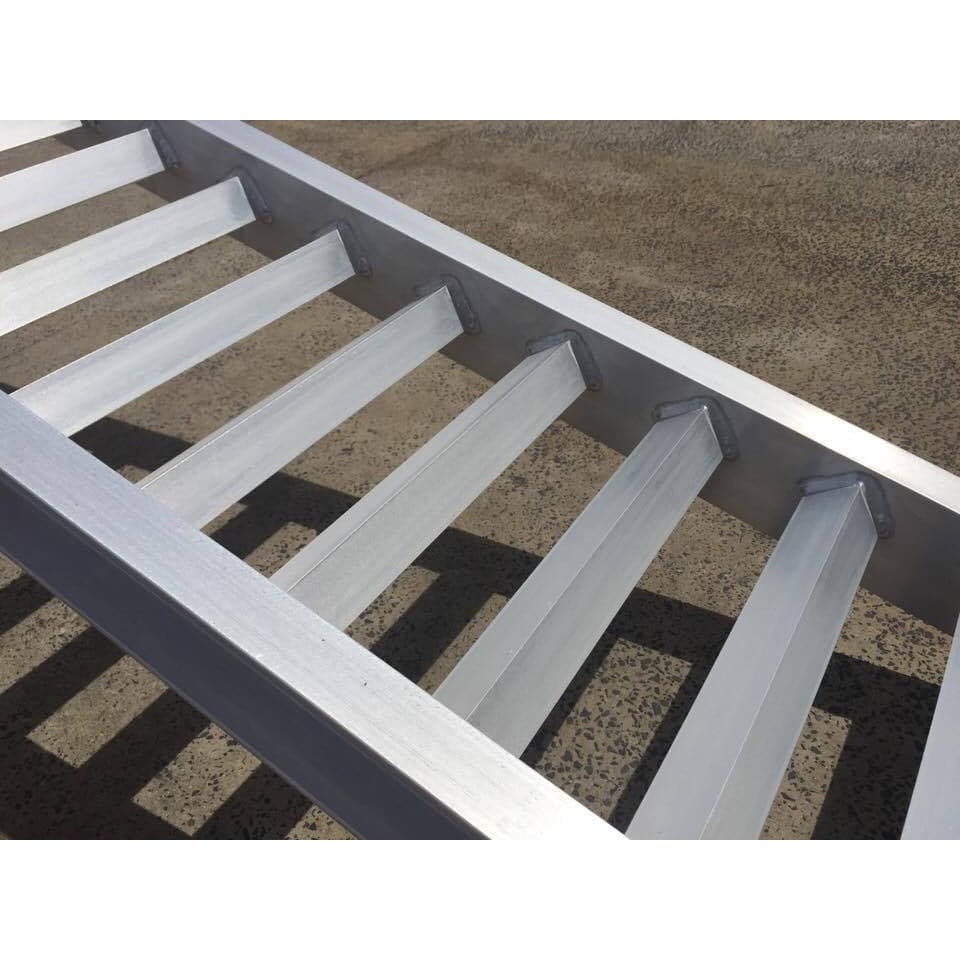

  • Manufactured from structural-grade alloys to ensure the maximum strength available

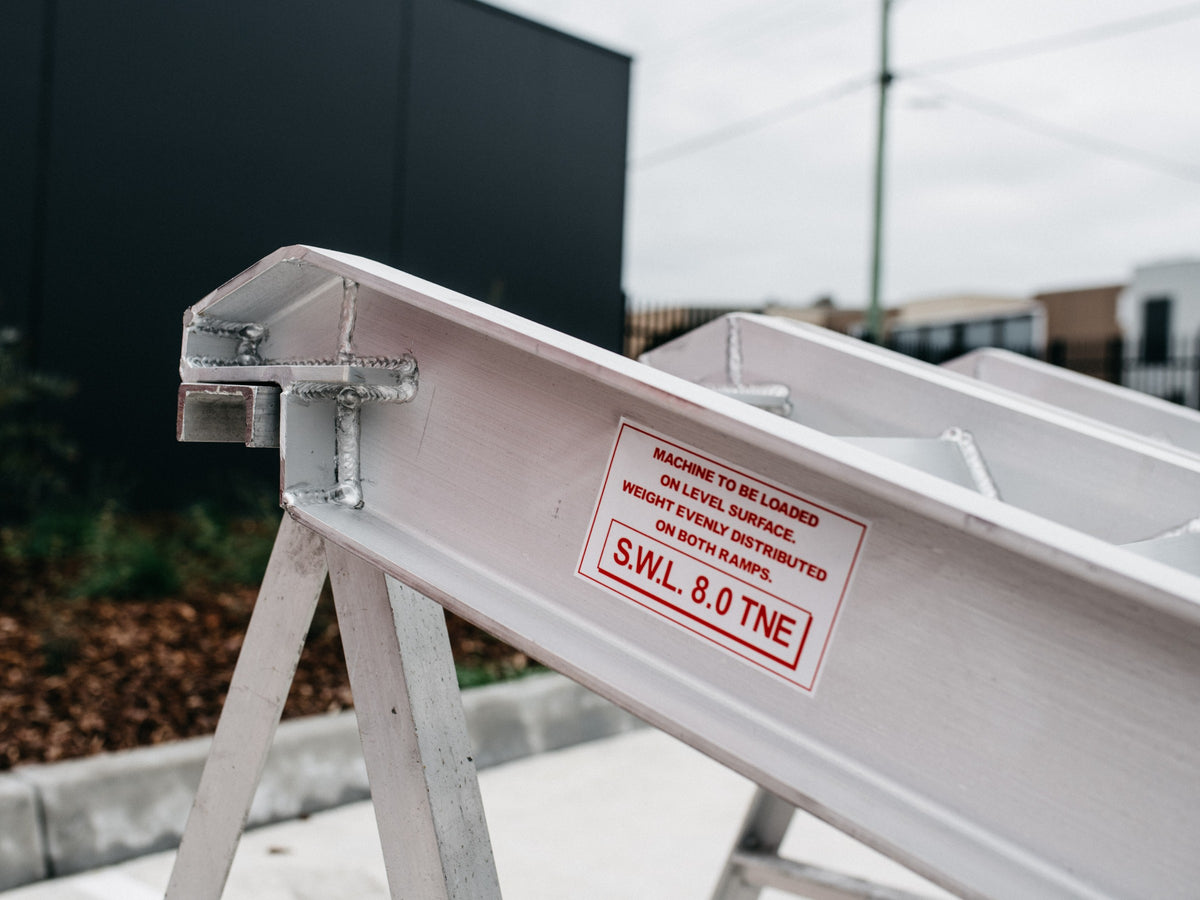

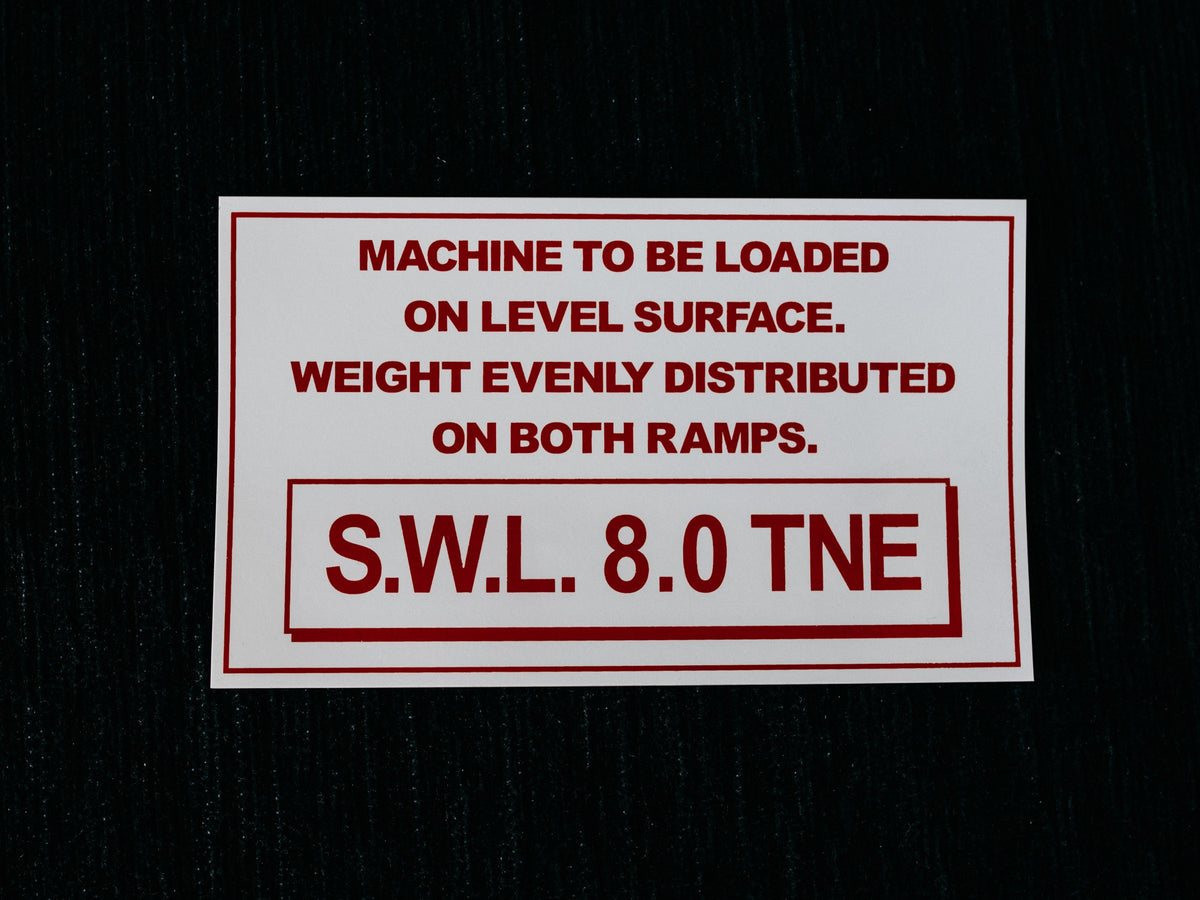

  • Compliance Plates recording the model number, load capacity and serial number ensure traceability and safe work practice.

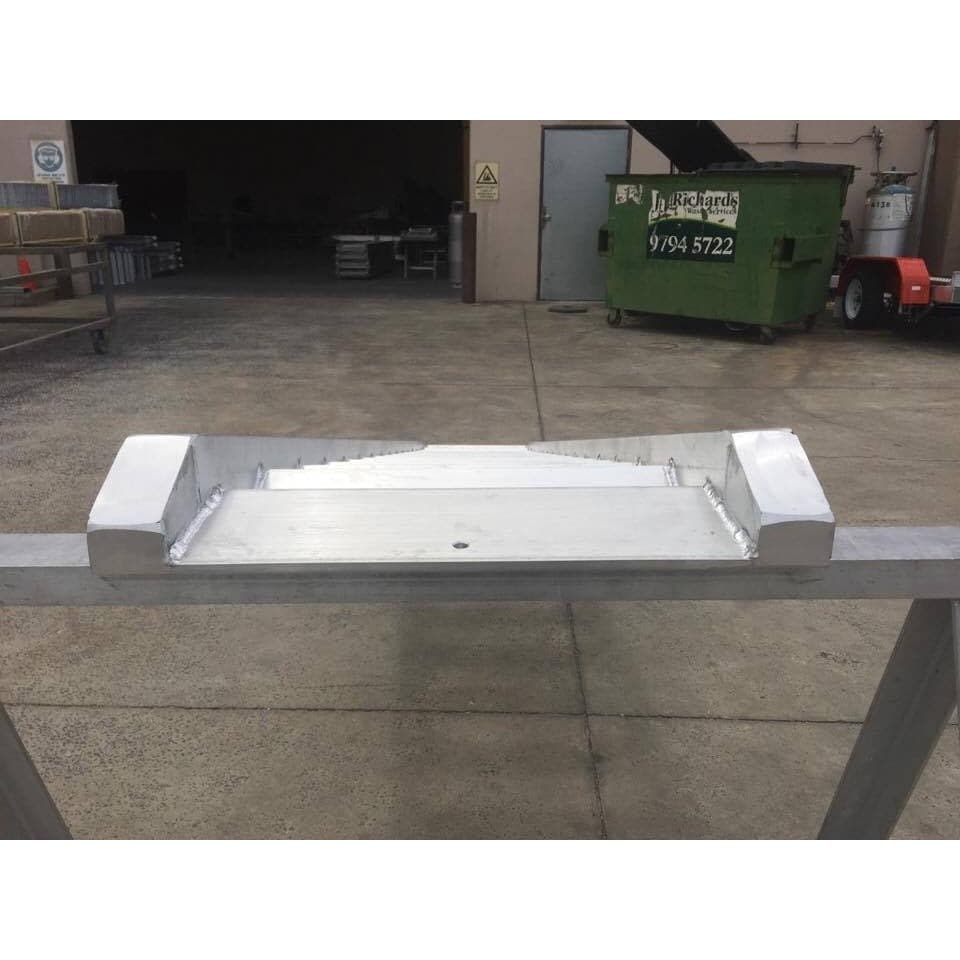

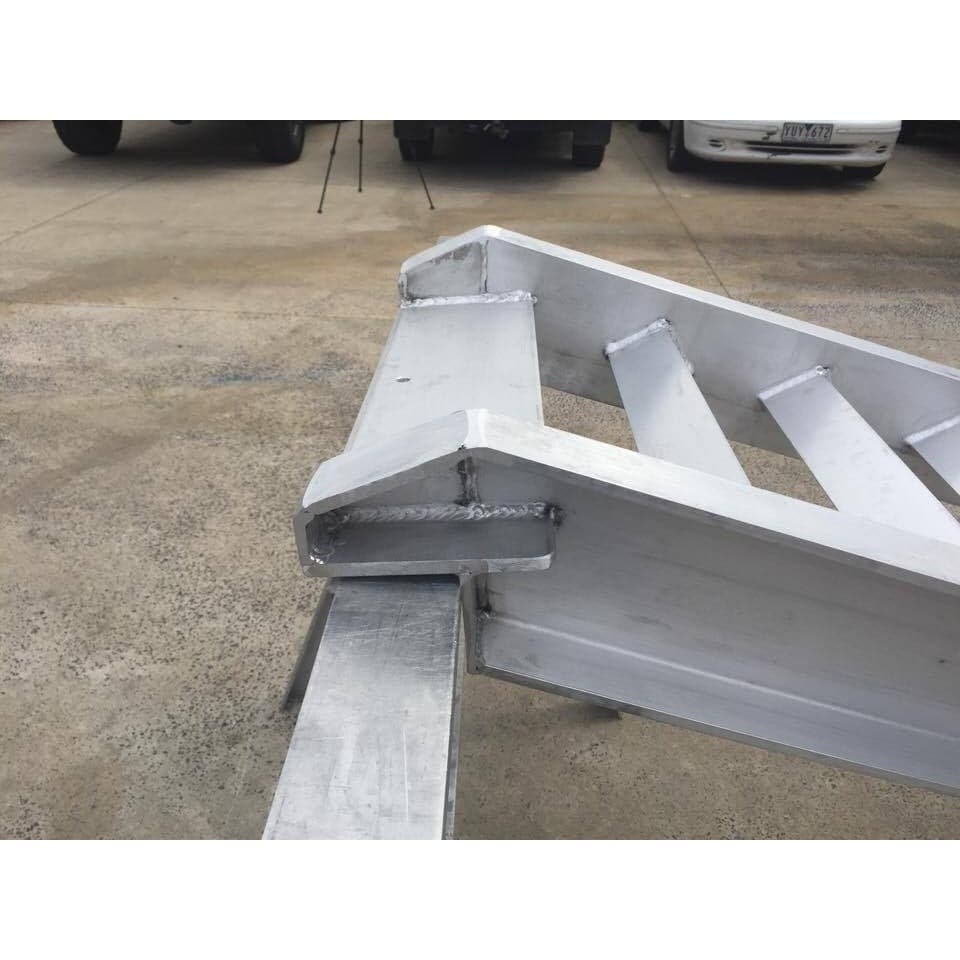

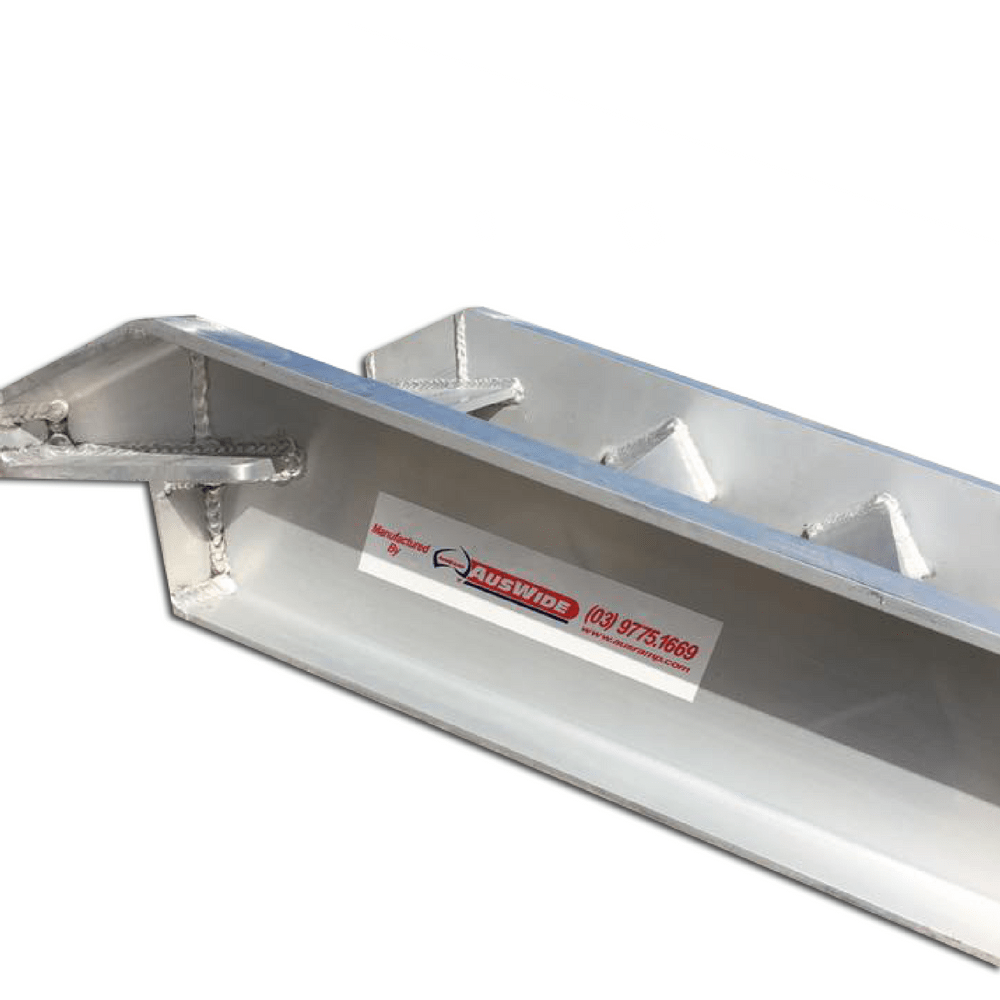

  • Connecting plate and pin ensures maximum stability and safety
  • 12-month warranty
  • Sold in pairs

Specifications

  • Rated Load Capacity Per Pair: 8 tonne
  • Ramp Weight: 68kg
  • Ramp Length: 3.5m
  • Internal Track Width: 500mm
  • Ramp Width: 620mm
  • Ramp Depth: 160mm
  • Height Up To: 1.2m



AusRamp Ramp Specifications

Product

Code

Rated

Capacity

Ramp

Mass

Ramp

Length

Track

Width

(internal)

Ramp

Width

Ramp

Depth

Height

Up To

1.5tn 1500kg 12.5
3.0m
300mm 375mm 75mm 1.2m
3-425R 3000kg 30kg 3.5m 325mm 425mm 105mm 1.2m
4-425R 4000kg 36kg 3.5m 350mm 450mm 125mm 1.2m
4.5-500SR 4500kg 40kg 3.5m 425mm 525mm 125mm 1.2m
5.510SR 5000kg 49kg
3.5m
470mm 550mm 150mm 1.2m
6-610SR 6000kg 55kg
3.5m
500mm 620mm 160mm
1.2m
8-660SR 8000kg 68kg
3.5m
500mm 620mm 160mm
1.2m



Can't find the ramp you're looking for? Use the chat function in the corner of the window or Contact us for advice if you're unsure what ramps are suitable for you.

Important Shipping and Delivery Information

These ramps are large and bulky therefore we have specific delivery requirements.

  • Deliveries can only be made to business addresses

  • There must be at least one person present at the delivery address to receive the ramp delivery, preferably multiple persons to assist the delivery driver in unloading the ramps.

  • From time of order the ramps may be 2-3 days before dispatch depending on stock levels.

AusRamp authorised dealerAustralian made loading ramps - Sureweldone year warranty on austramp 8 tonne loading ramps

Note: Colour, tone, finish and style of actual products may differ from those shown in the product images.


Questions & Answers

Ask a Question
  • Hi I need some ramps for my flat top semi 8t plus the rear height from ground to top of trailer is 1350 I'm just loading tractors etc what would you have thanks

    Great question.

    These Ausramp 8-tonne loading ramps will definitely do the job for you and are fantastic value for money.

    However, as you're loading height is 1,350mm, we'd suggest considering a longer loading ramp to reduce the gradient of the ramp.

    The Sureweld 9 Tonne 3.7m x 640mm Track Series Aluminium Machinery Loading Ramps are an extra 200mm longer than the Ausramp 8-Tonne loading ramp and can handle an extra 1,000kg.

    Both ramps are suitable for steel tracks as well as rubber tracks and tyres.
