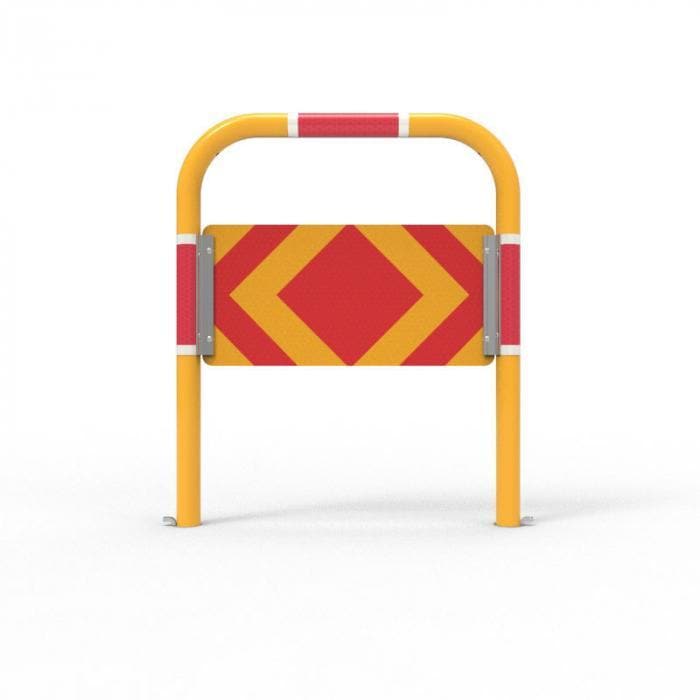

Hot Dip Galvanised Holding Rails For Cyclists And Pedestrians With Class 2 Reflective Coating

The Barrier Group Holding Rails are available in two standard widths and are suitable for Cyclists as well as Pedestrians. The rails feature Class 2 Red and White Reflective bands over a galvanised and powder coated base. The height above the ground is 1000mm whereas below ground is 300mm upon installation. Based upon the dimensions you chose, the width would be ranging from 800 to 1200mm. The Barrier Group Holding Rail turns out to be quite beneficial for everyone who is into traffic and needs a hand in crossing the road, to safely make to the other end.

Clients may choose from the surface mount as well as new concrete models which contain core-drilled sleeves. That makes the damaged rails to be replaced conveniently. The hot dip galvanised yellow powder coating will make these rails last longer, without any issues of corrosion, chipping or tea staining. Barrier group offers full installation services associated with these Holding rails.

Barrier Group Holding Rail for Cyclist & Pedestrians Specification

Features & Benefits

  •    Sleeve mounted installation for easy replacement
  •    Galvanised and powder coated
  •    Useful for pedestrians and cyclists
  •    Class 2 red and white reflective bands
  •    Choose from surface mount, new concrete or core-drilled sleeves


Material: Rail – 50 N.B. pipe (60.3mm).

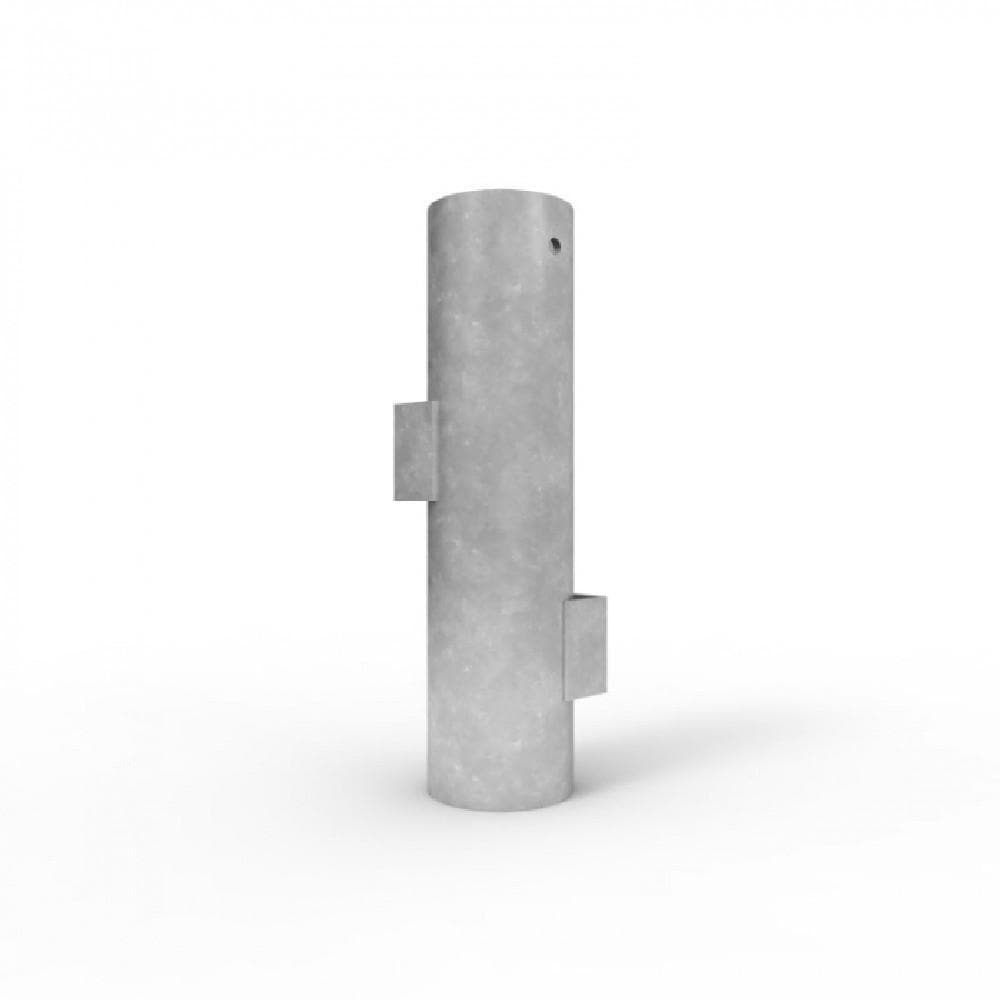

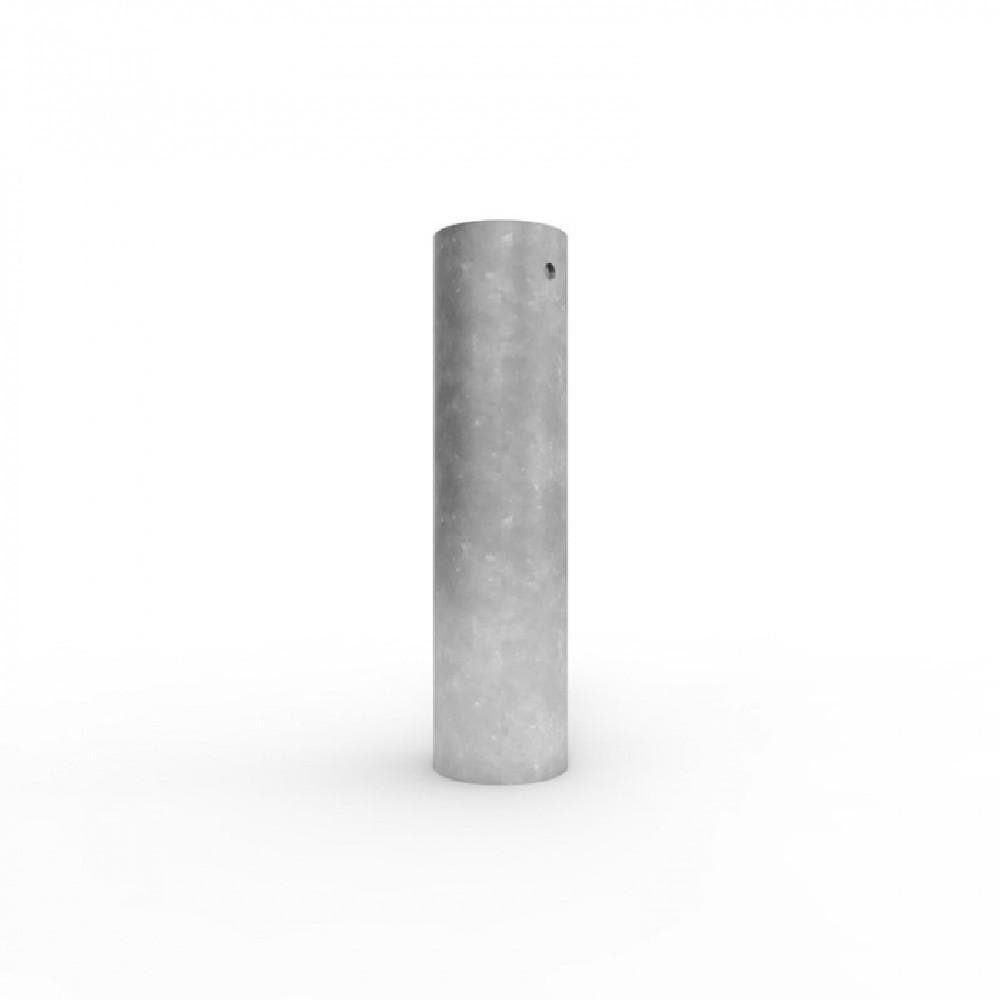

Sleeves – 65 N.B. tube (76.1mm).
Finish: Galvanised and powder coated with
reflective bands.
Height: 1000mm above ground.
300mm below ground.

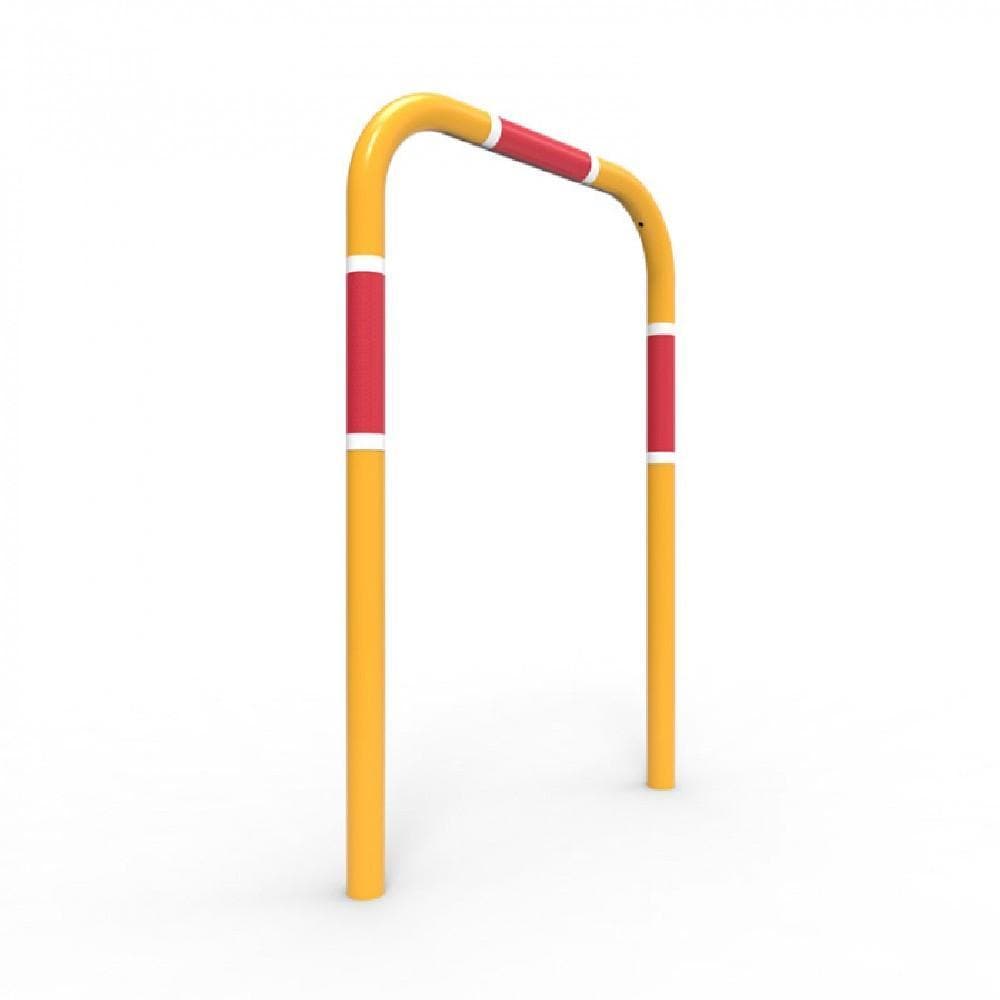

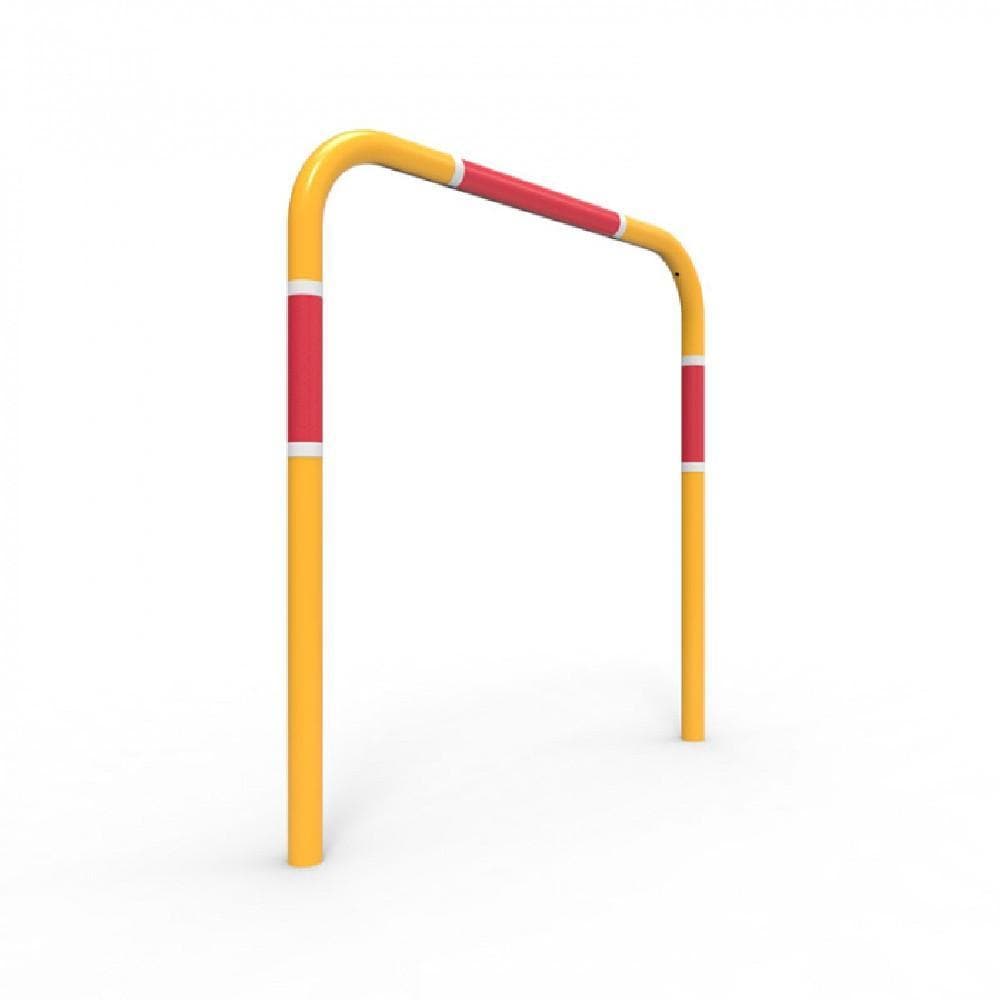

Width: 800 or 1200mm.
Weight: 8 or 12kgs (rail only).

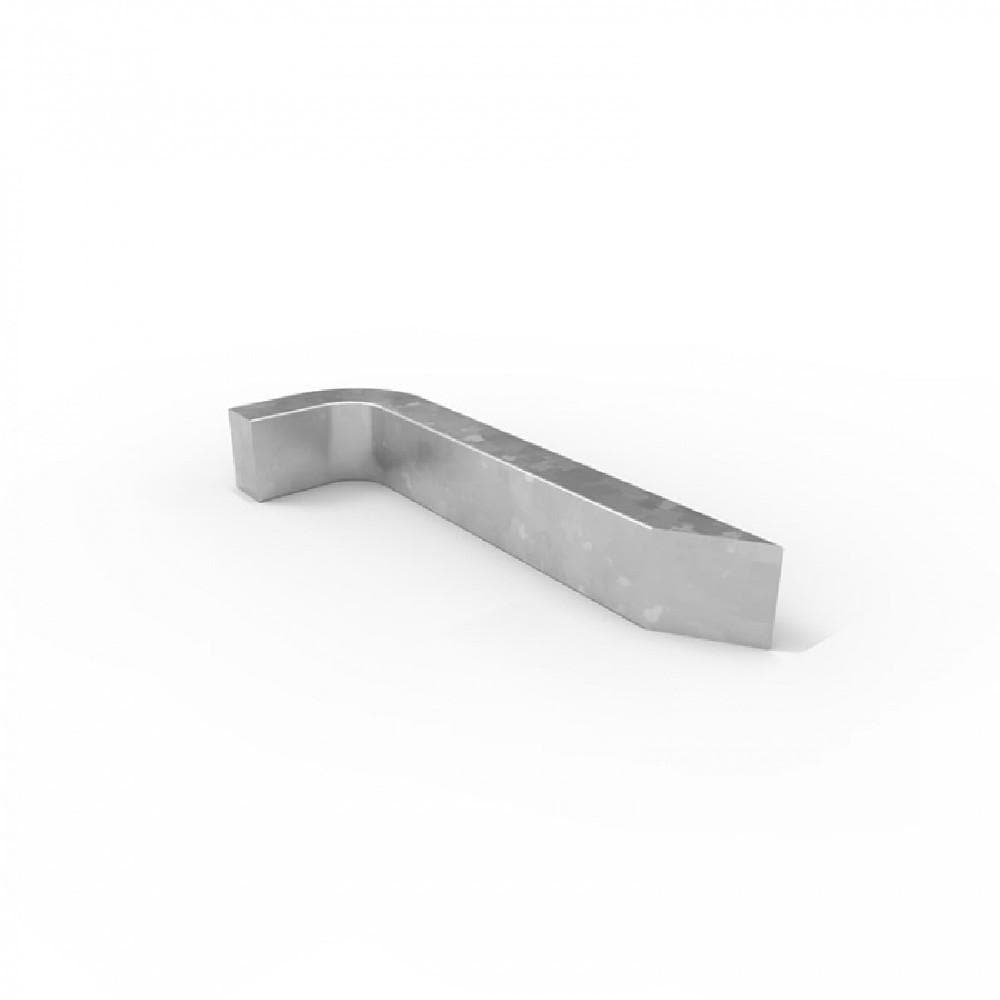

Installation: Retained in sleeve with gibb key.
