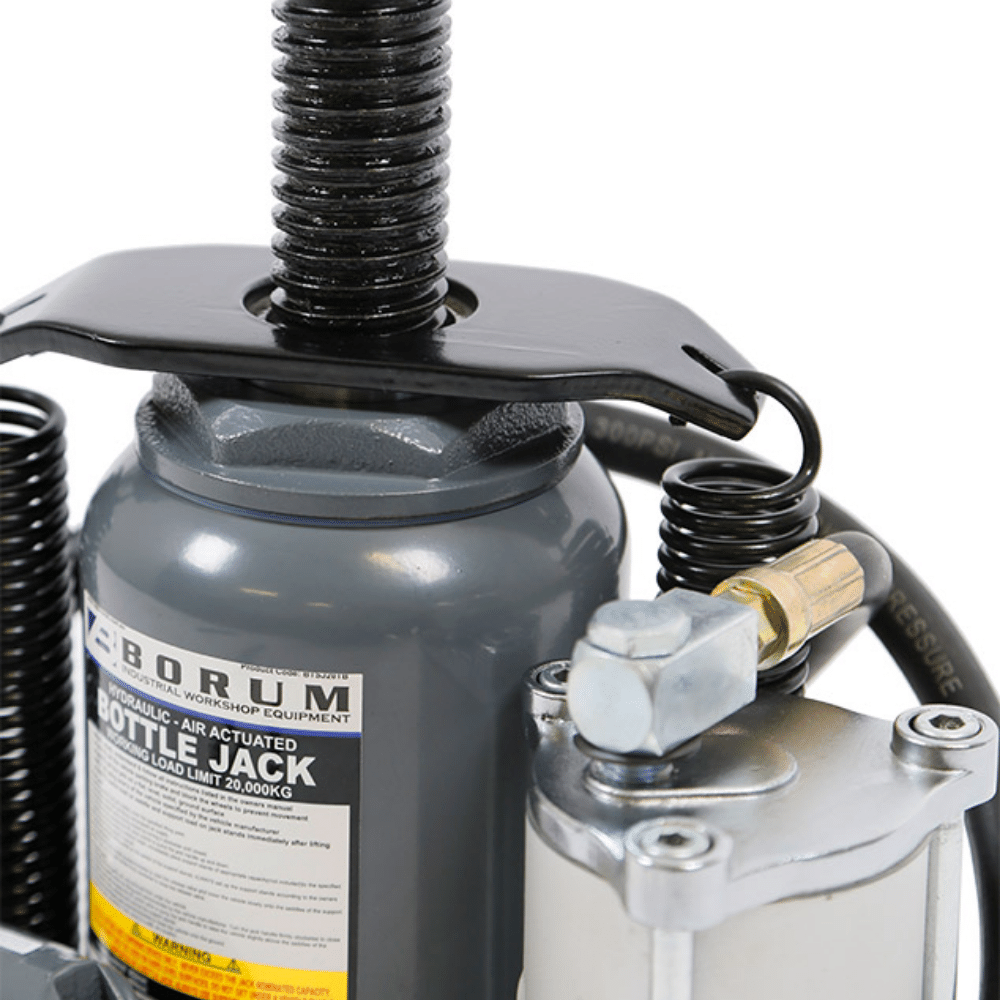

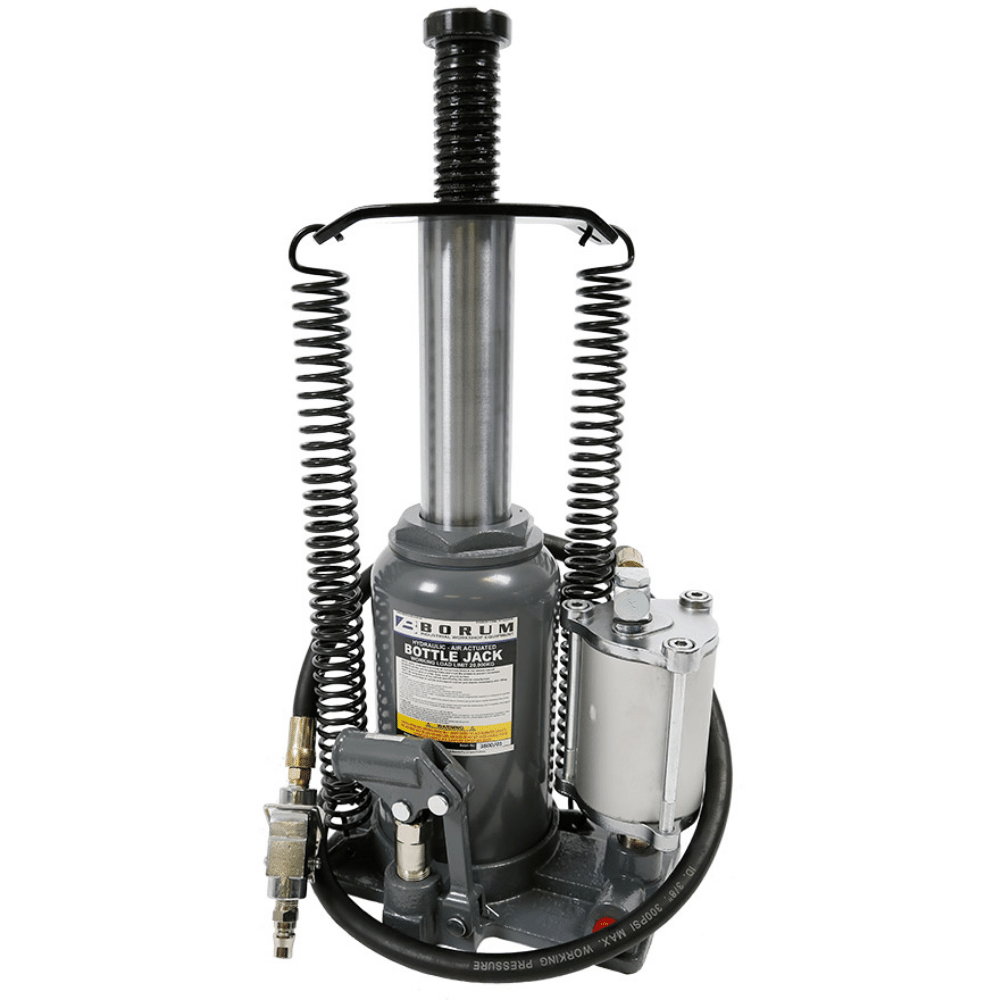

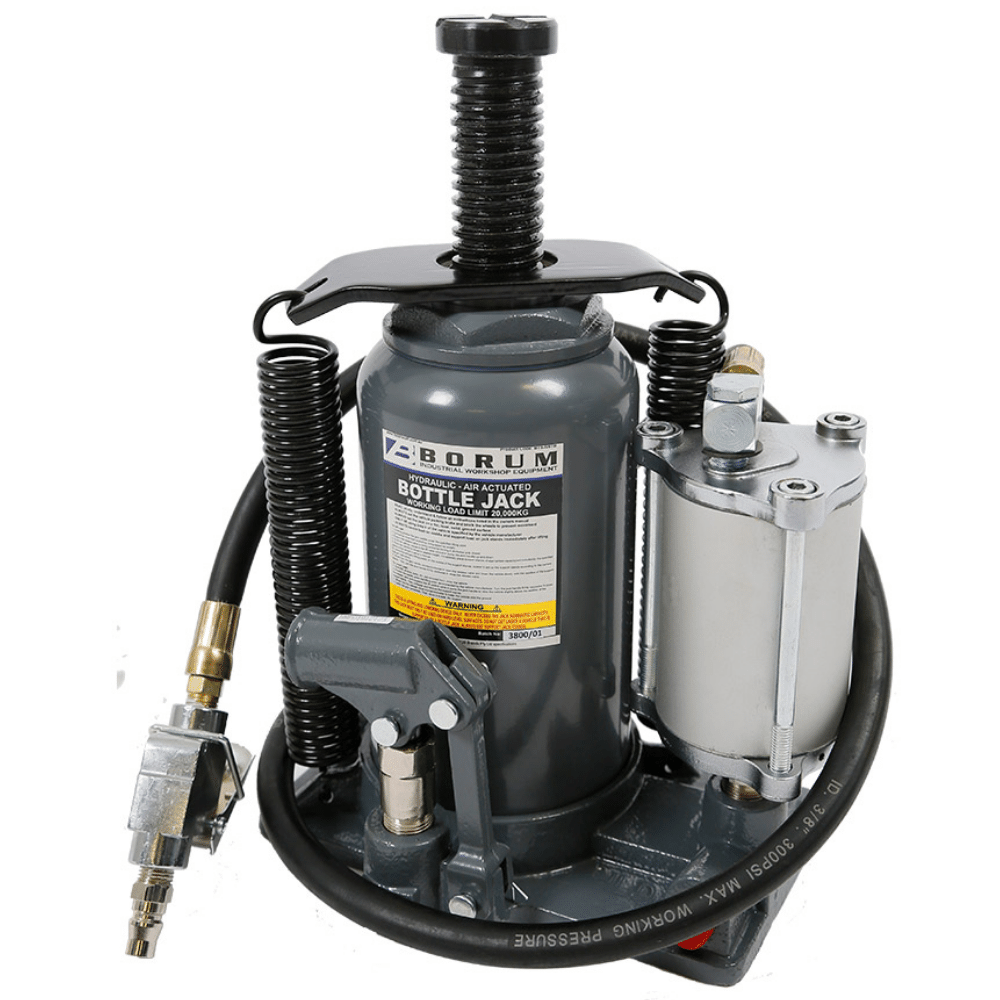

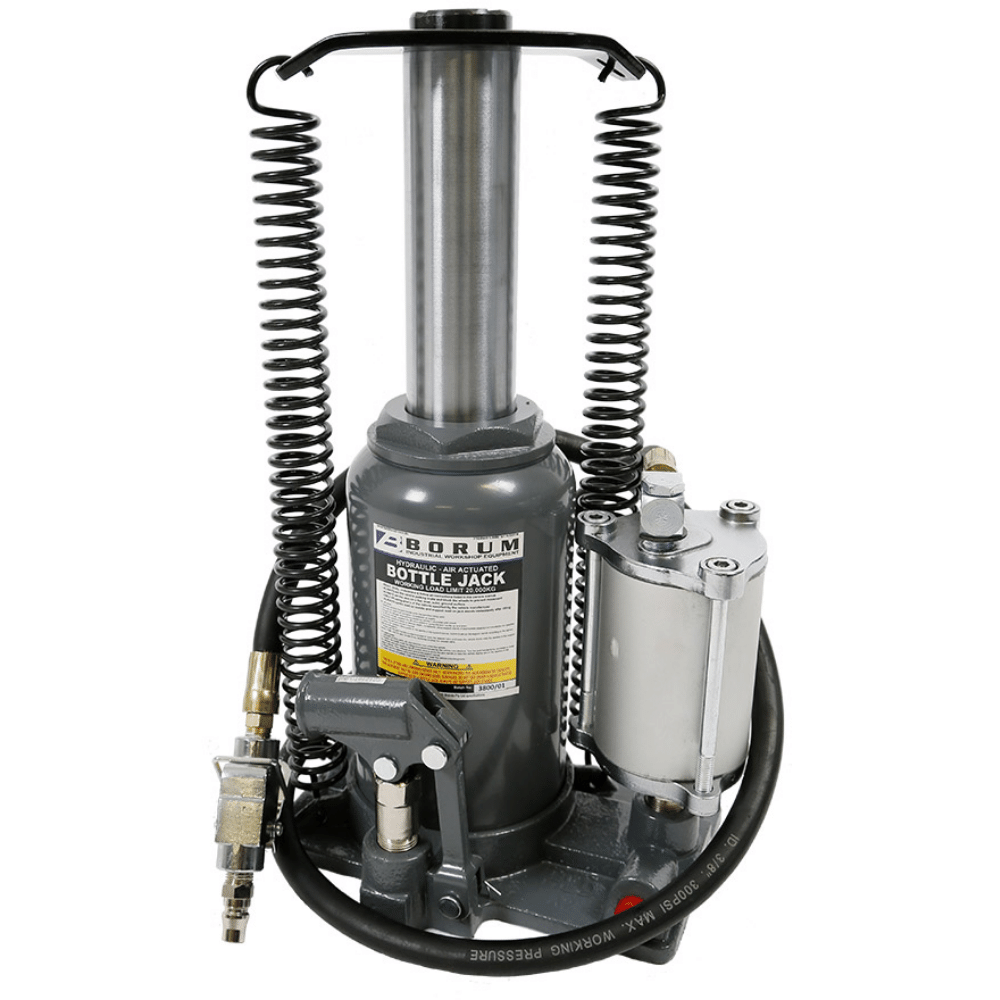

Borum Industrial Air/Manual Bottle Jack, 20-Tonne Capacity

by Borum
Save $40.00
Original price $443.00
Current price $403.00

new icon
SKU: BTSJ20TB

✓ Fast Shipping + Order Tracking
✓ Questions? Call Us: 1300 913 047

Estimated Arrival: Between and .

Two-in-One Mechanism Jack with Inbuilt Safety Mechanism

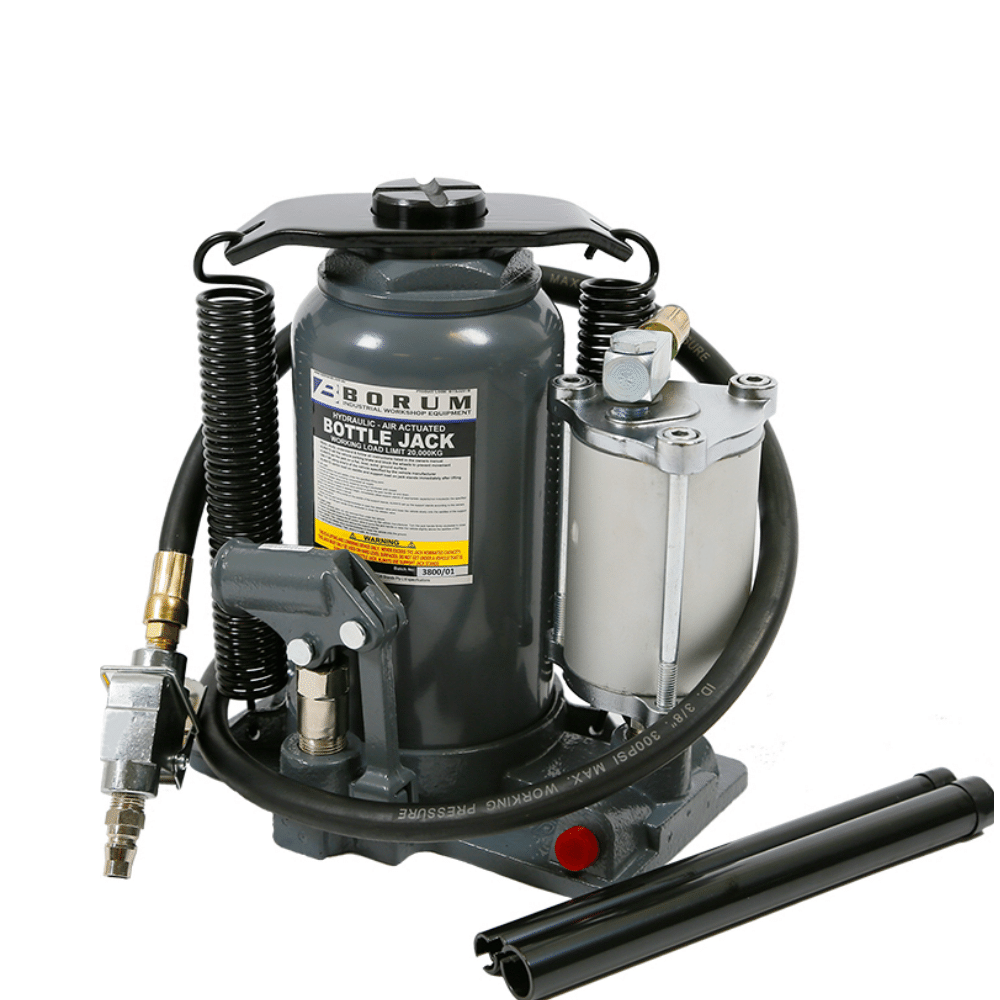

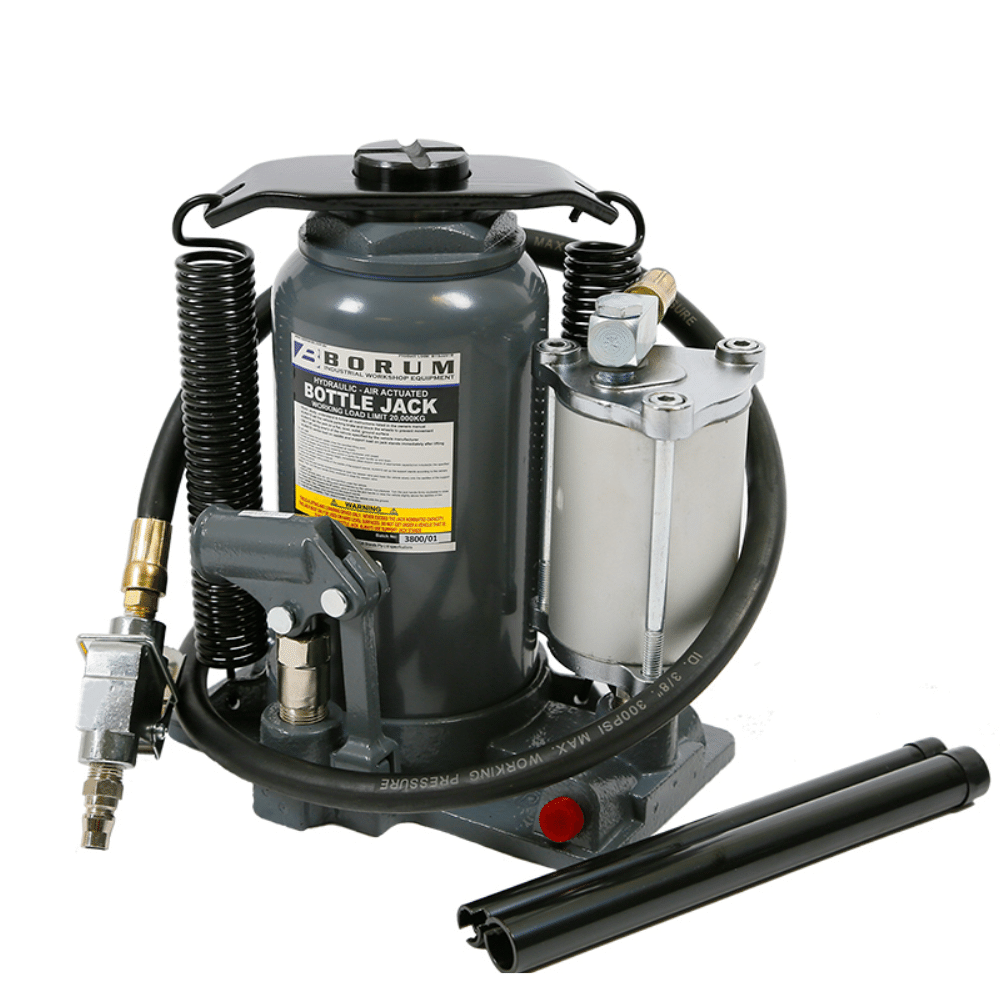

A small bottle jack that weighs only 17kg and can be carried anywhere with ease. This two-in-one jack from Borum can be powered using an air supply, or simply by manual force. The bottle jack comes with a two-piece removable handle which helps with lifting the load and also positioning the jack. It can handle weights of up to 20 tonnes and features an internal overload safety mechanism that slowly lowers the weights as soon as it exceeds the upper limit.

This jack is a lightweight and inexpensive jack for your workshops or carrying around in your truck if you have access to a suitable air supply. Otherwise you can always use the manual mode and use it like a conventional jack.

Features and Benefits

  • Manufactured of superior-grade steel to exacting standards for quality and durability
  • Industrial quality hydraulic cylinder unit operates at lower oil pressure to raise load, reduce wear and extend service life
  • Precision machined, chrome plated and polished piston-ram
  • CNC machined ports and threads
  • Built-in hydraulic by-pass protection against over pumping damage
  • Versatile "quick connector" design for easy removal of air hose for compact storage or remote operation
  • Compact yet powerful Industrial Quality Air Turbo Motor
  • Lead-free paint is applied to ensure a long-lasting finish and prevent corrosion
  • Paint finish is oil, grease and dirt-resistant for easy cleanup

Specifications

  • Safe Working Capacity: 20,000kg
  • Minimum Height: 262mm
  • Maximum Height: 504mm
  • Hydraulic Stroke: 163mm
  • Adjustable Screw: 79mm
  • Operating Air Pressure: 110-125psi
  • Air Inlet Fitting: 1/4" x 18NPT
  • Nett Weight: 16kg
  • Carton: 280 x 190 x 290mm
  • Gross Weight: 17kg

User Manual:

Note: Colour, tone, finish and style of actual products may differ from those shown in the product images.
