DHE 2.5-Tonne Rigid Jib Lifting Crane Forklift Attachment

Zinc Plated DHE 2.5-Tonne Rigid Jib Lifting Crane Forklift Attachment

The DHE 2.5-Tonne Rigid Jib Lifting Crane Forklift Attachment was specifically designed to be an affordable general-purpose jib.

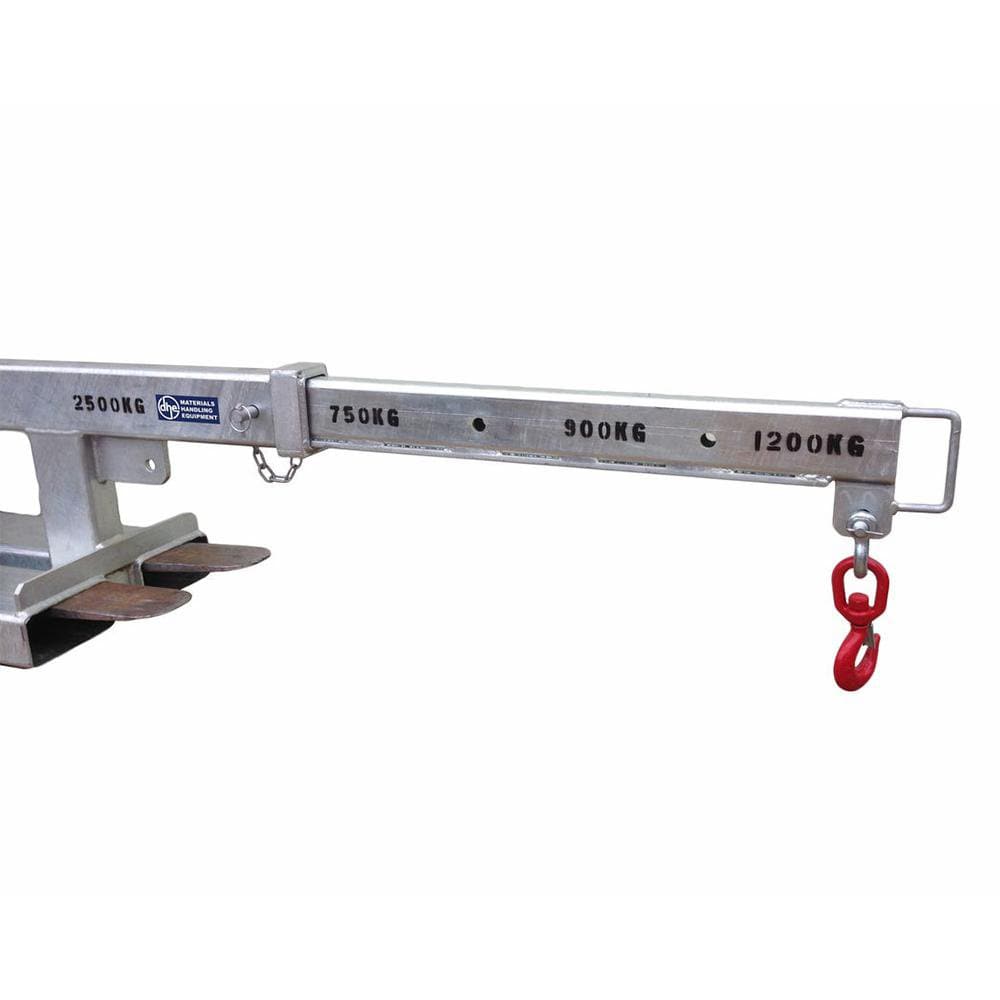

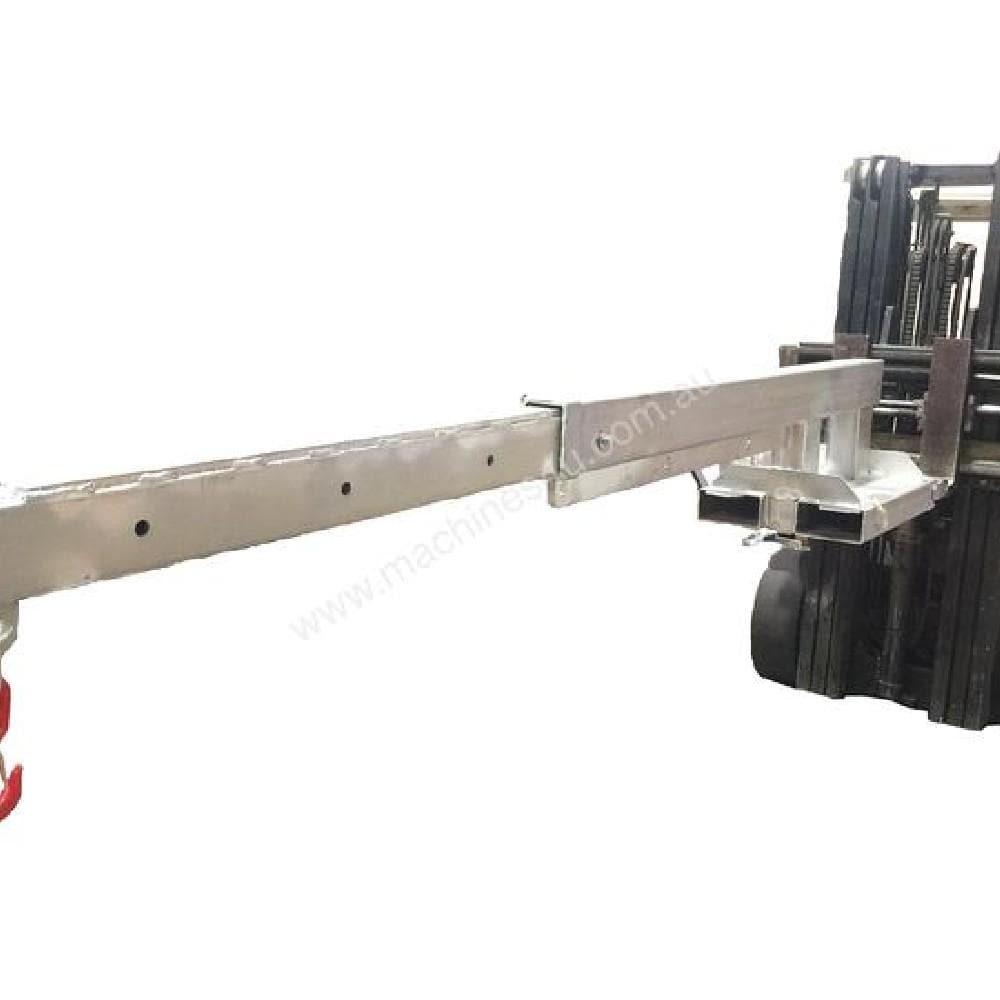

It features a 3.5-metre reach when it is fully extended, thereby allowing for long reach lifts. To use this DHE attachment, slide it onto the fork tyne and use the safety chain to secure it.

Features and Benefits

• Long Rigid Jib is designed as an affordable general-purpose jib with a 3.5 metre reach when fully extended, allowing for long reach lifts.

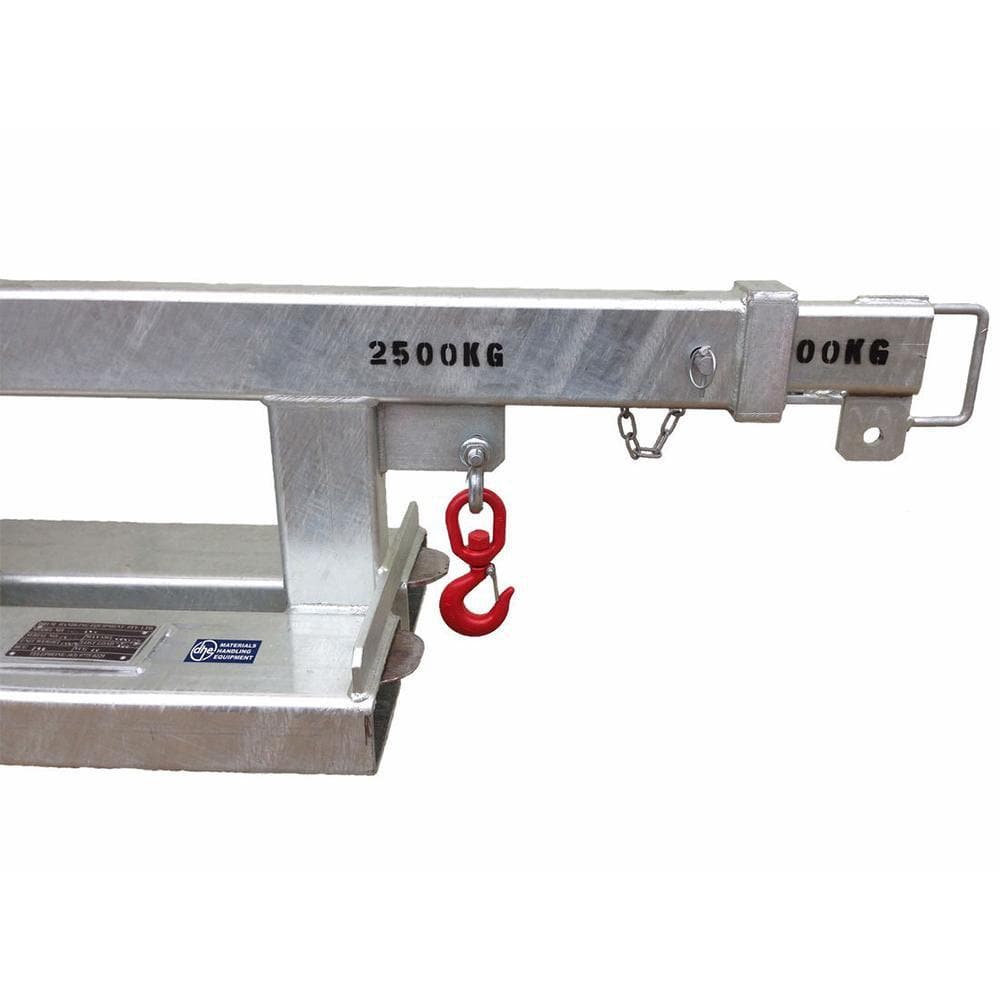

• The DHE-RJS2.5 Rigid Jib 2.5 Ton Short allows for additional lifting height with the extension beam raised above the fork pockets.
• Zinc plated
• The unit is supplied with hook and shackle

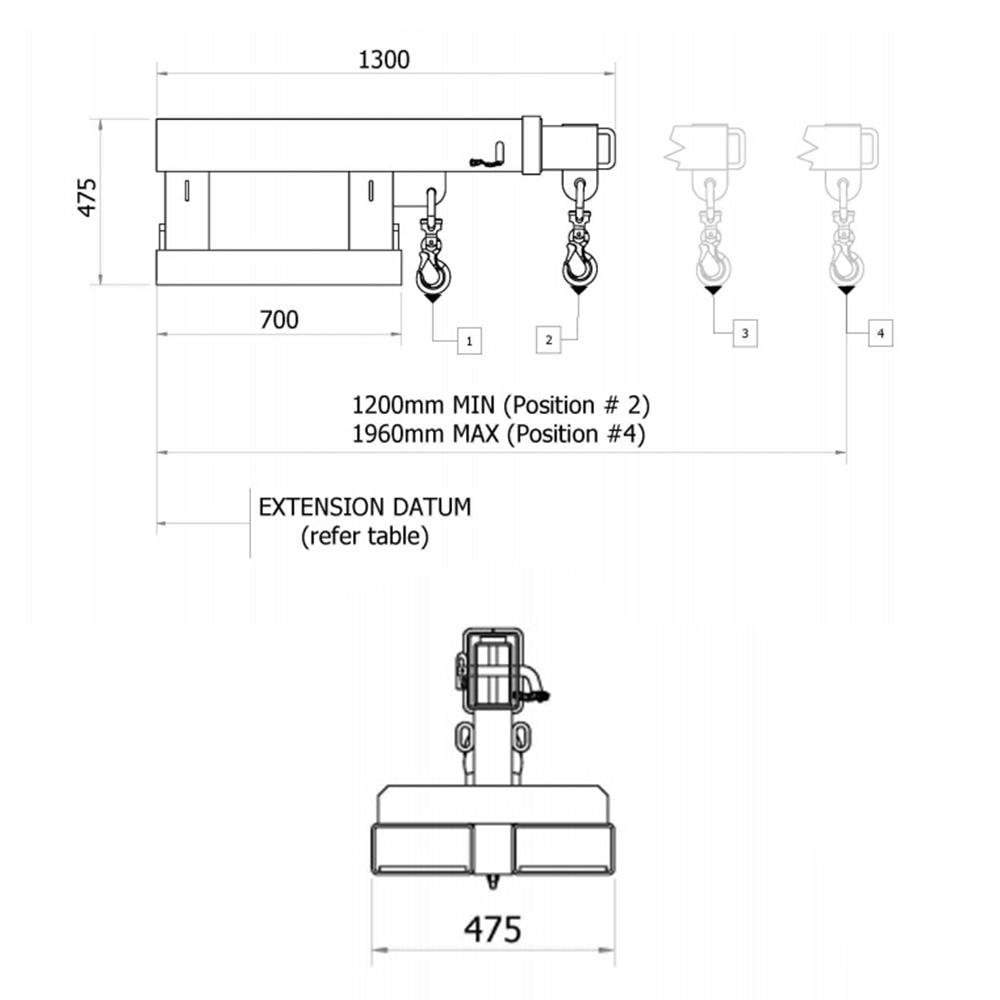

Specifications

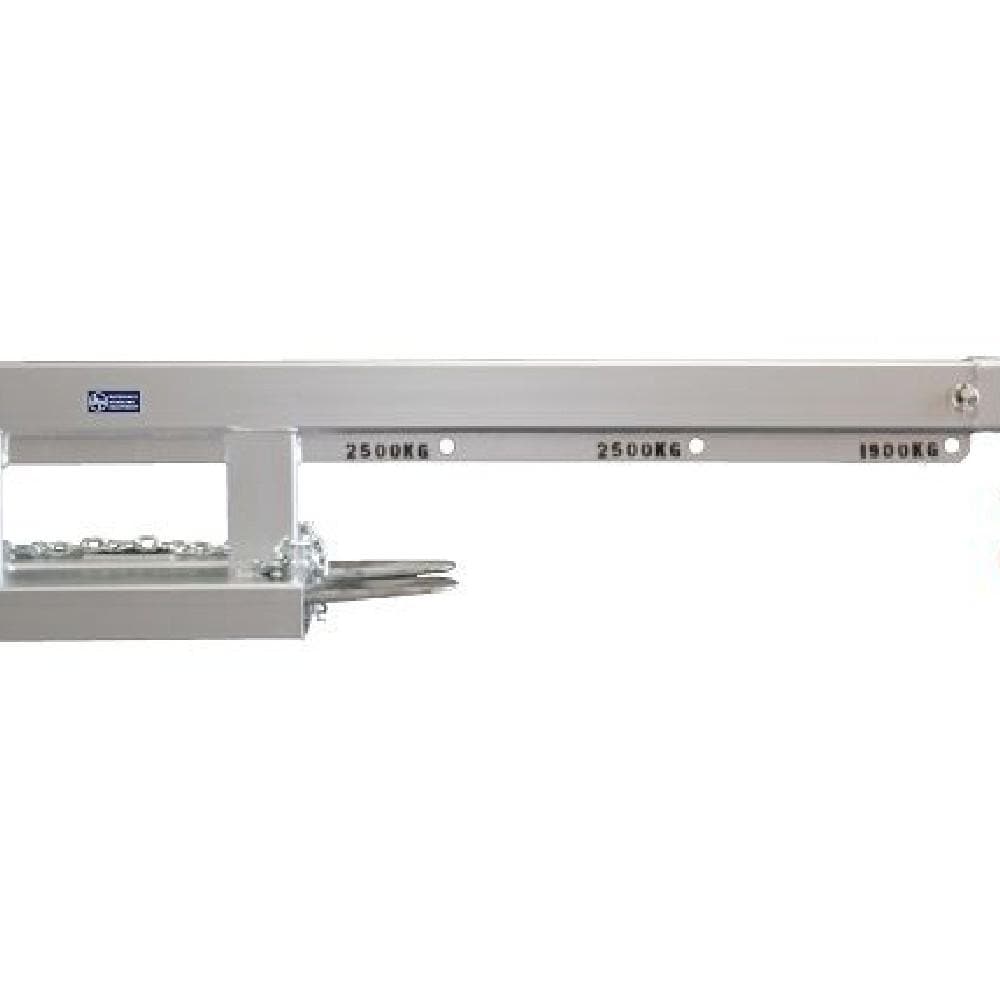

• DHE-RJL 2.5 Ton Rigid Jib Long
• • Safe Working Load (SWL 2500kg Max)
• • Unit weight 135kg
• • Load centre 950mm
• • Pocket size 185 x 65 mm
• • Pocket centres 275 mm
• • Horizontal Centre of Gravity 1160mm
• • Vertical Centre of Gravity 185mm

• DHE-RJS 2.5 Short Fixed Jib
• Safe Working Load (SWL 2500kg Max)
• Unit weight 100kg
• Load centre 790mm
• Pocket size 185 x 65 mm
• Pocket centres 275 mm
• Horizontal Centre of Gravity 630mm
• Vertical Centre of Gravity 135mm
