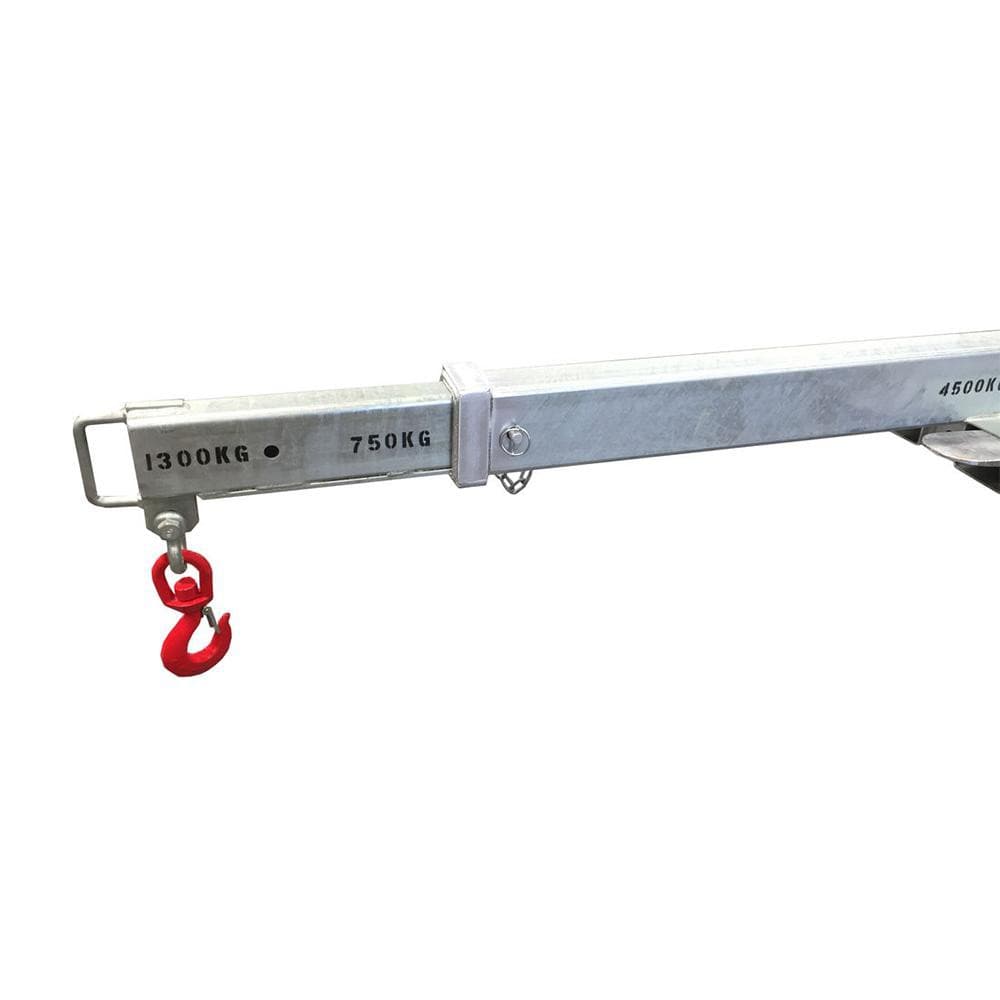

Durable DHE 4.5-Tonne Low-Profile Jib Lifting Crane Forklift Attachment
The DHE 4.5-Tonne Low-Profile Jib Lifting Crane Forklift Attachment is a versatile piece of equipment in its field.
This unit features dependable sturdiness and a structure that makes for stability as it does the job. The DHE 4.5-Tonne Low-Profile Jib Lifting Crane Forklift Attachment is also fixed with lifting points and is powder coated with a safety yellow finish.
Features and Benefits
- Unit comes with a safety hook and shackle
- Fixed lifting points
- Safety yellow finish
- Low profile design

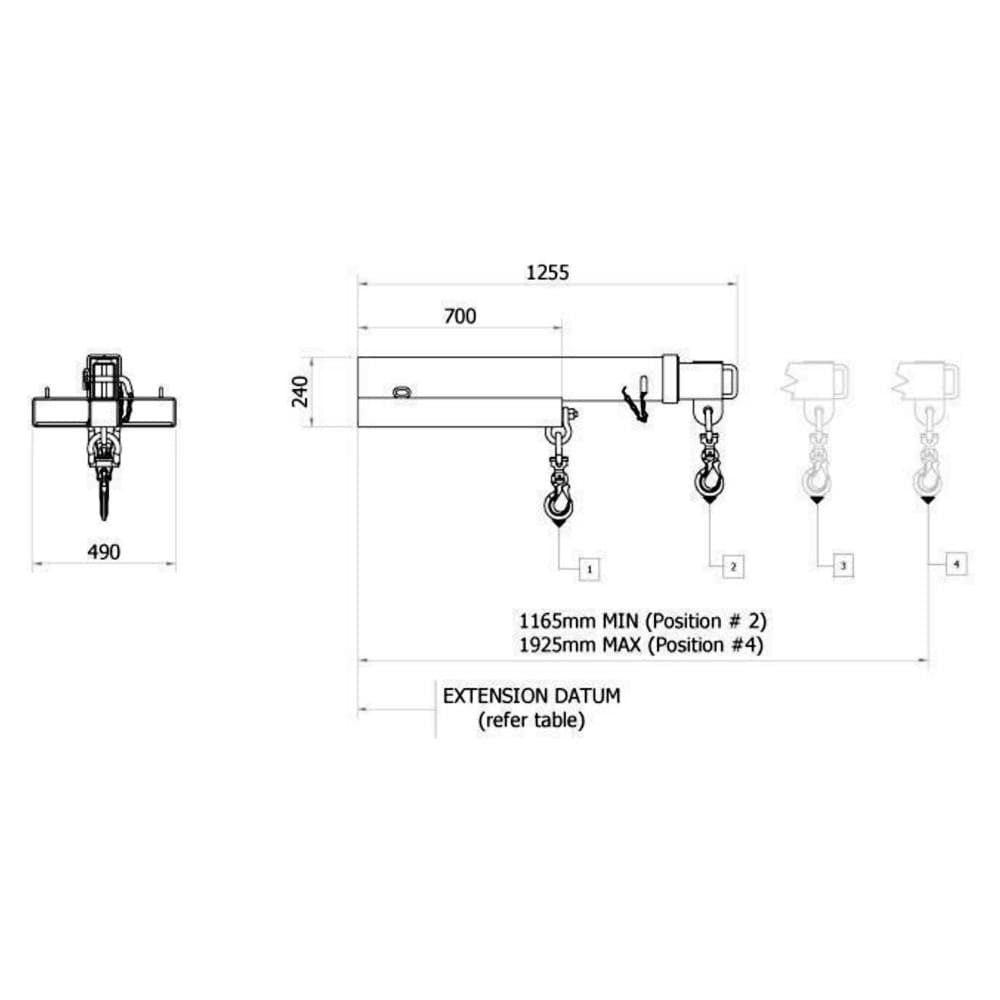

Specifications

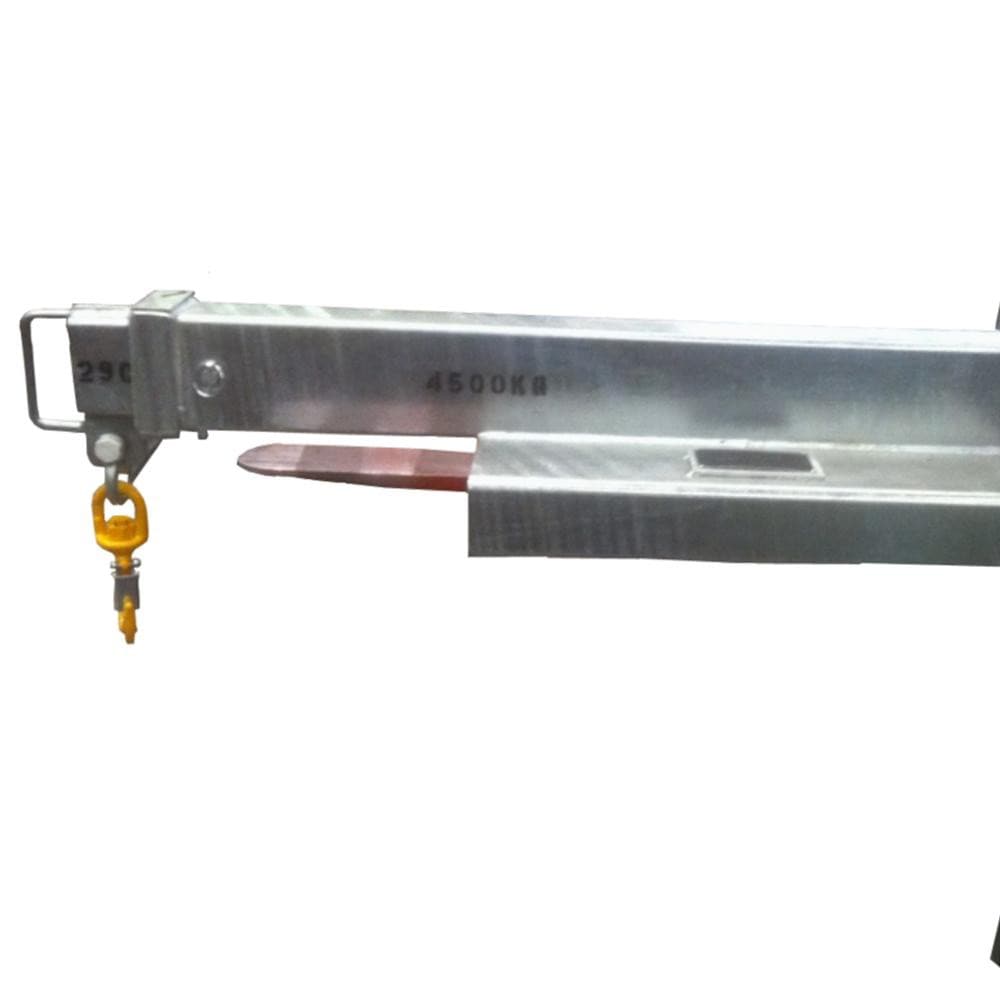

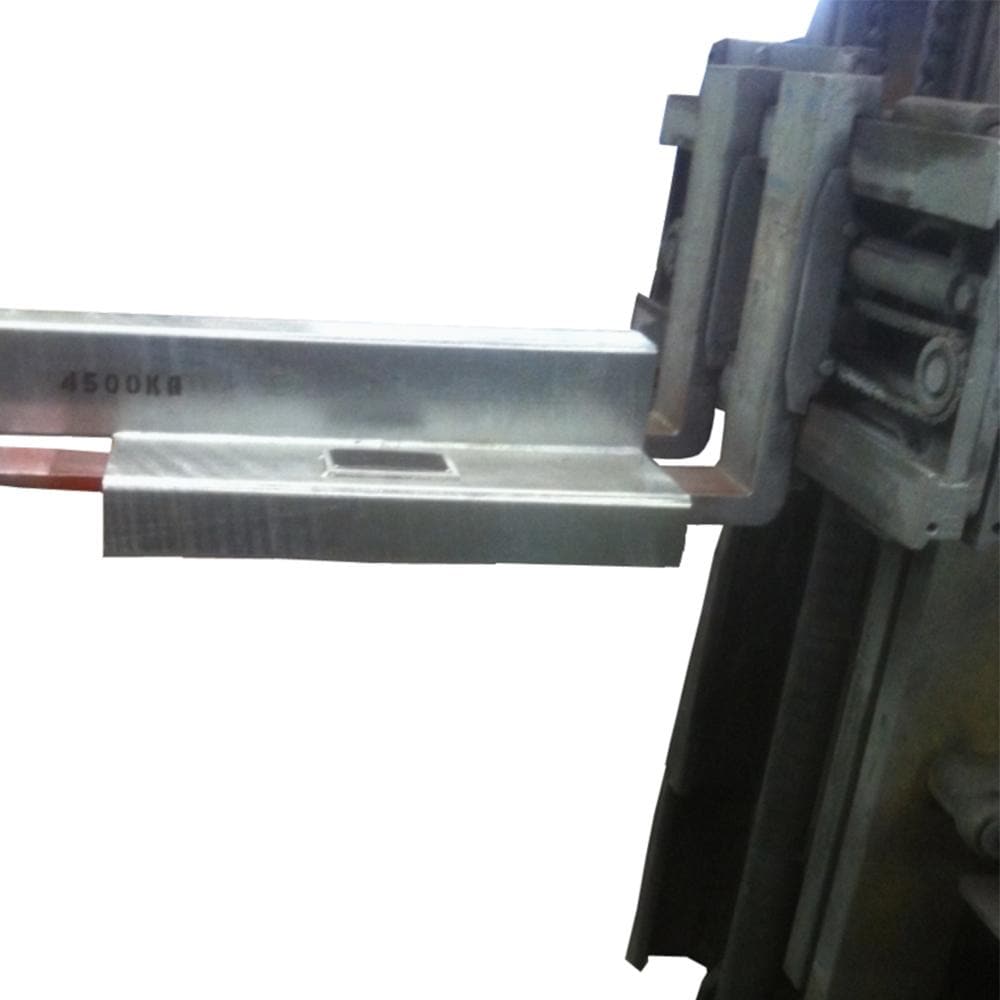

- Short (DHE-ERJS4.5)
- Safe Working Load (SWL): 4500kgs
- Unit Weight: 95kgs
- Pocket Size: 185mm x 65mm
- Pocket Centres: 290mm
- Horizontal Centre of Gravity: 735mm
- Vertical Centre of Gravity: 120mm
- Load Centre: 670mm
- Max Extended Length of Reach: 1900mm
- Min Retracted Length or Reach: 1250mm

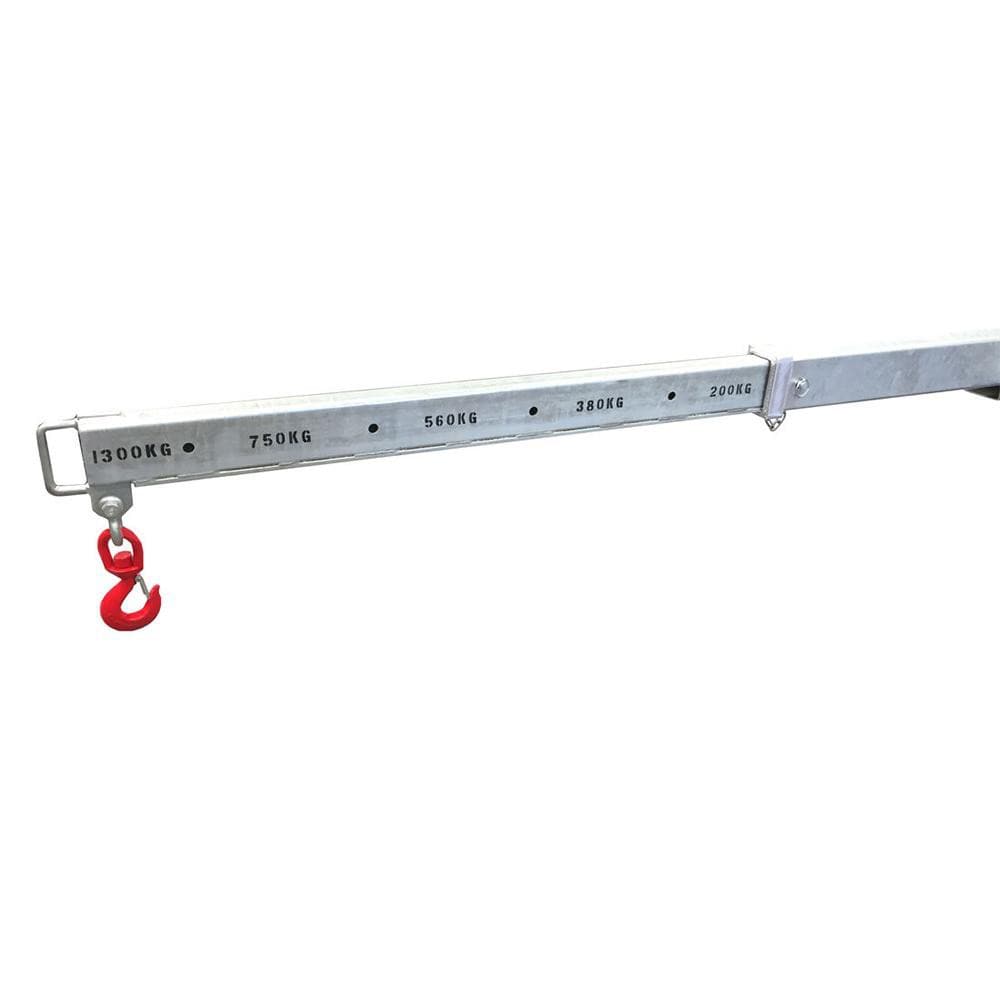

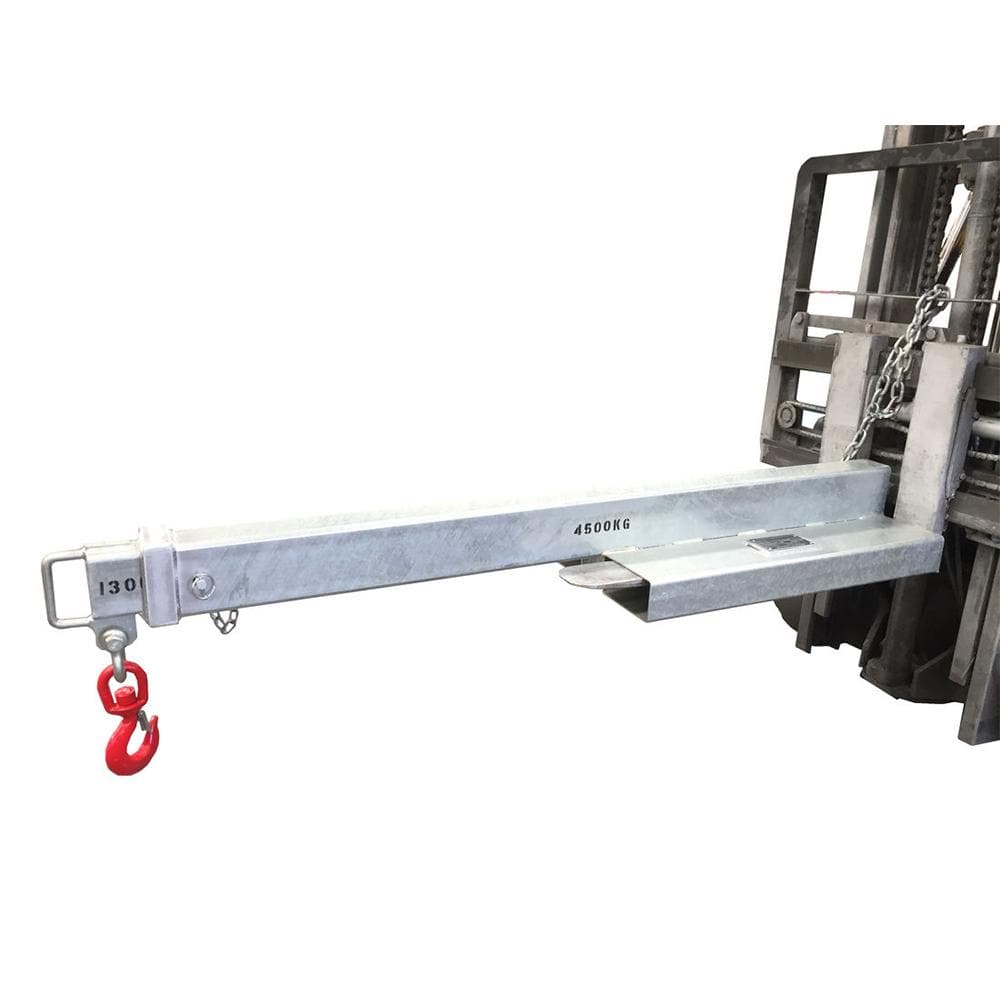

- Long (DHE-ERJL4.5)
- Safe Working Load (SWL): 4500kg Max
- Unit Weight: 145Kgs
- Pocket Size: 185mm x 65mm
- Pocket Centres: 290mm
- Horizontal Centre of Gravity: 1300mm
- Vertical Centre of Gravity: 130mm
- Load Centre 875mm
- Max Extended Length of Reach: 3465mm
- Min Retracted Length or Reach: 1945mm
- The standard finish on this unit is Zinc plated.
- Supplied with Hook and Shackle.
Download Product Specification
Long (DHE-ERJL4.5)
Short (DHE-ERJS4.5)
DHE Product Warranty
- Ramp Champ only works with well-known, industry-leading manufacturers such as DHE. All of our products come with at least a 12-month warranty. See full product warranty details here.
- Minor scratches and blemishes may be visible upon receipt of your item. However, if the item is delivered damaged please contact us immediately. See full shipping details here.
- DHE Product Warranty Information
Note: Colour, tone, finish and style of actual products may differ from those shown in the product images.
