Digga 7-Tonne 3.5m x 560mm Ezi-Loada Aluminium Loading Ramps

Name: Digga 7-Tonne 3.5m x 560mm Ezi-Loada Aluminium Loading Ramps
Brand: Digga
SKU: LRU663550
Price: 4070.0 AUD
Availability: InStock
Rating: 5.0 (2 reviews)

Authorised dealerSKU: LRU663550

5.0 from 2 reviews 500+ Digga ramps sold by Ramp Champ since 2016

$4,070

$3,700 ex GST

or 3 months interest-free with

Length3500mm
Holds7,000kg per pair
Weight61kg (per ramp)
Made ofAluminium

Suits steel tracks, rubber tracks and tyres
3 ways to attach: pin, tongue (both supplied) or chain

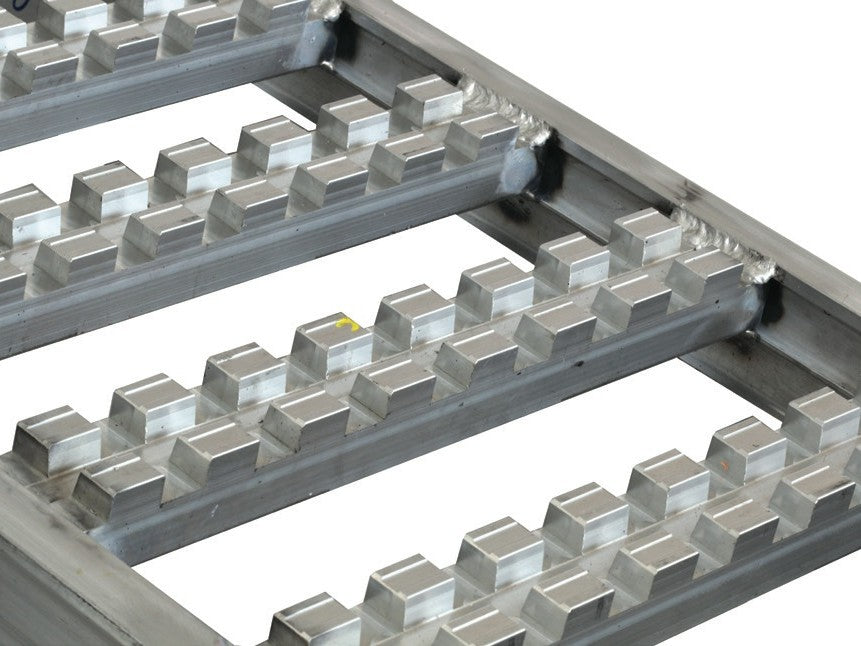

Patented studded rungs, machined solid, for grip

Keep reading

Capacity and size

Will it reach your deck? Reaches 1258 mm. Check yours

Reaches a deck up to 1258 mm high, as rated by Digga.

Open the ramp calculator

Available to order, ships in 1-3 business days

Spec sheet (PDF)

Authorised dealer

Ramp Champ is an authorised Digga dealer.

500+ sold

500+ Digga ramps sold by Ramp Champ since 2016.

18-month warranty

Covered by the Digga 18-month manufacturer's warranty. Warranty details

100-day free returns

Not right? Return it within 100 days and we cover the return shipping anywhere in Australia. Custom, made-to-order, special order and Almost Perfect items are excluded. Returns policy

Rated 4.8 from 4,039 reviews on

Goes well with

Barrier Group T-Top Plastic Bollard & Base

$27

Delivery & Pickup

Delivery details

ShipsIn 1-3 business days

Courier deliveryVIC, ACT & NSW 2-4 days, QLD & SA 3-5 days, WA & NT 6-8 days

Tracked & insuredSMS + email updates, no extra cost

This product is a "Bulky Item". Delivery to a business address with unloading facilities or depot is recommended.

Shipping charges apply per shipment and can vary by warehouse or supplier. Shipping policy

Estimate delivery to your door

Enter your postcode for an estimate

An estimate for this item to that suburb, from the same rates checkout uses. You choose the delivery method at checkout.

Pickup details

Pick up in:

Melbourne south-east (VIC)

Choose pickup at checkout. Once your order is ready, our team books a pickup date and time with you and sends the address.See all pickup areas

Reviews

Specifications

Product Specs

Sold as	Pair (2 ramps)
Holds	7,000kg per pair
Made of	Aluminium
Colour	Silver
Brand	Digga
SKU	LRU663550
Length	3500mm
Width	560mm
Height	Up to 1258mm
Weight	61kg (per ramp)
Internal width	500mm

Key Benefits

Suits steel tracks, rubber tracks and tyres
3 ways to attach: pin, tongue (both supplied) or chain
Patented studded rungs, machined solid, for grip
Patented, fully extruded, double T-beam design, interlocks the rungs into the body of the rail. No physical load is taken by the weld alone. The welds (top & bottom), hold the rung in its fitted position, adding superior strength & durability
Enhanced beam strength
Huge 18-Month Warranty
Certified to the highest international standards including CE, TUV and GS certification guaranteeing the quality and safety of the ramps
Reinforced, easy load, lead on/off designs are safer and more durable than conventional ramp designs
Rungs are level with the top of the main supporting rail, minimising wear and providing greater durability
Sold in pairs

How it's built

Digga's drawings of the ramp profile with its toothed rungs, the rung and side rail structure, and the toe end.

Profile

Rung and side rail

Toe end

Choosing your Digga ramp

Four checks before you buy: your deck height, your track or tyre width, your track type and your machine's weight. This ramp (LRU663550):

A Rated 7t at a 2m wheelbase. Pick a rating above your machine's weight, bucket included.

B Inside width 500mm. Your track or tyre must be narrower.

C Max deck height 1,258mm. Keep the loading angle no steeper than 21.8° (40%).

This is a Universal ramp, made for steel tracks, rubber tracks and tyres.

How to check a Digga ramp fits: deck height C, loading angle no steeper than 21.8 degrees, inside width B, machine weight and wheelbase A

Three ways to attach

The top of the ramp has a lip that sits on your tray. Lock it on with the pin or the tongue.

Pin (supplied): drops through the ramp lip and the hole in your tray, then locks with an R clip.

Tongue (supplied): hangs down between your tray and the dropped tailgate, so the ramp can't pop out.

Chain (not supplied): a backup only, from under the ramp to the tailgate bar. Always use the pin or tongue too.

About This Product

Made in Europe with strong, grippy rungs

Designed for all types of machines, including those with steel tracks, rubber tracks, and pneumatic (air) tyres, the Digga 7 Tonne 3.5m x 560mm Ezi-Loada Aluminium Machinery Loading Ramps are both heavy-duty and lightweight. They offer enhanced safety, superior quality, and cost-effective performance.

Featuring state-of-the-art European design and engineering, the Digga Ezi-Loada ramps are among the most advanced on the Australian market today.

These aluminium loading ramps come with a connection plate and tongue, along with zinc-coated steel pins, making them ideal for loading onto tipper body trucks, flatbed trucks, or trailers.

Skid steers (Bobcats), excavators, Dingo's Ditch Witches, backhoes and other machinery with 7-tonne ratings can now be loaded onto trailers and truck beds with these aluminium machinery loading ramps.

Can't find the ramp you're looking for? Use the chat function in the corner of the window or Contact us for advice if you're unsure what ramps are suitable for you.

FAQs

Will these ramps take my machine?

Digga rate each model at a wheelbase, for example 1.5t at 1m. Pick a ramp rated above your machine's weight, including the bucket if it stays on while loading, and check your machine's wheelbase (front to rear axle) against the one in the rating.

Is the price for one ramp or a pair?

The price is for a pair. The weight shown in the Specifications is per ramp.

How do they attach to my truck or trailer?

Three ways. The pin (supplied) goes through the ramp and the holes in your tray and is locked with an R clip. The tongue (supplied) sits between the truck bed and the tailgate and is shaped so the ramp can't pop out. A chain (not supplied) can be added as a backup, but never use it without the pin or tongue.

How high a deck will they reach?

Up to the max deck height Digga quote for this model, shown above. Digga recommend a loading angle no steeper than 21.8° (40%).

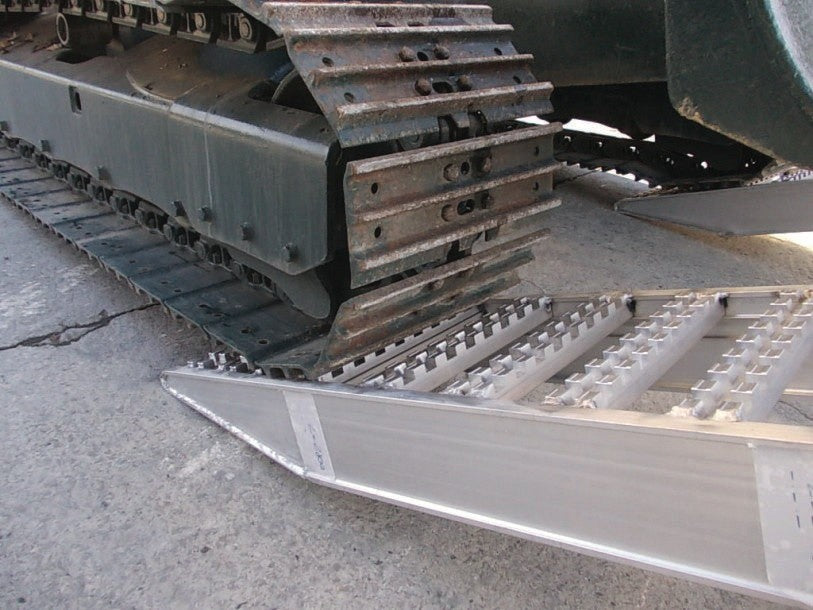

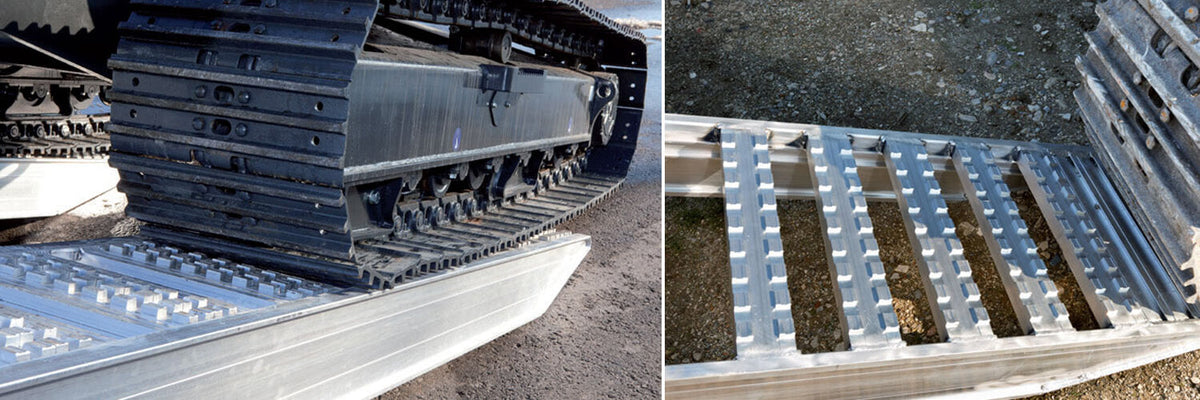

Can I load a machine on steel tracks?

Yes. This is a Digga Universal ramp, made for steel tracks, rubber tracks and tyres. Its studded rungs sit level with the rails for grip and wear.

Will my tracks or tyres fit?

Measure across your track or tyre. It needs to be narrower than the inside width between the rails, which is 500mm on this ramp.
