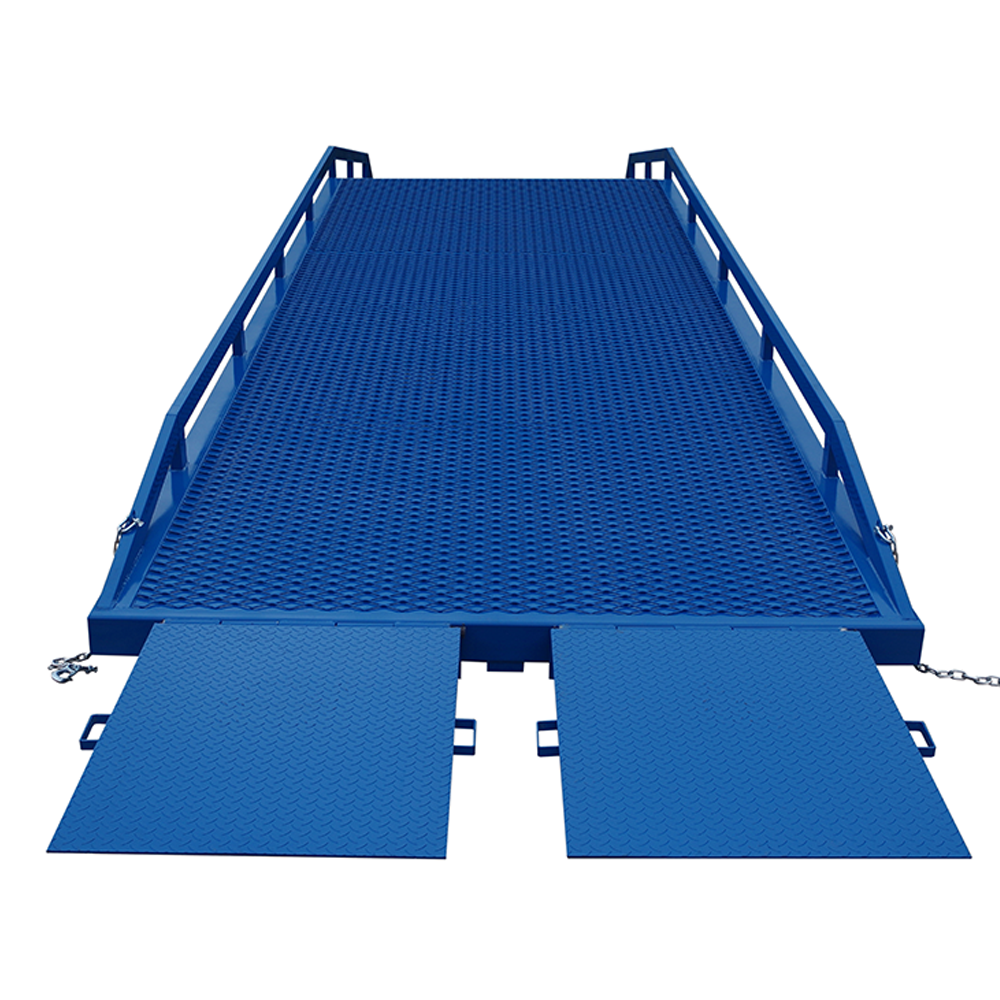

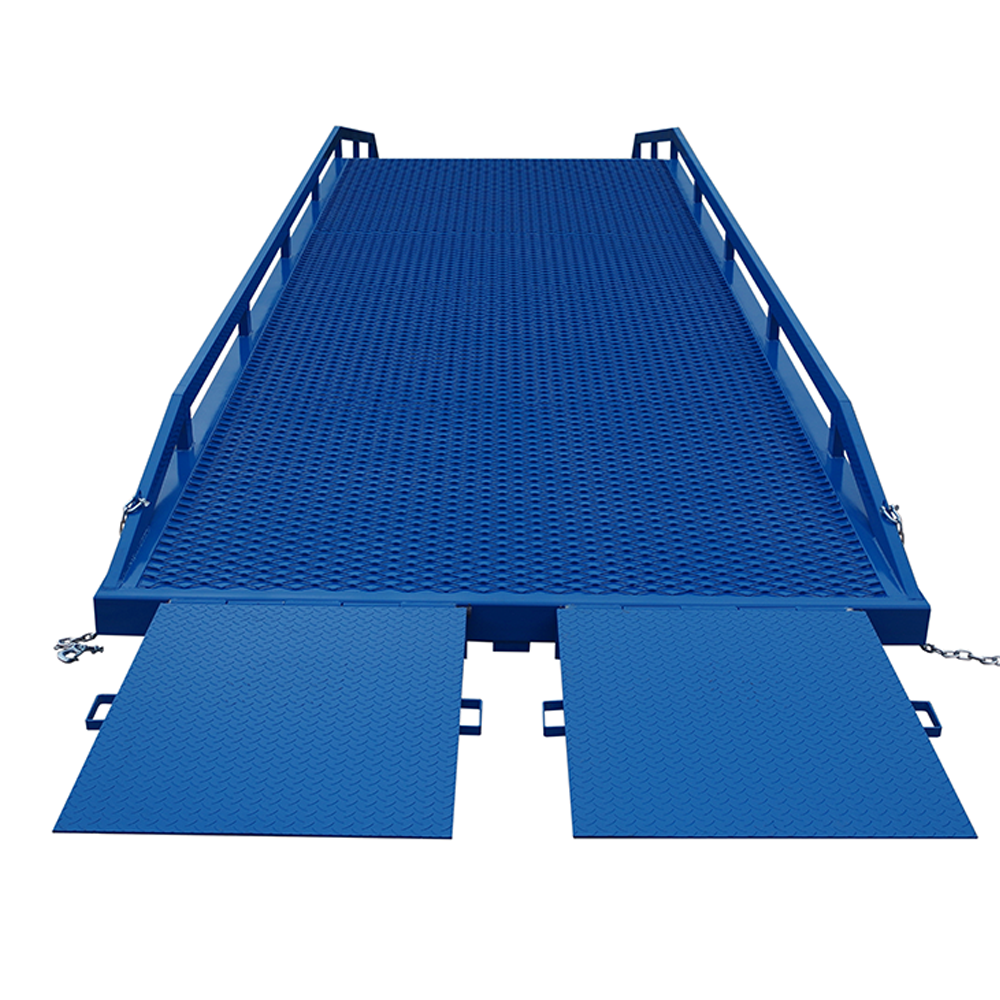

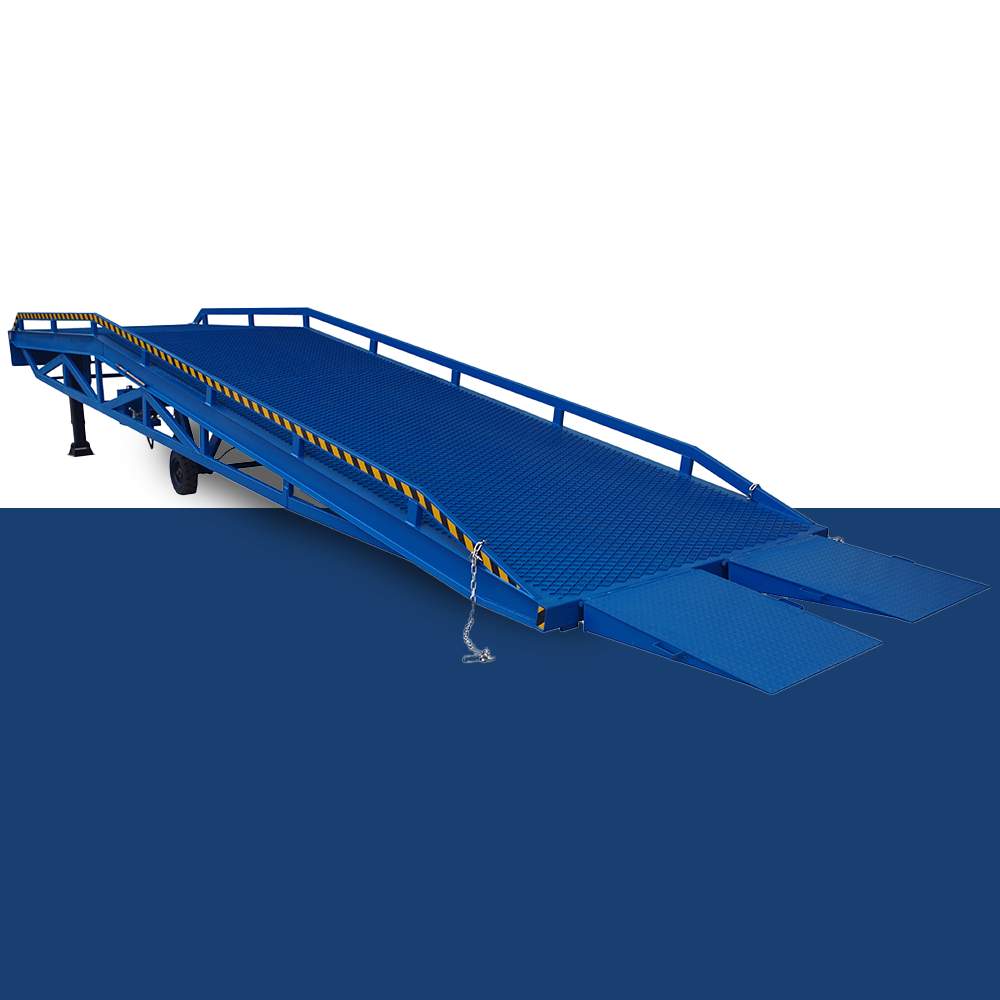

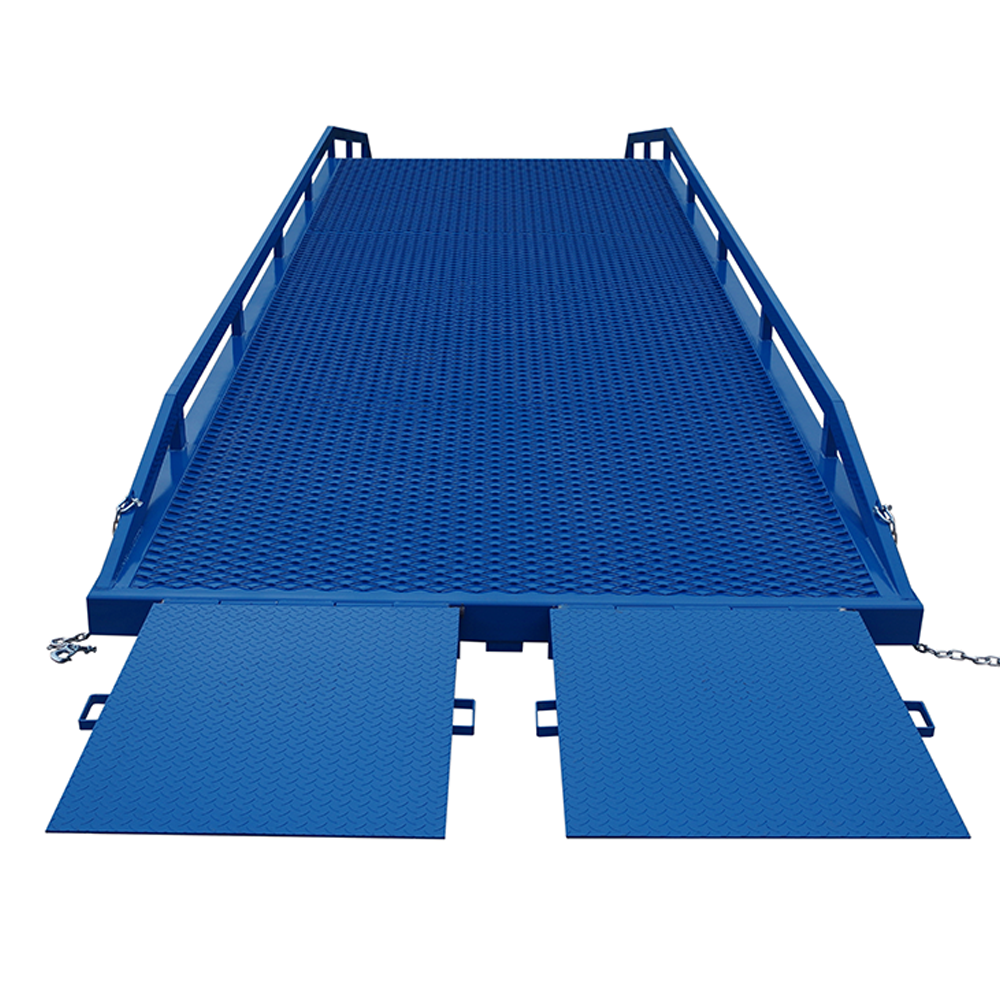

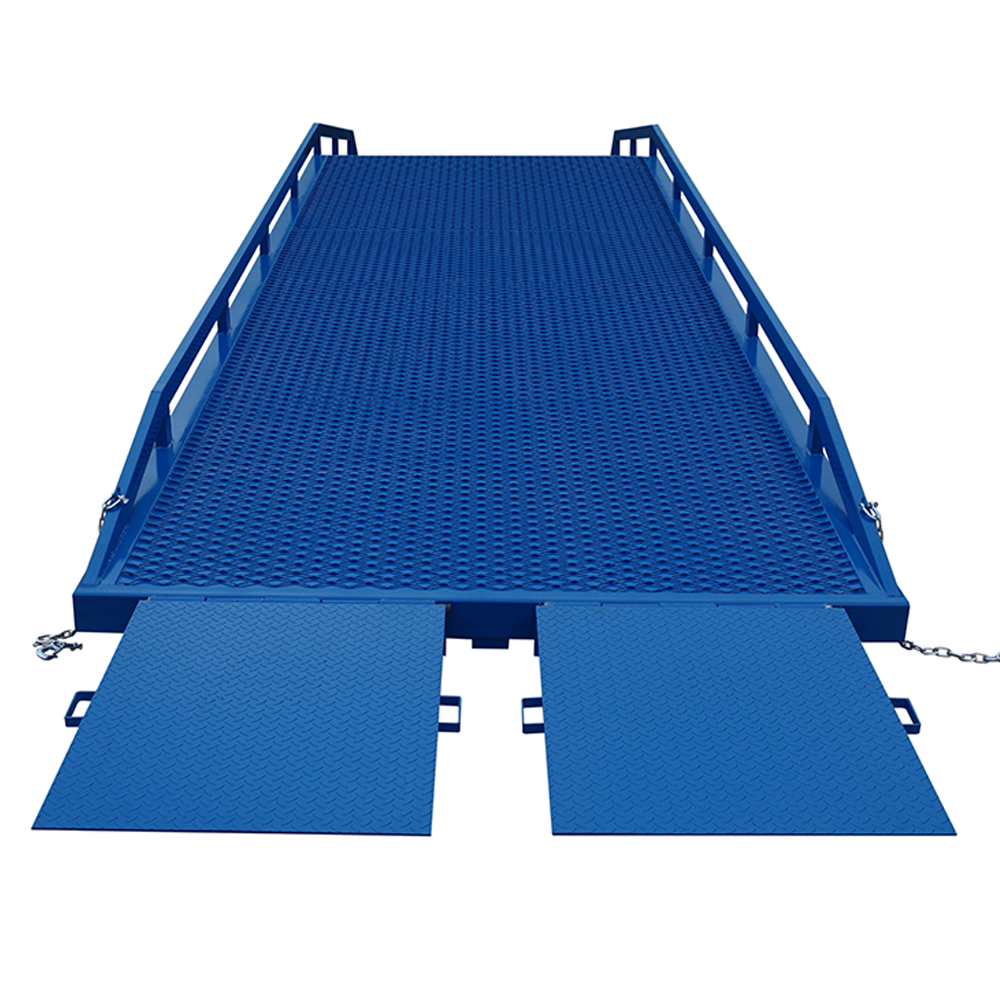

Heeve Forklift Dock Ramp/Yard Ramp with Grated Surface - Hydraulic

Ramp Champ's own brandSKU: H0204

54,000+ Heeve ramps sold by Ramp Champ since 2018

$34,249

$31,135.45 ex GST

Equipment finance available See finance options

Holds8,000kg to 16,000kg
ColourBlue
Width2200mm
Height1,200mm –1,680mm

8T and 16T models certified to AS4100 by an engineer

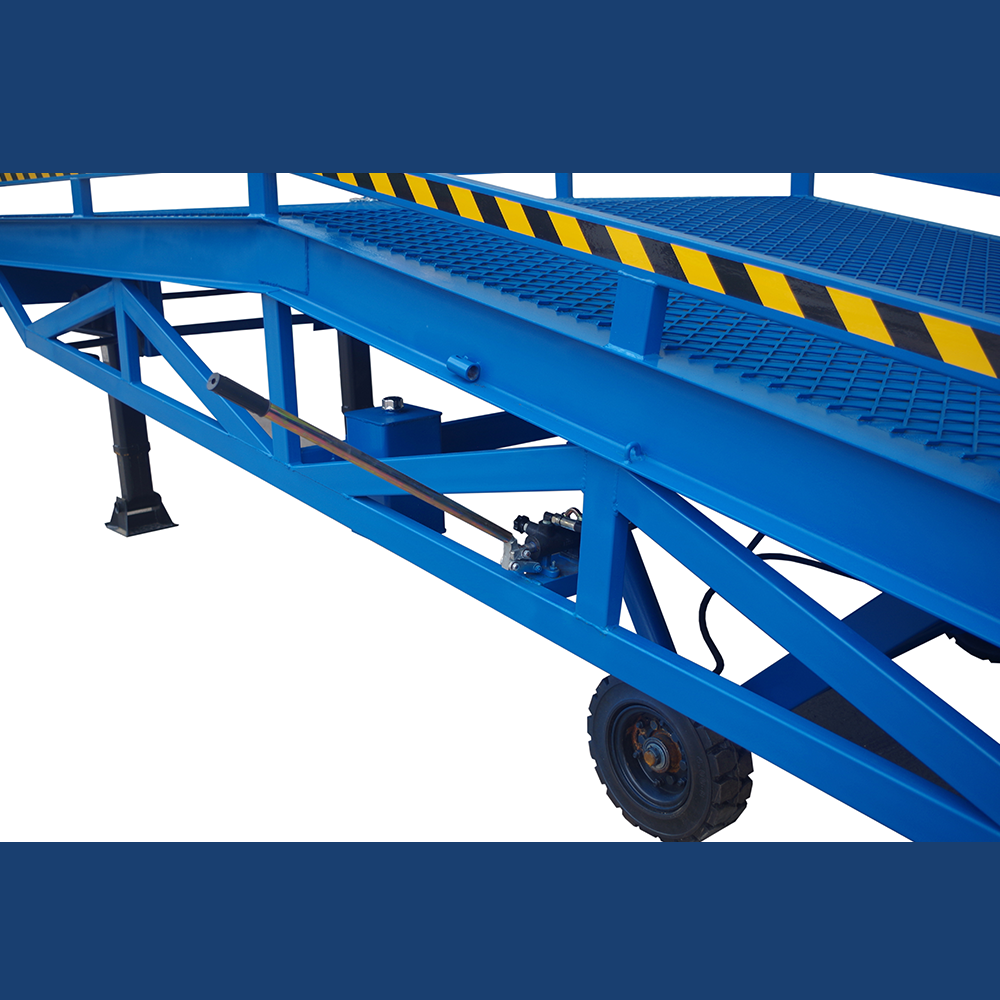

Hand-pumped hydraulic lift, no power needed
Wheel chocks and safety chains included

Keep reading

Capacity

8-Tonne 12-Tonne 16-Tonne

Length

Standard Long

Hand Rails

Without Hand Rails With Hand Rails

Made to order, ships within 6-12 weeks

Made to order. Lead times may be longer than usual. To confirm timing, request a free quote.

Freighted to your site. Tell us where it's going and we'll quote the ramp and delivery.

Spec sheet (PDF)

Ramp Champ's own brand

Heeve is Ramp Champ's own brand, backed by our free Lifetime Support.

54,000+ sold

54,000+ Heeve ramps sold by Ramp Champ since 2018.

12-month warranty

Covered by the Heeve 12-month warranty. Warranty details

Rated 4.8 from 4,039 reviews on

Goes well with

Barrier Group Plastic Truck Wheel Chocks

$38

Delivery & Pickup

Delivery details

Made to orderShips within 6-12 weeks

Courier deliveryVIC, ACT & NSW 2-4 days, QLD & SA 3-5 days, WA & NT 6-8 days, TAS 6-8 days

Tracked & insuredSMS + email updates, no extra cost

This product is a "Bulky Item". A forklift or crane is required at the delivery point with sufficient capacity to unload the ramp.

Shipping charges apply per shipment and can vary by warehouse or supplier. Shipping policy

Estimate delivery to your door

Enter your postcode for an estimate

An estimate for this item to that suburb, from the same rates checkout uses. You choose the delivery method at checkout.

This item ships by freight, so we quote delivery to your address.

Pickup details

Not available for this item. Shipping only.

Reviews

Specifications

Sizes and Prices

Capacity	Length	Hand Rails	SKU	Price	Stock
8-Tonne	Standard	Without Hand Rails	H0204	$34,249	Made to order
8-Tonne	Standard	With Hand Rails	H0205	$35,769	Made to order
8-Tonne	Long	Without Hand Rails	H0206	$34,919	Made to order
8-Tonne	Long	With Hand Rails	H0207	$36,439	Made to order
12-Tonne	Standard	Without Hand Rails	H0212	$35,769	Made to order
12-Tonne	Standard	With Hand Rails	H0213	$37,299	Arriving late Nov 2026
12-Tonne	Long	Without Hand Rails	H0214	$36,439	Made to order
12-Tonne	Long	With Hand Rails	H0215	$37,969	Made to order
16-Tonne	Standard	Without Hand Rails	H0216	$42,459	Made to order
16-Tonne	Standard	With Hand Rails	H0217	$43,979	Made to order

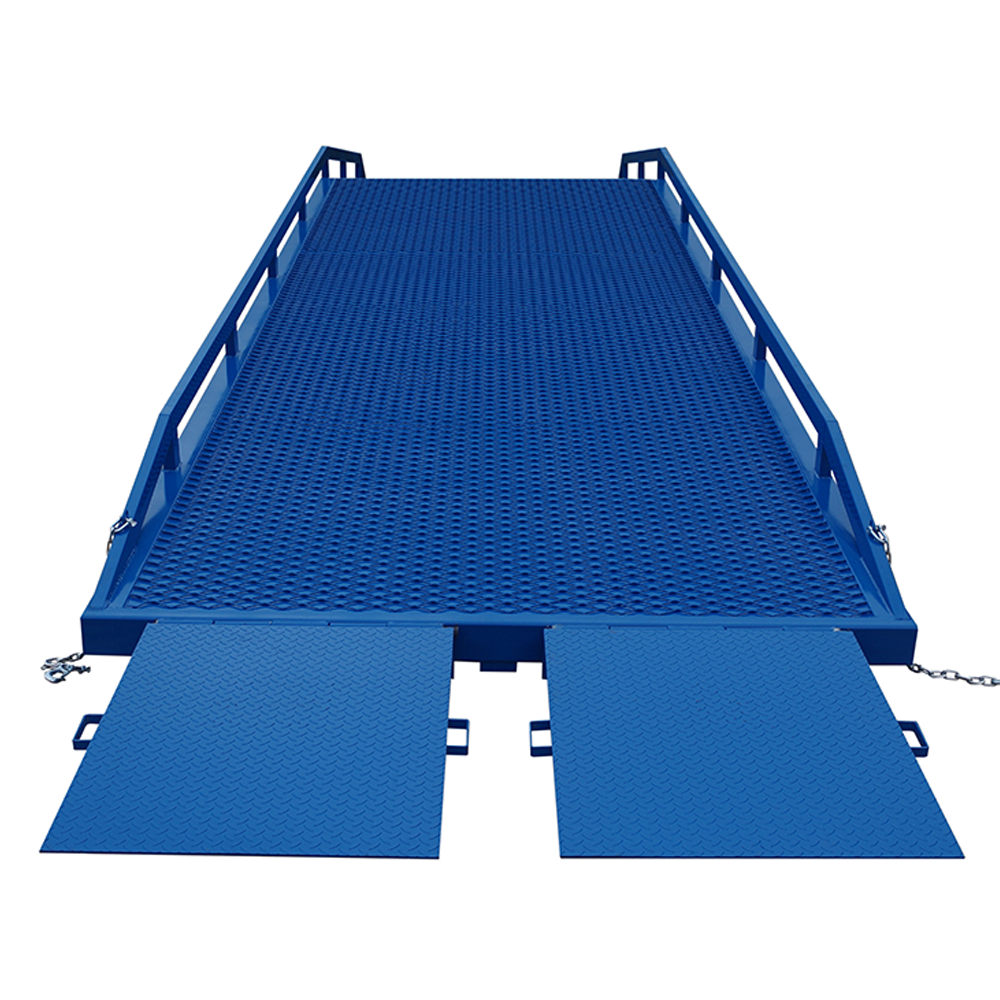

16-Tonne	Long	Without Hand Rails	H0218	$43,129	Only 1 left
16-Tonne	Long	With Hand Rails	H0219	$44,649	Made to order

Product Specs

Sold as	Single ramp
Holds	8,000kg to 16,000kg
Colour	Blue
Brand	Heeve
Length	Standard: 10000mm Long: 13000mm
Width	2200mm
Height	1,200mm –1,680mm
Weight	Approx. 3,745kg
Internal width	2060mm

Key Benefits

8T and 16T models certified to AS4100 by an engineer
Hand-pumped hydraulic lift, no power needed
Wheel chocks and safety chains included
Certified compliance with Australian Standard AS4100 – Steel Structures
Suitable for permanent or semi-permanent locations

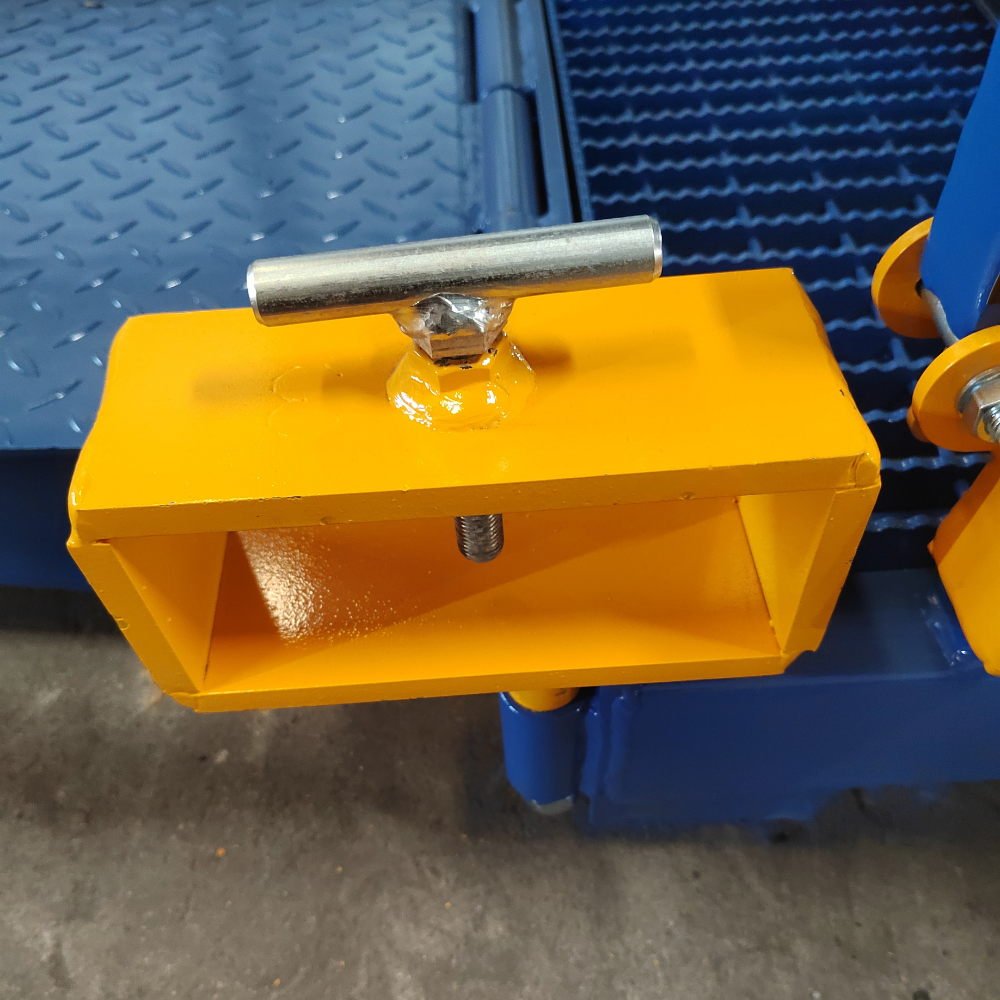

Moved with a forklift via the tow bar slots (never lifted on forklift tynes)
Solid rubber tyres

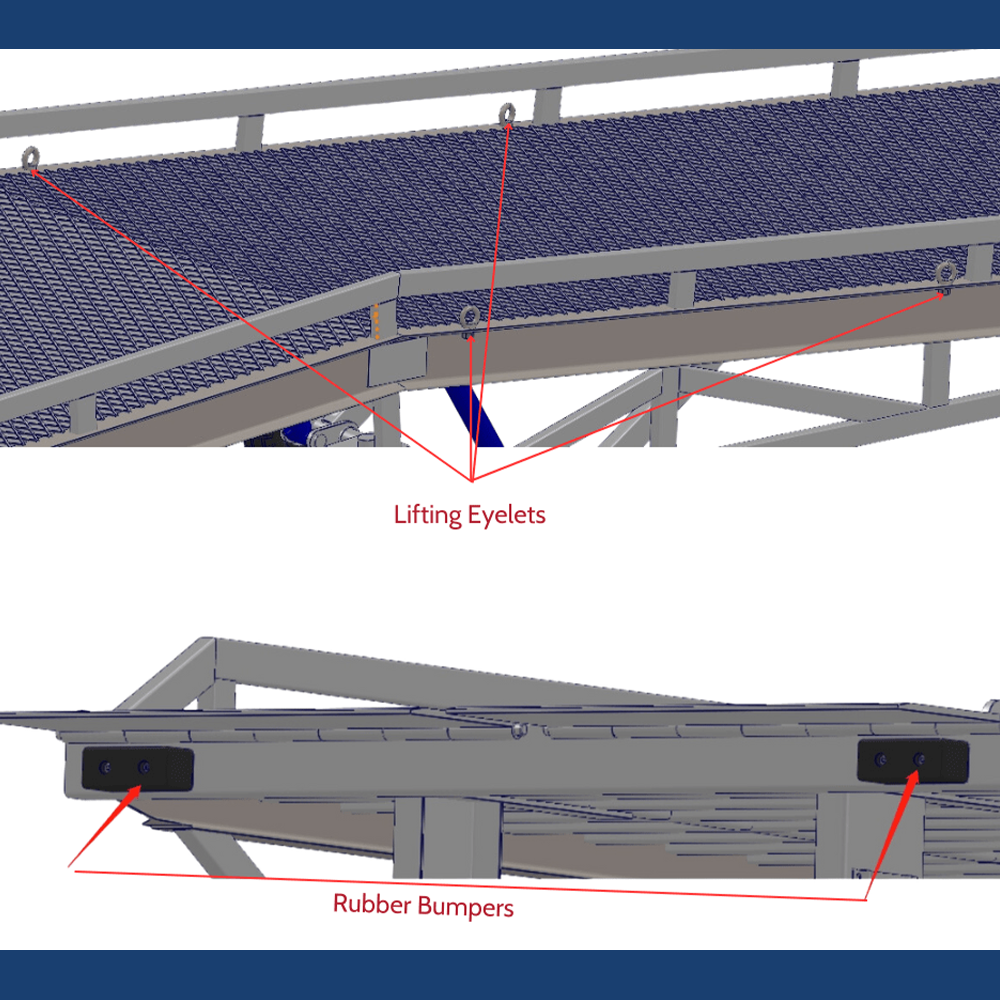

Truck Protector Rubber Bumper

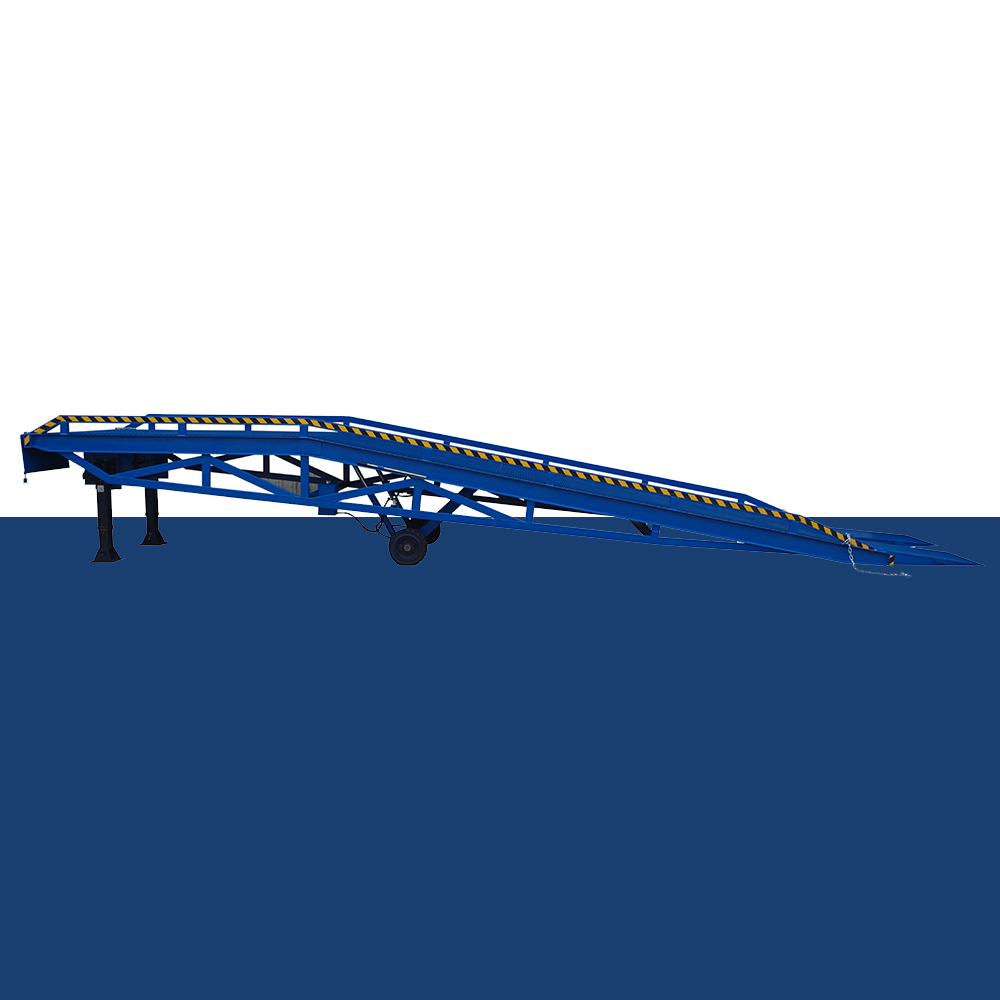

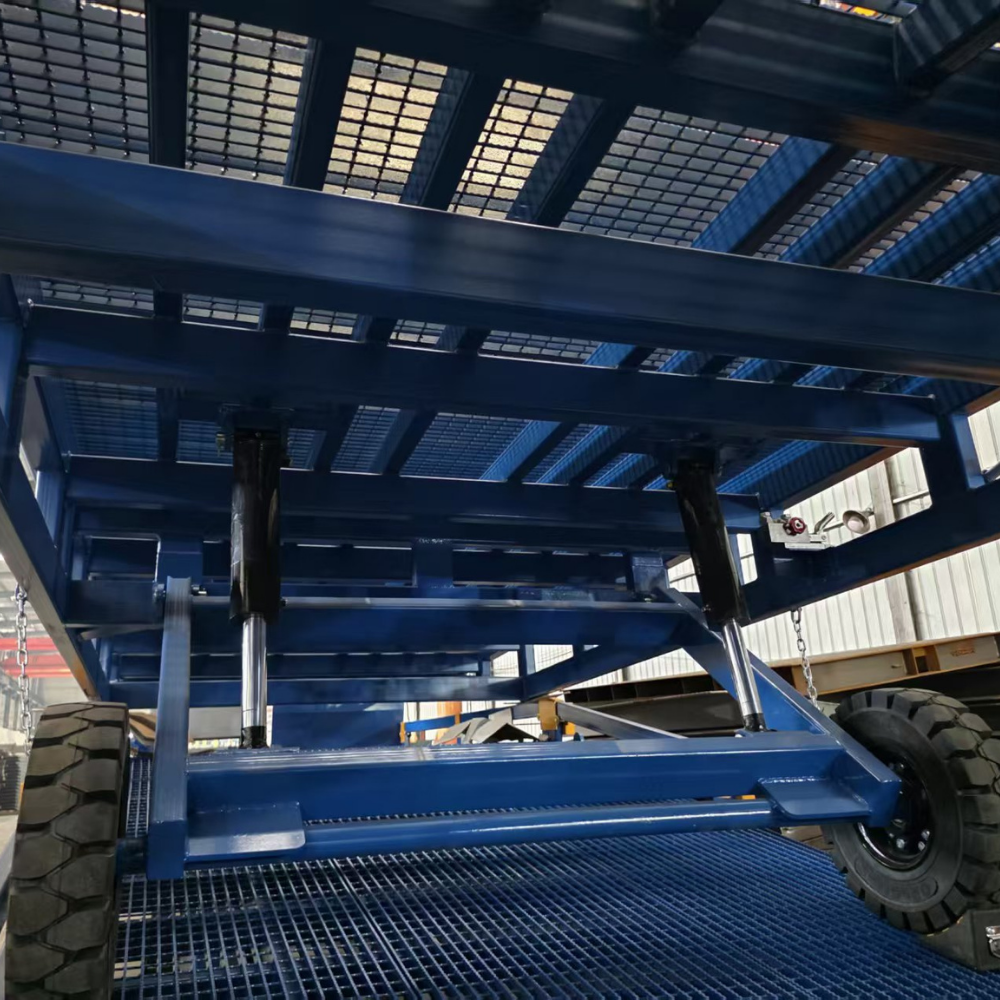

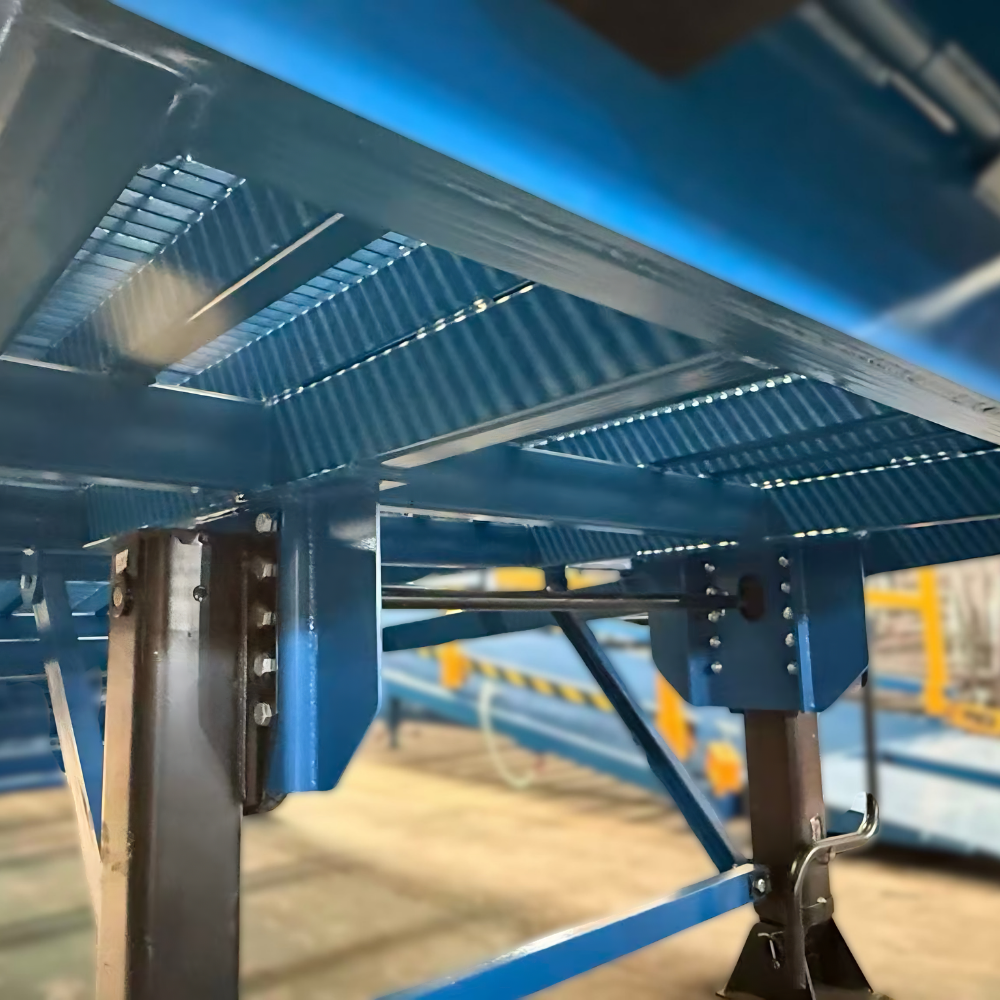

Raise and lower the ramp to match the truck or dock height via the mechanical support legs and move the ramp from A to B fast using the hydraulic lifting ram

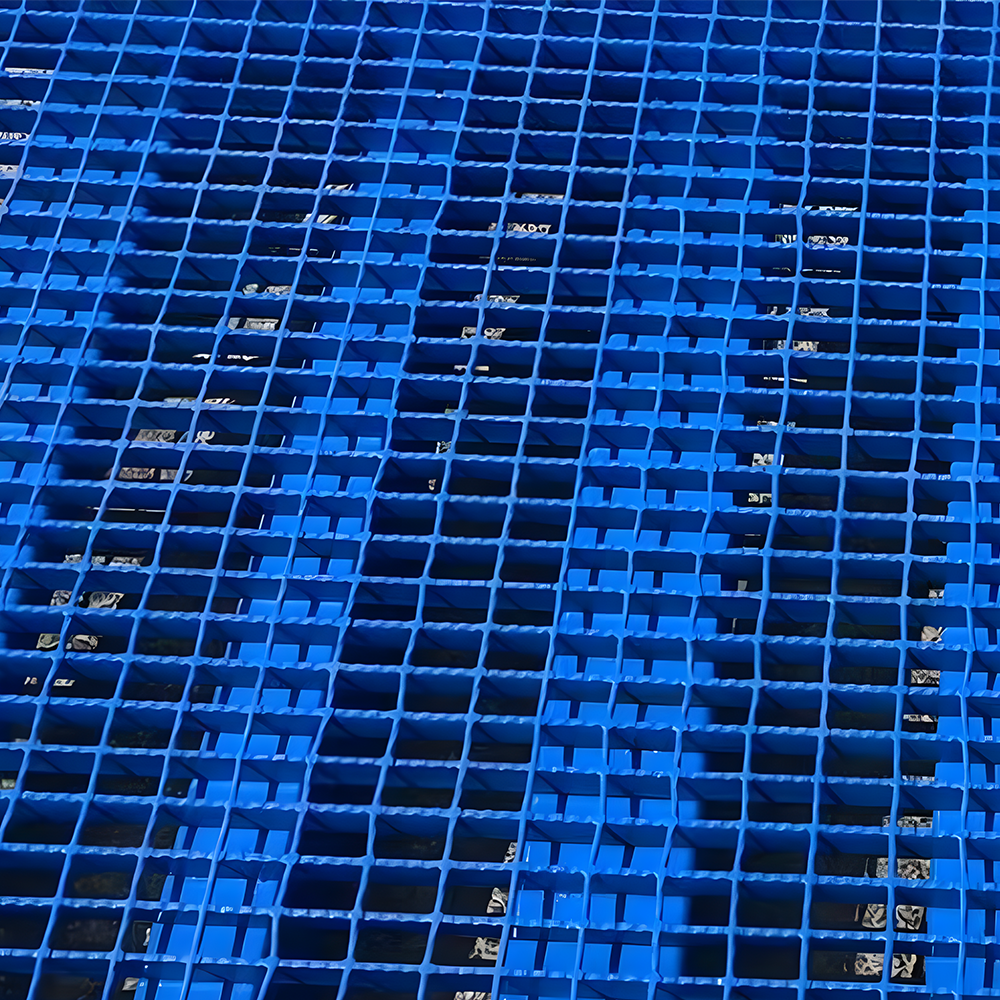

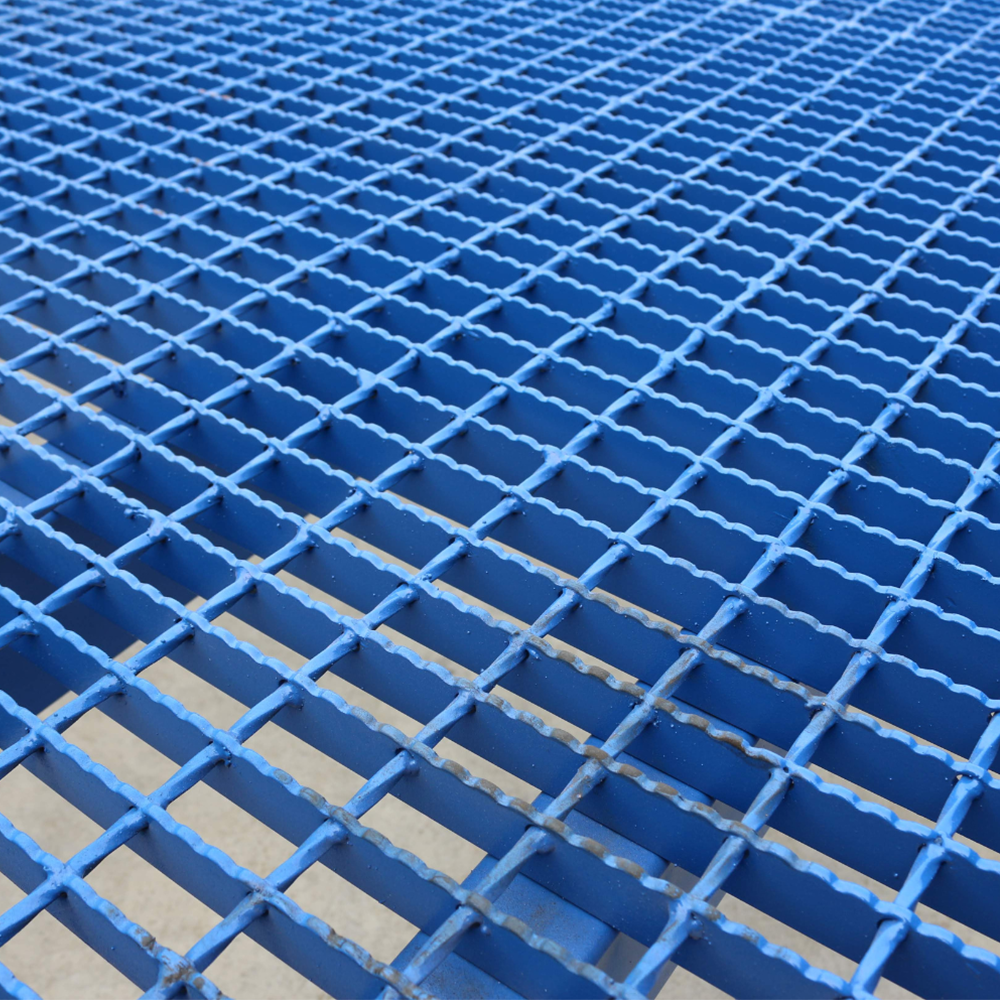

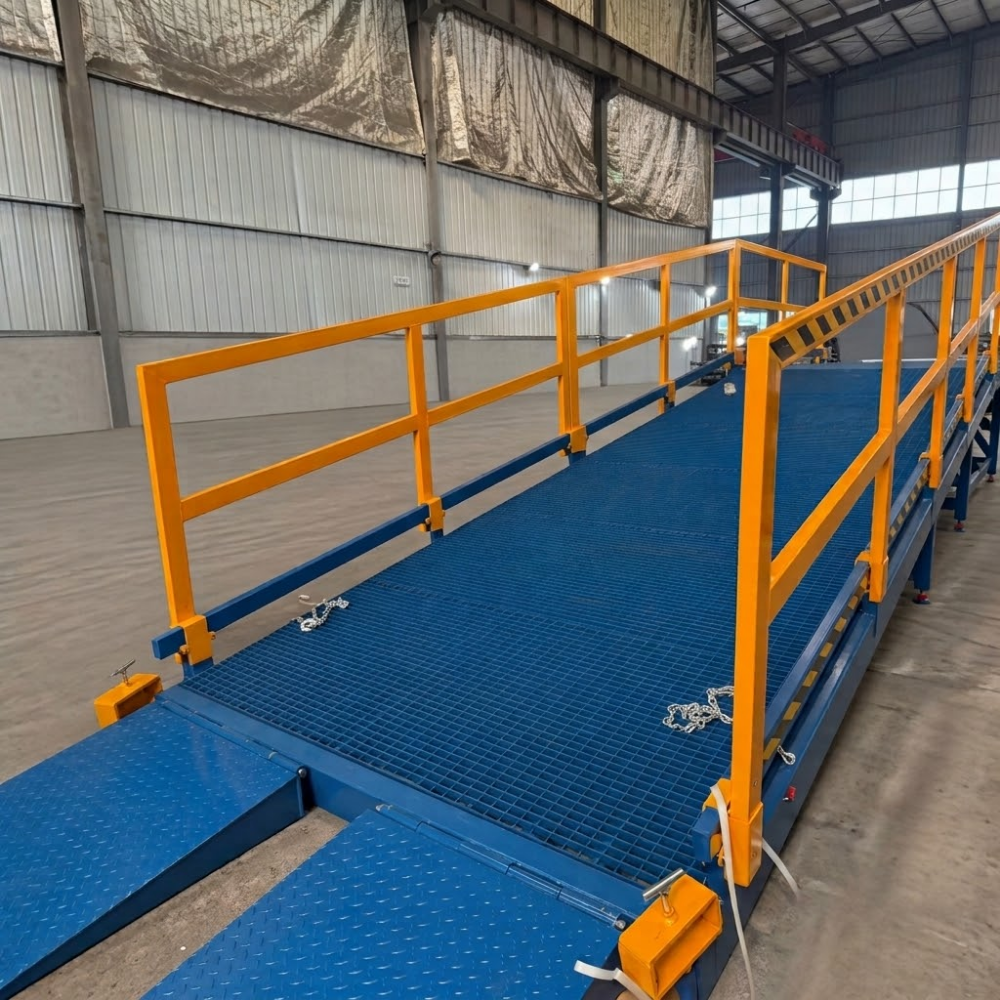

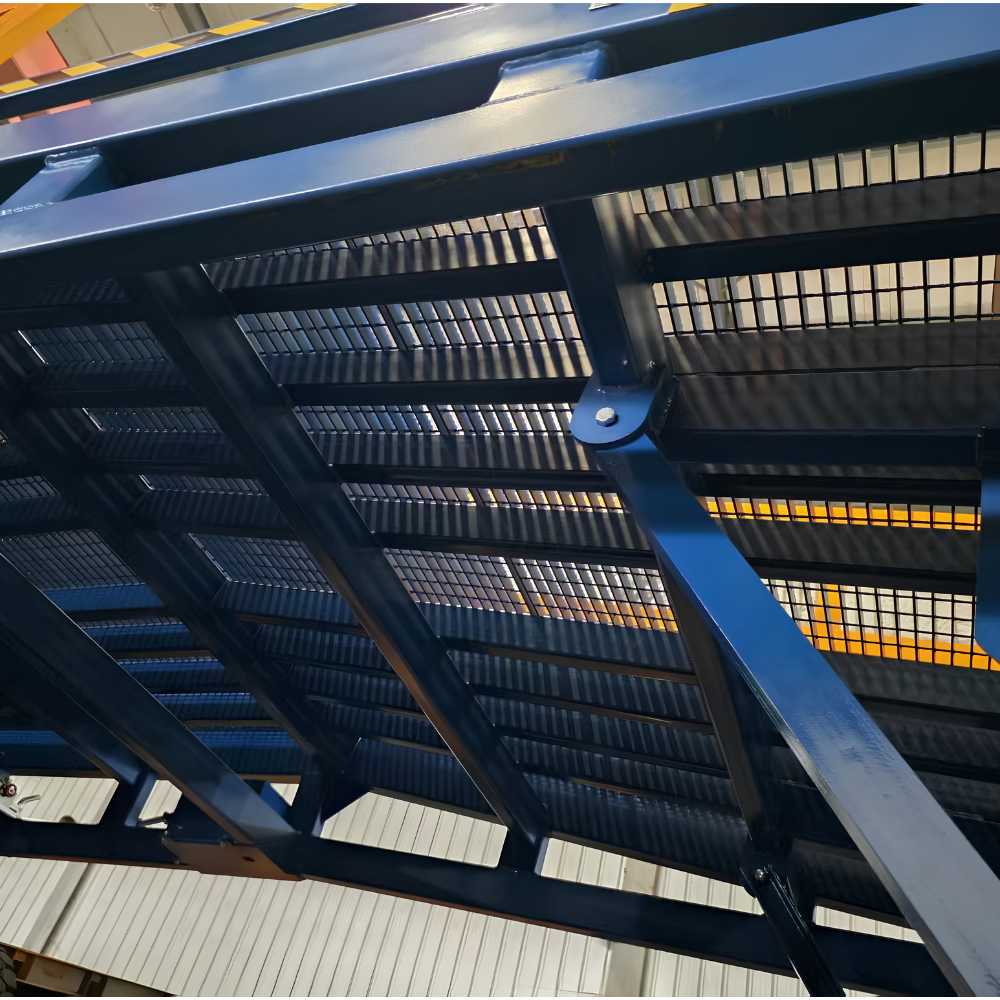

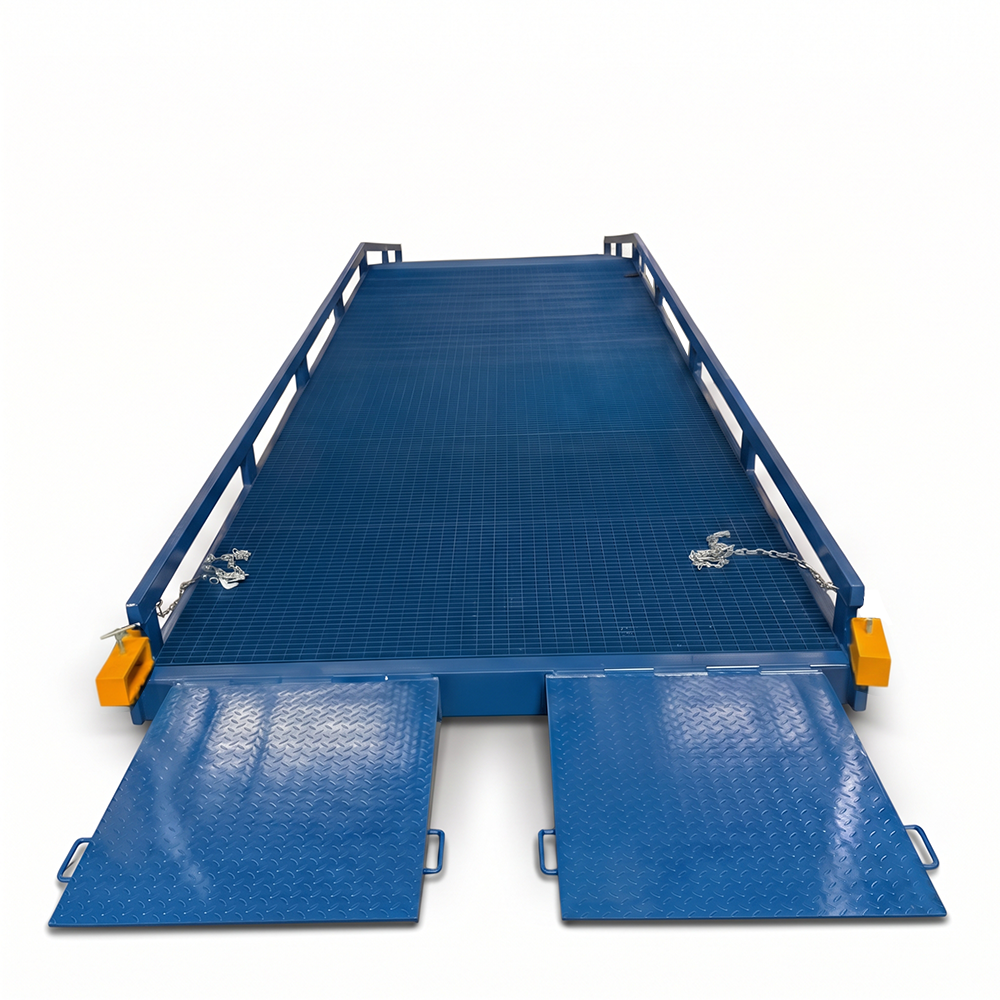

High-strength, non-slip grate ramp surface to prevent dirt and debris build-up
Safety rail to prevent forklift fall-off

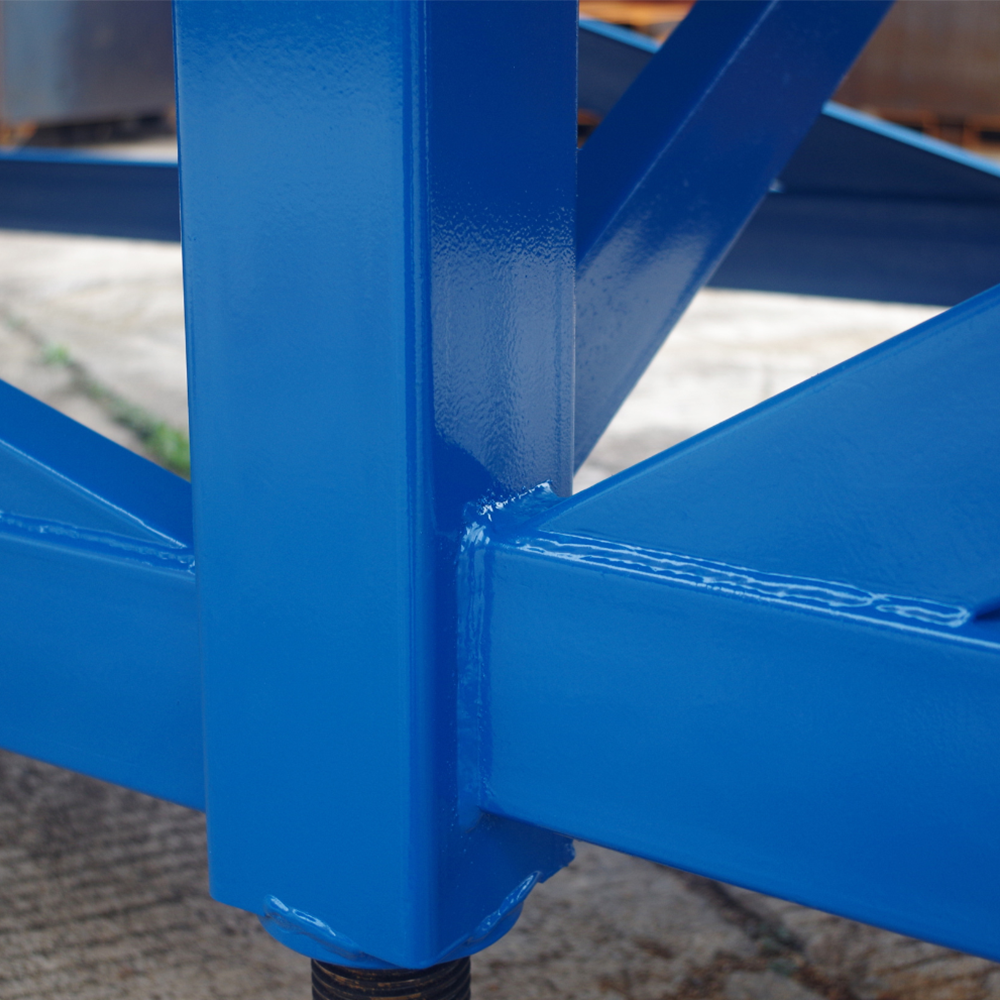

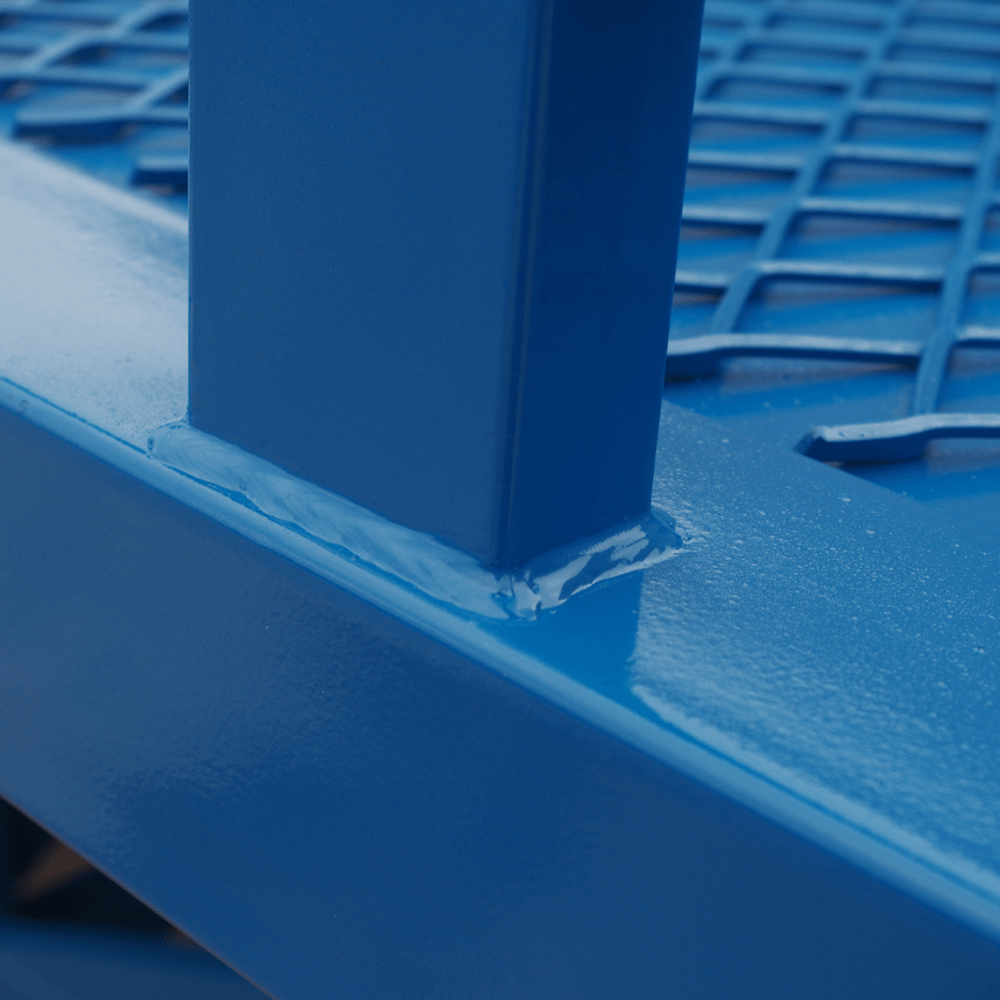

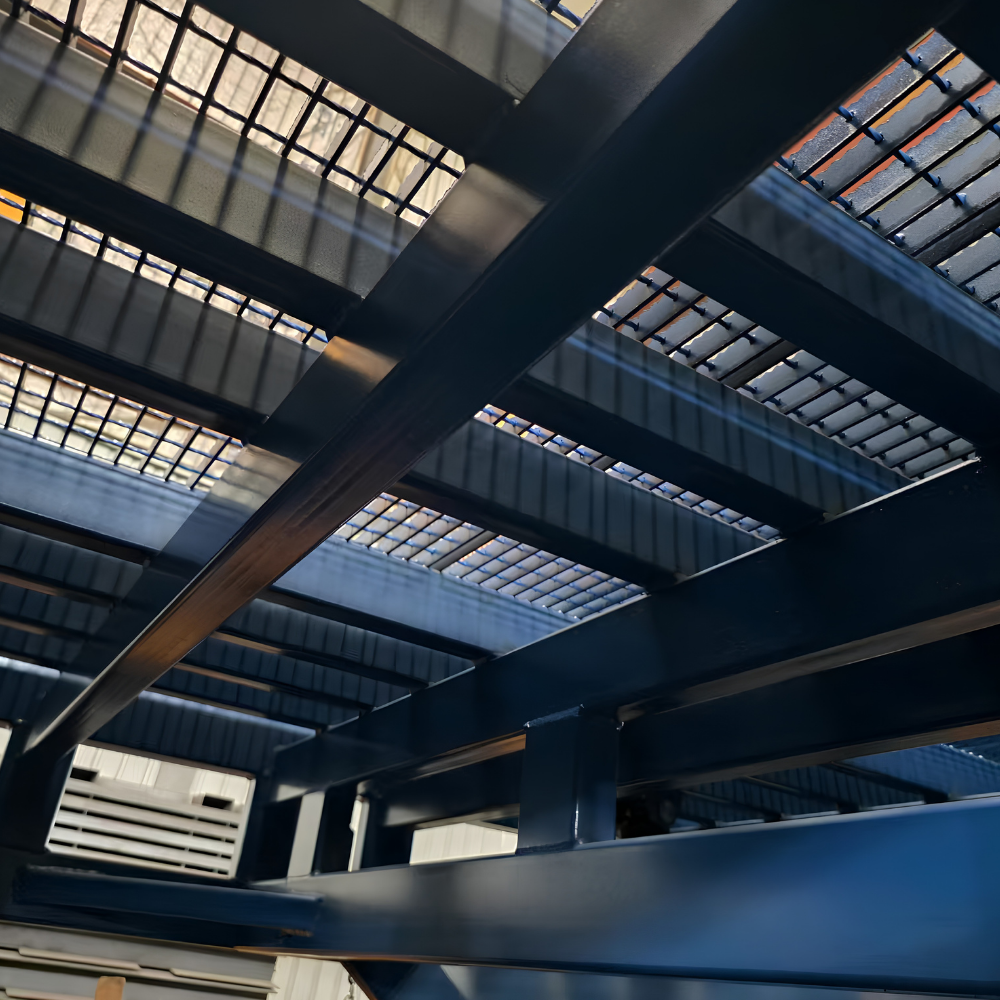

Heavy-duty engineer-certified construction

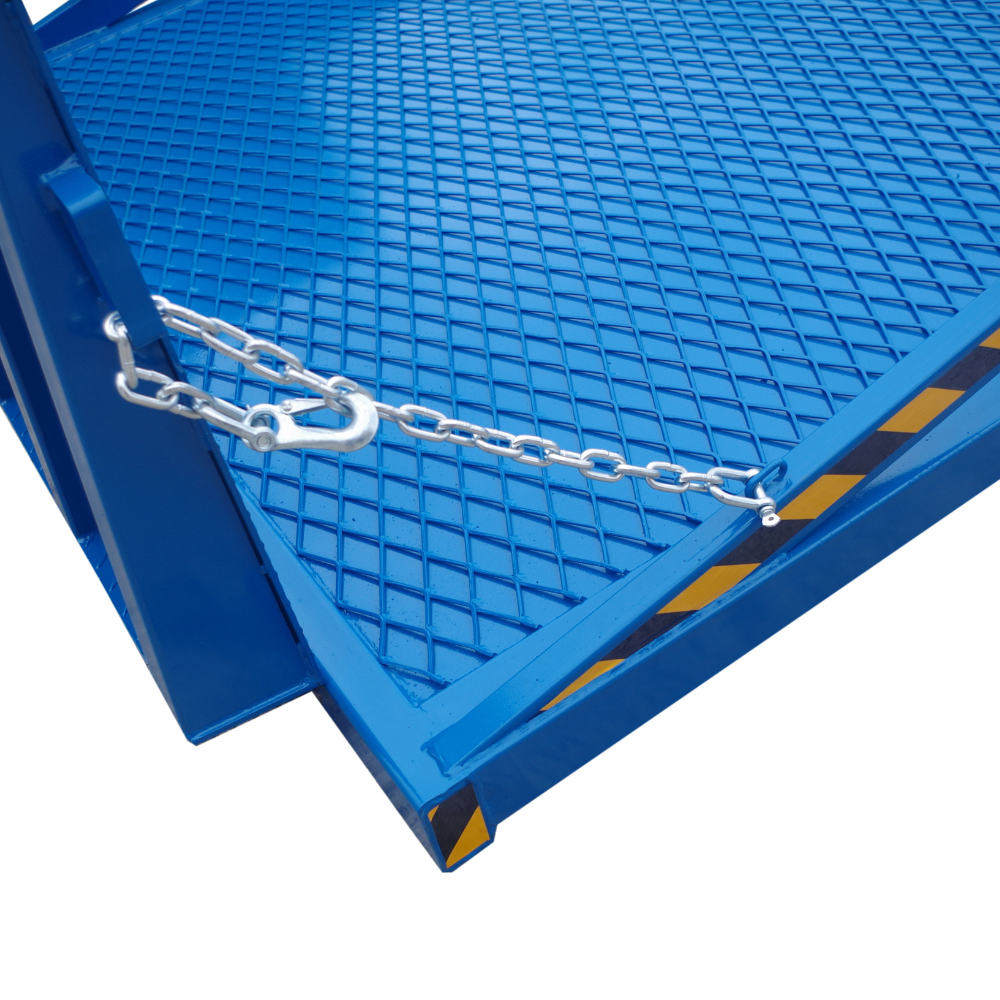

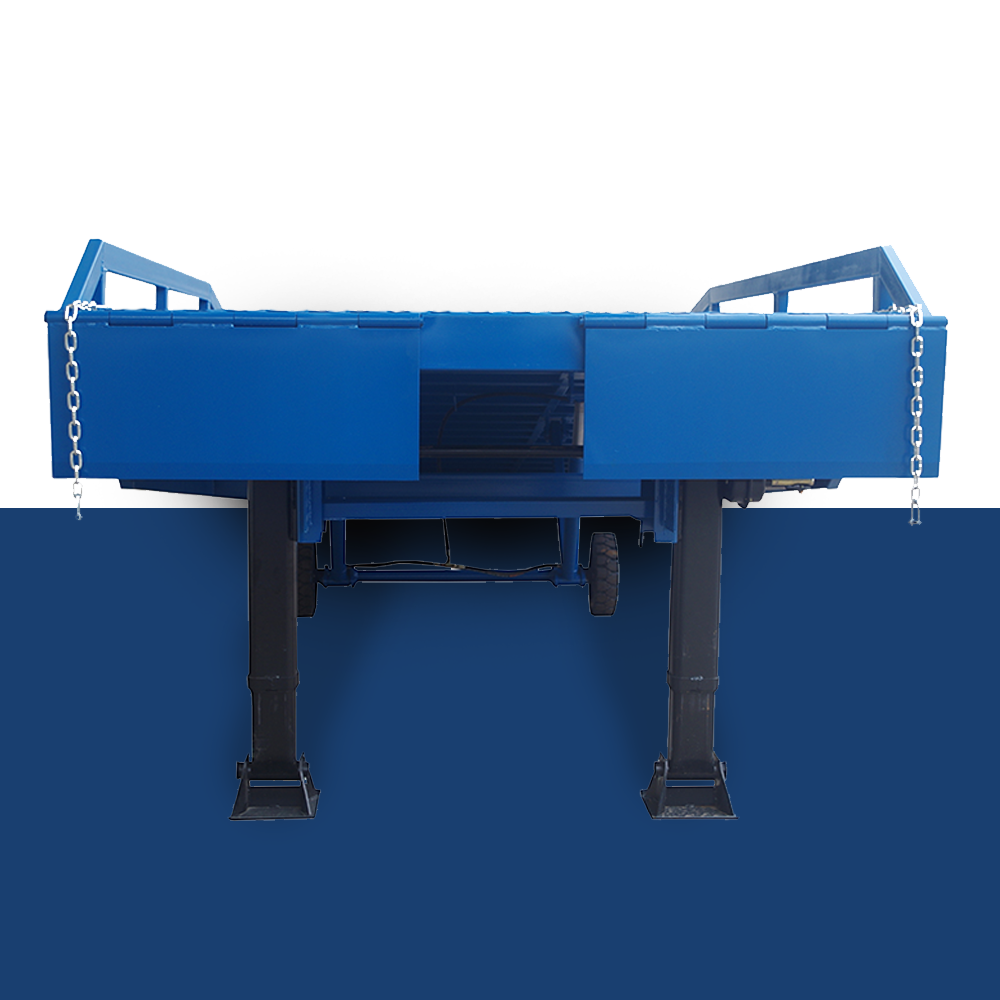

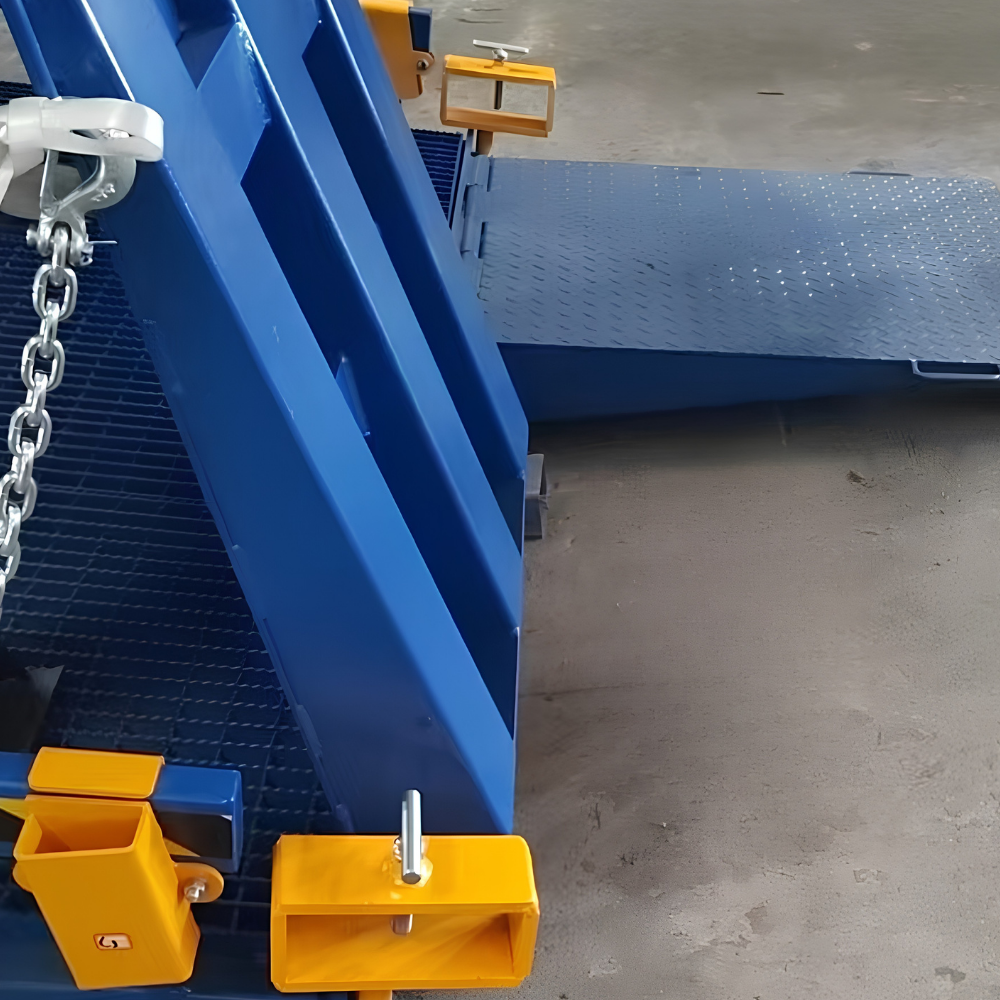

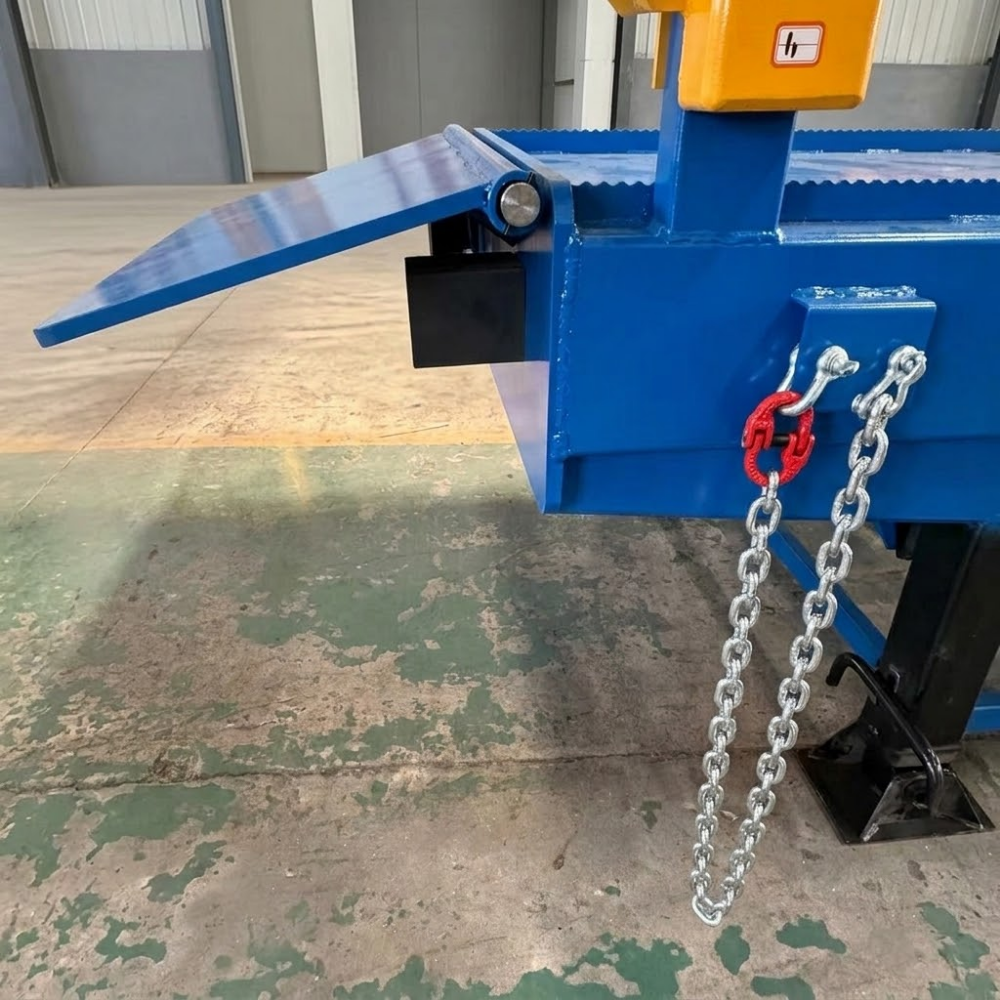

Coupler chains to secure the ramp to the truck/loading dock

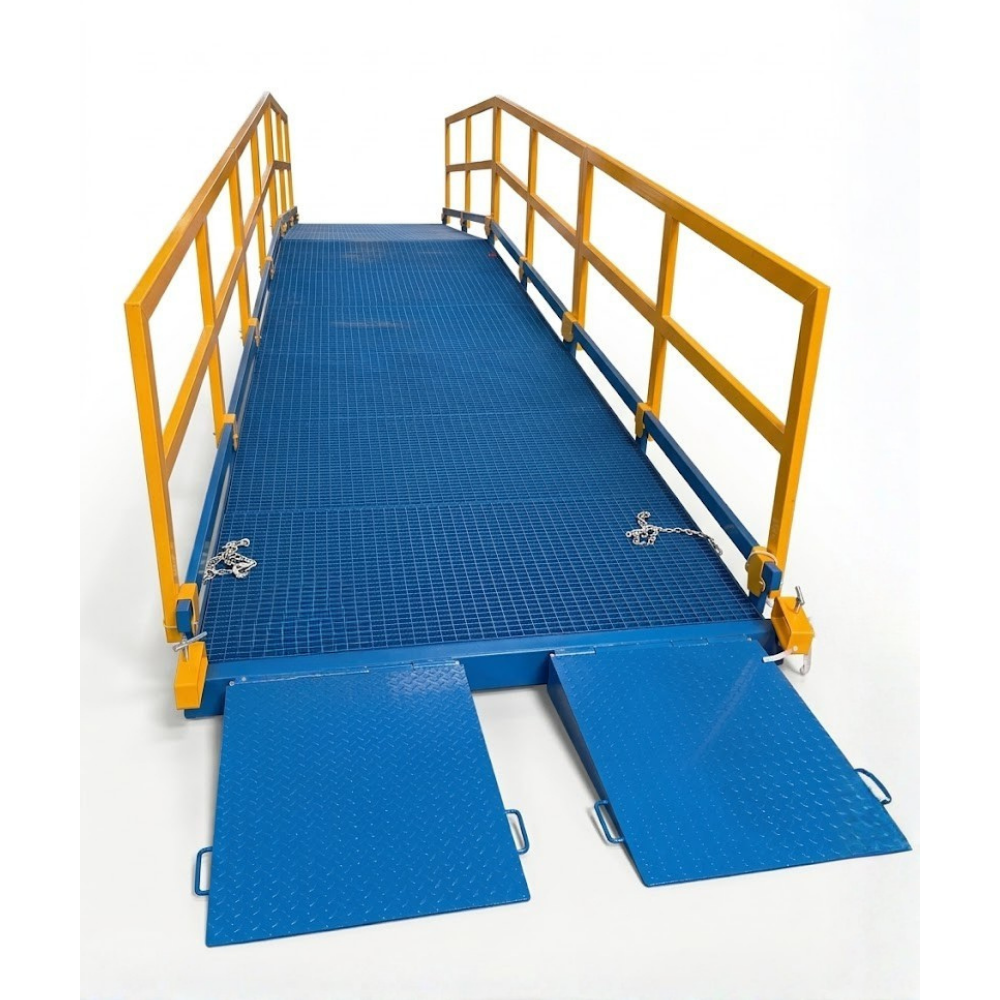

Optional Heavy-Duty Pedestrian Handrails

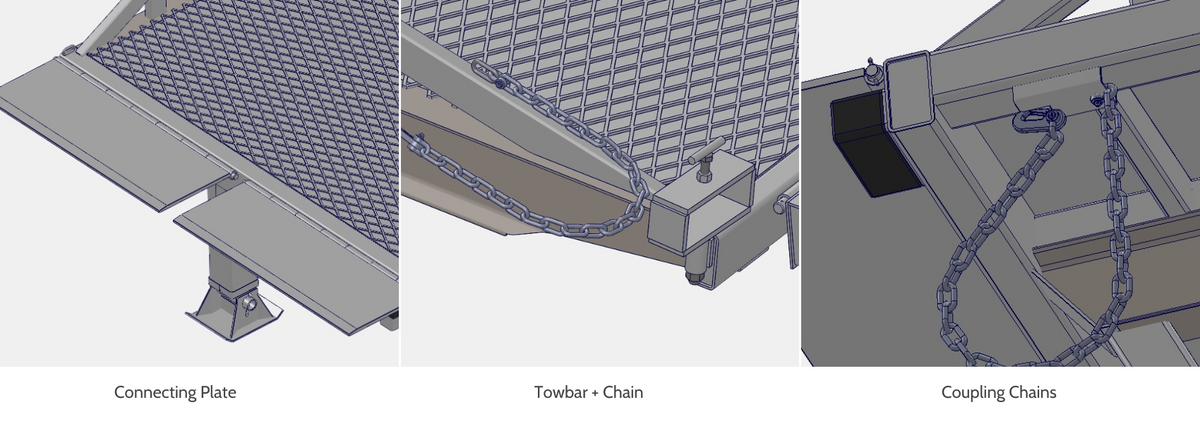

Why it works

Yard ramp design drawing

About This Product

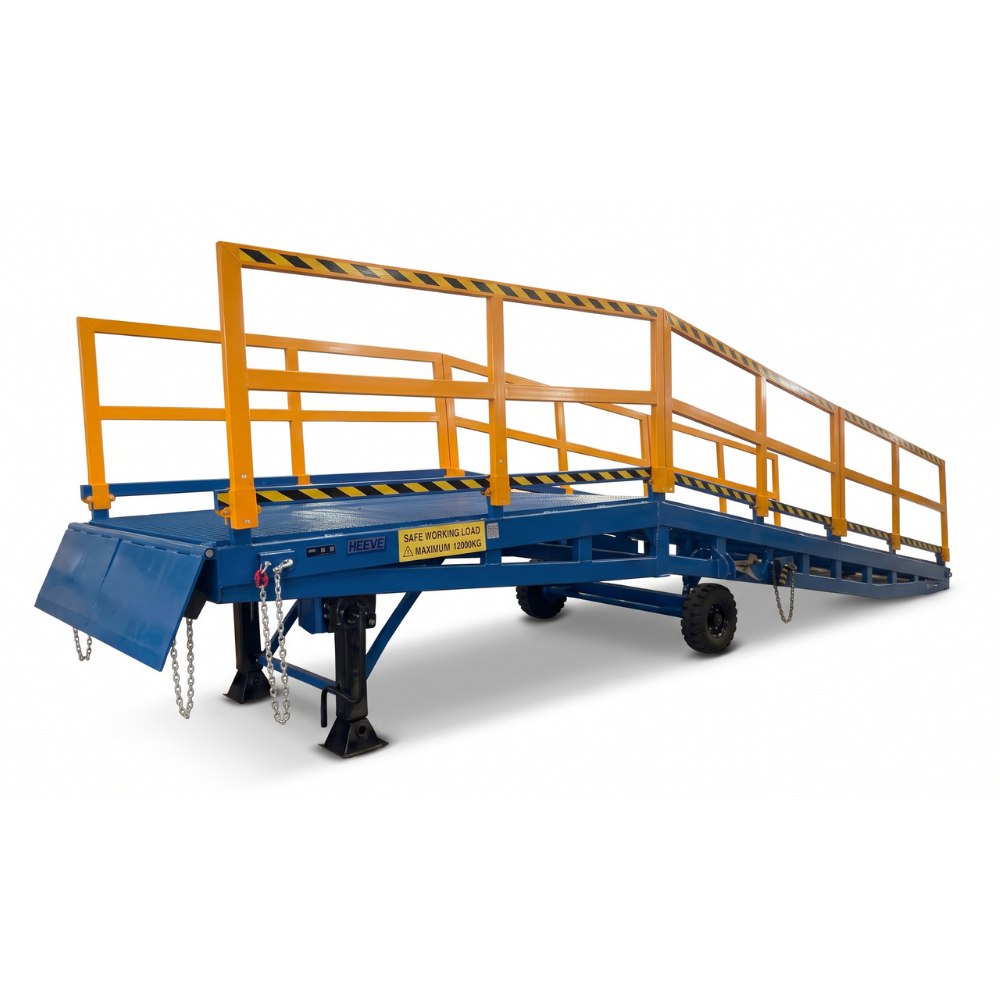

Australian standards 4100 certified hydraulic forklift loading ramp

Upgrade your loading and unloading operations with the Heeve Steel Yard Ramp, featuring a convenient hydraulic system and a grated surface. This ramp is designed to provide efficiency, convenience, and safety in various industrial settings.

The Heeve Yard Ramp boasts a durable construction that can withstand heavy loads, ensuring long-lasting performance. With its adjustable height feature, you can easily match the ramp to the truck or dock, optimizing accessibility and streamlining your logistics processes.

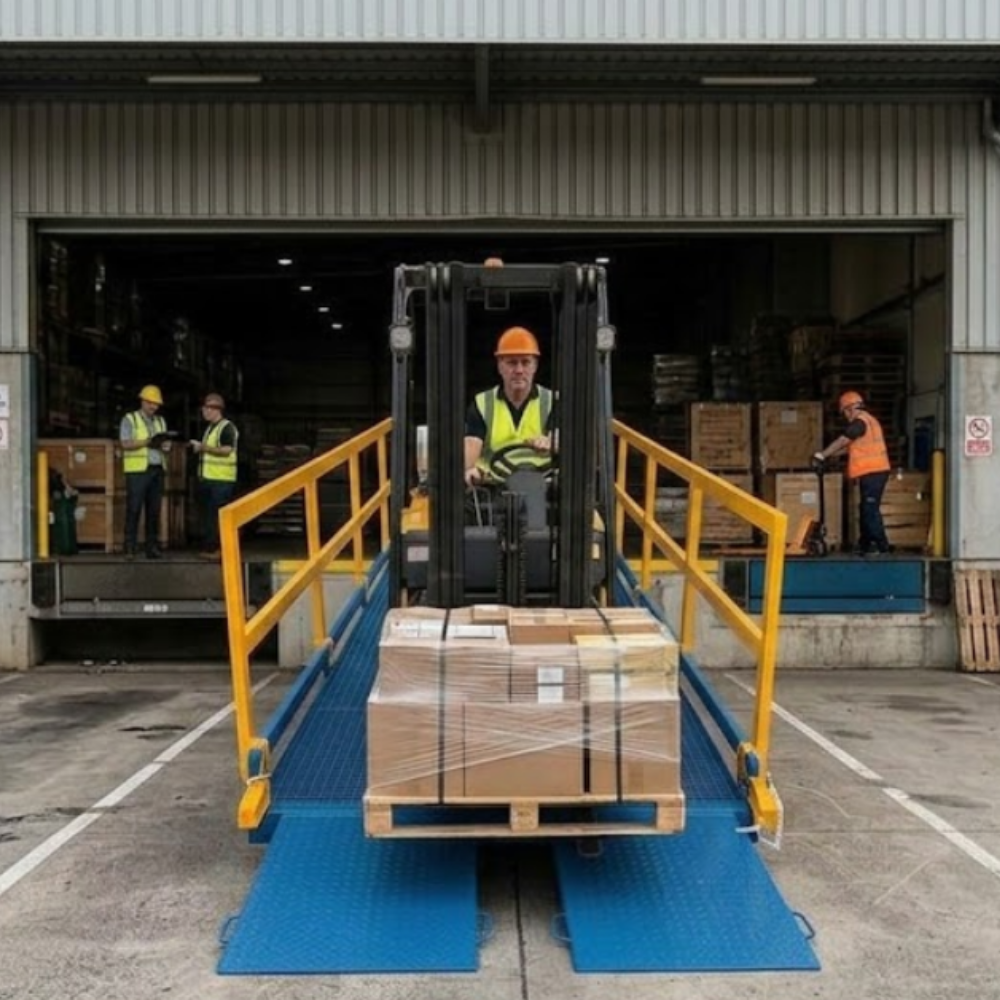

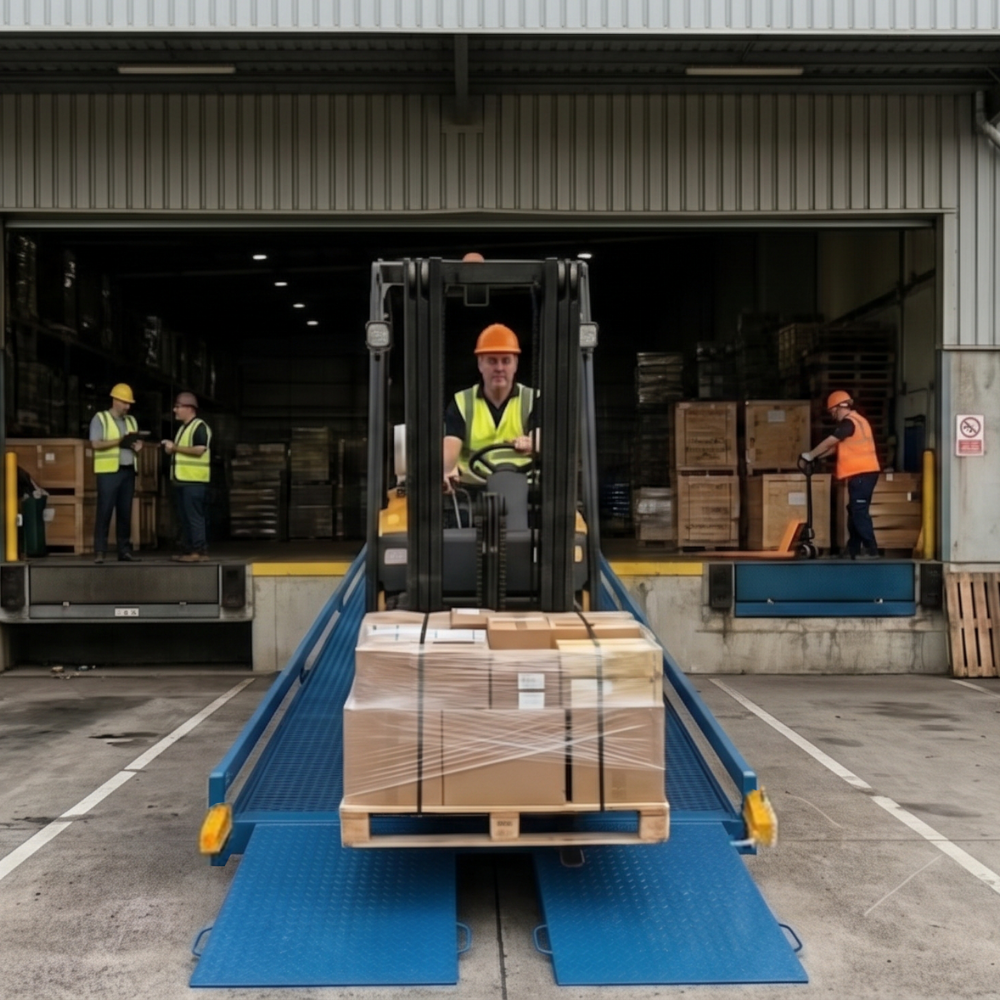

A forklift carrying a pallet of wrapped cardboard boxes approaches a blue and yellow industrial loading dock ramp in front of an open warehouse door, with workers visible inside and beside the dock.

Why the Heeve hydraulic yard ramp works

Heeve Hydraulic Yard Ramps are best suited for use in hard-surface or gravel rock environments.

They are short when the ramps are retracted for transport and can be moved quickly and easily with a forklift via solid rubber tyres.

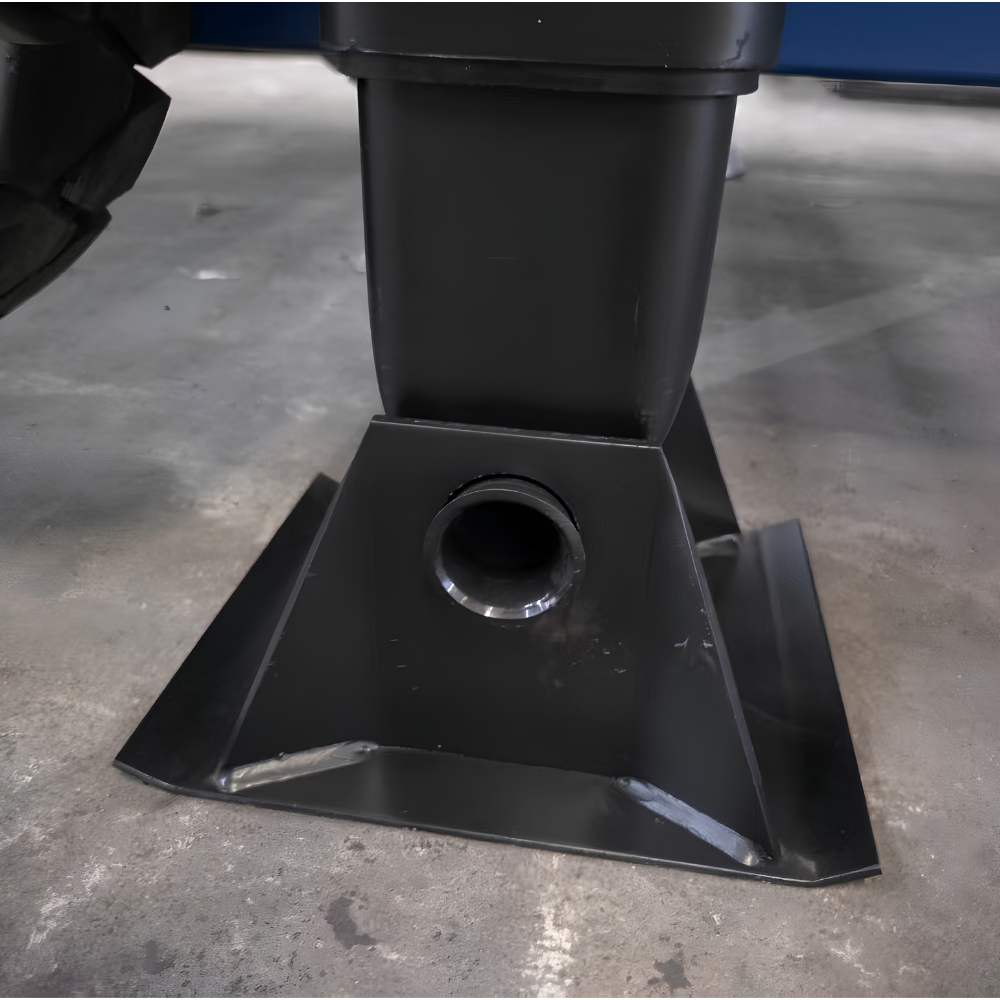

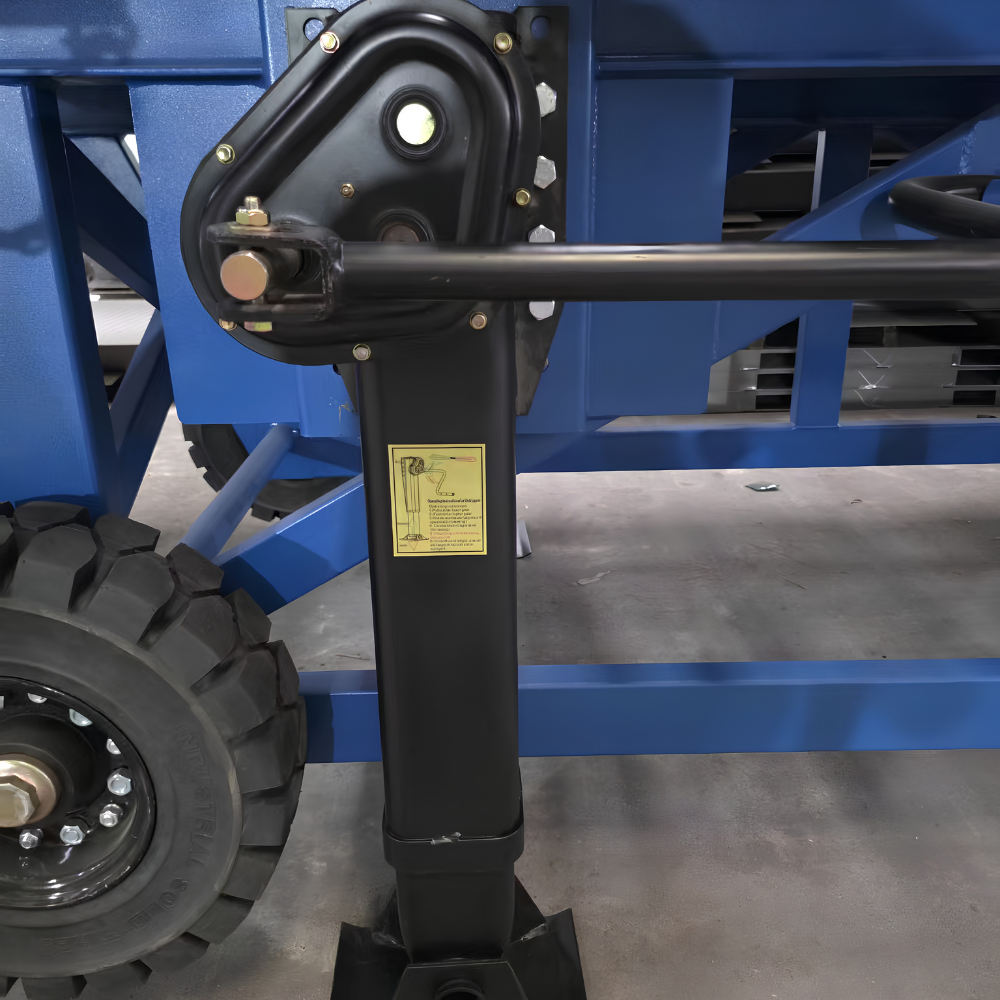

Hydraulic forklift yard ramps are raised and lowered manually via the support legs to align with truck or dock heights.

This model differed from the Manual Yard ramp in that it can be raised quickly to move locations via the manual hydraulic hand pump. However, the manual winding of the telescopic support legs is still required to support the ramp when in use.

Suitable for gravel rock or hard-surface areas such as concrete and asphalt.
Relocated quickly and easily.
Solid rubber tyres.
Raise and lower the ramp to match the truck or dock height via the hydraulic pump & mechanical support legs.
Safety rail to prevent forklift fall-off.
Coupler chains connect the ramp to the truck.
Wheel chocks are included, preventing movement whilst in use.

How does the Heeve hydraulic yard ramp work?

In the absence of a docking facility, loading and unloading containers and trucks can often be a tedious task, relying on the driver to slowly move pallets by hand to the rear of the container or truck before a ground-based forklift can access and remove the pallet.

Time to load and unload containers is drastically reduced, and the forklift can access the pallet directly rather than relying on the passing to or from a hand trolley.

The Heeve yard ramp advantage

Safe and time-efficient – load and unload trucks and containers.
Economical – reduces expense and workload.
Mobile – move and use where needed.
Versatile – wide range of height adjustment for varying truck heights.

Yard ramp sizes and details

Adjustable Height Range: 1200mm - 1680mm
Beam Height: 200mm
Platform Section:

Standard: 3000mm
Long: 3000mm

Ramp Section:

Standard: 7000mm
Long: 9000mm

Size of the connecting plate (Lx W): 1048 x 364mm
Optional Hand Rails

Height: 1200mm
Weight: 242kg
Tube diameter: 21.3 x 2.8

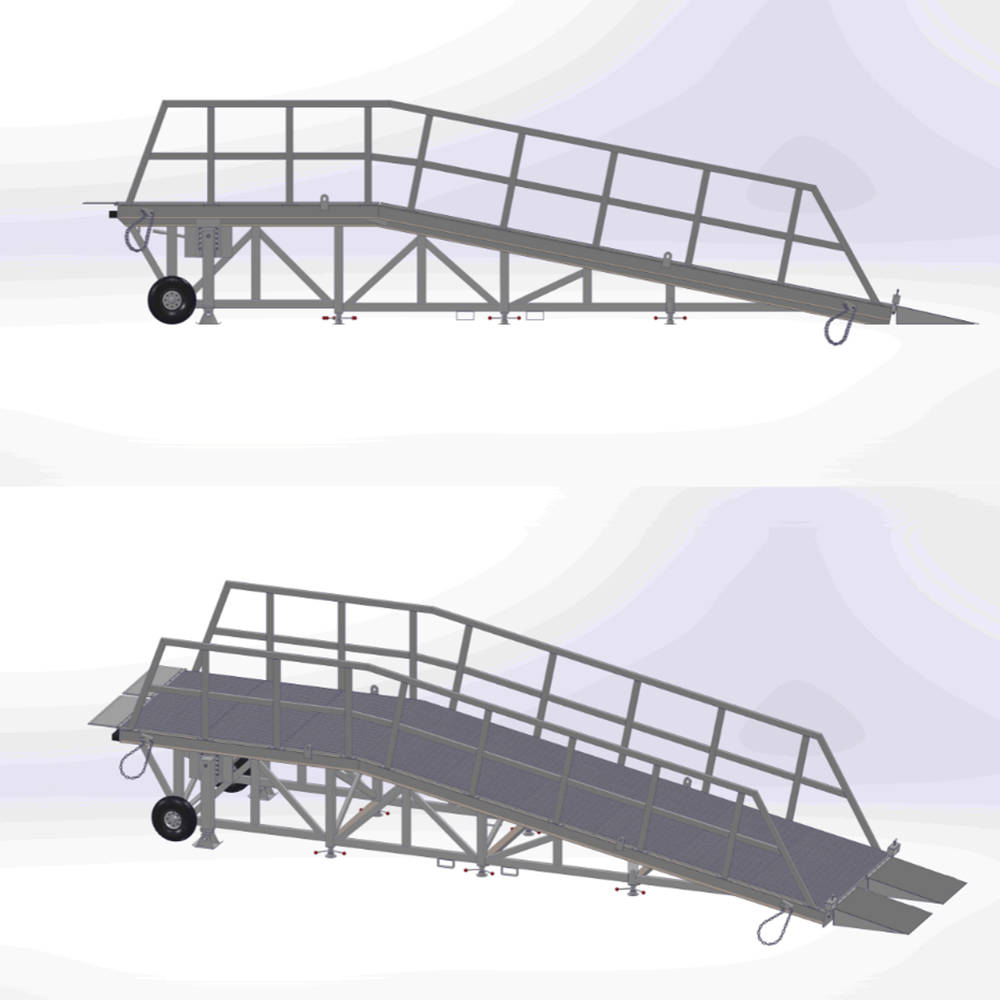

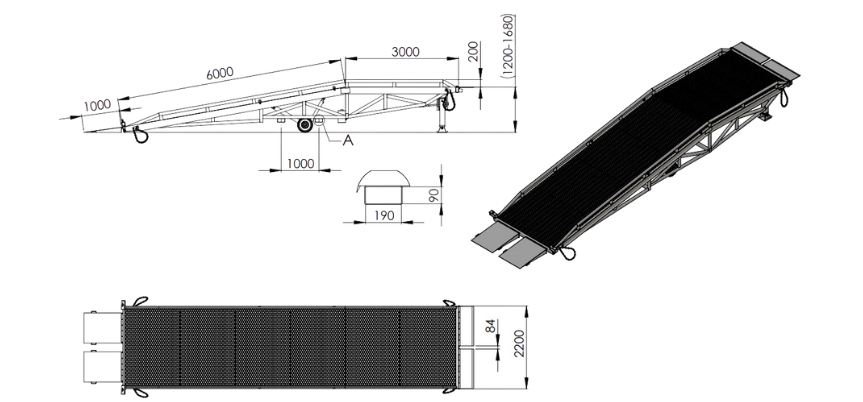

Design drawing

Note: Dimensions are subject to change without notice.

FAQs

Is it certified?

Yes. Every model is certified by Quantech Design to AS4100 for its WLL, and the lifting lugs are certified too.

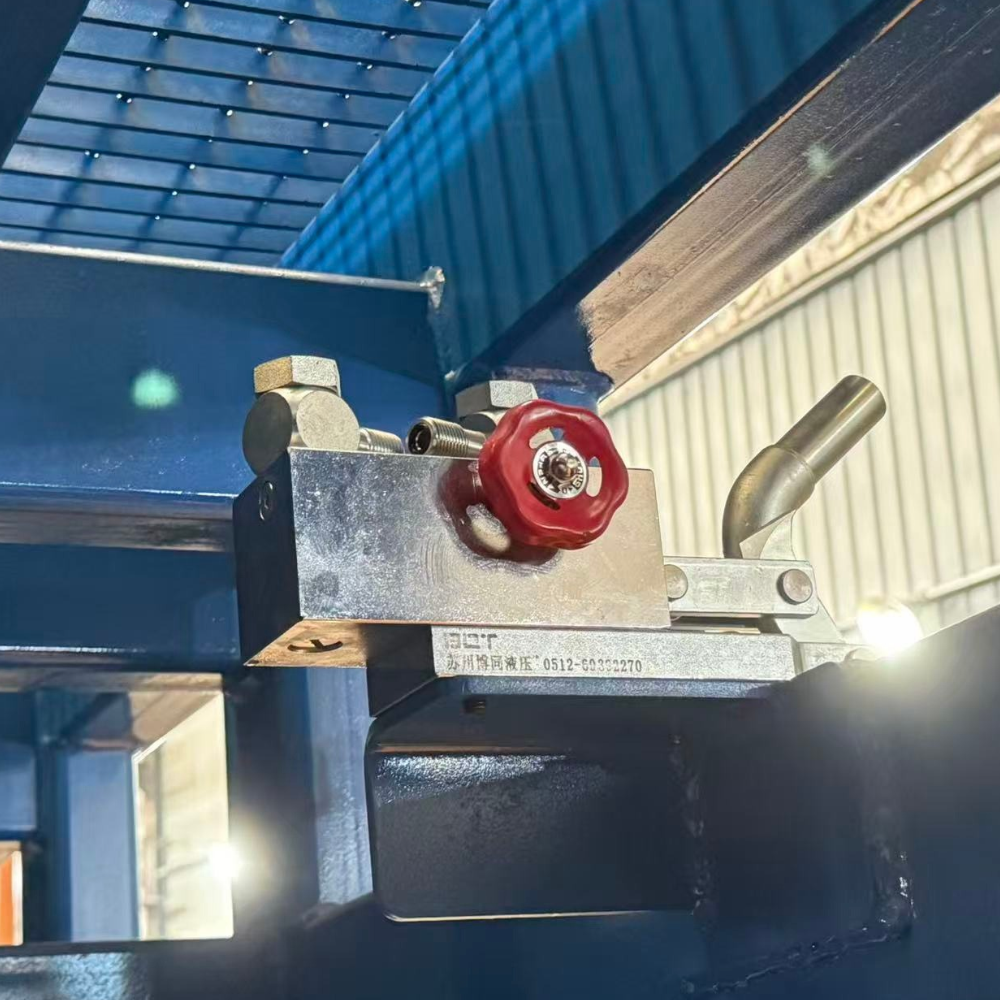

What does the hydraulic part do?

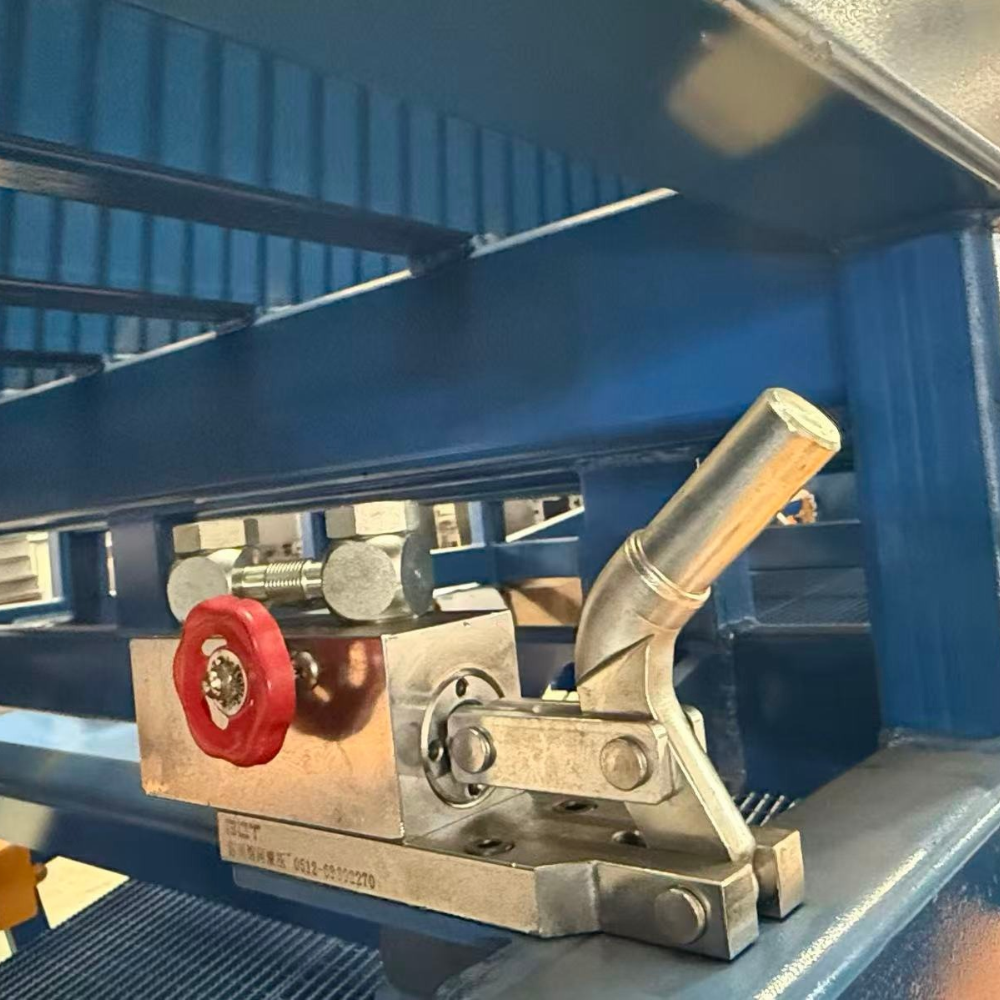

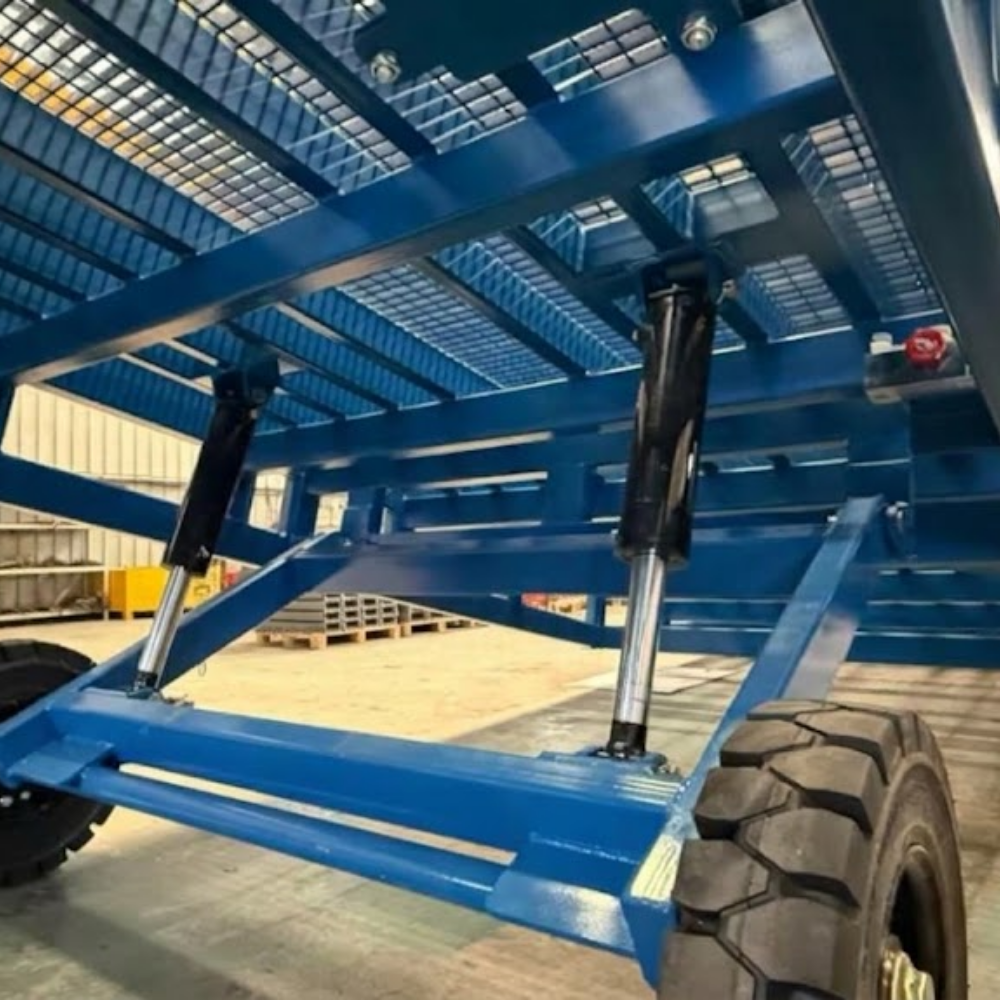

A hand pump raises the ramp so you can reposition it fast. The cranked support legs still carry the load when it is in use.

What heights will it reach?

1200mm to 1600mm.

How do I move it around the yard?

Tow it on its wheels with a forklift using the towbar slots, at walking pace. For transport, lift it by crane on the four lugs.
