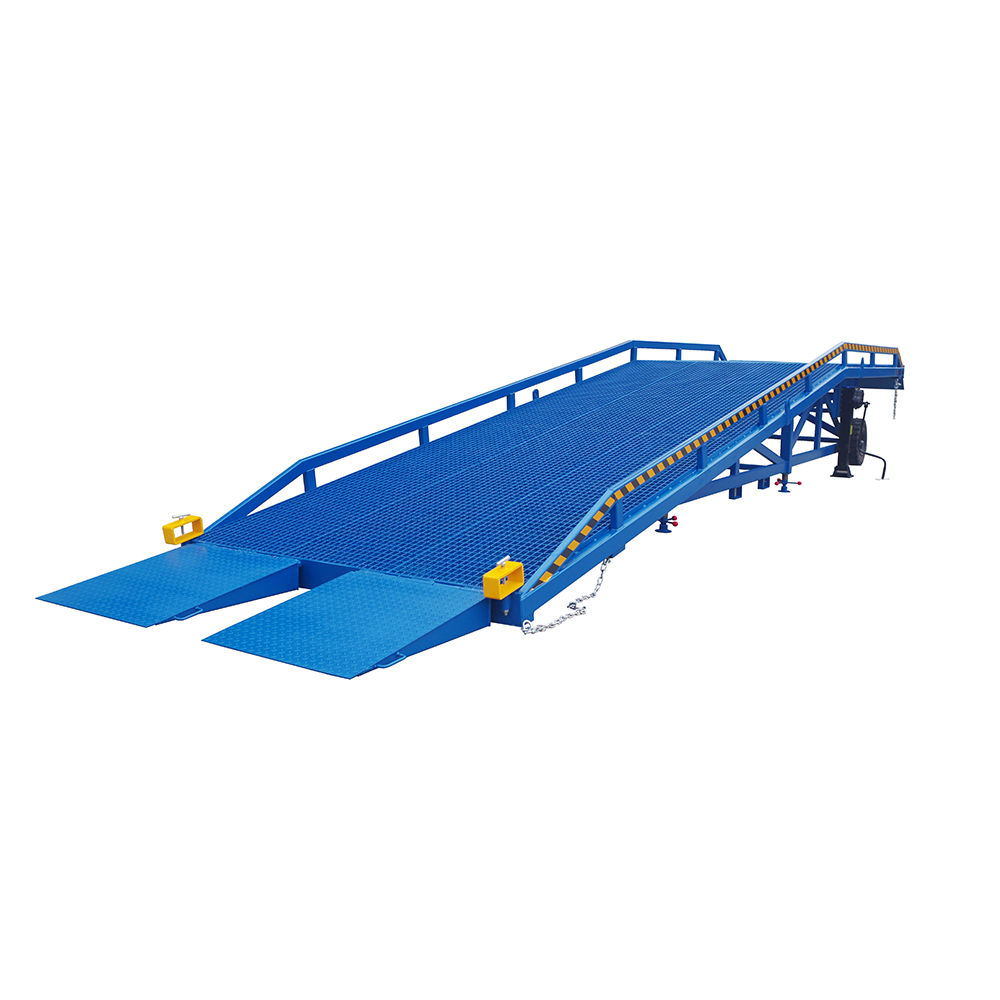

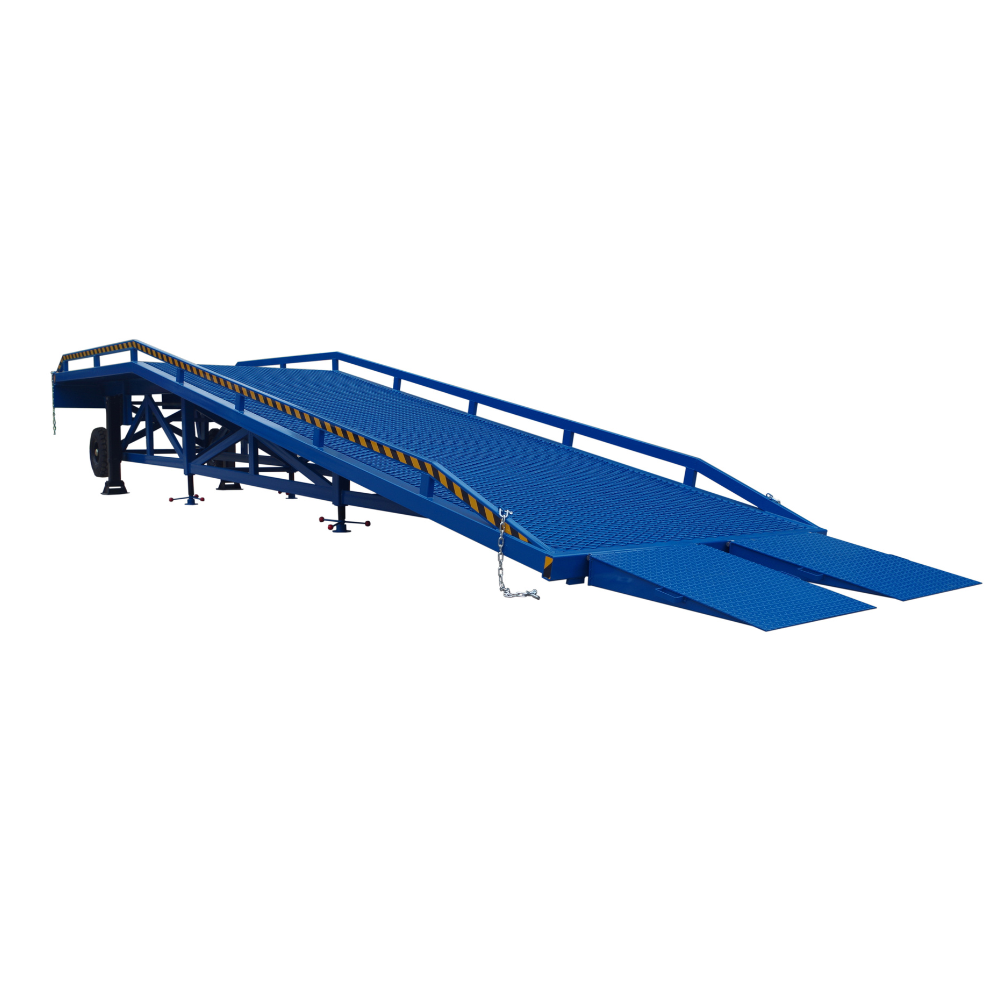

Heeve Forklift Dock Ramp/Yard Ramp with Grated Surface - Manual Model
Ramp Champ's own brandSKU: H0188$28,417.27 ex GST
- Holds8,000kg to 16,000kg
- Made ofSteel
- ColourBlue
- Height1200mm to 1600mm
- AS4100 certified by an engineer for 8, 12 or 16 tonnes
- Adjusts from 1200mm to 1600mm with a hand crank
- 3m flat platform to level out before the truck bed
Made to order, ships within 6-12 weeks
Freighted to your site. Tell us where it's going and we'll quote the ramp and delivery.
Ramp Champ's own brandi
54,000+ soldi
12-month warrantyi
Rated 4.7 from 1,186 reviews on Google, ProductReview and Trustpilot
Goes well with
Delivery & Pickup
Delivery details
This product is a "Bulky Item". A forklift or crane is required at the delivery point with sufficient capacity to unload the ramp.
Shipping charges apply per shipment and can vary by warehouse or supplier. Shipping policy
Estimate delivery to your door
An estimate for this item to that suburb, from the same rates checkout uses. You choose the delivery method at checkout.
This item ships by freight, so we quote delivery to your address.
Pickup details
Heeve Forklift Dock Ramp/Yard Ramp with Grated Surface - Manual Model
Reviews
Specifications
Specifications

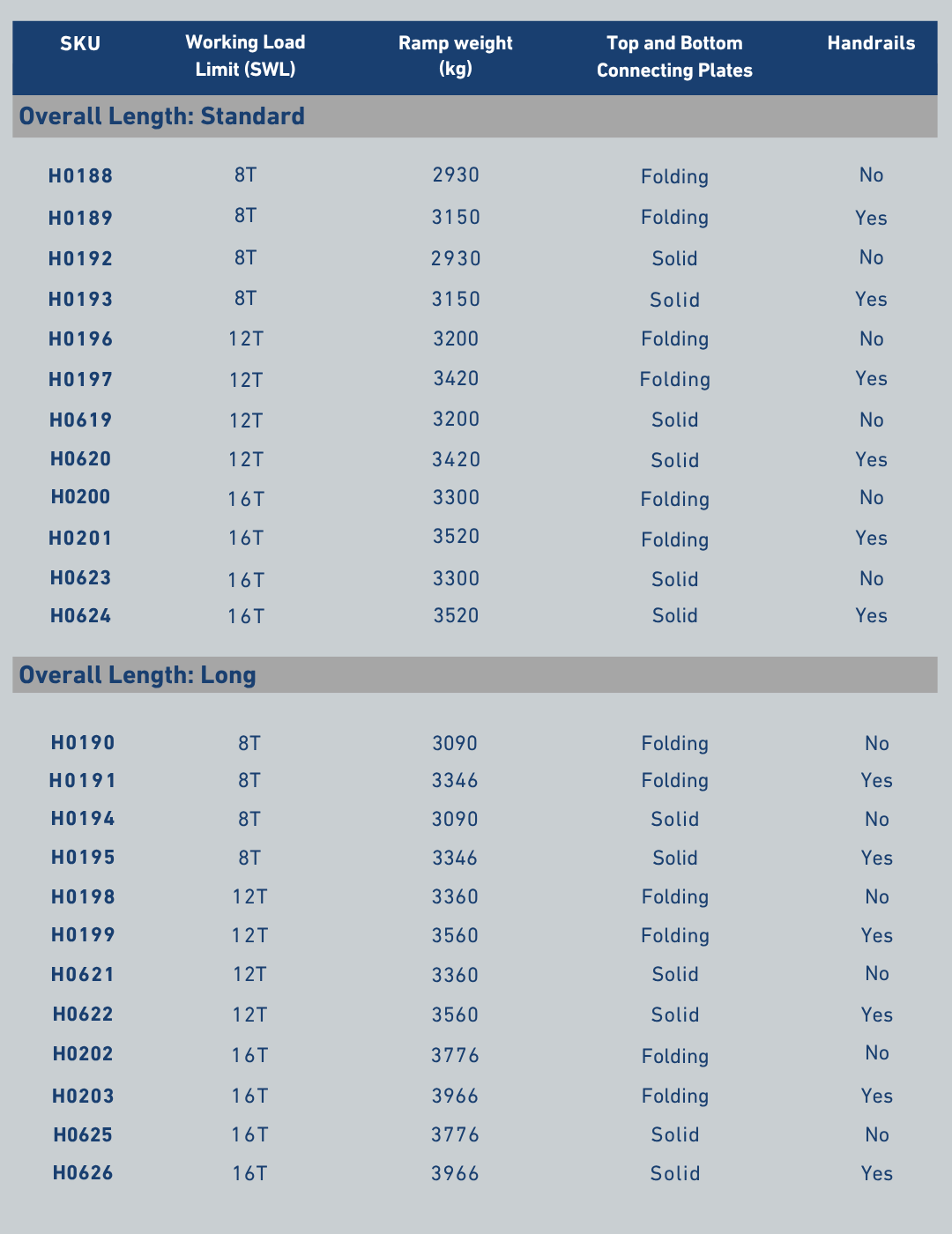

Sizes and Prices
| Capacity | Price | Stock |
|---|---|---|
| 8-Tonne | From $31,259 | Made to order |
| 12-Tonne | From $34,269 | Made to order |
| 16-Tonne | From $40,959 | Made to order |
Product Specs
| Holds | 8,000kg to 16,000kg |
|---|---|
| Made of | Steel |
| Colour | Blue |
| Brand | Heeve |
| Length | Standard: 10000mm Long: 13000mm |
| Width | Overall width with handrails fitted: 3,000 mm Shipping Width: 2200mm |
| Height | 1200mm to 1600mm |
| Weight | Approx 2900kg - 4550kg |
| Dimensions | Standard (L x W x H): 10,000mm x 2200mm x 1200–1600mm Long (L x W x H): 13,000mm x 2200mm x 1200–1600mm |
| Internal width | 2060mm |
| Working height | Adjustable 1200mm - 1600mm |
Key Benefits
Key Benefits
- AS4100 certified by an engineer for 8, 12 or 16 tonnes
- Adjusts from 1200mm to 1600mm with a hand crank
- 3m flat platform to level out before the truck bed
- Certified to AS4100 for structural safety and compliance
- Fully welded all-steel frame built for industrial use

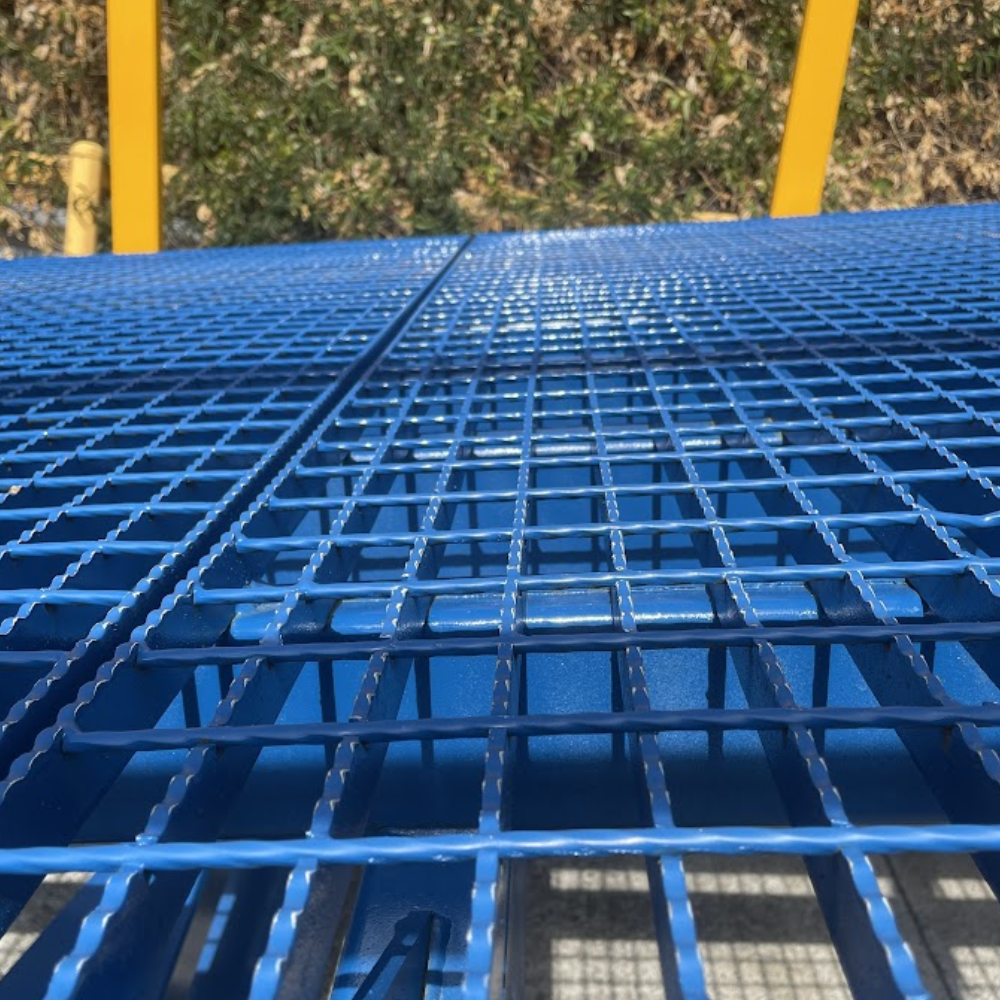

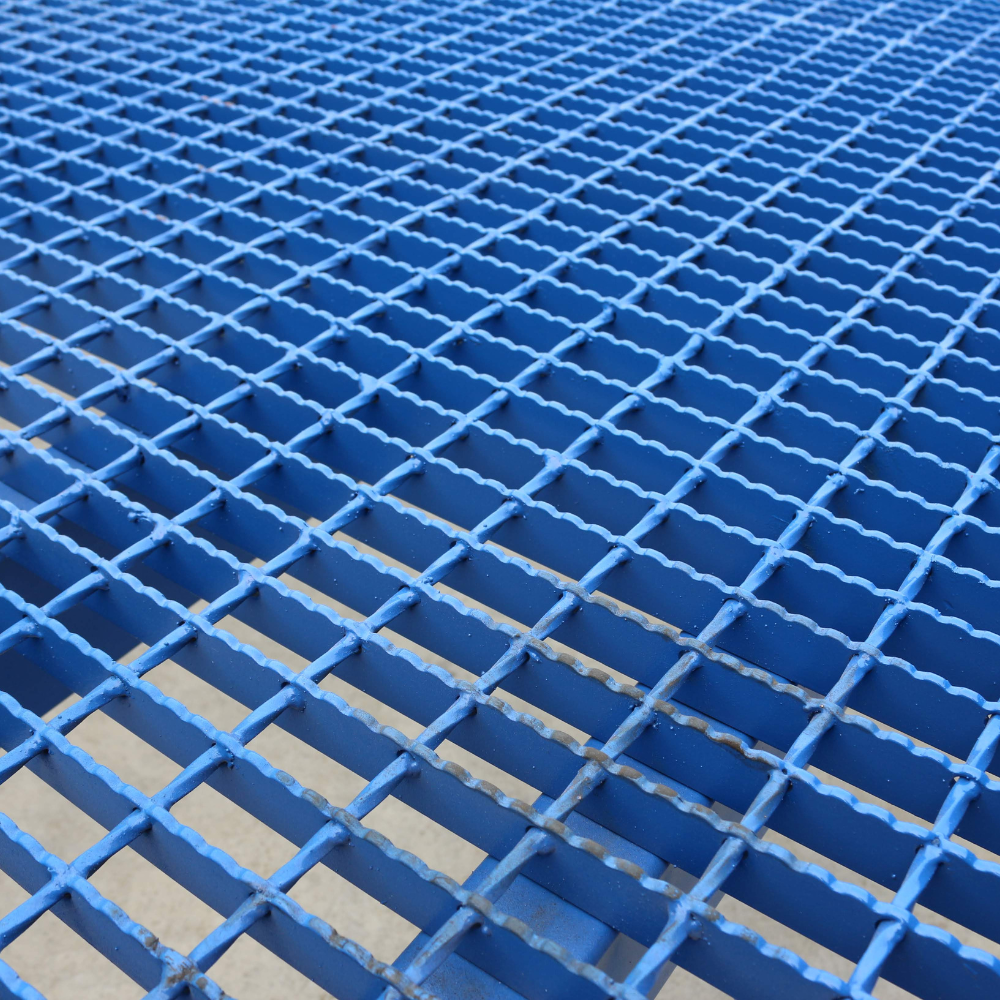

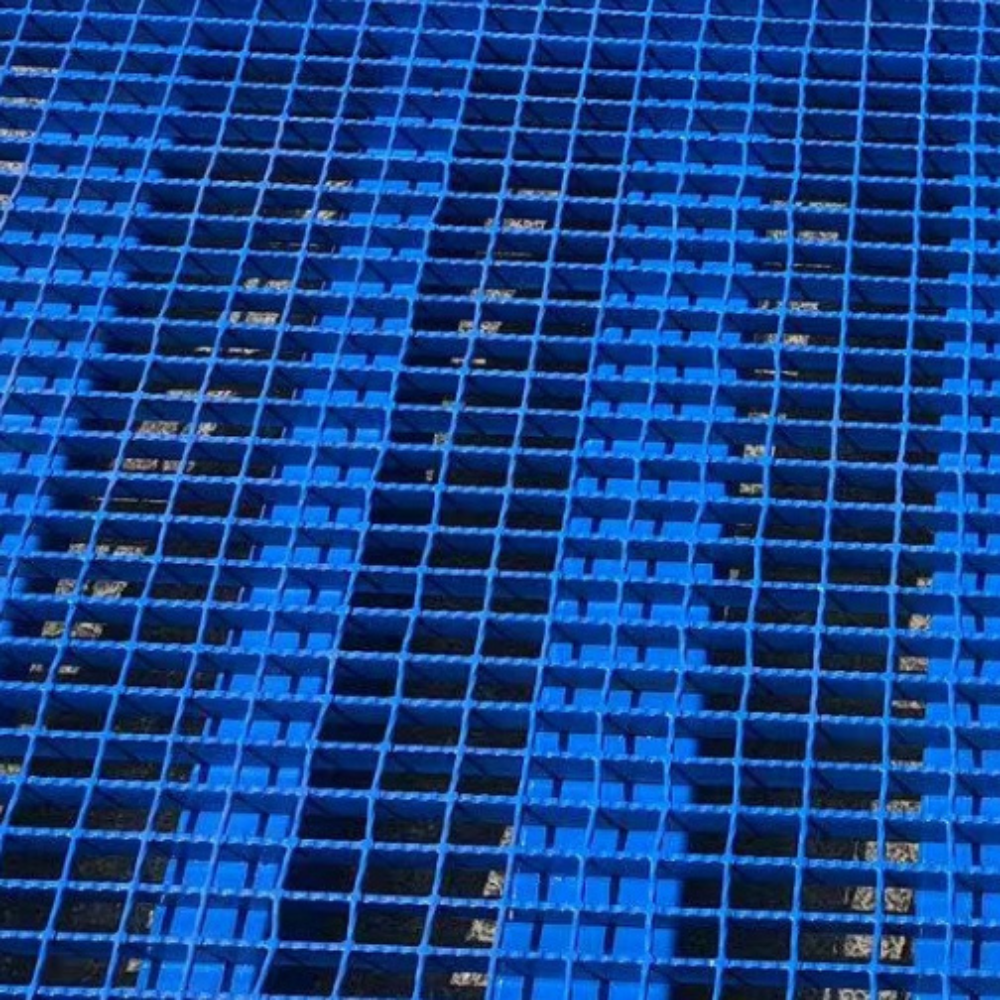

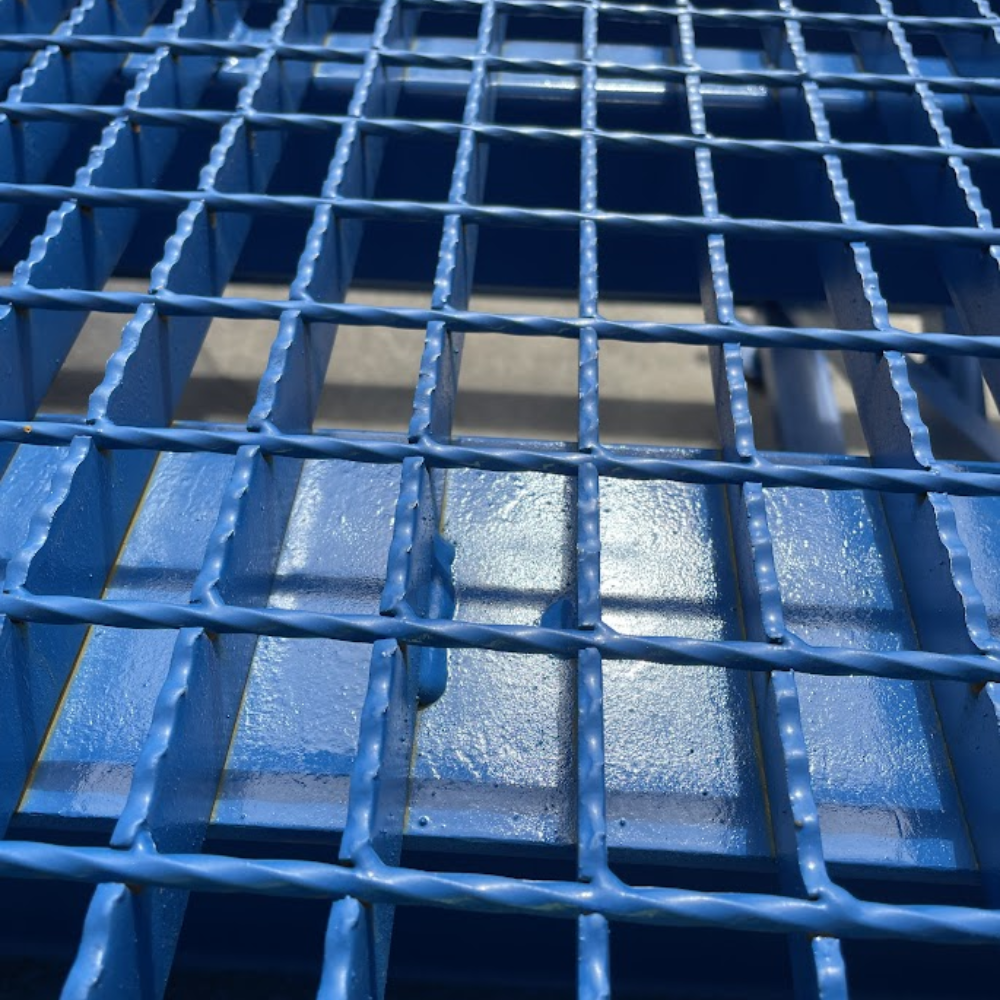

- Open grated surface improves forklift grip and clears water and debris
- Manual crank system quickly adjusts ramp height from 1200mm to 1600mm
- Screw jacks stabilise the ramp and reduce flex under heavy loads
- Forklift pockets and certified lifting lugs make relocation safe and easy
- Towbar slot allows short-distance towing with a forklift

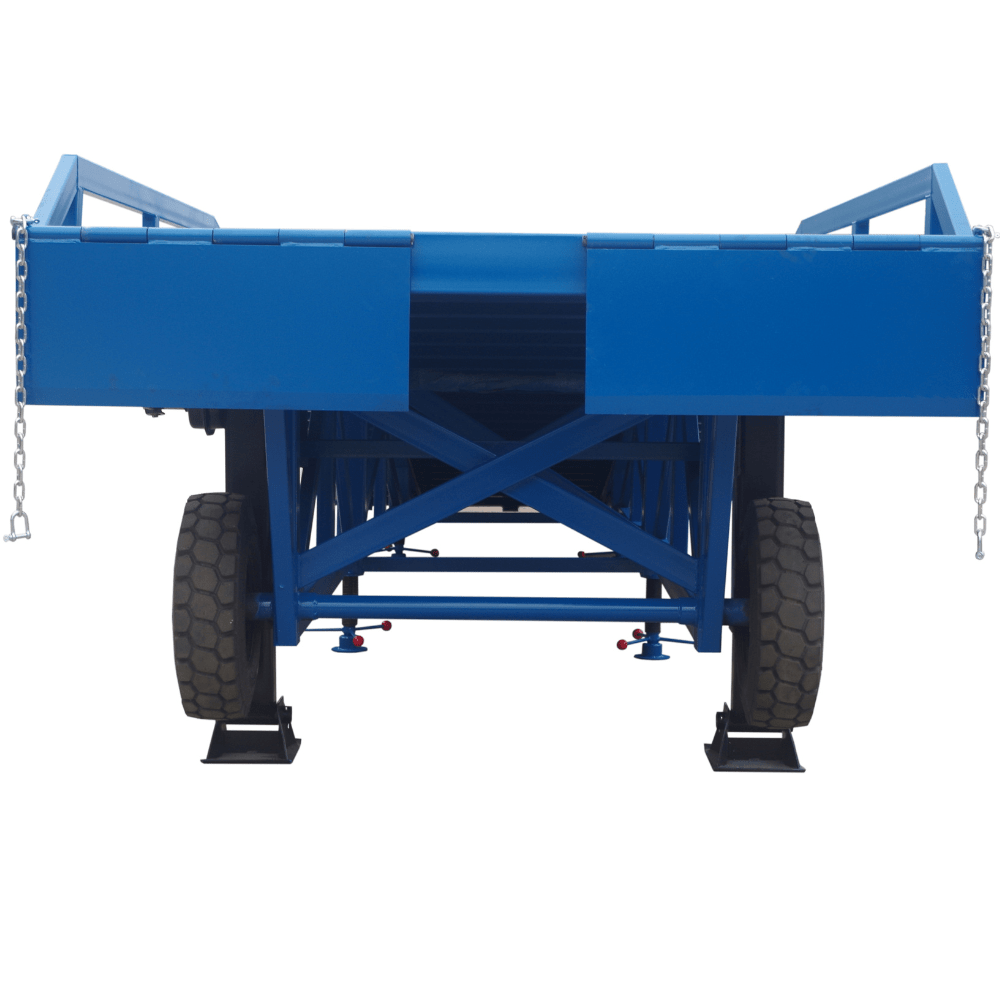

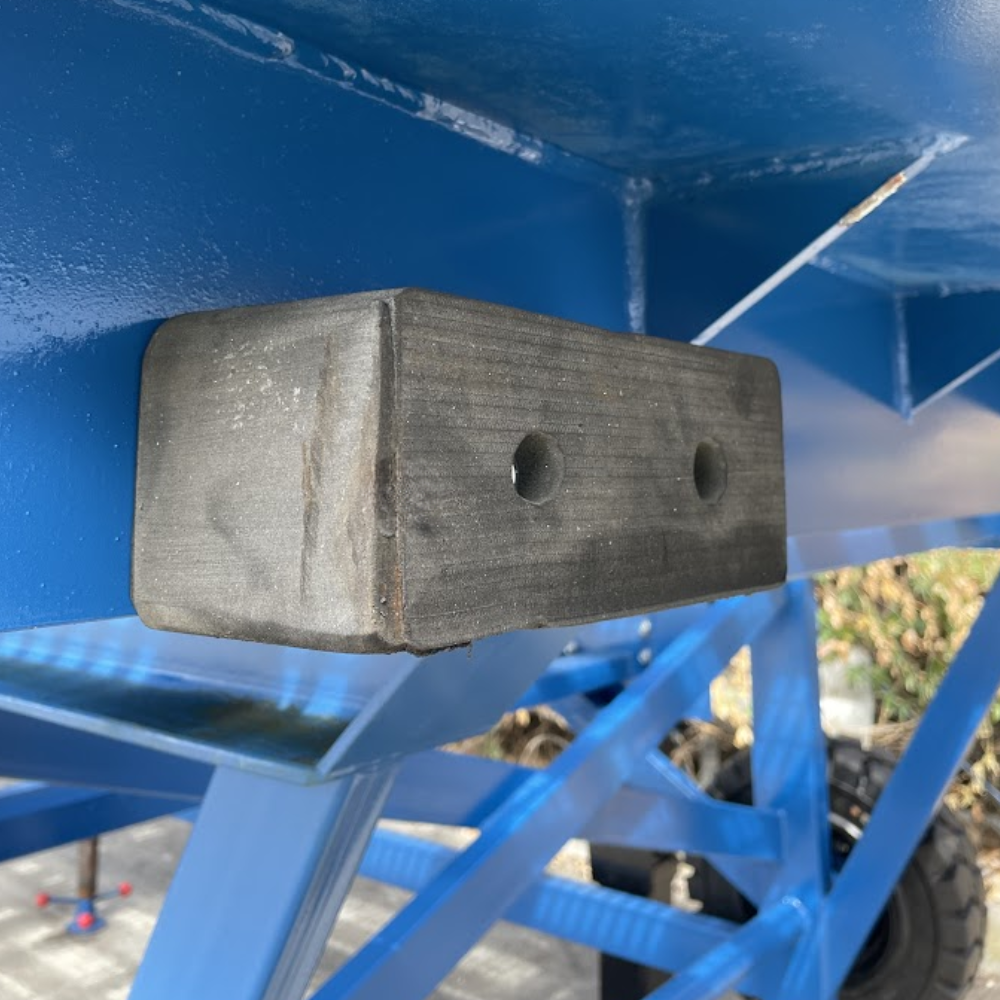

- High-density rubber bumpers protect vehicles during contact

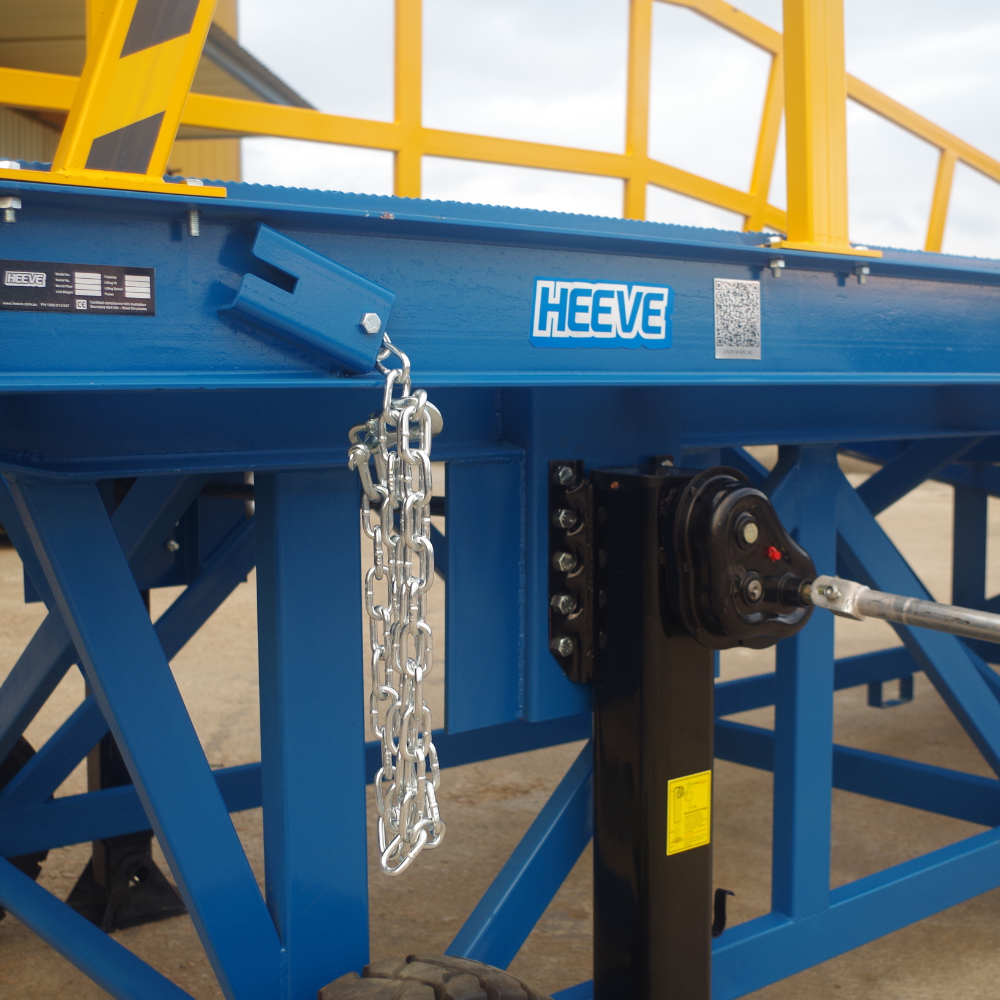

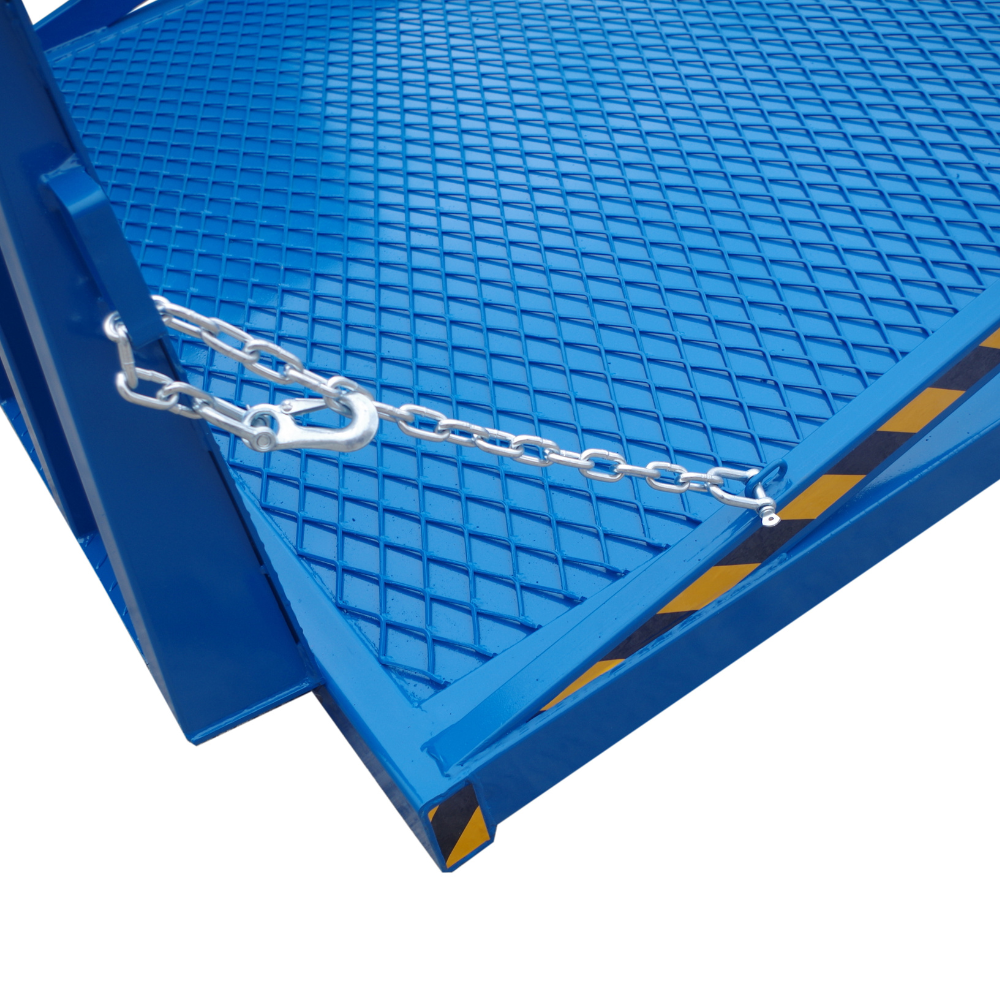

- Heavy-duty safety chains secure the ramp to docks or trucks
- 3-metre platform gives forklifts space to level before crossing
- Steel connecting plate creates a smooth and secure loading bridge
- Optional handrails are available for pedestrian safety and access

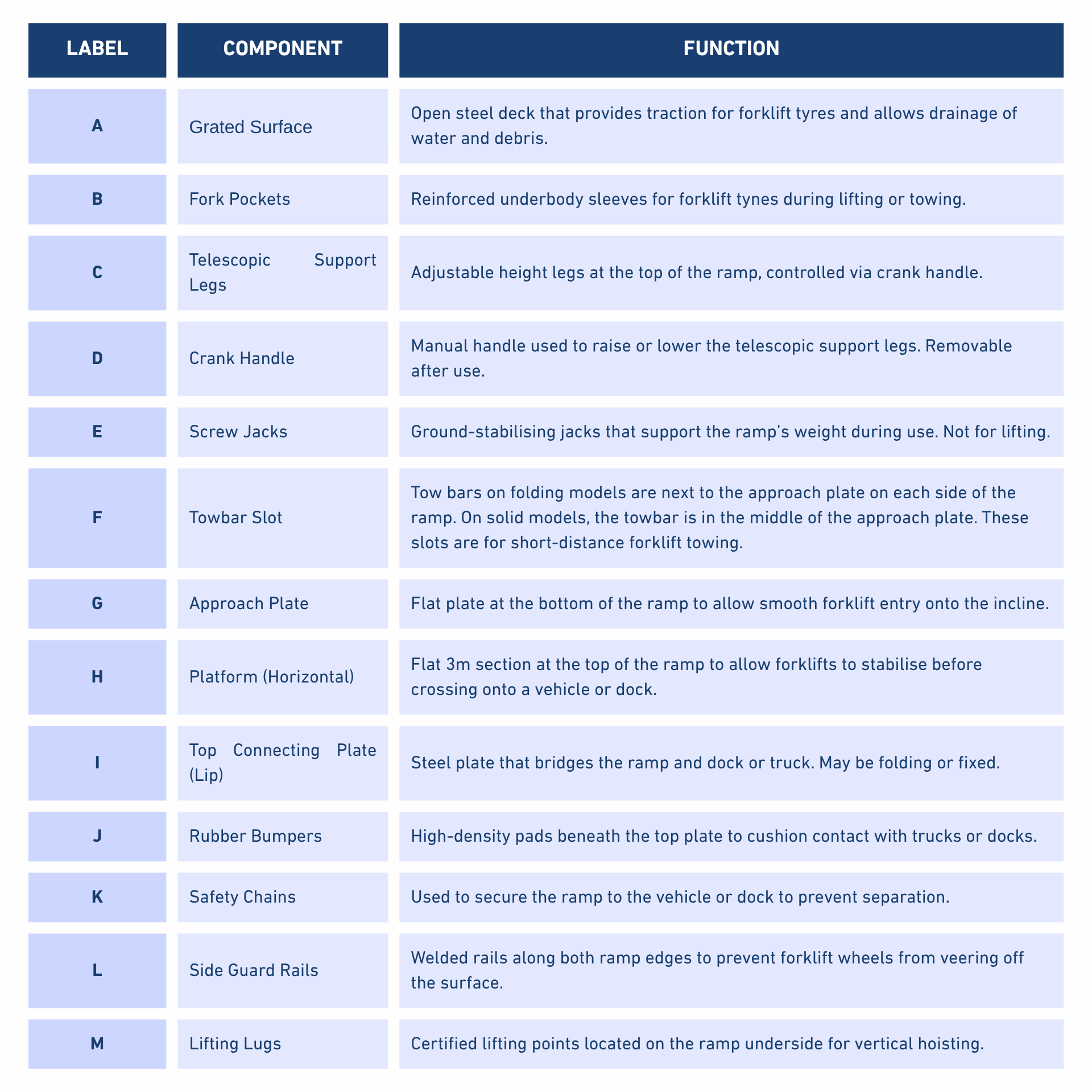

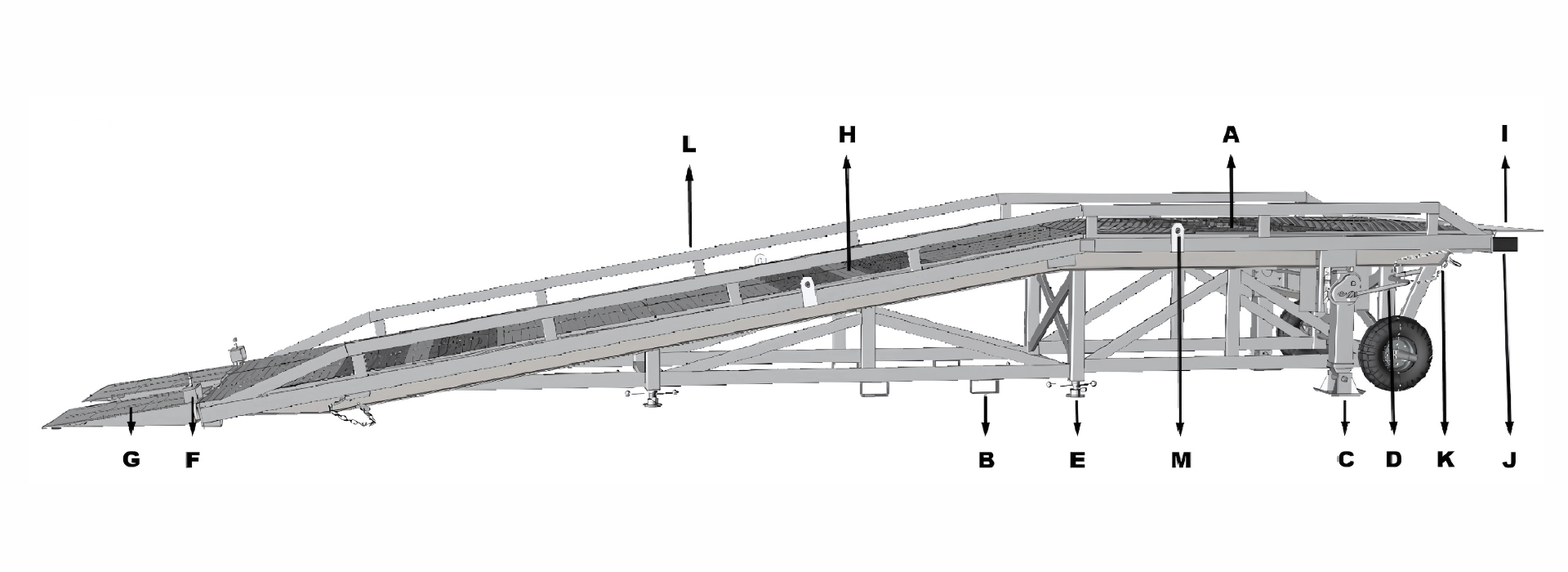

Ramp parts overview

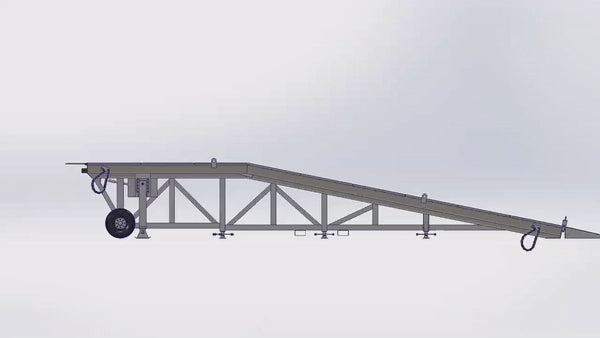

Yard ramp design drawing
About This Product
About This Product

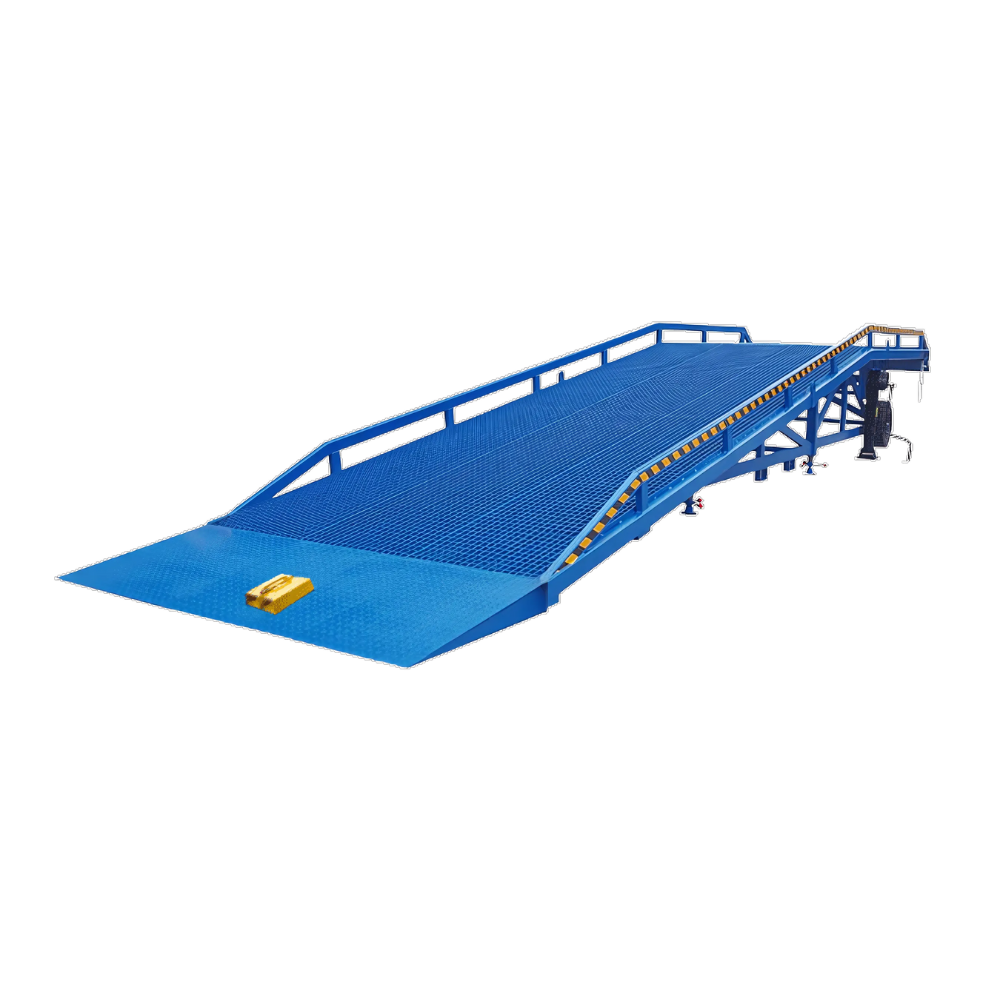

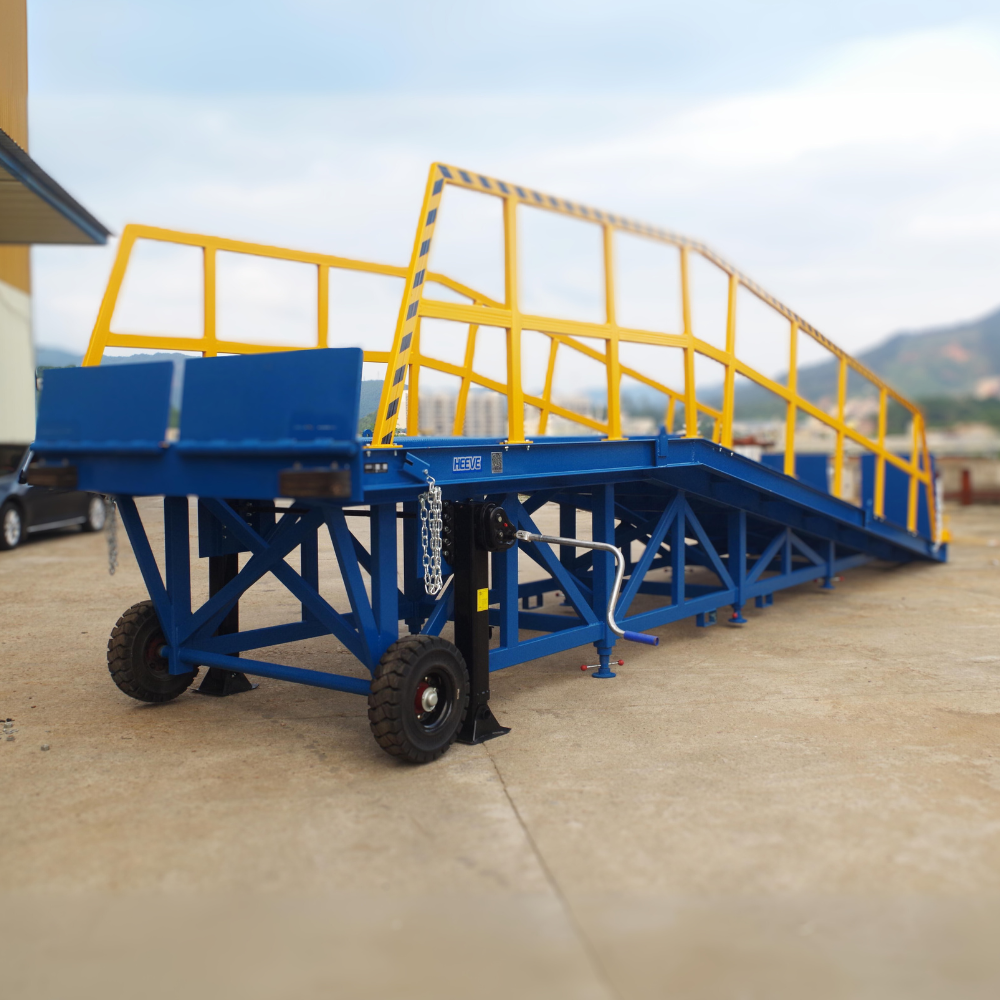

AS4100 certified steel forklift ramp with manual height adjustment for easy truck and container loading
Heeve® Forklift Dock Ramp/Yard Ramp with Grated Surface is a heavy-duty loading ramp built for sites without a fixed dock.
It gives forklifts a safe, stable way to move between ground level and trucks, containers or elevated platforms — perfect for freight yards, warehouses and loading bays that see regular loading action.

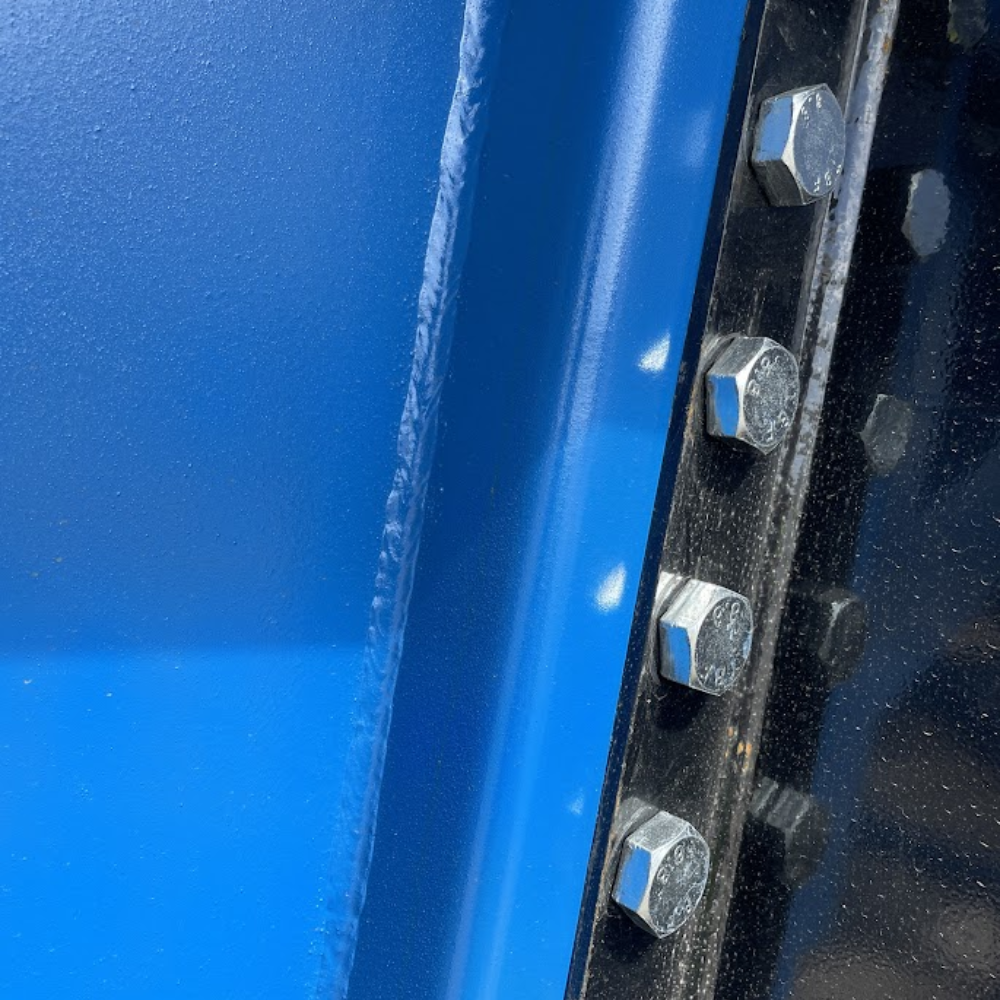

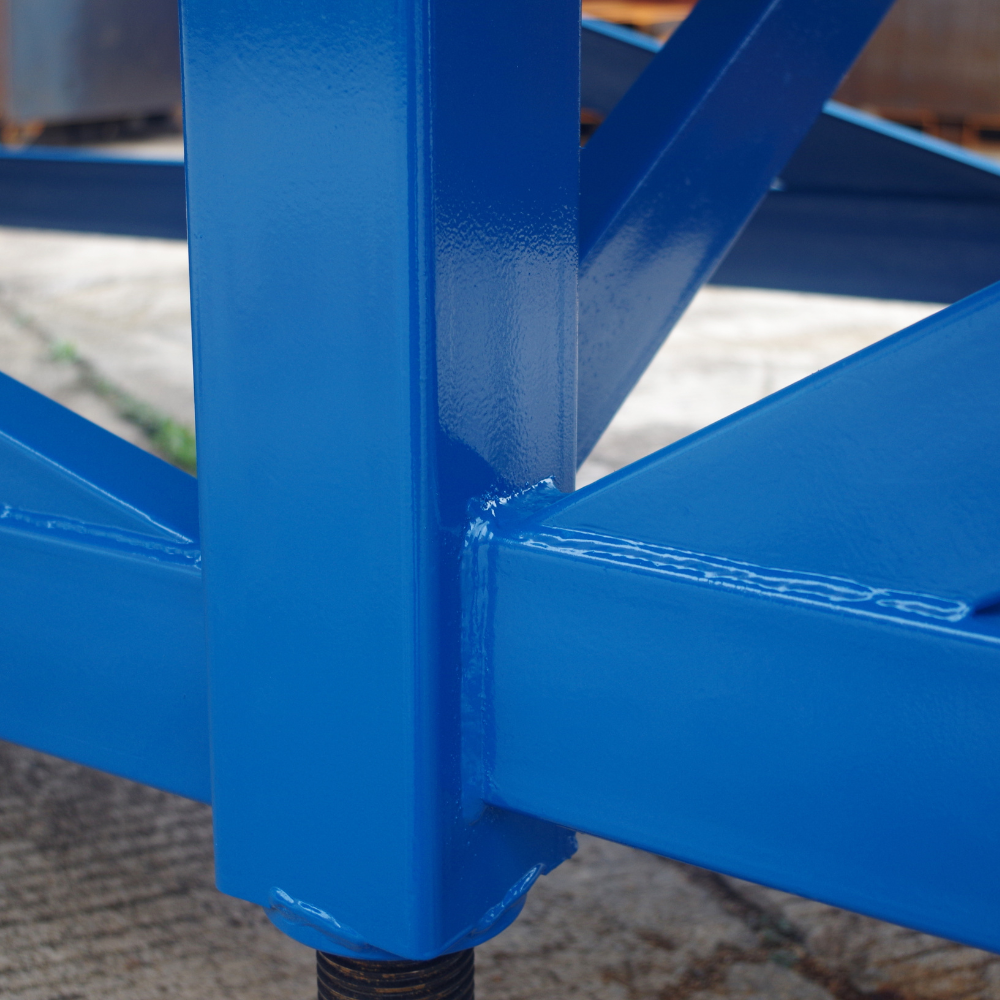

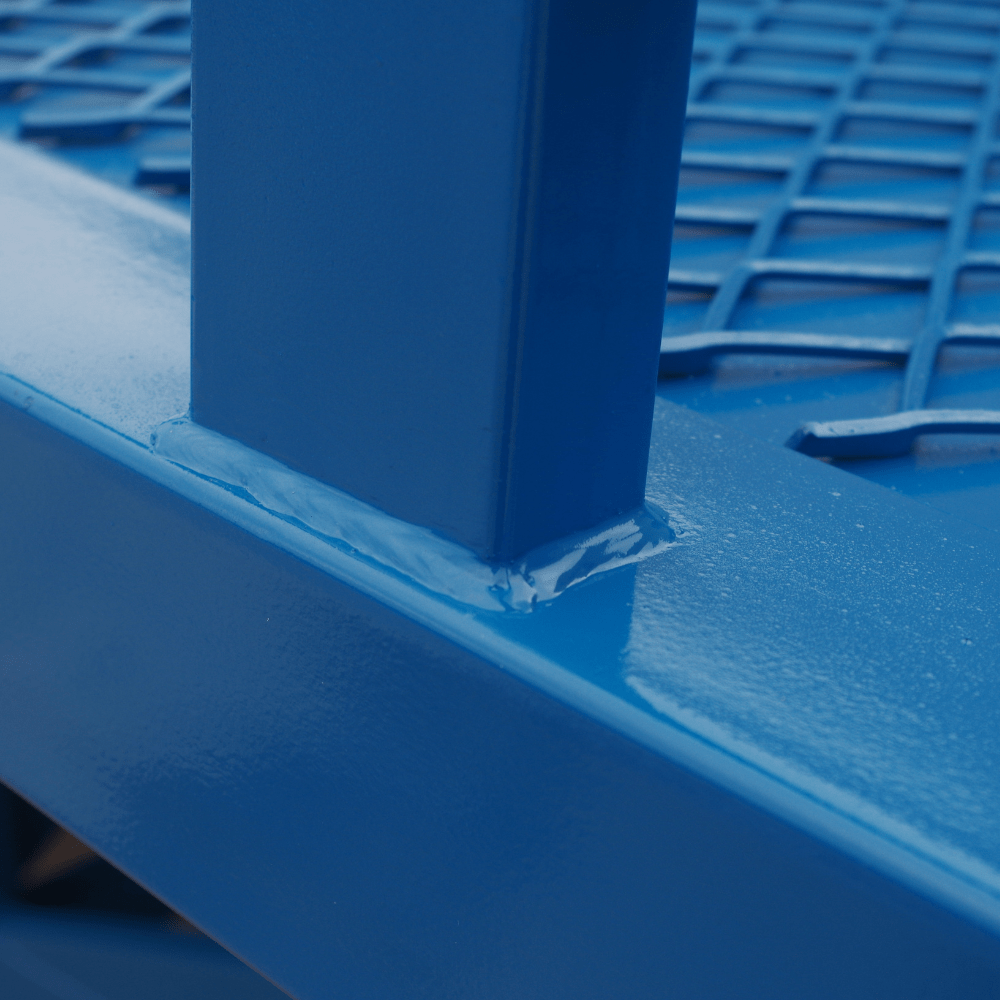

Every ramp is made from a fullywelded all-steel frame, treated with a double-layer rust-resistant paint system and certified to Australian Standard AS4100 for structural safety.

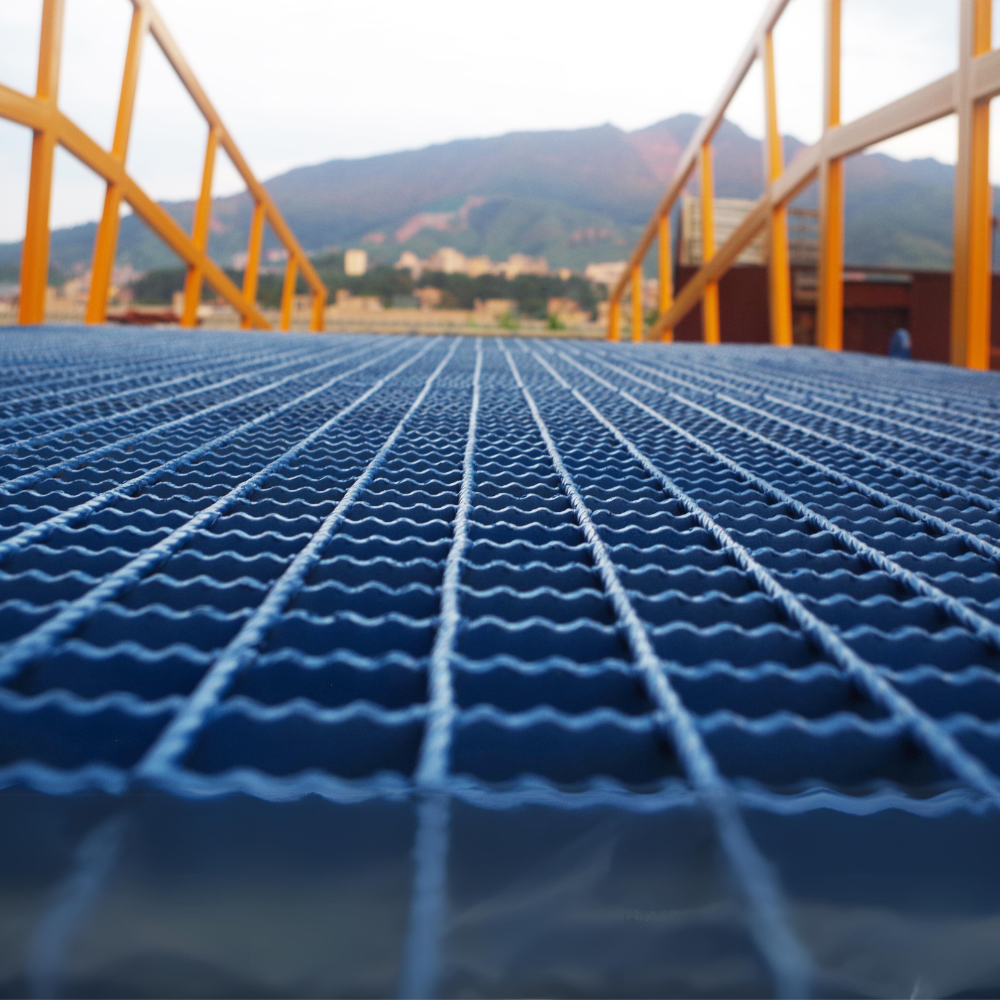

The fully welded steel frame is built to last, while the grated surface gives forklift tyres solid grip in wet or dusty conditions. It also clears away water and debris so the job can keep moving, rain or shine.

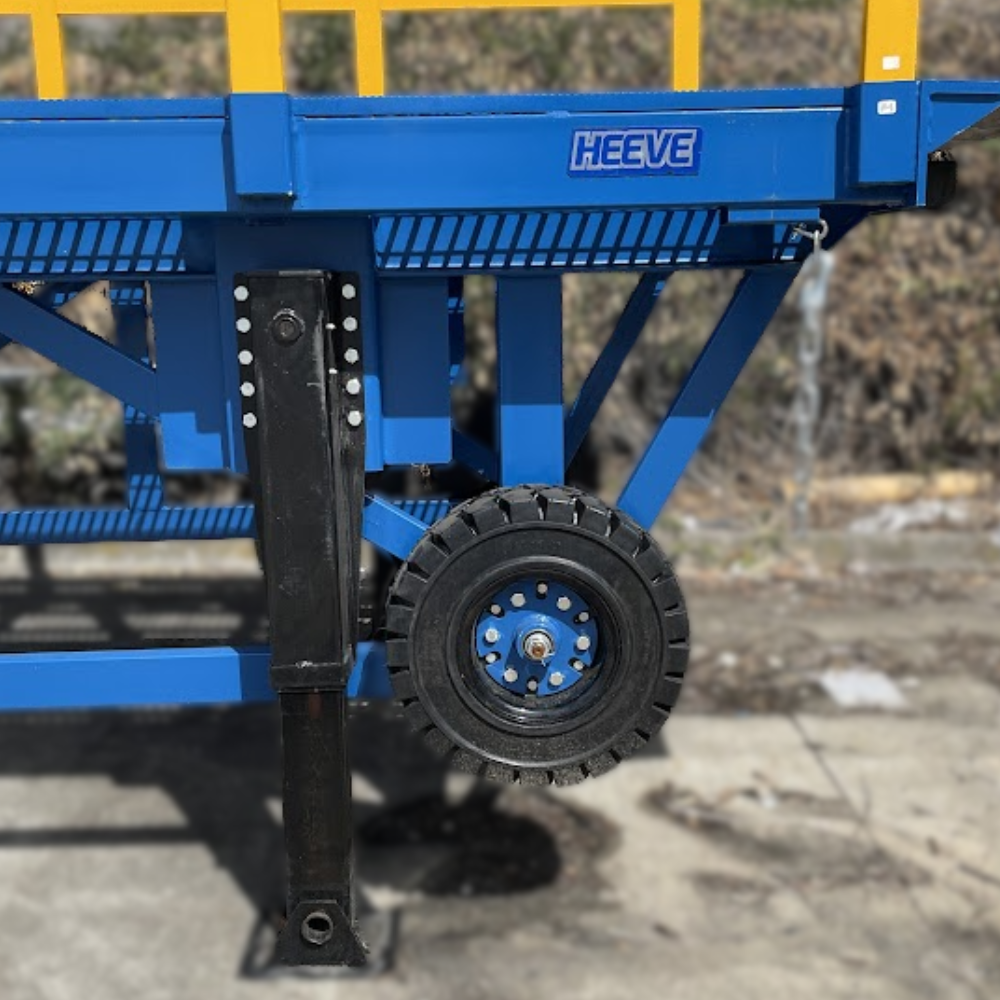

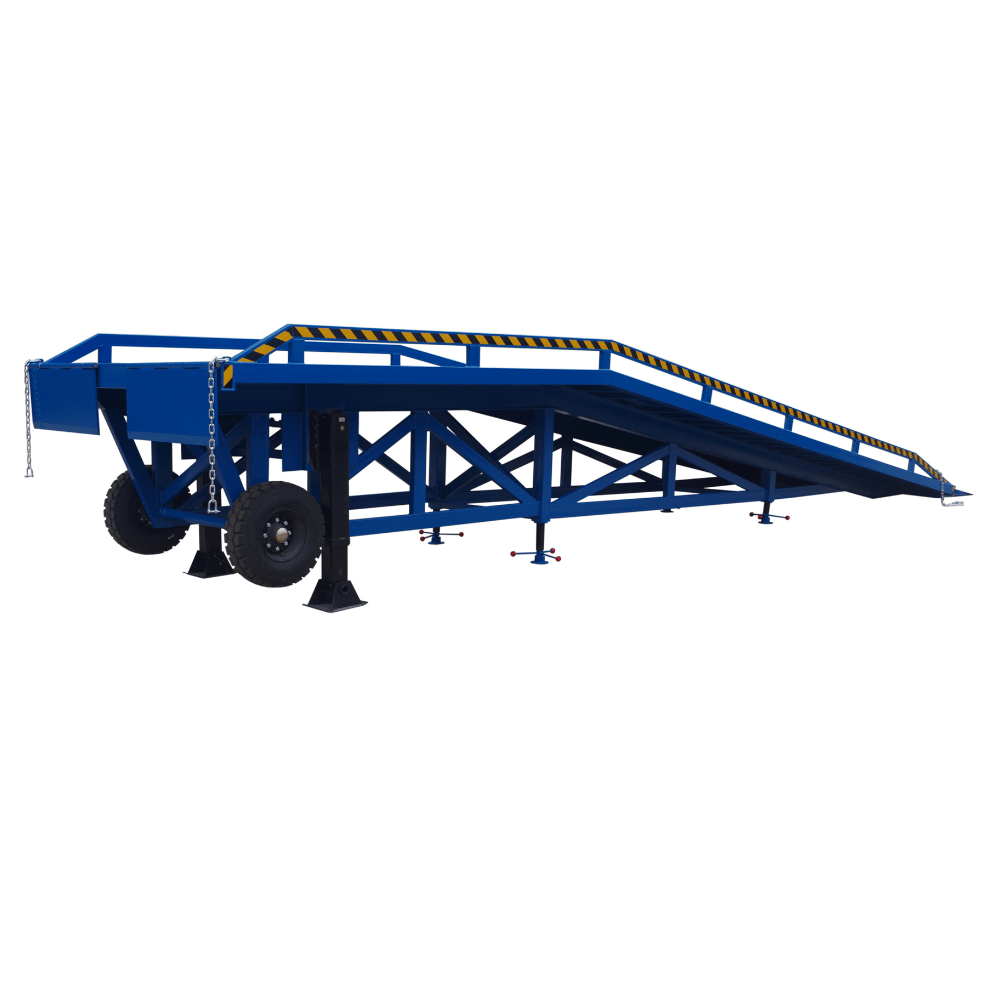

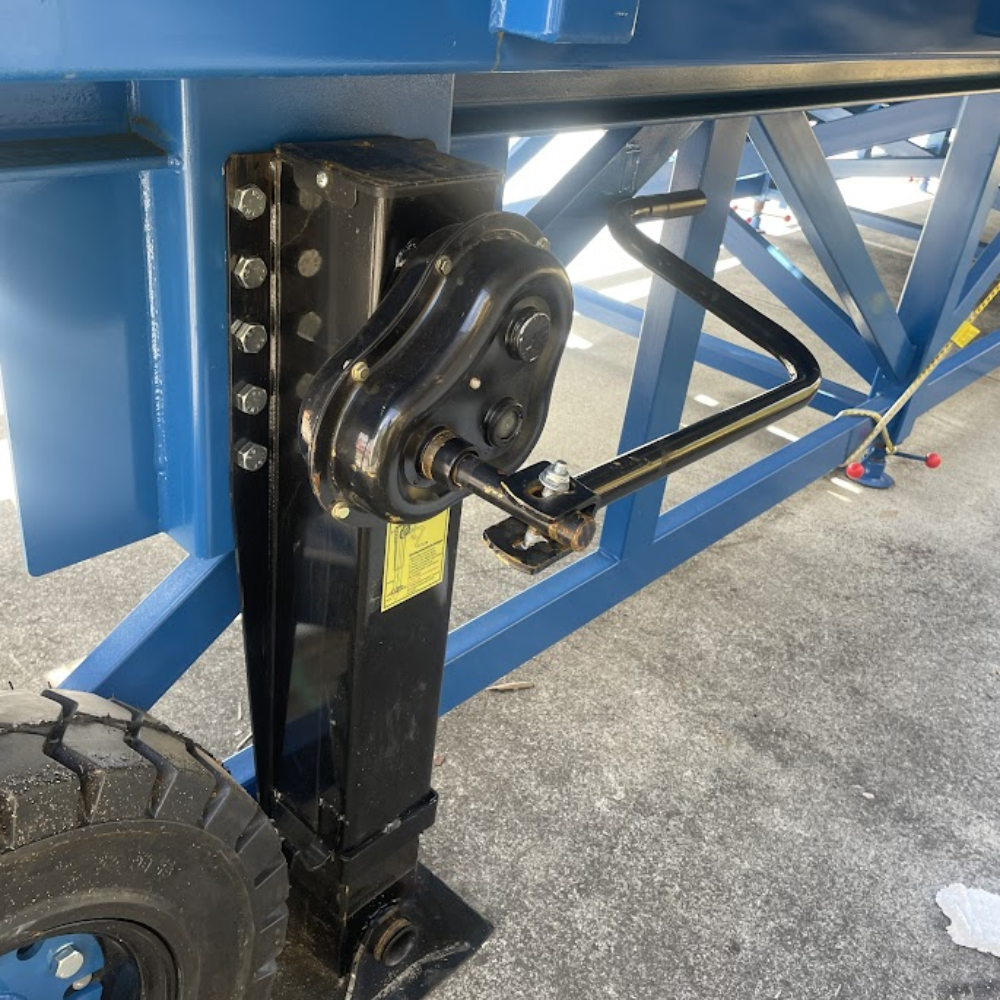

A manual crank system makes height adjustment quick and easy. It controls the telescopic support legs to set the ramp anywhere from 1200mm to 1600mm high.

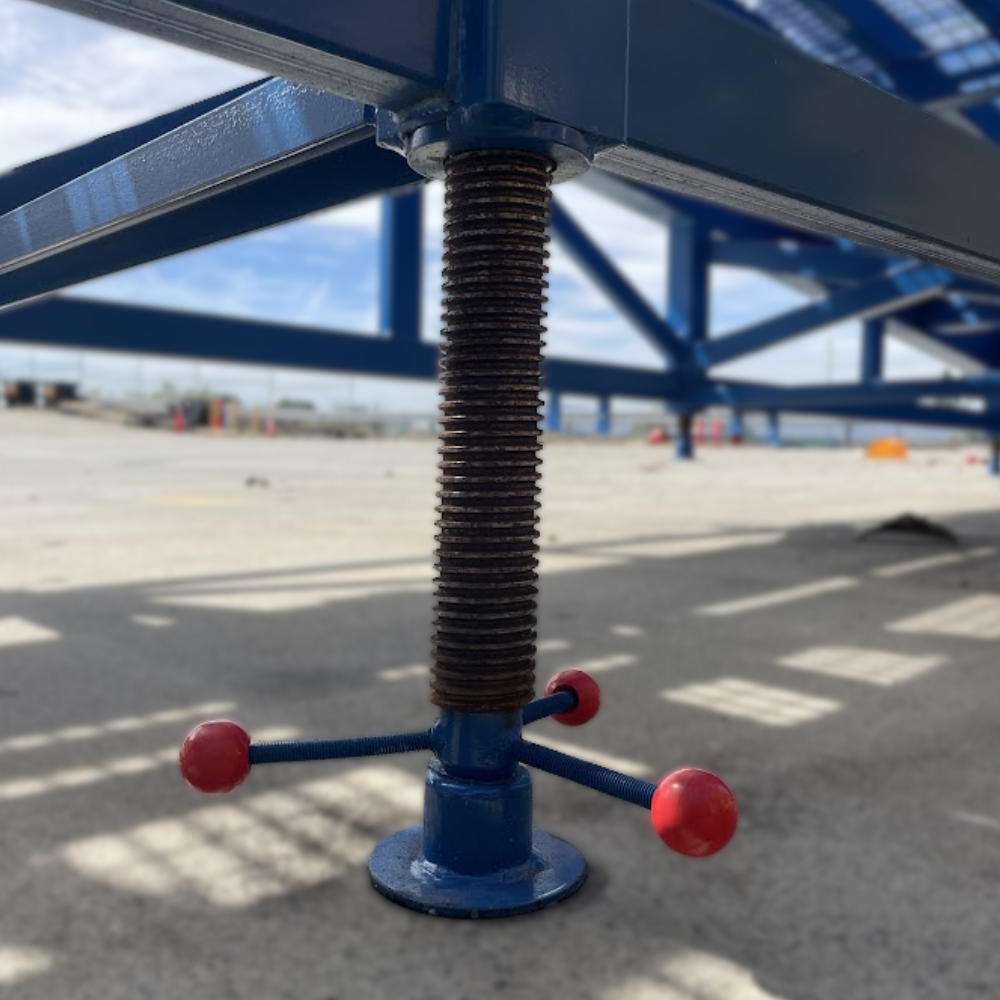

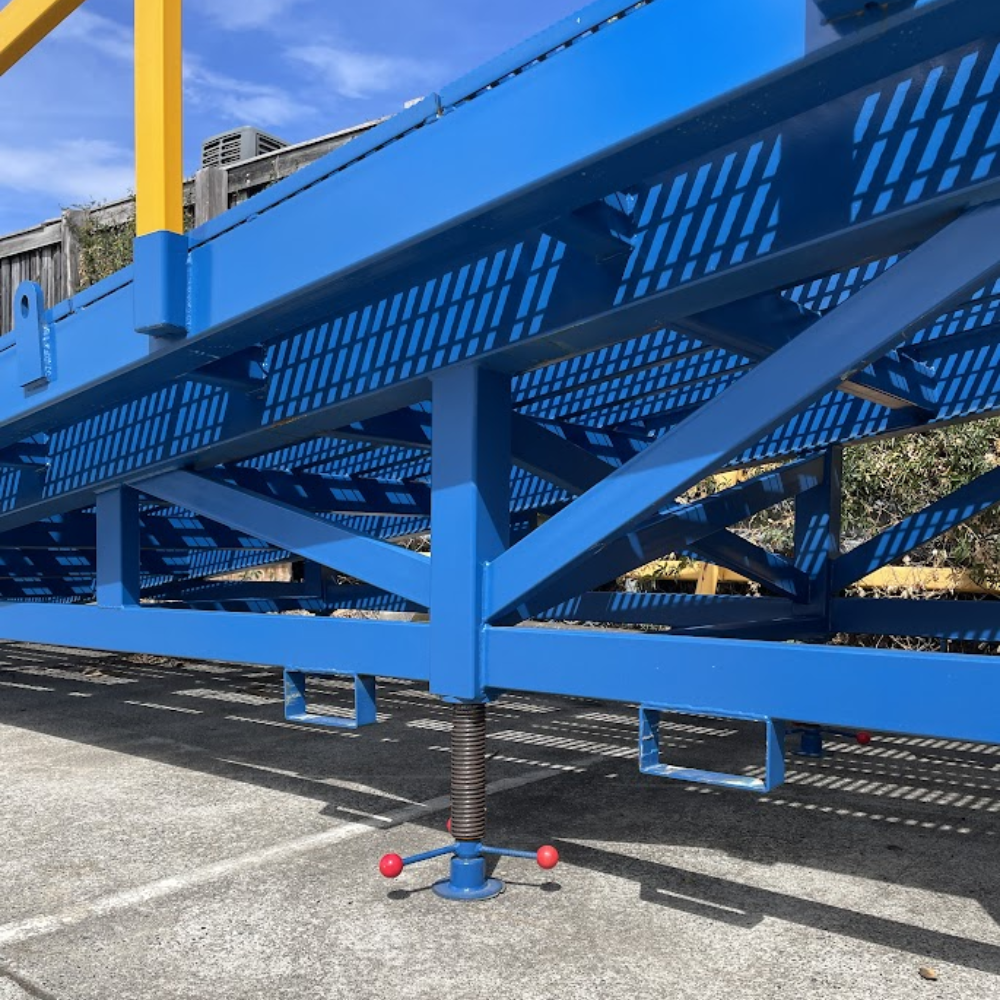

Once it’s where it needs to be, screw jacks underneath take over to keep the ramp steady under load. The grated deck is wide enough to suit most forklifts, with an internal usable width of 2060mm.

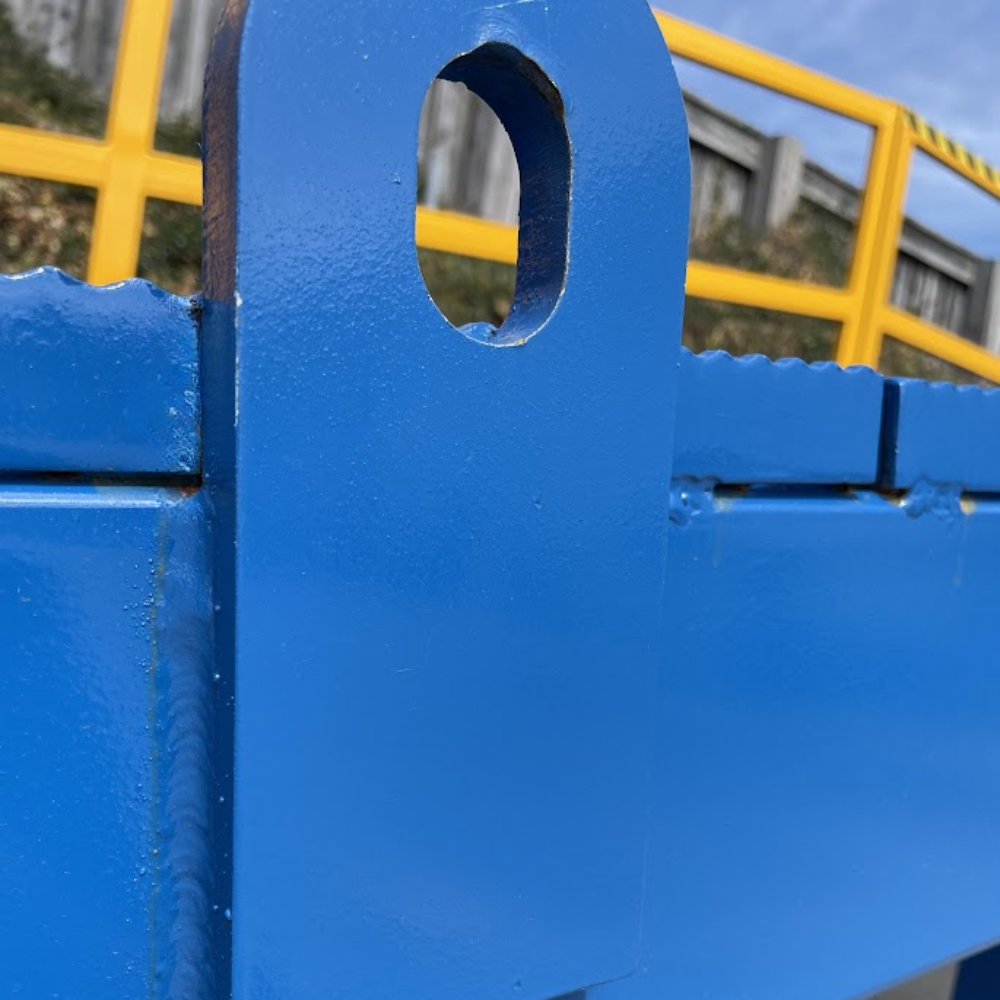

Moving the ramp is straightforward. Fork pockets and certified lifting lugs are built in, and a towbar slot under the frame means you can tow it short distances with a forklift.

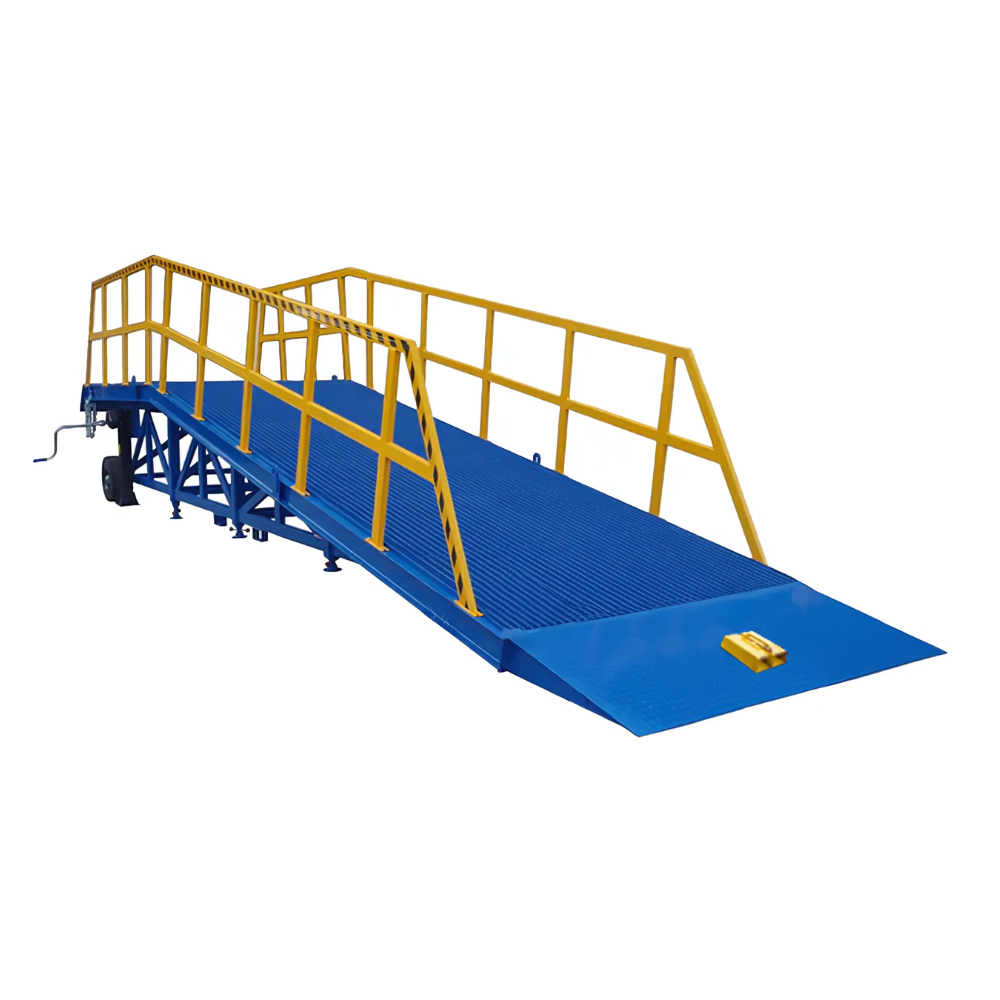

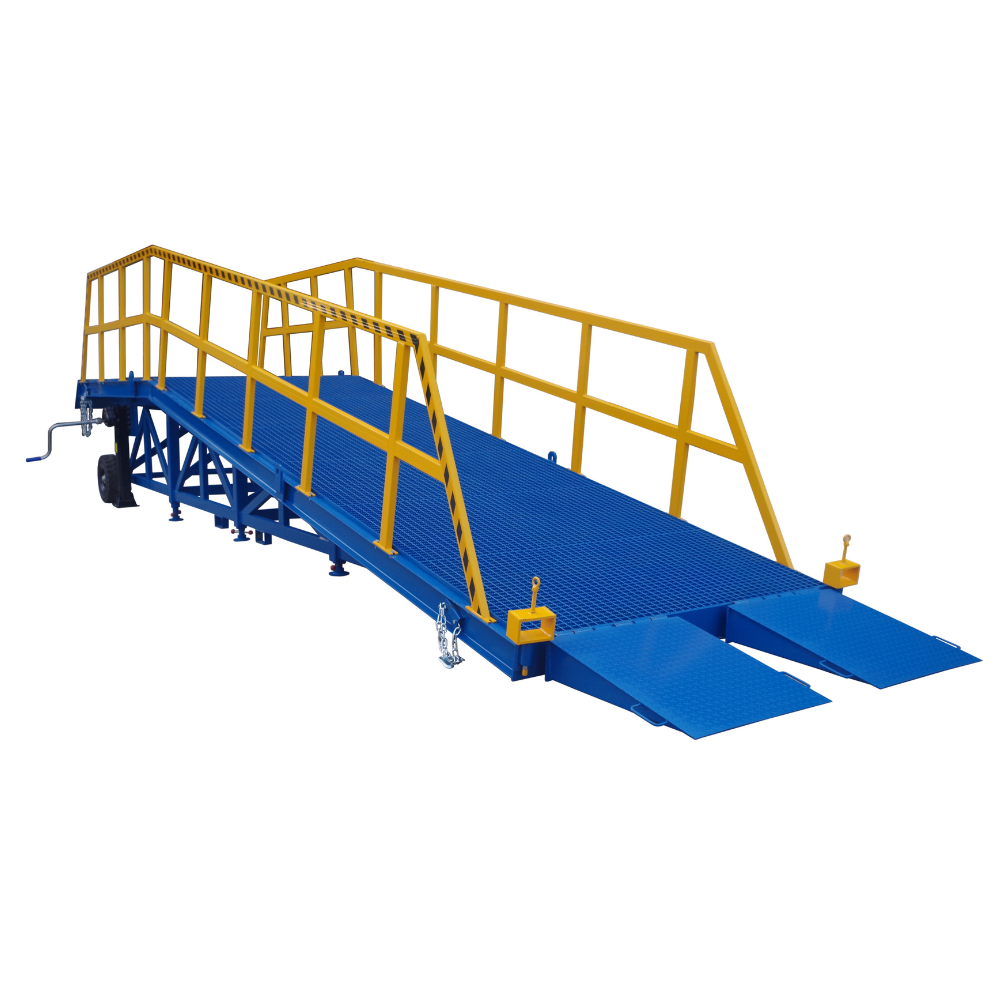

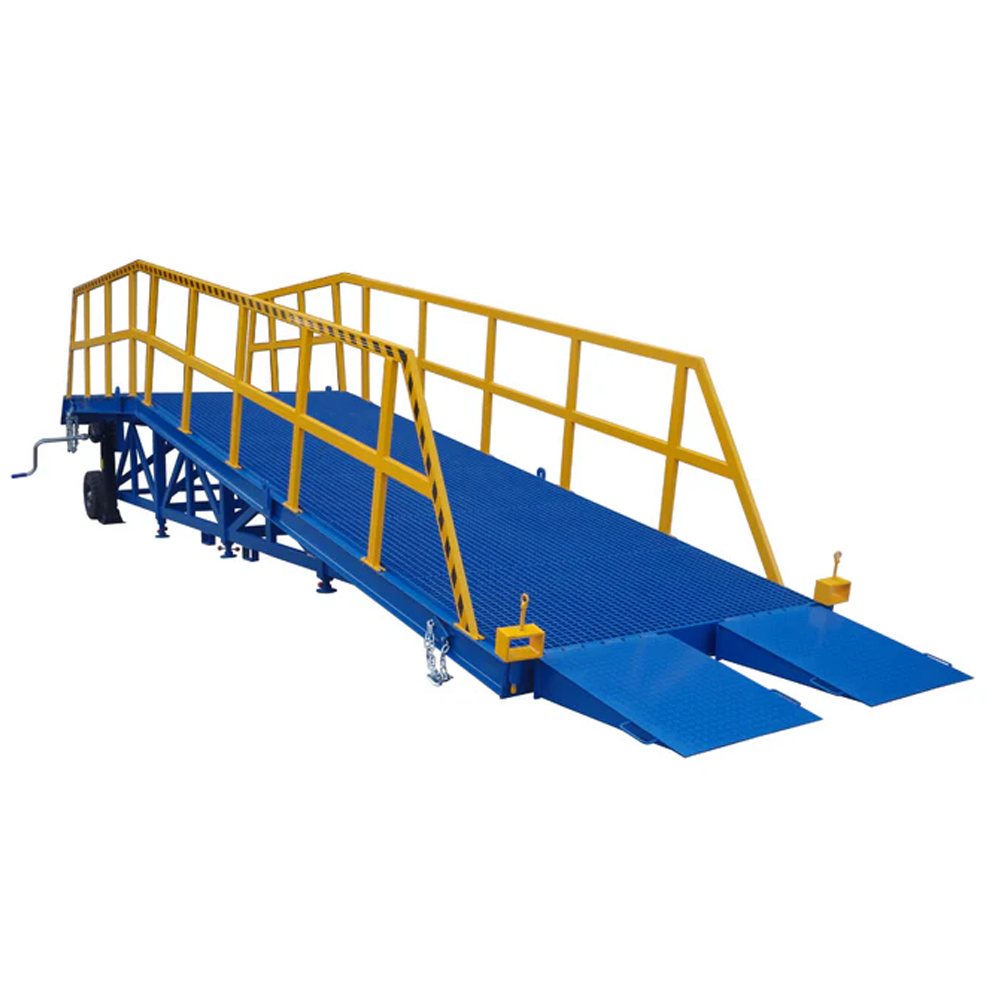

Standard models come with side guard rails, but you can swap these out for pedestrian handrails if foot access is needed.

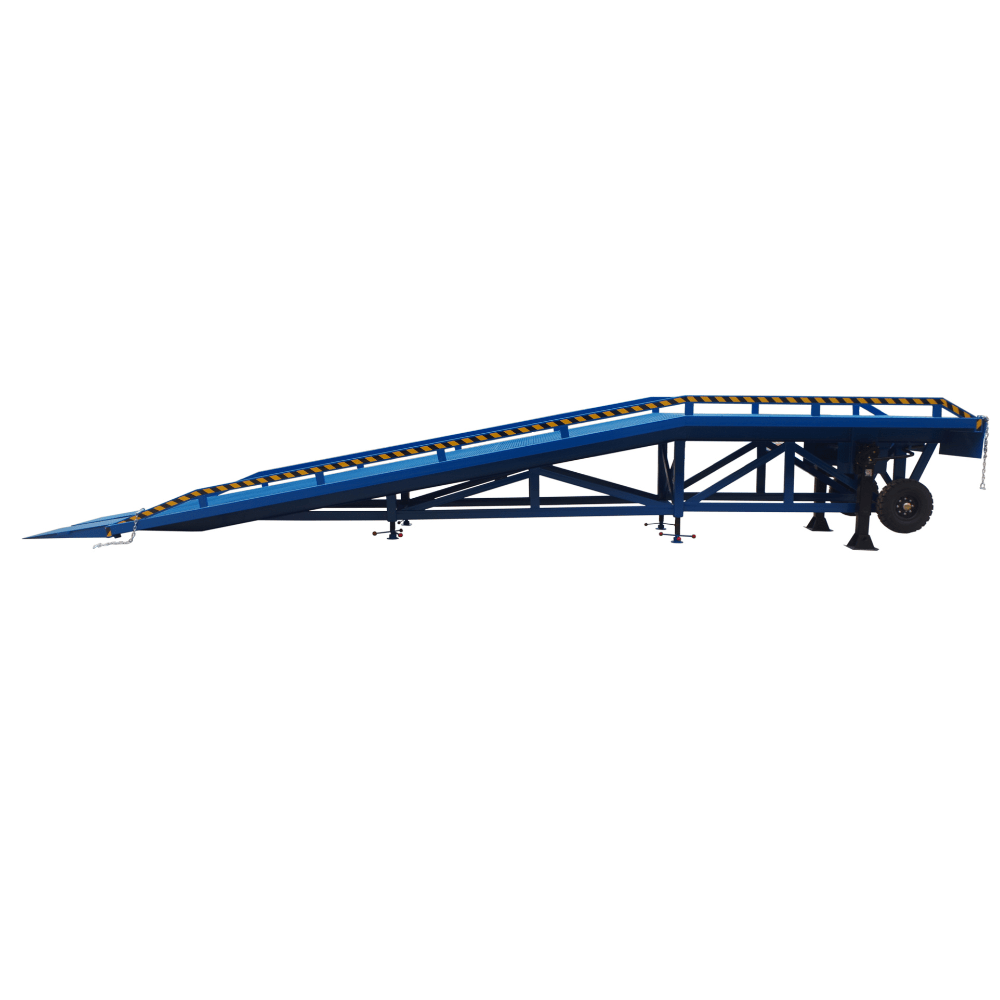

At the top, a 3-metre horizontal platform gives forklifts space to level out before entering the truck. The steel lip bridges cleanly onto the bed and is backed by solid rubber bumpers underneath to absorb any impact.
This ramp is designed for concrete, asphalt or solid gravel surfaces. It’s built for real work in tough Aussie yards, providing reliable performance every time.
Applications
- Forklift access from ground level to docks, containers, or trucks
- Mobile loading and unloading tasks in logistics yards or warehouses

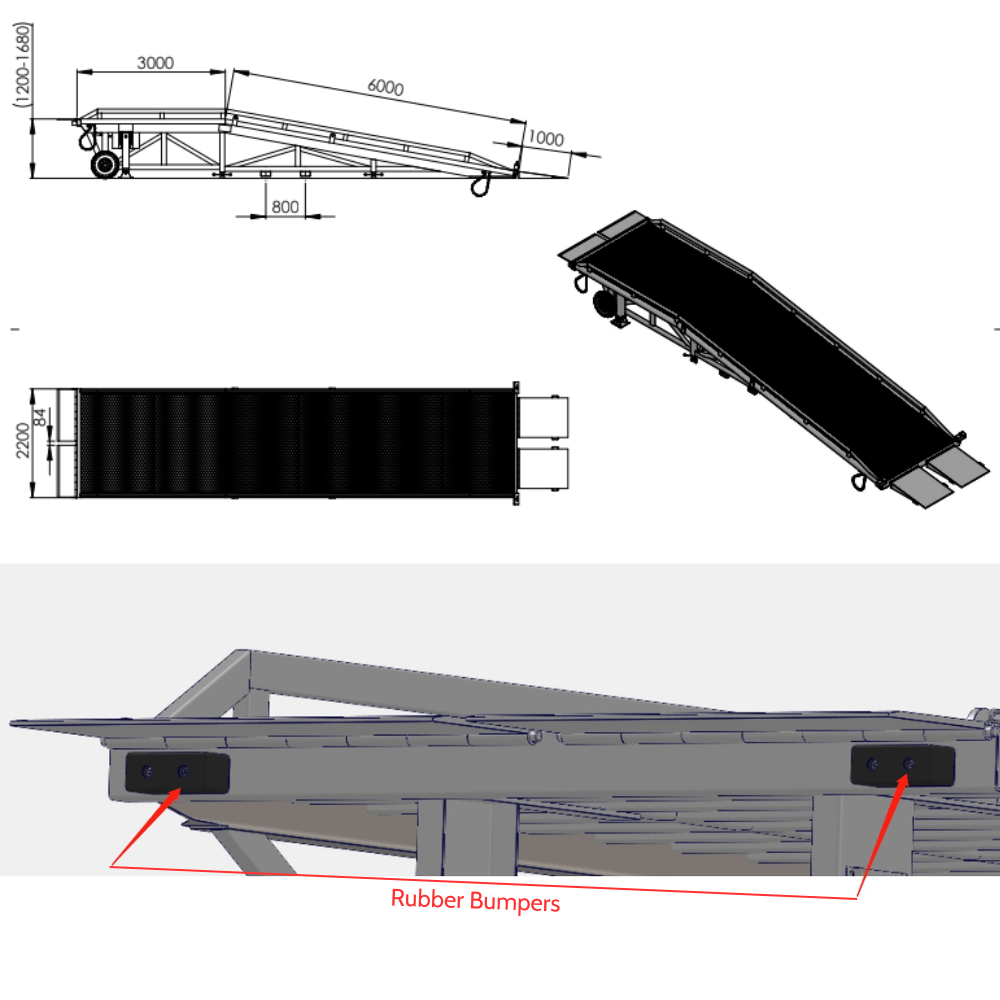

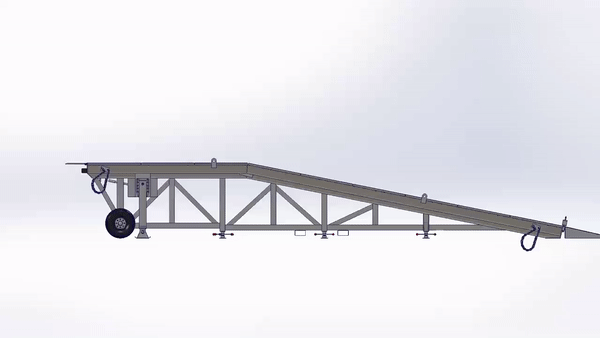

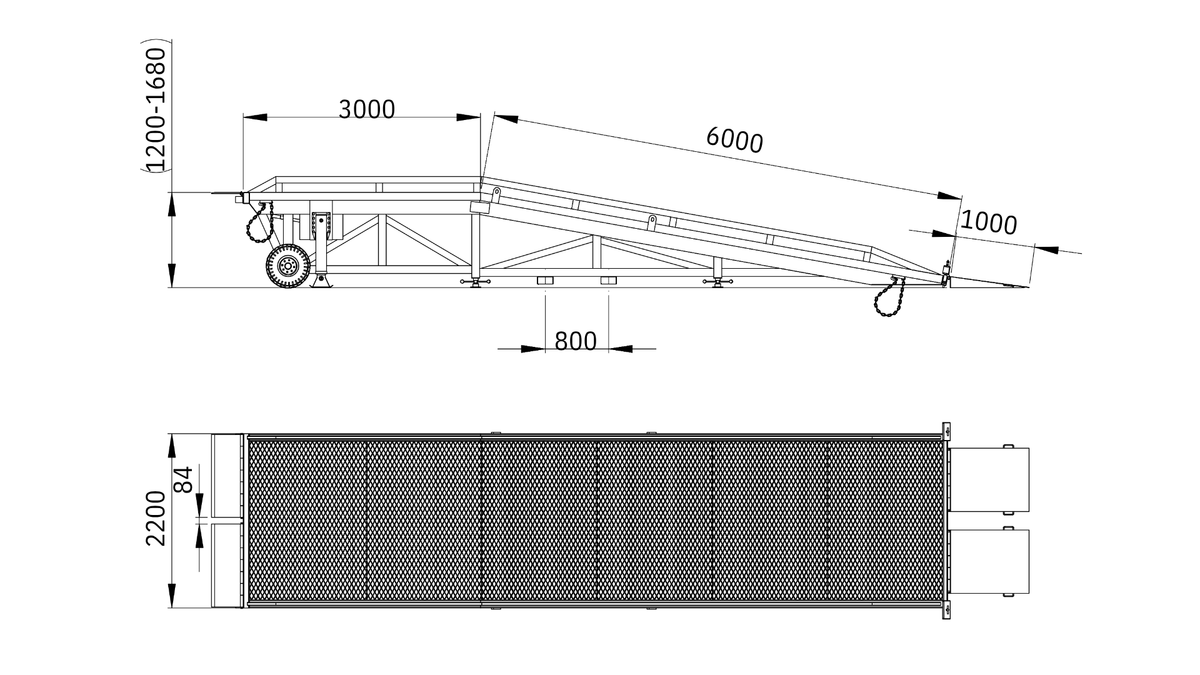

Design drawing
Note: Dimensions are subject to change without notice.
Heeve® Forklift Yard Ramp Standard Length Without Handrails
Engineering certification access
For customers or site managers requiring formal documentation for compliance or lifting plans, the following documents are available upon request:
● AS4100 Structural Certification
● Rigging Diagrams (per model)
● Lifting Lug Load Analysis
● Technical Specifications Report
Feel free to contact us to request copies.
Need to move the forklift ramp around site often?
For applications where the ramp is constantly moved on site from A to B, a Hydraulic Yard Ramp could be a better fit. It’s built with the same tough, fully welded all-steel frame and grated surface, but includes a built-in hydraulic system that lets you adjust the height faster and with less manual effort.
It's the perfect choice for busy yards where speed and flexibility are just as important as strength.
FAQs
What capacity do I need?
What capacity do I need?
Pick 8, 12 or 16 tonne WLL. It must cover your forklift's own weight plus its heaviest load. Allow a buffer for movement.
Is it certified?
Is it certified?
Yes. Quantech Design certified every model to AS4100 for its rated WLL, and the lifting lugs too. Copies are available on request.
What heights will it reach?
What heights will it reach?
Anywhere from 1200mm to 1600mm, set with the crank handle, then the screw jacks take the load.
How is it moved and unloaded?
How is it moved and unloaded?
With a forklift of at least 4.5 tonnes in the fork pockets, or a 5 tonne crane on the four lifting lugs. It can be towed short distances on site.
What surfaces can I use this ramp on?
What surfaces can I use this ramp on?
The ramp is designed for hard, level surfaces like concrete, asphalt, or compacted gravel. It’s not suitable for soft, sloped, or uneven ground. Always make sure the surface is stable and solid before positioning the ramp to keep your team and your gear safe.
How do I change the ramp height?
How do I change the ramp height?
The ramp height is adjusted manually using a crank handle, which raises or lowers the telescopic legs at the top of the ramp. Once you’ve got it in place, the screw jacks underneath help stabilise it on the ground. The working height range is 1200mm to 1600mm, so it’ll suit most standard trucks and containers.
Can I move it easily around the site?
Can I move it easily around the site?
The ramp has forklift pockets, lifting lugs, and a towbar slot so it can be shifted with a forklift. For short-distance moves around the site, it’s simple and safe to relocate. If you’re moving the ramp regularly, though, we recommend the hydraulic version, which makes raising and lowering even quicker.
