Heeve Hinged Lid Rubber Cable Protector - 2 Channel
Ramp Champ's own brandSKU: H0131$62.73 ex GST
- Size1000mm x250mm x 50mm
- Weight7.2kg
- Made ofRubber
- Tested for use with axle loads up to 15,000kg
- Without unpleasant rubber smell
- Black and yellow safety coloured finish
Sold out
Email me when it's back
Ramp Champ's own brandi
54,000+ soldi
12-month warrantyi
100-day free returnsi
Rated 4.7 from 1,186 reviews on Google, ProductReview and Trustpilot
Delivery & Pickup
Delivery details
Shipping charges apply per shipment and can vary by warehouse or supplier. Shipping policy
Estimate delivery to your door
An estimate for this item to that suburb, from the same rates checkout uses. You choose the delivery method at checkout.
Pickup details
Reviews
Specifications
Specifications
Product Specs
| Holds | 15000 |
|---|---|
| Made of | Rubber |
| Brand | Heeve |
| SKU | H0131 |
| Weight | 7.2kg |
| Channel size | 32 (W) x 32 (H) mm |
| Dimensions | 1000mm x250mm x 50mm |
Key Benefits
Key Benefits
- Tested for use with axle loads up to 15,000kg
- Without unpleasant rubber smell
- Black and yellow safety coloured finish
- The hinged lid allows cables to be positioned easily
- Requires no tools for assembling
- Protects essential cables at any worksite or outside events
- Can be used both indoors and outdoors
- Better than existing cable protectors on the market
- Made of heavy-duty recycled solid rubber body with shock-resistant PVC yellow lid cover
- Interlocking modules to provide continuous protection for any length of cable
- 2-Channels prevent cables from tangling or coming into contact with one another

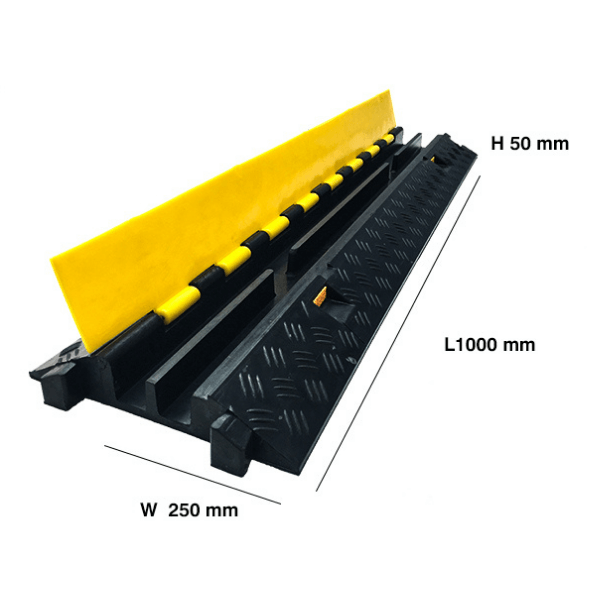

Cable protector dimensions
Watch the load test
About This Product
About This Product

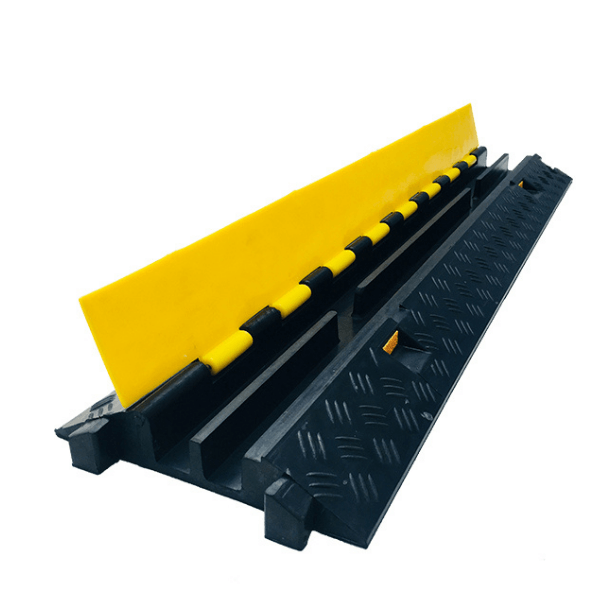

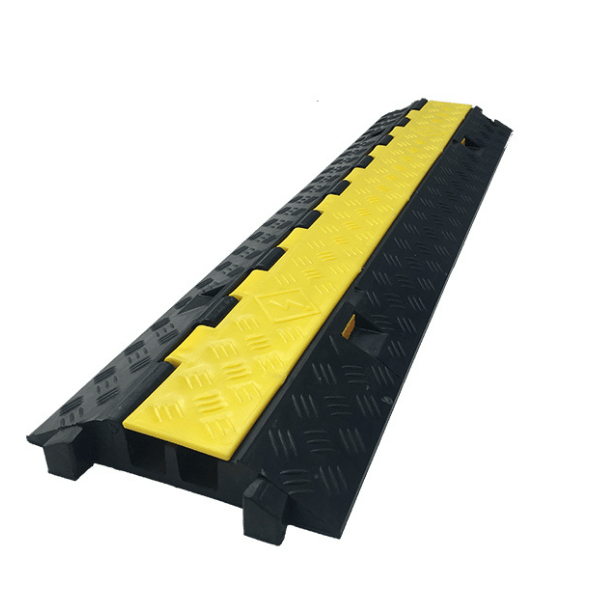

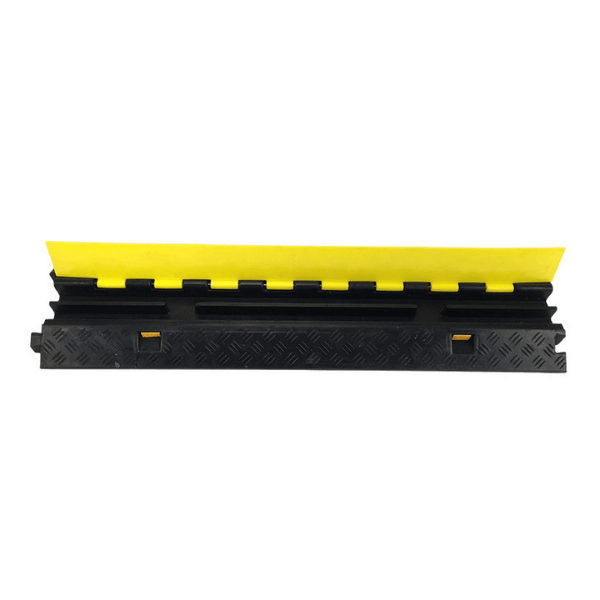

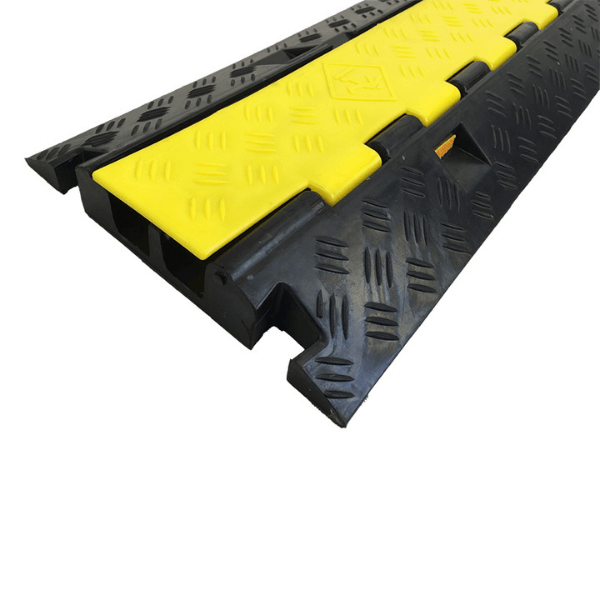

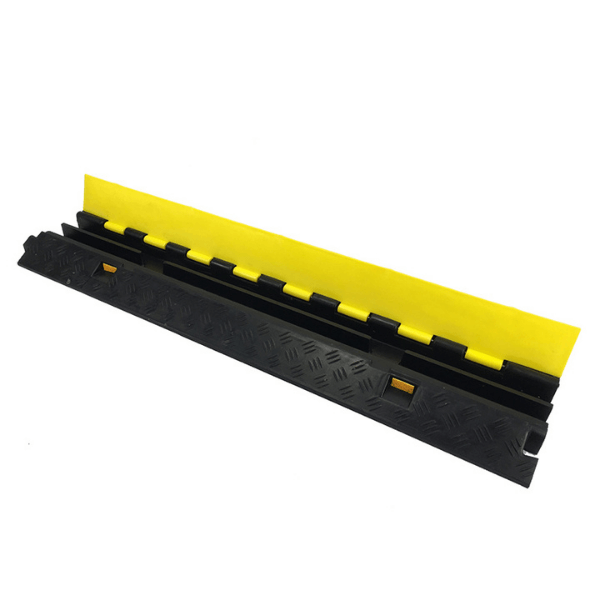

Protect your cables with a hinged lid
The Heeve 2-Channel Hinged Lid Rubber Cable Protector is a great solution in protecting essential cables and hoses at your worksite or during outside events.
It provides safe access for people while protecting cables underneath, and includes hinged lids for convenience.
The Heeve Hinged Lid Rubber Cable Protector's flexible, modular design allows for any cables to be routed through its two channels. The cable channels safeguard all of your wires and cables from becoming tangled and keep them from coming into contact with one another (e.g. Electricity, water) thus, reduces the risk of accidents and/or serious damage.

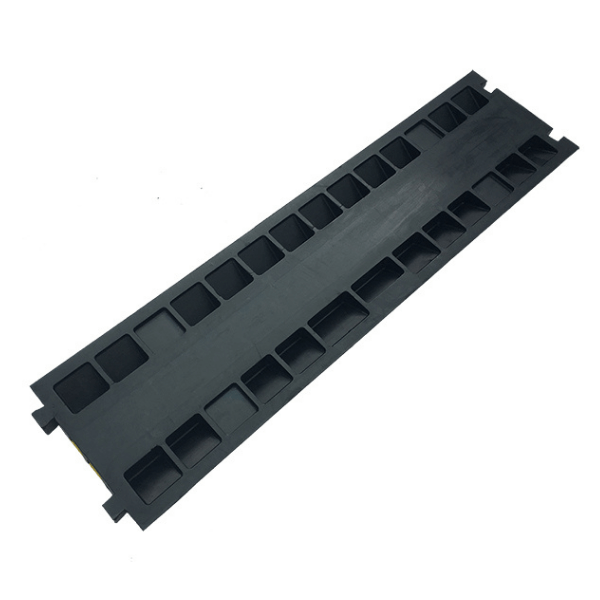

The rubber cable protector is made of recycled solid rubber which is a better rubber material than the ones on the market. The hinged lid is made of high-quality, shock-resistant PVC which protects and keeps your cables in place.
Each cable protector is provided with strong male/female connections that interlock each module to form a very stable unit for any cable length requirements.
The 2-channel cable holes measure 32mm high and 32mm wide, which allow a varied selection of cables and hoses to be accommodated.
The cable protector is provided with guideholes where bolts can easily go through for a more permanent installation. Place the ramps into the required position and bolt them down using the Heeve Sleeve Anchor Bolt For Ramps (Sold separately). Cables can be installed later and be kept in place via the hinged lid.
With its 15,000kg loading capacity, the Heeve Hinged Lid Rubber Cable Protector can withstand a fully loaded forklift with 3-5 tonnes cargo or any light-duty vehicles. It can occasionally support a large vehicle weighing more than 15,000 kg. However, if large vehicles weighing more than 15,000 kg utilize the cable protector multiple times per day, the ramp will age faster and have a shorter service life.
The Heeve Hinged Lid Rubber Cable Protector is suitable for indoor or outdoor use and a smart choice for protecting your essential cables from various weather conditions and road obstructions. It is a must-have if your cables and hoses cannot be buried or otherwise made safe for a better and safer environment.
Important note
Due to the nature of moulded rubber manufacturing, minor variations in dimensions may occur.
All ramps are produced within industry-standard tolerances, with a possible deviation of up to ±10mm depending on the product size. These variations do not affect performance or load capacity.
New rubber ramps may also have a noticeable rubber smell, particularly recycled models shipped in sealed cartons. This is normal, completely safe, and will fade once the ramp is aired out.
